FORD RANGER 1998 2.G Owners Manual driveshaft and axle flanges to ensure proper position when
reconnecting the driveshaft. Refer to the ªWorkshop Manualº for
proper fastener torque specifications.
When disconnecting/installing the dr

Page 92 of 160

FORD RANGER 1998 2.G Owners Manual CAMPER BODIES
Your Ranger Pickup is not recommended for slide±in camper bodies.
FUEL CONSUMPTION
Fuel economy can be improved by avoiding:
²lack of regular, scheduled maintenance.
²excessive speed.

Page 93 of 160

FORD RANGER 1998 2.G Owners Manual HAZARD LIGHTS CONTROL
Use only in an emergency to warn traffic of vehicle breakdown,
approaching danger, etc. The hazard flashers can be operated when the
ignition is off.
²The hazard lights control

Page 94 of 160

FORD RANGER 1998 2.G Owners Manual The fuel pump shut-off switch is
located in the passengers foot well,
behind the kick panel.

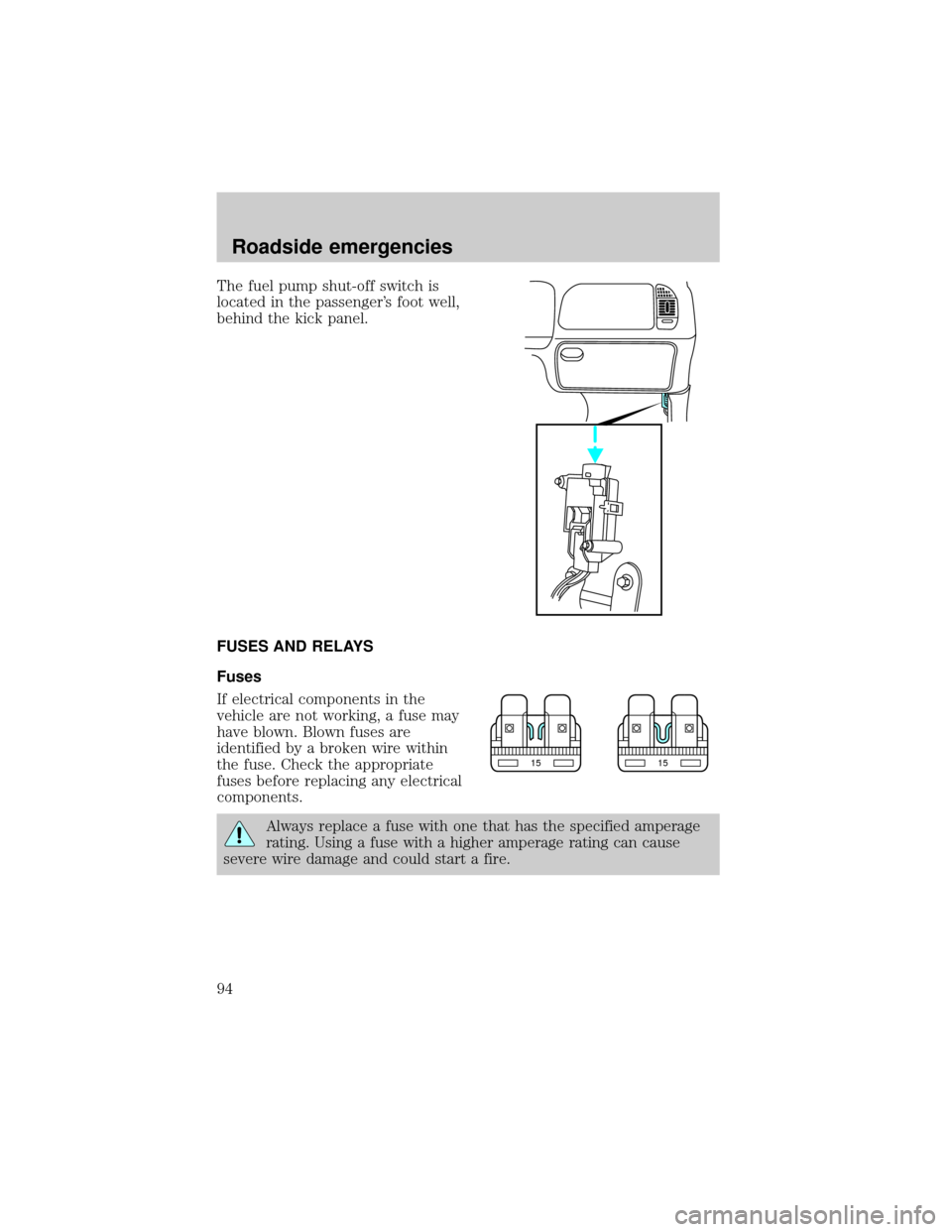

FUSES AND RELAYS
Fuses
If electrical components in the
vehicle are not working, a fuse may
have blown. Blo

Page 95 of 160

FORD RANGER 1998 2.G Owners Manual Standard fuse amperage rating and color
Fuse rating Color
5 amp Tan
7.5 amp Brown
10 amp Red
15 amp Light blue
20 amp Yellow
20 amp fuse link Light blue
25 amp Natural
30 amp Light green
30 amp fuse l

Page 96 of 160

FORD RANGER 1998 2.G Owners Manual The fuses are coded as follows:
Fuse/
Relay
LocationFuse
Amp
RatingDescription
1 7.5A Power Mirror Switch
2 7.5A Blower Motor Relay, PAD Module, Air Bag
Diagnostic Monitor
3 7.5A Left Stop/Turn Traile

Page 97 of 160

FORD RANGER 1998 2.G Owners Manual Fuse/
Relay
LocationFuse
Amp
RatingDescription
11 7.5A Instrument Cluster, Daytime Running Lights
(DRL), RABS Resistor
12 - NOT USED
13 20A Brake Pedal Position Switch
14 20A or
10A20A: If equipped wi

Page 98 of 160

FORD RANGER 1998 2.G Owners Manual Fuse/
Relay
LocationFuse
Amp
RatingDescription
29 15A Radio
30 15A Park Lamp/Trailer Tow Relay
31 Ð Not Used
32 Ð Not Used
33 15A Headlamps, Daytime Running Lamps (DRL)
Module, Instrument Cluster
34

Page 99 of 160

FORD RANGER 1998 2.G Owners Manual The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingDescription
1 50A** I/P Fuse Panel
2 40A** Blower Motor Relay
3 50A** 4 Wheel Anti-Lock Brake System (4WABS)
Module
4 20A

Page 100 of 160

FORD RANGER 1998 2.G Owners Manual Fuse/Relay
LocationFuse Amp
RatingDescription
8 30A* PCM Relay
9 20A* Fuel Pump Relay and RAP Module
10 15A* Horn Relay
11 15A* Parklamps Relay and Main Light Switch
12 30A* Main Light Switch and Mult
