Page 234 of 248
ItemFord part
name or
equivalentFord part
numberFord
specification
Engine oil2.3L and 3.0L
engines
Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor OilXO-5W20-QSP WSS-M2C153-H
and API
Certification
Mark
4.0L engines
Motorcraft SAE
5W-30 Super
Premium Motor
OilXO-5W30-QSP WSS-M2C205–A
and API
Certification
Mark
Hinges, door
checks, latches,
striker plates,
fuel filler door
hinge and seat
tracksMulti-Purpose
GreaseXG-4 or XL-5 ESB-M1C159-A
or ESB-M1C93-B
Transmission
/steering/parking
brake linkages
and pivots,
brake and clutch
pedal shaft,
clutch pilot
bearing and.
input shaft
spline (manual
transmission)Motorcraft
Premium
Long-Life GreaseXG-1-C or
XG-1-KESA-M1C75-B
Maintenance and Specifications
234
Page 236 of 248
ENGINE DATA
Engine 2.3L I4 engine 3.0L V6 engine 4.0L V6 engine
Cubic inches 138 182 245
Required fuel 87 octane 87 octane 87 octane
Firing order 1-3-4-2 1-4-2-5-3-6 1-4-2-5-3-6
Spark plug gap1.04-1.19 mm
(0.041-0.047
inch)1.07-1.1 7mm
(0.042-0.046
inch)1.3-1.4 mm
(0.052-0.056
inch)
Ignition system EDIS EDIS EDIS
Compression
ratio9.7:19.7:1 9.0:1
VEHICLE DIMENSIONS
Vehicle
dimensionsRegular Cab
Short Wheel
Base (SWB) mm
(in)Regular Cab
Long Wheel
Base (LWB)
mm (in)Supercab mm
(in)
(1) Overall
length4 763 (187.5) 5 093 (200.5) 5 153 (202.9)
(2) Overall
width1 785 (70.3) 1 785 (70.3) 1 785 (70.3)
(3) Overall
height 4x2/4x41 593.5 (62.7) /
1 655 (65.2)1 596 (62.8) /
1 655 (65.2)1 599 (62.9) /
1 657 (65.2)
(4) Wheelbase 2 831 (111.4) 2 983 (117.4) 3 192 (125.7)
(5) Track -
Front1 486 (58.5) 1 486 (58.5) 1 485 (58.5)
(5) Track -
Rear1 455 (57.3) 1 455 (57.3) 1 455 (57.3)
Maintenance and Specifications
236
Page 239 of 248

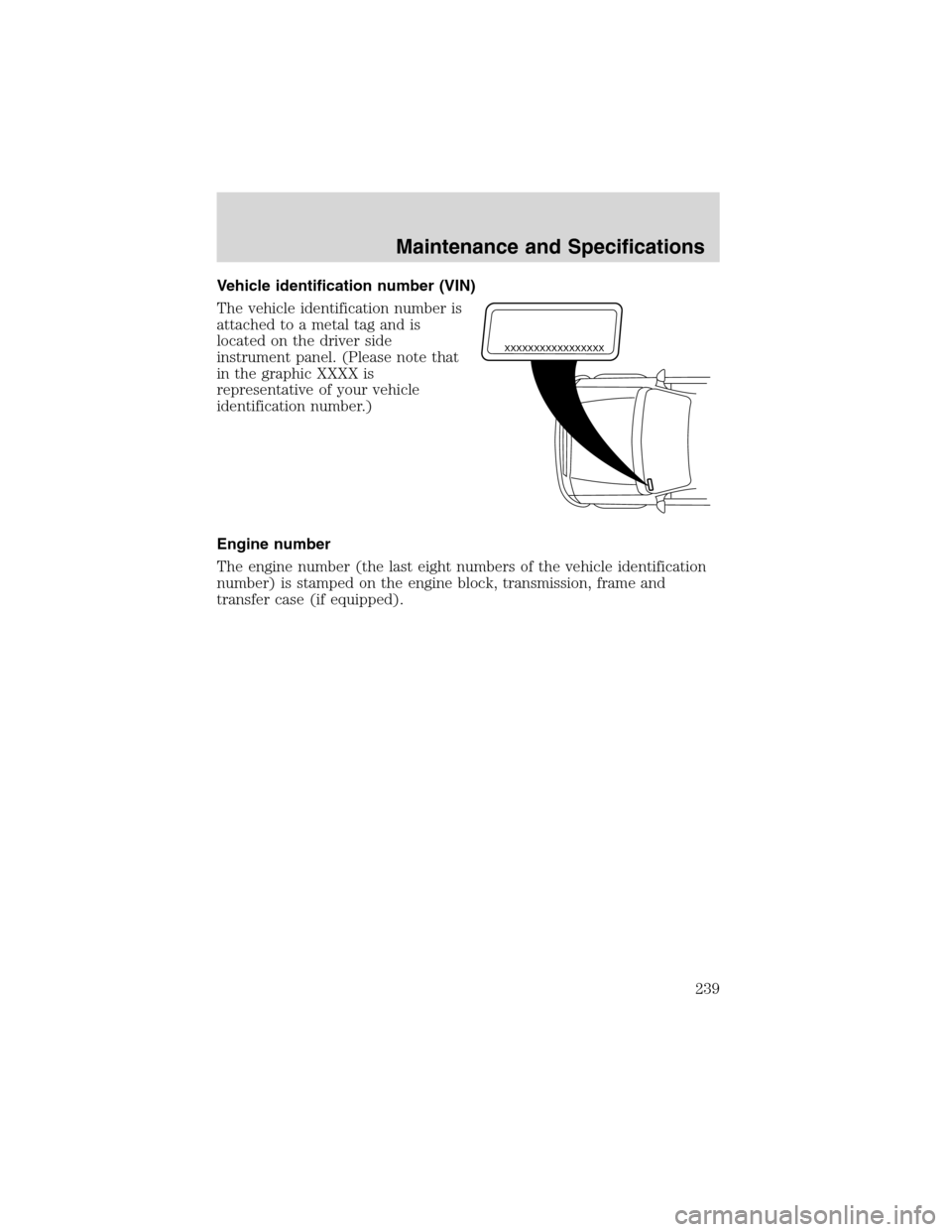

Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block, transmission, frame and
transfer case (if equipped).
XXXXXXXXXXXXXXXXX
Maintenance and Specifications
239
Page 240 of 248
FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of genuine Ford accessories are available for your
vehicle through your local authorized Ford, Lincoln Mercury or Ford of
Canada dealer. These quality accessories have been specifically
engineered to fulfill your automotive needs; they are custom designed to
complement the style and aerodynamic appearance of your vehicle. In
addition, each accessory is made from high quality materials and meets
or exceeds Ford’s rigorous engineering and safety specifications. Ford
Motor Company will repair or replace any properly dealer-installed Ford
accessory found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessory. The accessory will be warranted for
whichever provides you the greatest benefit:
•12 months or 20,000 km (12,000 miles) (whichever occurs first), or
•The remainder of your new vehicle limited warranty.
This means that genuine Ford accessories purchased along with your
new vehicle and installed by the dealer are covered for the full length of
your New Vehicle’s Limited Warranty—3 years or 60,000 km (36,000
miles) (whichever occurs first). Contact your dealer for details and a
copy of the warranty.
Not all accessories are available for all models.
Vehicle Security
Cargo security shade
Keyless entry system
Styled wheel protector locks
Vehicle security systems
Comfort and convenience
Cargo cage / bed extender
Cargo organizers
Cargo retainer net
Engine block heaters
Manual sliding rear window
Remote start
Tire step
Travel equipment
Automatic headlamp system with DRL
Bed rail caps
Accessories
240
Page 242 of 248

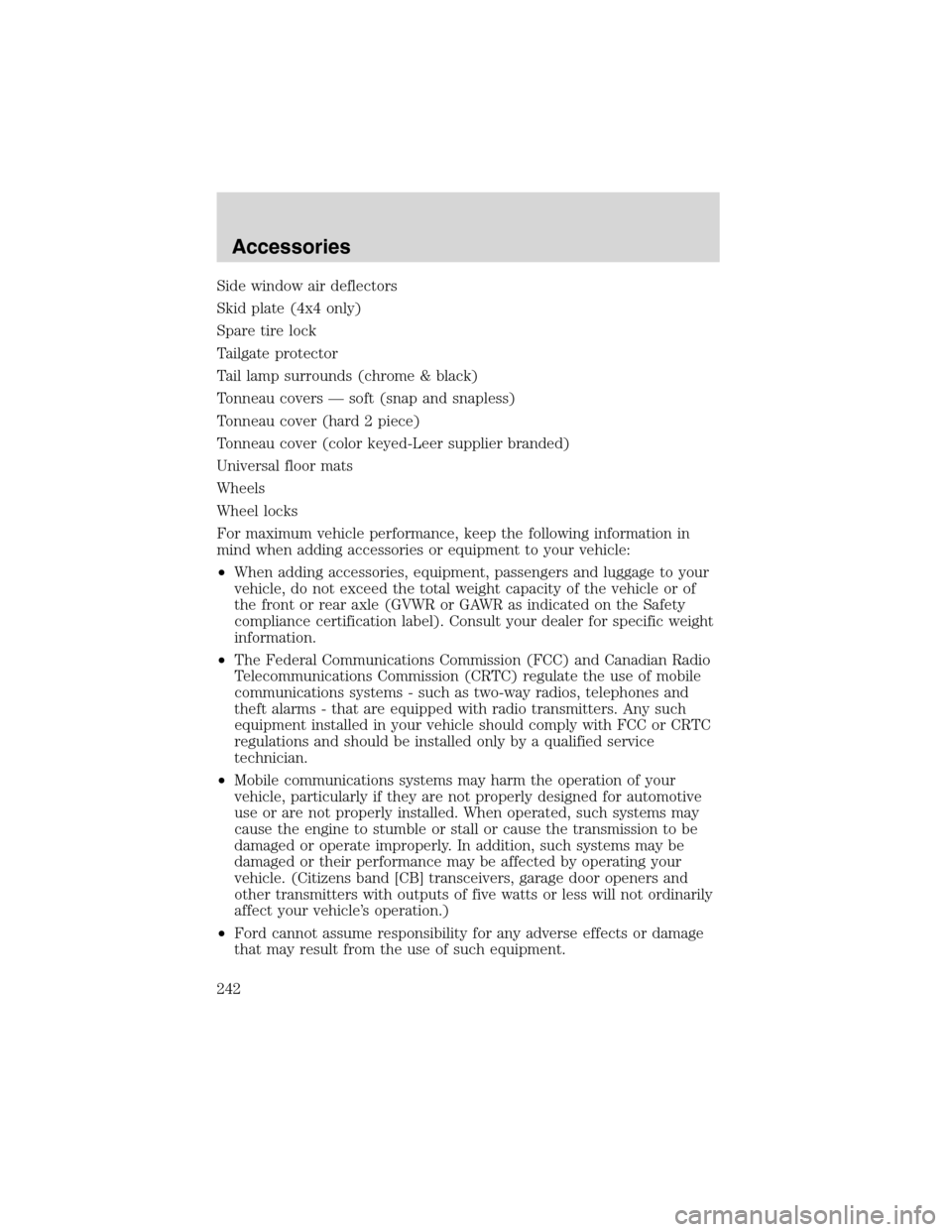

Side window air deflectors
Skid plate (4x4 only)
Spare tire lock
Tailgate protector
Tail lamp surrounds (chrome & black)
Tonneau covers—soft (snap and snapless)
Tonneau cover (hard 2 piece)
Tonneau cover (color keyed-Leer supplier branded)
Universal floor mats
Wheels
Wheel locks
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
compliance certification label). Consult your dealer for specific weight
information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems - such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use or are not properly installed. When operated, such systems may
cause the engine to stumble or stall or cause the transmission to be
damaged or operate improperly. In addition, such systems may be
damaged or their performance may be affected by operating your
vehicle. (Citizens band [CB] transceivers, garage door openers and
other transmitters with outputs of five watts or less will not ordinarily
affect your vehicle’s operation.)
•Ford cannot assume responsibility for any adverse effects or damage
that may result from the use of such equipment.
Accessories
242
Page 243 of 248
A
Air bag supplemental restraint
system ..........................................85
and child safety seats ..............87
description ................................85
disposal ......................................90
driver air bag ............................88
indicator light ...........................89
operation ...................................88
passenger air bag .....................88
passenger deactivation
switch ........................................90
Air cleaner filter .......................229
Ambulance packages ....................7
Antifreeze
(see Engine coolant) ................200
Anti-lock brake system
(see Brakes) ..............................113
Audio system
(see Radio) ....16–17, 20, 23, 29, 33
Automatic transmission ............115
driving an automatic
overdrive .................................116
fluid, adding ............................219
fluid, checking ........................219
fluid, refill capacities ..............229
fluid, specification ..................236
Auxiliary power point .................51
Axle
lubricant
specifications ..................233, 236
refill capacities ........................229
traction lok ..............................114
B
Battery .......................................198
acid, treating
emergencies ............................198jumping a disabled
battery .....................................165
maintenance-free ....................198
replacement,
specifications ..........................229
servicing ..................................198
Bed extender ..............................57
BeltMinder ...................................80
Brakes ........................................112
anti-lock ...................................113
anti-lock brake system (ABS)
warning light ...........................113
fluid, checking and adding ....218
fluid, refill capacities ..............229
fluid, specifications .........233, 236
lubricant
specifications ..................233, 236
parking ....................................113
shift interlock ..........................115
Bulbs ............................................44
C
Calculating load ........................134
Capacities for refilling fluids ....229
Cargo area shade ........................57
Cargo net .....................................57
Cassette tape player .............17, 20
CD-single premium ...16, 23, 29, 33
Cell phone use ............................56
Certification Label ....................238
Changing a tire .........................158
Child safety restraints ................95
child safety belts ......................95
Child safety seats ........................98
attaching with tether
straps .......................................102
Index
243
Page 244 of 248
in front seat ..............................99
in rear seat ................................99
Cleaning your vehicle
engine compartment ..............182
instrument panel ....................185
interior .....................................185
plastic parts ............................184
washing ....................................181
waxing .....................................181
wheels ......................................182
wiper blades ............................184
Clutch
fluid ..........................................218
operation while driving ..........118
recommended shift speeds ....119
Console ........................................56
Coolant
checking and adding ..............200
refill capacities ................204, 229
specifications ..................233, 236
Cruise control
(see Speed control) ....................53
Customer Assistance ................146
Ford accessories for your
vehicle .............................186, 240
Ford Extended Service
Plan ..........................................173
Getting assistance outside
the U.S. and Canada ..............177
Getting roadside assistance ...146
Getting the service you
need .........................................171
Ordering additional owner’s
literature .................................178
The Dispute Settlement
Board .......................................174
Utilizing the
Mediation/Arbitration
Program ...................................177D
Daytime running lamps
(see Lamps) ................................41
Dipstick
automatic transmission
fluid ..........................................219
engine oil .................................192
Doors
lubricant specifications ..........233
Driveline universal joint and
slip yoke ....................................223
Driving under special
conditions ..................120, 125, 128
sand .........................................127
snow and ice ...........................129
through water .................127, 131
E
Emergencies, roadside
jump-starting ..........................165
Emission control system ..........215
Engine ........................................236
cleaning ...................................182
coolant .....................................200
idle speed control ...................198
lubrication
specifications ..................233, 236
refill capacities ........................229
service points ..................189–191
starting after a collision .........147
Engine block heater .................112
Engine oil ..................................192
checking and adding ..............192
dipstick ....................................192
filter, specifications ........197, 229
recommendations ...................197
refill capacities ........................229
specifications ..................233, 236
Index
244
Page 246 of 248
cluster ........................................10
lighting up panel and
interior .......................................42
J
Jack ............................................158
positioning .......................158, 161
storage .............................158–160
Jump-starting your vehicle ......165
K
Keys
positions of the ignition .........108
L
Lamps
bulb replacement
specifications chart ..................44
cargo lamps ...............................42
daytime running light ...............41
fog lamps ...................................41
headlamps .................................41
headlamps, flash to pass ..........42
instrument panel, dimming .....42
interior lamps .....................44–45
replacing bulbs .............44, 46–49
Lane change indicator
(see Turn signal) ........................44
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........113
Load limits .................................132
GAWR ......................................132
GVWR ......................................132
trailer towing ..........................132
Loading instructions .................133
Lubricant specifications ...233, 236
Lumbar support, seats ...............72M
Manual transmission .................118
fluid capacities ........................229
lubricant specifications ..........236
reverse .....................................119
Mirrors
side view mirrors (power) .......52
Motorcraft parts ................211, 229
O
Octane rating ............................209
Oil (see Engine oil) ..................192
P
Parking brake ............................113
Parts (see Motorcraft parts) ....229
Power distribution box
(see Fuses) ...............................152
Power door locks ........................62
Power mirrors .............................52
Power point .................................51
Power steering ..........................114
fluid, checking and adding ....217
fluid, refill capacity ................229
fluid, specifications .........233, 236
Power Windows ...........................52
Preparing to drive your
vehicle ........................................114
R
Radio ..............16–17, 20, 23, 29, 33
Relays ........................................148
Remote entry system .................64
illuminated entry ......................67
Index
246
