ENGINE DATA
Engine 2.3L I4 engine 3.0L V6 engine 4.0L V6 engine
Cubic inches 138 182 245
Required fuel 87 octane 87 octane 87 octane
Firing order 1-3-4-2 1-4-2-5-3-6 1-4-2-5-3-6
Spark plug gap1.04-1.19 mm
(0.041-0.047
inch)1.07-1.1 7mm
(0.042-0.046
inch)1.6-1.7 mm
(0.063-0.067
inch)
Ignition system EDIS EDIS EDIS
Compression
ratio 9.7:19.7:1 9.7:1

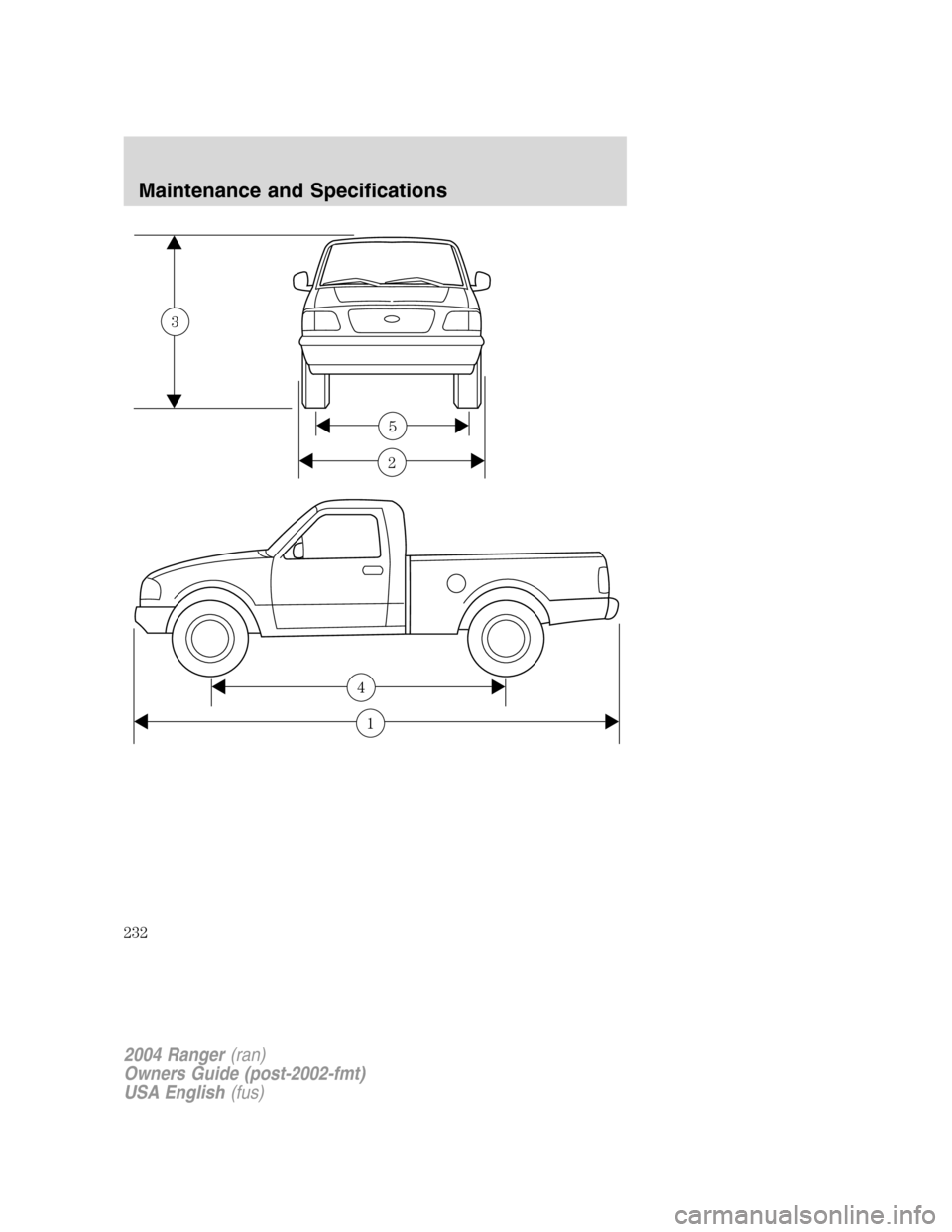

VEHICLE DIMENSIONS
Vehicle
dimensions Regular Cab
Short Wheel
Base (SWB) mm
(in) Regular Cab
Long Wheel
Base (LWB)
mm (in)Supercab mm
(in)
(1) Overall
length 4786 (188.4) 4938 (194.4) 5147 (202.6)
(2) Overall
width 1785 (70.3) 1785 (70.3) 1785 (70.3)
(3) Overall
height 4x2/4x4 1651 (65.0) /
1727 (68.0) 1651 (65.0) /
1727 (68.0)1651 (65.0) /
1727 (68.0)
(4) Wheelbase 2831 (111.4) 2983 (117.4) 3192 (125.7)
(5) Track -
Front 1486 (58.5) 1486 (58.5) 1485 (58.5)
(5) Track -
Rear 1455 (57.3) 1455 (57.3) 1455 (57.3)
2004 Ranger
(ran)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
231
Page 232 of 248

2
5
3
1
4
2004 Ranger(ran)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
232
Page 233 of 248

IDENTIFYING YOUR VEHICLE

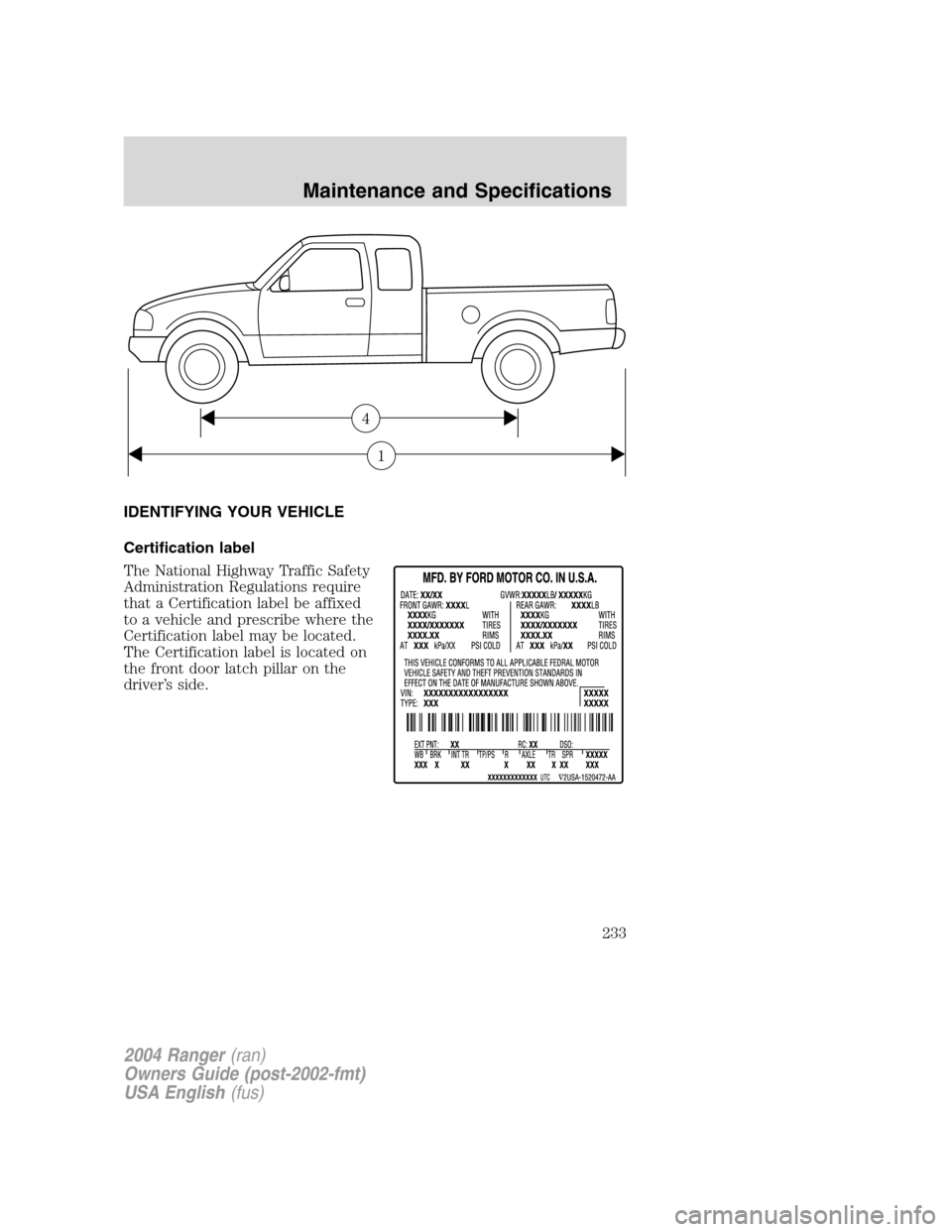

Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Certification label be affixed
to a vehicle and prescribe where the
Certification label may be located.
The Certification label is located on
the front door latch pillar on the
driver’s side.
1
4
2004 Ranger (ran)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
233
Page 234 of 248

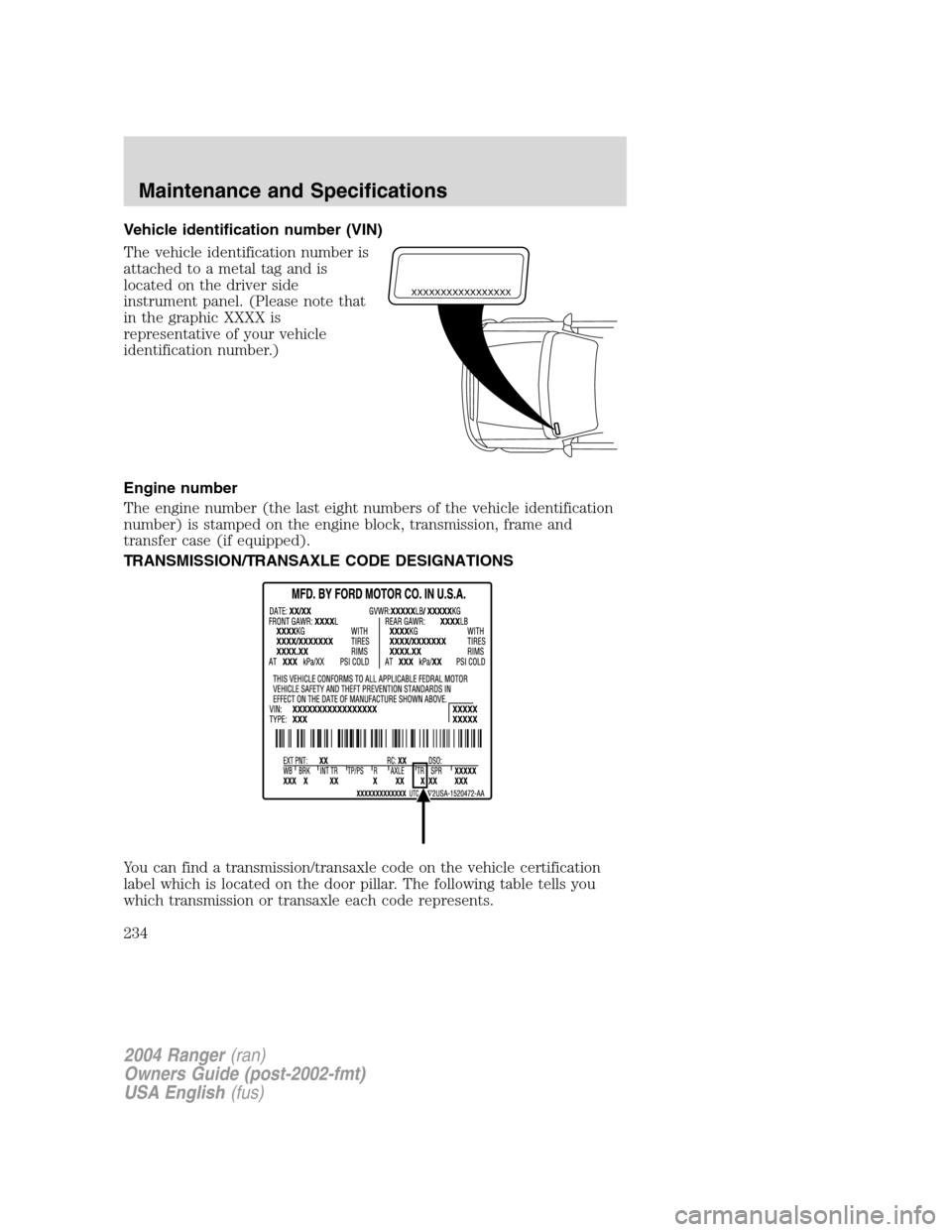

Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block, transmission, frame and
transfer case (if equipped).
TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a transmission/transaxle code on the vehicle certification
label which is located on the door pillar. The following table tells you
which transmission or transaxle each code represents.
XXXXXXXXXXXXXXXXX
2004 Ranger(ran)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
234
Page 235 of 248

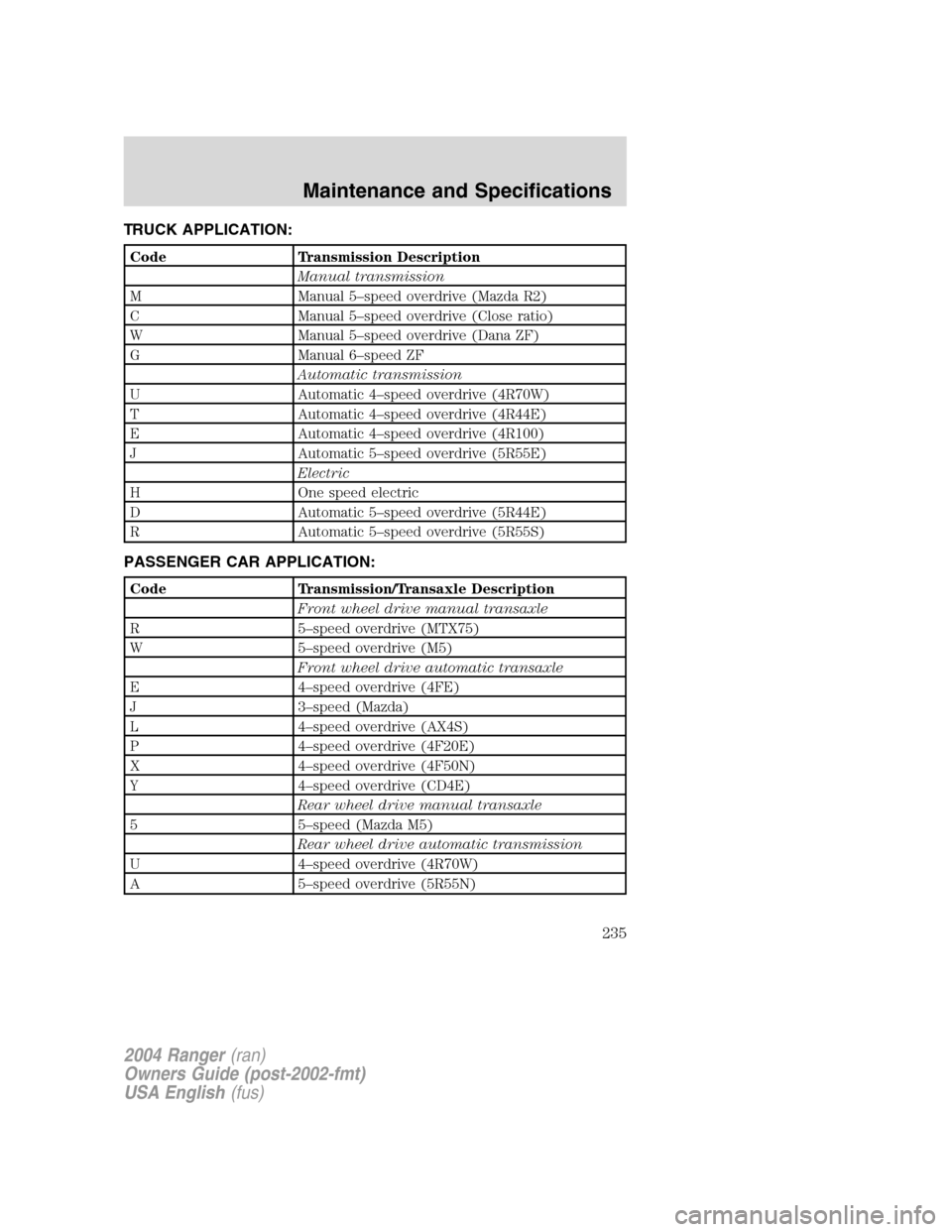

TRUCK APPLICATION:
Code Transmission DescriptionManual transmission
M Manual 5 –speed overdrive (Mazda R2)
C Manual 5 –speed overdrive (Close ratio)
W Manual 5 –speed overdrive (Dana ZF)
G Manual 6 –speed ZF
Automatic transmission
U Automatic 4 –speed overdrive (4R70W)
T Automatic 4 –speed overdrive (4R44E)
E Automatic 4 –speed overdrive (4R100)
J Automatic 5 –speed overdrive (5R55E)
Electric
H One speed electric
D Automatic 5 –speed overdrive (5R44E)
R Automatic 5 –speed overdrive (5R55S)
PASSENGER CAR APPLICATION:
Code Transmission/Transaxle Description
Front wheel drive manual transaxle
R5 –speed overdrive (MTX75)
W5 –speed overdrive (M5)
Front wheel drive automatic transaxle
E4 –speed overdrive (4FE)
J3 –speed (Mazda)
L4 –speed overdrive (AX4S)
P4 –speed overdrive (4F20E)
X4 –speed overdrive (4F50N)
Y4 –speed overdrive (CD4E)
Rear wheel drive manual transaxle
55 –speed (Mazda M5)
Rear wheel drive automatic transmission
U4 –speed overdrive (4R70W)
A5 –speed overdrive (5R55N)
2004 Ranger (ran)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
235
Page 236 of 248

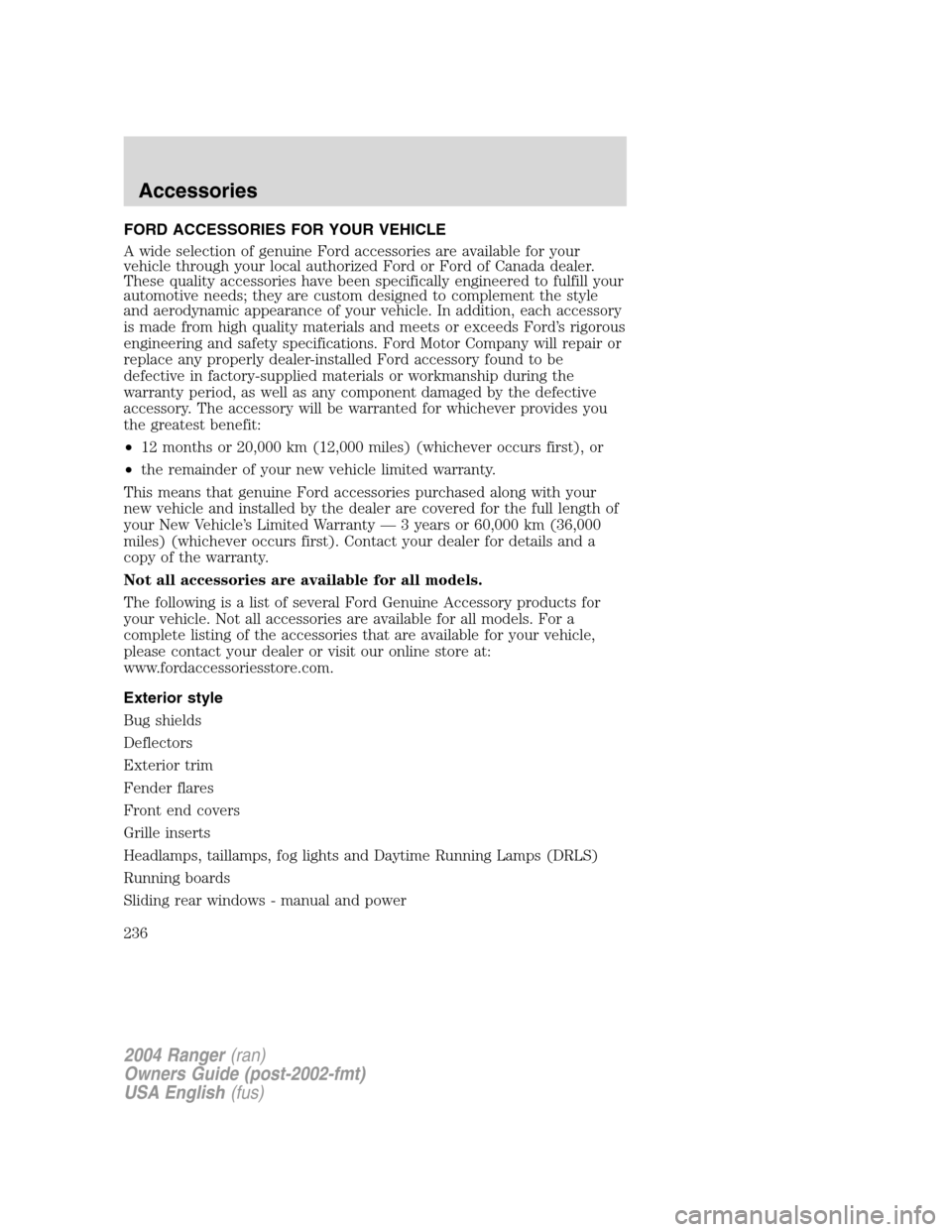

FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of genuine Ford accessories are available for your
vehicle through your local authorized Ford or Ford of Canada dealer.
These quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Ford accessory found to be
defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessory. The accessory will be warranted for whichever provides you
the greatest benefit:
• 12 months or 20,000 km (12,000 miles) (whichever occurs first), or
• the remainder of your new vehicle limited warranty.
This means that genuine Ford accessories purchased along with your
new vehicle and installed by the dealer are covered for the full length of
your New Vehicle ’s Limited Warranty —3 years or 60,000 km (36,000
miles) (whichever occurs first). Contact your dealer for details and a
copy of the warranty.
Not all accessories are available for all models.
The following is a list of several Ford Genuine Accessory products for
your vehicle. Not all accessories are available for all models. For a
complete listing of the accessories that are available for your vehicle,
please contact your dealer or visit our online store at:
www.fordaccessoriesstore.com.
Exterior style
Bug shields
Deflectors
Exterior trim
Fender flares
Front end covers
Grille inserts
Headlamps, taillamps, fog lights and Daytime Running Lamps (DRLS)
Running boards
Sliding rear windows - manual and power
2004 Ranger (ran)
Owners Guide (post-2002-fmt)
USA English (fus)
Accessories
Accessories
236
Page 237 of 248

Splash guards
Step bars
Tonneau covers
Truck caps
Wheels
Interior style
Cell phone holders
Consoles
Electrochromatic compass/temperature interior mirrors
Floor mats
Interior trim kits
Leather wrapped steering wheels
Scuff plates
Speed control
Lifestyle
Bedliners and bedmats
Bed tents
Bike racks
Cargo organization and management
Diamond plate accessories
Engine block heaters and blankets
Rear seat entertainment systems
Toolboxes
Towing mirrors
TracRac and accessories
Trailer hitches, wiring harnesses and accessories
2004 Ranger(ran)
Owners Guide (post-2002-fmt)
USA English (fus)
Accessories
237
Page 238 of 248

Peace of mind
Airbag anti-theft locks
First aid and safety kits
Full vehicle covers
Locking gas cap
Navigation systems
Remote start
Vehicle security systems

For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your dealer for specific weight
information.
• The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems —such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
• Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
