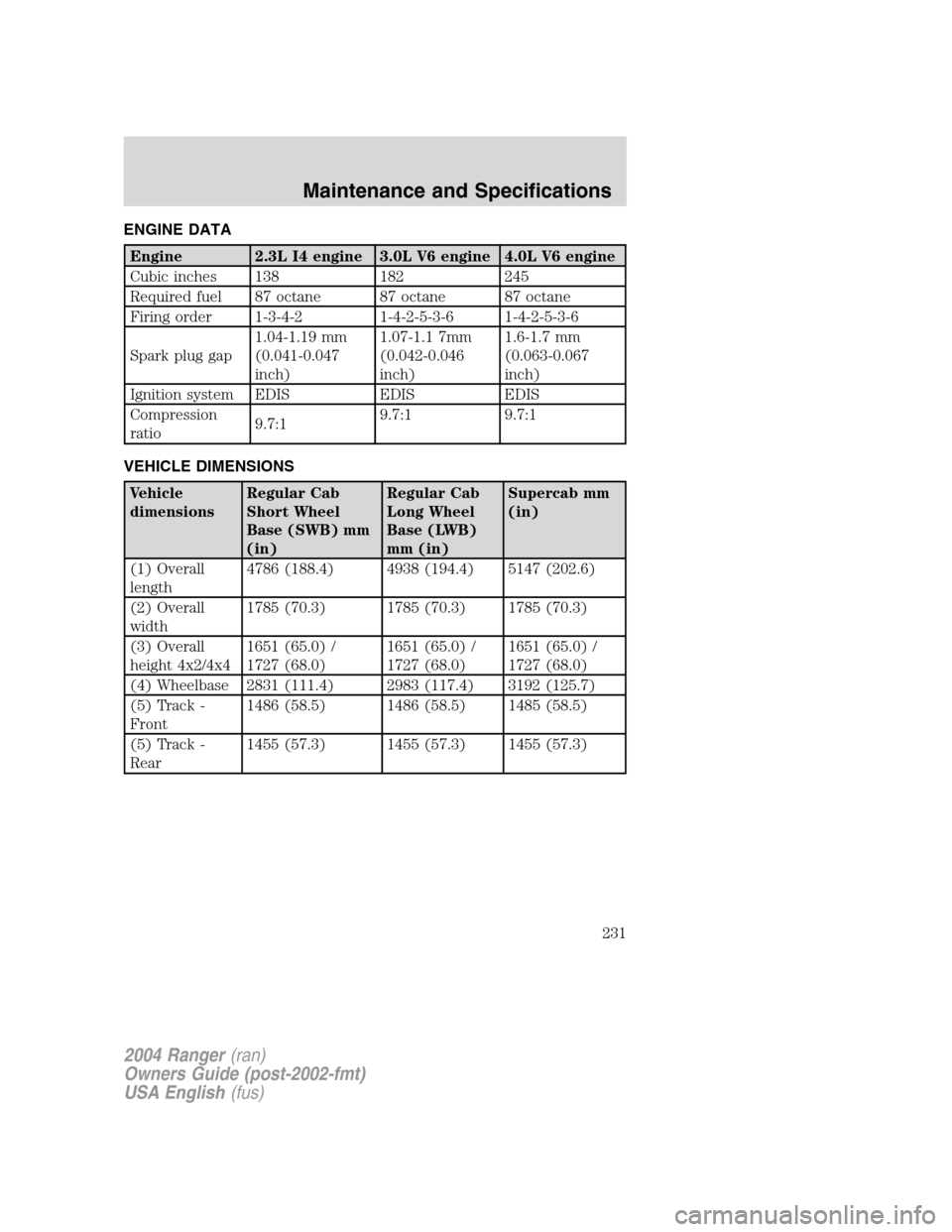

ENGINE DATA
Engine 2.3L I4 engine 3.0L V6 engine 4.0L V6 engine
Cubic inches 138 182 245
Required fuel 87 octane 87 octane 87 octane
Firing order 1-3-4-2 1-4-2-5-3-6 1-4-2-5-3-6
Spark plug gap1.04-1.19 mm
(0.041-0.047
inch)1.07-1.1 7mm
(0.042-0.046
inch)1.6-1.7 mm
(0.063-0.067
inch)
Ignition system EDIS EDIS EDIS
Compression
ratio 9.7:19.7:1 9.7:1
VEHICLE DIMENSIONS
Vehicle
dimensions Regular Cab
Short Wheel
Base (SWB) mm
(in) Regular Cab
Long Wheel
Base (LWB)
mm (in)Supercab mm
(in)
(1) Overall
length 4786 (188.4) 4938 (194.4) 5147 (202.6)
(2) Overall
width 1785 (70.3) 1785 (70.3) 1785 (70.3)
(3) Overall
height 4x2/4x4 1651 (65.0) /
1727 (68.0) 1651 (65.0) /
1727 (68.0)1651 (65.0) /
1727 (68.0)
(4) Wheelbase 2831 (111.4) 2983 (117.4) 3192 (125.7)
(5) Track -
Front 1486 (58.5) 1486 (58.5) 1485 (58.5)
(5) Track -
Rear 1455 (57.3) 1455 (57.3) 1455 (57.3)
2004 Ranger
(ran)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
231
