FORD RANGER 2009 2.G Owners Manual

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Engine coolant (2.3L
engine with manual
transmission)10.5 quarts
(10.0L)
Motorcraft Premium
Gold Engine Coolant
with bittering agent
(yellow-colored)
1
VC-7-B /
WSS-M97B51-A1 Engine coolant (2.3L
engine with automatic
transmission)10.2 quarts
(9.7L)
Engine coolant (4.0L
engine with manual
transmission)13.7 quarts
(13.0L)
Engine coolant (4.0L
engine with automatic
transmission)13.2 quarts
(12.5L)
Cooling system stop
leak pellets—Motorcraft Cooling
System Stop Leak
PelletsVC-6 /
WSS-M99B37-B6
Engine oil (2.3L
engine)4.0 quarts
(3.8L)Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
Motorcraft SAE 5W-20
Super Premium Motor
Oil (Canada)
2
XO-5W20-QSP (US)
CXO-5W20-LSP12
(Canada) /
WSS-M2C930-A and
API Certification Mark
Engine oil (4.0L
engine)5.0 quarts
(4.7L)Motorcraft SAE 5W-30
Premium Synthetic
Blend Motor Oil (US)
Motorcraft SAE 5W-30
Super Premium Motor
Oil (Canada)
2
XO-5W30-QSP (US)
CXO-5W30-LSP12
(Canada) /
WSS-M2C929-A and
API Certification Mark
2009 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
261

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Automatic transmission
fluid (4x2 vehicles with
2.3L engine)9.9 quarts
(9.4L)
3
Motorcraft MERCON

VATF
4
XT-5-QM /
MERCON
V Automatic transmission
fluid (4x2 vehicles with
4.0L engine)10.0 quarts
(9.5L)
3
Automatic transmission
fluid (4x4 vehicles with
4.0L engine)10.3 quarts
(9.8L)
3
Manual transmission
fluid (5-speed)2.8 quarts (2.65L)
5
Transfer case fluid
(4X4)1.25 quarts
(1.2L)Motorcraft Transfer
Case FluidXL–12 /
—
Power steering fluidFill between
MIN/MAX line on
reservoirMotorcraft
MERCON
VATFXT-5-QM /
MERCON
V
Front axle fluid (4X4)3.6 pints
(1.7L)Motorcraft SAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
Rear axle fluid5.0-5.3 pints
(2.4-2.5L)
6,7,8
Motorcraft SAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
Rear axle fluid (FX4
only)5.25-5.5 pints
(2.5-2.6L)
6,7,8
Motorcraft SAE
75W-140 Synthetic Rear
Axle LubricantXY-75W140-QL /
WSL-M2C192-A
2009 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
262

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Windshield washer fluid2.75 quarts
(2.6L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank–Regular cab
(Short wheel base)17 gallons
(64.4L)——
Fuel tank–Regular cab
(Long wheel base)20.3 gallons
(76.8L)——
Fuel tank–SuperCab19.5 gallons
(73.8L)——
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only have the API
Certification mark and meet the requirements of Ford specification WSS-M2C929-A (4.0L) or
WSS-M2C930-A (2.3L).3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick’s normal operating range.4Automatic transmissions that require MERCON
V should only use MERCON
V fluid or fluid that
is specified dual usage MERCON
/MERCON
V. Refer toscheduled maintenanceto determine
the correct service interval. Use of any fluid other than the recommended fluid may cause
transmission damage.5Service refill capacity for the manual transmission is determined by filling the transmission to the
bottom of the filler hole with the vehicle on a level surface.6Traction-Lok axles use 4.75-5.0 pints (2.2-2.4L) of rear axle lubricant.7Service refill capacities are determined by filling the rear axle 1/4 inch to 9/16 inch (6mm to
14mm) below the bottom of the filler hole.8Add 4 oz. (118 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford specification
EST-M2C118-A for complete refill of Traction-Lok axles.
2009 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
263

ENGINE DATA
Engine 2.3L I4 engine 4.0L V6 engine
Cubic inches 138 245
Required fuel 87 octane 87 octane
Firing order 1-3-4-2 1-4-2-5-3-6
Ignition system EDIS EDIS
Spark plug gap0.049–0.053 inch
(1.25–1.35 mm)0.052–0.056 inch
(1.32–1.42 mm)
Compression ratio 9.7:1 9.7:1
Engine drivebelt routing
•2.3L I4 Engine without A/C (with A/C similar)
•4.0L V6 Engine
2009 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
264

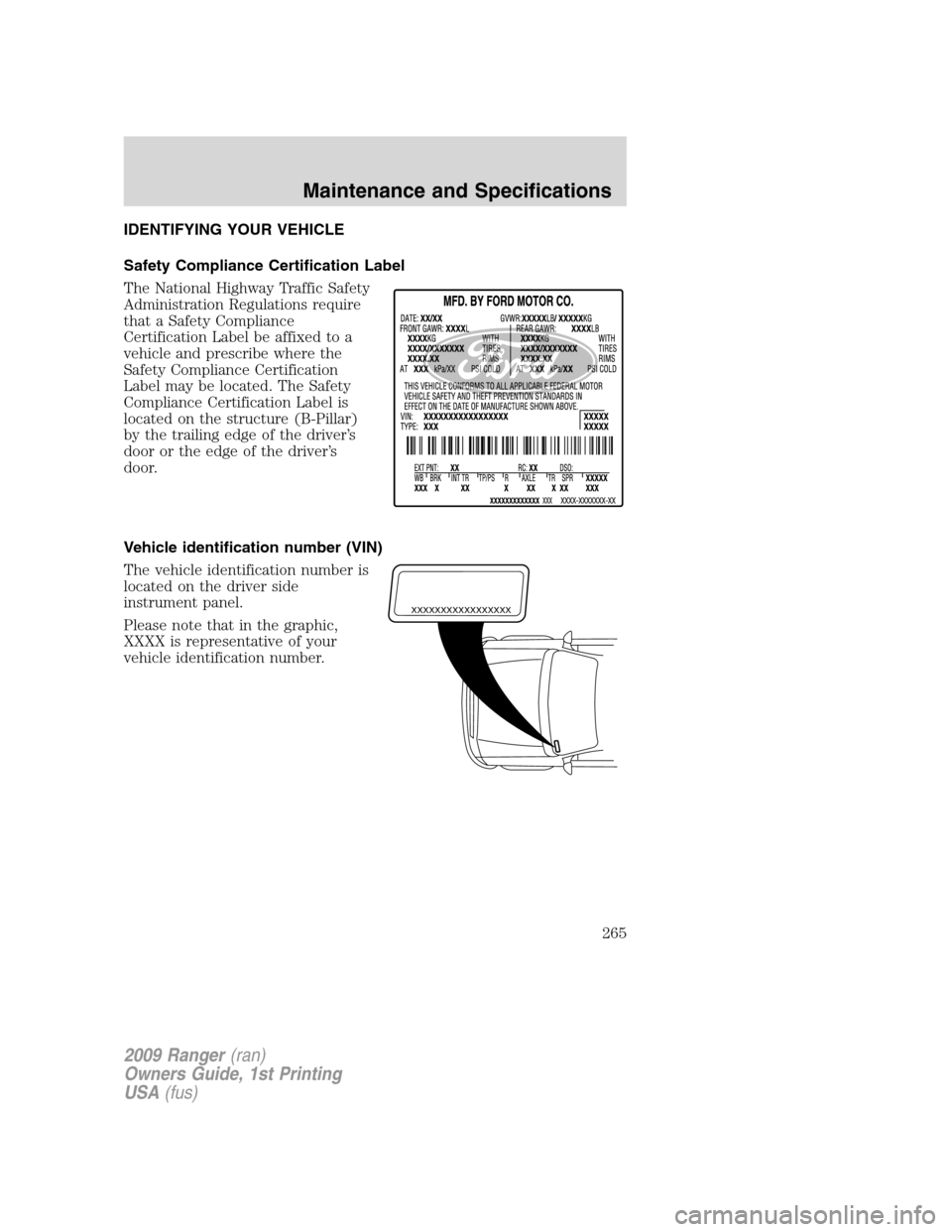

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
2009 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
265

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Five-speed automatic (5R44E/5R55E) D
Five-speed manual (HD) J
Five-speed manual (R1) R
2009 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
266

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessories.com.
Exterior style
Bug shields
Chrome exhaust tips
Deflectors
Running boards
Splash guards
Step bars
Tonneau covers
Wheels
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
2009 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
Accessories
267

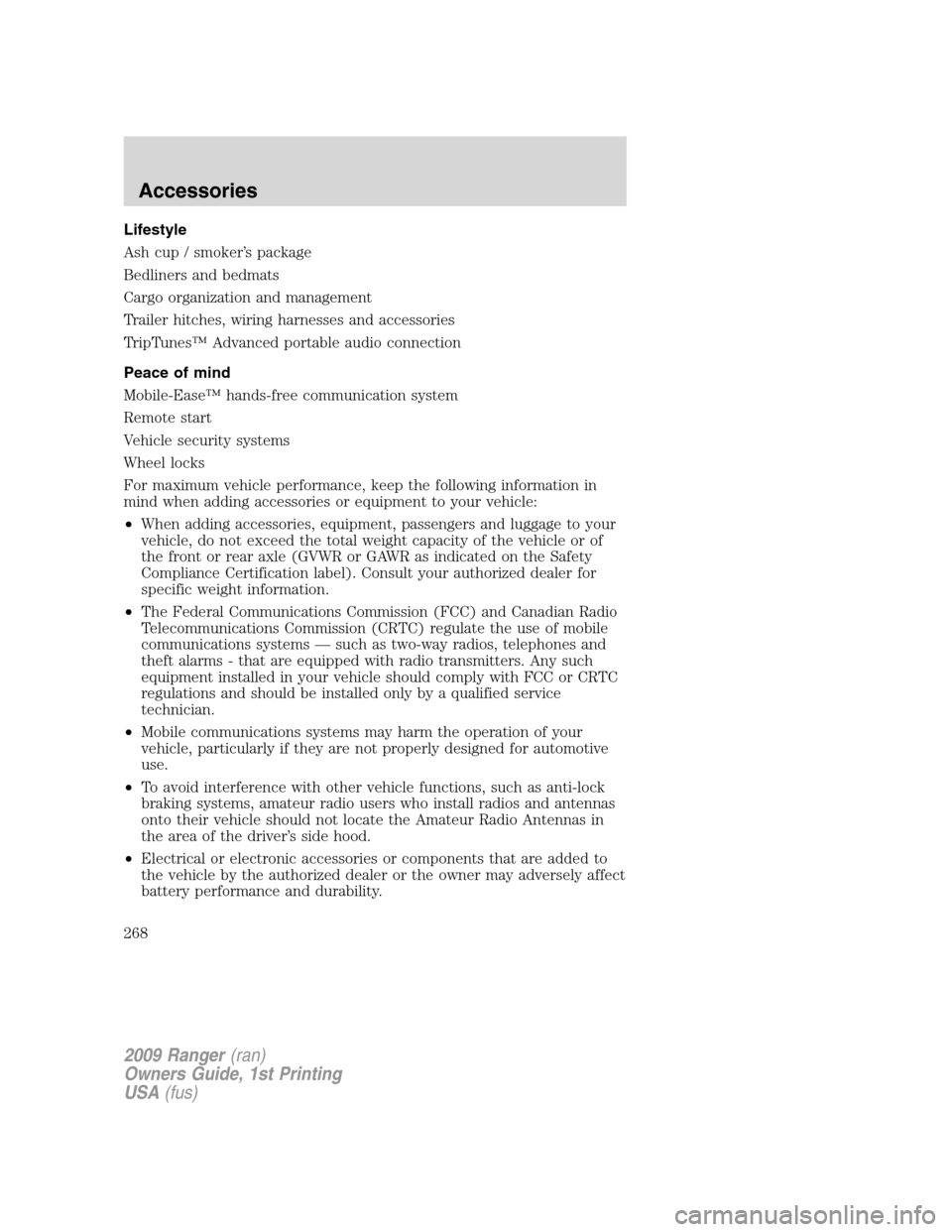

Lifestyle
Ash cup / smoker’s package
Bedliners and bedmats
Cargo organization and management
Trailer hitches, wiring harnesses and accessories
TripTunes™ Advanced portable audio connection
Peace of mind
Mobile-Ease™ hands-free communication system
Remote start
Vehicle security systems
Wheel locks
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2009 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
Accessories
268

A
ABS (see Brakes) .....................159
Air cleaner filter ...............258–259
Airbag supplemental restraint
system ..........................................89
and child safety seats ..............91
description ................................89
disposal ......................................94
driver airbag ........................89, 92
indicator light ...........................93
operation .............................89, 92
passenger airbag .................89, 92
Ambulance packages ....................8
Antifreeze (see Engine
coolant) .....................................236
Anti-lock brake system
(see Brakes) ......................159–160
Anti-theft system ........................67
Audio system
(see Radio) ......................19, 21, 26
Automatic transmission ............163
driving an automatic
overdrive .................................165
fluid, refill capacities ..............260
fluid, specification ..................260
Auxiliary input jack (Line in) ....32
Auxiliary power point .................55
Axle
lubricant specifications ..........260
refill capacities ........................260
B
Battery .......................................234
acid, treating emergencies .....234
jumping a disabled battery ....200
maintenance-free ....................234replacement, specifications ...259
servicing ..................................234
Belt-Minder
...............................84
Booster seats .............................110
Brakes ........................................159
anti-lock ...........................159–160
anti-lock brake system (ABS)
warning light ...........................160
fluid, checking and adding ....254
fluid, refill capacities ..............260
fluid, specifications .................260
lubricant specifications ..........260
parking ....................................161
shift interlock ..........................163
Bulbs ............................................48
C
Capacities for refilling fluids ....260
Cargo cage ...................................61
Cell phone use ..............................8
Changing a tire .........................191
Child safety seats ......................102
attaching with tether straps ..107
in front seat ............................103
in rear seat ......................103, 106
LATCH .....................................106
recommendations ...................100
Child safety seats - booster
seats ...........................................110
Cleaning your vehicle
engine compartment ..............218
instrument panel ....................220
interior .....................................221
plastic parts ............................219
safety belts ..............................221
washing ....................................216
waxing .....................................217
wheels ......................................217
2009 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
Index
269

wiper blades ............................219
Clock adjust
AM/FM .......................................20
AM/FM stereo CD .....................21
Premium AM/FM stereo
CD6/MP3 ...................................27
Clutch
fluid ..........................................254
operation while driving ..........167
recommended shift speeds ....168
Console ........................................55
Coolant
checking and adding ..............236
refill capacities ................240, 260
specifications ..........................260
Cruise control (see Speed
control) ........................................58
Customer Assistance ................179
Ford Extended Service
Plan ..........................................212
Getting assistance outside the
U.S. and Canada .....................213
Getting roadside assistance ...179
Getting the service you need..208
Ordering additional owner’s
literature .................................214
Utilizing the
Mediation/Arbitration
Program ...................................212
D
Daytime running lamps (see
Lamps) .........................................45
Dipstick
engine oil .................................229
Driveline universal joint and
slip yoke ....................................258Driving under special
conditions ..................170, 173, 176
sand .........................................174
snow and ice ...........................177
through water .................175, 178
E
Emergencies, roadside
jump-starting ..........................200
Emergency Flashers .................180
Emission control system ..........250
Engine ........................................264
cleaning ...................................218
coolant .....................................236
idle speed control ...................234
lubrication specifications .......260
refill capacities ........................260
service points ..................226–227
starting after a collision .........181
Engine block heater .................157
Engine oil ..................................229
checking and adding ..............229
dipstick ....................................229
filter, specifications ........232, 259
recommendations ...................232
refill capacities ........................260
specifications ..........................260
Event data recording ....................7
Exhaust fumes ..........................157
F
Fluid capacities .........................260
Fog lamps ....................................44
Four-Wheel Drive vehicles .......170
driving off road .......................172
electronic shift ........................171
indicator light .........................170
2009 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
Index
270
