FORD RANGER 2011 2.G Owner's Manual

AM/FM stereo single CD/MP3 satellite compatible system
(if equipped)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
1.CD eject:Press to eject the CD.
2.CLK (Clock):Press CLK until
SELECT HOUR or SELECT MINS is
displayed. Press
MENUto adjust the
hours/minutes. Press CLK to display the time when the ignition is off.
Entertainment Systems
21
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

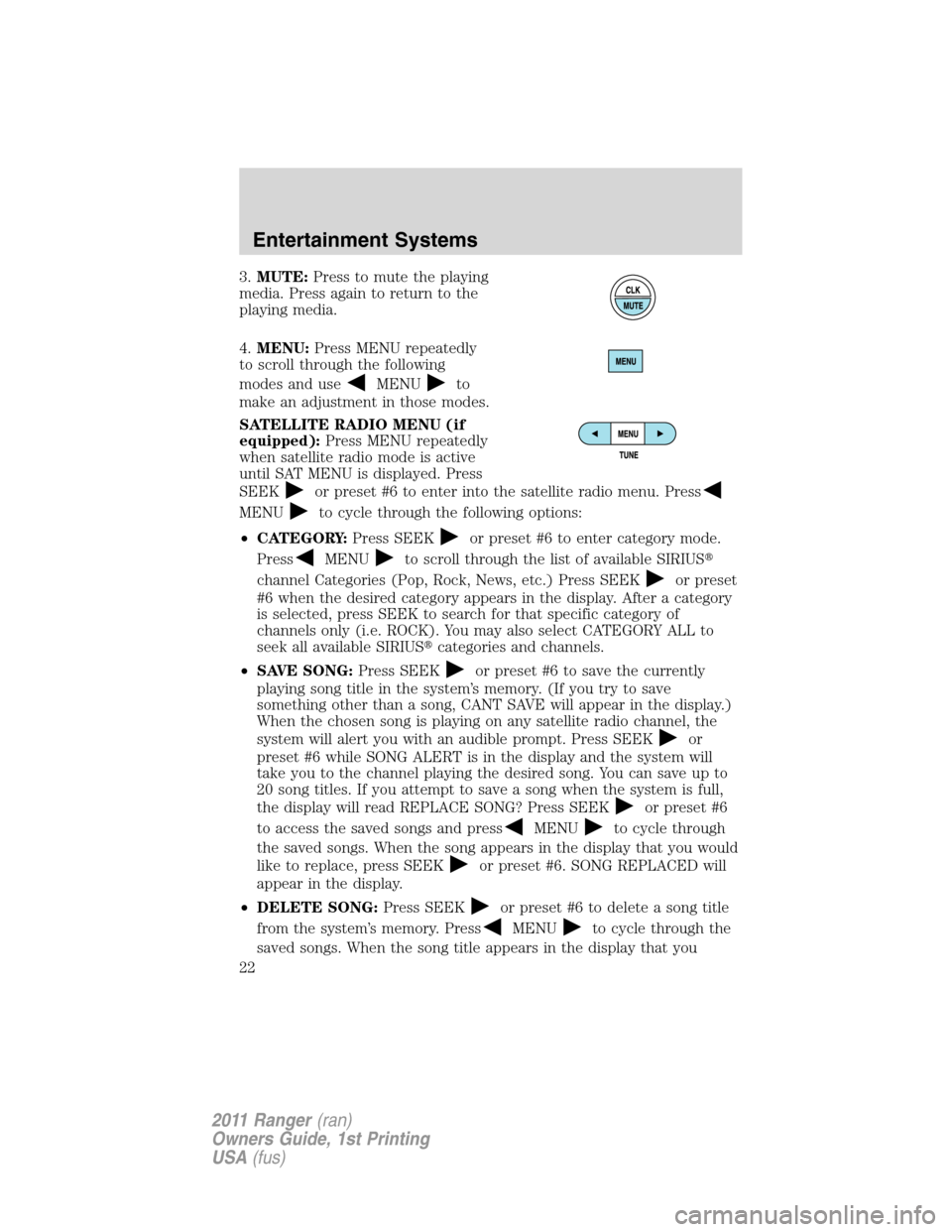

3.MUTE:Press to mute the playing
media. Press again to return to the
playing media.
4.MENU:Press MENU repeatedly
to scroll through the following
modes and use
MENUto
make an adjustment in those modes.
SATELLITE RADIO MENU (if
equipped):Press MENU repeatedly
when satellite radio mode is active
until SAT MENU is displayed. Press
SEEK
or preset #6 to enter into the satellite radio menu. Press
MENUto cycle through the following options:
•CATEGORY:Press SEEK
or preset #6 to enter category mode.
Press
MENUto scroll through the list of available SIRIUS
channel Categories (Pop, Rock, News, etc.) Press SEEK
or preset
#6 when the desired category appears in the display. After a category
is selected, press SEEK to search for that specific category of
channels only (i.e. ROCK). You may also select CATEGORY ALL to
seek all available SIRIUScategories and channels.
•SAVE SONG:Press SEEK
or preset #6 to save the currently
playing song title in the system’s memory. (If you try to save
something other than a song, CANT SAVE will appear in the display.)
When the chosen song is playing on any satellite radio channel, the
system will alert you with an audible prompt. Press SEEK
or
preset #6 while SONG ALERT is in the display and the system will
take you to the channel playing the desired song. You can save up to
20 song titles. If you attempt to save a song when the system is full,
the display will read REPLACE SONG? Press SEEK
or preset #6
to access the saved songs and press
MENUto cycle through
the saved songs. When the song appears in the display that you would
like to replace, press SEEK
or preset #6. SONG REPLACED will
appear in the display.
•DELETE SONG:Press SEEK
or preset #6 to delete a song title
from the system’s memory. Press
MENUto cycle through the
saved songs. When the song title appears in the display that you
Entertainment Systems
22
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

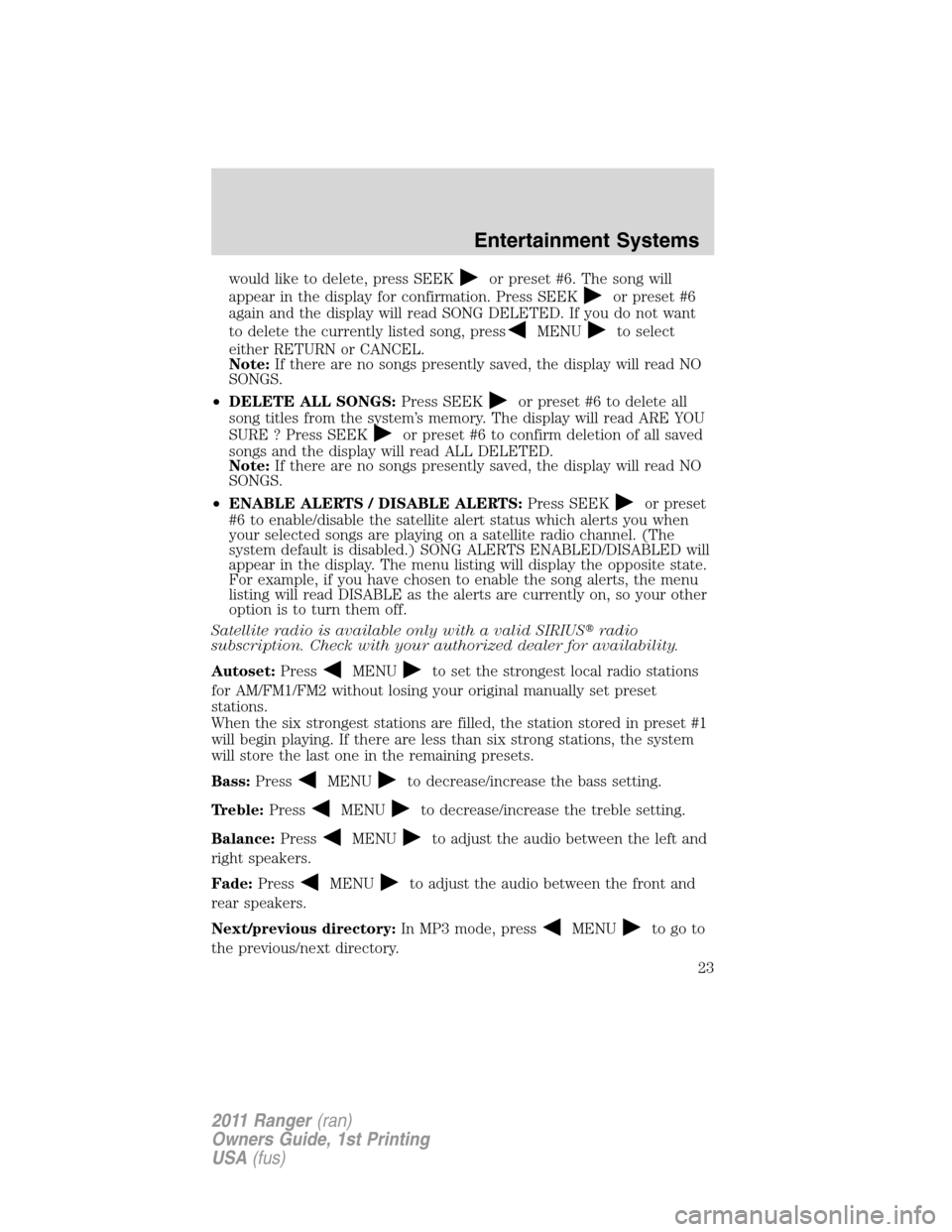

would like to delete, press SEEKor preset #6. The song will
appear in the display for confirmation. Press SEEK
or preset #6
again and the display will read SONG DELETED. If you do not want
to delete the currently listed song, press
MENUto select
either RETURN or CANCEL.
Note:If there are no songs presently saved, the display will read NO
SONGS.
•DELETE ALL SONGS:Press SEEK
or preset #6 to delete all
song titles from the system’s memory. The display will read ARE YOU
SURE ? Press SEEK
or preset #6 to confirm deletion of all saved
songs and the display will read ALL DELETED.
Note:If there are no songs presently saved, the display will read NO
SONGS.
•ENABLE ALERTS / DISABLE ALERTS:Press SEEK
or preset
#6 to enable/disable the satellite alert status which alerts you when
your selected songs are playing on a satellite radio channel. (The
system default is disabled.) SONG ALERTS ENABLED/DISABLED will
appear in the display. The menu listing will display the opposite state.
For example, if you have chosen to enable the song alerts, the menu
listing will read DISABLE as the alerts are currently on, so your other
optionistoturnthemoff.
Satellite radio is available only with a valid SIRIUSradio
subscription. Check with your authorized dealer for availability.
Autoset:Press
MENUto set the strongest local radio stations
for AM/FM1/FM2 without losing your original manually set preset
stations.
When the six strongest stations are filled, the station stored in preset #1
will begin playing. If there are less than six strong stations, the system
will store the last one in the remaining presets.
Bass:Press
MENUto decrease/increase the bass setting.
Treble:Press
MENUto decrease/increase the treble setting.
Balance:Press
MENUto adjust the audio between the left and
right speakers.
Fade:Press
MENUto adjust the audio between the front and
rear speakers.
Next/previous directory:In MP3 mode, press
MENUto go to
the previous/next directory.
Entertainment Systems
23
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

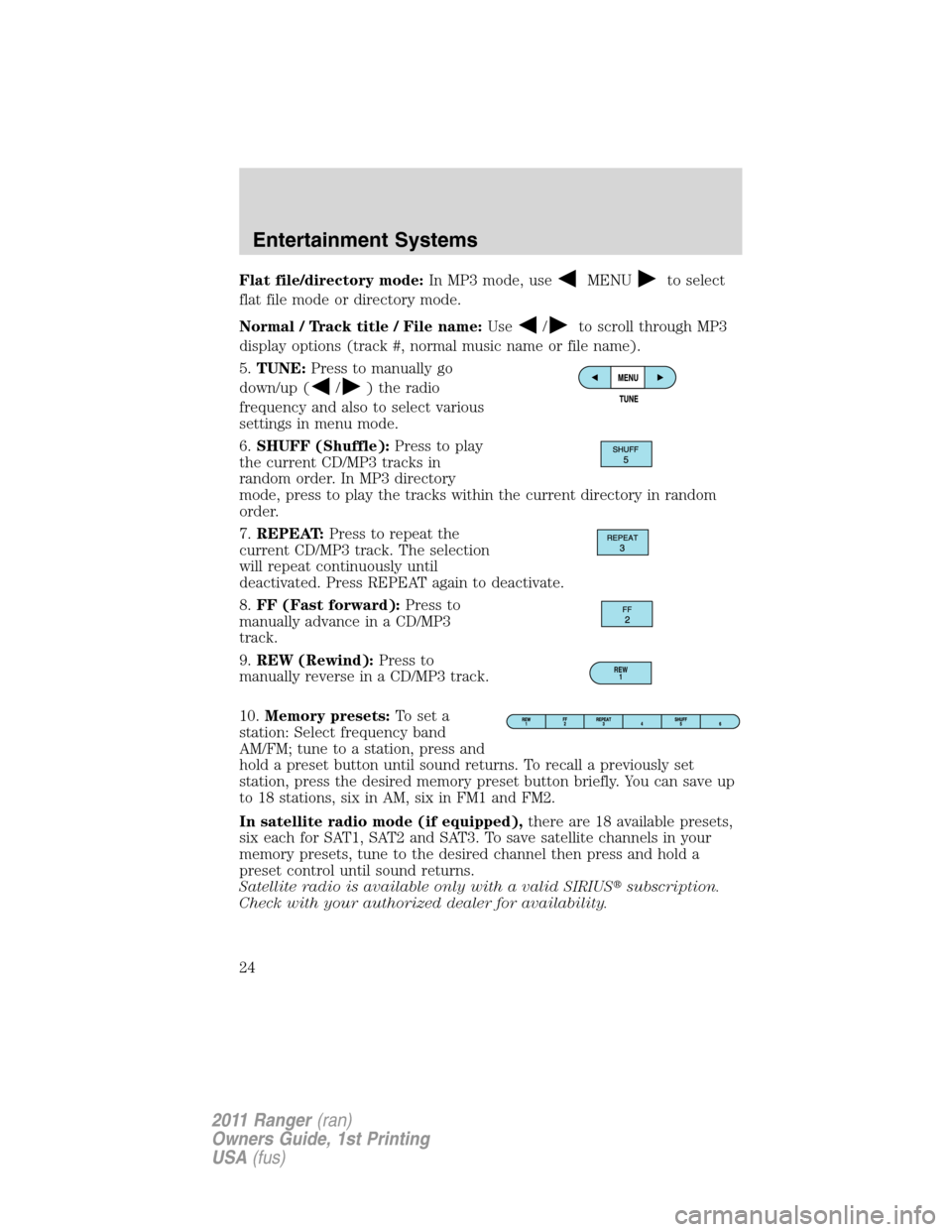

Flat file/directory mode:In MP3 mode, useMENUto select
flat file mode or directory mode.
Normal / Track title / File name:Use
/to scroll through MP3
display options (track #, normal music name or file name).
5.TUNE:Press to manually go
down/up (
/) the radio
frequency and also to select various
settings in menu mode.
6.SHUFF (Shuffle):Press to play
the current CD/MP3 tracks in
random order. In MP3 directory
mode, press to play the tracks within the current directory in random
order.
7.REPEAT:Press to repeat the
current CD/MP3 track. The selection
will repeat continuously until
deactivated. Press REPEAT again to deactivate.
8.FF (Fast forward):Press to
manually advance in a CD/MP3
track.
9.REW (Rewind):Press to
manually reverse in a CD/MP3 track.
10.Memory presets:To set a
station: Select frequency band
AM/FM; tune to a station, press and
hold a preset button until sound returns. To recall a previously set
station, press the desired memory preset button briefly. You can save up
to 18 stations, six in AM, six in FM1 and FM2.
In satellite radio mode (if equipped),there are 18 available presets,
six each for SAT1, SAT2 and SAT3. To save satellite channels in your
memory presets, tune to the desired channel then press and hold a
preset control until sound returns.
Satellite radio is available only with a valid SIRIUSsubscription.
Check with your authorized dealer for availability.
REW
1
Entertainment Systems
24
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

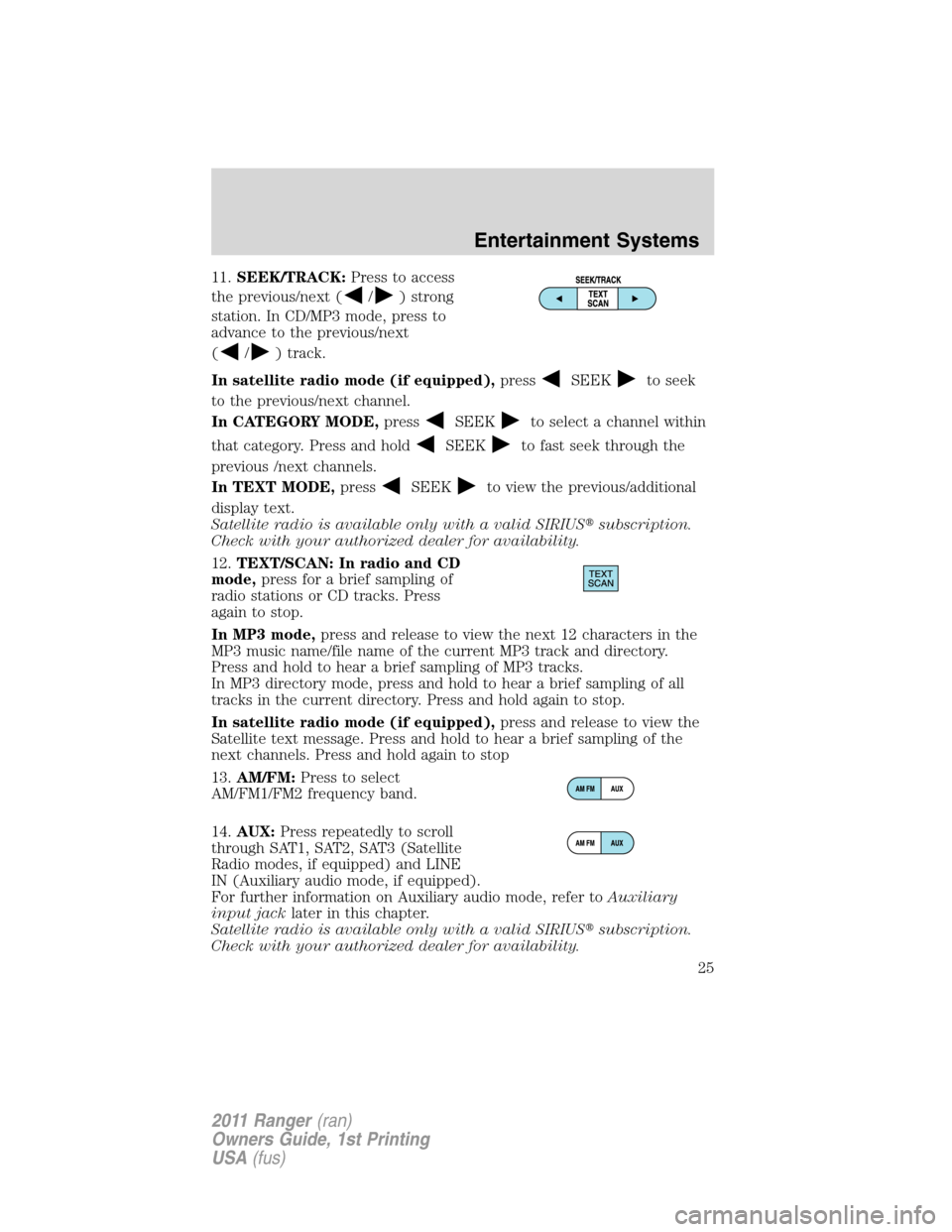

11.SEEK/TRACK:Press to access
the previous/next (
/) strong
station. In CD/MP3 mode, press to
advance to the previous/next
(
/) track.
In satellite radio mode (if equipped),press
SEEKto seek
to the previous/next channel.
In CATEGORY MODE,press
SEEKto select a channel within
that category. Press and hold
SEEKto fast seek through the
previous /next channels.
In TEXT MODE,press
SEEKto view the previous/additional
display text.
Satellite radio is available only with a valid SIRIUSsubscription.
Check with your authorized dealer for availability.
12.TEXT/SCAN: In radio and CD
mode,press for a brief sampling of
radio stations or CD tracks. Press
again to stop.
In MP3 mode,press and release to view the next 12 characters in the
MP3 music name/file name of the current MP3 track and directory.
Press and hold to hear a brief sampling of MP3 tracks.
In MP3 directory mode, press and hold to hear a brief sampling of all
tracks in the current directory. Press and hold again to stop.
In satellite radio mode (if equipped),press and release to view the
Satellite text message. Press and hold to hear a brief sampling of the
next channels. Press and hold again to stop
13.AM/FM:Press to select
AM/FM1/FM2 frequency band.
14.AUX:Press repeatedly to scroll
through SAT1, SAT2, SAT3 (Satellite
Radio modes, if equipped) and LINE
IN (Auxiliary audio mode, if equipped).
For further information on Auxiliary audio mode, refer toAuxiliary
input jacklater in this chapter.
Satellite radio is available only with a valid SIRIUSsubscription.
Check with your authorized dealer for availability.
Entertainment Systems
25
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

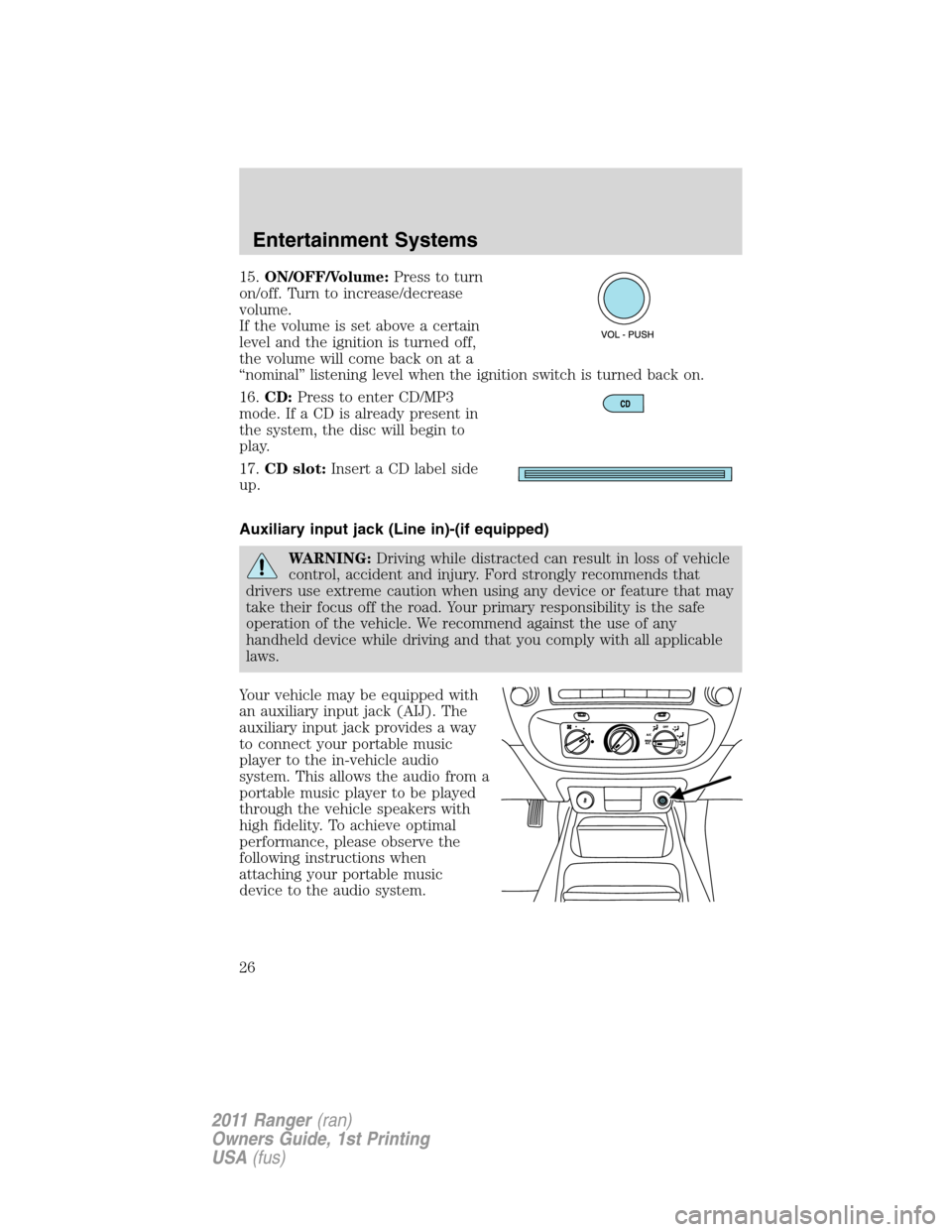

15.ON/OFF/Volume:Press to turn
on/off. Turn to increase/decrease
volume.
If the volume is set above a certain
level and the ignition is turned off,
the volume will come back on at a
“nominal” listening level when the ignition switch is turned back on.
16.CD:Press to enter CD/MP3
mode. If a CD is already present in
the system, the disc will begin to
play.
17.CD slot:Insert a CD label side
up.
Auxiliary input jack (Line in)-(if equipped)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
Your vehicle may be equipped with
an auxiliary input jack (AIJ). The
auxiliary input jack provides a way
to connect your portable music
player to the in-vehicle audio
system. This allows the audio from a
portable music player to be played
through the vehicle speakers with
high fidelity. To achieve optimal
performance, please observe the
following instructions when
attaching your portable music
device to the audio system.
Entertainment Systems
26
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

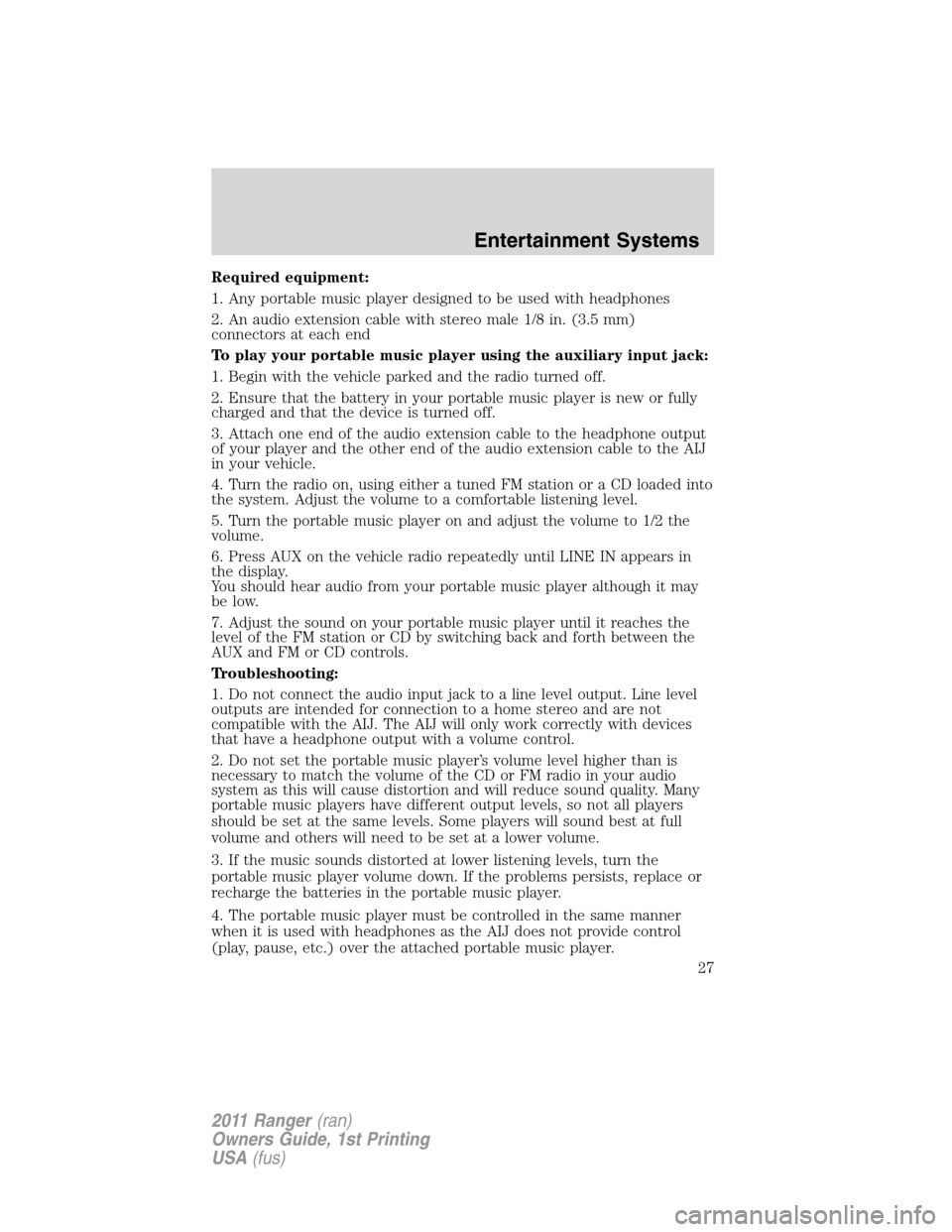

Required equipment:
1. Any portable music player designed to be used with headphones
2. An audio extension cable with stereo male 1/8 in. (3.5 mm)
connectors at each end
To play your portable music player using the auxiliary input jack:
1. Begin with the vehicle parked and the radio turned off.
2. Ensure that the battery in your portable music player is new or fully
charged and that the device is turned off.
3. Attach one end of the audio extension cable to the headphone output
of your player and the other end of the audio extension cable to the AIJ
in your vehicle.
4. Turn the radio on, using either a tuned FM station or a CD loaded into
the system. Adjust the volume to a comfortable listening level.
5. Turn the portable music player on and adjust the volume to 1/2 the
volume.
6. Press AUX on the vehicle radio repeatedly until LINE IN appears in
the display.
You should hear audio from your portable music player although it may
be low.
7. Adjust the sound on your portable music player until it reaches the
level of the FM station or CD by switching back and forth between the
AUX and FM or CD controls.
Troubleshooting:
1. Do not connect the audio input jack to a line level output. Line level
outputs are intended for connection to a home stereo and are not
compatible with the AIJ. The AIJ will only work correctly with devices
that have a headphone output with a volume control.
2. Do not set the portable music player’s volume level higher than is
necessary to match the volume of the CD or FM radio in your audio
system as this will cause distortion and will reduce sound quality. Many
portable music players have different output levels, so not all players
should be set at the same levels. Some players will sound best at full
volume and others will need to be set at a lower volume.
3. If the music sounds distorted at lower listening levels, turn the
portable music player volume down. If the problems persists, replace or
recharge the batteries in the portable music player.
4. The portable music player must be controlled in the same manner
when it is used with headphones as the AIJ does not provide control
(play, pause, etc.) over the attached portable music player.
Entertainment Systems
27
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

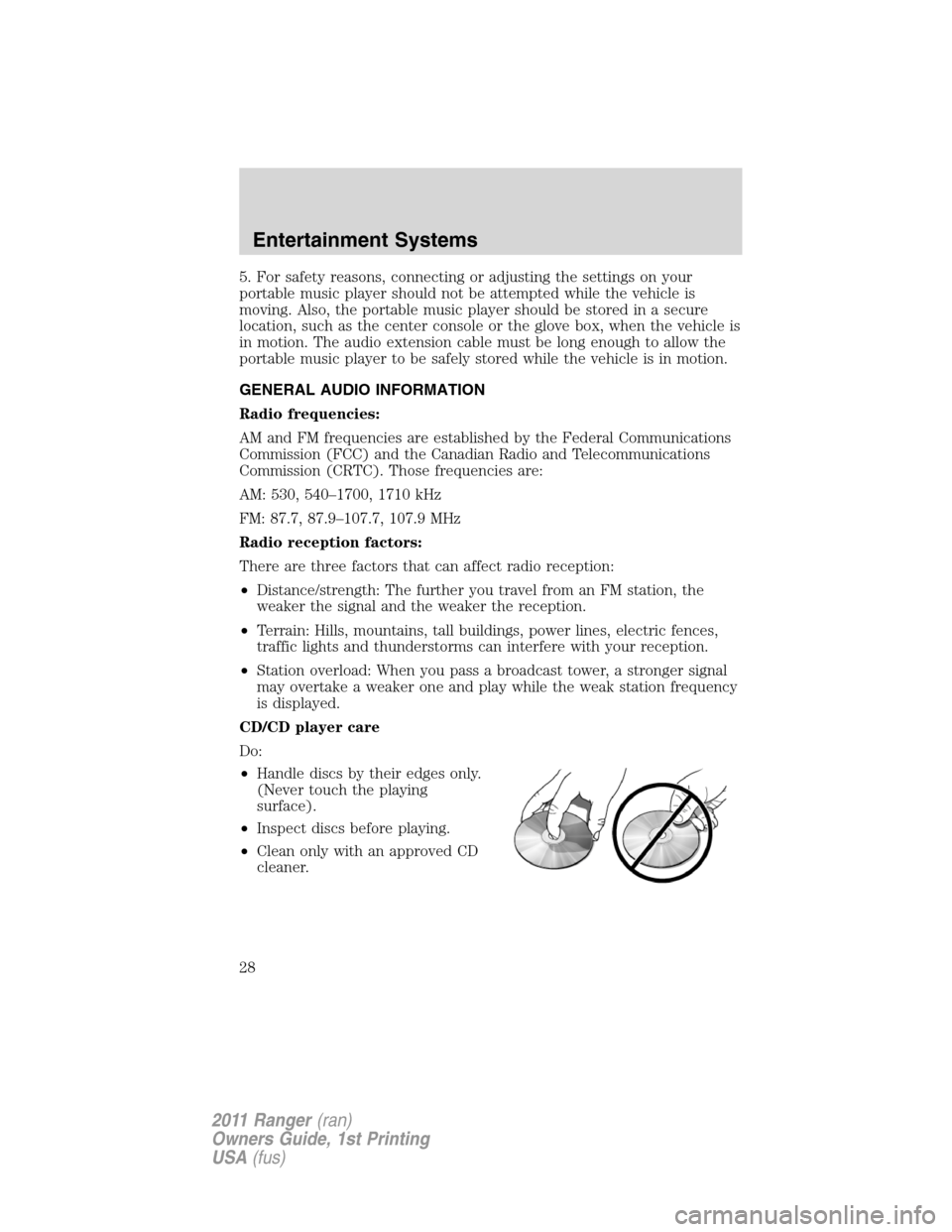

5. For safety reasons, connecting or adjusting the settings on your
portable music player should not be attempted while the vehicle is
moving. Also, the portable music player should be stored in a secure
location, such as the center console or the glove box, when the vehicle is
in motion. The audio extension cable must be long enough to allow the
portable music player to be safely stored while the vehicle is in motion.
GENERAL AUDIO INFORMATION
Radio frequencies:
AM and FM frequencies are established by the Federal Communications
Commission (FCC) and the Canadian Radio and Telecommunications
Commission (CRTC). Those frequencies are:
AM: 530, 540–1700, 1710 kHz
FM: 87.7, 87.9–107.7, 107.9 MHz
Radio reception factors:
There are three factors that can affect radio reception:
•Distance/strength: The further you travel from an FM station, the
weaker the signal and the weaker the reception.
•Terrain: Hills, mountains, tall buildings, power lines, electric fences,
traffic lights and thunderstorms can interfere with your reception.
•Station overload: When you pass a broadcast tower, a stronger signal
may overtake a weaker one and play while the weak station frequency
is displayed.
CD/CD player care
Do:
•Handle discs by their edges only.
(Never touch the playing
surface).
•Inspect discs before playing.
•Clean only with an approved CD
cleaner.
Entertainment Systems
28
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

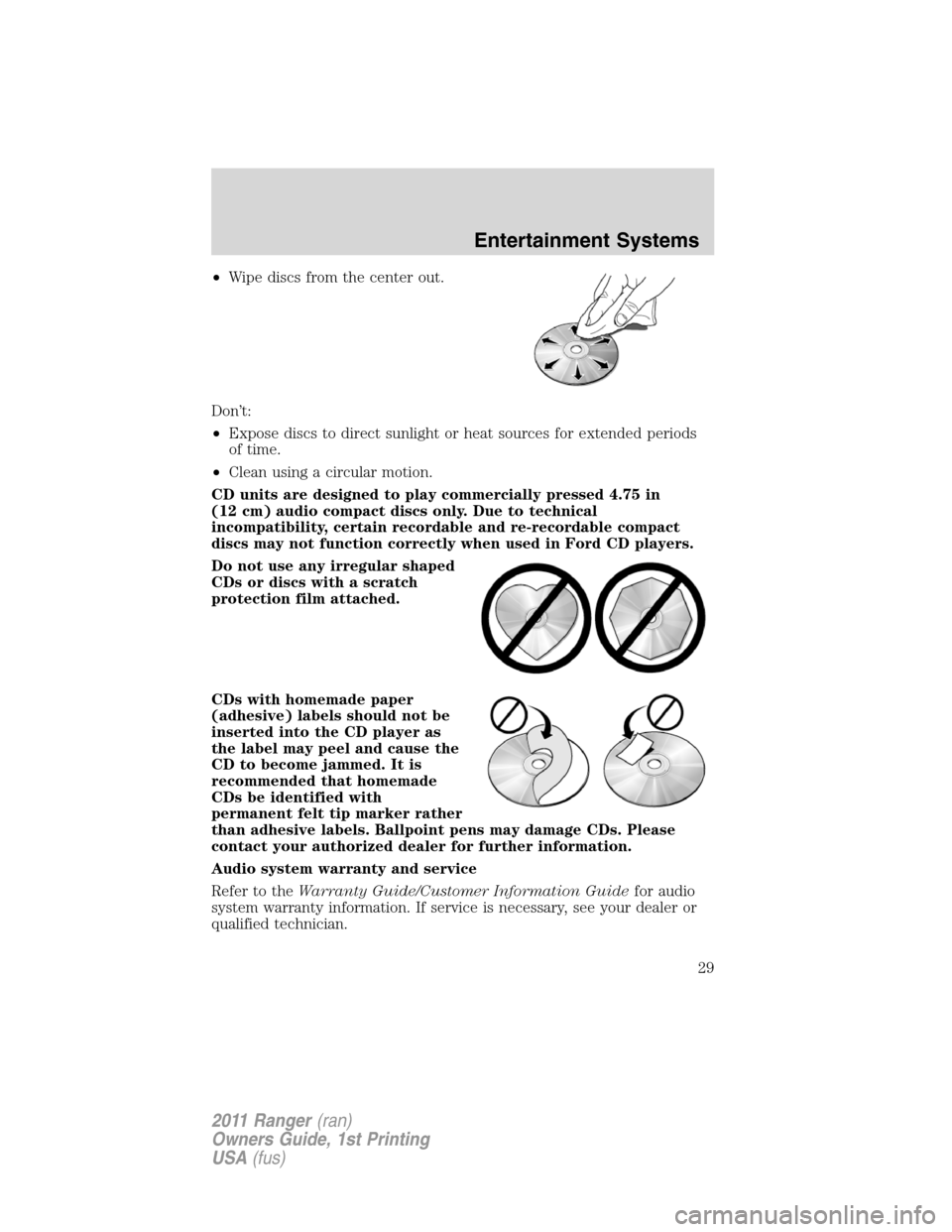

•Wipe discs from the center out.
Don’t:
•Expose discs to direct sunlight or heat sources for extended periods
of time.
•Clean using a circular motion.
CD units are designed to play commercially pressed 4.75 in
(12 cm) audio compact discs only. Due to technical
incompatibility, certain recordable and re-recordable compact
discs may not function correctly when used in Ford CD players.
Do not use any irregular shaped
CDs or discs with a scratch
protection film attached.
CDs with homemade paper
(adhesive) labels should not be
inserted into the CD player as
the label may peel and cause the
CD to become jammed. It is
recommended that homemade
CDs be identified with
permanent felt tip marker rather
than adhesive labels. Ballpoint pens may damage CDs. Please
contact your authorized dealer for further information.
Audio system warranty and service
Refer to theWarranty Guide/Customer Information Guidefor audio
system warranty information. If service is necessary, see your dealer or
qualified technician.
Entertainment Systems
29
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

Operating your audio system with MP3-formatted discs
Your MP3 system recognizes MP3 discs upon insertion and provides you
with two ways to listen to these discs:
•Flat file mode–This mode ignores any folders on the discs and plays
all MP3 files found in any folder on the disc exactly as if there were
no folders on the disc.
When in flat file mode press
/to access the previous/next
track.
•Directory mode–This mode finds all of the folders on the disc and
then allows you to pick any folder on the disc and play only the MP3
files in that folder.
When in directory mode press
/to access the previous/next
MP3 file in the current folder only.
To change directories (folders), press MENU and then press
/
to select the desired directory (folder).
Changing between flat file mode and directory mode
Your radio MP3 system will default to directory mode when an MP3 disc
is first inserted. When the MP3 system is in directory mode, theDIR
icon will be illuminated on the radio display.
•To change from directory mode to flat file mode while playing an MP3
CD: Press MENU until the radio display readsDirectory. Then
press
. The display will change fromDIRtoFlat File. The MP3
system is now in flat file mode.
•To change from flat file mode to directory mode while playing an MP3
CD: Press MENU until the radio display readsFlat File. Then
press
. The display will change fromFlat FiletoDIR. The MP3
system is now in directory mode.
MP3 track and folder structure
Your MP3 system recognizes MP3 individual tracks and folder structure
as follows:
•There are two different modes for MP3 disc playback: MP3 directory
mode (system default) and MP3 flat file mode. For more information
on directory and flat file mode, refer toSample MP3 structure
following.
Entertainment Systems
30
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
