Condensation in the Exterior FrontLamps and Rear Lamps
Exterior front lamps and rear lamps havevents to accommodate normal changesin air pressure.
Condensation can be a natural by-productof this design. When moist air enters thelamp assembly through the vents, there isa possibility that condensation can occurwhen the temperature is cold. Whennormal condensation occurs, a fine mistcan form on the interior of the lens. Thefine mist eventually clears and exitsthrough the vents during normal operation.
Clearing time may take as long as 48 hoursunder dry weather conditions.
Examples of acceptable condensation are:
•The presence of a fine mist (no streaks,drip marks or large droplets).
•A fine mist covers less than 50% of thelens.
Examples of unacceptable condensationare:
•A water puddle inside the lamp.
•Streaks, drip marks or large dropletspresent on the interior of the lens.
If you see any unacceptable condensation,have your vehicle checked by an authorizeddealer.
LIGHTING CONTROL
Lamps off.A
Parking lamps, instrument panellamps, license plate lamps andtail lamps.
B
Headlamps.C
Headlamp High Beam
Push the lever away from you toswitch the high beam on.
Push the lever forward again or pull thelever toward you to switch the high beamsoff.
77
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingLightingE142449 E242674 E67019

Flashing the Headlamp High Beam
Slightly pull the lever toward you andrelease it to flash the headlamps.
AUTOLAMPS
WARNING: The system does notrelieve you of your responsibility to drivewith due care and attention. You mayneed to override the system if it does notturn the headlamps on in low visibilityconditions, for example daytime fog.
When the lighting control is in theautolamps position, the headlamps turnon in low light situations, or when thewipers turn on.
The headlamps remain on for a period oftime after you switch the ignition off. Usethe information display controls to adjustthe period of time that the headlampsremain on.
Note: If you switch the autolamps on, youcannot switch the high beams on until thesystem turns the low beams on.
Windshield Wiper ActivatedHeadlamps
When you switch the autolamps on, theheadlamps turn on within 10 seconds ofswitching the wipers on. They turn offapproximately 60 seconds after you switchthe windshield wipers off.
The headlamps do not turn on with thewipers:
•During a single wipe.
•When using the windshield washers.
•If the wipers are in intermittent mode.
Note:If you switch the autolamps and theautowipers on, the headlamps turn on whenthe windshield wipers continuously operate.
INSTRUMENT LIGHTING
DIMMER
Note:When disconnecting the battery orwhen it runs out of charge, the illuminatedcomponents turn to the maximum setting.
78
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingLightingE242675 E142451

Vehicles With Front Fog Lamps
Press repeatedly or press and hold untilyou reach the desired level.
Vehicles Without Front Fog Lamps
Press repeatedly or press andhold to dim.A
Press repeatedly or press andhold to brighten.B
DAYTIME RUNNING LAMPS
WARNING: The daytime runninglamps system does not activate the rearlamps and may not provide adequatelighting during low visibility drivingconditions. Make sure you switch theheadlamps on, as appropriate, during alllow visibility conditions. Failure to do somay result in a crash.
The system turns the lamps on in daylightconditions.
To switch the system on, switch thelighting control to any position exceptheadlamps.
AUTOMATIC HIGH BEAM
CONTROL
WARNING: The system does notrelieve you of your responsibility to drivewith due care and attention. You mayneed to override the system if it does notturn the high beams on or off.
The system turns on high beams if it is darkenough and no other traffic is present. If itdetects an approaching vehicle’sheadlamps or tail lamps, or street lightingahead, the system turns off high beamsbefore they can distract other road users.Low beams remain on.
Note:The system may not operate properlyif the sensor is blocked. Keep the windshieldfree from obstruction or damage.
Note:The system may not operate properlyin cold or inclement conditions. You canswitch on the high beams by overriding thesystem.
79
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingLightingE231828 ABE165366

Note:If the system detects a blockage, forexample bird droppings, bug splatter, snowor ice, the system goes into low beam modeuntil you clear the blockage. A message mayappear in the information display if thecamera is blocked.
Note:Using much larger tires or equippingvehicle accessories such as snowplows canmodify your vehicle's ride height anddegrade automatic high beam controlperformance.
A camera sensor, centrally mountedbehind the windshield of your vehicle,continuously monitors conditions to turnthe high beams on and off.
Once the system is active, the high beamsturn on if:
•The ambient light level is low enough.
•There is no traffic in front of yourvehicle.
•The vehicle speed is greater thanapproximately 32 mph (51 km/h).
The system turns the high beams off if:
•The ambient light level is high enoughthat high beams are not required.
•The system detects an approachingvehicle's headlamps or tail lamps.
•The vehicle speed falls belowapproximately 27 mph (44 km/h).
•The system detects severe rain, snowor fog.
•The camera is blocked.
Switching the System On and Off
Switch the system on using the informationdisplay. See Information Displays (page96).
Switch the lighting control to theautolamps position. See Autolamps(page 78).
Overriding the System
Push the lever away from you to switchbetween high beam and low beam.
Automatic High Beam Indicator
The indicator illuminates toconfirm when the system isready to assist.
FRONT FOG LAMPS
Using the Front Fog Lamps
To switch the lamps on or off:
1.Set the lighting control to the parkinglamps, headlamps or autolampsposition.
Note:When the lighting control is in theautolamps position, you cannot switch thefog lamps on unless the low beamheadlamps are on.
2.
Press the button on thelighting control to switch the front foglamps on or off.
Note:Only switch the front fog lamps onduring reduced visibility.
80
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingLightingE142451 E146105

Note:The brightness of the daytime runninglamps may decrease when the front foglamps are on.
Note:The lights on the front fog lamps turnoff when you switch the high beams on.

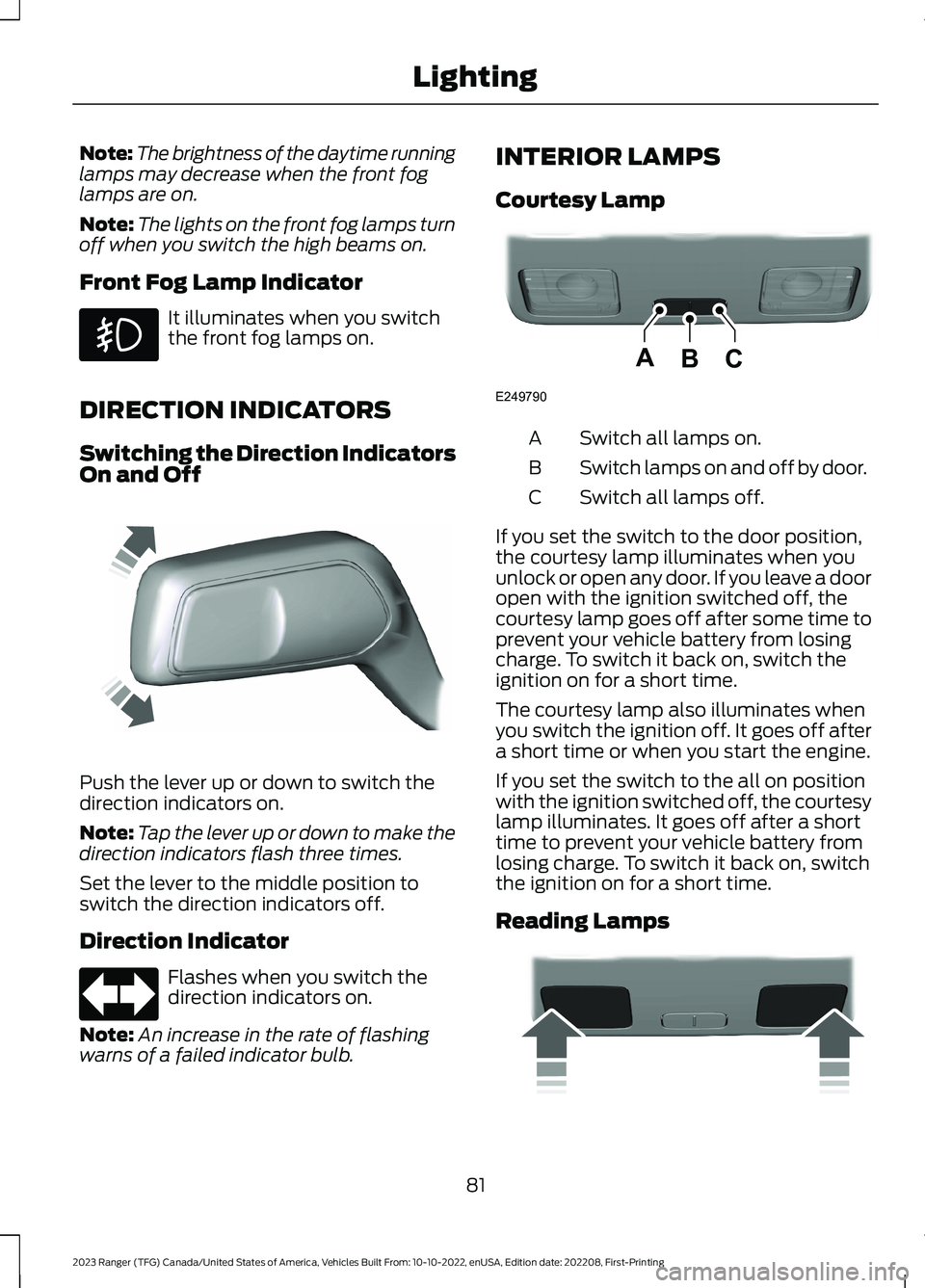

Front Fog Lamp Indicator
It illuminates when you switchthe front fog lamps on.
DIRECTION INDICATORS
Switching the Direction IndicatorsOn and Off
Push the lever up or down to switch thedirection indicators on.
Note:Tap the lever up or down to make thedirection indicators flash three times.
Set the lever to the middle position toswitch the direction indicators off.
Direction Indicator
Flashes when you switch thedirection indicators on.
Note:An increase in the rate of flashingwarns of a failed indicator bulb.
INTERIOR LAMPS
Courtesy Lamp
Switch all lamps on.A
Switch lamps on and off by door.B
Switch all lamps off.C
If you set the switch to the door position,the courtesy lamp illuminates when youunlock or open any door. If you leave a dooropen with the ignition switched off, thecourtesy lamp goes off after some time toprevent your vehicle battery from losingcharge. To switch it back on, switch theignition on for a short time.
The courtesy lamp also illuminates whenyou switch the ignition off. It goes off aftera short time or when you start the engine.
If you set the switch to the all on positionwith the ignition switched off, the courtesylamp illuminates. It goes off after a shorttime to prevent your vehicle battery fromlosing charge. To switch it back on, switchthe ignition on for a short time.
Reading Lamps
81
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingLighting E242676 E67018 BCAE249790 E249791

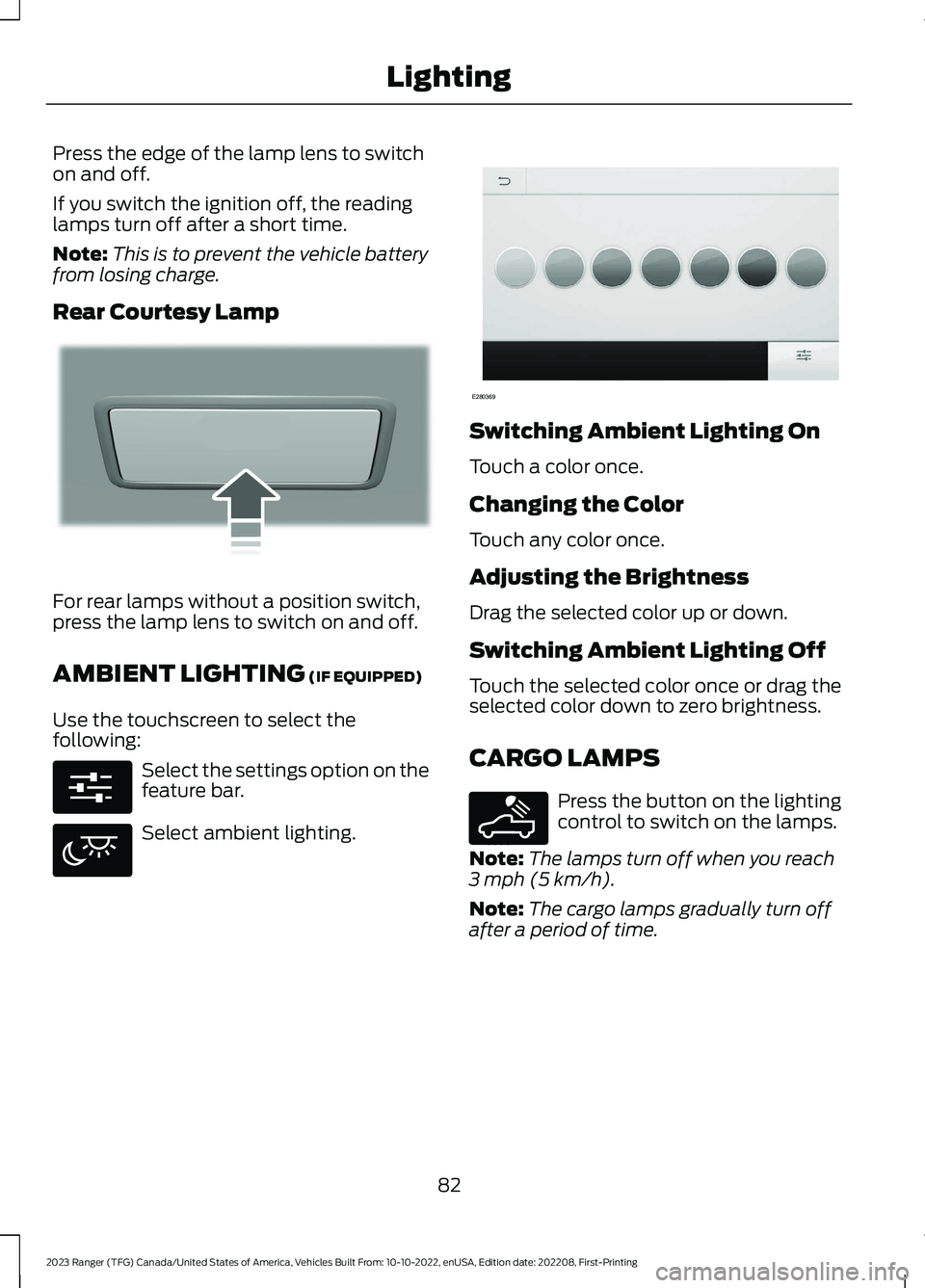

Press the edge of the lamp lens to switchon and off.
If you switch the ignition off, the readinglamps turn off after a short time.
Note:This is to prevent the vehicle batteryfrom losing charge.
Rear Courtesy Lamp
For rear lamps without a position switch,press the lamp lens to switch on and off.
AMBIENT LIGHTING (IF EQUIPPED)
Use the touchscreen to select thefollowing:
Select the settings option on thefeature bar.
Select ambient lighting.
Switching Ambient Lighting On
Touch a color once.
Changing the Color
Touch any color once.
Adjusting the Brightness
Drag the selected color up or down.
Switching Ambient Lighting Off
Touch the selected color once or drag theselected color down to zero brightness.
CARGO LAMPS
Press the button on the lightingcontrol to switch on the lamps.
Note:The lamps turn off when you reach3 mph (5 km/h).
Note:The cargo lamps gradually turn offafter a period of time.
82
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingLightingE250958 E280315 E280617 E280369 E189587

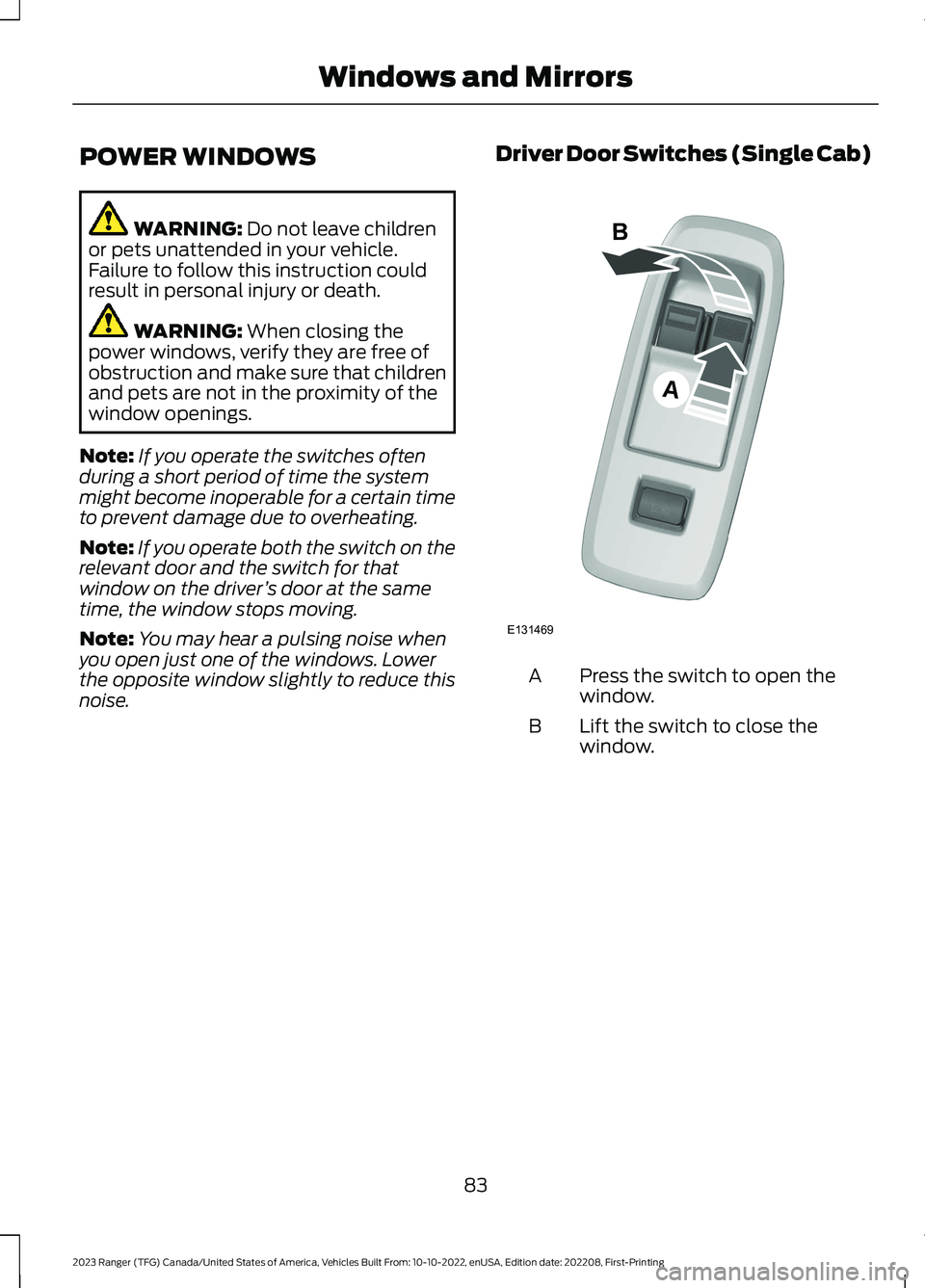

POWER WINDOWS
WARNING: Do not leave childrenor pets unattended in your vehicle.Failure to follow this instruction couldresult in personal injury or death.
WARNING: When closing thepower windows, verify they are free ofobstruction and make sure that childrenand pets are not in the proximity of thewindow openings.
Note:If you operate the switches oftenduring a short period of time the systemmight become inoperable for a certain timeto prevent damage due to overheating.
Note:If you operate both the switch on therelevant door and the switch for thatwindow on the driver’s door at the sametime, the window stops moving.
Note:You may hear a pulsing noise whenyou open just one of the windows. Lowerthe opposite window slightly to reduce thisnoise.
Driver Door Switches (Single Cab)
Press the switch to open thewindow.A
Lift the switch to close thewindow.B
83
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingWindows and MirrorsABE131469

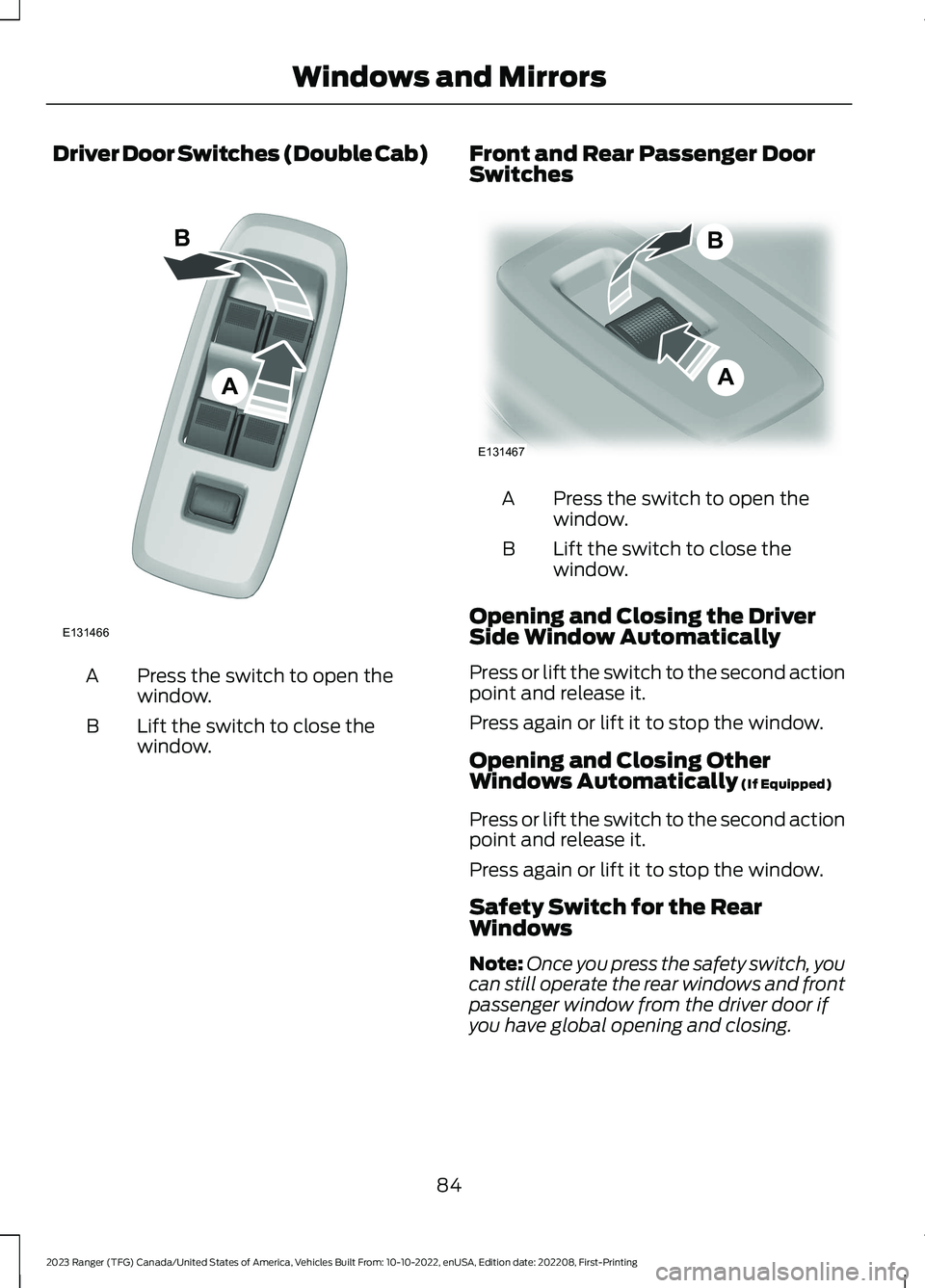

Driver Door Switches (Double Cab)
Press the switch to open thewindow.A
Lift the switch to close thewindow.B
Front and Rear Passenger DoorSwitches
Press the switch to open thewindow.A
Lift the switch to close thewindow.B
Opening and Closing the DriverSide Window Automatically
Press or lift the switch to the second actionpoint and release it.
Press again or lift it to stop the window.
Opening and Closing OtherWindows Automatically (If Equipped)
Press or lift the switch to the second actionpoint and release it.
Press again or lift it to stop the window.
Safety Switch for the RearWindows
Note:Once you press the safety switch, youcan still operate the rear windows and frontpassenger window from the driver door ifyou have global opening and closing.
84
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingWindows and MirrorsABE131466 ABE131467

Note: In vehicles without global openingand closing, you cannot operate the rearwindows from driver side when you pressthe safety switch. In certain vehicles, youcannot operate front passenger windowsas well.
Press the control to lock or unlock the rearwindow controls.
Resetting the Memory of theElectric Windows - Vehicle withOne Touch Up/Down on DriverSide only
Note:The bounce back feature remainsturned off until you reset the memory.
In the event of a flat battery or after thebattery is disconnected from the vehicle,you must reset the memory for the driverwindow.
1.Open the window and then try to closeit using the one-touch feature.
2.Lift and hold the switch to the secondaction point until you fully close thewindow.
3.Lift and hold the switch for more thantwo seconds and release.
4.Open the window using the first actionpoint and try to close it automaticallyusing the second action point.
5.If the window does not open or closeautomatically when you press theswitch or lift it to the second actionpoint, repeat the procedure.
Safety Mode
Note:The anti-trap function is not activeduring this procedure.
If the system detects a malfunction, itenters a safety mode. The windows movea little at a time and then stop again. Closethe windows by pressing the switch againwhen the windows stop moving.
Contact an authorized dealer.
Bounce-Back
The window automatically stops andreverses some distance if it detects anobstacle when closing.
Overriding the Bounce-Back Feature
WARNING: If you overridebounce-back, the window does notreverse if it detects an obstacle. Takecare when closing the windows to avoidpersonal injury or damage to yourvehicle.
Proceed as follows to override thisprotection feature when there is aresistance, for example in winter:
1.Close the window twice until it reachesthe point of resistance and let itreverse.
2.Close the window a third time to thepoint of resistance. The bounce-backfeature is now disabled and you canclose the window manually. Thewindow will go past the point ofresistance and you can close it fully.
See an authorized dealer as soon aspossible if the window does not close afterthe third attempt.
Resetting the Bounce-Back Feature
Note:The bounce-back feature remainsturned off until you reset the memory.
85
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingWindows and MirrorsE131468

If you disconnect the battery, you mustreset the bounce-back memory separatelyfor each window.
1.Lift and hold the switch until you fullyclose the window.
2.Release the switch.
3.Lift the switch again for one second.
4.Press and hold the switch until you fullyclose the window.
5.Release the switch.
6.Lift and hold the switch until you fullyclose the window.
7.Open the window and then try to closeit automatically.
8.Reset and repeat the procedure if thewindow does not close automatically.

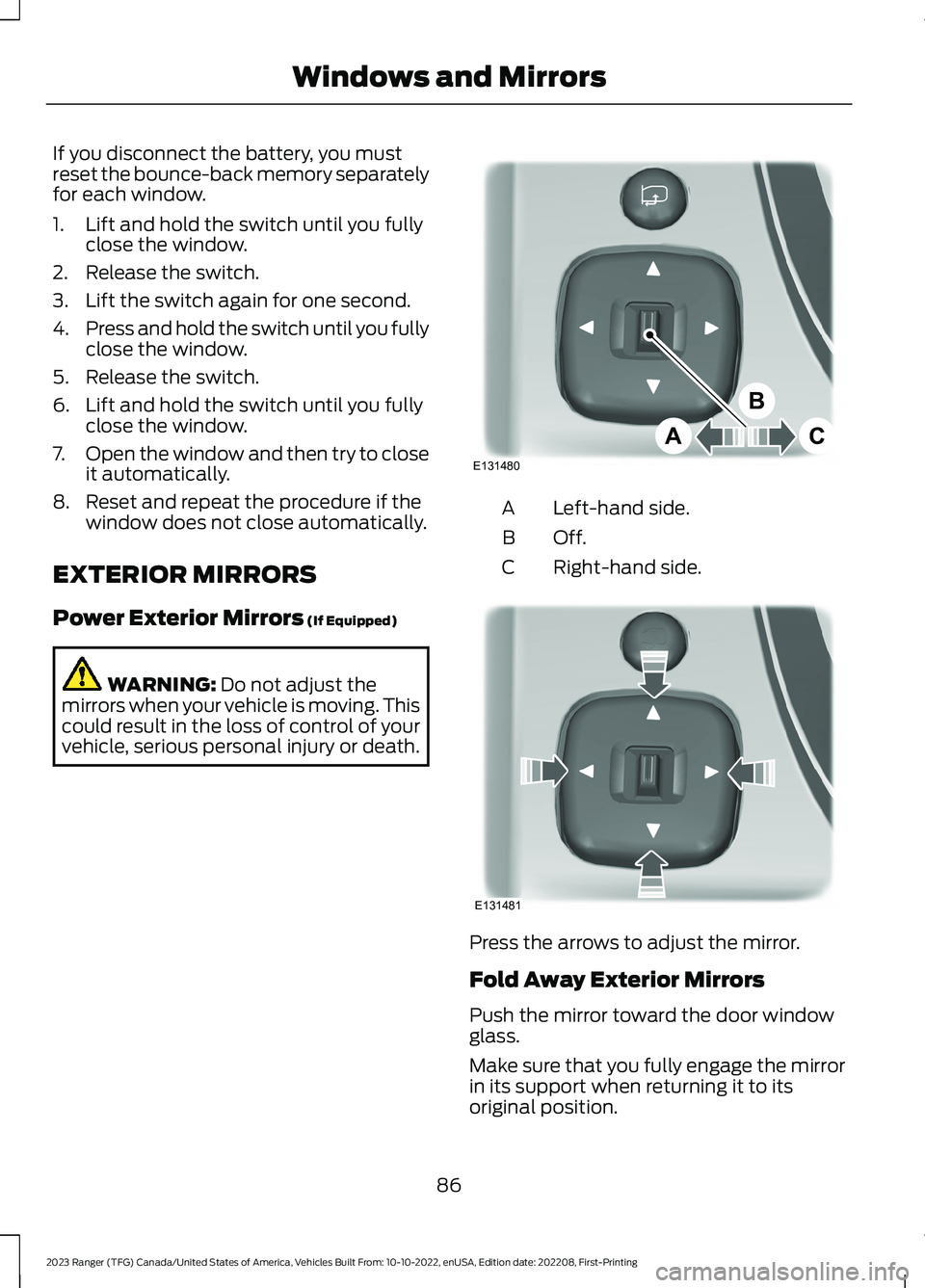

EXTERIOR MIRRORS
Power Exterior Mirrors (If Equipped)
WARNING: Do not adjust themirrors when your vehicle is moving. Thiscould result in the loss of control of yourvehicle, serious personal injury or death.
Left-hand side.A
Off.B
Right-hand side.C
Press the arrows to adjust the mirror.
Fold Away Exterior Mirrors
Push the mirror toward the door windowglass.
Make sure that you fully engage the mirrorin its support when returning it to itsoriginal position.
86
