FORD RANGER 2023 Owners Manual

Battery and Charging System
ActionMessage
The charging system needs servicing. If the warning stays onor continues to come on, have your vehicle checked as soonas possible.
Check Charging System
The battery management system detects an extended low-voltage condition. Your vehicle will disable various featuresto help preserve the battery. Turn off as many of the electricalloads as soon as possible to improve system voltage. If thesystem voltage has recovered, the disabled features willoperate again as normal.
Low Battery FeaturesTemporarily Turned Off
The battery management system determines that the batteryis at a low state of charge. Turn your ignition off as soon aspossible to protect the battery. This message will clear onceyou restart your vehicle and the battery state of charge hasrecovered. Turning off unnecessary electrical loads will allowfaster battery state-of-charge recovery.
Turn Power Off To SaveBattery
The charging system needs servicing. If the warning stays onor continues to come on, have your vehicle checked as soonas possible.
Charging System ServiceSoon
The charging system needs servicing. Have your vehiclechecked as soon as possible.Charging System ServiceNow
The battery management system determines that the batteryis at a low state of charge. Turn your ignition off as soon aspossible to protect the battery. This message clears once yourestart your vehicle and the battery state of charge hasrecovered.
Battery State of ChargeLow
Blind Spot Information and Cross Traffic Alert System
ActionMessage
A fault with the system has occurred. Have your vehiclechecked as soon as possible.Blindspot System Fault
The system sensors are blocked. See Blind Spot Informa-tion System (page 206).Blindspot Not AvailableSensor Blocked SeeManual
The system detects a vehicle.Cross Traffic Alert
107
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingInformation Displays

ActionMessage
The blind spot information system and cross traffic alertsystem sensors are blocked. See Blind Spot InformationSystem (page 206).
Cross Traffic Not Avail-able Sensor Blocked SeeManual
A fault with the system has occurred. Have your vehiclechecked as soon as possible.Cross Traffic SystemFault
The system automatically turns off and displays this messagewhen you connect a trailer to the vehicle that does not havea trailer blind spot system or when you switch the trailer blindspot system off through the information display. See BlindSpot Information System (page 206).
Cross Traffic Alert Deac-tivated Trailer Attached
The system automatically turns off and displays this messagewhen you connect a trailer to the vehicle that does not havea trailer blind spot system or when you connect a trailer anddo not set up a Blind Spot Trailer. See Blind Spot Informa-tion System (page 206).
Blind Spot Alert Deactiv-ated Trailer Attached
Displays when the trailer width is wider than 8.2 ft (2.5 m)orlonger than 33 ft (10 m).Trailer Blind Spot
not Operational
above Specified
Measurements
Doors and Locks
ActionMessage
The door(s) listed is not completely closed.X Door Ajar
Driver Alert
ActionMessage
Stop and rest as soon as it is safe to do so.Driver Alert Warning RestNow
Take a rest soon.Driver Alert Warning RestSuggested
108
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingInformation Displays

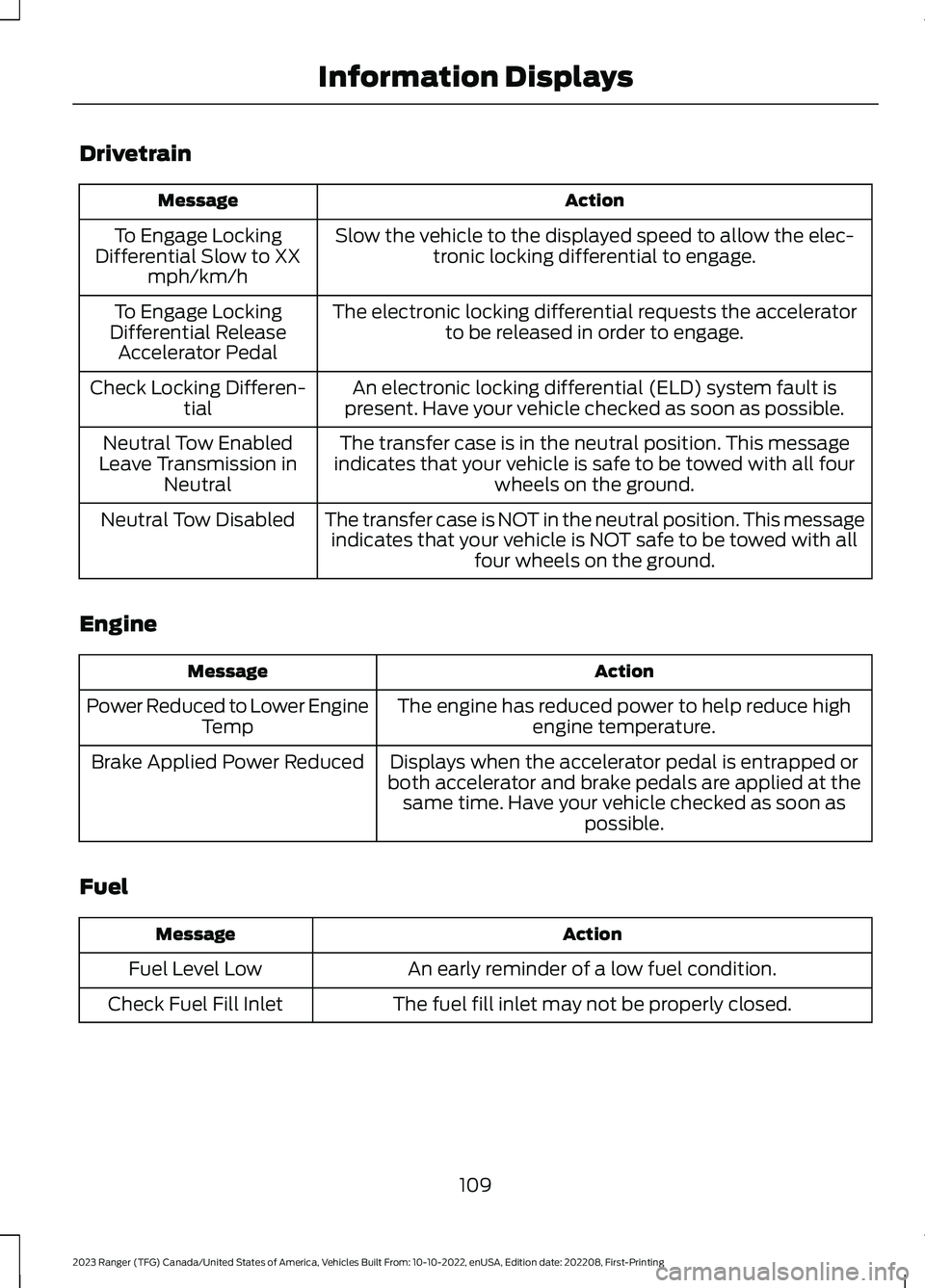

Drivetrain
ActionMessage
Slow the vehicle to the displayed speed to allow the elec-tronic locking differential to engage.To Engage LockingDifferential Slow to XXmph/km/h
The electronic locking differential requests the acceleratorto be released in order to engage.To Engage LockingDifferential ReleaseAccelerator Pedal
An electronic locking differential (ELD) system fault ispresent. Have your vehicle checked as soon as possible.Check Locking Differen-tial
The transfer case is in the neutral position. This messageindicates that your vehicle is safe to be towed with all fourwheels on the ground.
Neutral Tow EnabledLeave Transmission inNeutral
The transfer case is NOT in the neutral position. This messageindicates that your vehicle is NOT safe to be towed with allfour wheels on the ground.
Neutral Tow Disabled
Engine
ActionMessage
The engine has reduced power to help reduce highengine temperature.Power Reduced to Lower EngineTemp
Displays when the accelerator pedal is entrapped orboth accelerator and brake pedals are applied at thesame time. Have your vehicle checked as soon aspossible.
Brake Applied Power Reduced
Fuel
ActionMessage
An early reminder of a low fuel condition.Fuel Level Low
The fuel fill inlet may not be properly closed.Check Fuel Fill Inlet
109
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingInformation Displays

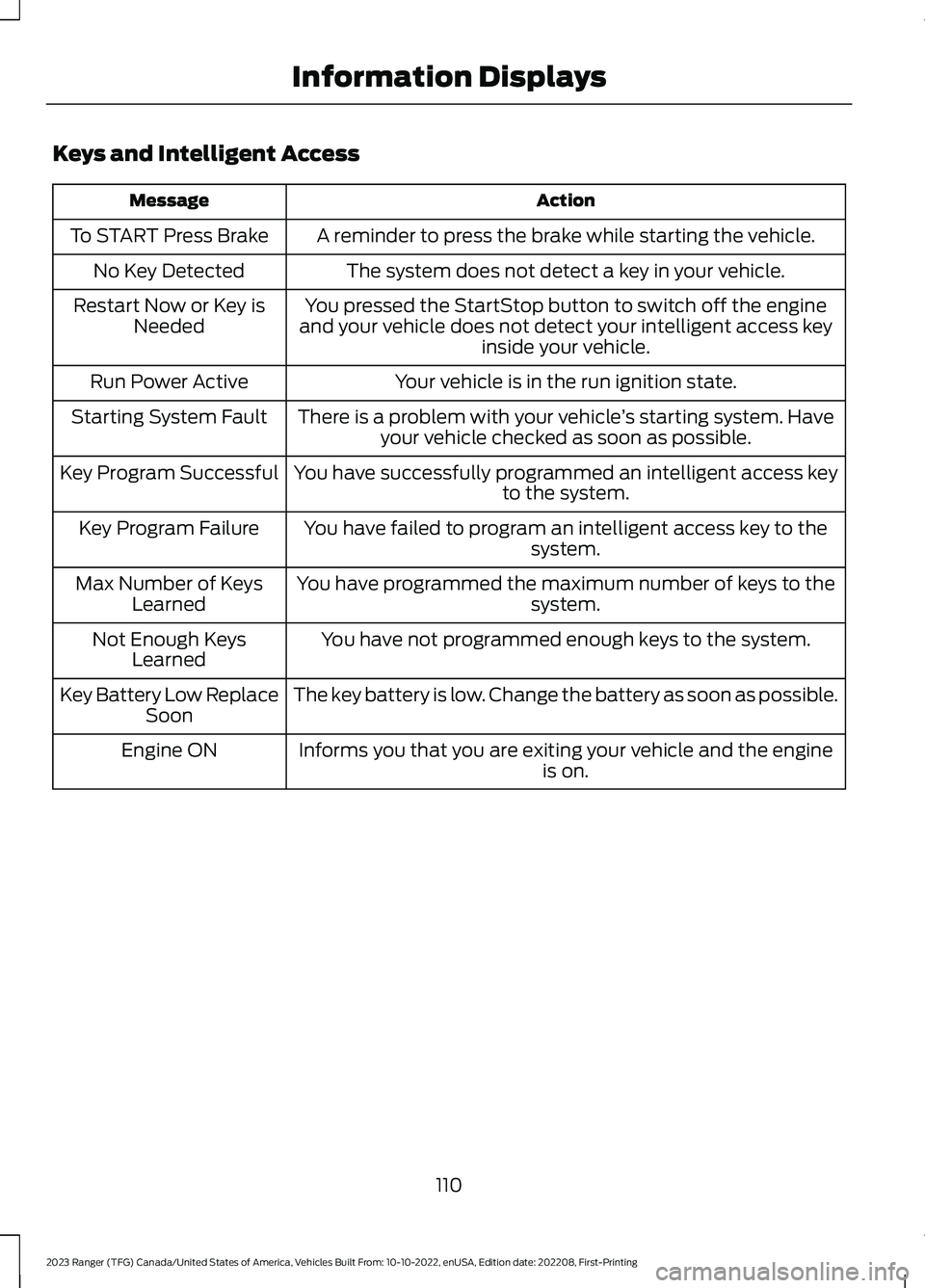

Keys and Intelligent Access
ActionMessage
A reminder to press the brake while starting the vehicle.To START Press Brake
The system does not detect a key in your vehicle.No Key Detected
You pressed the StartStop button to switch off the engineand your vehicle does not detect your intelligent access keyinside your vehicle.
Restart Now or Key isNeeded
Your vehicle is in the run ignition state.Run Power Active
There is a problem with your vehicle’s starting system. Haveyour vehicle checked as soon as possible.Starting System Fault
You have successfully programmed an intelligent access keyto the system.Key Program Successful
You have failed to program an intelligent access key to thesystem.Key Program Failure
You have programmed the maximum number of keys to thesystem.Max Number of KeysLearned
You have not programmed enough keys to the system.Not Enough KeysLearned
The key battery is low. Change the battery as soon as possible.Key Battery Low ReplaceSoon
Informs you that you are exiting your vehicle and the engineis on.Engine ON
110
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingInformation Displays

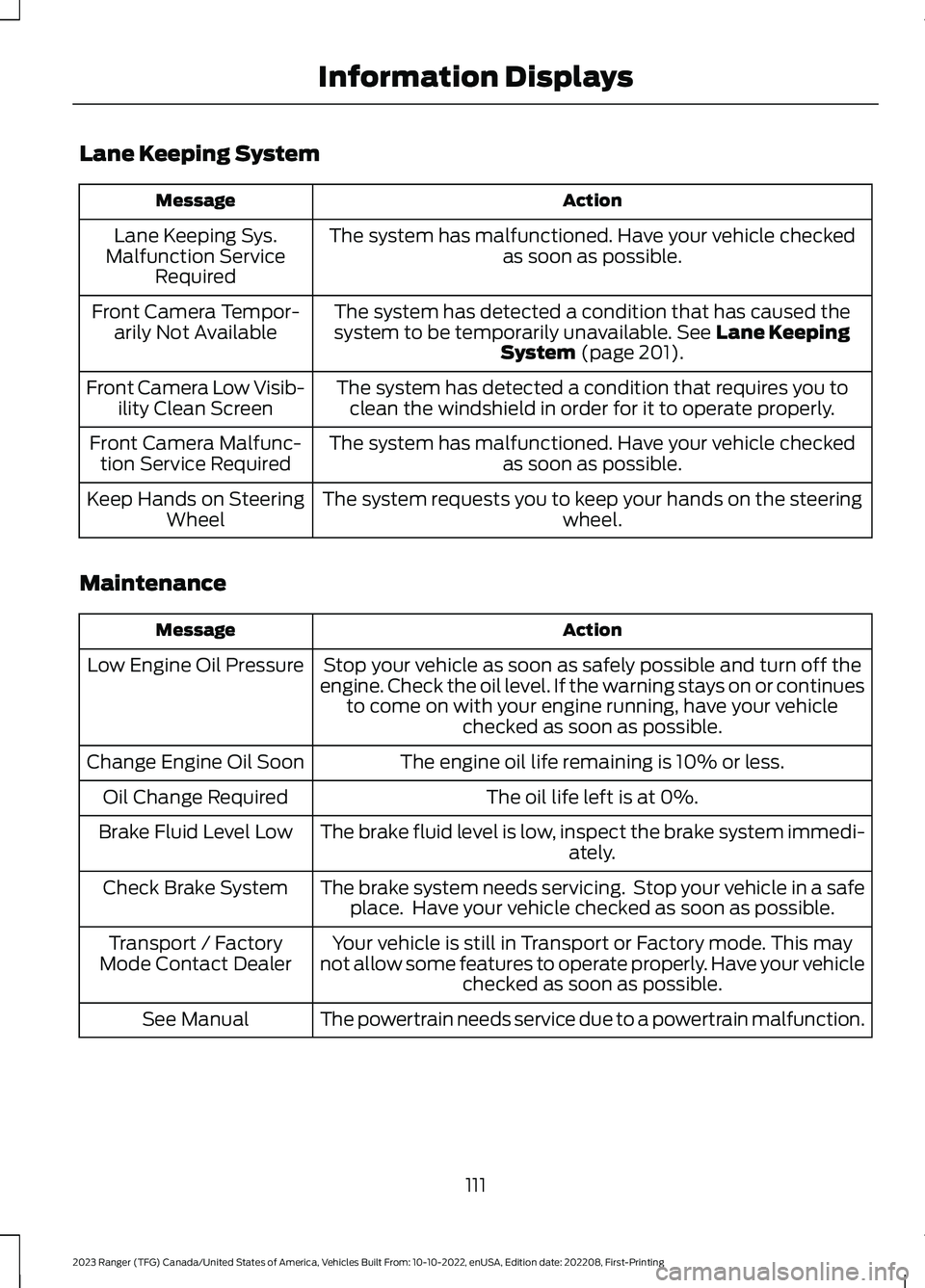

Lane Keeping System
ActionMessage
The system has malfunctioned. Have your vehicle checkedas soon as possible.Lane Keeping Sys.Malfunction ServiceRequired
The system has detected a condition that has caused thesystem to be temporarily unavailable. See Lane KeepingSystem (page 201).
Front Camera Tempor-arily Not Available
The system has detected a condition that requires you toclean the windshield in order for it to operate properly.Front Camera Low Visib-ility Clean Screen
The system has malfunctioned. Have your vehicle checkedas soon as possible.Front Camera Malfunc-tion Service Required
The system requests you to keep your hands on the steeringwheel.Keep Hands on SteeringWheel
Maintenance
ActionMessage
Stop your vehicle as soon as safely possible and turn off theengine. Check the oil level. If the warning stays on or continuesto come on with your engine running, have your vehiclechecked as soon as possible.
Low Engine Oil Pressure
The engine oil life remaining is 10% or less.Change Engine Oil Soon
The oil life left is at 0%.Oil Change Required
The brake fluid level is low, inspect the brake system immedi-ately.Brake Fluid Level Low
The brake system needs servicing. Stop your vehicle in a safeplace. Have your vehicle checked as soon as possible.Check Brake System
Your vehicle is still in Transport or Factory mode. This maynot allow some features to operate properly. Have your vehiclechecked as soon as possible.
Transport / FactoryMode Contact Dealer
The powertrain needs service due to a powertrain malfunction.See Manual
111
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingInformation Displays

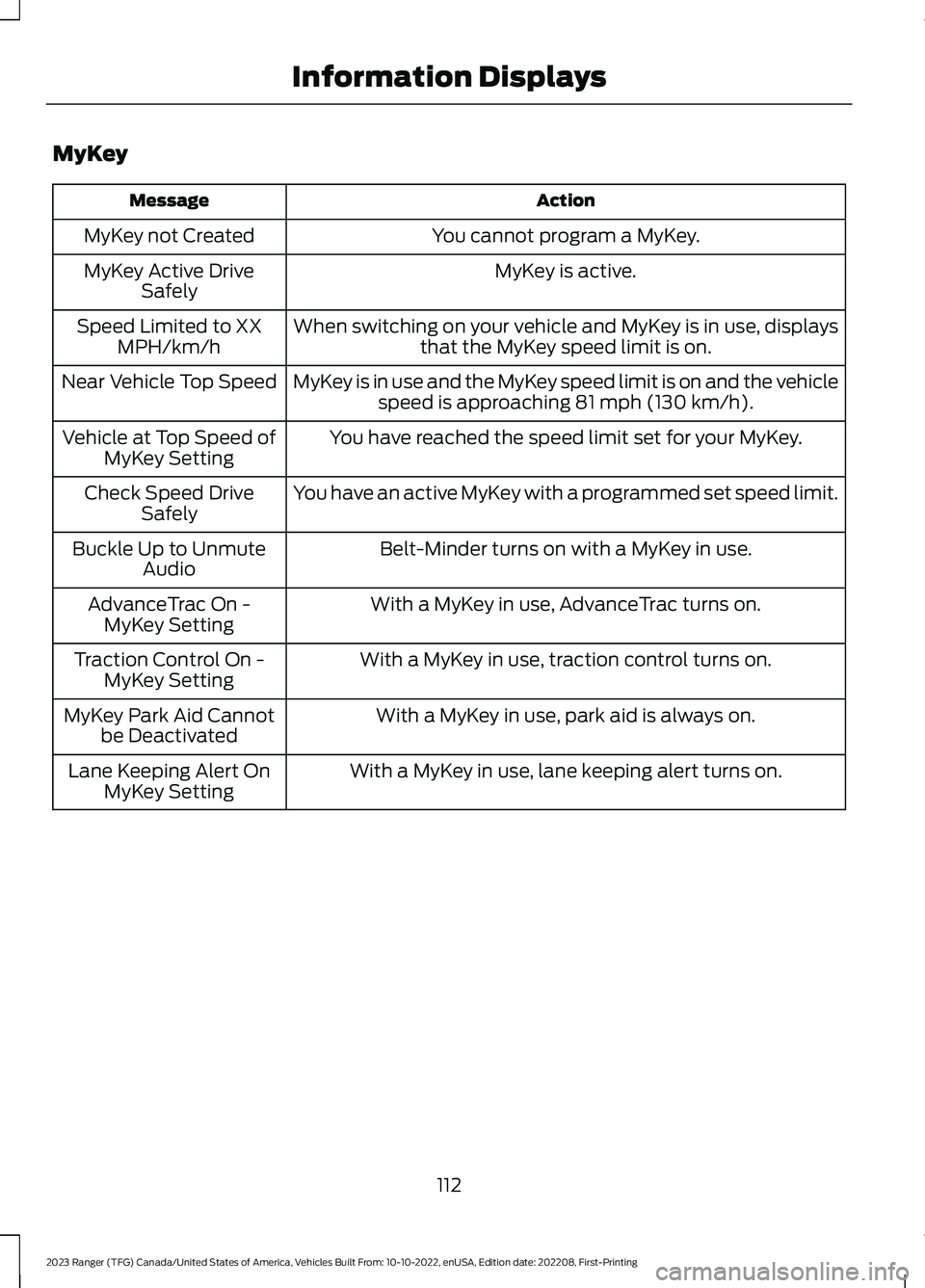

MyKey
ActionMessage
You cannot program a MyKey.MyKey not Created
MyKey is active.MyKey Active DriveSafely
When switching on your vehicle and MyKey is in use, displaysthat the MyKey speed limit is on.Speed Limited to XXMPH/km/h
MyKey is in use and the MyKey speed limit is on and the vehiclespeed is approaching 81 mph (130 km/h).Near Vehicle Top Speed
You have reached the speed limit set for your MyKey.Vehicle at Top Speed ofMyKey Setting
You have an active MyKey with a programmed set speed limit.Check Speed DriveSafely
Belt-Minder turns on with a MyKey in use.Buckle Up to UnmuteAudio
With a MyKey in use, AdvanceTrac turns on.AdvanceTrac On -MyKey Setting
With a MyKey in use, traction control turns on.Traction Control On -MyKey Setting
With a MyKey in use, park aid is always on.MyKey Park Aid Cannotbe Deactivated
With a MyKey in use, lane keeping alert turns on.Lane Keeping Alert OnMyKey Setting
112
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingInformation Displays

Park Aid
ActionMessage
The system has detected a condition that requires service.Have your vehicle checked as soon as possible. See FrontParking Aid (page 187).
Check Front Park Aid
The system has detected a condition that requires service.Have your vehicle checked as soon as possible. See RearParking Aid (page 187).
Check Rear Park Aid
Displays the park aid status.Front Park Aid On Off
Displays the park aid status.Rear Park Aid On Off
Power Steering
ActionMessage
The power steering system has detected a condition thatrequires service. Have your vehicle checked as soon aspossible.
Steering Fault ServiceNow
The power steering system is not working. Stop your vehiclein a safe place. Have your vehicle checked as soon as possible.Steering Loss StopSafely
The power steering system has detected a condition withinthe power steering system, passive entry or the passive startsystem requires service. Have your vehicle checked as soonas possible.
Steering Assist FaultService Required
Pre-Collision Assist
ActionMessage
A fault with the system has occurred. Have your vehiclechecked as soon as possible.Collision WarningMalfunction
You have a blocked sensor due to bad weather, ice, mud orwater in front of the radar sensor. You can typically clean thesensor to resolve. See Pre-Collision Assist (page 213).
Collision Warning NotAvailable SensorBlocked See Manual
A fault with the system has occurred. Have your vehiclechecked as soon as possible.Collision Warning NotAvailable
113
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingInformation Displays

Remote Start
ActionMessage
A reminder to push the start button to drive your vehicle aftera remote start.To Drive: Press StartButton
Starting System
ActionMessage
A reminder to apply the brake when starting your vehicle.To START Press Brake
The starter has exceeded its cranking time in attempting tostart your vehicle.Cranking Time Exceeded
The starter is attempting to start your vehicle.Engine Start PendingPlease Wait
The system has cancelled the pending start.Pending Start Cancelled
Tire Pressure Monitoring System
ActionMessage
One or more tires on your vehicle has low tire pressure.Tire Pressure Low
The tire pressure monitoring system is malfunctioning. If thewarning stays on or continues to come on, have your vehiclechecked as soon as possible. See Tire Pressure MonitoringSystem (page 309).
Tire Pressure MonitorFault
A tire pressure sensor is malfunctioning or your spare tire is inuse. See Tire Pressure Monitoring System (page 309). Ifthe warning stays on or continues to come on, have yourvehicle checked as soon as possible.
Tire Pressure SensorFault
Traction Control
ActionMessage
The status of the traction control system after you switchedit off.Traction Control Off
The status of the traction control system after you switchedit on.Traction Control On
114
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingInformation Displays

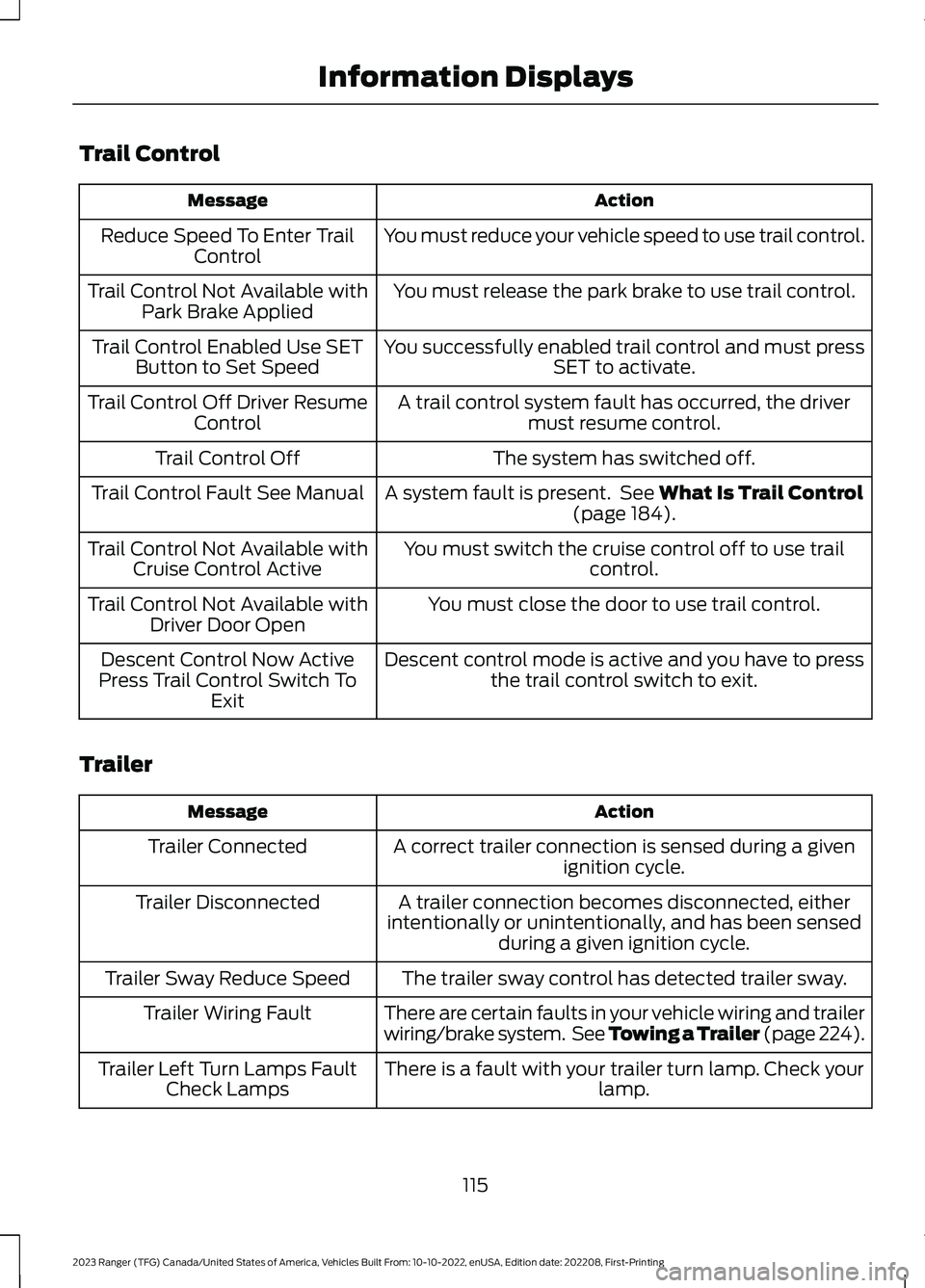

Trail Control
ActionMessage
You must reduce your vehicle speed to use trail control.Reduce Speed To Enter TrailControl
You must release the park brake to use trail control.Trail Control Not Available withPark Brake Applied
You successfully enabled trail control and must pressSET to activate.Trail Control Enabled Use SETButton to Set Speed
A trail control system fault has occurred, the drivermust resume control.Trail Control Off Driver ResumeControl
The system has switched off.Trail Control Off
A system fault is present. See What Is Trail Control(page 184).Trail Control Fault See Manual
You must switch the cruise control off to use trailcontrol.Trail Control Not Available withCruise Control Active
You must close the door to use trail control.Trail Control Not Available withDriver Door Open
Descent control mode is active and you have to pressthe trail control switch to exit.Descent Control Now ActivePress Trail Control Switch ToExit
Trailer
ActionMessage
A correct trailer connection is sensed during a givenignition cycle.Trailer Connected
A trailer connection becomes disconnected, eitherintentionally or unintentionally, and has been sensedduring a given ignition cycle.
Trailer Disconnected
The trailer sway control has detected trailer sway.Trailer Sway Reduce Speed
There are certain faults in your vehicle wiring and trailerwiring/brake system. See Towing a Trailer (page 224).Trailer Wiring Fault
There is a fault with your trailer turn lamp. Check yourlamp.Trailer Left Turn Lamps FaultCheck Lamps
115
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingInformation Displays

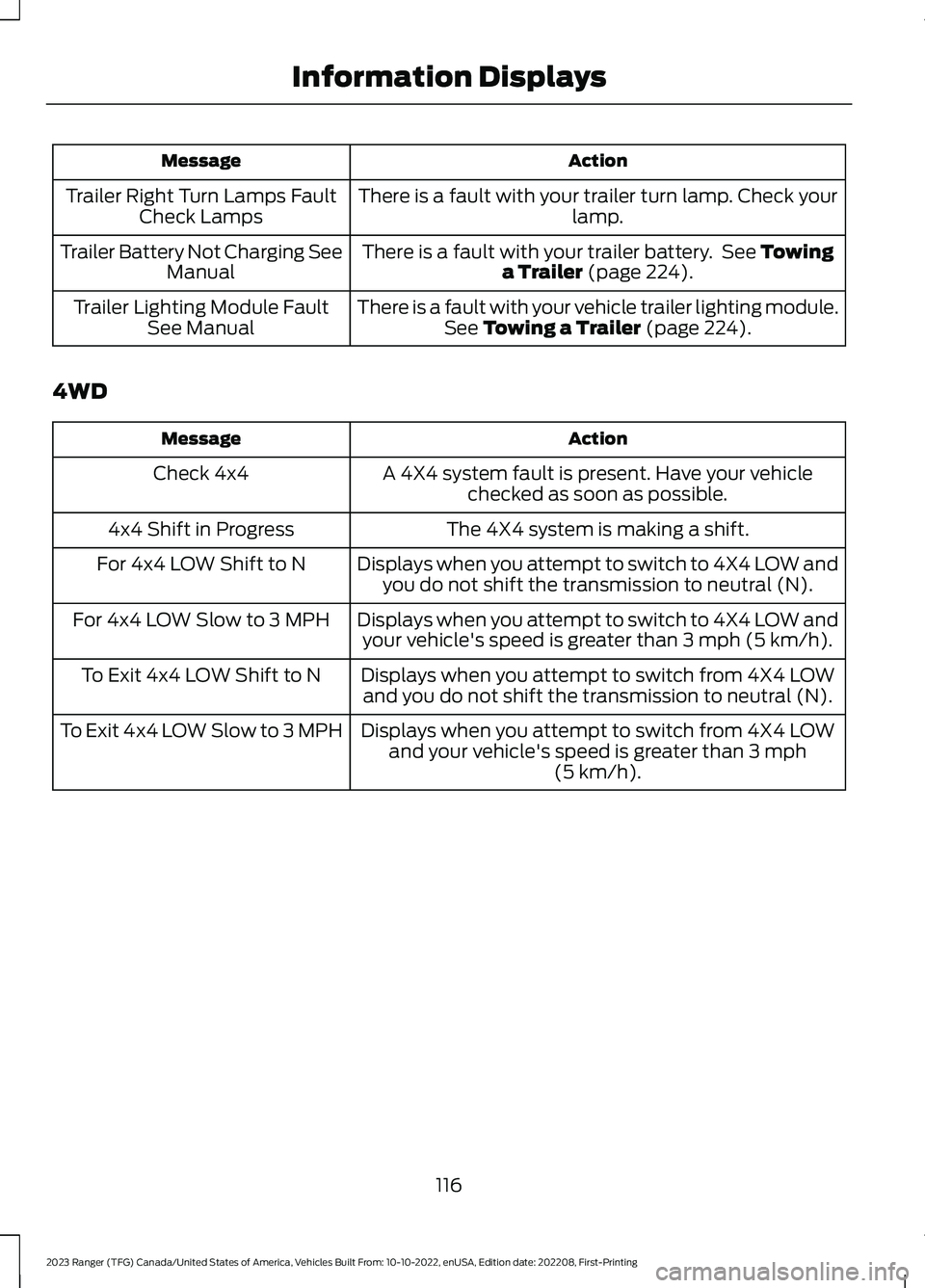

ActionMessage
There is a fault with your trailer turn lamp. Check yourlamp.Trailer Right Turn Lamps FaultCheck Lamps
There is a fault with your trailer battery. See Towinga Trailer (page 224).Trailer Battery Not Charging SeeManual
There is a fault with your vehicle trailer lighting module.See Towing a Trailer (page 224).Trailer Lighting Module FaultSee Manual
4WD
ActionMessage
A 4X4 system fault is present. Have your vehiclechecked as soon as possible.Check 4x4
The 4X4 system is making a shift.4x4 Shift in Progress
Displays when you attempt to switch to 4X4 LOW andyou do not shift the transmission to neutral (N).For 4x4 LOW Shift to N
Displays when you attempt to switch to 4X4 LOW andyour vehicle's speed is greater than 3 mph (5 km/h).For 4x4 LOW Slow to 3 MPH
Displays when you attempt to switch from 4X4 LOWand you do not shift the transmission to neutral (N).To Exit 4x4 LOW Shift to N
Displays when you attempt to switch from 4X4 LOWand your vehicle's speed is greater than 3 mph(5 km/h).
To Exit 4x4 LOW Slow to 3 MPH
116
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingInformation Displays
