compression ratio FORD RANGER 2023 Owners Manual

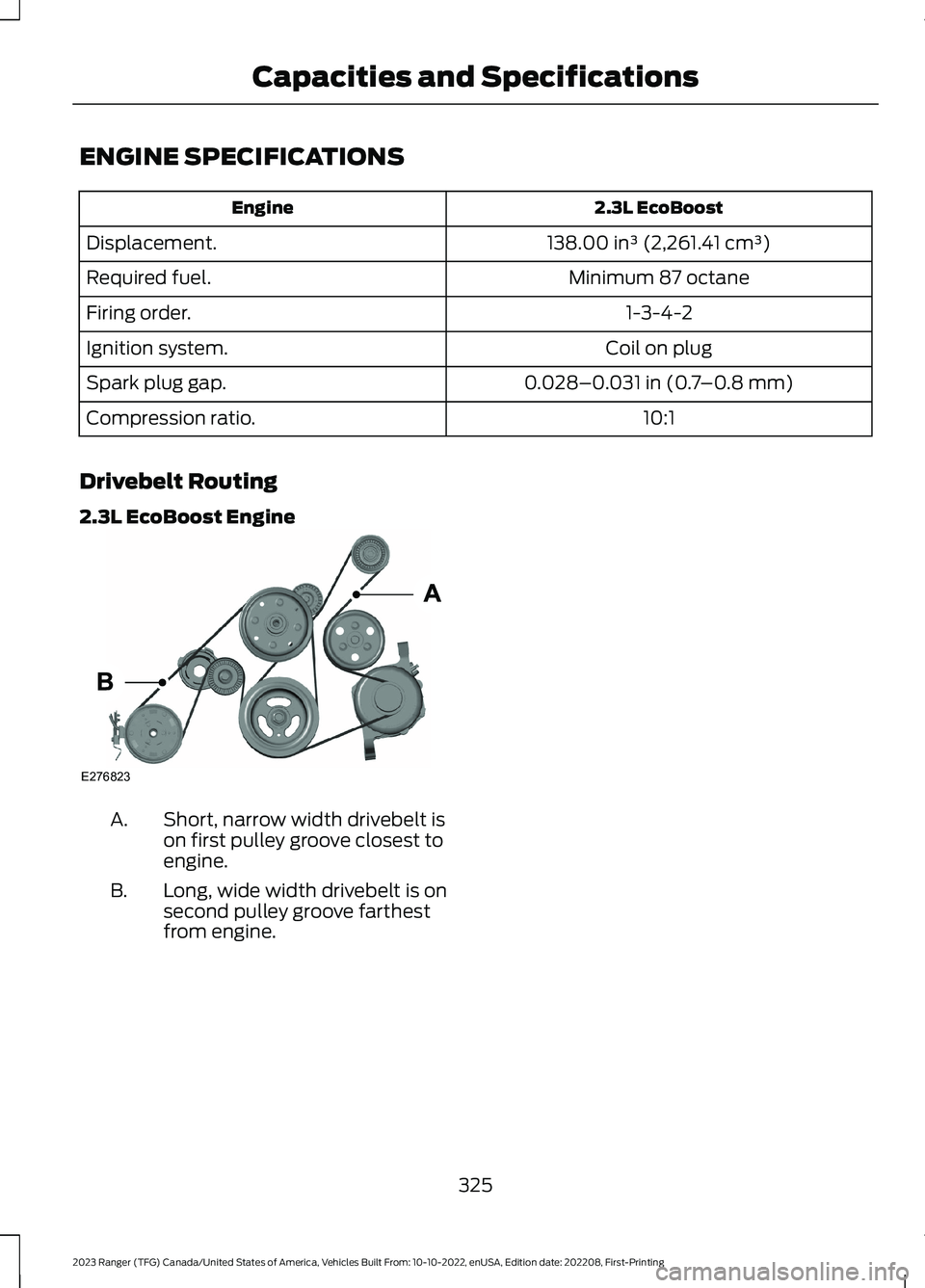

ENGINE SPECIFICATIONS
2.3L EcoBoostEngine
138.00 in³ (2,261.41 cm³)Displacement.
Minimum 87 octaneRequired fuel.
1-3-4-2Firing order.
Coil on plugIgnition system.
0.028–0.031 in (0.7–0.8 mm)Spark plug gap.
10:1Compression ratio.
Drivebelt Routing
2.3L EcoBoost Engine
Short, narrow width drivebelt ison first pulley groove closest toengine.
A.
Long, wide width drivebelt is onsecond pulley groove farthestfrom engine.
B.
325
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingCapacities and SpecificationsE276823
