Protected ComponentRatingItem
Not used.-1
Starter motor solenoid relay.-2
Rain sensor.5 A23
Blower motor relay.-4
Auxiliary power point 3 - console rear.20 A15
Trailer park lamp relay.-6
Powertrain control module.20 A27
Canister vent solenoid.20 A28Fuel vapor shutoff valve.Canister purge valve.Variable cam timing valve 1 and 2.
251
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingFusesE190797

Protected ComponentRatingItem
Heated oxygen sensors.
Powertrain control module relay.-9
Auxiliary power point 1 - instrument panel.20 A110
Ignition coils.15 A311
A/C control drive.15 A312Transaxle warmer.Auxiliary water pump.Aspirator valve control.Fan clutch.Oil pump.Turbo bypass.
Not used.-13
Not used.-14
Run/start relay.-15
Auxiliary power point 2 - instrument panel.20 A116
Auxiliary power point - rear cargo area.20 A117
Not used.-18
Electric power assist steering.10 A219
Not used.-20
Transmission run/start relay.5 A221
A/C compressor.10 A222
Voltage quality module.5 A223
Not used.-24
Anti-lock brake system.10 A325
Not used (spare).10 A326
Not used.-27
252
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingFuses

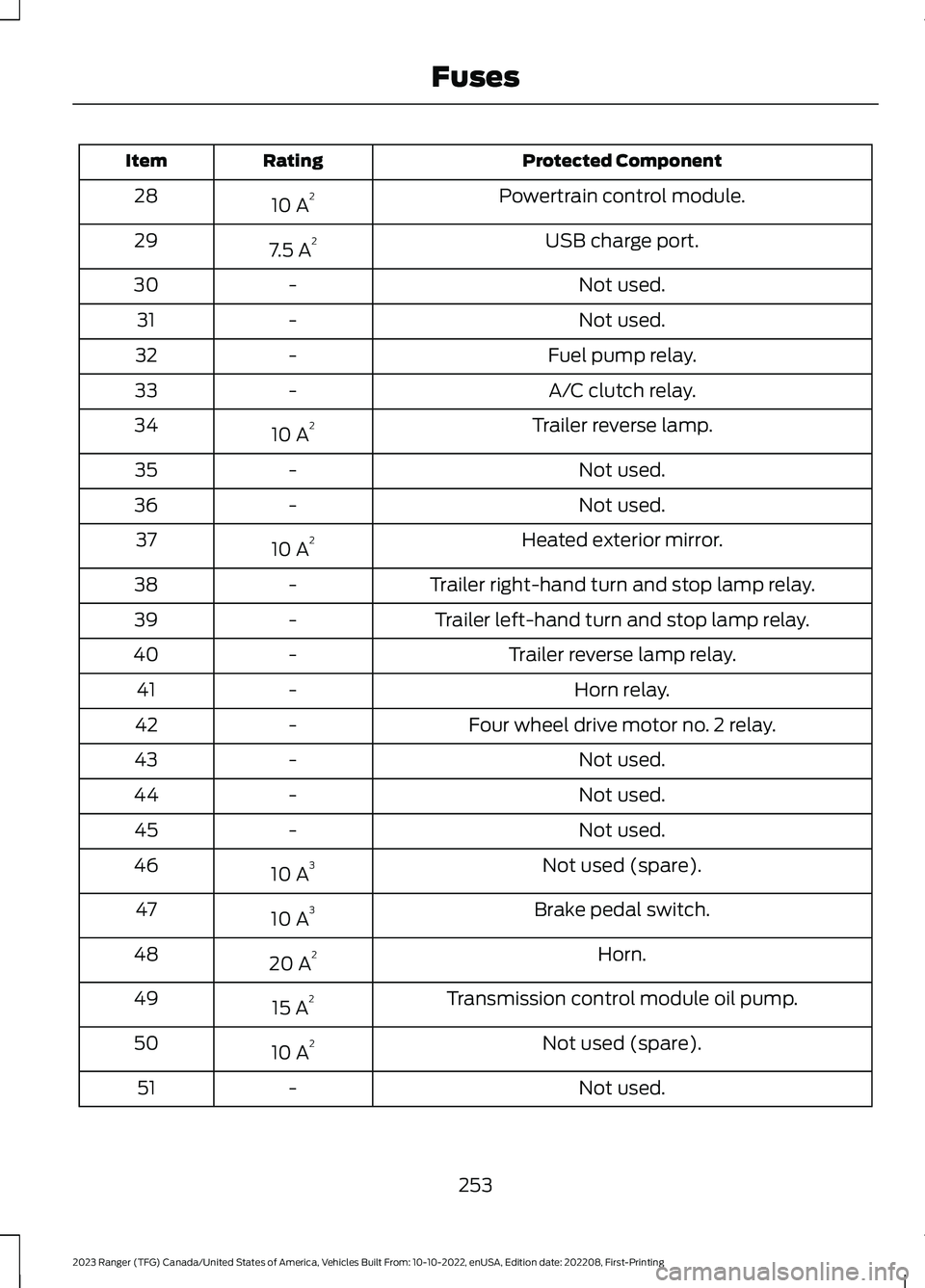

Protected ComponentRatingItem
Powertrain control module.10 A228
USB charge port.7.5 A229
Not used.-30
Not used.-31
Fuel pump relay.-32
A/C clutch relay.-33
Trailer reverse lamp.10 A234
Not used.-35
Not used.-36
Heated exterior mirror.10 A237
Trailer right-hand turn and stop lamp relay.-38
Trailer left-hand turn and stop lamp relay.-39
Trailer reverse lamp relay.-40
Horn relay.-41
Four wheel drive motor no. 2 relay.-42
Not used.-43
Not used.-44
Not used.-45
Not used (spare).10 A346
Brake pedal switch.10 A347
Horn.20 A248
Transmission control module oil pump.15 A249
Not used (spare).10 A250
Not used.-51
253
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingFuses

Protected ComponentRatingItem
Not used.-52
Rear differential lock.15 A253
Not used.-54
Not used.-55
Four wheel drive motor no. 1 relay.-86
1 M-type fuse.2 Micro 2 fuse.3 Micro 3 fuse.

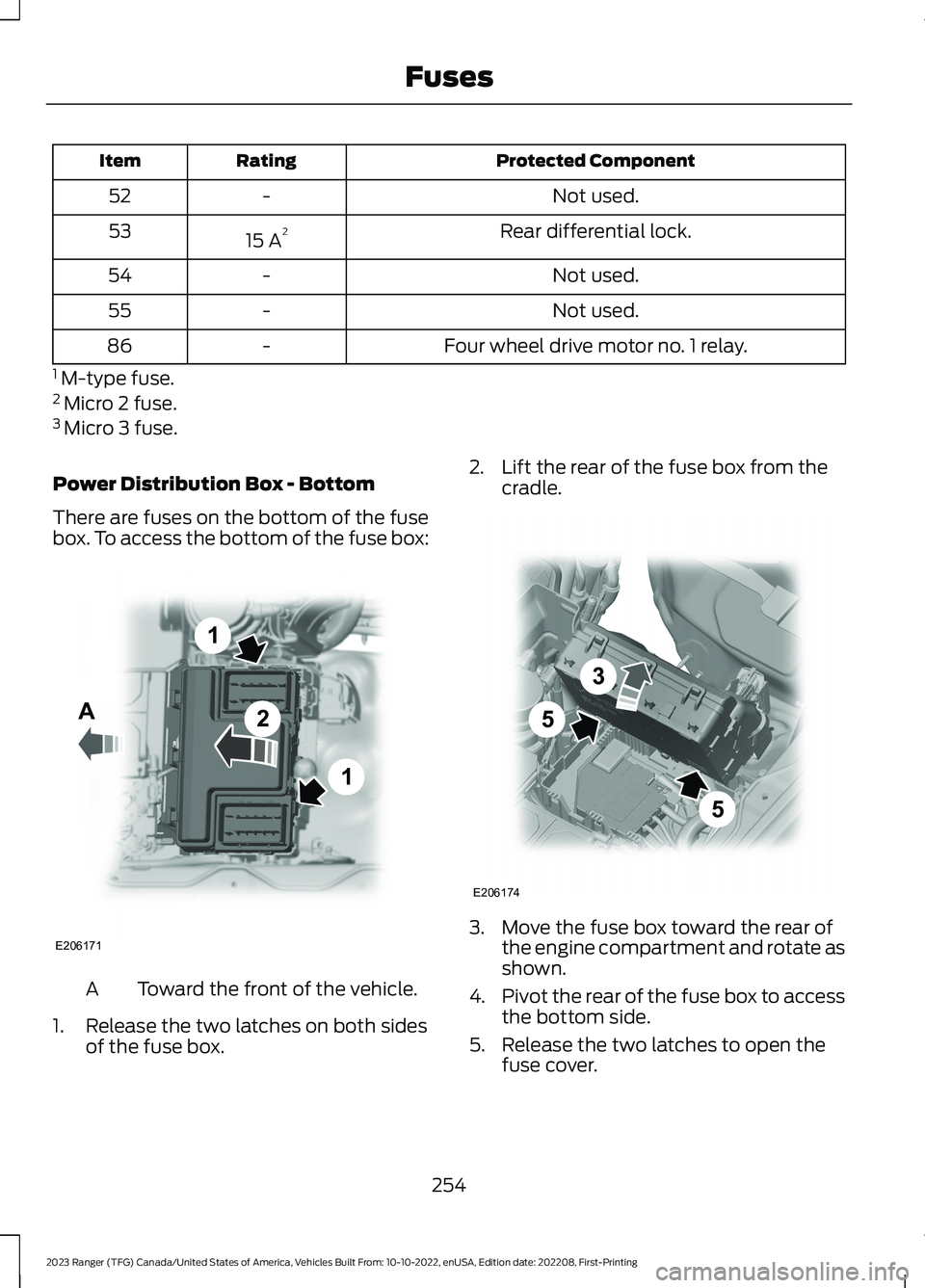

Power Distribution Box - Bottom
There are fuses on the bottom of the fusebox. To access the bottom of the fuse box:
Toward the front of the vehicle.A
1.Release the two latches on both sidesof the fuse box.
2.Lift the rear of the fuse box from thecradle.
3.Move the fuse box toward the rear ofthe engine compartment and rotate asshown.
4.Pivot the rear of the fuse box to accessthe bottom side.
5.Release the two latches to open thefuse cover.
254
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingFusesA12E2061711 355E206174

Protected ComponentRatingItem
Not used.-85
Trailer module.40 A287
1 M-type fuse.2 LPJ-type fuse.

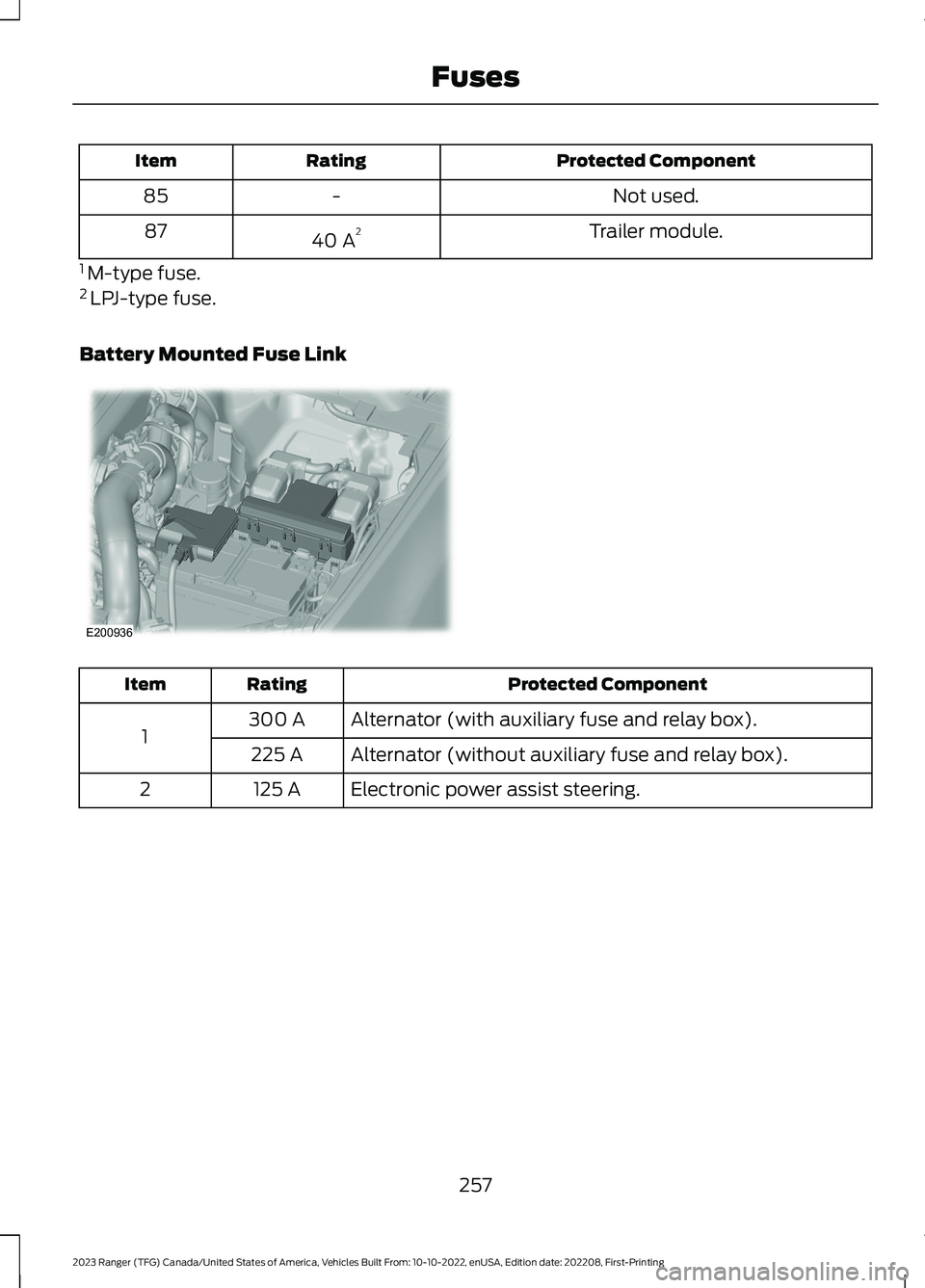

Battery Mounted Fuse Link
Protected ComponentRatingItem
Alternator (with auxiliary fuse and relay box).300 A1Alternator (without auxiliary fuse and relay box).225 A
Electronic power assist steering.125 A2
257
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingFusesE200936

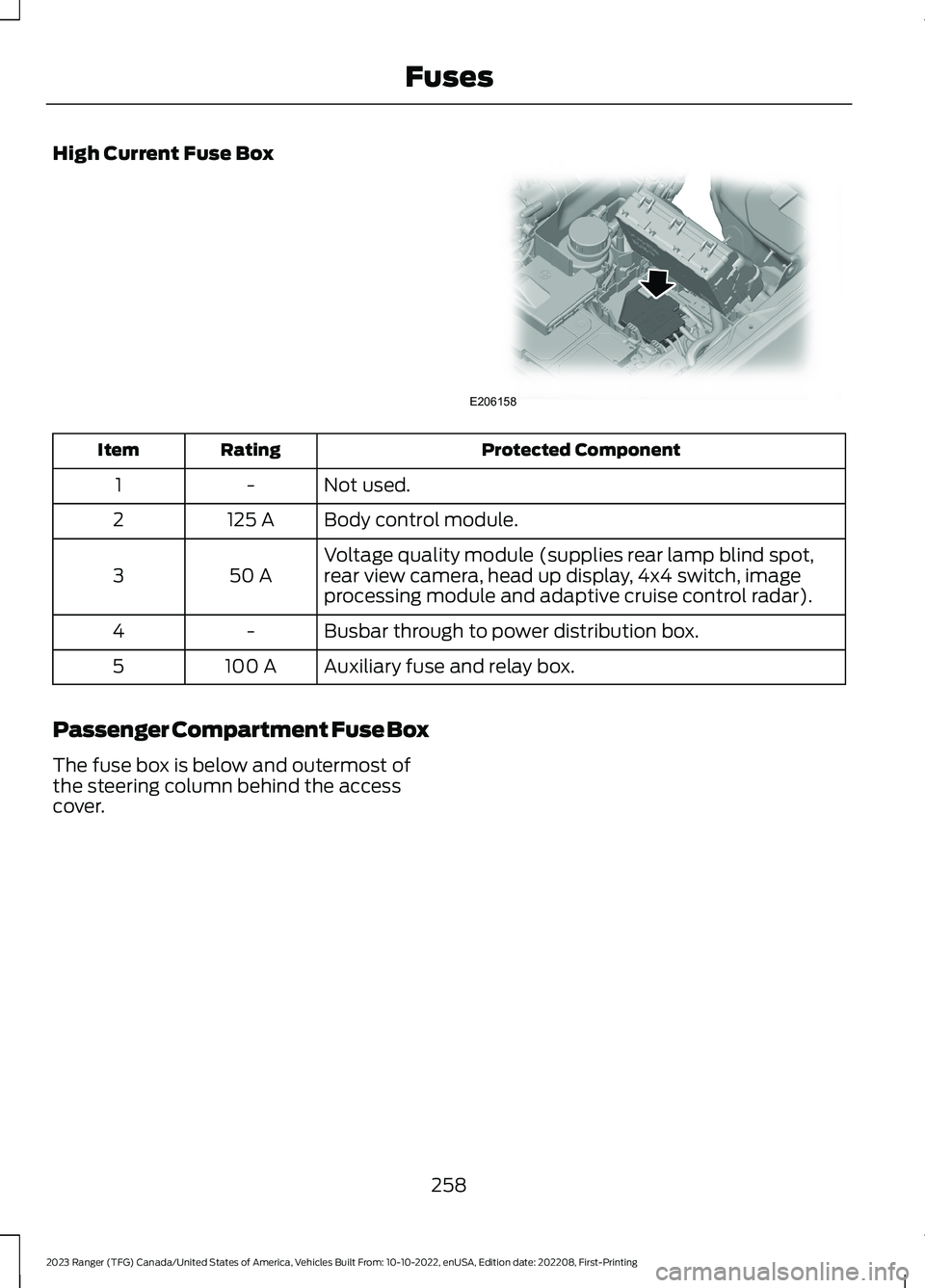

High Current Fuse Box
Protected ComponentRatingItem
Not used.-1
Body control module.125 A2
Voltage quality module (supplies rear lamp blind spot,rear view camera, head up display, 4x4 switch, imageprocessing module and adaptive cruise control radar).50 A3
Busbar through to power distribution box.-4
Auxiliary fuse and relay box.100 A5
Passenger Compartment Fuse Box
The fuse box is below and outermost ofthe steering column behind the accesscover.
258
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingFusesE206158

Protected ComponentRatingItem
SYNC.15 A131
Radio transceiver module.10 A132Door entry remote.
Audio unit.20 A133
Run/start relay.30 A134
Not used (spare).5 A135
Auto-dimming interior mirror.15 A136Mirror adjustment control.
Not used (spare).20 A137
Power windows.30 A338
1 Micro 2 fuse.2 Micro 3 fuse.3 PTC fuse.
CHANGING A FUSE
Fuses
WARNING: Always replace a fusewith one that has the specifiedamperage rating. Using a fuse with ahigher amperage rating can cause severewire damage and could start a fire.If electrical components in the vehicle arenot working, a fuse may have blown. Blownfuses are identified by a broken wire withinthe fuse. Check the appropriate fusesbefore replacing any electricalcomponents.
261
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingFusesE217331

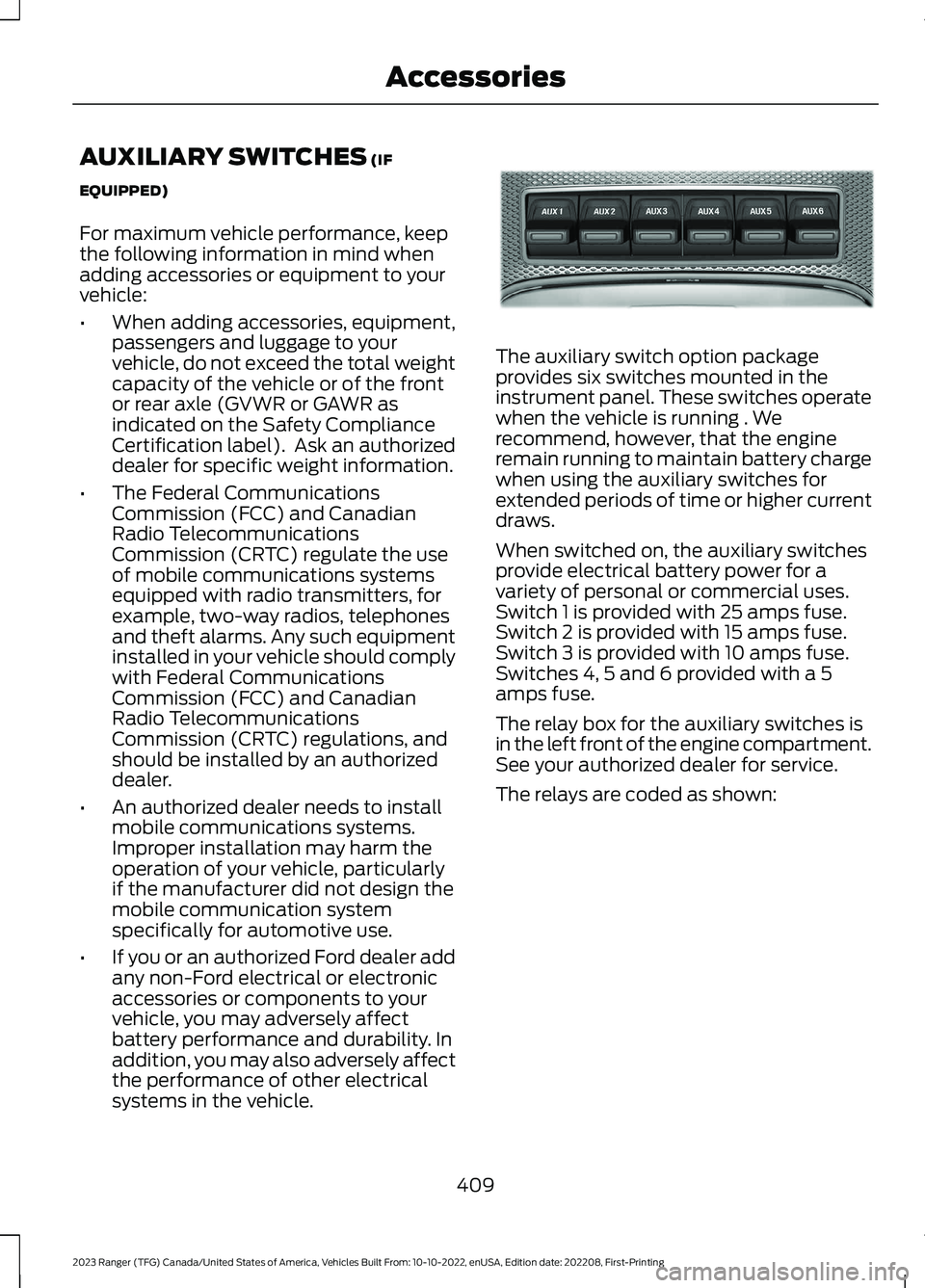

AUXILIARY SWITCHES (IF
EQUIPPED)
For maximum vehicle performance, keepthe following information in mind whenadding accessories or equipment to yourvehicle:
•When adding accessories, equipment,passengers and luggage to yourvehicle, do not exceed the total weightcapacity of the vehicle or of the frontor rear axle (GVWR or GAWR asindicated on the Safety ComplianceCertification label). Ask an authorizeddealer for specific weight information.
•The Federal CommunicationsCommission (FCC) and CanadianRadio TelecommunicationsCommission (CRTC) regulate the useof mobile communications systemsequipped with radio transmitters, forexample, two-way radios, telephonesand theft alarms. Any such equipmentinstalled in your vehicle should complywith Federal CommunicationsCommission (FCC) and CanadianRadio TelecommunicationsCommission (CRTC) regulations, andshould be installed by an authorizeddealer.
•An authorized dealer needs to installmobile communications systems.Improper installation may harm theoperation of your vehicle, particularlyif the manufacturer did not design themobile communication systemspecifically for automotive use.
•If you or an authorized Ford dealer addany non-Ford electrical or electronicaccessories or components to yourvehicle, you may adversely affectbattery performance and durability. Inaddition, you may also adversely affectthe performance of other electricalsystems in the vehicle.
The auxiliary switch option packageprovides six switches mounted in theinstrument panel. These switches operatewhen the vehicle is running . Werecommend, however, that the engineremain running to maintain battery chargewhen using the auxiliary switches forextended periods of time or higher currentdraws.
When switched on, the auxiliary switchesprovide electrical battery power for avariety of personal or commercial uses.Switch 1 is provided with 25 amps fuse.Switch 2 is provided with 15 amps fuse.Switch 3 is provided with 10 amps fuse.Switches 4, 5 and 6 provided with a 5amps fuse.
The relay box for the auxiliary switches isin the left front of the engine compartment.See your authorized dealer for service.
The relays are coded as shown:
409
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingAccessoriesE220728

Each switch includes a blunt-cut, wirelocated next to the auxiliary fuse and relaybox in the left front of the engine bay.
Protected ComponentFuse RatingFuse or RelayNumber
Fuse 11A and 11B.25A11
Fuse 12A and 12B.20A12
Relay AUX1.25A23
Not used.-4A
Not used.-4B
Relay AUX2.15A25
Not used.-6
Not used.-7
Not used.-8
Not used.-9
Not used.-10
Relay AUX3.10A311A
410
2023 Ranger (TFG) Canada/United States of America, Vehicles Built From: 10-10-2022, enUSA, Edition date: 202208, First-PrintingAccessories0302011009080706051115121413171618E332362

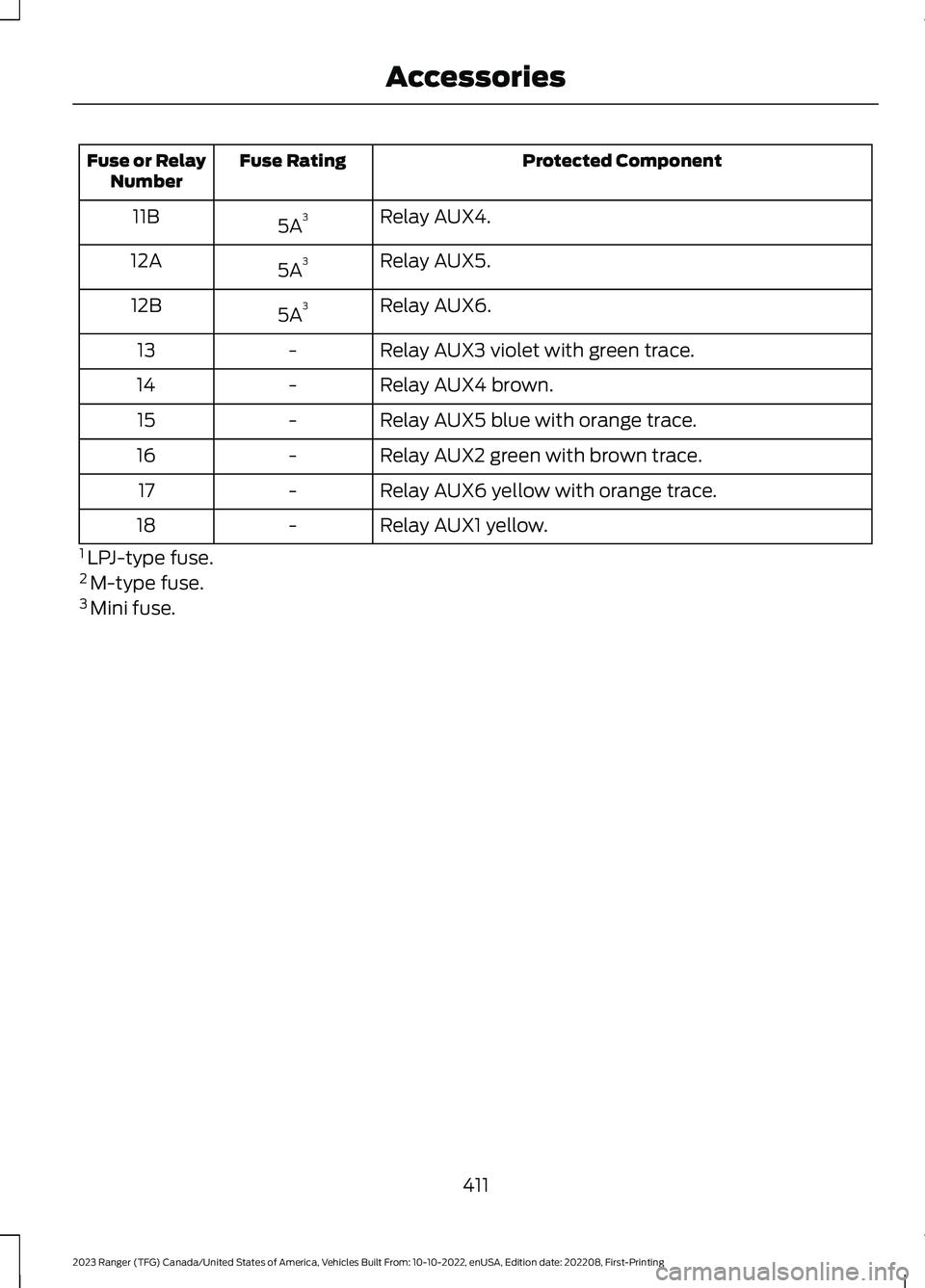

Protected ComponentFuse RatingFuse or RelayNumber
Relay AUX4.5A311B
Relay AUX5.5A312A
Relay AUX6.5A312B
Relay AUX3 violet with green trace.-13
Relay AUX4 brown.-14
Relay AUX5 blue with orange trace.-15
Relay AUX2 green with brown trace.-16
Relay AUX6 yellow with orange trace.-17
Relay AUX1 yellow.-18
1 LPJ-type fuse.2 M-type fuse.3 Mini fuse.
