Removal
1Disconnect the battery negative lead.
2Open the sunroof.
3On models with a manually-operated
sunroof, remove the sunroof handle securing
screw, then withdraw the handle and trim plate.
4On models with an electric sunroof, remove
the operating switch.
5Remove the courtesy lamp, if necessary,
then remove the two screws from the front of
the console (see illustration).
6Remove the two screws securing the rear of
the console to the sunroof flange, and
withdraw the console.
Refitting
7Refitting is a reversal of removal.
Saloon, Hatchback and Estate
models
1On Saloons, remove the rear seat back.
2Loosen the upper screws of all the pillar
trim panels touching the headlining.
3Prise off the covers and remove the screws
from the passenger grab handles. Withdraw
the grab handles. Similarly, prise off the
blanking covers and remove the headlining
securing screws from the driver’s position.
4Disconnect the battery negative lead, then
prise the courtesy light(s) from the headlining
or overhead console. Disconnect the wiring
and remove the courtesy light(s).
5Where applicable, remove the two securing
screws and withdraw the overhead console.
6Remove the sunroof (where fitted). The
headlining is folded around the sunroof
aperture flange and is held in place with
adhesive tape and a moulding which must be
removed.
7Support the headlining, then remove the
screws and withdraw the sun visors and clips.
Where applicable, disconnect the wiring from
the vanity mirror lamp.
8On Estate models, remove the two plastic
fasteners from the headlining between the
rear door and tailgate pillars.
9Remove the two plastic fasteners from the
rear of the headlining, and withdraw the
headlining through the luggage compartment.
10Refitting is a reversal of removal.
P100 models
11Loosen the front pillar trim panel upper
securing screws.
12Prise off the covers and remove the
screws from the passenger grab handle.
Withdraw the grab handle.13Prise off the blanking cover and remove
the headlining securing screw from the
driver’s side.
14Disconnect the battery negative lead, then
prise the courtesy light from the headlining.
Disconnect the wiring and remove the
courtesy light.
15Support the headlining, then remove the
screws and withdraw the sun visors and clips.
16Remove the blanking covers, and the
three securing screws from the rear of the
headlining, then withdraw the headlining
through one of the door apertures.
17Refitting is a reversal of removal.
Front seat
1Slide the seat fully forwards, and on seats
with height adjustment unhook the tension
spring from the rear crosstube. Where
applicable, disconnect the wiring from the
seat heating pad(s).
2Unscrew and remove the two bolts from the
inner rear seat mounting bracket and the
single bolt from the outer rear seat mounting
bracket (see illustration).
3Slide the seat fully rearwards, then unscrew
and remove the single bolt from each front
seat mounting bracket. Withdraw the seat
from the vehicle.
4Refitting is a reversal of removal, but when
fitting the front and rear mounting bolts,tighten the inner bolts first in each case.
Where applicable locate the height
adjustment tension spring between the weld
pips on the crosstube.
Rear seat cushion
5Remove the single screw from each side,
securing the cushion to the heel kick panel.
6Pull the cushion forwards and remove it
from the vehicle.
7Refitting is a reversal of removal.
Rear seat backrest
Fixed rear seats
8Remove the seat cushion as described in
paragraphs 5 to 7.
9Remove the three now exposed Torx
screws from the base of the backrest.
10Working inside the luggage compartment,
remove the three nuts securing the backrest
to the body.
11Pull the backrest forwards into the
passenger compartment and remove it from
the vehicle. Where applicable, feed the rear
seat belt straps and buckles around the edges
of the backrest.
12Refitting is a reversal of removal.
Folding rear seats
13Release the catch and fold the seat
backrest forwards.
14Remove the two Torx screws from each
backrest hinge.
15Pull the backrest forwards into the
passenger compartment and remove it from
the vehicle. Where applicable, feed the rear
seat belt straps and buckles around the edges
of the backrest.
16Refitting is a reversal of removal, but
where necessary adjust the position of the
seat catch striker to achieve correct operation
of the catch.
Rear seat side cushion
Saloon models
17Working in the luggage compartment,
remove the nut from the side cushion stud.
18Working in the passenger compartment,
remove the rear seat cushion as described in
paragraphs 5 and 6.
19Expose the seat backrest hinge bolt by
removing the cover, then remove the bolt.
20Pull the top of the side cushion forwards
to disengage the stud from the body.
21Straighten the metal retaining tangs at the
base of the side cushion, then withdraw the
cushion.
22Refitting is a reversal of removal.
Hatchback and Estate models
23Fold down the rear seat backrest.
24Carefully bend back the side cushion
lower retaining tangs, then unhook the
cushion from the upper fixing on the rear
parcel shelf support (see illustration).
25Refitting is a reversal of removal.
47Seats - removal and refitting
46Headlining - removal and
refitting
45Overhead console - removal
and refitting

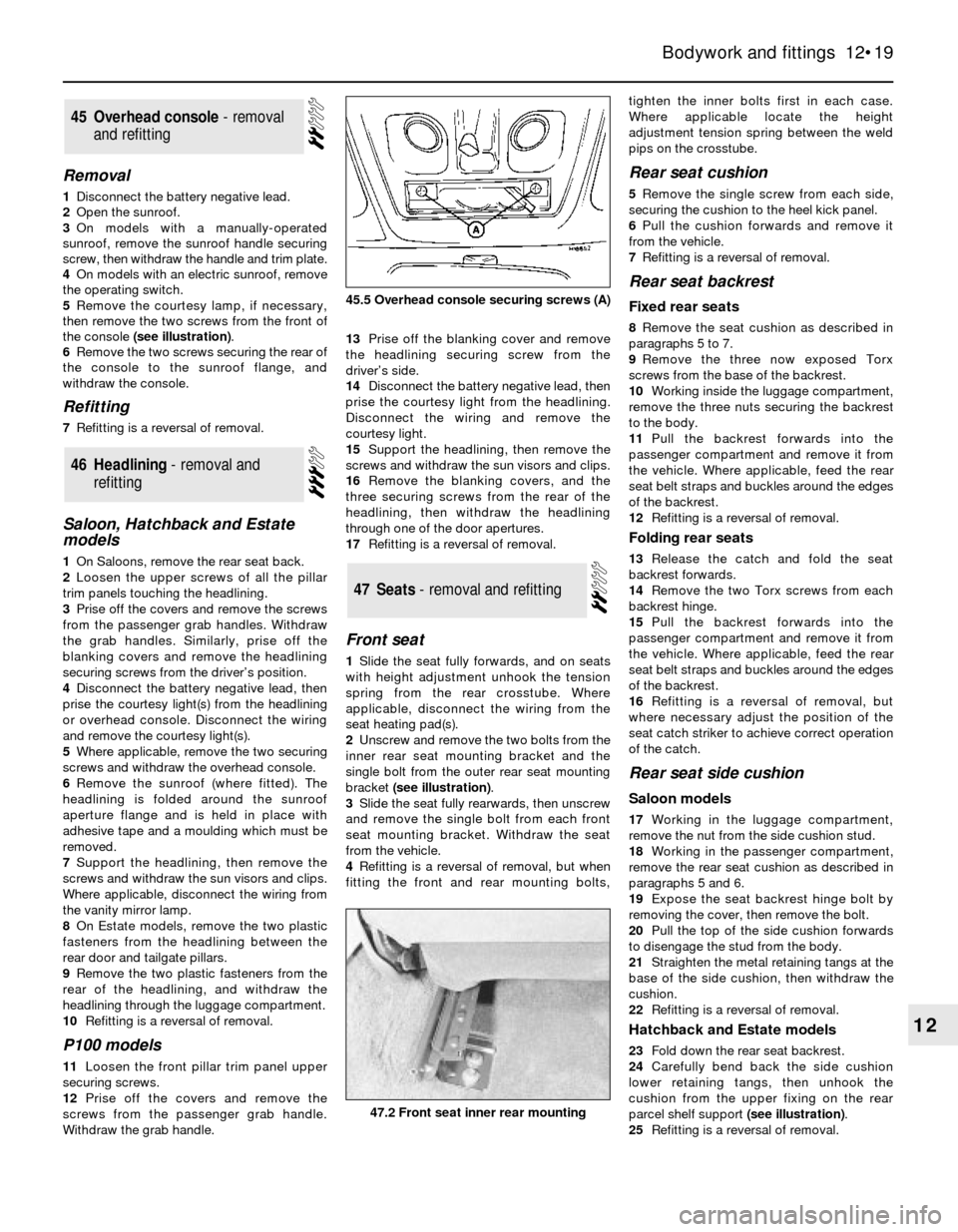

Bodywork and fittings 12•19
12
47.2 Front seat inner rear mounting
45.5 Overhead console securing screws (A)
