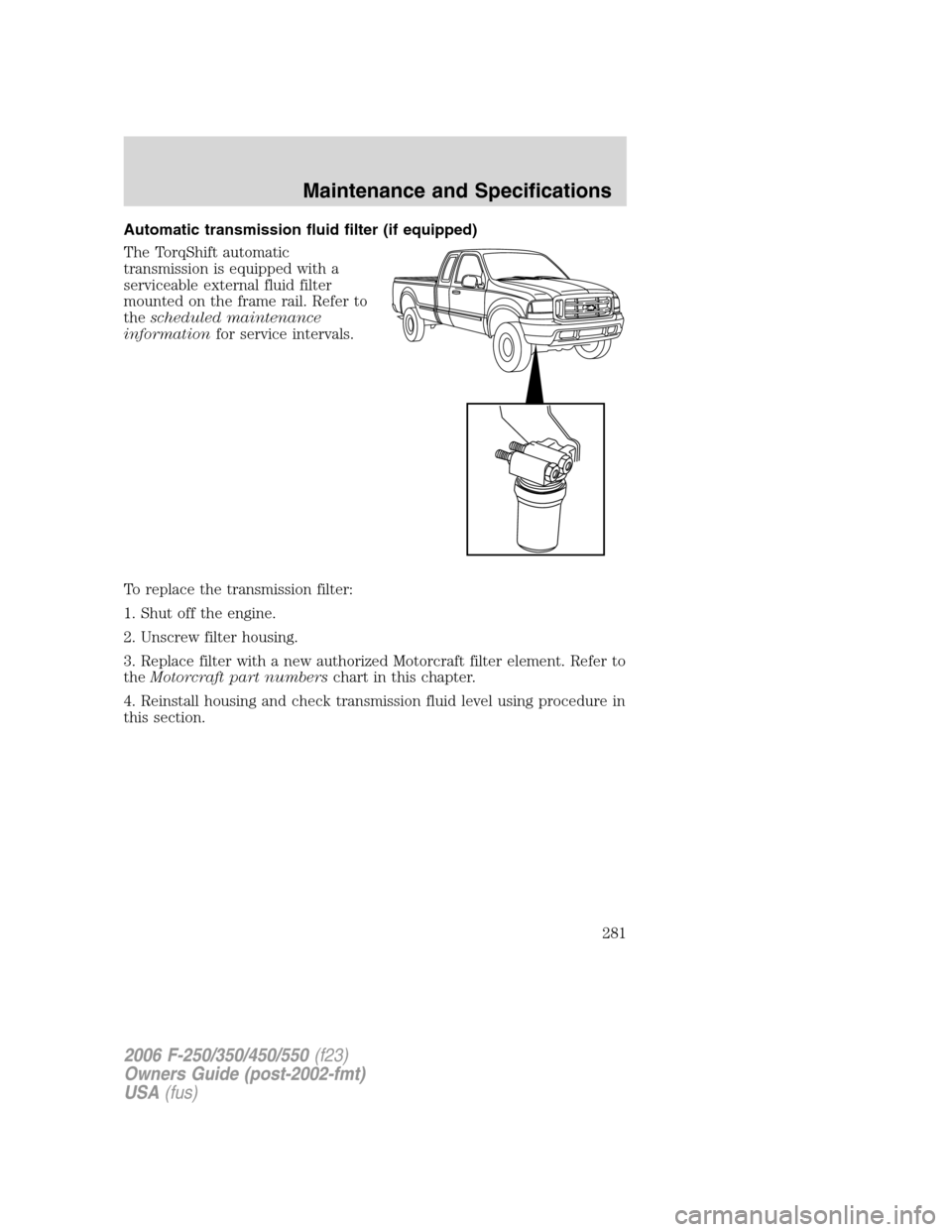

Automatic transmission fluid filter (if equipped)
The TorqShift automatic
transmission is equipped with a
serviceable external fluid filter
mounted on the frame rail. Refer to
thescheduled maintenance
informationfor service intervals.
To replace the transmission filter:
1. Shut off the engine.
2. Unscrew filter housing.
3. Replace filter with a new authorized Motorcraft filter element. Refer to
theMotorcraft part numberschart in this chapter.
4. Reinstall housing and check transmission fluid level using procedure in
this section.
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
281

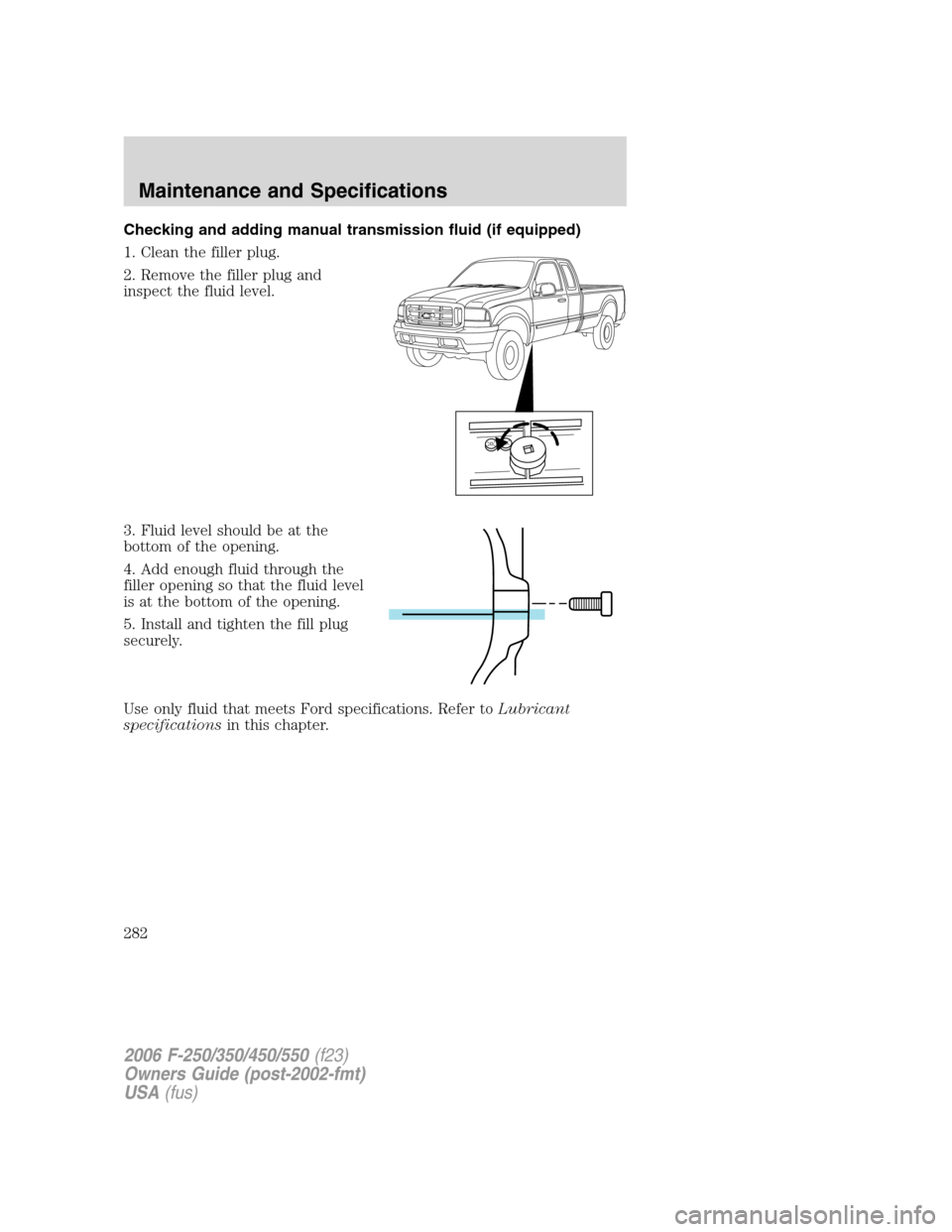

Checking and adding manual transmission fluid (if equipped)
1. Clean the filler plug.
2. Remove the filler plug and
inspect the fluid level.
3. Fluid level should be at the
bottom of the opening.
4. Add enough fluid through the
filler opening so that the fluid level
is at the bottom of the opening.
5. Install and tighten the fill plug
securely.
Use only fluid that meets Ford specifications. Refer toLubricant
specificationsin this chapter.
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
282

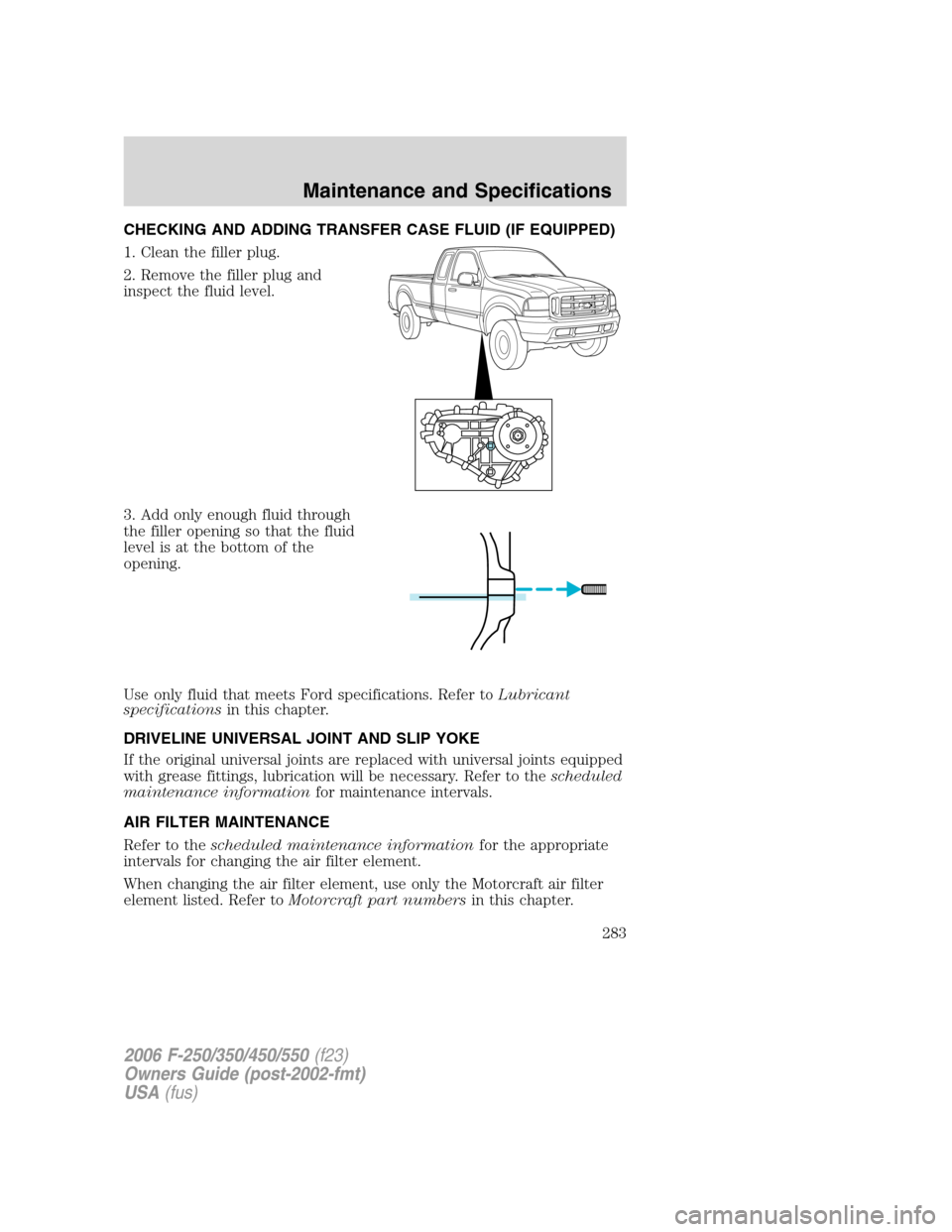

CHECKING AND ADDING TRANSFER CASE FLUID (IF EQUIPPED)
1. Clean the filler plug.
2. Remove the filler plug and
inspect the fluid level.
3. Add only enough fluid through
the filler opening so that the fluid
level is at the bottom of the
opening.
Use only fluid that meets Ford specifications. Refer toLubricant
specificationsin this chapter.
DRIVELINE UNIVERSAL JOINT AND SLIP YOKE
If the original universal joints are replaced with universal joints equipped
with grease fittings, lubrication will be necessary. Refer to thescheduled
maintenance informationfor maintenance intervals.
AIR FILTER MAINTENANCE
Refer to thescheduled maintenance informationfor the appropriate
intervals for changing the air filter element.
When changing the air filter element, use only the Motorcraft air filter
element listed. Refer toMotorcraft part numbersin this chapter.

2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
283

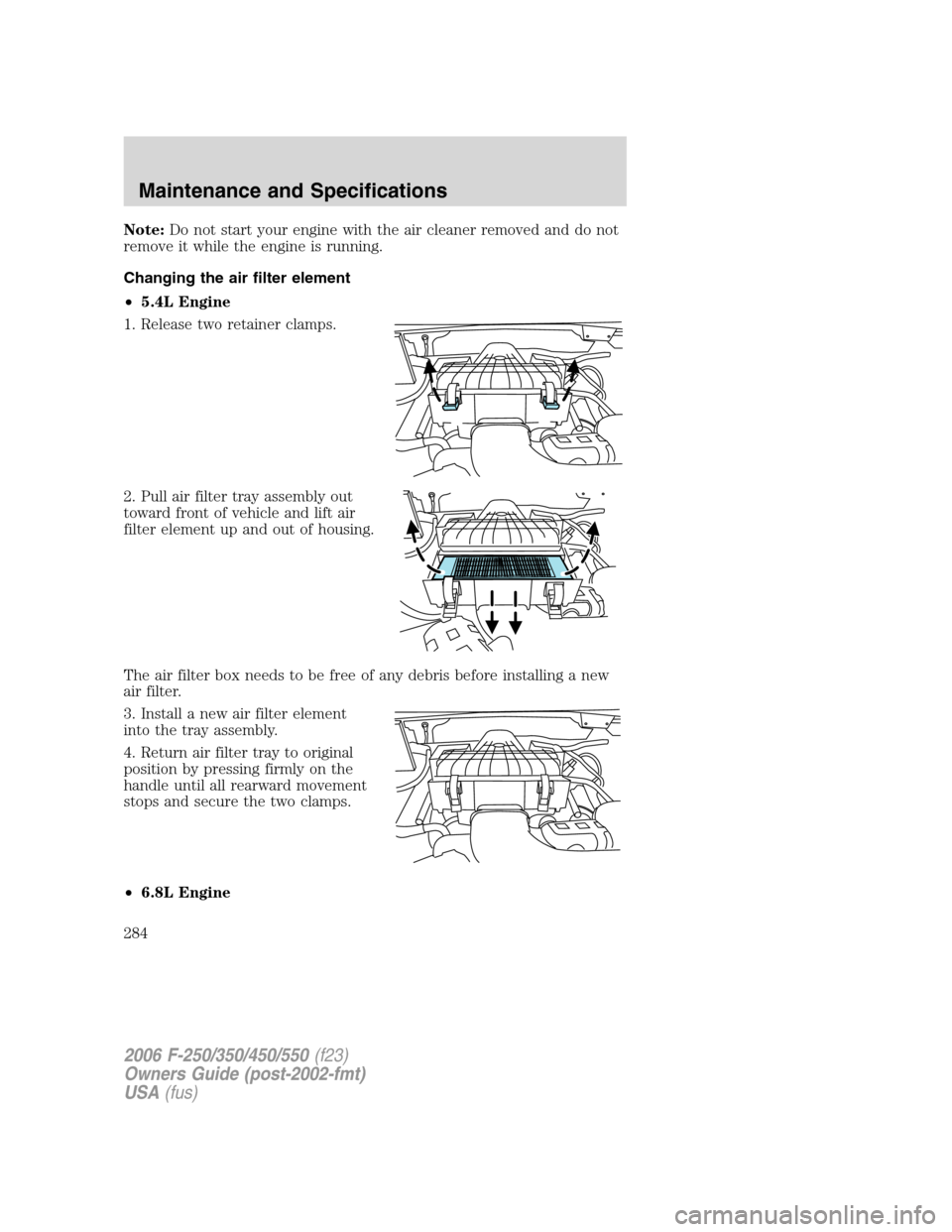

Note:Do not start your engine with the air cleaner removed and do not
remove it while the engine is running.
Changing the air filter element
•5.4L Engine
1. Release two retainer clamps.
2. Pull air filter tray assembly out
toward front of vehicle and lift air
filter element up and out of housing.
The air filter box needs to be free of any debris before installing a new
air filter.
3. Install a new air filter element
into the tray assembly.
4. Return air filter tray to original
position by pressing firmly on the
handle until all rearward movement
stops and secure the two clamps.
•6.8L Engine
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
284

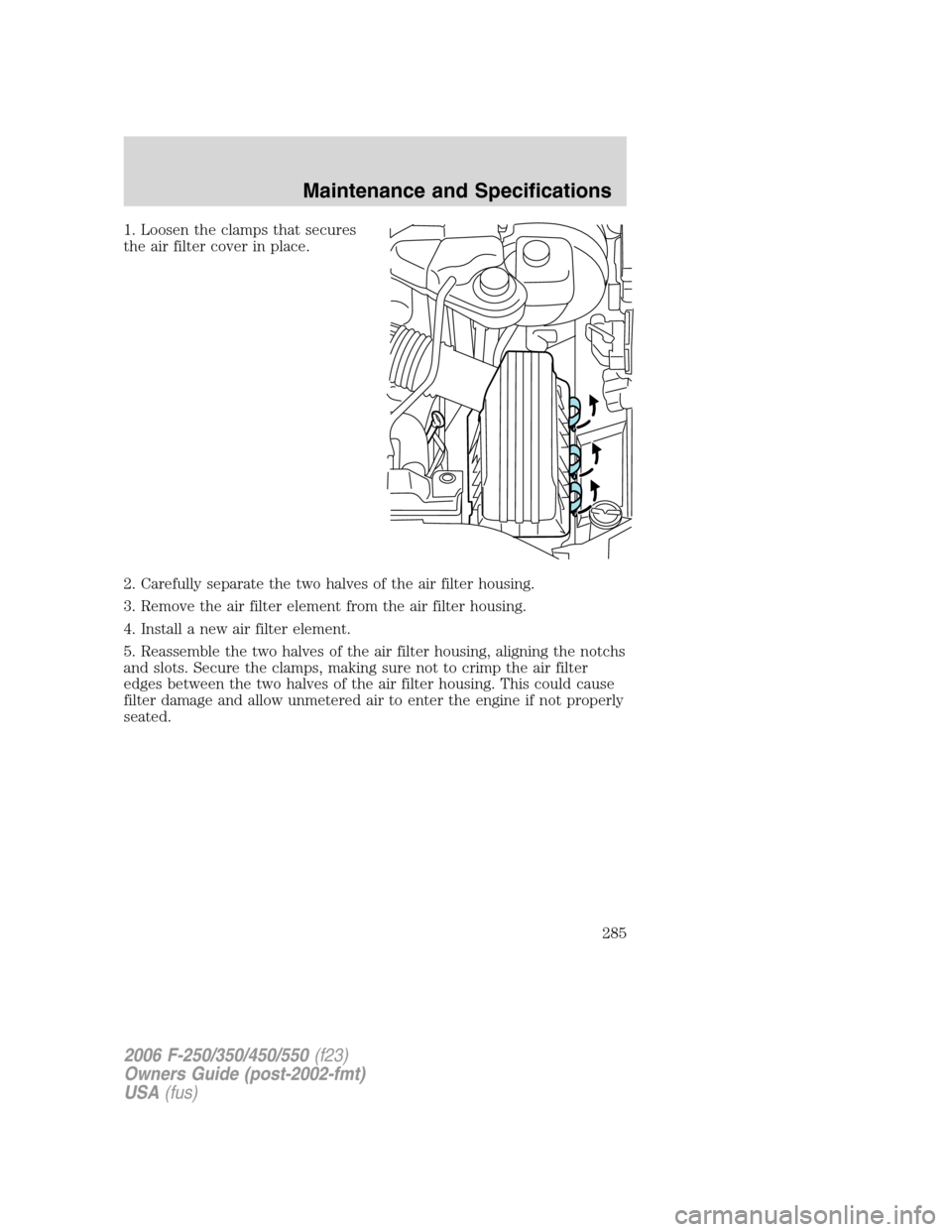

1. Loosen the clamps that secures
the air filter cover in place.
2. Carefully separate the two halves of the air filter housing.
3. Remove the air filter element from the air filter housing.
4. Install a new air filter element.
5. Reassemble the two halves of the air filter housing, aligning the notchs
and slots. Secure the clamps, making sure not to crimp the air filter
edges between the two halves of the air filter housing. This could cause
filter damage and allow unmetered air to enter the engine if not properly
seated.
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
285

MOTORCRAFT PART NUMBERS
Component 5.4L V8 engine 6.8L V10 engine
Air filter element FA-1754 FA-1782
Fuel filter FG-1011 FG-1011
Oil filter FL-820-S FL-820-S
PCV valve
1
Battery (Standard) BXT-65-650 BXT-65-650
Battery (Optional) BXT-65-750 BXT-65-750
Spark plugs-platinum
2
Remote Automatic
Transmission Filter3FT-145 FT–145
1The PCV valve is a critical emission component. It is one of the items
listed in thescheduled maintenance informationand is essential to
the life and performance of your vehicle and to its emissions system.
For PCV valve replacement, see your authorized dealer. Refer to the
scheduled maintenance informationfor the appropriate intervals for
changing the PCV valve.
Replace the PCV valve with one that meets Ford material and
design specifications for your vehicle, such as a Motorcraft or
equivalent replacement part. The customer warranty may be void
for any damage to the emissions system if such a PCV valve is not
used.
2For spark plug replacement, see your authorized dealer. Refer to the
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
3Also available with 6.0L Diesel engine/TorqShift transmission. Part
number is FT-145.
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
286

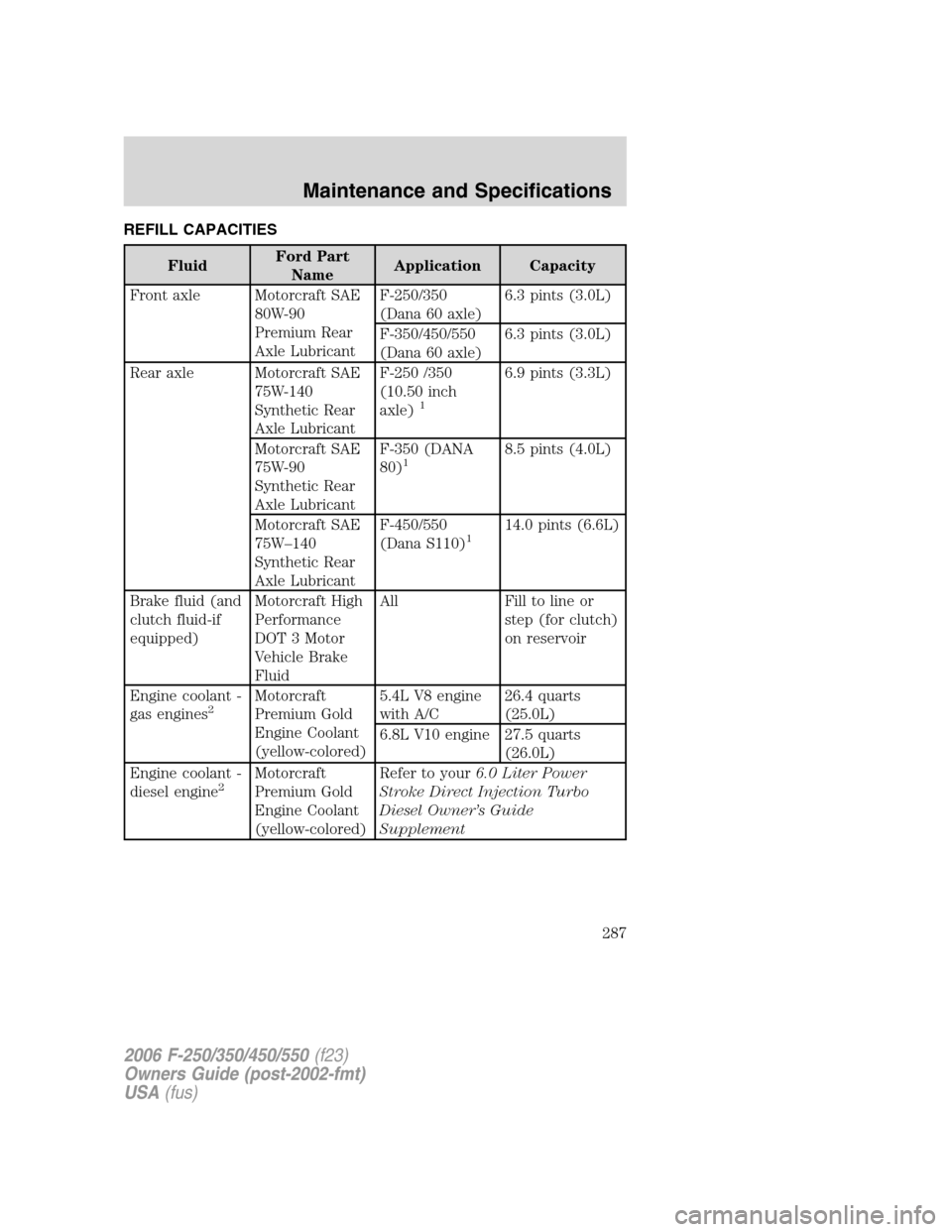

REFILL CAPACITIES
FluidFord Part
NameApplication Capacity
Front axle Motorcraft SAE
80W-90
Premium Rear
Axle LubricantF-250/350
(Dana 60 axle)6.3 pints (3.0L)
F-350/450/550
(Dana 60 axle)6.3 pints (3.0L)
Rear axle Motorcraft SAE
75W-140
Synthetic Rear
Axle LubricantF-250 /350
(10.50 inch
axle)
1
6.9 pints (3.3L)
Motorcraft SAE
75W-90
Synthetic Rear
Axle LubricantF-350 (DANA
80)
18.5 pints (4.0L)
Motorcraft SAE
75W–140
Synthetic Rear
Axle LubricantF-450/550
(Dana S110)
114.0 pints (6.6L)
Brake fluid (and
clutch fluid-if
equipped)Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidAll Fill to line or
step (for clutch)
on reservoir
Engine coolant -
gas engines
2Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)5.4L V8 engine
with A/C26.4 quarts
(25.0L)
6.8L V10 engine 27.5 quarts
(26.0L)
Engine coolant -
diesel engine
2Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)Refer to your6.0 Liter Power
Stroke Direct Injection Turbo
Diesel Owner’s Guide
Supplement
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
287

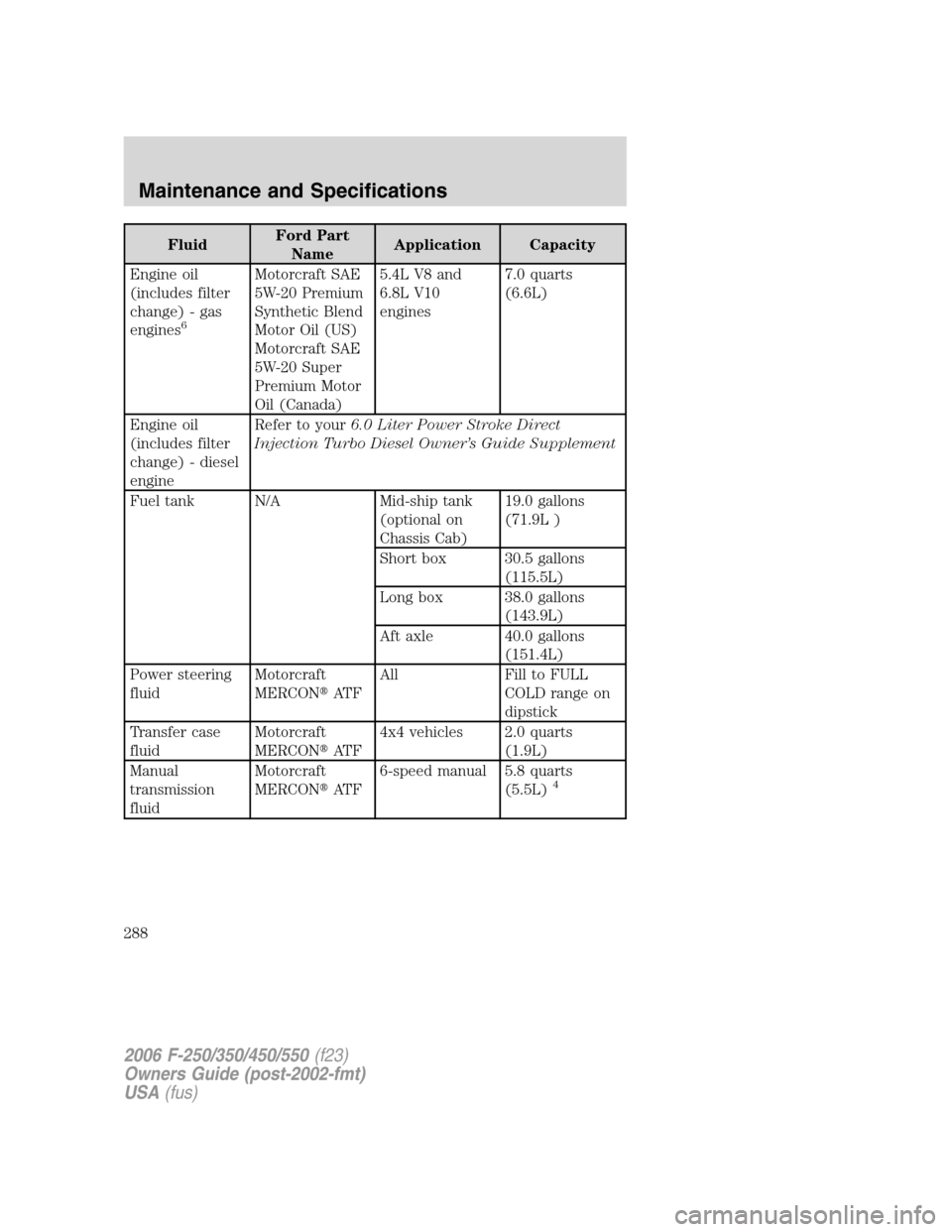

FluidFord Part
NameApplication Capacity
Engine oil
(includes filter
change) - gas
engines
6
Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)5.4L V8 and
6.8L V10
engines7.0 quarts
(6.6L)
Engine oil
(includes filter
change) - diesel
engineRefer to your6.0 Liter Power Stroke Direct
Injection Turbo Diesel Owner’s Guide Supplement
Fuel tank N/A Mid-ship tank
(optional on
Chassis Cab)19.0 gallons
(71.9L )
Short box 30.5 gallons
(115.5L)
Long box 38.0 gallons
(143.9L)
Aft axle 40.0 gallons
(151.4L)
Power steering
fluidMotorcraft
MERCONAT FAll Fill to FULL
COLD range on
dipstick
Transfer case
fluidMotorcraft
MERCONAT F4x4 vehicles 2.0 quarts
(1.9L)
Manual
transmission
fluidMotorcraft
MERCONAT F6-speed manual 5.8 quarts
(5.5L)
4
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
288

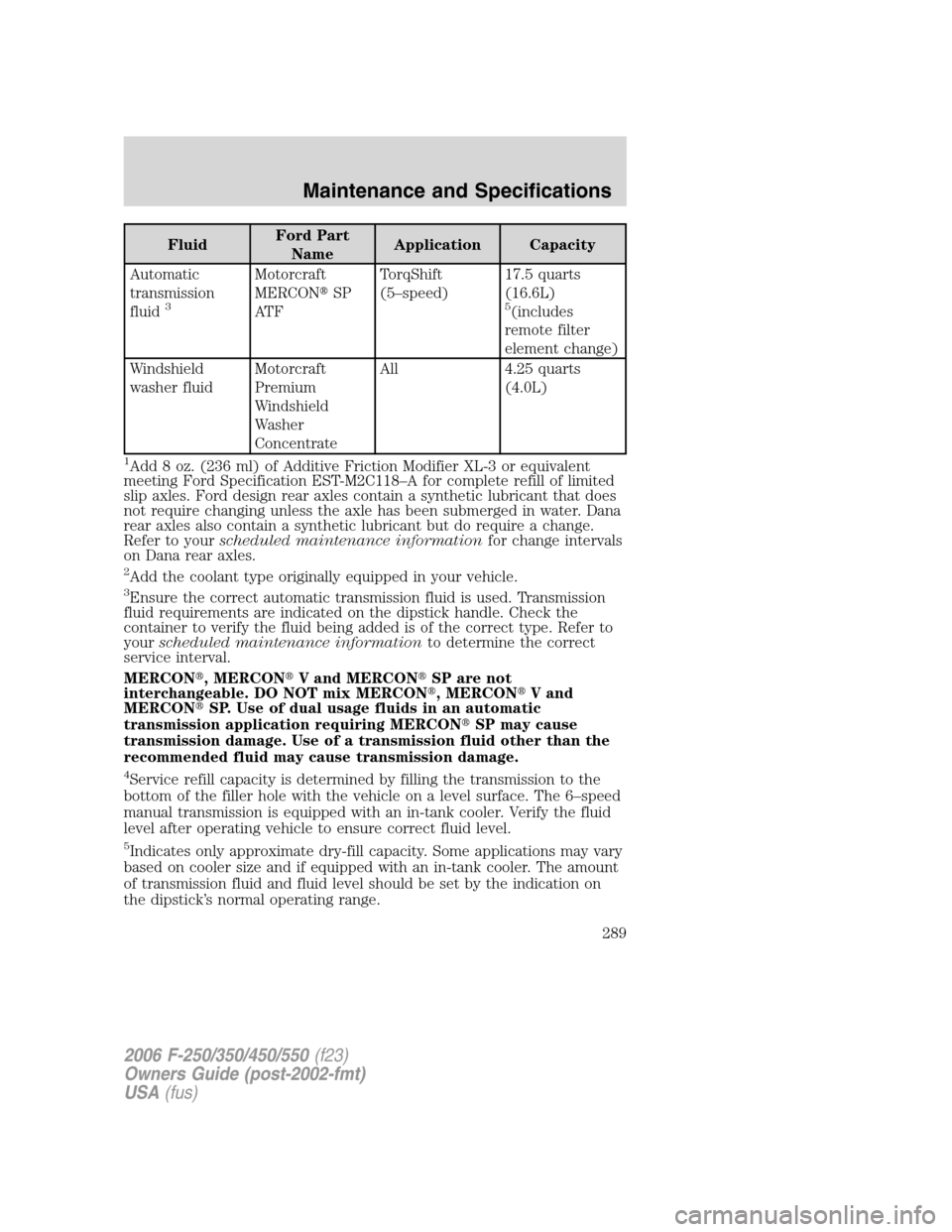

FluidFord Part
NameApplication Capacity
Automatic
transmission
fluid
3
Motorcraft
MERCONSP
AT FTorqShift
(5–speed)17.5 quarts
(16.6L)
5(includes
remote filter
element change)
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateAll 4.25 quarts
(4.0L)
1Add 8 oz. (236 ml) of Additive Friction Modifier XL-3 or equivalent
meeting Ford Specification EST-M2C118–A for complete refill of limited
slip axles. Ford design rear axles contain a synthetic lubricant that does
not require changing unless the axle has been submerged in water. Dana
rear axles also contain a synthetic lubricant but do require a change.
Refer to yourscheduled maintenance informationfor change intervals
on Dana rear axles.
2Add the coolant type originally equipped in your vehicle.3Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick handle. Check the
container to verify the fluid being added is of the correct type. Refer to
yourscheduled maintenance informationto determine the correct
service interval.
MERCON, MERCONV and MERCONSP are not
interchangeable. DO NOT mix MERCON, MERCONV and
MERCONSP. Use of dual usage fluids in an automatic
transmission application requiring MERCONSP may cause
transmission damage. Use of a transmission fluid other than the
recommended fluid may cause transmission damage.
4Service refill capacity is determined by filling the transmission to the
bottom of the filler hole with the vehicle on a level surface. The 6–speed
manual transmission is equipped with an in-tank cooler. Verify the fluid
level after operating vehicle to ensure correct fluid level.
5Indicates only approximate dry-fill capacity. Some applications may vary
based on cooler size and if equipped with an in-tank cooler. The amount
of transmission fluid and fluid level should be set by the indication on
the dipstick’s normal operating range.
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
289

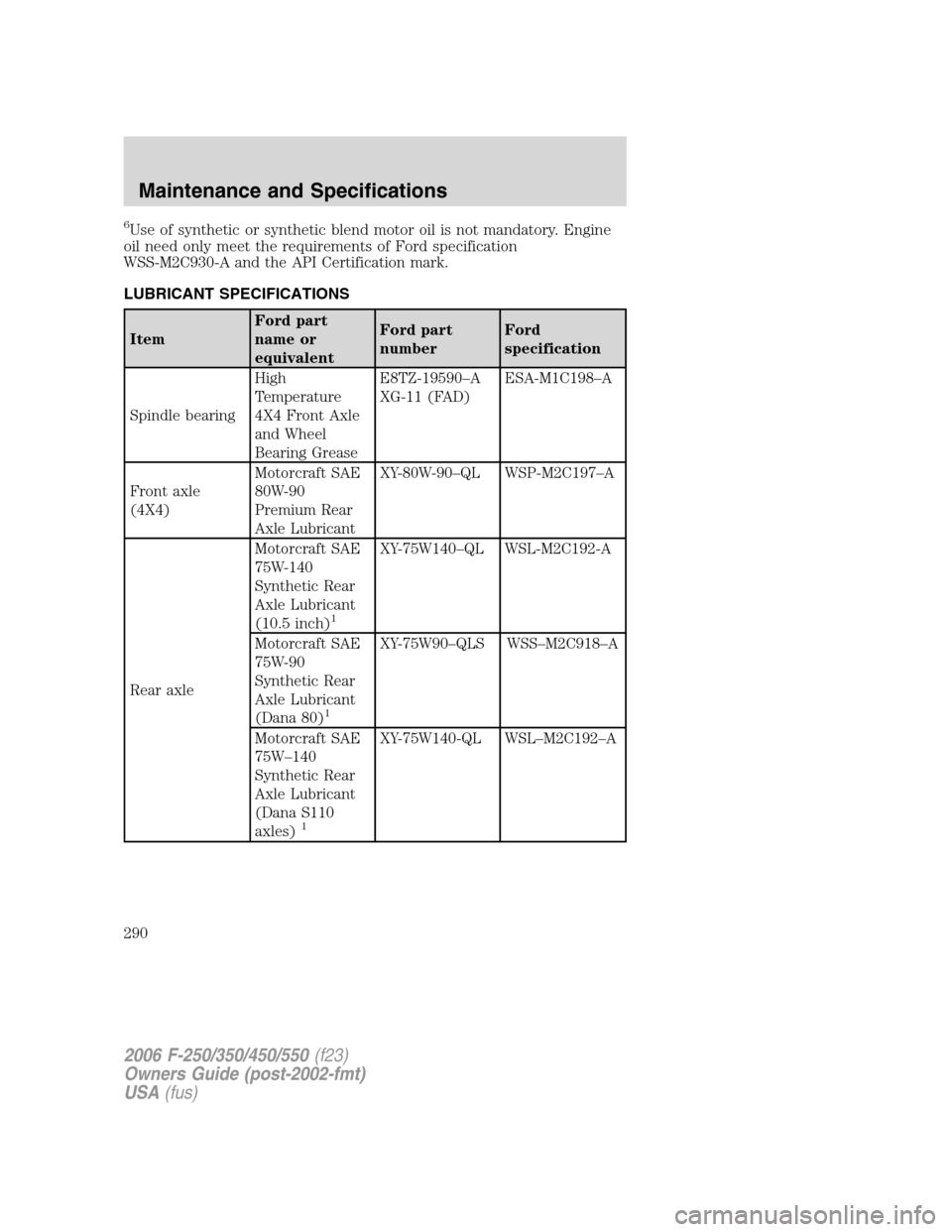

6Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C930-A and the API Certification mark.
LUBRICANT SPECIFICATIONS
ItemFord part
name or
equivalentFord part
numberFord
specification
Spindle bearingHigh
Temperature
4X4 Front Axle
and Wheel
Bearing GreaseE8TZ-19590–A
XG-11 (FAD)ESA-M1C198–A
Front axle
(4X4)Motorcraft SAE
80W-90
Premium Rear
Axle LubricantXY-80W-90–QL WSP-M2C197–A
Rear axleMotorcraft SAE
75W-140
Synthetic Rear
Axle Lubricant
(10.5 inch)
1
XY-75W140–QL WSL-M2C192-A
Motorcraft SAE
75W-90
Synthetic Rear
Axle Lubricant
(Dana 80)
1
XY-75W90–QLS WSS–M2C918–A
Motorcraft SAE
75W–140
Synthetic Rear
Axle Lubricant
(Dana S110
axles)
1
XY-75W140-QL WSL–M2C192–A
