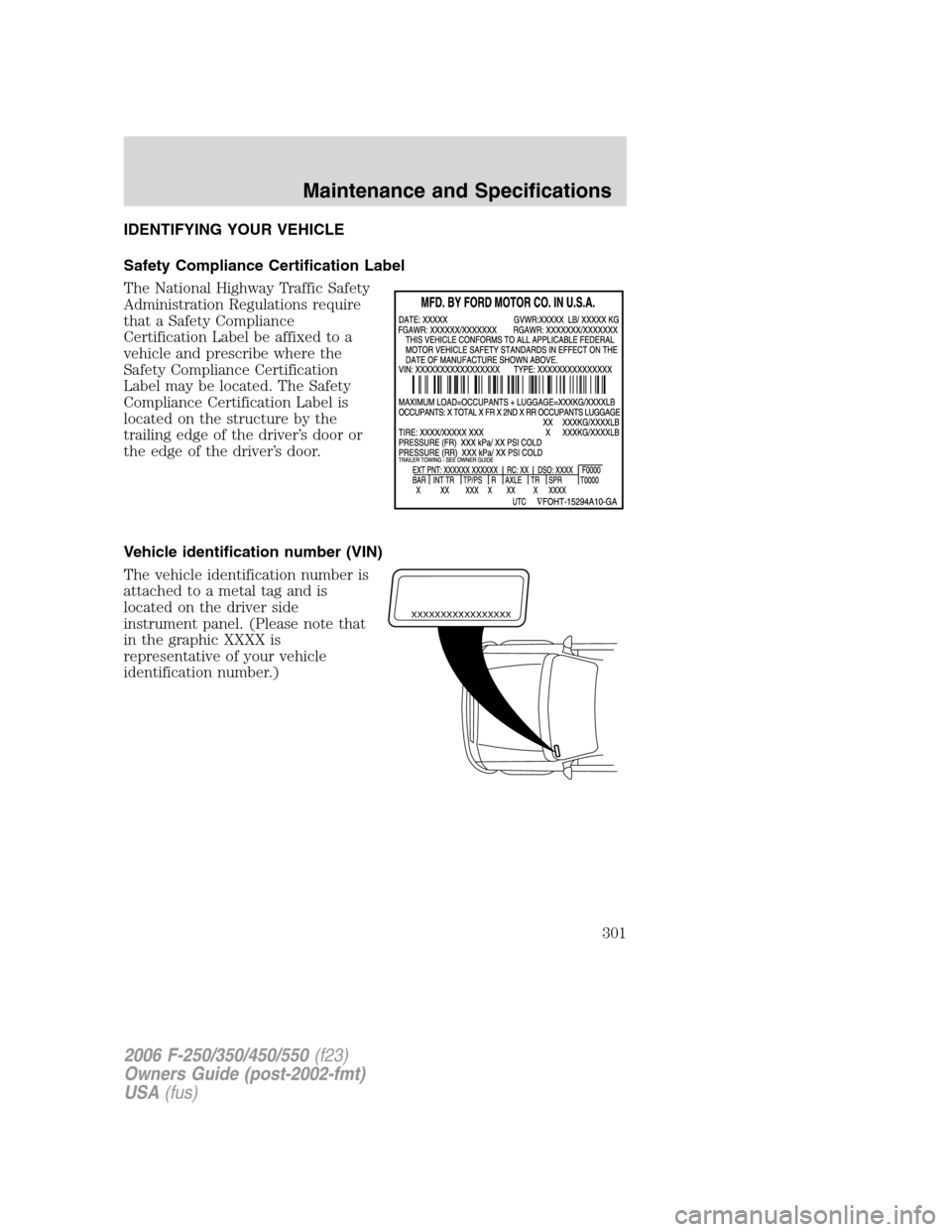

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure by the
trailing edge of the driver’s door or
the edge of the driver’s door.
Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
XXXXXXXXXXXXXXXXX
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
301

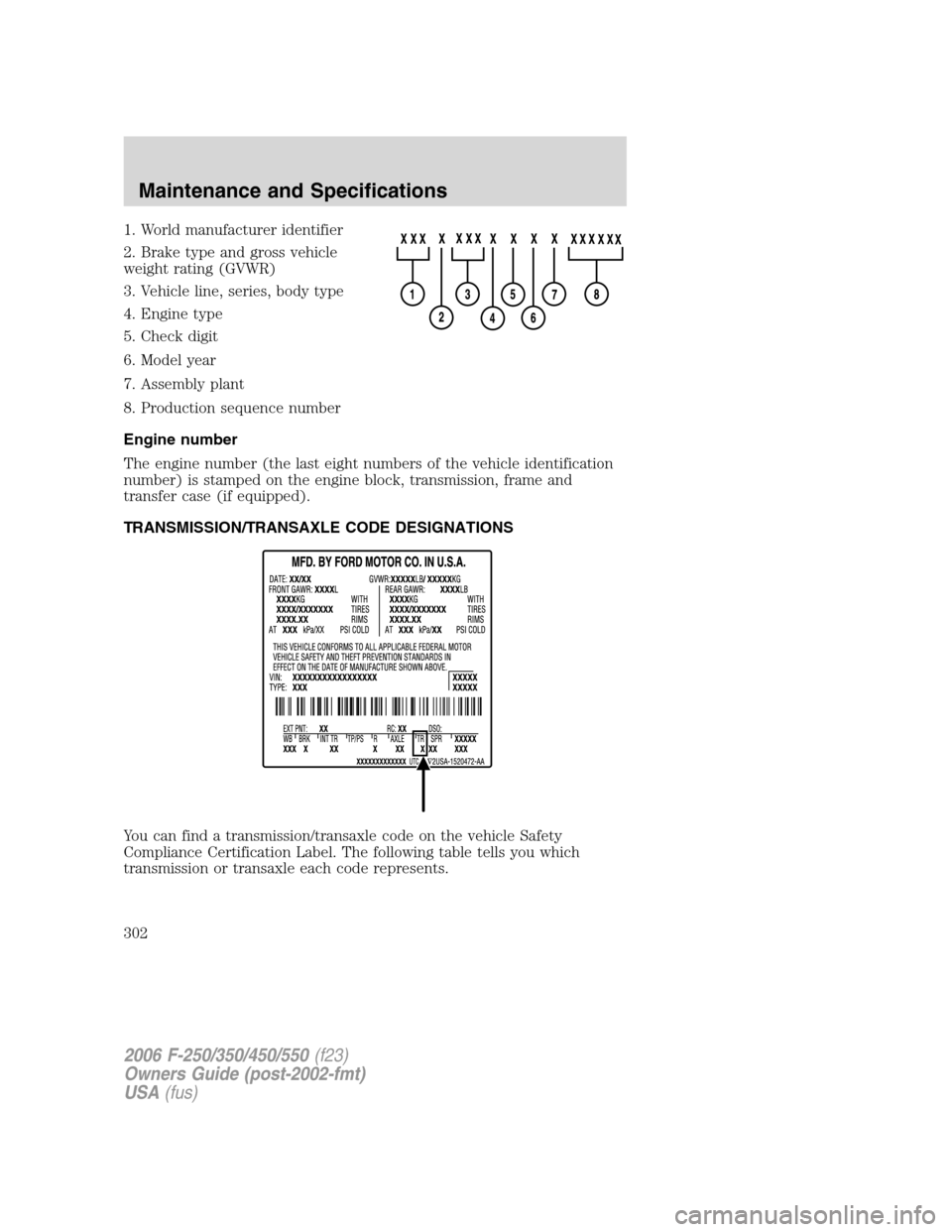

1. World manufacturer identifier
2. Brake type and gross vehicle
weight rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block, transmission, frame and
transfer case (if equipped).
TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a transmission/transaxle code on the vehicle Safety
Compliance Certification Label. The following table tells you which
transmission or transaxle each code represents.
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
302

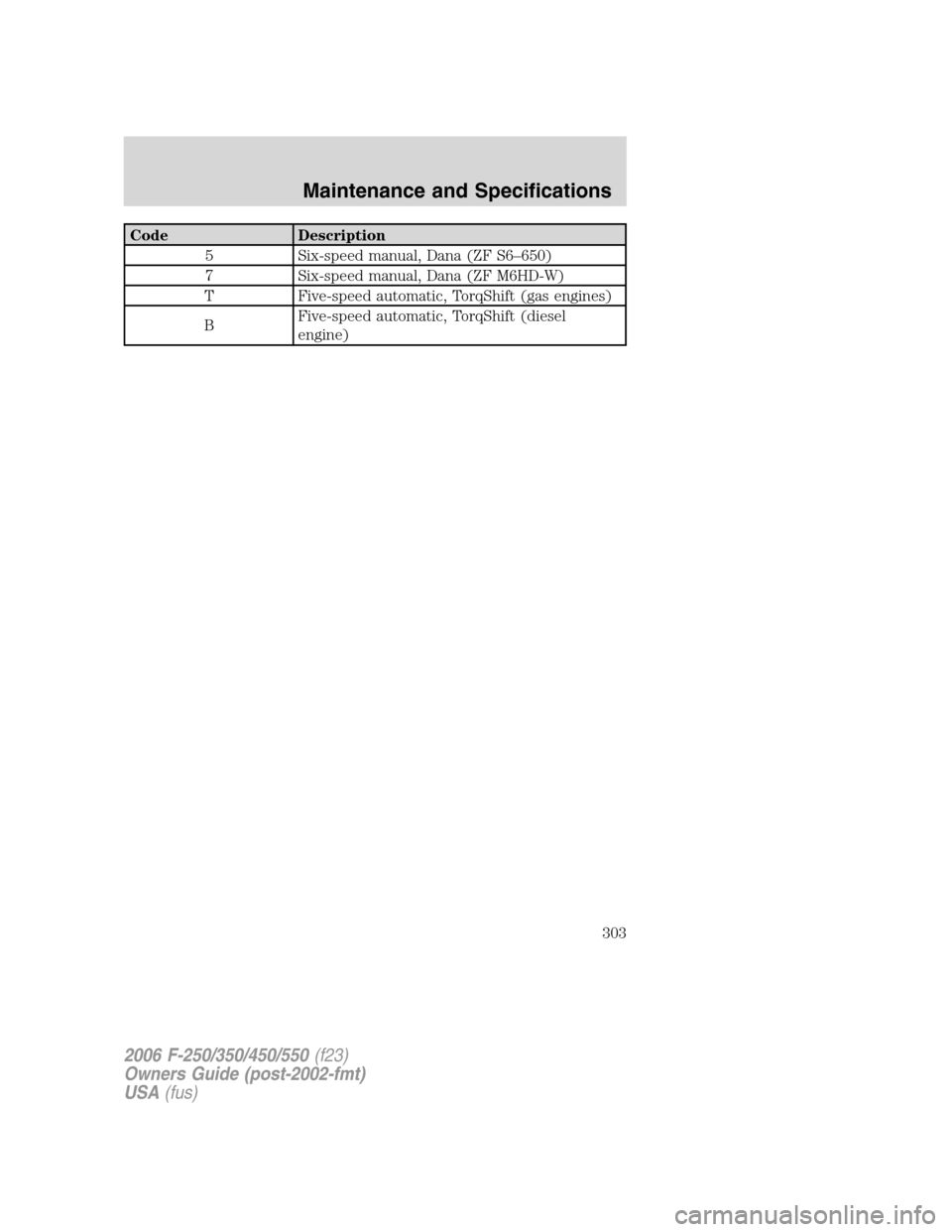

Code Description
5 Six-speed manual, Dana (ZF S6–650)
7 Six-speed manual, Dana (ZF M6HD-W)
T Five-speed automatic, TorqShift (gas engines)
BFive-speed automatic, TorqShift (diesel
engine)
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
303

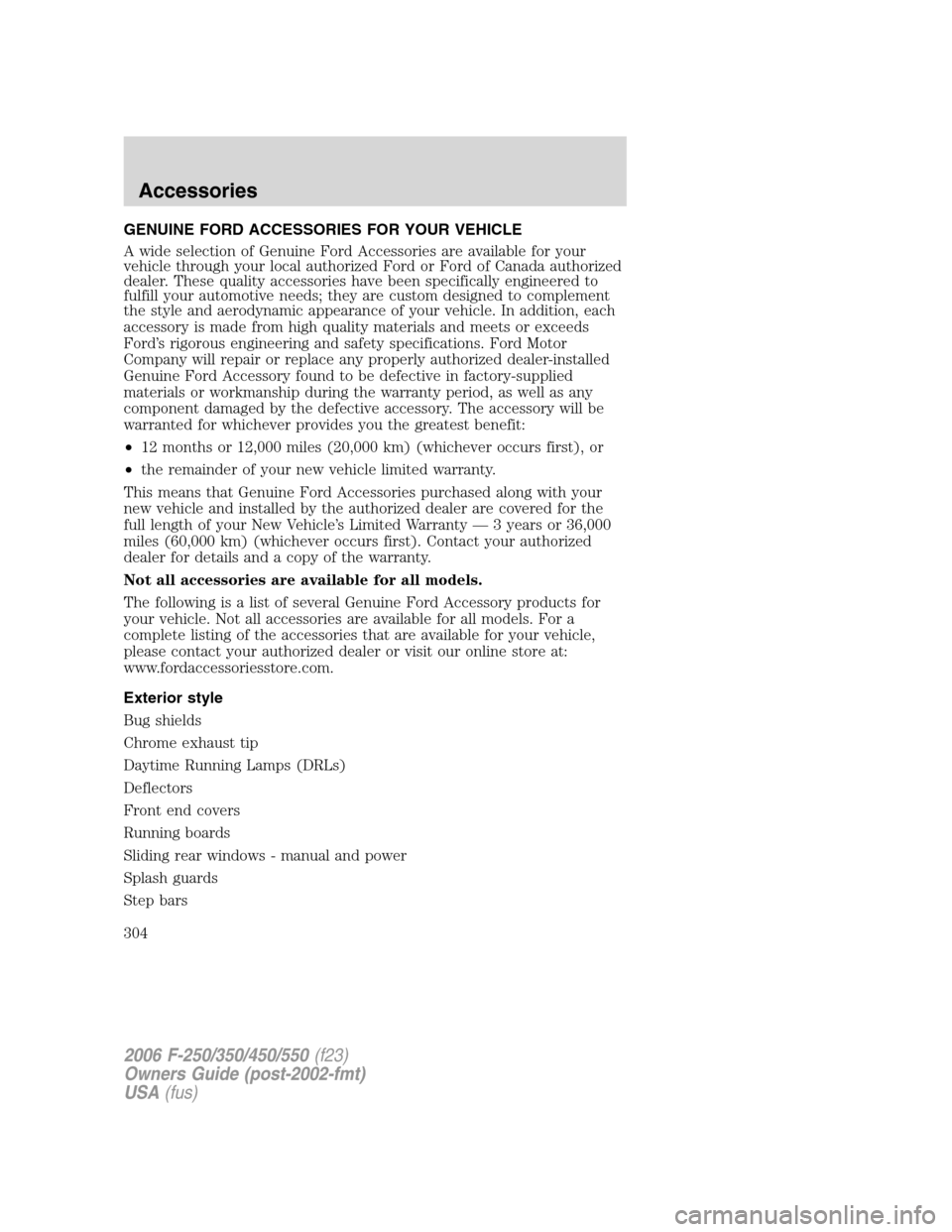

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local authorized Ford or Ford of Canada authorized
dealer. These quality accessories have been specifically engineered to
fulfill your automotive needs; they are custom designed to complement
the style and aerodynamic appearance of your vehicle. In addition, each
accessory is made from high quality materials and meets or exceeds
Ford’s rigorous engineering and safety specifications. Ford Motor
Company will repair or replace any properly authorized dealer-installed
Genuine Ford Accessory found to be defective in factory-supplied
materials or workmanship during the warranty period, as well as any
component damaged by the defective accessory. The accessory will be
warranted for whichever provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that Genuine Ford Accessories purchased along with your
new vehicle and installed by the authorized dealer are covered for the
full length of your New Vehicle’s Limited Warranty — 3 years or 36,000
miles (60,000 km) (whichever occurs first). Contact your authorized
dealer for details and a copy of the warranty.
Not all accessories are available for all models.
The following is a list of several Genuine Ford Accessory products for
your vehicle. Not all accessories are available for all models. For a
complete listing of the accessories that are available for your vehicle,
please contact your authorized dealer or visit our online store at:
www.fordaccessoriesstore.com.
Exterior style
Bug shields
Chrome exhaust tip
Daytime Running Lamps (DRLs)
Deflectors
Front end covers
Running boards
Sliding rear windows - manual and power
Splash guards
Step bars
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
304

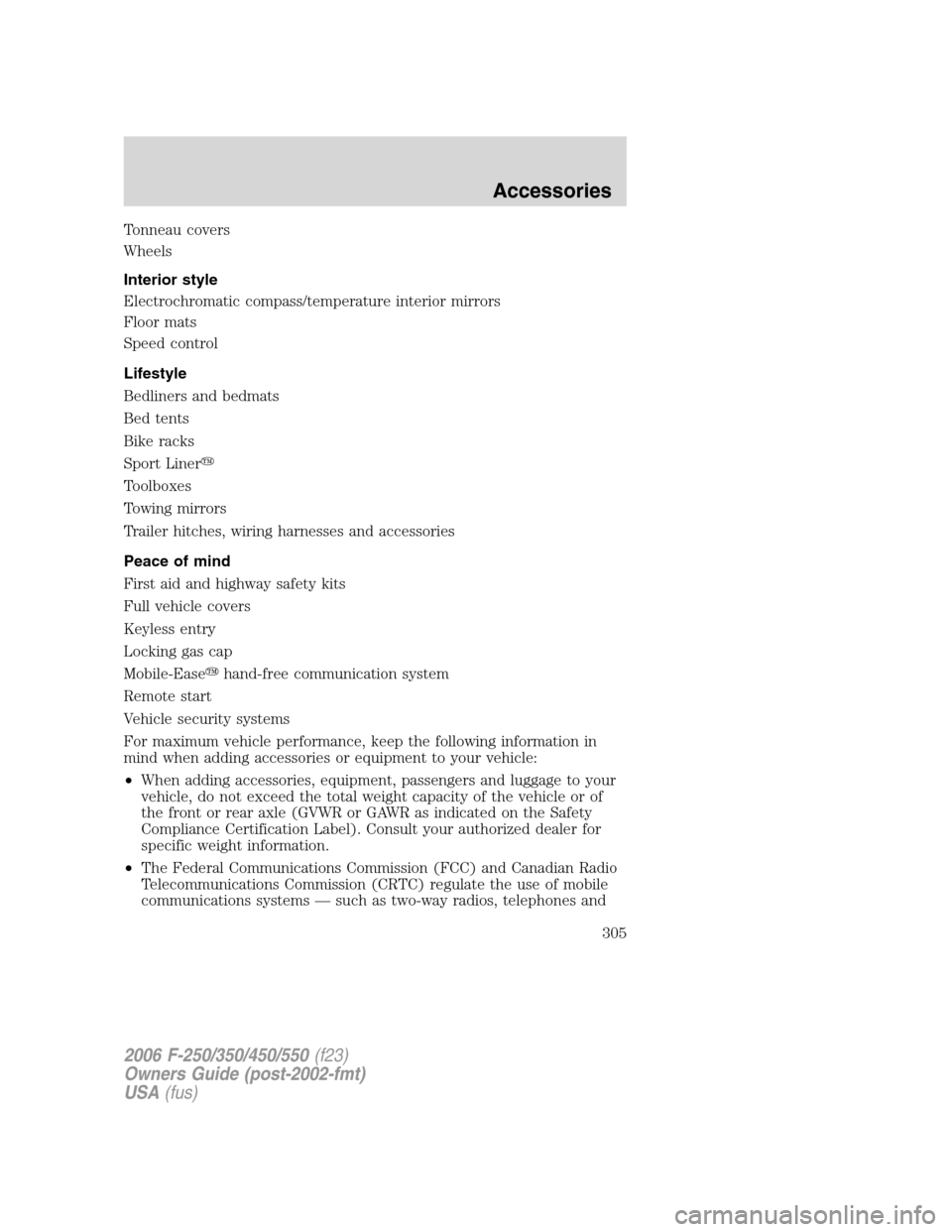

Tonneau covers
Wheels
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
Speed control
Lifestyle
Bedliners and bedmats
Bed tents
Bike racks
Sport Liner
Toolboxes
Towing mirrors
Trailer hitches, wiring harnesses and accessories
Peace of mind
First aid and highway safety kits
Full vehicle covers
Keyless entry
Locking gas cap
Mobile-Easehand-free communication system
Remote start
Vehicle security systems
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification Label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
305

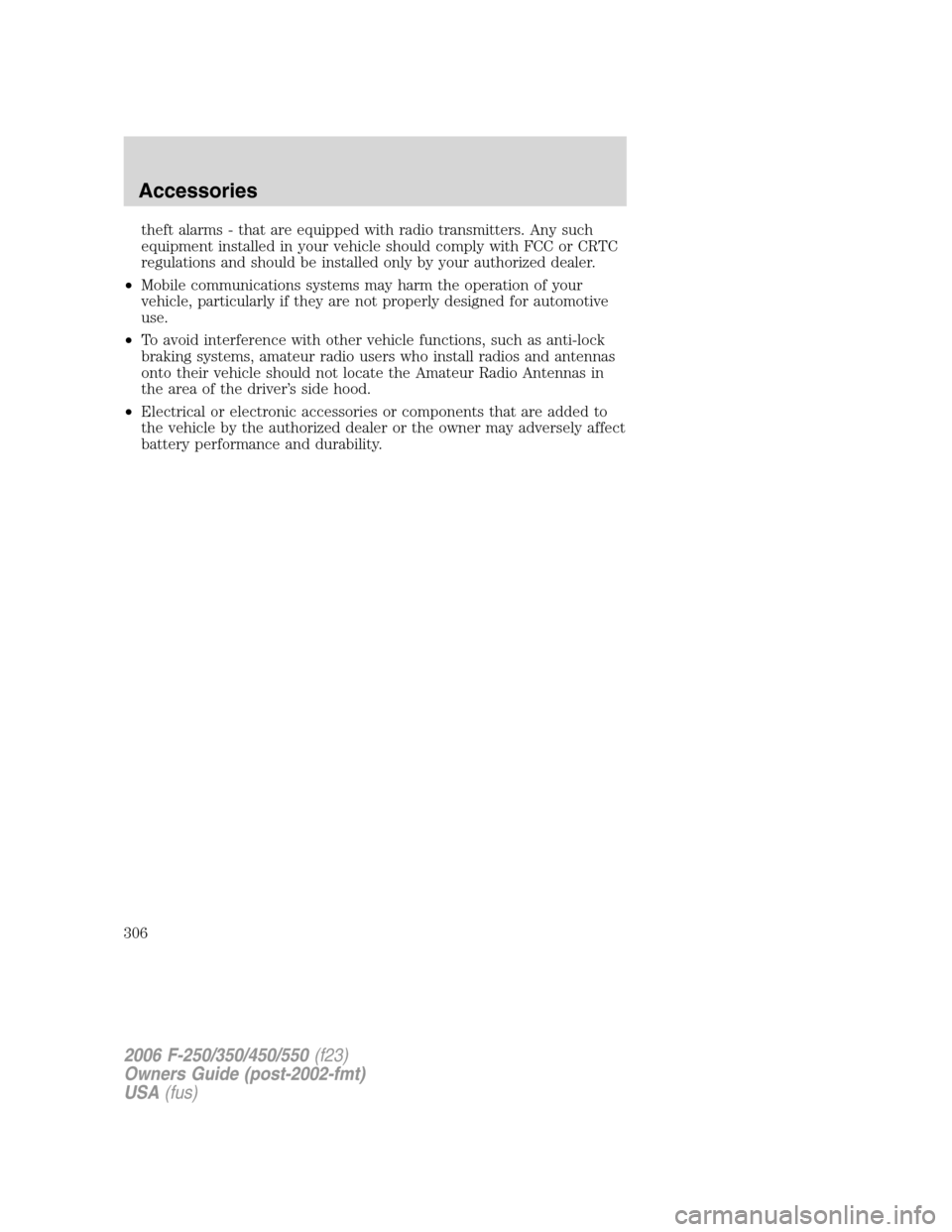

theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by your authorized dealer.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
306

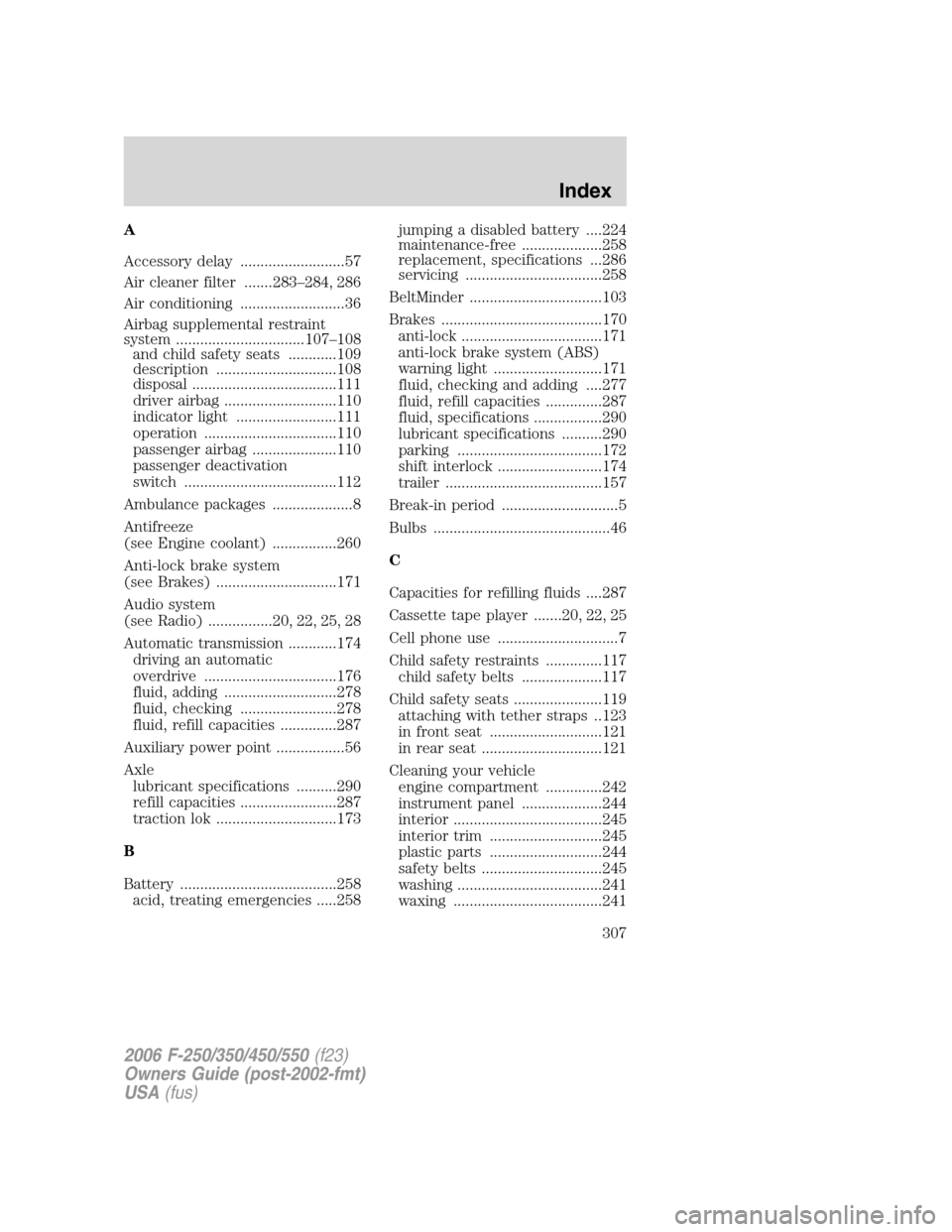

A
Accessory delay ..........................57
Air cleaner filter .......283–284, 286
Air conditioning ..........................36
Airbag supplemental restraint
system ................................107–108
and child safety seats ............109
description ..............................108
disposal ....................................111
driver airbag ............................110
indicator light .........................111
operation .................................110
passenger airbag .....................110
passenger deactivation
switch ......................................112
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................260
Anti-lock brake system
(see Brakes) ..............................171
Audio system
(see Radio) ................20, 22, 25, 28
Automatic transmission ............174
driving an automatic
overdrive .................................176
fluid, adding ............................278
fluid, checking ........................278
fluid, refill capacities ..............287
Auxiliary power point .................56
Axle
lubricant specifications ..........290
refill capacities ........................287
traction lok ..............................173
B
Battery .......................................258
acid, treating emergencies .....258jumping a disabled battery ....224
maintenance-free ....................258
replacement, specifications ...286
servicing ..................................258
BeltMinder .................................103
Brakes ........................................170
anti-lock ...................................171
anti-lock brake system (ABS)
warning light ...........................171
fluid, checking and adding ....277
fluid, refill capacities ..............287
fluid, specifications .................290
lubricant specifications ..........290
parking ....................................172
shift interlock ..........................174
trailer .......................................157
Break-in period .............................5
Bulbs ............................................46
C
Capacities for refilling fluids ....287
Cassette tape player .......20, 22, 25
Cell phone use ..............................7
Child safety restraints ..............117
child safety belts ....................117
Child safety seats ......................119
attaching with tether straps ..123
in front seat ............................121
in rear seat ..............................121
Cleaning your vehicle
engine compartment ..............242
instrument panel ....................244
interior .....................................245
interior trim ............................245
plastic parts ............................244
safety belts ..............................245
washing ....................................241
waxing .....................................241
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Index
307

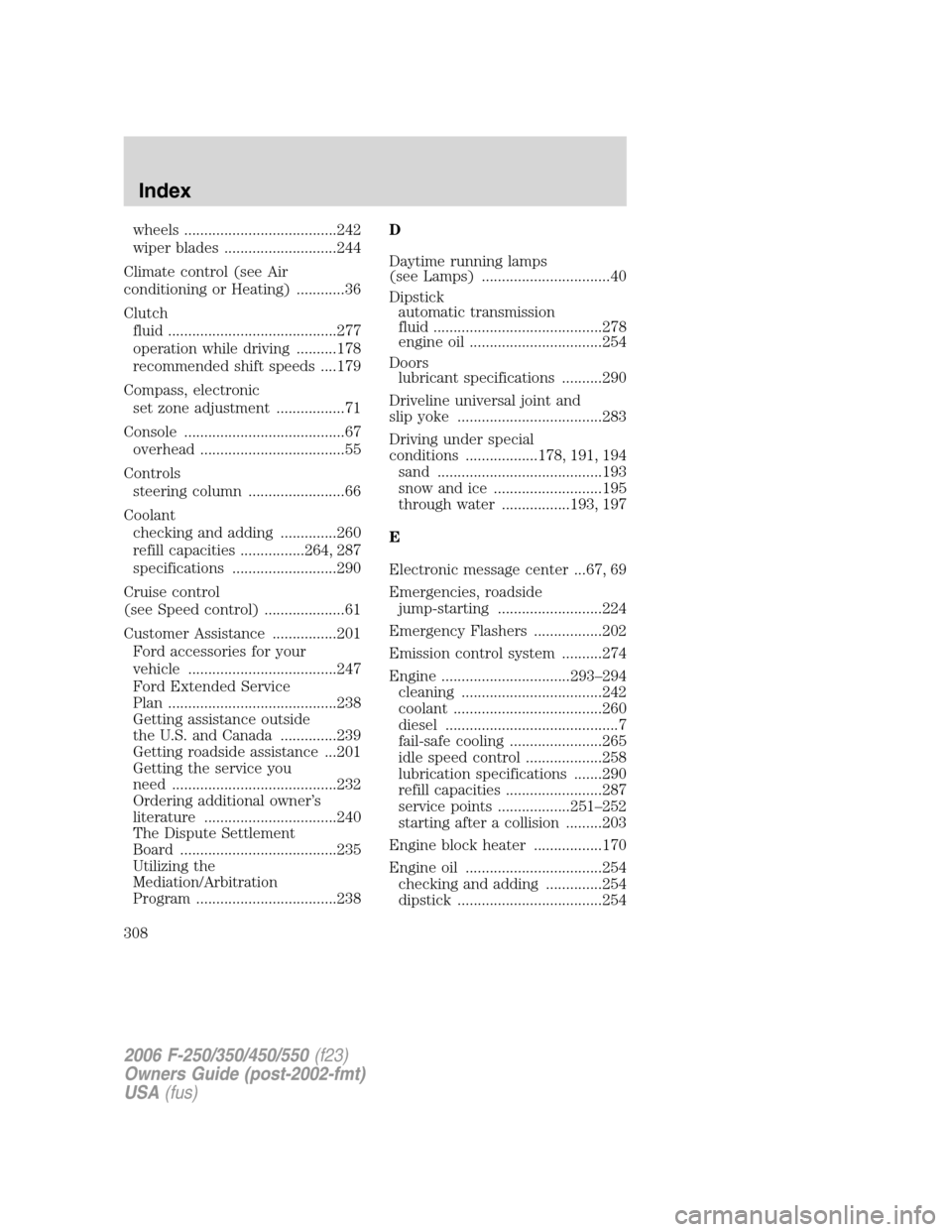

wheels ......................................242
wiper blades ............................244
Climate control (see Air
conditioning or Heating) ............36
Clutch
fluid ..........................................277
operation while driving ..........178
recommended shift speeds ....179
Compass, electronic
set zone adjustment .................71
Console ........................................67
overhead ....................................55
Controls
steering column ........................66
Coolant
checking and adding ..............260
refill capacities ................264, 287
specifications ..........................290
Cruise control
(see Speed control) ....................61
Customer Assistance ................201
Ford accessories for your
vehicle .....................................247
Ford Extended Service
Plan ..........................................238
Getting assistance outside
the U.S. and Canada ..............239
Getting roadside assistance ...201
Getting the service you
need .........................................232
Ordering additional owner’s
literature .................................240
The Dispute Settlement
Board .......................................235
Utilizing the
Mediation/Arbitration
Program ...................................238D
Daytime running lamps
(see Lamps) ................................40
Dipstick
automatic transmission
fluid ..........................................278
engine oil .................................254
Doors
lubricant specifications ..........290
Driveline universal joint and
slip yoke ....................................283
Driving under special
conditions ..................178, 191, 194
sand .........................................193
snow and ice ...........................195
through water .................193, 197
E
Electronic message center ...67, 69
Emergencies, roadside
jump-starting ..........................224
Emergency Flashers .................202
Emission control system ..........274
Engine ................................293–294
cleaning ...................................242
coolant .....................................260
diesel ...........................................7
fail-safe cooling .......................265
idle speed control ...................258
lubrication specifications .......290
refill capacities ........................287
service points ..................251–252
starting after a collision .........203
Engine block heater .................170
Engine oil ..................................254
checking and adding ..............254
dipstick ....................................254
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Index
308

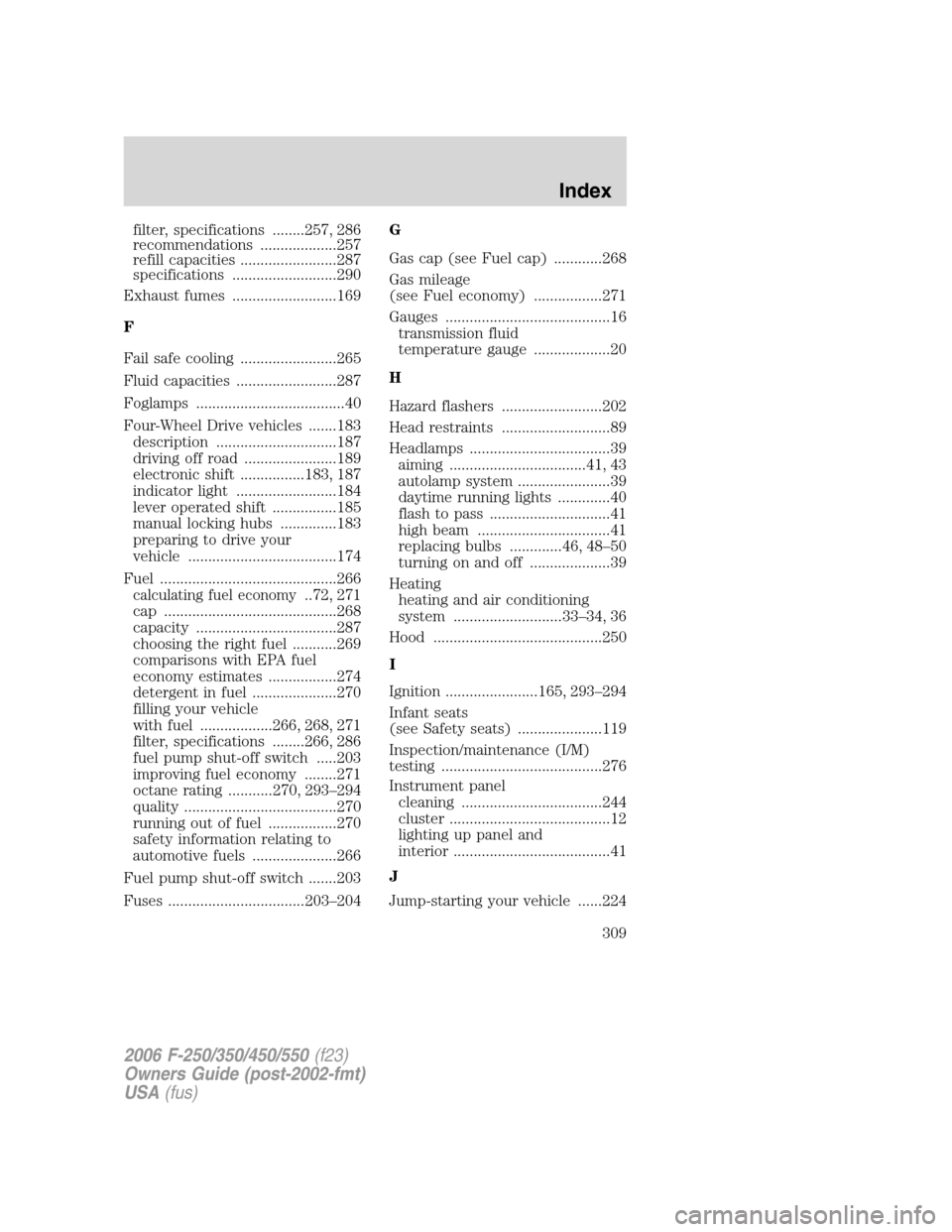

filter, specifications ........257, 286
recommendations ...................257
refill capacities ........................287
specifications ..........................290
Exhaust fumes ..........................169
F
Fail safe cooling ........................265
Fluid capacities .........................287
Foglamps .....................................40
Four-Wheel Drive vehicles .......183
description ..............................187
driving off road .......................189
electronic shift ................183, 187
indicator light .........................184
lever operated shift ................185
manual locking hubs ..............183
preparing to drive your
vehicle .....................................174
Fuel ............................................266
calculating fuel economy..72, 271
cap ...........................................268
capacity ...................................287
choosing the right fuel ...........269
comparisons with EPA fuel
economy estimates .................274
detergent in fuel .....................270
filling your vehicle
with fuel ..................266, 268, 271
filter, specifications ........266, 286
fuel pump shut-off switch .....203
improving fuel economy ........271
octane rating ...........270, 293–294
quality ......................................270
running out of fuel .................270
safety information relating to
automotive fuels .....................266
Fuel pump shut-off switch .......203
Fuses ..................................203–204G
Gas cap (see Fuel cap) ............268
Gas mileage
(see Fuel economy) .................271
Gauges .........................................16
transmission fluid
temperature gauge ...................20
H
Hazard flashers .........................202
Head restraints ...........................89
Headlamps ...................................39
aiming ..................................41, 43
autolamp system .......................39
daytime running lights .............40
flash to pass ..............................41
high beam .................................41
replacing bulbs .............46, 48–50
turning on and off ....................39
Heating
heating and air conditioning
system ...........................33–34, 36
Hood ..........................................250
I
Ignition .......................165, 293–294
Infant seats
(see Safety seats) .....................119
Inspection/maintenance (I/M)
testing ........................................276
Instrument panel
cleaning ...................................244
cluster ........................................12
lighting up panel and
interior .......................................41
J
Jump-starting your vehicle ......224
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Index
309

K
Keyless entry system .................86
Keys
positions of the ignition .........165
L
Lamps
autolamp system .......................39
daytime running light ...............40
fog lamps ...................................40
headlamps .................................39
headlamps, flash to pass ..........41
instrument panel, dimming .....41
interior lamps ...........................45
replacing bulbs .............46, 48–53
Lane change indicator
(see Turn signal) ........................45
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........171
speed control ............................63
Load limits .................................146
Loading instructions .................153
Locks
childproof ..................................81
Lubricant specifications ...........290
Lug nuts ....................................223
Lumbar support, seats ...............94
M
Manual transmission .................178
fluid capacities ........................287
reverse .....................................180
Message center ...............67, 69–70
english/metric button ...............74
system check button ................73warning messages .....................75
Mirrors .........................................55
automatic dimming rearview
mirror ........................................58
fold away ...................................60
heated ........................................58
side view mirrors (power) .......58
signal .........................................59
Moon roof ....................................66
Motorcraft parts ................266, 286
O
Octane rating ............................270
Oil (see Engine oil) ..................254
Overdrive .....................................55
P
Parking brake ............................172
Parts (see Motorcraft parts) ....286
Pedals (see Power adjustable
foot pedals) .................................61
Power adjustable foot pedals .....61
Power distribution box
(see Fuses) ...............................209
Power door locks ........................80
Power mirrors .............................58
Power point .................................56
Power steering ..........................173
fluid, checking and adding ....276
fluid, refill capacity ................287
fluid, specifications .................290
Power Windows ...........................56
Preparing to drive your
vehicle ........................................174
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Index
310
