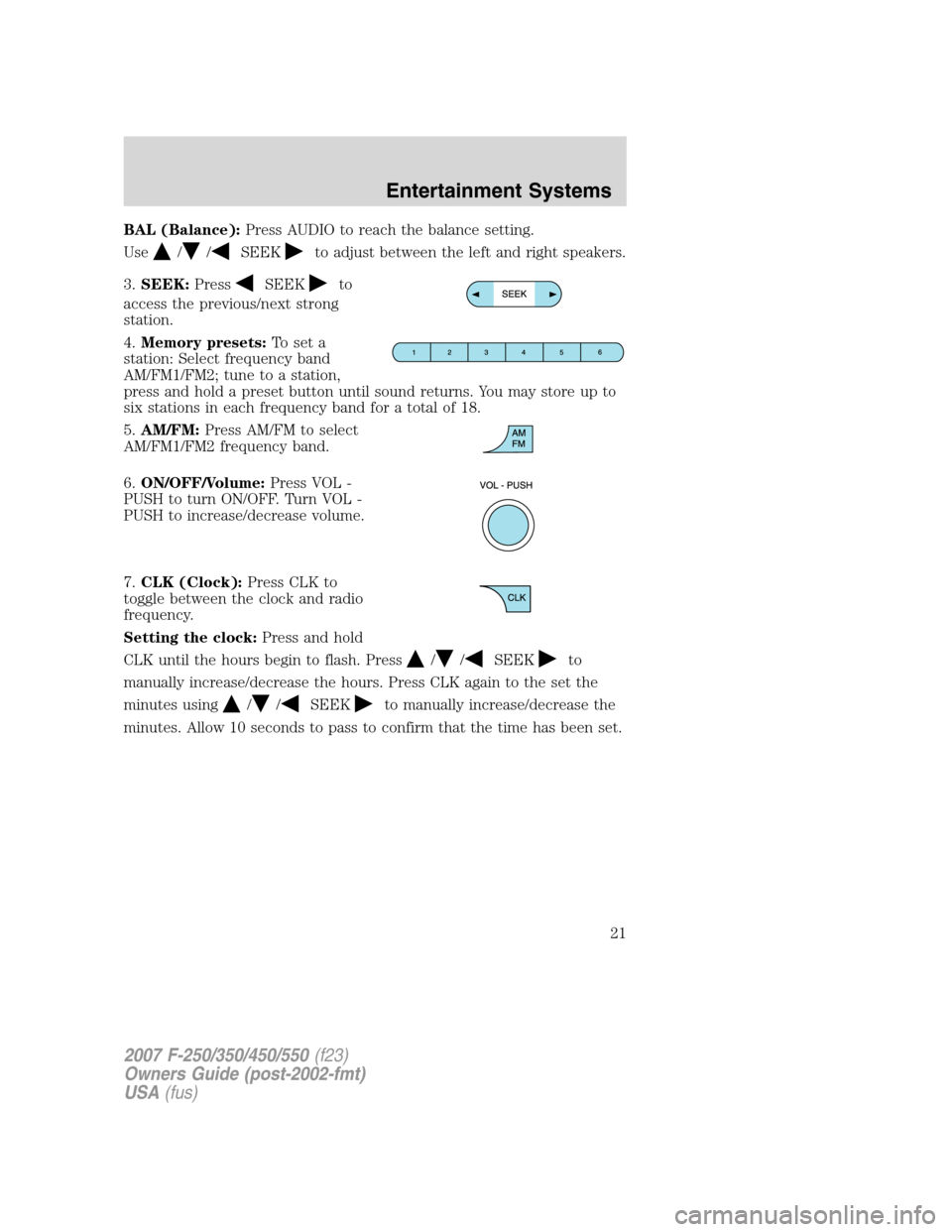

BAL (Balance):Press AUDIO to reach the balance setting.
Use
//SEEKto adjust between the left and right speakers.
3.SEEK:Press
SEEKto
access the previous/next strong
station.
4.Memory presets:To set a
station: Select frequency band
AM/FM1/FM2; tune to a station,
press and hold a preset button until sound returns. You may store up to
six stations in each frequency band for a total of 18.
5.AM/FM:Press AM/FM to select
AM/FM1/FM2 frequency band.
6.ON/OFF/Volume:Press VOL -
PUSH to turn ON/OFF. Turn VOL -
PUSH to increase/decrease volume.
7.CLK (Clock):Press CLK to
toggle between the clock and radio
frequency.
Setting the clock:Press and hold
CLK until the hours begin to flash. Press
//SEEKto
manually increase/decrease the hours. Press CLK again to the set the
minutes using
//SEEKto manually increase/decrease the
minutes. Allow 10 seconds to pass to confirm that the time has been set.
2007 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
21

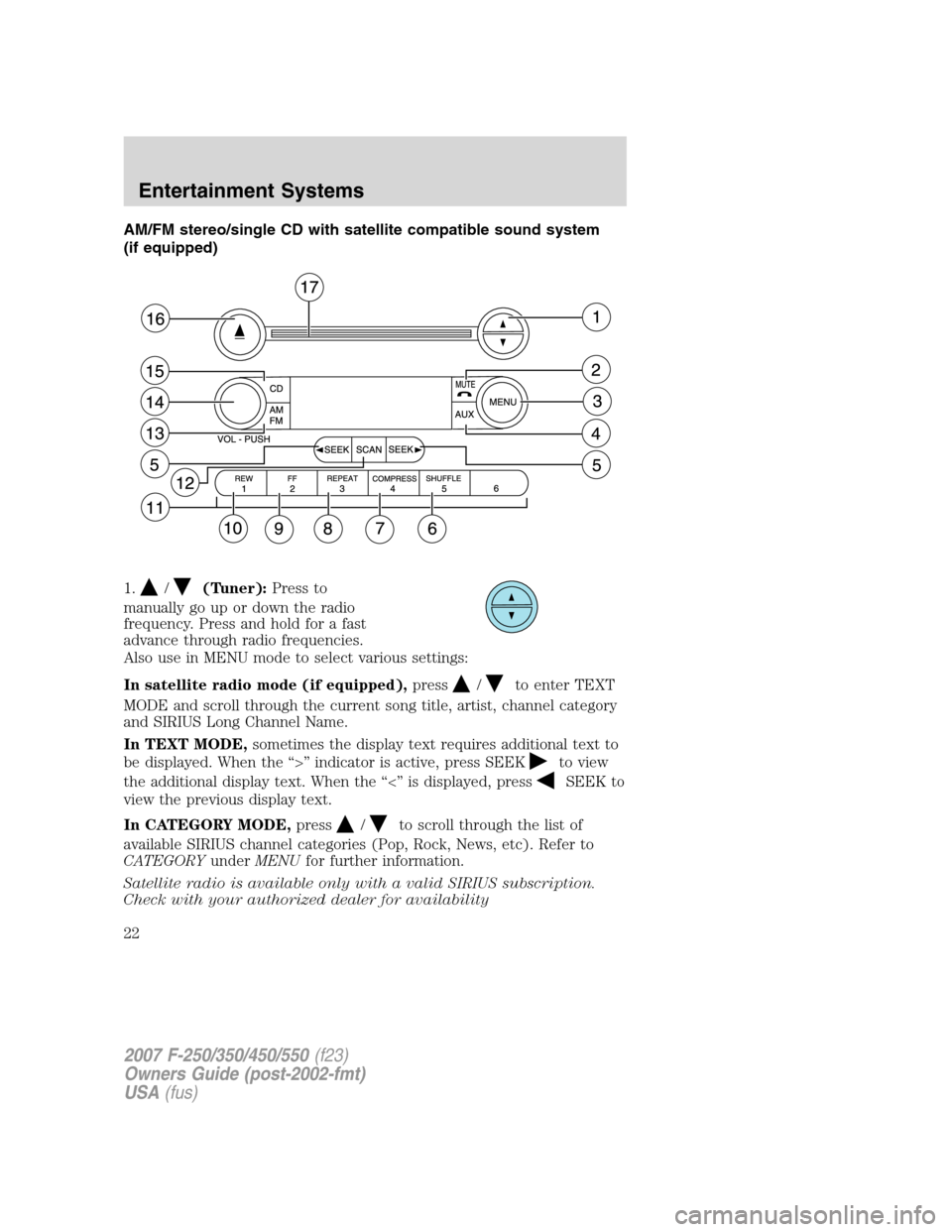

AM/FM stereo/single CD with satellite compatible sound system
(if equipped)
1.
/(Tuner):Press to
manually go up or down the radio
frequency. Press and hold for a fast
advance through radio frequencies.
Also use in MENU mode to select various settings:
In satellite radio mode (if equipped),press
/to enter TEXT
MODE and scroll through the current song title, artist, channel category
and SIRIUS Long Channel Name.
In TEXT MODE,sometimes the display text requires additional text to
be displayed. When the “>” indicator is active, press SEEK
to view
the additional display text. When the “<” is displayed, press
SEEK to
view the previous display text.
In CATEGORY MODE,press
/to scroll through the list of
available SIRIUS channel categories (Pop, Rock, News, etc). Refer to
CATEGORYunderMENUfor further information.
Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability
2007 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
22

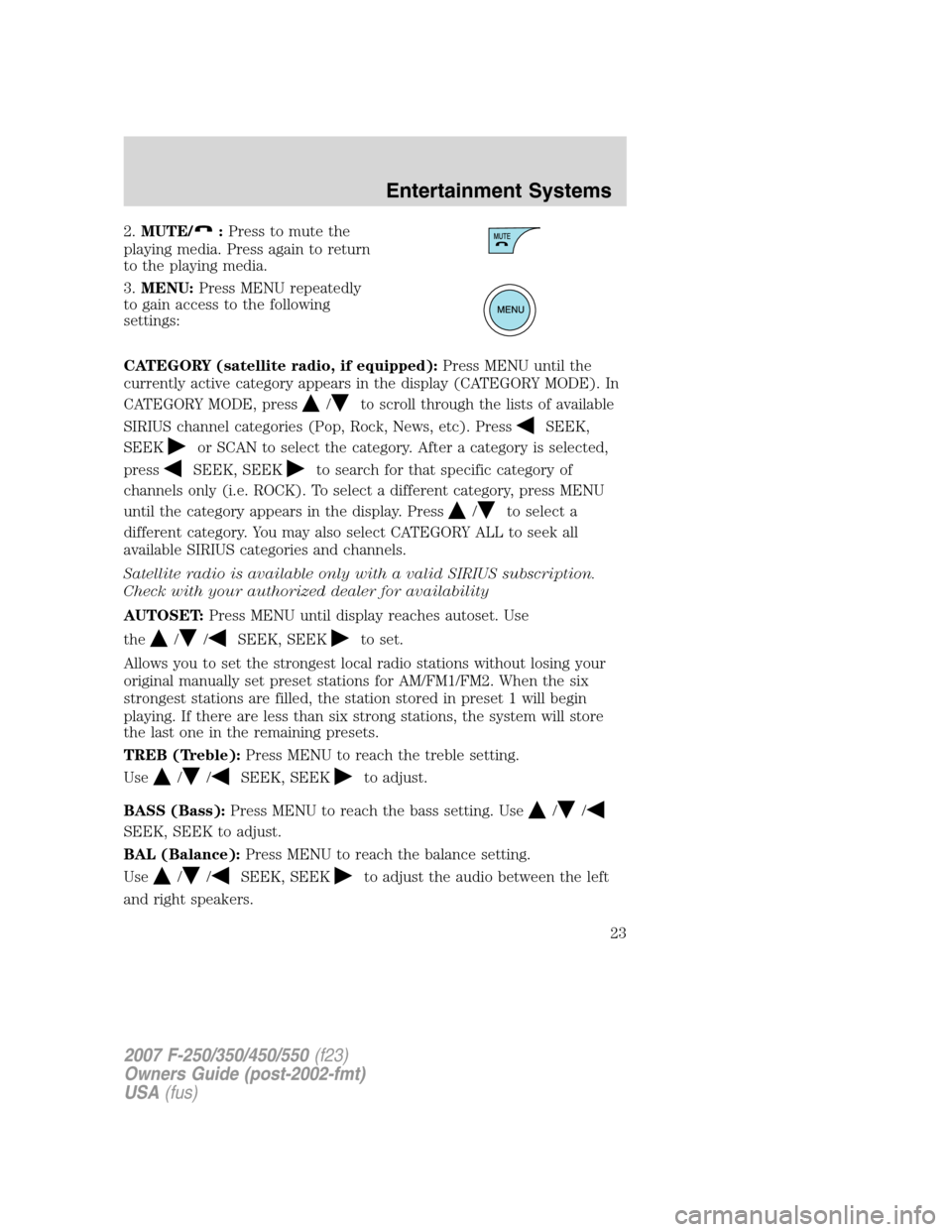

2.MUTE/:Press to mute the
playing media. Press again to return
to the playing media.
3.MENU:Press MENU repeatedly
to gain access to the following
settings:
CATEGORY (satellite radio, if equipped):Press MENU until the
currently active category appears in the display (CATEGORY MODE). In
CATEGORY MODE, press
/to scroll through the lists of available
SIRIUS channel categories (Pop, Rock, News, etc). Press
SEEK,
SEEK
or SCAN to select the category. After a category is selected,
press
SEEK, SEEKto search for that specific category of
channels only (i.e. ROCK). To select a different category, press MENU
until the category appears in the display. Press
/to select a
different category. You may also select CATEGORY ALL to seek all
available SIRIUS categories and channels.
Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability
AUTOSET:Press MENU until display reaches autoset. Use
the
//SEEK, SEEKto set.
Allows you to set the strongest local radio stations without losing your
original manually set preset stations for AM/FM1/FM2. When the six
strongest stations are filled, the station stored in preset 1 will begin
playing. If there are less than six strong stations, the system will store
the last one in the remaining presets.
TREB (Treble):Press MENU to reach the treble setting.
Use
//SEEK, SEEKto adjust.
BASS (Bass):Press MENU to reach the bass setting. Use
//
SEEK, SEEK to adjust.
BAL (Balance):Press MENU to reach the balance setting.
Use
//SEEK, SEEKto adjust the audio between the left
and right speakers.
2007 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
23

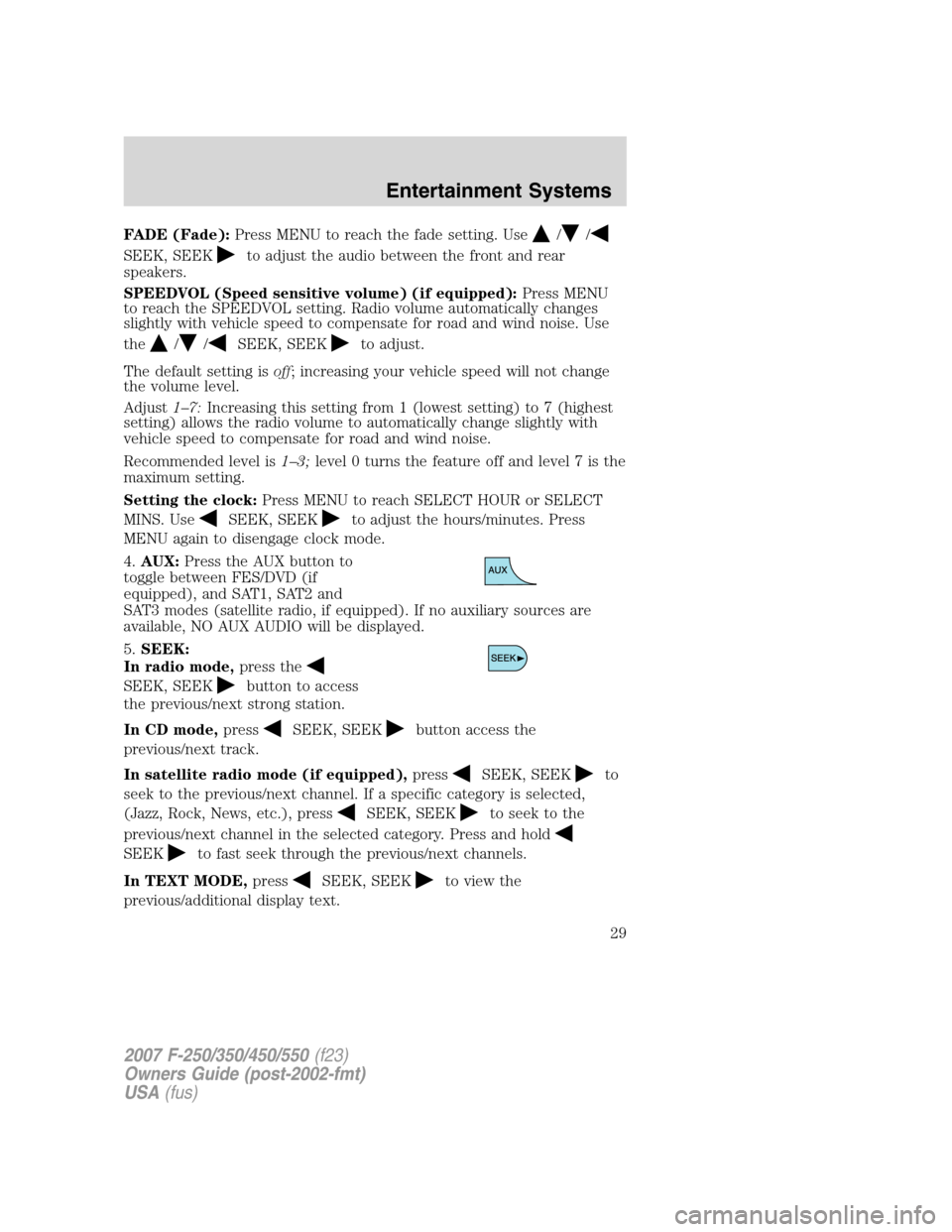

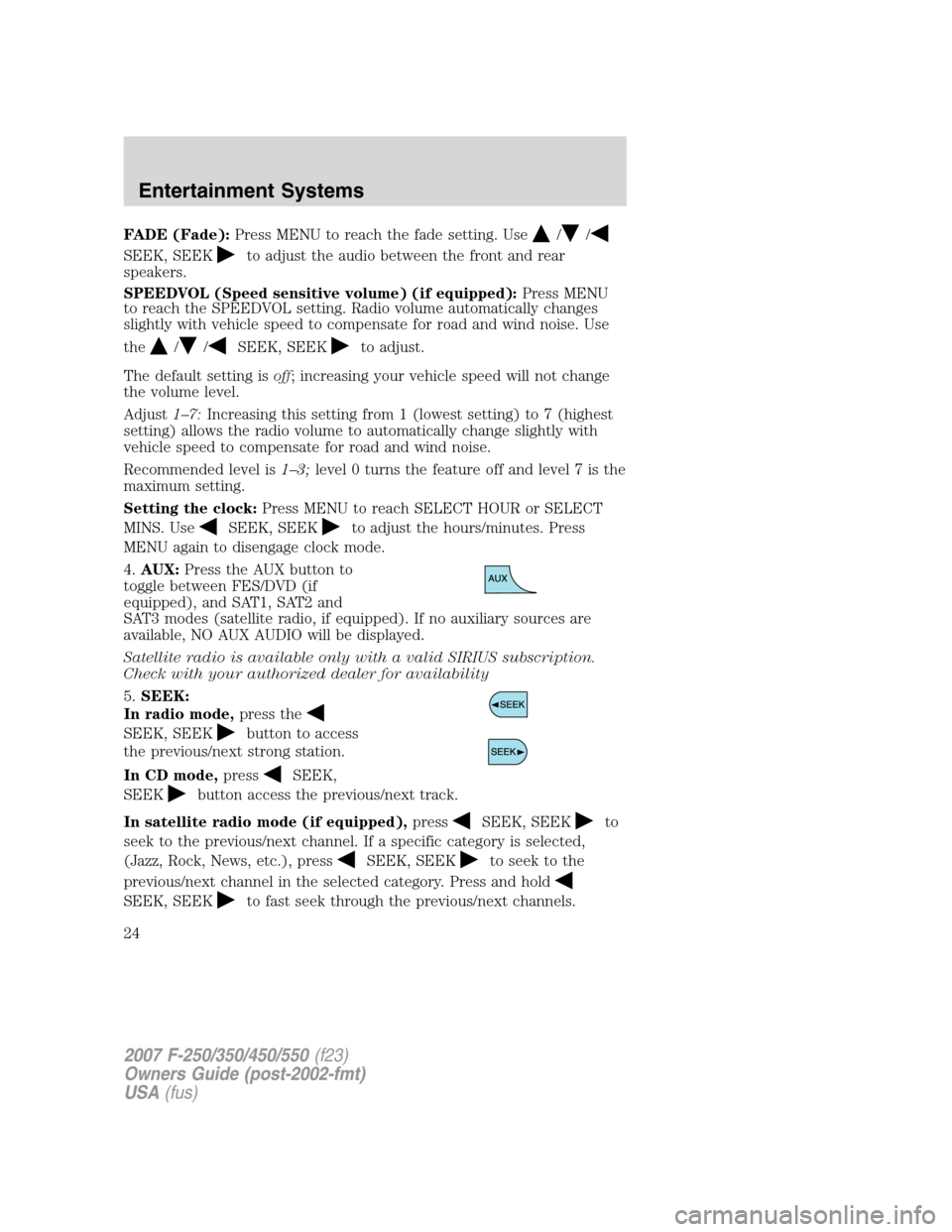

FADE (Fade):Press MENU to reach the fade setting. Use//
SEEK, SEEKto adjust the audio between the front and rear
speakers.
SPEEDVOL (Speed sensitive volume) (if equipped):Press MENU
to reach the SPEEDVOL setting. Radio volume automatically changes
slightly with vehicle speed to compensate for road and wind noise. Use
the
//SEEK, SEEKto adjust.
The default setting isoff; increasing your vehicle speed will not change
the volume level.
Adjust1–7:Increasing this setting from 1 (lowest setting) to 7 (highest
setting) allows the radio volume to automatically change slightly with
vehicle speed to compensate for road and wind noise.
Recommended level is1–3;level 0 turns the feature off and level 7 is the
maximum setting.
Setting the clock:Press MENU to reach SELECT HOUR or SELECT
MINS. Use
SEEK, SEEKto adjust the hours/minutes. Press
MENU again to disengage clock mode.
4.AUX:Press the AUX button to
toggle between FES/DVD (if
equipped), and SAT1, SAT2 and
SAT3 modes (satellite radio, if equipped). If no auxiliary sources are
available, NO AUX AUDIO will be displayed.
Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability
5.SEEK:
In radio mode,press the
SEEK, SEEKbutton to access
the previous/next strong station.
In CD mode,press
SEEK,
SEEK
button access the previous/next track.
In satellite radio mode (if equipped),press
SEEK, SEEKto
seek to the previous/next channel. If a specific category is selected,
(Jazz, Rock, News, etc.), press
SEEK, SEEKto seek to the
previous/next channel in the selected category. Press and hold
SEEK, SEEKto fast seek through the previous/next channels.
2007 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
24

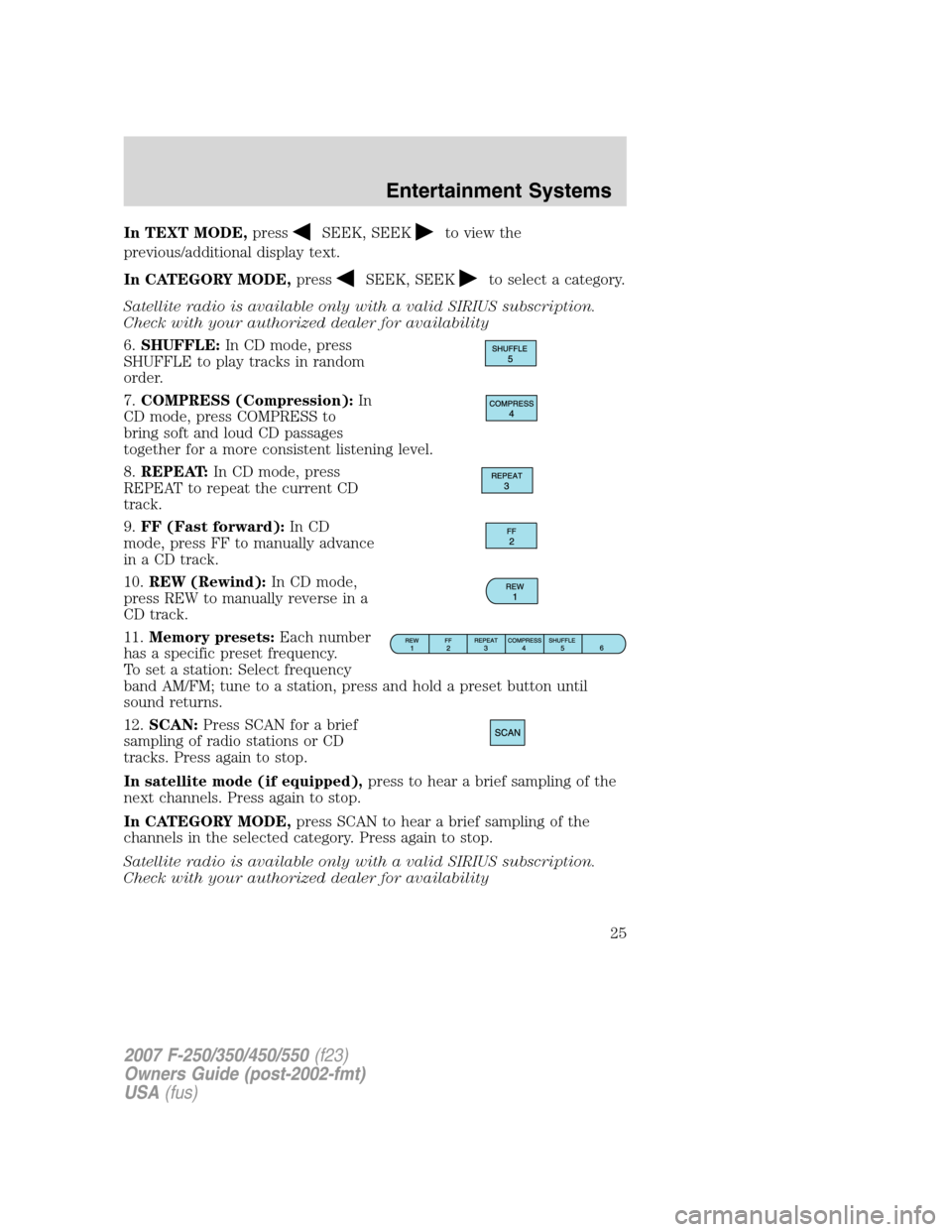

In TEXT MODE,pressSEEK, SEEKto view the
previous/additional display text.
In CATEGORY MODE,press
SEEK, SEEKto select a category.
Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability
6.SHUFFLE:In CD mode, press
SHUFFLE to play tracks in random
order.
7.COMPRESS (Compression):In
CD mode, press COMPRESS to
bring soft and loud CD passages
together for a more consistent listening level.
8.REPEAT:In CD mode, press
REPEAT to repeat the current CD
track.
9.FF (Fast forward):In CD
mode, press FF to manually advance
in a CD track.
10.REW (Rewind):In CD mode,
press REW to manually reverse in a
CD track.
11.Memory presets:Each number
has a specific preset frequency.
To set a station: Select frequency
band AM/FM; tune to a station, press and hold a preset button until
sound returns.
12.SCAN:Press SCAN for a brief
sampling of radio stations or CD
tracks. Press again to stop.
In satellite mode (if equipped),press to hear a brief sampling of the
next channels. Press again to stop.
In CATEGORY MODE,press SCAN to hear a brief sampling of the
channels in the selected category. Press again to stop.
Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability
2007 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
25

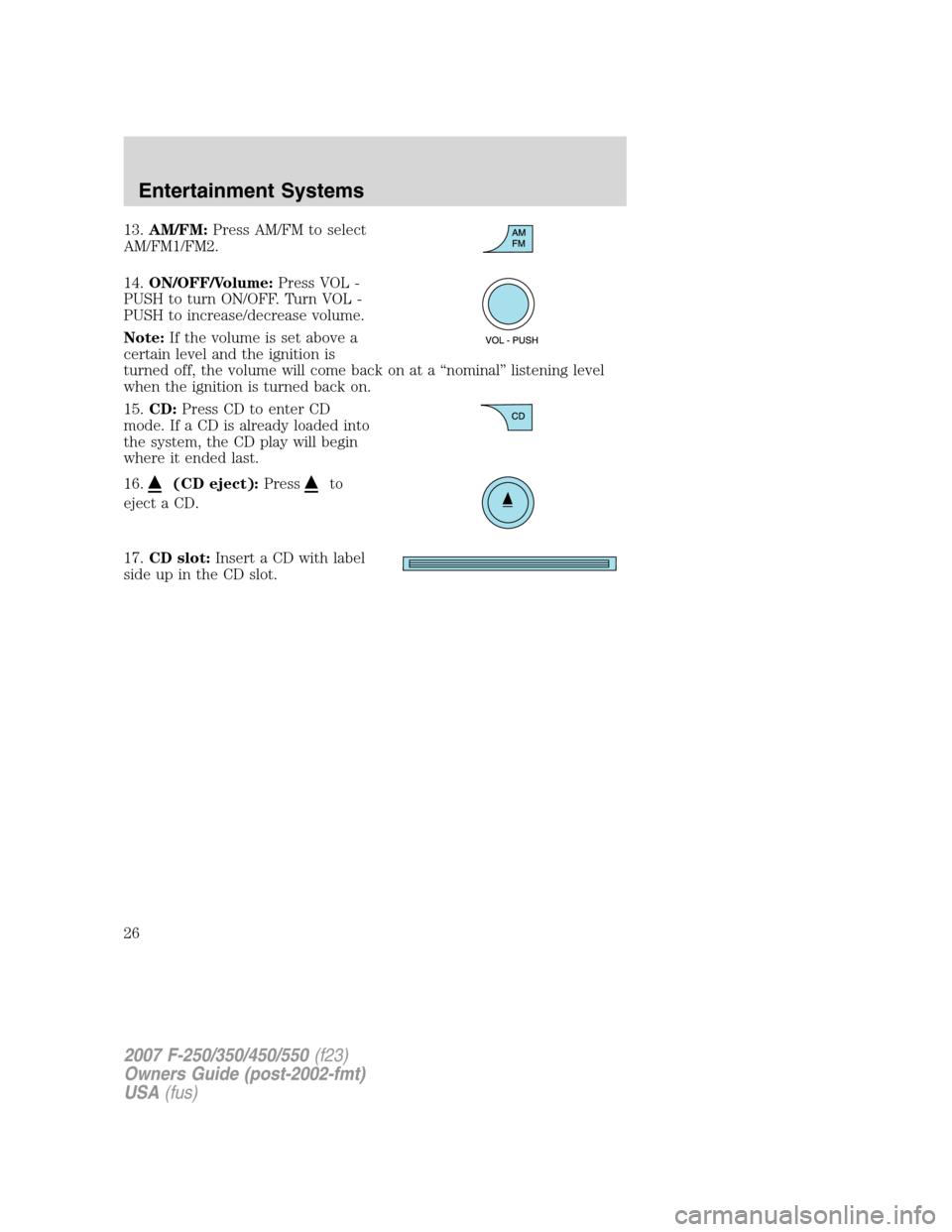

13.AM/FM:Press AM/FM to select
AM/FM1/FM2.
14.ON/OFF/Volume:Press VOL -
PUSH to turn ON/OFF. Turn VOL -
PUSH to increase/decrease volume.
Note:If the volume is set above a
certain level and the ignition is
turned off, the volume will come back on at a “nominal” listening level
when the ignition is turned back on.
15.CD:Press CD to enter CD
mode. If a CD is already loaded into
the system, the CD play will begin
where it ended last.
16.
(CD eject):Pressto
eject a CD.
17.CD slot:Insert a CD with label
side up in the CD slot.
2007 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
26

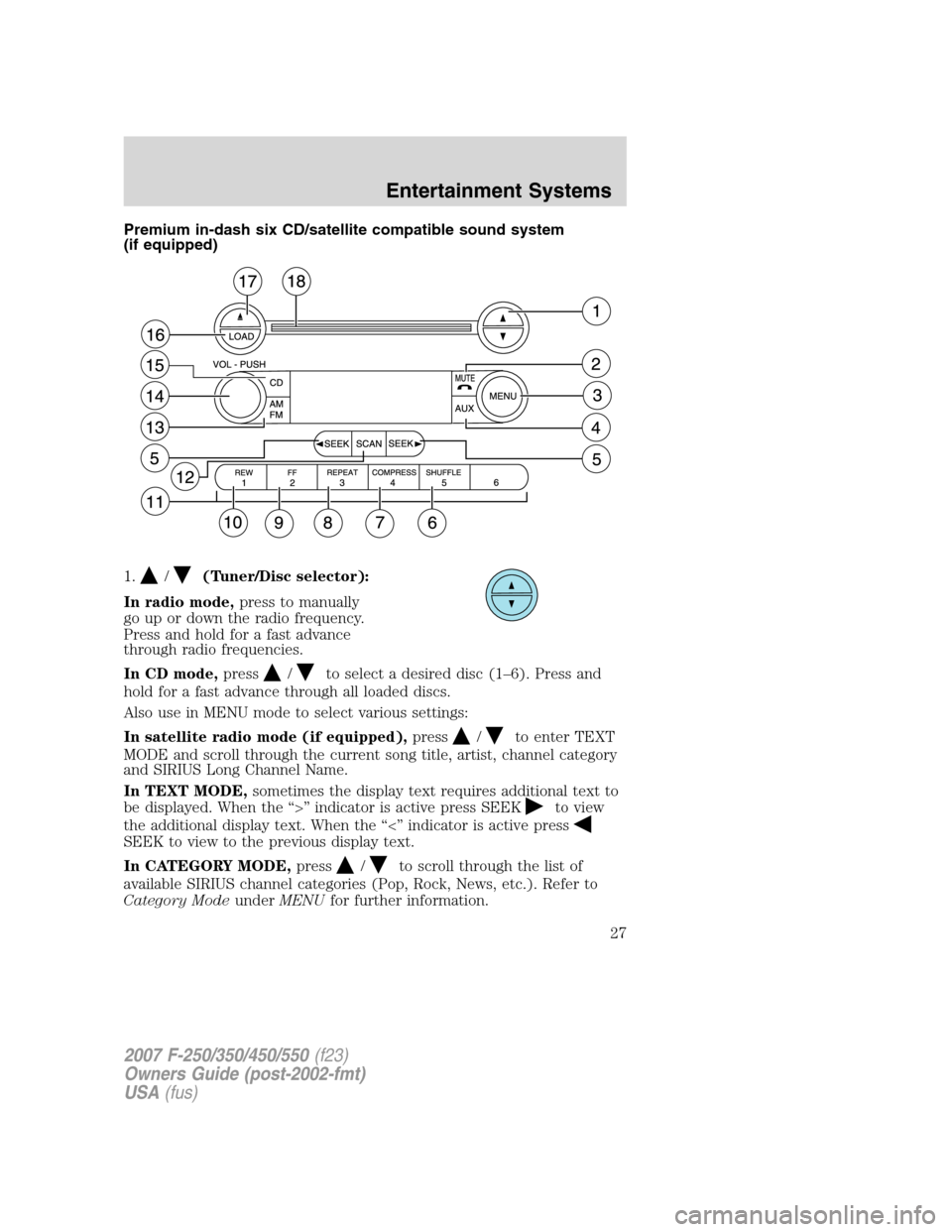

Premium in-dash six CD/satellite compatible sound system
(if equipped)
1.
/(Tuner/Disc selector):
In radio mode,press to manually
go up or down the radio frequency.
Press and hold for a fast advance
through radio frequencies.
In CD mode,press
/to select a desired disc (1–6). Press and
hold for a fast advance through all loaded discs.
Also use in MENU mode to select various settings:
In satellite radio mode (if equipped),press
/to enter TEXT
MODE and scroll through the current song title, artist, channel category
and SIRIUS Long Channel Name.
In TEXT MODE,sometimes the display text requires additional text to
be displayed. When the “>” indicator is active press SEEK
to view
the additional display text. When the “<” indicator is active press
SEEK to view to the previous display text.
In CATEGORY MODE,press
/to scroll through the list of
available SIRIUS channel categories (Pop, Rock, News, etc.). Refer to
Category ModeunderMENUfor further information.
2007 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
27

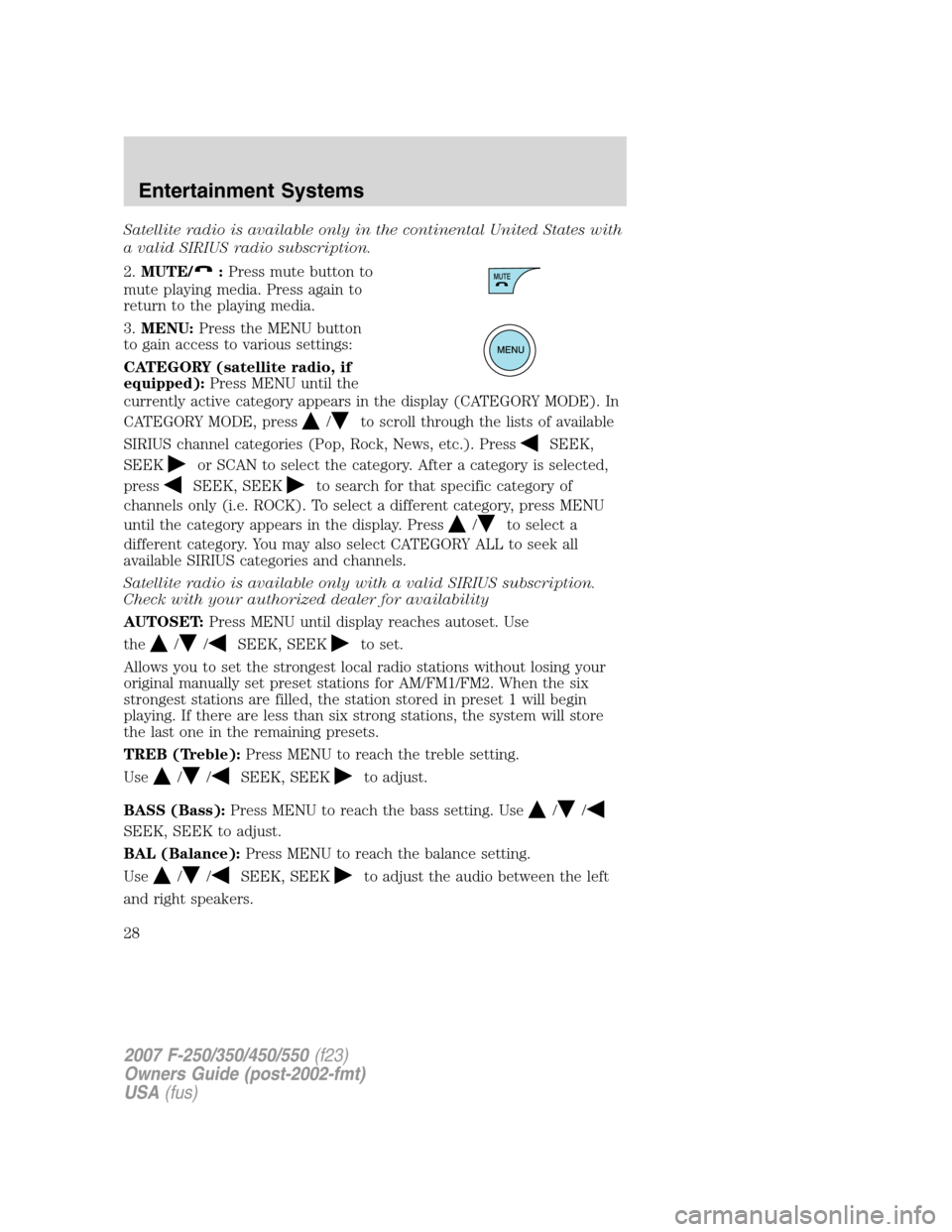

Satellite radio is available only in the continental United States with
a valid SIRIUS radio subscription.
2.MUTE/
:Press mute button to
mute playing media. Press again to
return to the playing media.
3.MENU:Press the MENU button
to gain access to various settings:
CATEGORY (satellite radio, if
equipped):Press MENU until the
currently active category appears in the display (CATEGORY MODE). In
CATEGORY MODE, press
/to scroll through the lists of available
SIRIUS channel categories (Pop, Rock, News, etc.). Press
SEEK,
SEEK
or SCAN to select the category. After a category is selected,
press
SEEK, SEEKto search for that specific category of
channels only (i.e. ROCK). To select a different category, press MENU
until the category appears in the display. Press
/to select a
different category. You may also select CATEGORY ALL to seek all
available SIRIUS categories and channels.
Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability
AUTOSET:Press MENU until display reaches autoset. Use
the
//SEEK, SEEKto set.
Allows you to set the strongest local radio stations without losing your
original manually set preset stations for AM/FM1/FM2. When the six
strongest stations are filled, the station stored in preset 1 will begin
playing. If there are less than six strong stations, the system will store
the last one in the remaining presets.
TREB (Treble):Press MENU to reach the treble setting.
Use
//SEEK, SEEKto adjust.
BASS (Bass):Press MENU to reach the bass setting. Use
//
SEEK, SEEK to adjust.
BAL (Balance):Press MENU to reach the balance setting.
Use
//SEEK, SEEKto adjust the audio between the left
and right speakers.
2007 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
28

FADE (Fade):Press MENU to reach the fade setting. Use//
SEEK, SEEKto adjust the audio between the front and rear
speakers.
SPEEDVOL (Speed sensitive volume) (if equipped):Press MENU
to reach the SPEEDVOL setting. Radio volume automatically changes
slightly with vehicle speed to compensate for road and wind noise. Use
the
//SEEK, SEEKto adjust.
The default setting isoff; increasing your vehicle speed will not change
the volume level.
Adjust1–7:Increasing this setting from 1 (lowest setting) to 7 (highest
setting) allows the radio volume to automatically change slightly with
vehicle speed to compensate for road and wind noise.
Recommended level is1–3;level 0 turns the feature off and level 7 is the
maximum setting.
Setting the clock:Press MENU to reach SELECT HOUR or SELECT
MINS. Use
SEEK, SEEKto adjust the hours/minutes. Press
MENU again to disengage clock mode.
4.AUX:Press the AUX button to
toggle between FES/DVD (if
equipped), and SAT1, SAT2 and
SAT3 modes (satellite radio, if equipped). If no auxiliary sources are
available, NO AUX AUDIO will be displayed.
5.SEEK:
In radio mode,press the
SEEK, SEEKbutton to access
the previous/next strong station.
In CD mode,press
SEEK, SEEKbutton access the
previous/next track.
In satellite radio mode (if equipped),press
SEEK, SEEKto
seek to the previous/next channel. If a specific category is selected,
(Jazz, Rock, News, etc.), press
SEEK, SEEKto seek to the
previous/next channel in the selected category. Press and hold
SEEKto fast seek through the previous/next channels.
In TEXT MODE,press
SEEK, SEEKto view the
previous/additional display text.
2007 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
29

In CATEGORY MODE,pressSEEK, SEEKto select a category.
Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability
6.SHUFFLE:In CD mode, press
SHUFFLE to play tracks in random
order.
7.COMPRESS (Compression):In
CD mode, press COMPRESS to
bring soft and loud CD passages
together for a more consistent listening level.
8.REPEAT:In CD mode, press
REPEAT to repeat the current CD
track.
9.FF (Fast forward):In CD
mode, press FF to manually advance
in a CD track.
10.REW (Rewind):In CD mode,
press REW to manually reverse in a
CD track.
11.Memory presets:Each number
has a specific preset frequency.
To set a station: Select frequency
band AM/FM; tune to a station, press and hold a preset button until
sound returns.
12.SCAN:Press SCAN for a brief
sampling of radio stations or CD
tracks. Press again to stop.
In satellite mode (if equipped),press to hear a brief sampling of the
next channels. Press again to stop.
In CATEGORY MODE,press SCAN to hear a brief sampling of the
channels in the selected category. Press again to stop.
Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability
13.AM/FM:Press AM/FM to select
AM/FM1/FM2.
2007 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
30
