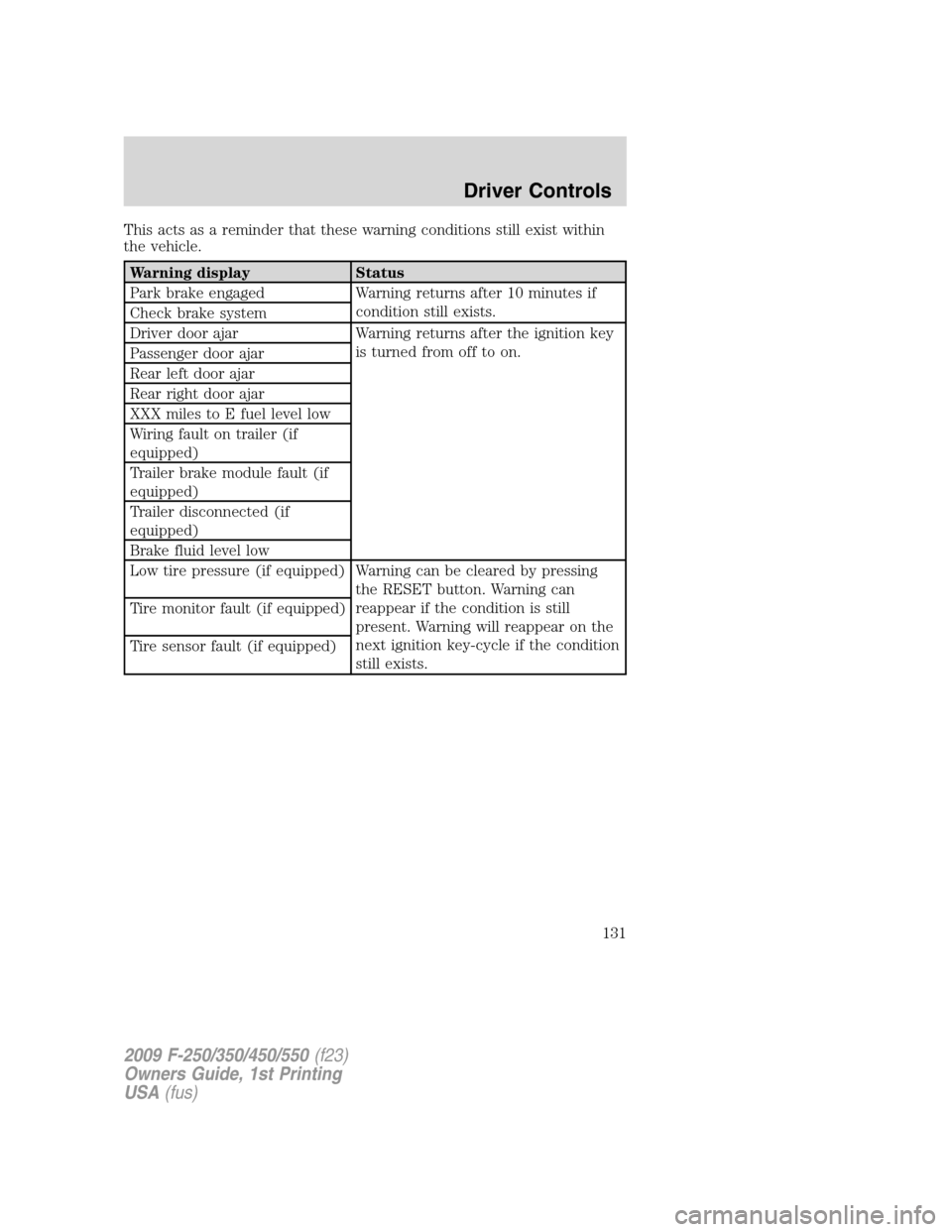

Page 131 of 418

FORD SUPER DUTY 2009 2.G Owners Manual This acts as a reminder that these warning conditions still exist within
the vehicle.
Warning display Status
Park brake engaged Warning returns after 10 minutes if
condition still exists.
Check brake

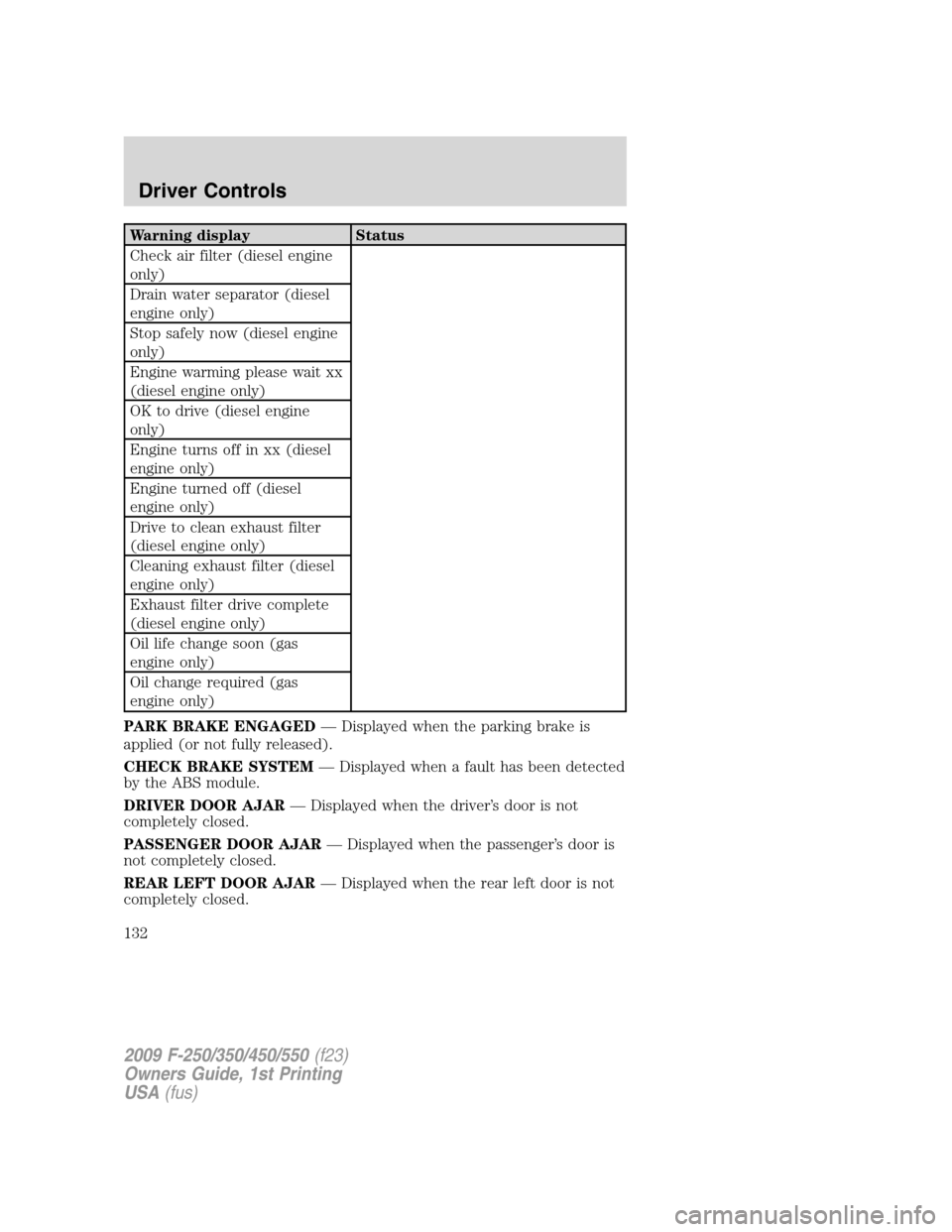

Page 132 of 418

FORD SUPER DUTY 2009 2.G Owners Manual Warning display Status
Check air filter (diesel engine
only)
Drain water separator (diesel
engine only)
Stop safely now (diesel engine
only)
Engine warming please wait xx
(diesel engine only)
OK to dr

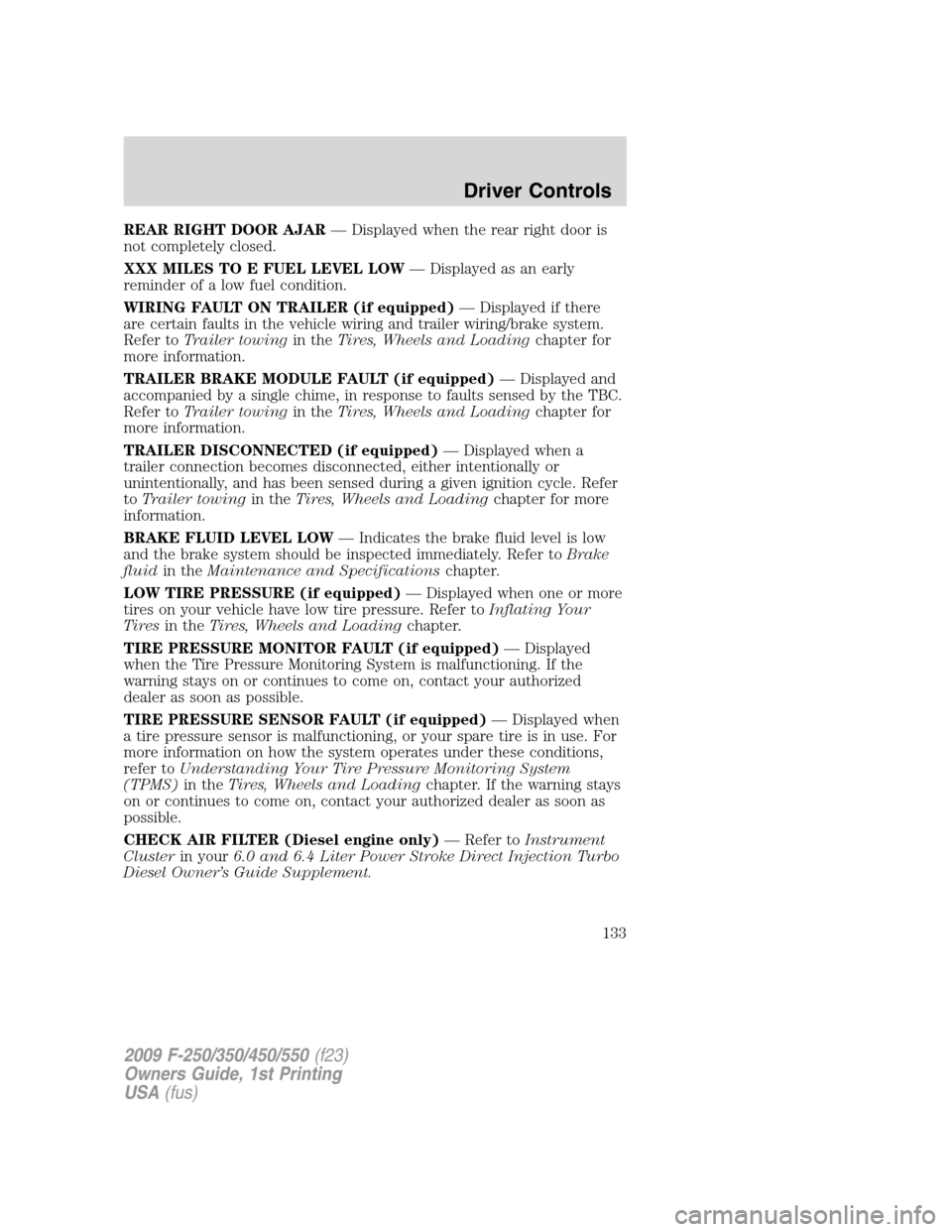

Page 133 of 418

FORD SUPER DUTY 2009 2.G Owners Manual REAR RIGHT DOOR AJAR— Displayed when the rear right door is
not completely closed.
XXX MILES TO E FUEL LEVEL LOW— Displayed as an early
reminder of a low fuel condition.
WIRING FAULT ON TRAILER (i

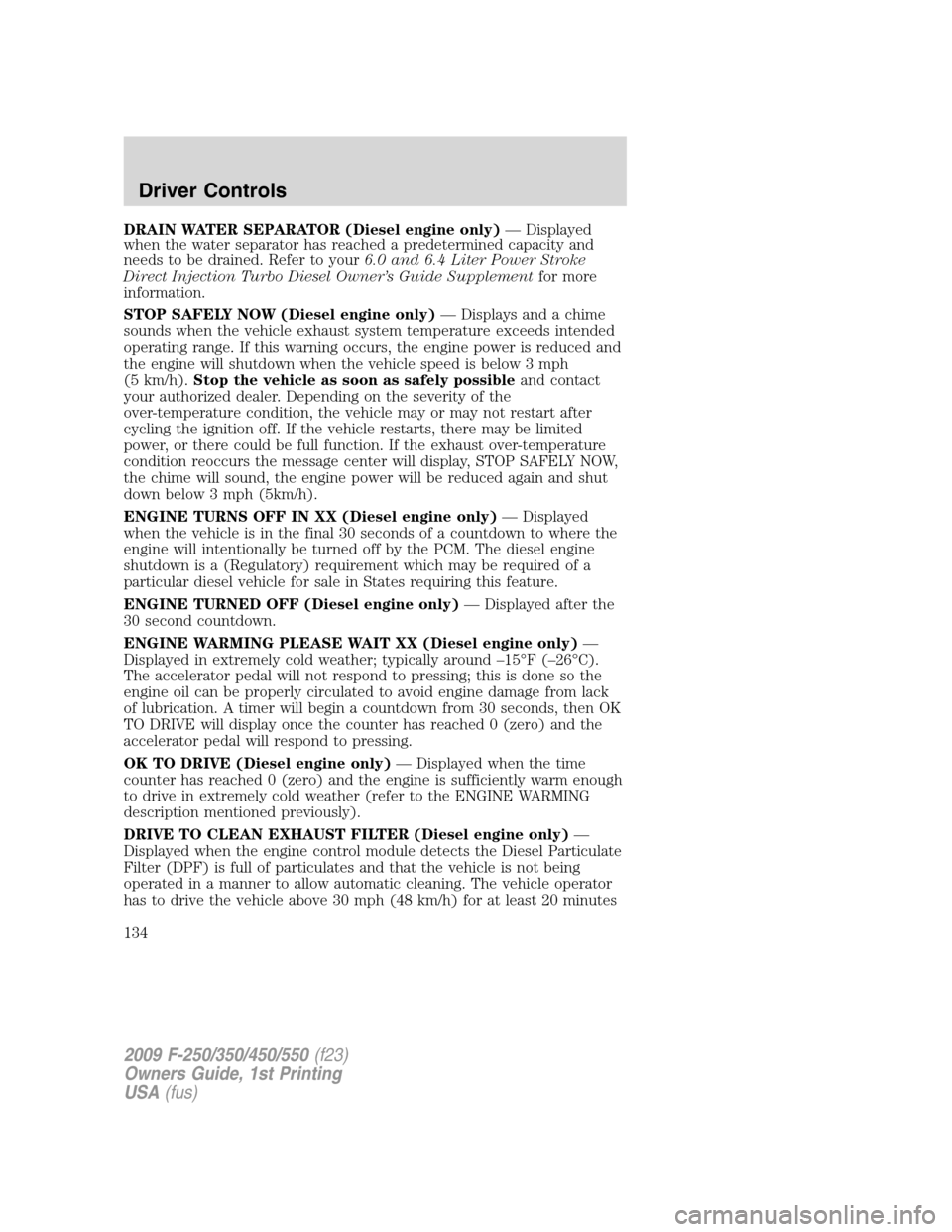

Page 134 of 418

FORD SUPER DUTY 2009 2.G Owners Manual DRAIN WATER SEPARATOR (Diesel engine only)— Displayed
when the water separator has reached a predetermined capacity and
needs to be drained. Refer to your6.0 and 6.4 Liter Power Stroke
Direct Inject

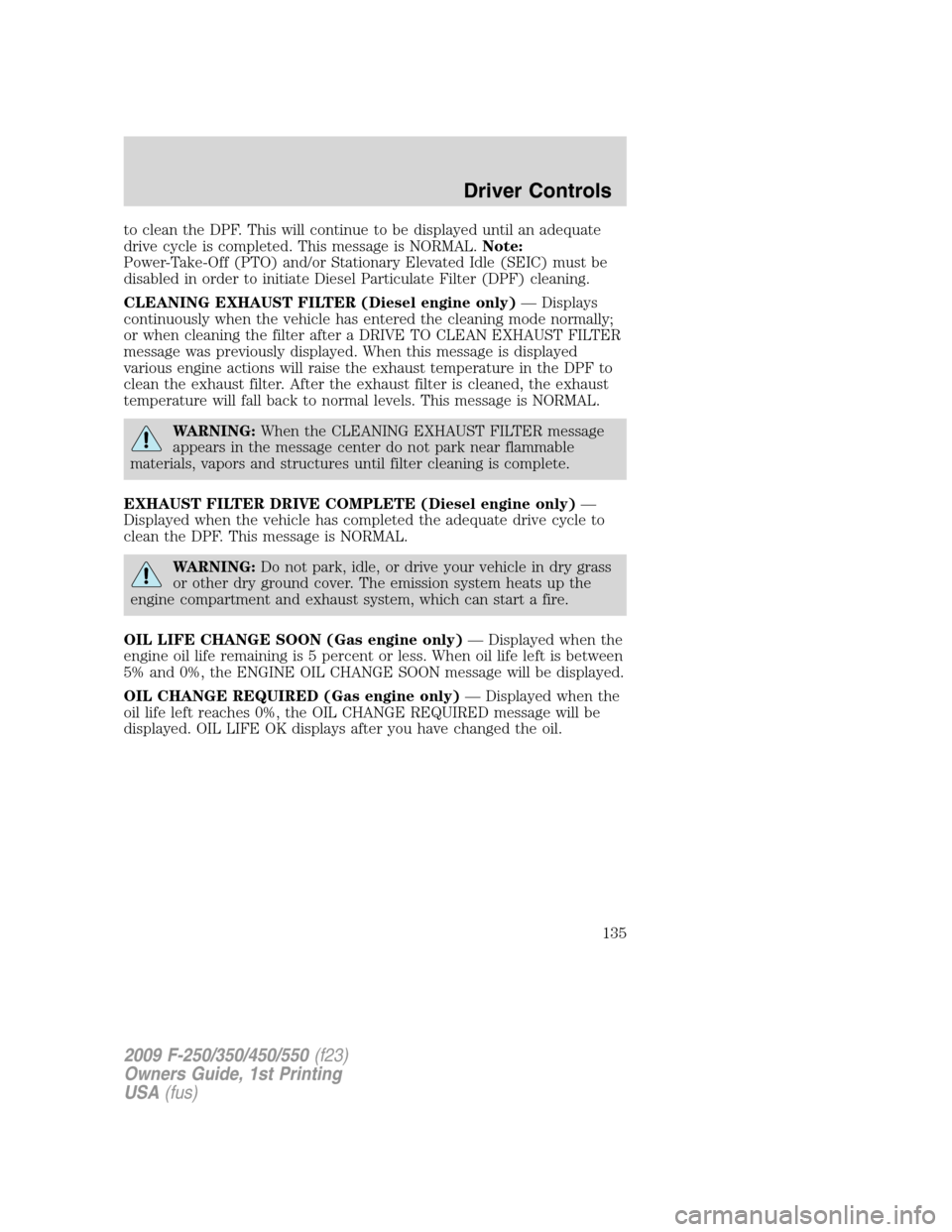

Page 135 of 418

FORD SUPER DUTY 2009 2.G Owners Manual to clean the DPF. This will continue to be displayed until an adequate
drive cycle is completed. This message is NORMAL.Note:
Power-Take-Off (PTO) and/or Stationary Elevated Idle (SEIC) must be
disabl

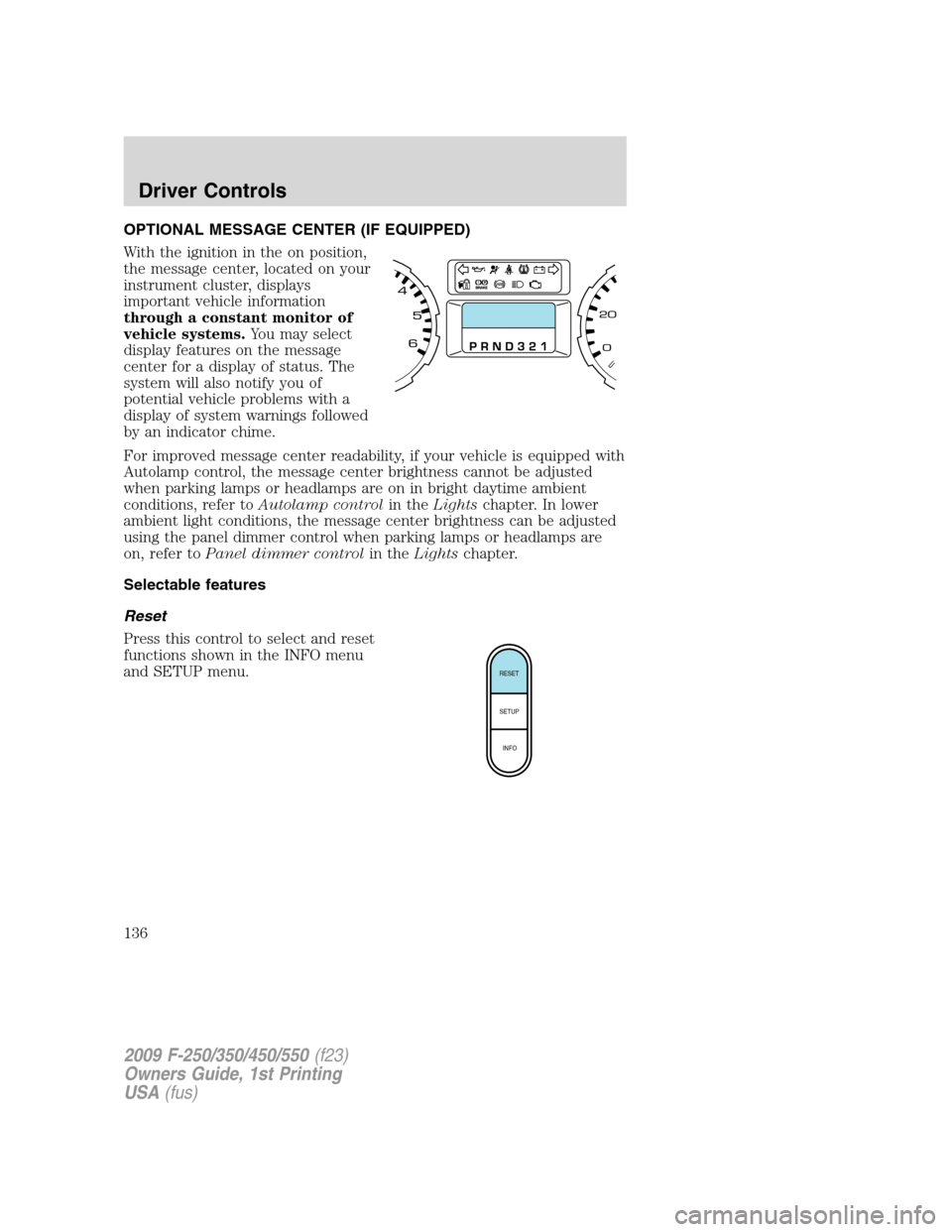

Page 136 of 418

FORD SUPER DUTY 2009 2.G Owners Manual OPTIONAL MESSAGE CENTER (IF EQUIPPED)
With the ignition in the on position,
the message center, located on your
instrument cluster, displays
important vehicle information
through a constant monitor of

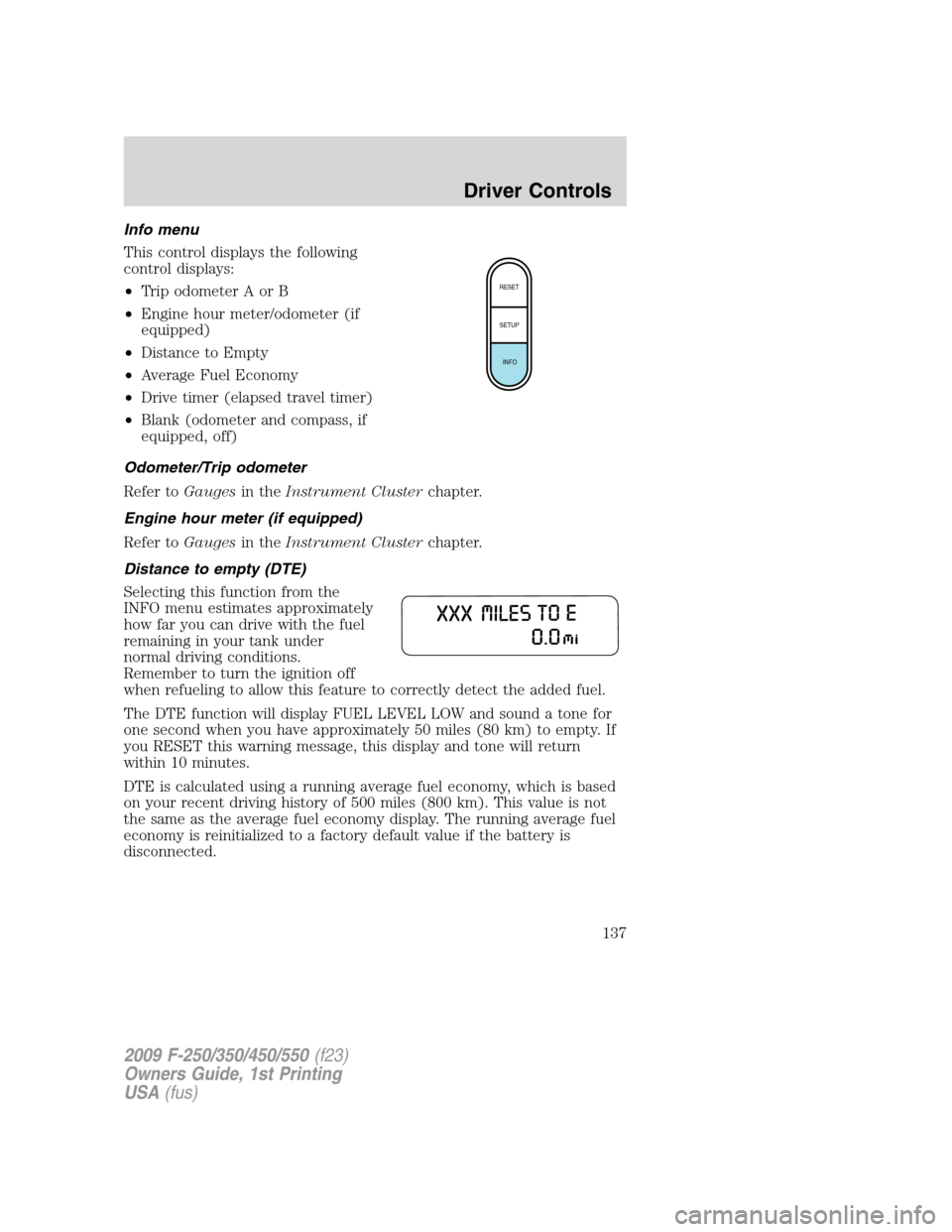

Page 137 of 418

FORD SUPER DUTY 2009 2.G Owners Manual Info menu
This control displays the following
control displays:
•Trip odometer A or B
•Engine hour meter/odometer (if
equipped)
•Distance to Empty
•Average Fuel Economy
•Drive timer (elapsed

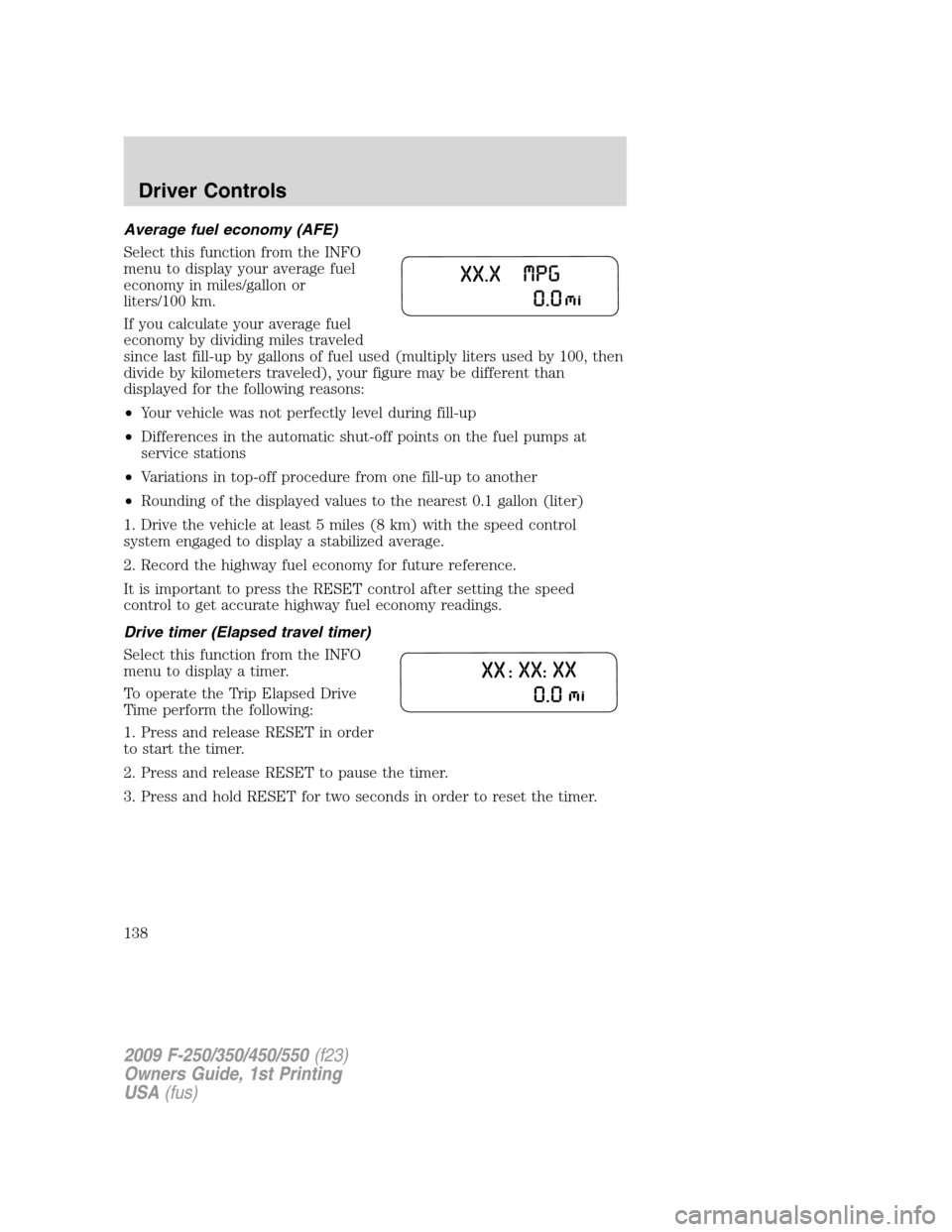

Page 138 of 418

FORD SUPER DUTY 2009 2.G Owners Manual Average fuel economy (AFE)
Select this function from the INFO
menu to display your average fuel
economy in miles/gallon or
liters/100 km.
If you calculate your average fuel
economy by dividing miles t

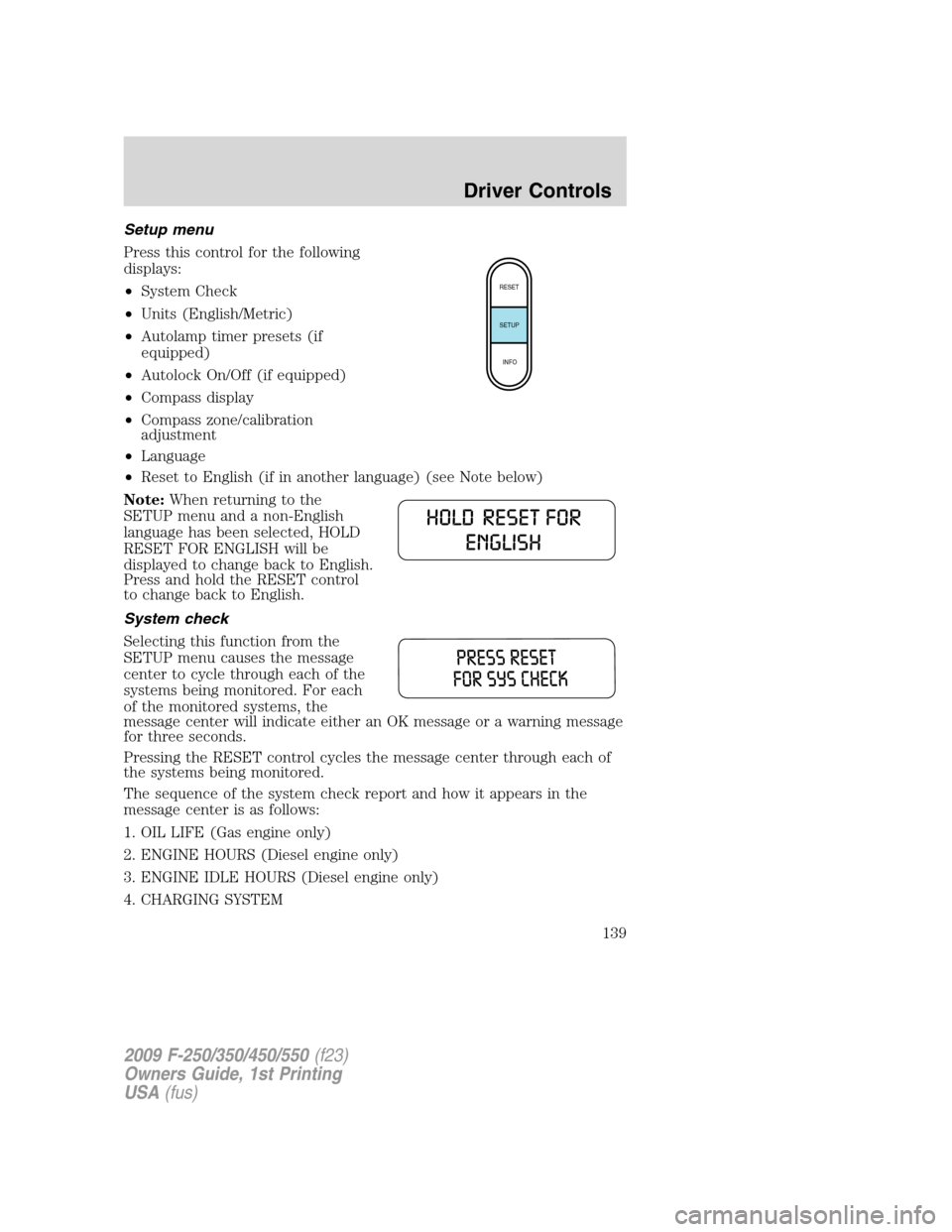

Page 139 of 418

FORD SUPER DUTY 2009 2.G Owners Manual Setup menu
Press this control for the following
displays:
•System Check
•Units (English/Metric)
•Autolamp timer presets (if
equipped)
•Autolock On/Off (if equipped)
•Compass display
•Compa

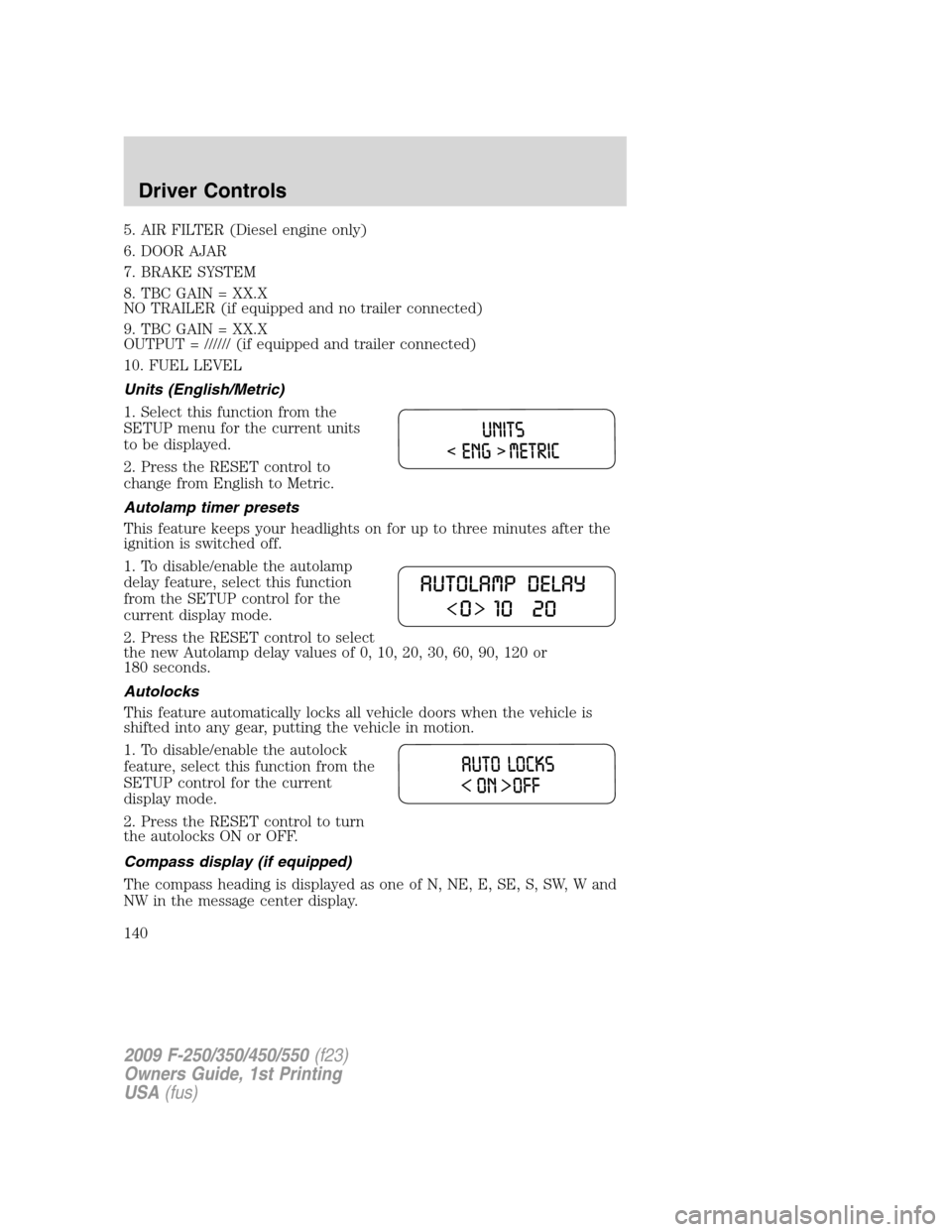

Page 140 of 418

FORD SUPER DUTY 2009 2.G Owners Manual 5. AIR FILTER (Diesel engine only)
6. DOOR AJAR
7. BRAKE SYSTEM
8. TBC GAIN = XX.X
NO TRAILER (if equipped and no trailer connected)
9. TBC GAIN = XX.X
OUTPUT = ////// (if equipped and trailer connect
