SCHEDULED MAINTENANCE
The scheduled maintenance services in thescheduled maintenance
informationof this supplement are required because they are
considered essential to the life and performance of your vehicle.
Use only recommended fuel, lubricants, fluids and service parts
conforming to Ford specifications. Motorcraftparts are designed and
built for best performance in your vehicle.
FUEL REQUIREMENTS - CHOOSING THE RIGHT FUEL: VEHICLES
OPERATED WHERE ULTRA LOW SULFUR DIESEL FUEL IS
REQUIRED (UNITED STATES/CANADA/PUERTO RICO/U.S. VIRGIN
ISLANDS AND OTHER LOCALES)
Use only Ultra Low Sulfur (15 ppm Sulfur Maximum) number 1-D
or 2-D diesel fuel (also known as ULSD) in your 6.7L diesel
engine.The engine and exhaust system were designed to only use this
fuel. Look for theULTRA-LOW SULFUR HIGHWAY DIESEL FUEL
(15 ppm Sulfur Maximum)label on fuel pumps when purchasing your
fuel.
Using low sulfur diesel fuel (16-500 ppm) or high sulfur diesel
fuel (greater than 500 ppm) in a diesel engine designed to use
only Ultra Low Sulfur Diesel fuel will cause certain emission
components to malfunction which may also cause the service
engine soon
light to illuminate indicating an emissions-
related concern.
Diesel fuel is adjusted seasonally for cold temperature. For best results
at temperatures below 20°F (-7°C), it is recommended to use a diesel
fuel which has been seasonally adjusted for the ambient conditions. See
Cold weather operationin theDrivingchapter of this supplement.
FUEL REQUIREMENTS - CHOOSING THE RIGHT FUEL: VEHICLES
OPERATED WHERE ULTRA LOW SULFUR DIESEL FUEL IS NOT
REQUIRED
For the engine to operate reliably on low sulfur or high sulfur diesel fuel,
the engine must be a high sulfur configured engine or a ULSD
fuel-configured engine that has been retrofitted for high sulfur diesel fuel
use.
Use only a diesel engine that has been configured for use with
high sulfur diesel fuel in markets with diesel fuel that has sulfur
content greater than 15 ppm. Using low sulfur diesel fuel (16–500
ppm) or high sulfur diesel fuel (greater than 500 ppm) in a diesel
Maintenance and Specifications
21
2011 Econoline(eco)
Supplement, 1st Printing
USA(fus)
Page 22 of 90
engine designed to use only Ultra Low Sulfur Diesel fuel may
result in damage to engine emission control devices and the
aftertreatment system, potentially rendering the vehicle
inoperable. Engine damage from using the improper type of fuel
is not covered under your warranty.
Vehicles with engines configured for use with high sulfur diesel fuel will
only be made available for sale in countries where ULSD fuel is generally
not available or mandated by the government. Vehicles originally sold in
a ULSD fuel market that are subsequently exported to non-ULSD fuel
markets will need to be retrofitted (at the customer’s expense) in order
to be reliably operated on non-ULSD fuel.
Diesel fuel is adjusted seasonally for cold temperature. For best results
at temperatures below 20°F (-7°C), it is recommended to use a diesel
fuel which has been seasonally adjusted for the ambient temperature.
SeeCold weather operationin theDrivingchapter of this supplement.
BIODIESEL
This vehicle may be operated on diesel fuels containing up to 20%
biodiesel, also known as B20.
To help achieve acceptable engine performance and durability when
using biodiesel in your vehicle:
•Confirm the biodiesel content of the fuel to be B20 (20% biodiesel) or
less
•Only use biodiesel fuel of good quality that complies with industry
standards
•Follow the recommended service maintenance intervals section in the
Schedule Maintenancechapter.
•Do not store biodiesel fuel in the fuel tank for more than 1 month
•Consider changing brands or reducing biodiesel content if you have
cold temperature fuel gelling issues
•Do not use raw oils, fats or waste cooking greases
Use of biodiesel in concentrations greater than 20% may cause damage
to your vehicle, including engine and/or exhaust after-treatment
hardware (exhaust catalyst and particulate filter) failures. Concentrations
greater than 20% can also cause fuel filter restrictions that may result in
a lack of power and / or damage to fuel system components, including
fuel pump and fuel injector failures.
Maintenance and Specifications
22
2011 Econoline(eco)
Supplement, 1st Printing
USA(fus)
Page 23 of 90
5W-40 or 15W-40 oil is recommended for fuels with greater than 5%
biodiesel (B5). Refer to theSpecial operating conditionssection under
theSchedule Maintenancechapter for more information about oil
change intervals and other maintenance when operating on biodiesel.
Look for a label on the fuel pump to confirm the amount of biodiesel
contained in a diesel fuel. Biodiesel content is often indicated with the
letter “B” followed by the percent of biodiesel in the fuel. For example,
B20 indicates a fuel containing 20% biodiesel. Ask the service station
attendant to confirm the biodiesel content of a diesel fuel if you do not
see a label on the fuel pump.
Biodiesel fuels degrade more easily than diesel fuels not containing
biodiesel and should not be stored in the fuel tank for more than
1 month. If your vehicle will be parked or stored for more than 1 month,
then your vehicle fuel tank should be emptied of biodiesel fuel, filled
with a pure petroleum-based diesel fuel, and run for a minimum of
30 minutes.
Note:Degraded or oxidized biodiesel can damage fuel system seals and
plastics and corrode steel parts.
During cold weather, if you have problems operating on biodiesel, you
may need to use a diesel fuel with lower biodiesel content, try another
brand, or discontinue the use of biodiesel.
Biodiesel fuel is a product that has been converted from renewable fuel
sources, including vegetable oil, animal fat and cooking oil. Raw or
refined vegetable oil, animal fat, cooking oil or recycled greases should
NOTbe used.

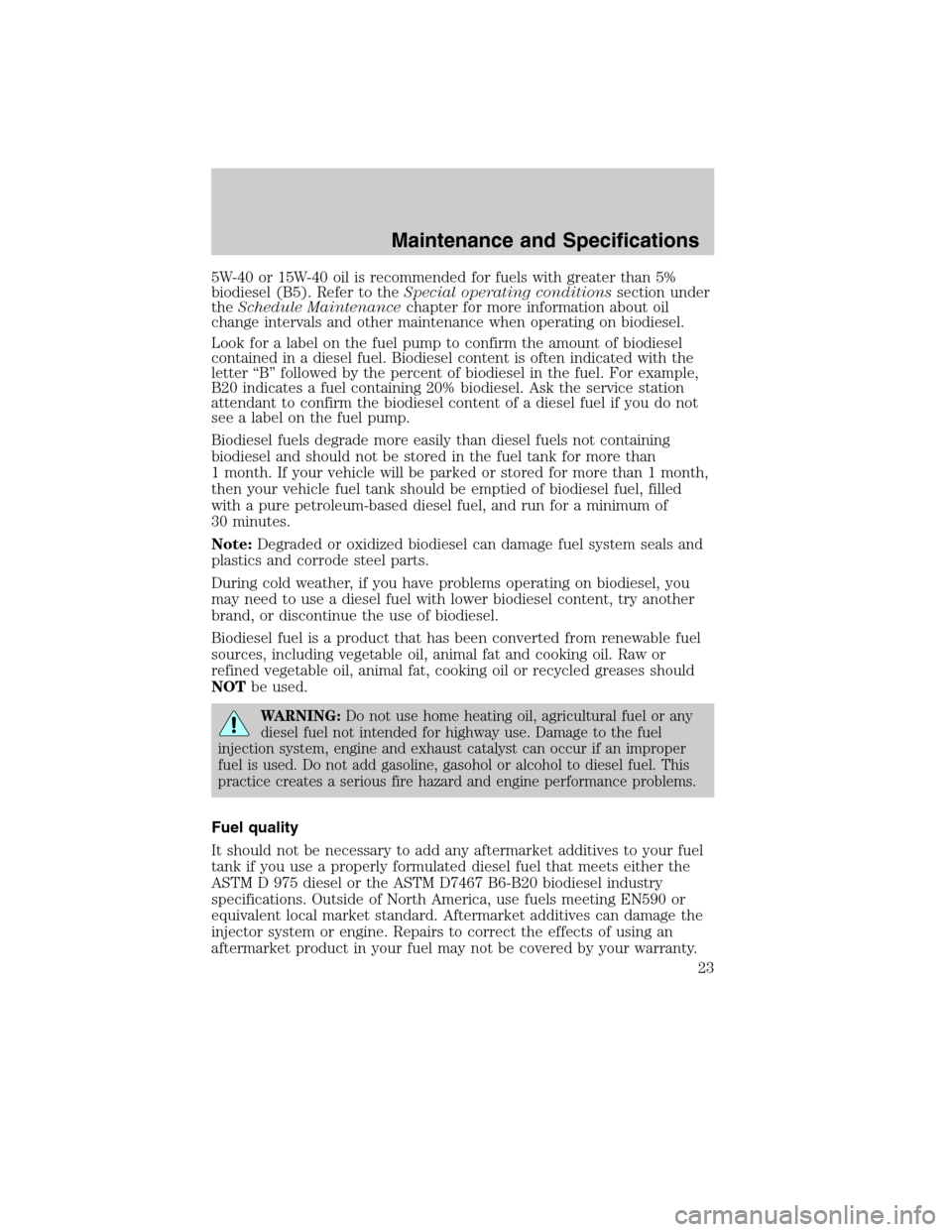

WARNING:Do not use home heating oil, agricultural fuel or any
diesel fuel not intended for highway use. Damage to the fuel
injection system, engine and exhaust catalyst can occur if an improper
fuel is used. Do not add gasoline, gasohol or alcohol to diesel fuel. This
practice creates a serious fire hazard and engine performance problems.
Fuel quality
It should not be necessary to add any aftermarket additives to your fuel
tank if you use a properly formulated diesel fuel that meets either the
ASTM D 975 diesel or the ASTM D7467 B6-B20 biodiesel industry
specifications. Outside of North America, use fuels meeting EN590 or
equivalent local market standard. Aftermarket additives can damage the
injector system or engine. Repairs to correct the effects of using an
aftermarket product in your fuel may not be covered by your warranty.
Maintenance and Specifications
23
2011 Econoline(eco)
Supplement, 1st Printing
USA(fus)
Page 24 of 90
Many of the world’s automakers approved the World-wide Fuel Charter
that recommends diesel fuel specifications to provide improved
performance and emission control system protection for your vehicle.
Diesel fuel that meets the World-wide Fuel Charter should be used when
available. Ask your fuel supplier about fuel that meets the World-wide
Fuel Charter.
Do not blend used engine oil with diesel fuel under any
circumstances.Blending used oil with the fuel will significantly increase
your vehicle’s exhaust emissions and reduce engine life due to increased
internal wear.
Diesel fuel conditioner
Additives that will improve fuel cetane numbers may be used to
verify/enhance fuel quality. Use Motorcraftor an equivalent cetane
booster & performance improver as listed in theMaintenance product
specifications and capacitiessection in this chapter. The customer
warranty may be void from using additives that do not meet or exceed
Ford specifications.
Do not use alcohol based additives to correct fuel gelling. This may
result in damage to the fuel injectors/system. Use Motorcraftor an
equivalent anti-gel & performance improver as listed in theMaintenance
product specifications and capacitiessection in this chapter. The
customer warranty may be void from using additives that do not meet or
exceed Ford specifications.
Note:These ultra-low sulfur formulations are designed to meet the
emissions standards for the 6.7L engine and is backward compatible as
well (i.e., can be used in Ford 7.3L, 6.9L, 6.4L and 6.0L diesel engines in
Ford vehicles).
Fueling tips
Truck stops have pumps and nozzles designed for larger, heavy-duty
trucks. When refueling at truck stops: if the nozzle shuts off repeatedly
when refueling, wait 5–10 seconds; then use a slower rate of flow (don’t
depress the nozzle trigger as far).
If air is allowed to enter the fuel system (during fuel filter change or if
you run out of fuel) the engine will purge the trapped air as it runs. To
purge the air sooner: prior to engine start, prime system by turning the
key to on for 30 seconds then to off. Repeat this several times. The
engine may run rough and produce white smoke while air is in the
system. This is normal and should correct itself in a short time.
An engine that suddenly becomes noisy or operates poorly after a fuel fill
could be using substandard fuel (i.e., high water content, low cetane
Maintenance and Specifications
24
2011 Econoline(eco)
Supplement, 1st Printing
USA(fus)
Page 25 of 90
rating or gasoline in the fuel). Diesel fuel should be purchased from a
reputable station which sells a large amount of diesel fuel.
Care should be taken whenever diesel fuel is stored. Use only clean,
approved containers which will prevent the entry of dirt or water.
Diesel fuel must not be stored in a galvanized container. The fuel will
dissolve the zinc in a galvanized container. The zinc will then remain in
the solution until it is run through the engine where it will be deposited
in the fuel injectors causing expensive-to-repair damage.
Diesel fuel dispensing nozzle fill rate
This truck is equipped with a fuel fill pipe which is able to accept fuel up
to 20 gallons per minute from a 1
1 8fuel dispensing nozzle. Pumping fuel
at greater flow rates may result in premature nozzle shut-off or spitback.
Fuel filler cap
Your fuel tank filler cap has an indexed design with a 1/4 turn on/off
feature.
When fueling your vehicle:
1. Turn the engine off.
2. Carefully turn the filler cap counterclockwise until it spins off.
3. Pull to remove the cap from the fuel filler pipe.
4. To install the cap, align the tabs on the cap with the notches on the
filler pipe.
5. Turn the filler cap clockwise 1/4 of a turn until it clicks at least once.
If you must replace the fuel filler cap, replace it with a fuel filler
cap that is designed for your vehicle. The vehicle warranty may
be void for any damage to the fuel tank or fuel system if the
correct genuine Ford or Motorcraftfuel filler cap is not used.
WARNING:The fuel system may be under pressure. If the fuel
filler cap is venting vapor or if you hear a hissing sound, wait
until it stops before completely removing the fuel filler cap. Otherwise,
fuel may spray out and injure you or others.
WARNING:If you do not use the proper fuel filler cap,
excessive pressure or vacuum in the fuel tank may damage the
fuel system or cause the fuel cap to disengage in a collision, which may
result in possible personal injury.
Maintenance and Specifications
25
2011 Econoline(eco)
Supplement, 1st Printing
USA(fus)
Page 26 of 90
Selective Catalytic Reduction (SCR) System
Your vehicle is equipped with a selective catalytic reduction (SCR)
system to help reduce emission levels of oxides of nitrogen from the
exhaust of the diesel engine. The system automatically injects diesel
exhaust fluid (DEF) into the exhaust system to enable proper SCR
function.
Importance of maintaining the DEF level
In order for the SCR system to operate properly, the DEF level must be
maintained. Generally, the DEF tank should be filled during the oil
change service interval. See thescheduled maintenance informationin
this supplement for more information. However, certain conditions or
driving styles, such as trailer towing or fast rates of acceleration, will
require the refilling of the DEF tank more often.
The engine control unit will monitor the amount of fluid available in the
DEF tank. Running a system check in the message center will indicate
whether the DEF level is ok or if it is less than 1/2 full. A message will
automatically be displayed in the message center when the DEF level is
low and needs to be refilled. When you see this message you should refill
your tank. SeeMessage centerin theInstrument Clusterchapter of
yourOwner’s Guidefor message center functions. For instructions on
refilling your DEF tank, seeFilling the DEF tanklater in this section.
DEF warning messages and vehicle operations

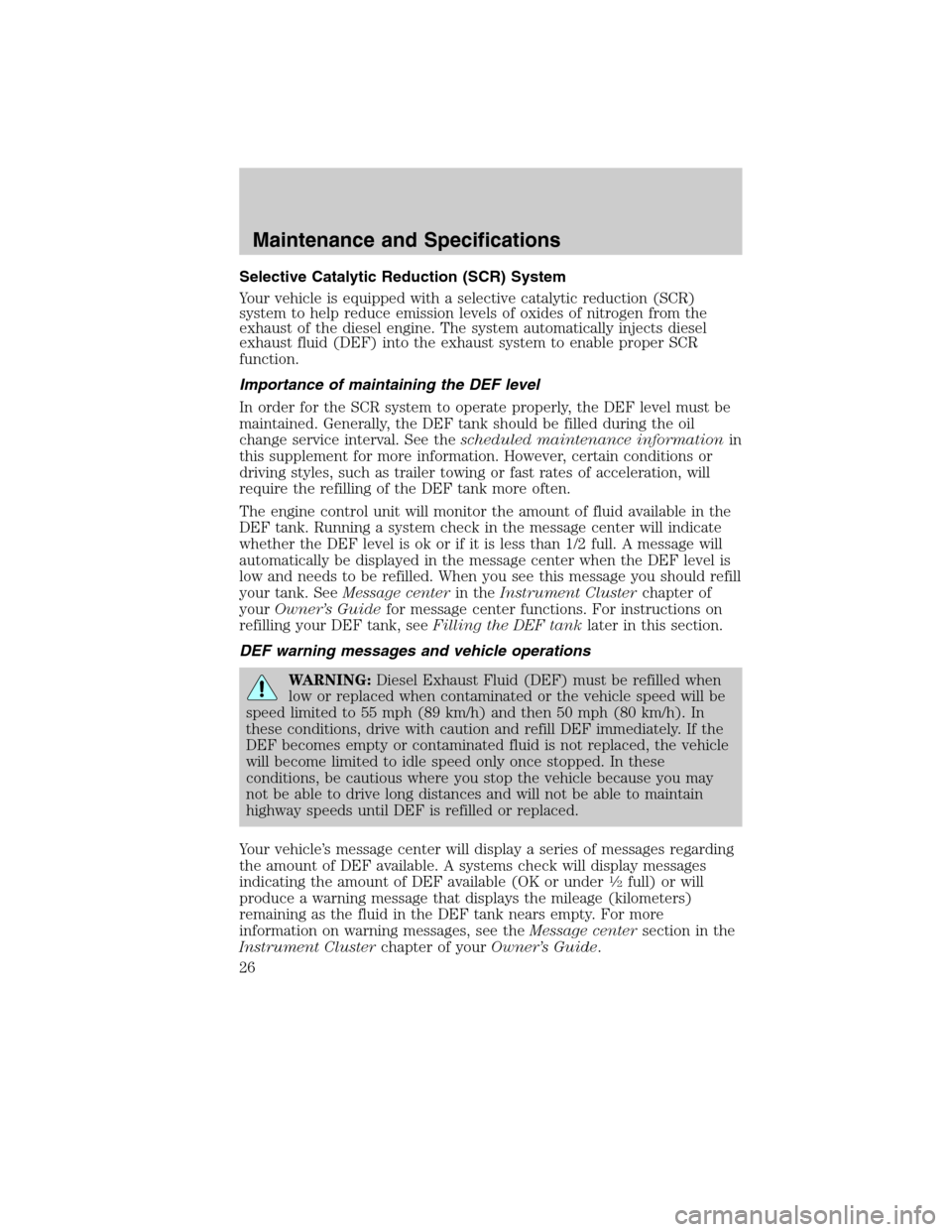

WARNING:Diesel Exhaust Fluid (DEF) must be refilled when
low or replaced when contaminated or the vehicle speed will be
speed limited to 55 mph (89 km/h) and then 50 mph (80 km/h). In
these conditions, drive with caution and refill DEF immediately. If the
DEF becomes empty or contaminated fluid is not replaced, the vehicle
will become limited to idle speed only once stopped. In these
conditions, be cautious where you stop the vehicle because you may
not be able to drive long distances and will not be able to maintain
highway speeds until DEF is refilled or replaced.
Your vehicle’s message center will display a series of messages regarding
the amount of DEF available. A systems check will display messages
indicating the amount of DEF available (OK or under
1 2full) or will
produce a warning message that displays the mileage (kilometers)
remaining as the fluid in the DEF tank nears empty. For more
information on warning messages, see theMessage centersection in the
Instrument Clusterchapter of yourOwner’s Guide.
Maintenance and Specifications
26
2011 Econoline(eco)
Supplement, 1st Printing
USA(fus)
Page 27 of 90
As the DEF level nears empty, the
DEF warning symbol will be
displayed and chimes will sound
with the messages starting at
300 miles (483 km) remaining
before DEF is depleted. The
warning symbol and messages will
continue until the DEF tank is
refilled.
Continued driving without refilling will result in the following actions as
required by the U.S. Environmental Protection Agency (EPA):
•Within a certain number of miles (kilometers) to empty, speed will be
limited upon vehicle restart. Prior to this occurring a message will
appear in the message center.
•Further vehicle operation without refilling your DEF tank will cause
the engine to enter an idle-only condition. This will only occur upon
vehicle refueling and will be indicated by a message in the message
center indicating required actions to resume normal operation. It is
required to add a minimum of 0.5 gallons (1.9L) of DEF to the tank to
exit the idle-only condition, but the vehicle will still be in the speed
limiting mode until the tank is refilled.
For either vehicle speed limiting or idle-only condition, normal vehicle
operation will resume when the DEF tank is refilled.
Note:When filling the DEF tank from empty, there may be a short delay
before detecting the increased level of DEF. This must occur before full
power is returned.
Maintenance and Specifications
27
2011 Econoline(eco)
Supplement, 1st Printing
USA(fus)
Page 28 of 90
Low DEF Warnings and Actions — Instrument Cluster Messages (Optional message
center messages shown, base message center messages similar)
Distance/DEF Level
or ActionCluster MessageCustomer Requested
ActionsVehicle Actions
Full TankExhaust Fluid
Level OKDrive normally None
Below
1 2TankExhaust Fluid
Under
1 2FullDrive normally None
800 Miles (1287 km)Exhaust Fluid
Range 800 miles
(1287 km)Refill exhaust fluid None
300 Miles (483 km)Exhaust Fluid
Range 300 miles
(483 km)Refill exhaust fluid None
99 Miles (159 km)In 99 Miles
(159 km) Speed
Limited to
55 MPH (89 km/h)
Exhaust Fluid
EmptyRefill exhaust fluid None
*0 Miles (0 km)Speed Limited to
55 MPH (89 km/h)
Max Upon Restart
Exhaust Fluid
EmptyRefill exhaust fluid None
Maintenance and Specifications
28
2011 Econoline(eco)
Supplement, 1st Printing
USA(fus)
Page 29 of 90
Low DEF Warnings and Actions — Instrument Cluster Messages (Optional message
center messages shown, base message center messages similar)
Distance/DEF Level
or ActionCluster MessageCustomer Requested
ActionsVehicle Actions
RestartSpeed Limited To
55 MPH (89 km/h)
Exhaust Fluid
emptyRefill exhaust fluid
On vehicle restart, speed
is limited to 55 MPH.
(89 km/h
*No action occurs until
restart.
*200 Miles (322 km)In 200 Miles
(322 km) Speed
Limited to
50 MPH (80 km/h)
Exhaust Fluid
EmptyRefill exhaust fluid
RestartSpeed Limited To
50 MPH (80 km/h)
Exhaust Fluid
EmptyRefill exhaust fluidOn vehicle restart, speed
is limited to 50 MPH
(80 km/h).
**No action taken until
vehicle is refueled
**100 Miles (161 km)Engine Idled Upon
Refuel Exhaust
Fluid EmptyRefill exhaust fluid
Diesel Tank FillEngine Idled-See
Owner’s Manual
Exhaust Fluid
EmptyRefill exhaust fluidEngine limited to idle
ONLY
Maintenance and Specifications
29
2011 Econoline(eco)
Supplement, 1st Printing
USA(fus)
Page 30 of 90
Filling the DEF tank
Your vehicle is equipped with a DEF tank with a blue-capped filler port
located next to the diesel fuel fill inlet. The tank can be filled using a
nozzle at a DEF filling station (similar to fuel fill) or using a DEF bottle
with a spout. MotorcraftDEF bottles are recommended as they are
designed to be spill proof and will stop the flow of DEF when the tank is
full. Other aftermarket bottles can be used, but they should have a seal
on the spout and an internal vent tube to achieve best fill performance
and prevent overfilling. Overfilling your DEF tank can cause damage to
the tank.
Note:Do not put DEF in the fuel tank. This can cause engine damage
not covered by your vehicle’s warranty.
Note:Immediately wipe away any DEF that has spilled on painted
surfaces with water and a damp cloth to prevent damage to the paint.
You can purchase DEF at your authorized dealer, most highway truck
stops or you can contact roadside assistance for help in finding a retailer
that sells DEF. See theCustomer Assistancechapter in theOwner’s
Guidefor more information. In addition, there is a government website
locator for DEF at the following web address that can be used to find the
nearest location to purchase DEF: http://www.afdc.energy.gov/afdc/
locator/def.

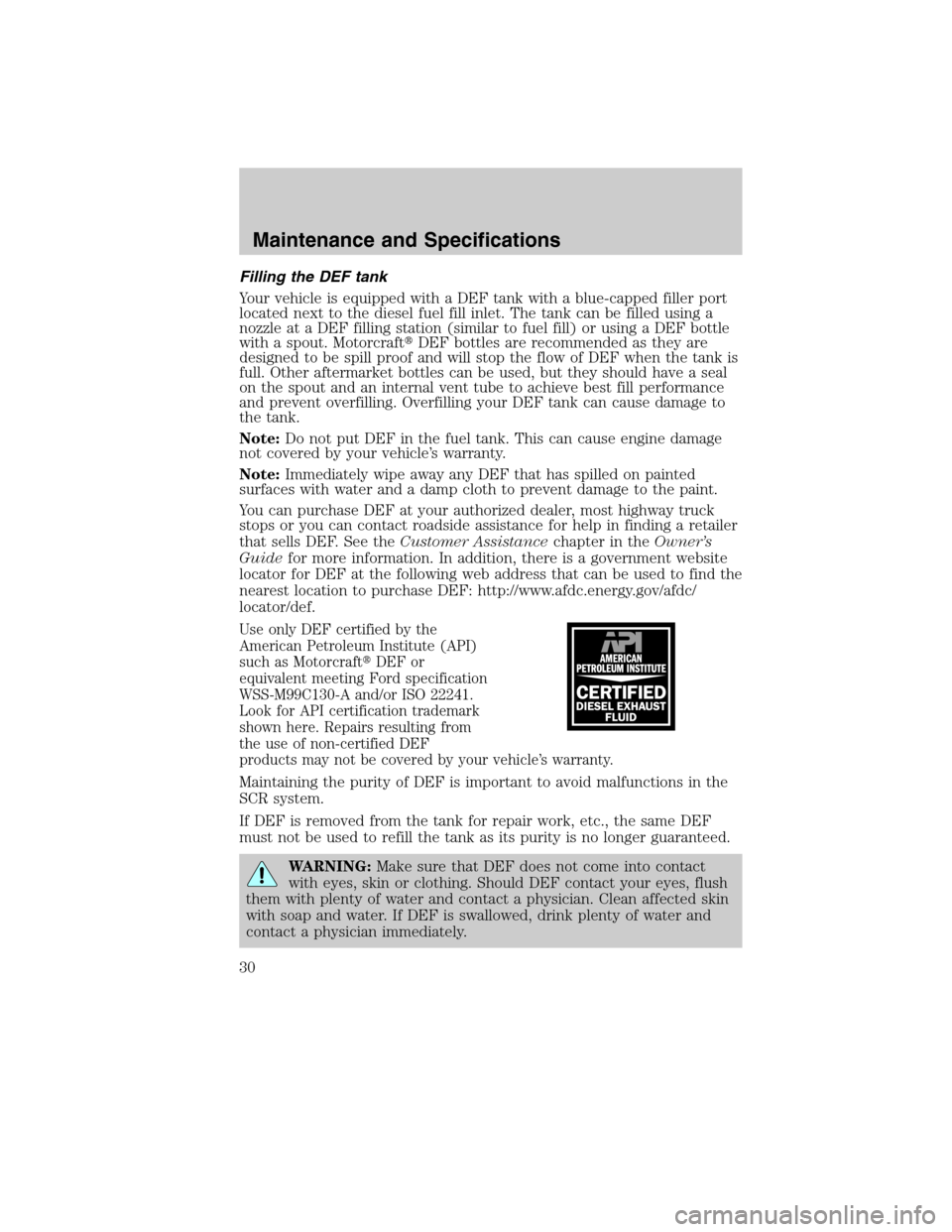

Use only DEF certified by the
American Petroleum Institute (API)
such as MotorcraftDEF or
equivalent meeting Ford specification
WSS-M99C130-A and/or ISO 22241.
Look for API certification trademark
shown here. Repairs resulting from
the use of non-certified DEF
products may not be covered by your vehicle’s warranty.
Maintaining the purity of DEF is important to avoid malfunctions in the
SCR system.
If DEF is removed from the tank for repair work, etc., the same DEF
must not be used to refill the tank as its purity is no longer guaranteed.
WARNING:Make sure that DEF does not come into contact
with eyes, skin or clothing. Should DEF contact your eyes, flush
them with plenty of water and contact a physician. Clean affected skin
with soap and water. If DEF is swallowed, drink plenty of water and
contact a physician immediately.
Maintenance and Specifications
30
2011 Econoline(eco)
Supplement, 1st Printing
USA(fus)
