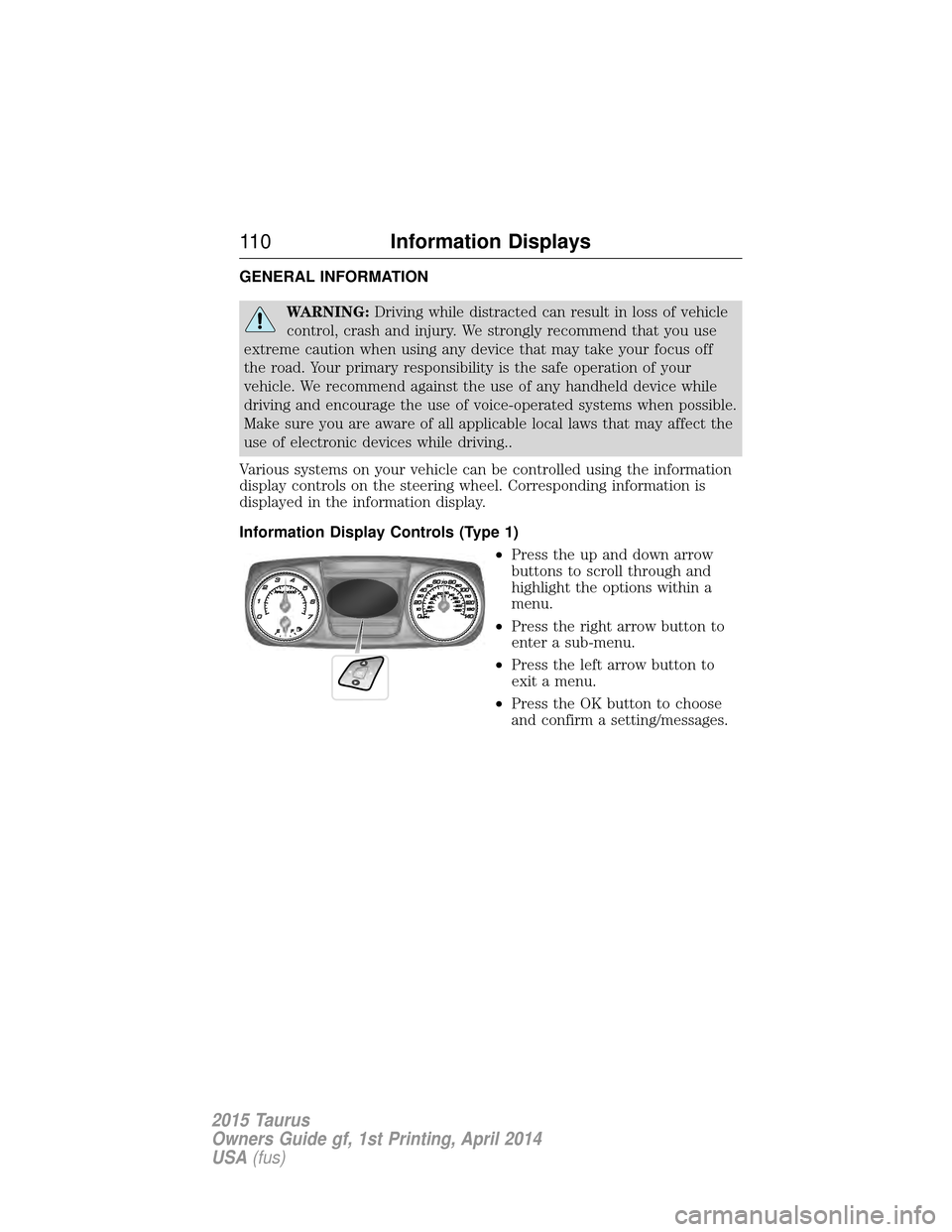

GENERAL INFORMATION
WARNING:Driving while distracted can result in loss of vehicle
control, crash and injury. We strongly recommend that you use
extreme caution when using any device that may take your focus off
the road. Your primary responsibility is the safe operation of your
vehicle. We recommend against the use of any handheld device while
driving and encourage the use of voice-operated systems when possible.
Make sure you are aware of all applicable local laws that may affect the
use of electronic devices while driving..
Various systems on your vehicle can be controlled using the information
display controls on the steering wheel. Corresponding information is
displayed in the information display.
Information Display Controls (Type 1) •Press the up and down arrow
buttons to scroll through and
highlight the options within a
menu.
• Press the right arrow button to
enter a sub-menu.
• Press the left arrow button to
exit a menu.
• Press the OK button to choose
and confirm a setting/messages.
11 0 Information Displays
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

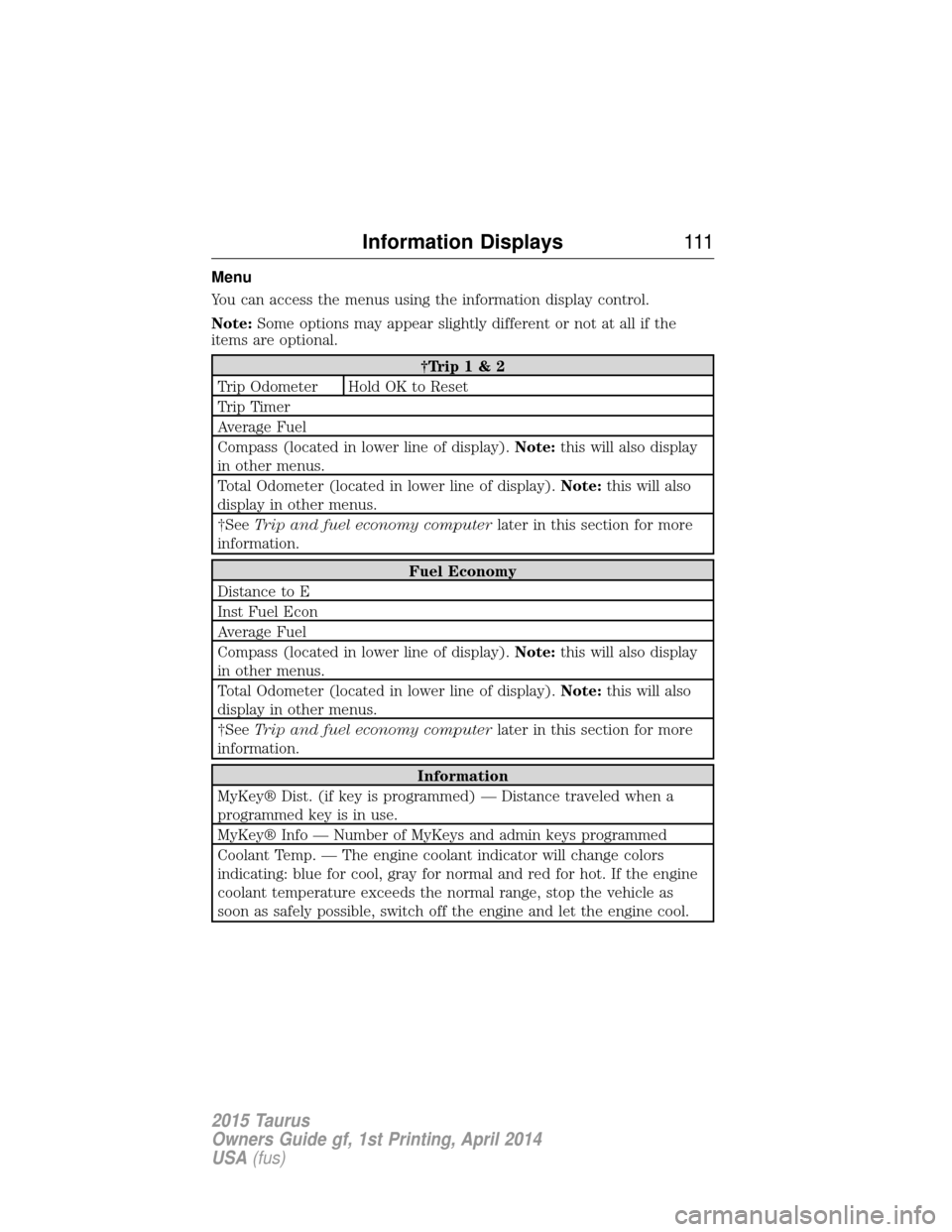

Menu
You can access the menus using the information display control.
Note:Some options may appear slightly different or not at all if the
items are optional.
†Trip 1 & 2
Trip Odometer Hold OK to Reset
Trip Timer
Average Fuel
Compass (located in lower line of display). Note:this will also display
in other menus.
Total Odometer (located in lower line of display). Note:this will also
display in other menus.
†See Trip and fuel economy computer later in this section for more
information.
Fuel Economy
Distance to E
Inst Fuel Econ
Average Fuel
Compass (located in lower line of display). Note:this will also display
in other menus.
Total Odometer (located in lower line of display). Note:this will also
display in other menus.
†See Trip and fuel economy computer later in this section for more
information.
Information
MyKey® Dist. (if key is programmed) — Distance traveled when a
programmed key is in use.
MyKey® Info — Number of MyKeys and admin keys programmed
Coolant Temp. — The engine coolant indicator will change colors
indicating: blue for cool, gray for normal and red for hot. If the engine
coolant temperature exceeds the normal range, stop the vehicle as
soon as safely possible, switch off the engine and let the engine cool.
Information Displays 111
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

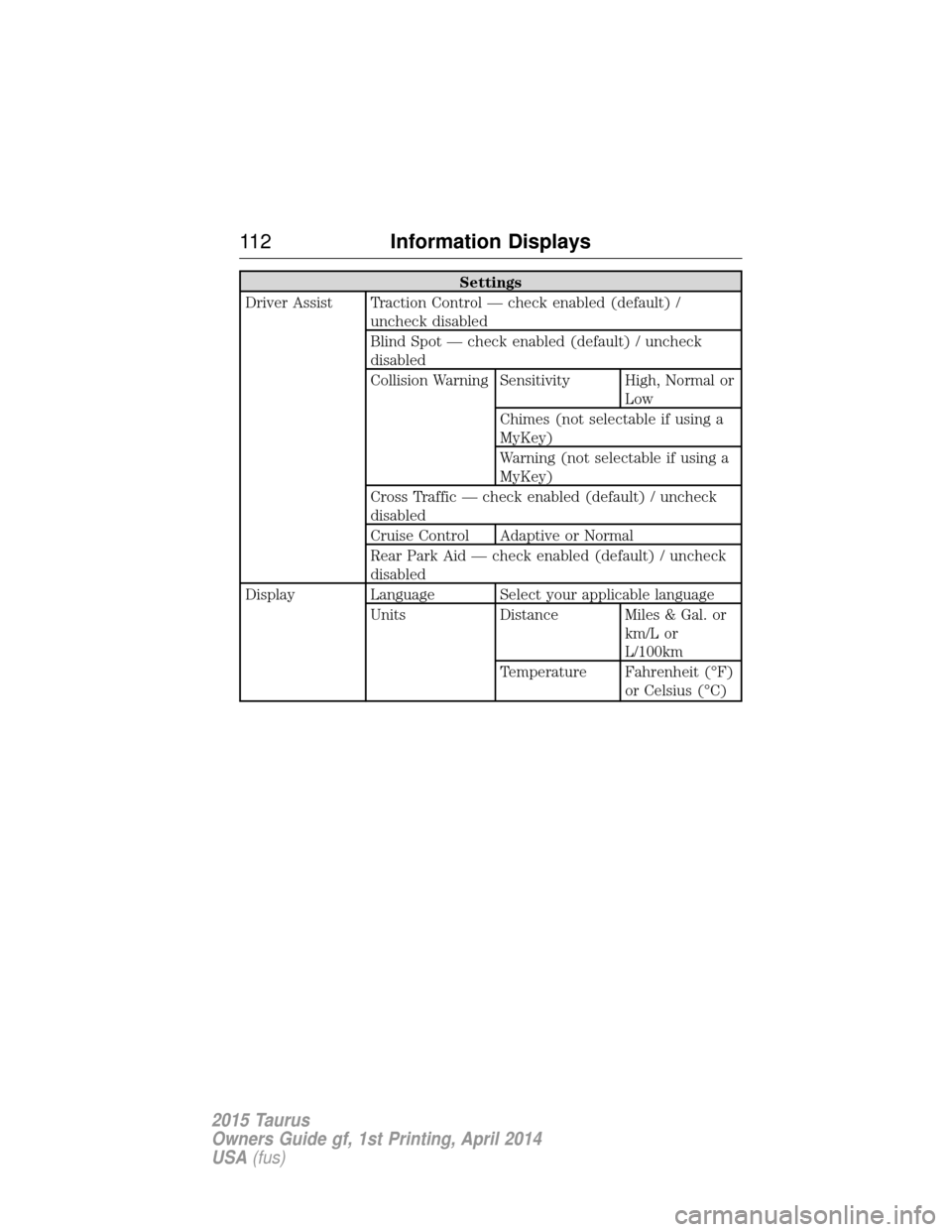

Settings
Driver Assist Traction Control — check enabled (default) / uncheck disabled
Blind Spot — check enabled (default) / uncheck
disabled
Collision Warning Sensitivity High, Normal or Low
Chimes (not selectable if using a
MyKey)
Warning (not selectable if using a
MyKey)
Cross Traffic — check enabled (default) / uncheck
disabled
Cruise Control Adaptive or Normal
Rear Park Aid — check enabled (default) / uncheck
disabled
Display Language Select your applicable language Units Distance Miles & Gal. or km/L or
L/100km
Temperature Fahrenheit (°F) or Celsius (°C)
11 2Information Displays
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

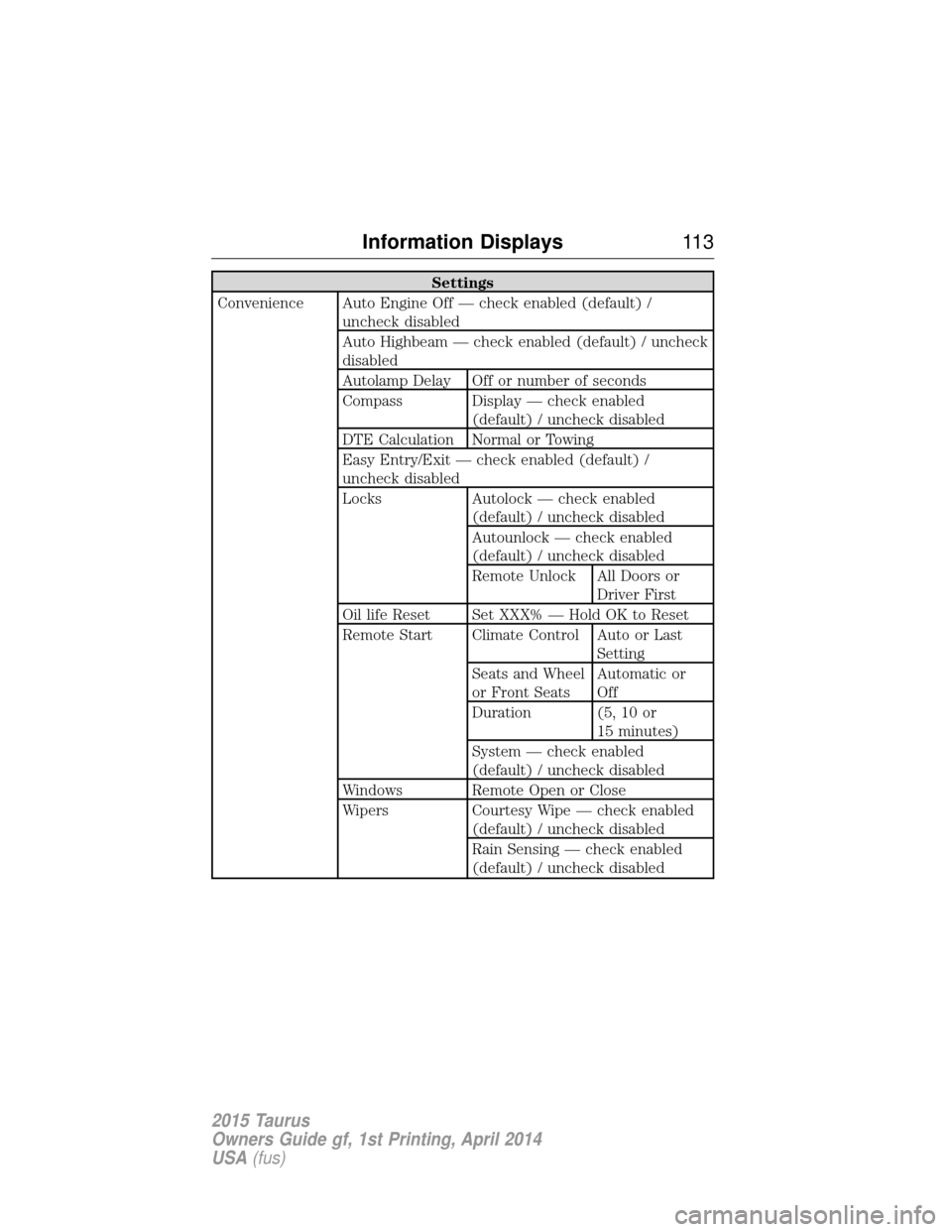

Settings
Convenience Auto Engine Off — check enabled (default) / uncheck disabled
Auto Highbeam — check enabled (default) / uncheck
disabled
Autolamp Delay Off or number of seconds
Compass Display — check enabled (default) / uncheck disabled
DTE Calculation Normal or Towing
Easy Entry/Exit — check enabled (default) /
uncheck disabled
Locks Autolock — check enabled (default) / uncheck disabled
Autounlock — check enabled
(default) / uncheck disabled
Remote Unlock All Doors orDriver First
Oil life Reset Set XXX% — Hold OK to Reset
Remote Start Climate Control Auto or Last Setting
Seats and Wheel
or Front Seats Automatic or
Off
Duration (5, 10 or 15 minutes)
System — check enabled
(default) / uncheck disabled
Windows Remote Open or Close
Wipers Courtesy Wipe — check enabled (default) / uncheck disabled
Rain Sensing — check enabled
(default) / uncheck disabled
Information Displays 11 3
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

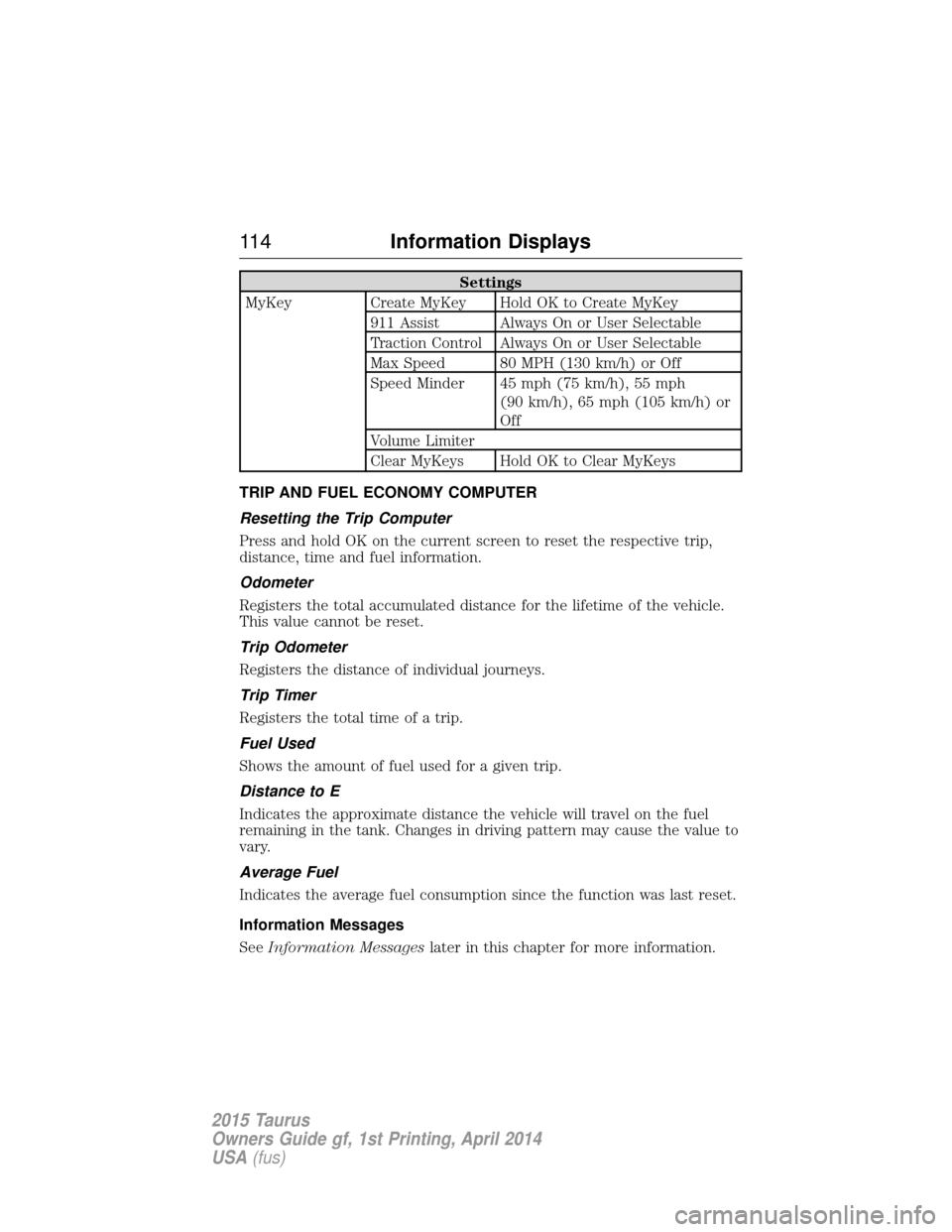

Settings
MyKey Create MyKey Hold OK to Create MyKey 911 Assist Always On or User Selectable
Traction Control Always On or User Selectable
Max Speed 80 MPH (130 km/h) or Off
Speed Minder 45 mph (75 km/h), 55 mph (90 km/h), 65 mph (105 km/h) or
Off
Volume Limiter
Clear MyKeys Hold OK to Clear MyKeys
TRIP AND FUEL ECONOMY COMPUTER
Resetting the Trip Computer
Press and hold OK on the current screen to reset the respective trip,
distance, time and fuel information.
Odometer
Registers the total accumulated distance for the lifetime of the vehicle.
This value cannot be reset.
Trip Odometer
Registers the distance of individual journeys.
Trip Timer
Registers the total time of a trip.
Fuel Used
Shows the amount of fuel used for a given trip.
Distance to E
Indicates the approximate distance the vehicle will travel on the fuel
remaining in the tank. Changes in driving pattern may cause the value to
vary.
Average Fuel
Indicates the average fuel consumption since the function was last reset.
Information Messages
See Information Messages later in this chapter for more information.
11 4Information Displays
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

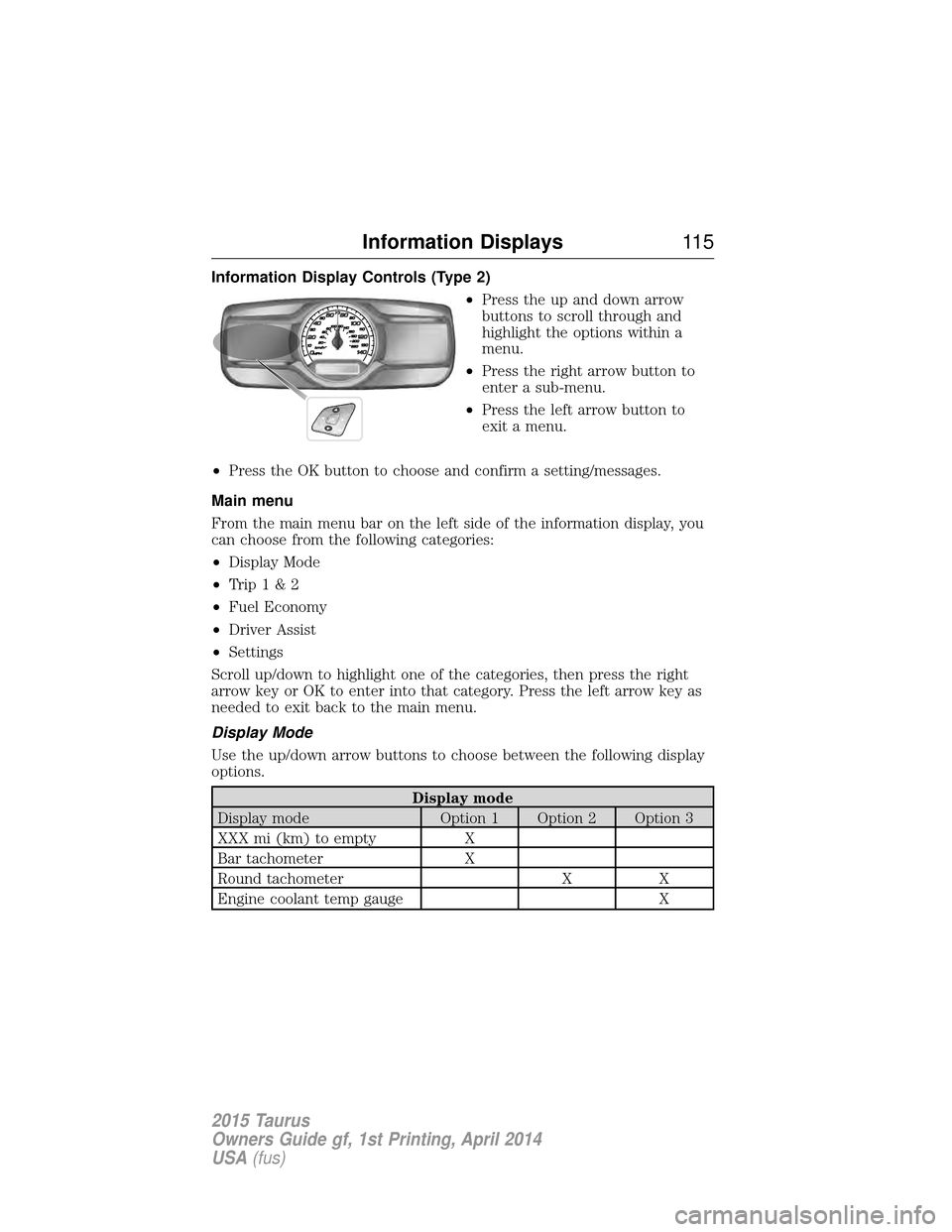

Information Display Controls (Type 2)•Press the up and down arrow
buttons to scroll through and
highlight the options within a
menu.
• Press the right arrow button to
enter a sub-menu.
• Press the left arrow button to
exit a menu.
• Press the OK button to choose and confirm a setting/messages.
Main menu
From the main menu bar on the left side of the information display, you
can choose from the following categories:
• Display Mode
• Trip1&2
• Fuel Economy
• Driver Assist
• Settings
Scroll up/down to highlight one of the categories, then press the right
arrow key or OK to enter into that category. Press the left arrow key as
needed to exit back to the main menu.
Display Mode
Use the up/down arrow buttons to choose between the following display
options.
Display mode
Display mode Option 1 Option 2 Option 3
XXX mi (km) to empty X
Bar tachometer X
Round tachometer X X
Engine coolant temp gauge X
Information Displays 11 5
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

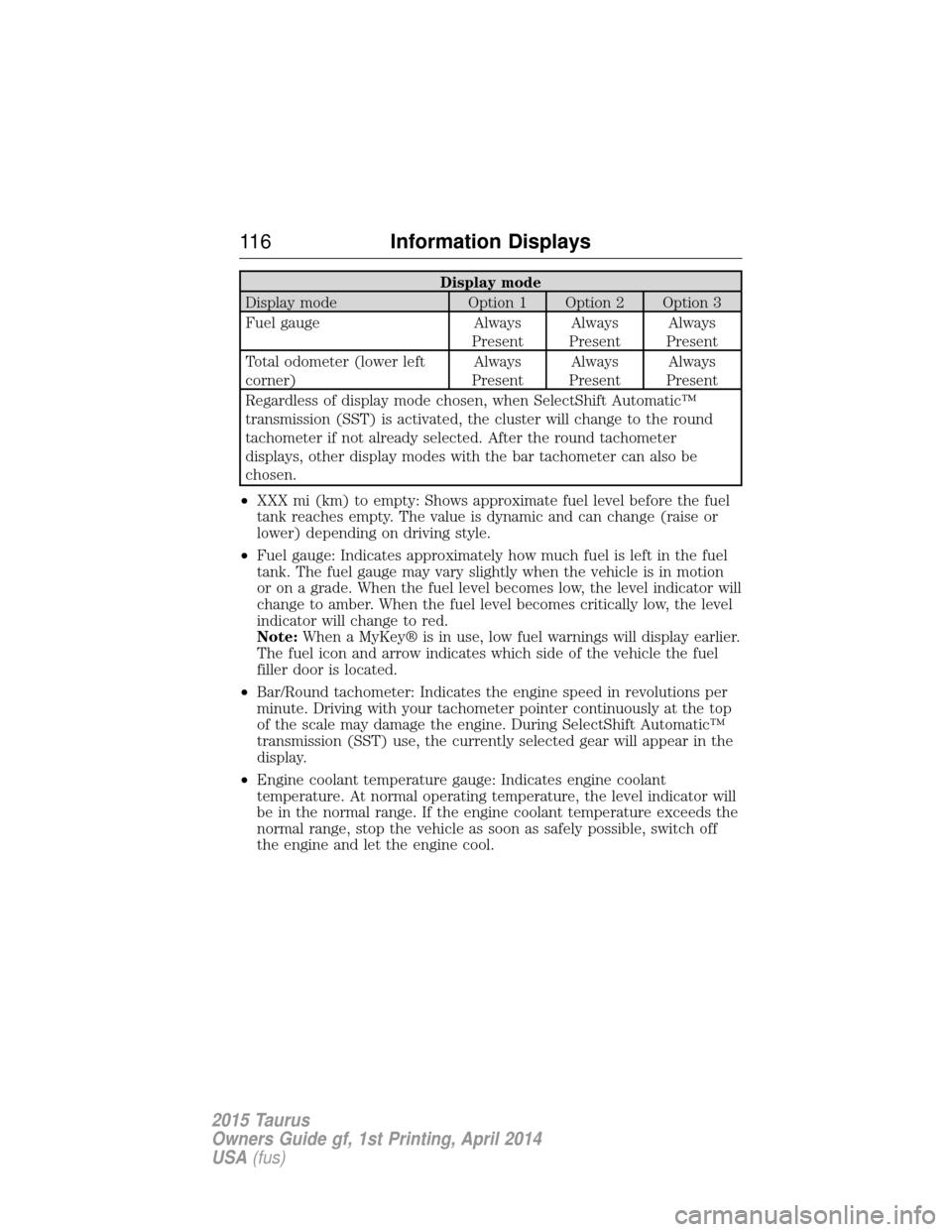

Display mode
Display mode Option 1 Option 2 Option 3
Fuel gauge Always PresentAlways
Present Always
Present
Total odometer (lower left
corner) Always
Present Always
Present Always
Present
Regardless of display mode chosen, when SelectShift Automatic™
transmission (SST) is activated, the cluster will change to the round
tachometer if not already selected. After the round tachometer
displays, other display modes with the bar tachometer can also be
chosen.
• XXX mi (km) to empty: Shows approximate fuel level before the fuel
tank reaches empty. The value is dynamic and can change (raise or
lower) depending on driving style.
• Fuel gauge: Indicates approximately how much fuel is left in the fuel
tank. The fuel gauge may vary slightly when the vehicle is in motion
or on a grade. When the fuel level becomes low, the level indicator will
change to amber. When the fuel level becomes critically low, the level
indicator will change to red.
Note: When a MyKey® is in use, low fuel warnings will display earlier.
The fuel icon and arrow indicates which side of the vehicle the fuel
filler door is located.
• Bar/Round tachometer: Indicates the engine speed in revolutions per
minute. Driving with your tachometer pointer continuously at the top
of the scale may damage the engine. During SelectShift Automatic™
transmission (SST) use, the currently selected gear will appear in the
display.
• Engine coolant temperature gauge: Indicates engine coolant
temperature. At normal operating temperature, the level indicator will
be in the normal range. If the engine coolant temperature exceeds the
normal range, stop the vehicle as soon as safely possible, switch off
the engine and let the engine cool.
11 6 Information Displays
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

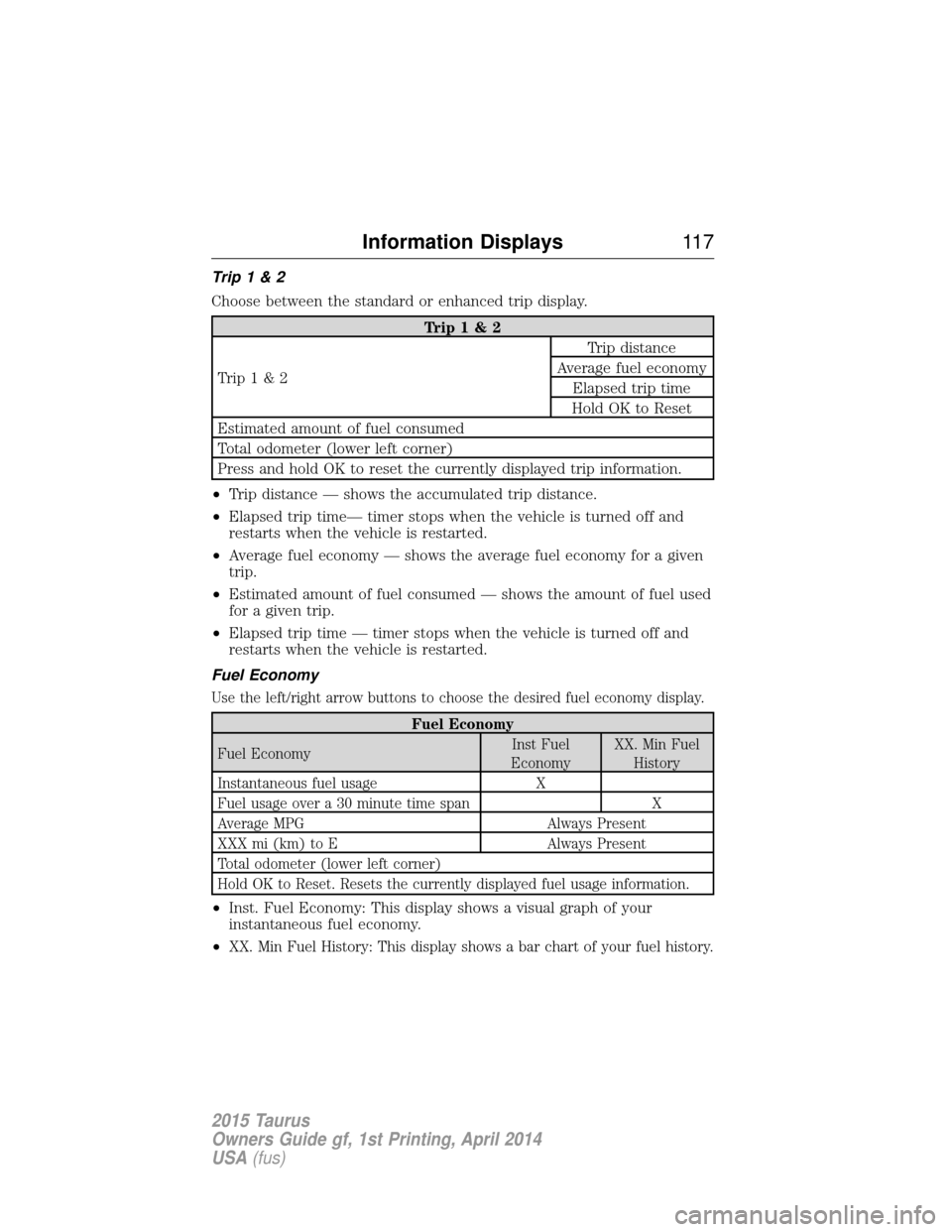

Trip1&2
Choose between the standard or enhanced trip display.
Trip1&2
Trip1&2 Trip distance
Average fuel economy Elapsed trip time
Hold OK to Reset
Estimated amount of fuel consumed
Total odometer (lower left corner)
Press and hold OK to reset the currently displayed trip information.
• Trip distance — shows the accumulated trip distance.
• Elapsed trip time— timer stops when the vehicle is turned off and
restarts when the vehicle is restarted.
• Average fuel economy — shows the average fuel economy for a given
trip.
• Estimated amount of fuel consumed — shows the amount of fuel used
for a given trip.
• Elapsed trip time — timer stops when the vehicle is turned off and
restarts when the vehicle is restarted.
Fuel Economy
Use the left/right arrow buttons to choose the desired fuel economy display.
Fuel Economy
Fuel Economy Inst Fuel
Economy XX. Min Fuel
History
Instantaneous fuel usage X
Fuel usage over a 30 minute time span X
Average MPG Always Present
XXX mi (km) to E Always Present
Total odometer (lower left corner)
Hold OK to Reset. Resets the currently displayed fuel usage information.
• Inst. Fuel Economy: This display shows a visual graph of your
instantaneous fuel economy.
•
XX. Min Fuel History: This display shows a bar chart of your fuel history.
Information Displays 11 7
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

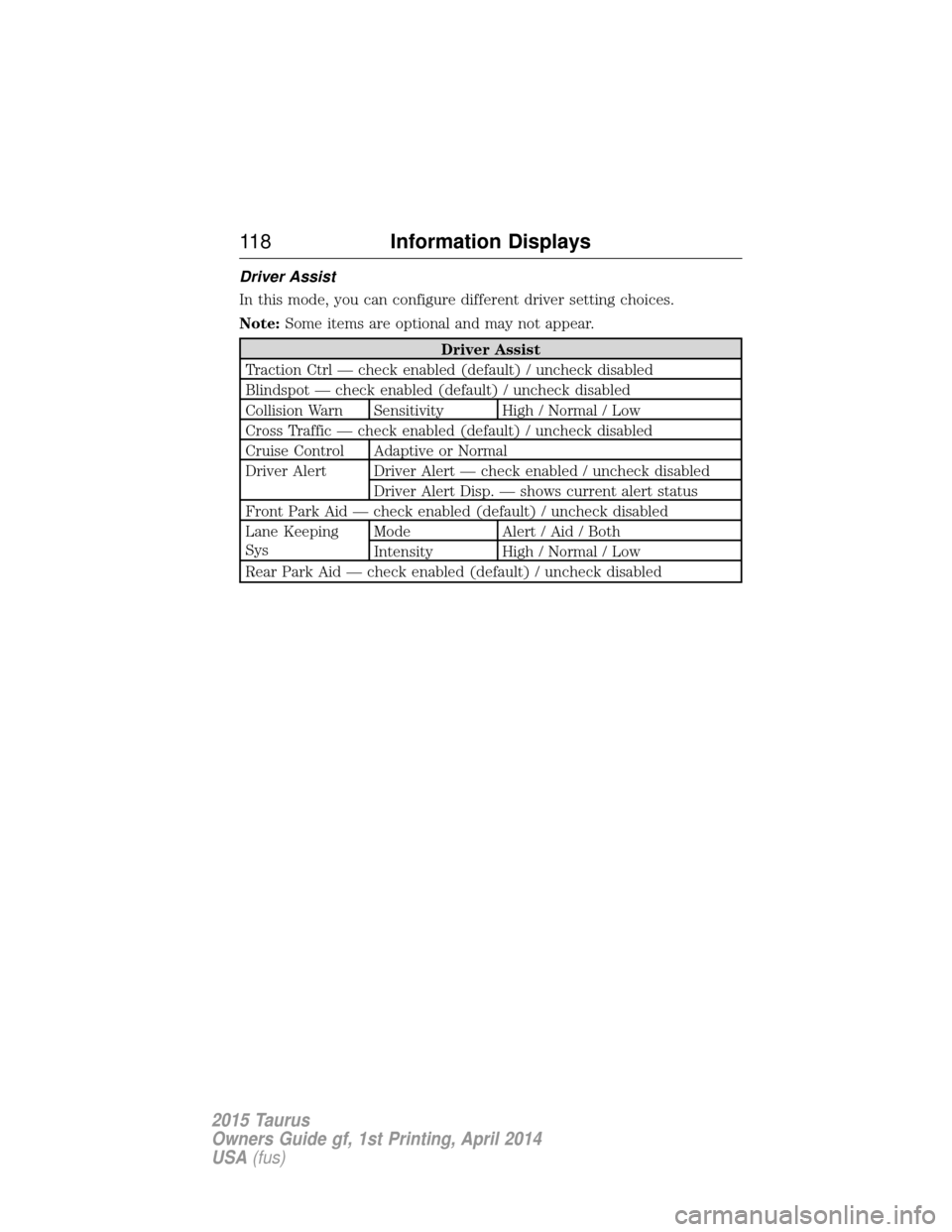

Driver Assist
In this mode, you can configure different driver setting choices.
Note:Some items are optional and may not appear.
Driver Assist
Traction Ctrl — check enabled (default) / uncheck disabled
Blindspot — check enabled (default) / uncheck disabled
Collision Warn Sensitivity High / Normal / Low
Cross Traffic — check enabled (default) / uncheck disabled
Cruise Control Adaptive or Normal
Driver Alert Driver Alert — check enabled / uncheck disabled Driver Alert Disp. — shows current alert status
Front Park Aid — check enabled (default) / uncheck disabled
Lane Keeping
Sys Mode Alert / Aid / Both
Intensity High / Normal / Low
Rear Park Aid — check enabled (default) / uncheck disabled
11 8 Information Displays
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Settings
Vehicle Auto Engine Off — check enabled / uncheck disabled DTE Calculation Normal / Towing
Easy Entry/Exit — check enabled / uncheck disabled
Lighting Auto highbeam — check enabled(default) / uncheck disabled
Autolamp Delay Off or number ofseconds
Locks Autolock — check enabled (default) / uncheck disabled
Autounlock — check enabled
(default) / uncheck disabled
Remote
UnlockingAll doors /
Driver’s door
Oil Life Reset Set to XXX % — Hold OK to Reset
Remote Start Climate Control
(using this
feature allows
you to select
different climate
control modes
when the vehicle
is started using
the remote start
feature)
Auto / Last
Setting
Seats & Wheel or
Front Seats Auto / Off
Duration 5/10
/15 minutes
System — check enabled (default)
/ uncheck disabled
Windows Remote Open or Close
Wipers Courtesy Wipe — check enabled
(default) / uncheck disabled
Rain Sensing — check enabled
(default) / uncheck disabled
Information Displays
11 9
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)
