FORD TAURUS 2015 6.G Owners Manual

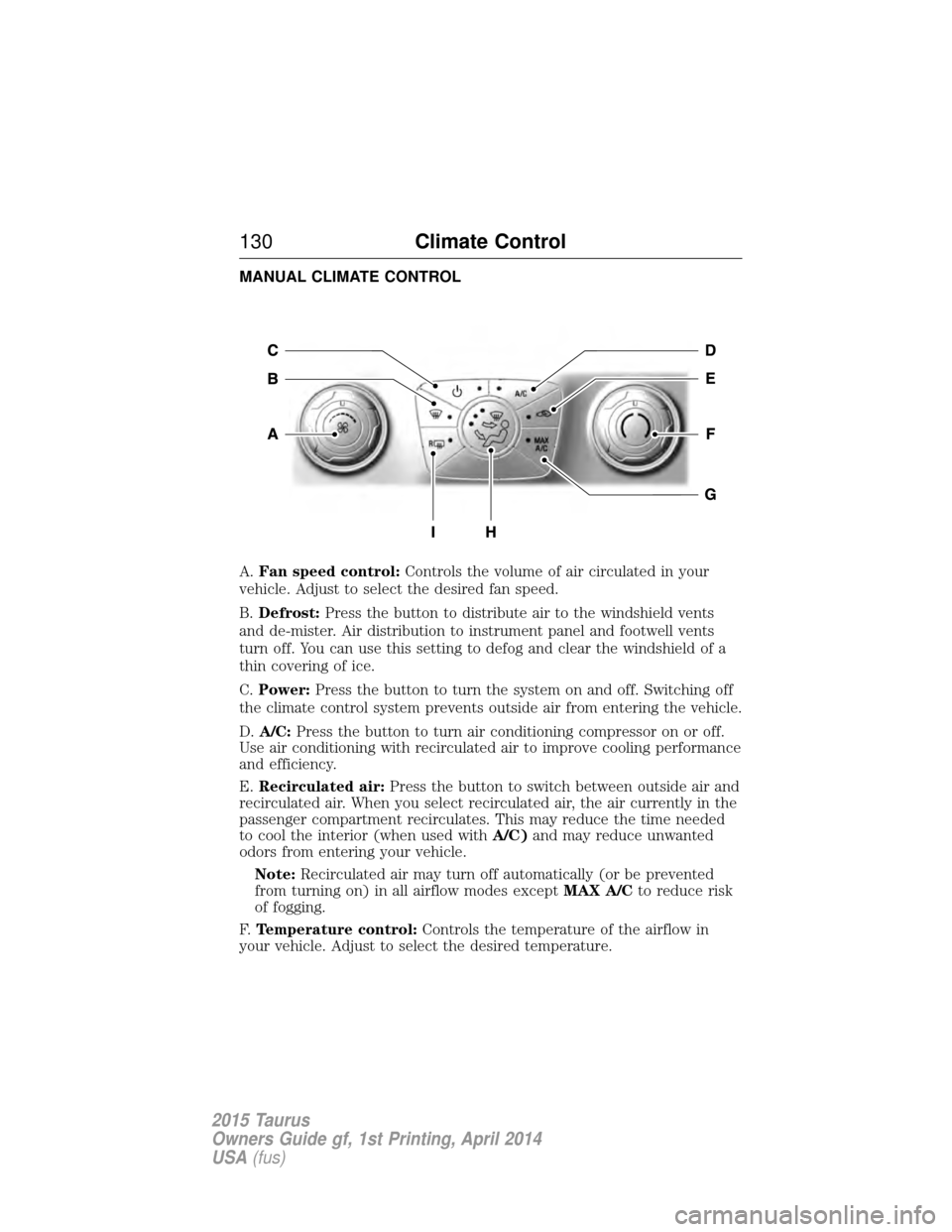

MANUAL CLIMATE CONTROL
A.Fan speed control: Controls the volume of air circulated in your
vehicle. Adjust to select the desired fan speed.
B. Defrost: Press the button to distribute air to the windshield vents
and de-mister. Air distribution to instrument panel and footwell vents
turn off. You can use this setting to defog and clear the windshield of a
thin covering of ice.
C. Power: Press the button to turn the system on and off. Switching off
the climate control system prevents outside air from entering the vehicle.
D. A/C: Press the button to turn air conditioning compressor on or off.
Use air conditioning with recirculated air to improve cooling performance
and efficiency.
E. Recirculated air: Press the button to switch between outside air and
recirculated air. When you select recirculated air, the air currently in the
passenger compartment recirculates. This may reduce the time needed
to cool the interior (when used with A/C)and may reduce unwanted
odors from entering your vehicle.
Note: Recirculated air may turn off automatically (or be prevented
from turning on) in all airflow modes except MAX A/Cto reduce risk
of fogging.
F. Temperature control: Controls the temperature of the airflow in
your vehicle. Adjust to select the desired temperature.
130 Climate Control
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

G.MAX A/C: Press the button to maximize cooling. Recirculated air
flows through the instrument panel vents, air conditioning automatically
turns on, and the fan automatically adjusts to the highest speed.
H. Air distribution control: Press these buttons to turn airflow from
the windshield, instrument panel, or footwell vents on or off. The system
can distribute air through any combination of these vents.
I. Heated rear window: Turns the heated rear window on and off. See
Heated windows and mirrors later in this chapter for more
information.

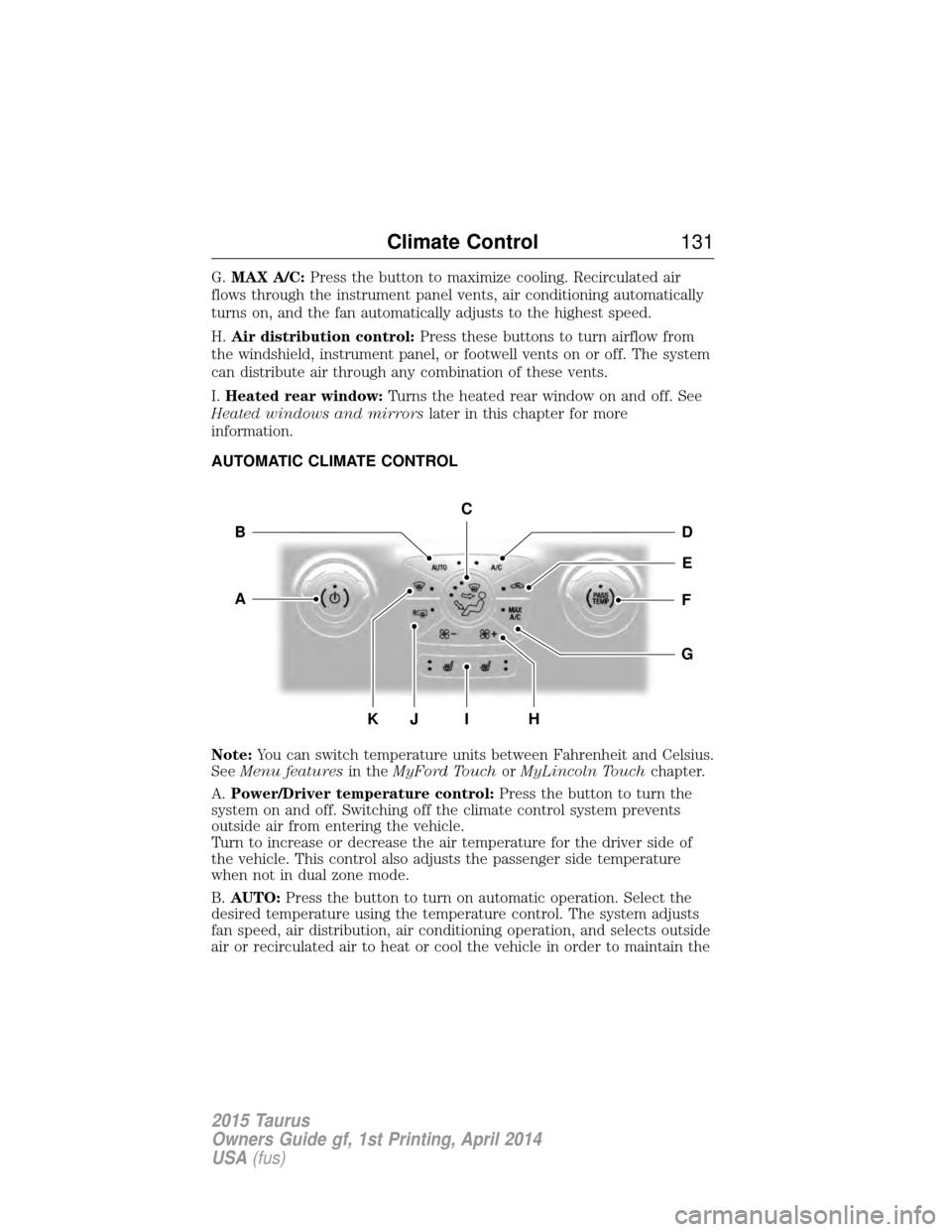

AUTOMATIC CLIMATE CONTROL
Note: You can switch temperature units between Fahrenheit and Celsius.
See Menu features in theMyFord Touch orMyLincoln Touch chapter.
A. Power/Driver temperature control: Press the button to turn the
system on and off. Switching off the climate control system prevents
outside air from entering the vehicle.
Turn to increase or decrease the air temperature for the driver side of
the vehicle. This control also adjusts the passenger side temperature
when not in dual zone mode.
B. AUTO: Press the button to turn on automatic operation. Select the
desired temperature using the temperature control. The system adjusts
fan speed, air distribution, air conditioning operation, and selects outside
air or recirculated air to heat or cool the vehicle in order to maintain the
G
HK
E
DB
FA
I
C
J
Climate Control 131
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

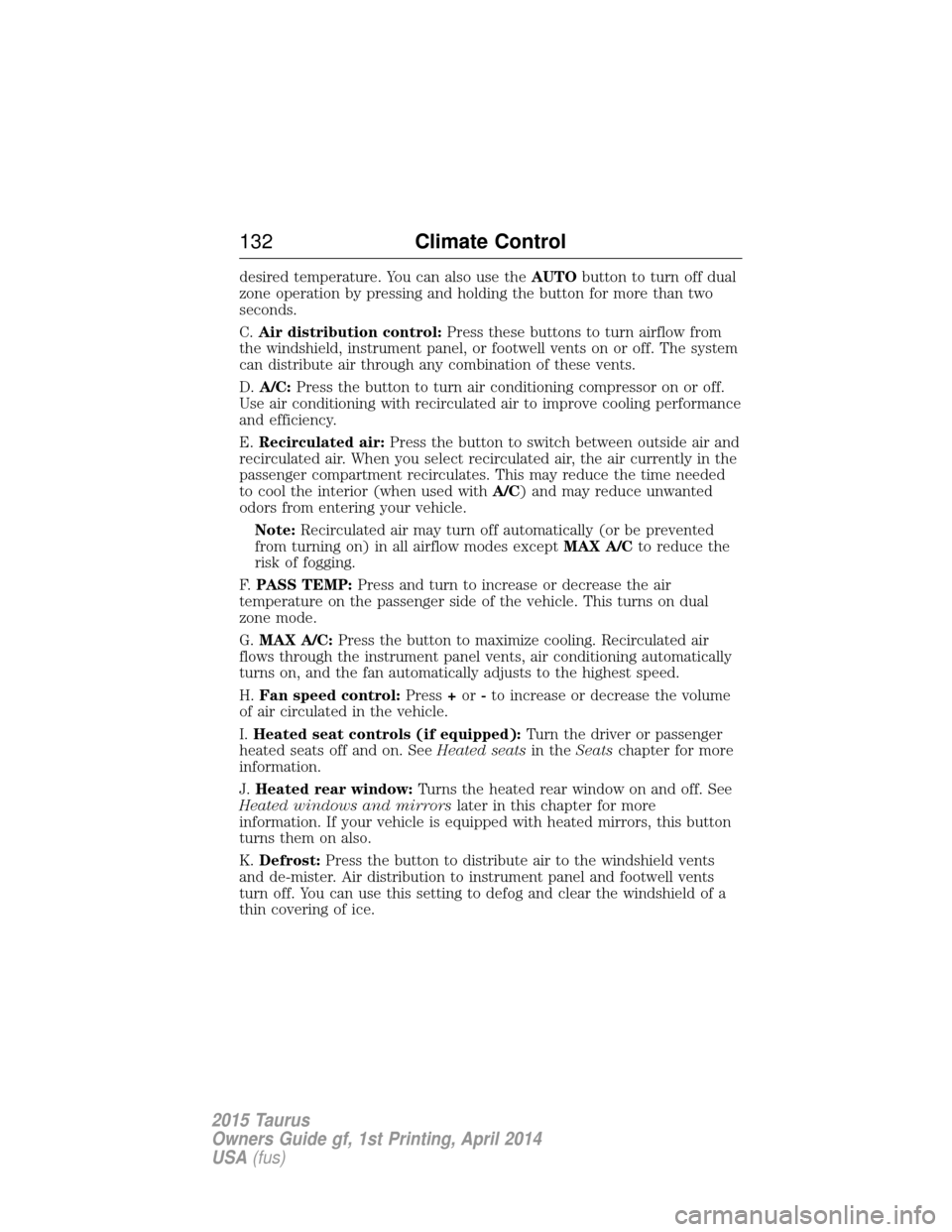

desired temperature. You can also use theAUTObutton to turn off dual
zone operation by pressing and holding the button for more than two
seconds.
C. Air distribution control: Press these buttons to turn airflow from
the windshield, instrument panel, or footwell vents on or off. The system
can distribute air through any combination of these vents.
D. A/C: Press the button to turn air conditioning compressor on or off.
Use air conditioning with recirculated air to improve cooling performance
and efficiency.
E. Recirculated air: Press the button to switch between outside air and
recirculated air. When you select recirculated air, the air currently in the
passenger compartment recirculates. This may reduce the time needed
to cool the interior (when used with A/C) and may reduce unwanted
odors from entering your vehicle.
Note: Recirculated air may turn off automatically (or be prevented
from turning on) in all airflow modes except MAX A/Cto reduce the
risk of fogging.
F. PASS TEMP: Press and turn to increase or decrease the air
temperature on the passenger side of the vehicle. This turns on dual
zone mode.
G. MAX A/C: Press the button to maximize cooling. Recirculated air
flows through the instrument panel vents, air conditioning automatically
turns on, and the fan automatically adjusts to the highest speed.
H. Fan speed control: Press+or -to increase or decrease the volume
of air circulated in the vehicle.
I. Heated seat controls (if equipped): Turn the driver or passenger
heated seats off and on. See Heated seatsin theSeatschapter for more
information.
J. Heated rear window: Turns the heated rear window on and off. See
Heated windows and mirrors later in this chapter for more
information. If your vehicle is equipped with heated mirrors, this button
turns them on also.
K. Defrost: Press the button to distribute air to the windshield vents
and de-mister. Air distribution to instrument panel and footwell vents
turn off. You can use this setting to defog and clear the windshield of a
thin covering of ice.
132 Climate Control
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

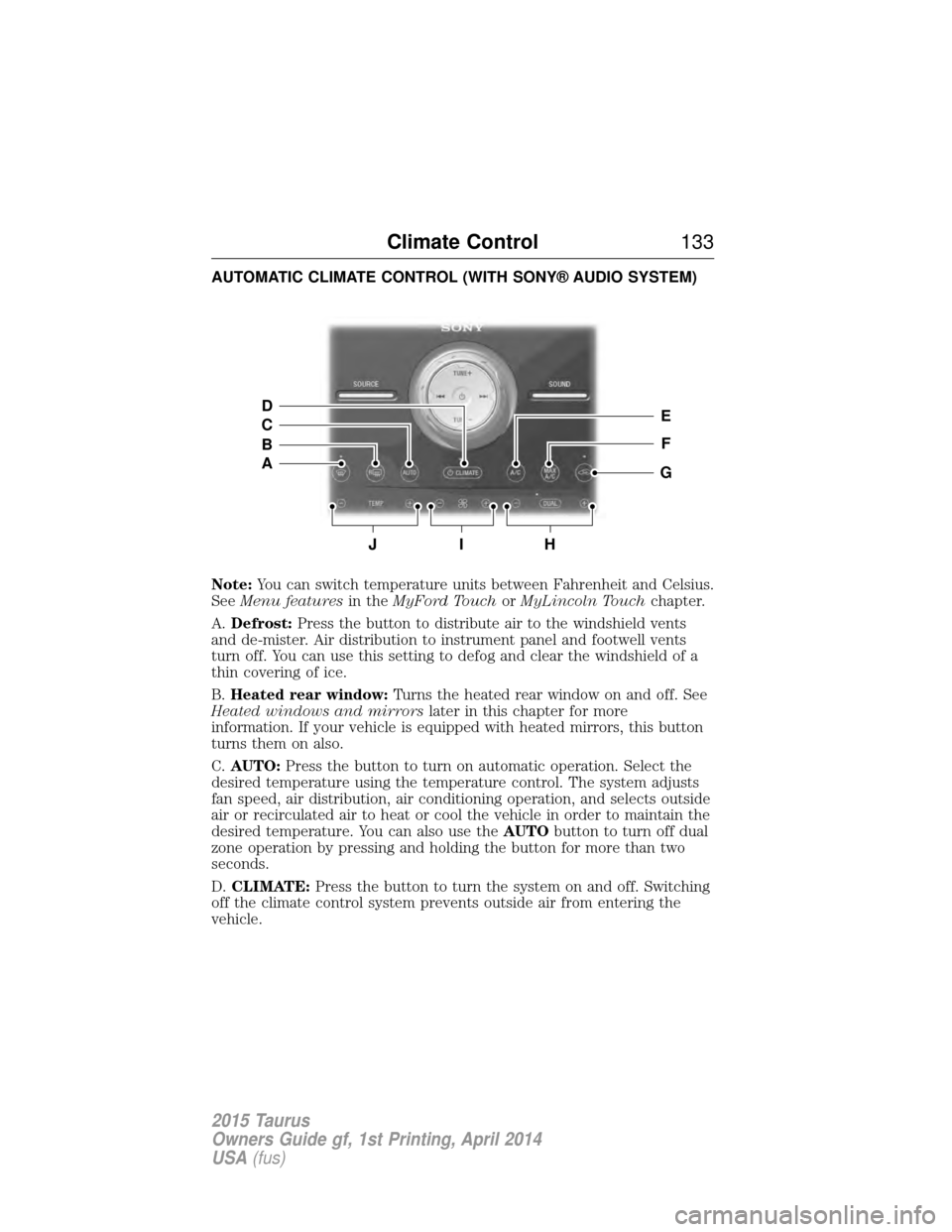

AUTOMATIC CLIMATE CONTROL (WITH SONY® AUDIO SYSTEM)
Note:You can switch temperature units between Fahrenheit and Celsius.
See Menu features in theMyFord Touch orMyLincoln Touch chapter.
A. Defrost: Press the button to distribute air to the windshield vents
and de-mister. Air distribution to instrument panel and footwell vents
turn off. You can use this setting to defog and clear the windshield of a
thin covering of ice.
B. Heated rear window: Turns the heated rear window on and off. See
Heated windows and mirrors later in this chapter for more
information. If your vehicle is equipped with heated mirrors, this button
turns them on also.
C. AUTO: Press the button to turn on automatic operation. Select the
desired temperature using the temperature control. The system adjusts
fan speed, air distribution, air conditioning operation, and selects outside
air or recirculated air to heat or cool the vehicle in order to maintain the
desired temperature. You can also use the AUTObutton to turn off dual
zone operation by pressing and holding the button for more than two
seconds.
D. CLIMATE: Press the button to turn the system on and off. Switching
off the climate control system prevents outside air from entering the
vehicle.
JIH
E
F
G
D
C
B
A
Climate Control 133
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

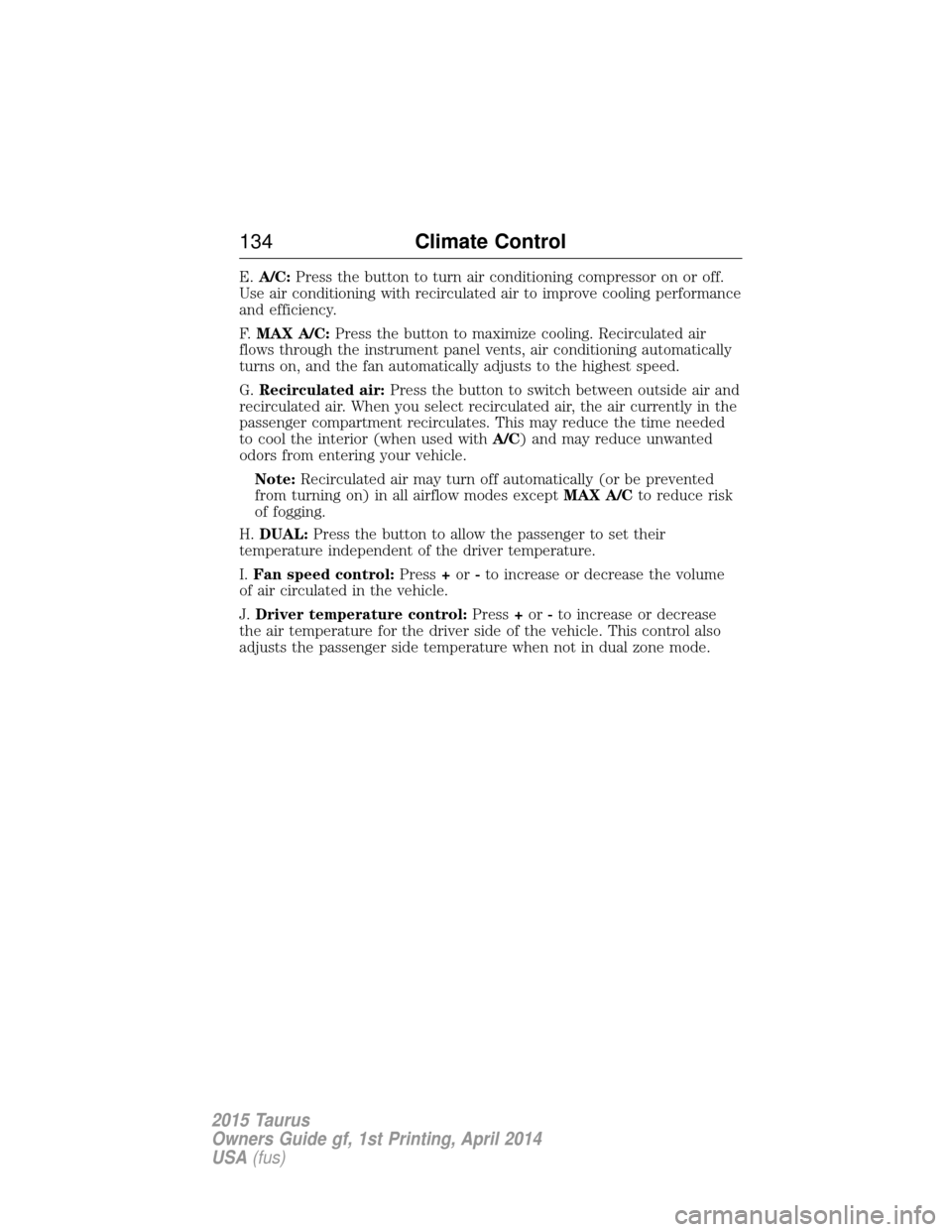

E.A/C: Press the button to turn air conditioning compressor on or off.
Use air conditioning with recirculated air to improve cooling performance
and efficiency.
F. MAX A/C: Press the button to maximize cooling. Recirculated air
flows through the instrument panel vents, air conditioning automatically
turns on, and the fan automatically adjusts to the highest speed.
G. Recirculated air: Press the button to switch between outside air and
recirculated air. When you select recirculated air, the air currently in the
passenger compartment recirculates. This may reduce the time needed
to cool the interior (when used with A/C) and may reduce unwanted
odors from entering your vehicle.
Note: Recirculated air may turn off automatically (or be prevented
from turning on) in all airflow modes except MAX A/Cto reduce risk
of fogging.
H. DUAL: Press the button to allow the passenger to set their
temperature independent of the driver temperature.
I. Fan speed control: Press+or -to increase or decrease the volume
of air circulated in the vehicle.
J. Driver temperature control: Press+or -to increase or decrease
the air temperature for the driver side of the vehicle. This control also
adjusts the passenger side temperature when not in dual zone mode.
134 Climate Control
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

AUTOMATIC CLIMATE CONTROL (WITH MyTemp)
Note:You can switch temperature units between Fahrenheit and Celsius.
See Settings in theMyFord Touch orMyLincoln Touch chapter.
A. MyTemp: Allows you to quickly adjust to a frequently used setting
with a single touch.
Press +or -to increase and decrease the temperature.
Touch and hold MyTempto save the current temperature. To access the
setting again, touch the MyTempindicator again.
B. Power/Fan speed control: Press the button to turn the system on
and off. Switching off the climate control system prevents outside air
from entering the vehicle.
Turn to increase or decrease the volume of air circulated in the vehicle.
C. DUAL: Press the button to allow the passenger to set their
temperature independent of the driver temperature.
D. Recirculated air: Press the button to switch between outside air and
recirculated air. When you select recirculated air, the air currently in the
passenger compartment recirculates. This may reduce the time needed
to cool the interior (when used with A/C) and may reduce unwanted
odors from entering your vehicle.
Note: Recirculated air may turn off automatically (or be prevented
from turning on) in all airflow modes except MAX A/Cto reduce risk
of fogging.
ACB
IH
R
GFED
Climate Control 135
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

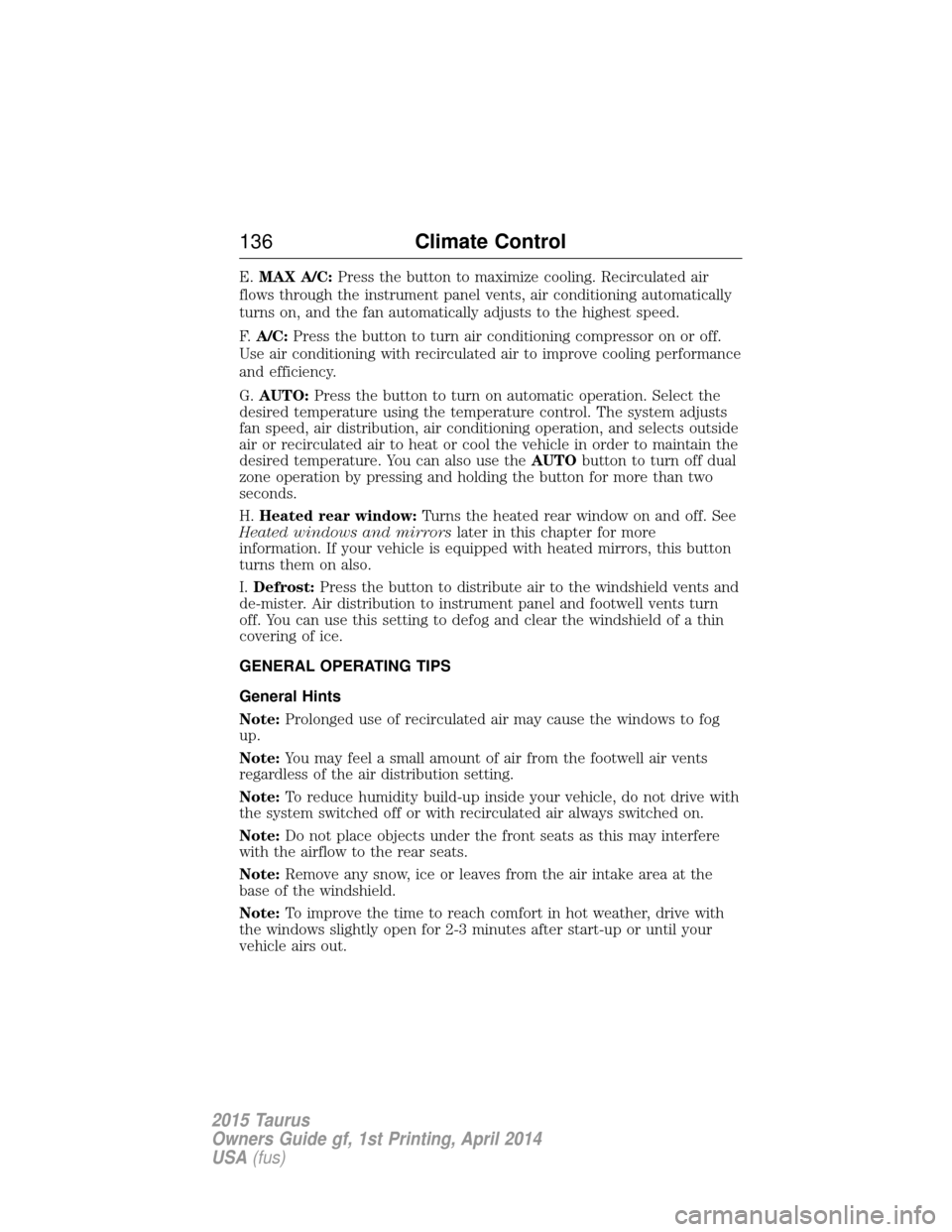

E.MAX A/C: Press the button to maximize cooling. Recirculated air
flows through the instrument panel vents, air conditioning automatically
turns on, and the fan automatically adjusts to the highest speed.
F. A/C: Press the button to turn air conditioning compressor on or off.
Use air conditioning with recirculated air to improve cooling performance
and efficiency.
G. AUTO: Press the button to turn on automatic operation. Select the
desired temperature using the temperature control. The system adjusts
fan speed, air distribution, air conditioning operation, and selects outside
air or recirculated air to heat or cool the vehicle in order to maintain the
desired temperature. You can also use the AUTObutton to turn off dual
zone operation by pressing and holding the button for more than two
seconds.
H. Heated rear window: Turns the heated rear window on and off. See
Heated windows and mirrors later in this chapter for more
information. If your vehicle is equipped with heated mirrors, this button
turns them on also.
I. Defrost: Press the button to distribute air to the windshield vents and
de-mister. Air distribution to instrument panel and footwell vents turn
off. You can use this setting to defog and clear the windshield of a thin
covering of ice.
GENERAL OPERATING TIPS
General Hints
Note: Prolonged use of recirculated air may cause the windows to fog
up.
Note: You may feel a small amount of air from the footwell air vents
regardless of the air distribution setting.
Note: To reduce humidity build-up inside your vehicle, do not drive with
the system switched off or with recirculated air always switched on.
Note: Do not place objects under the front seats as this may interfere
with the airflow to the rear seats.
Note: Remove any snow, ice or leaves from the air intake area at the
base of the windshield.
Note: To improve the time to reach comfort in hot weather, drive with
the windows slightly open for 2-3 minutes after start-up or until your
vehicle airs out.
136 Climate Control
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

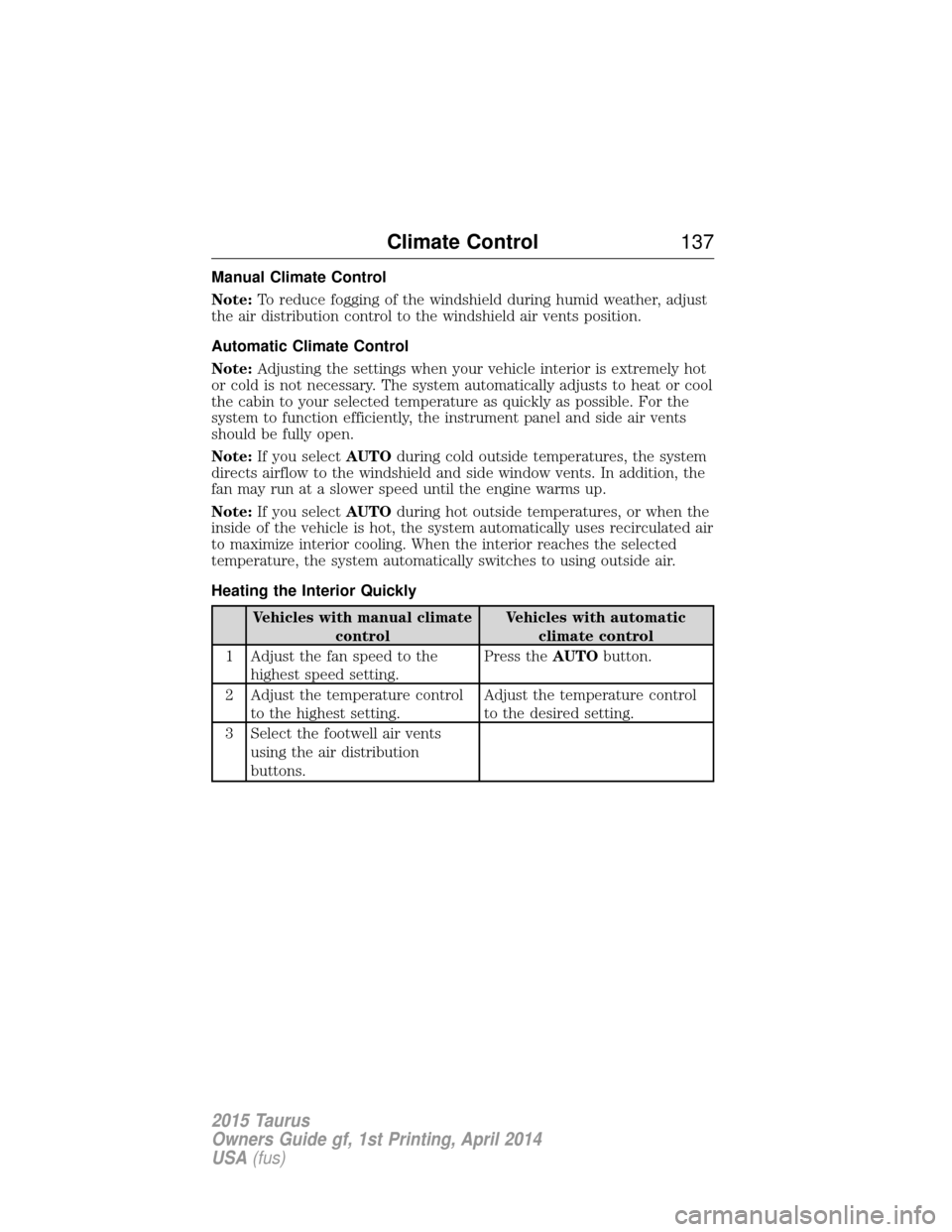

Manual Climate Control
Note:To reduce fogging of the windshield during humid weather, adjust
the air distribution control to the windshield air vents position.
Automatic Climate Control
Note: Adjusting the settings when your vehicle interior is extremely hot
or cold is not necessary. The system automatically adjusts to heat or cool
the cabin to your selected temperature as quickly as possible. For the
system to function efficiently, the instrument panel and side air vents
should be fully open.
Note: If you select AUTOduring cold outside temperatures, the system
directs airflow to the windshield and side window vents. In addition, the
fan may run at a slower speed until the engine warms up.
Note: If you select AUTOduring hot outside temperatures, or when the
inside of the vehicle is hot, the system automatically uses recirculated air
to maximize interior cooling. When the interior reaches the selected
temperature, the system automatically switches to using outside air.
Heating the Interior Quickly
Vehicles with manual climate
control Vehicles with automatic
climate control
1 Adjust the fan speed to the highest speed setting. Press the
AUTObutton.
2 Adjust the temperature control to the highest setting. Adjust the temperature control
to the desired setting.
3 Select the footwell air vents using the air distribution
buttons.
Climate Control 137
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

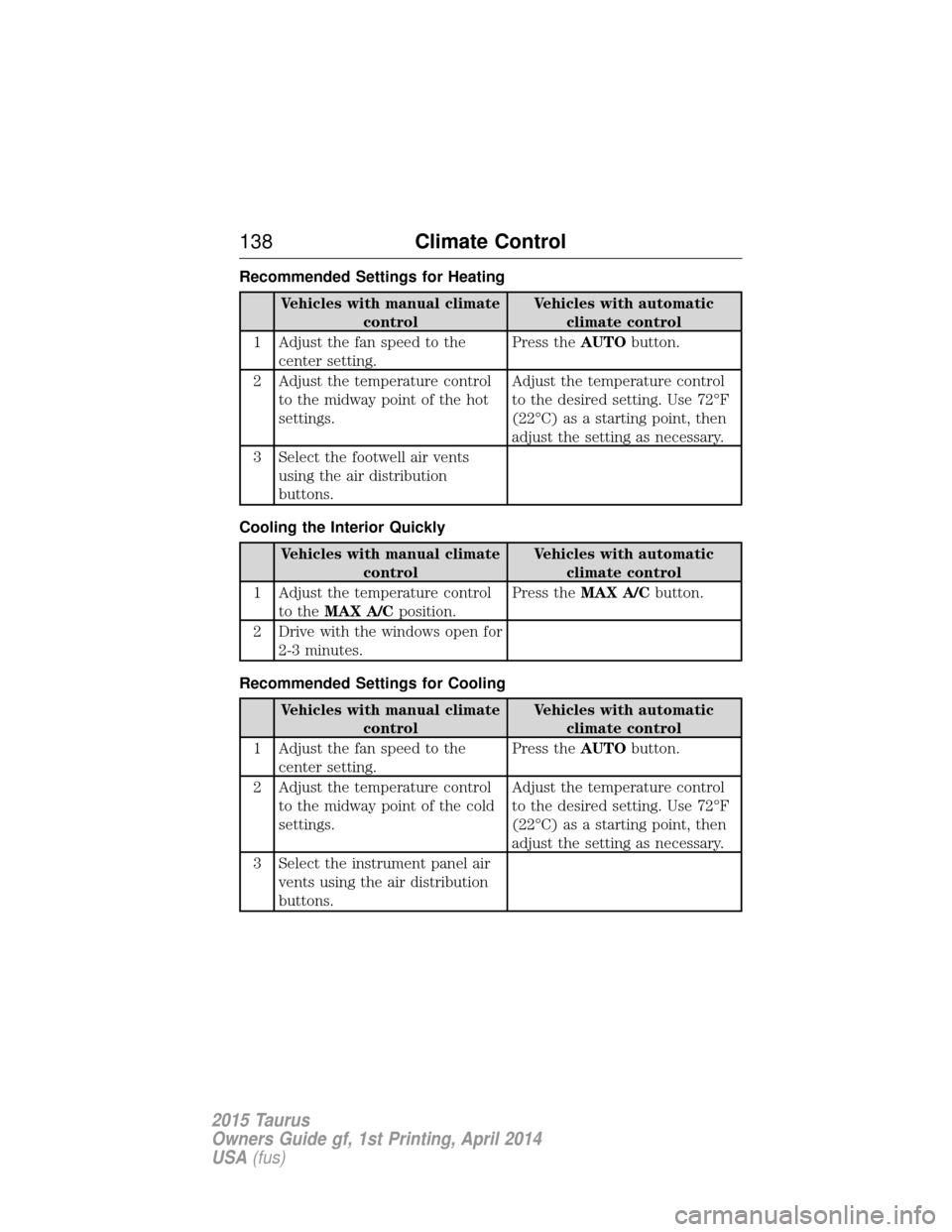

Recommended Settings for Heating
Vehicles with manual climatecontrol Vehicles with automatic
climate control
1 Adjust the fan speed to the center setting. Press the
AUTObutton.
2 Adjust the temperature control to the midway point of the hot
settings. Adjust the temperature control
to the desired setting. Use 72°F
(22°C) as a starting point, then
adjust the setting as necessary.
3 Select the footwell air vents using the air distribution
buttons.
Cooling the Interior Quickly
Vehicles with manual climate control Vehicles with automatic
climate control
1 Adjust the temperature control to the MAX A/C position. Press the
MAX A/C button.
2 Drive with the windows open for 2-3 minutes.
Recommended Settings for Cooling
Vehicles with manual climate control Vehicles with automatic
climate control
1 Adjust the fan speed to the center setting. Press the
AUTObutton.
2 Adjust the temperature control to the midway point of the cold
settings. Adjust the temperature control
to the desired setting. Use 72°F
(22°C) as a starting point, then
adjust the setting as necessary.
3 Select the instrument panel air vents using the air distribution
buttons.
138 Climate Control
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

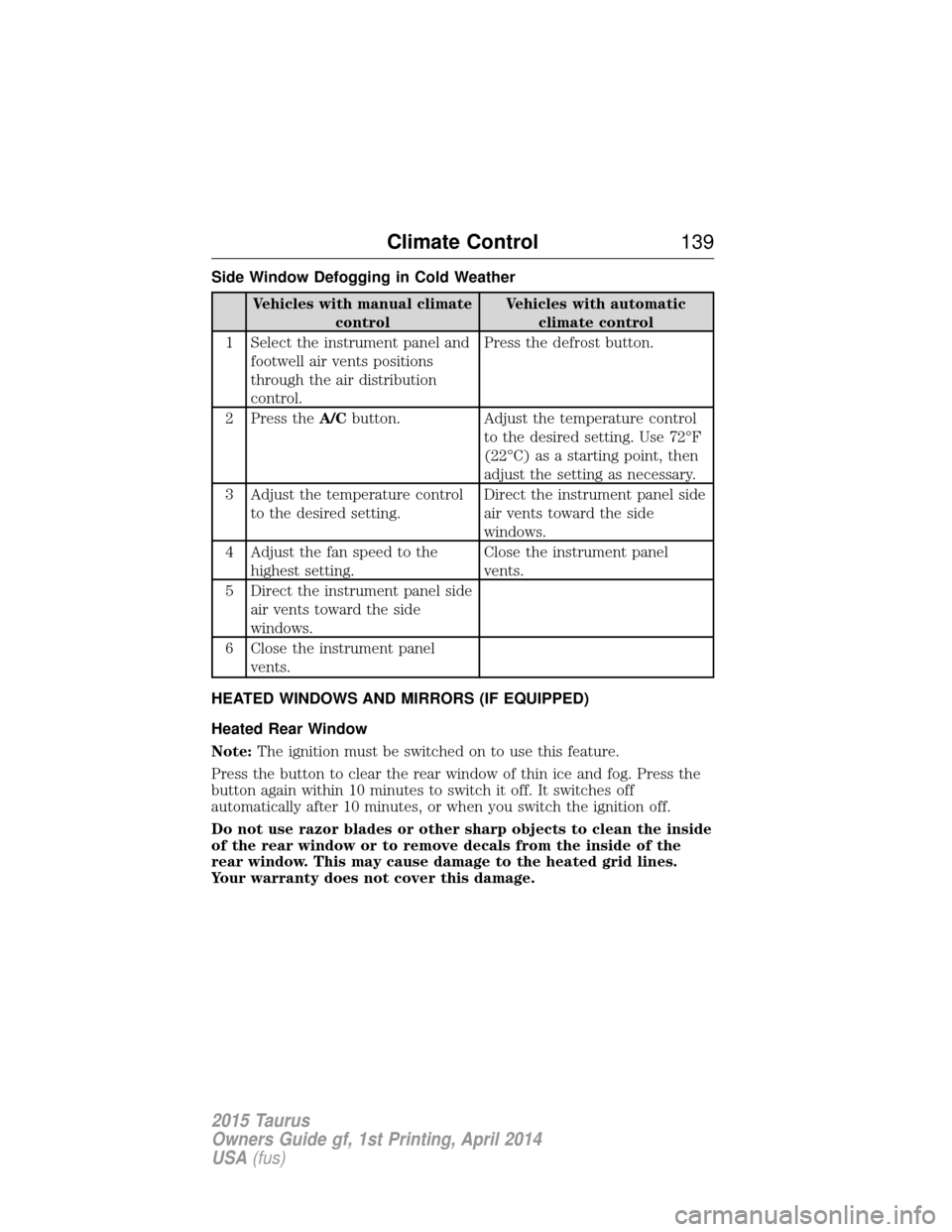

Side Window Defogging in Cold Weather
Vehicles with manual climatecontrol Vehicles with automatic
climate control
1 Select the instrument panel and footwell air vents positions
through the air distribution
control. Press the defrost button.
2 Press the A/Cbutton. Adjust the temperature control
to the desired setting. Use 72°F
(22°C) as a starting point, then
adjust the setting as necessary.
3 Adjust the temperature control to the desired setting. Direct the instrument panel side
air vents toward the side
windows.
4 Adjust the fan speed to the highest setting. Close the instrument panel
vents.
5 Direct the instrument panel side air vents toward the side
windows.
6 Close the instrument panel vents.
HEATED WINDOWS AND MIRRORS (IF EQUIPPED)
Heated Rear Window
Note: The ignition must be switched on to use this feature.
Press the button to clear the rear window of thin ice and fog. Press the
button again within 10 minutes to switch it off. It switches off
automatically after 10 minutes, or when you switch the ignition off.
Do not use razor blades or other sharp objects to clean the inside
of the rear window or to remove decals from the inside of the
rear window. This may cause damage to the heated grid lines.
Your warranty does not cover this damage.
Climate Control 139
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)
