FORD THUNDERBIRD 1996 10.G Owners Manual

269 %
*
[SV39000( ALL)01/95]
High Current Fuses
*
[SV39200( ALL)01/95]
High current fuses are circuit protectors that are
part of the wiring harness for some electrical
equipment. These, like fuses, open when the
circuit load exceeds their amperage rating. High
current fuses may be purchased from your Ford
or Lincoln-Mercury dealer.
*
[SV39300(MBC )01/95]
The high current fuse panel is located in the
engine compartment on the left-hand fender
apron.
*
[SV39600( ALL)05/95]
RWARNING
Always disconnect the battery before
servicing high current fuses.
*
[SV39700( ALL)07/95]
Ford recommends that high current fuses be
replaced by a qualified technician.
[SV39900( BC )03/93]

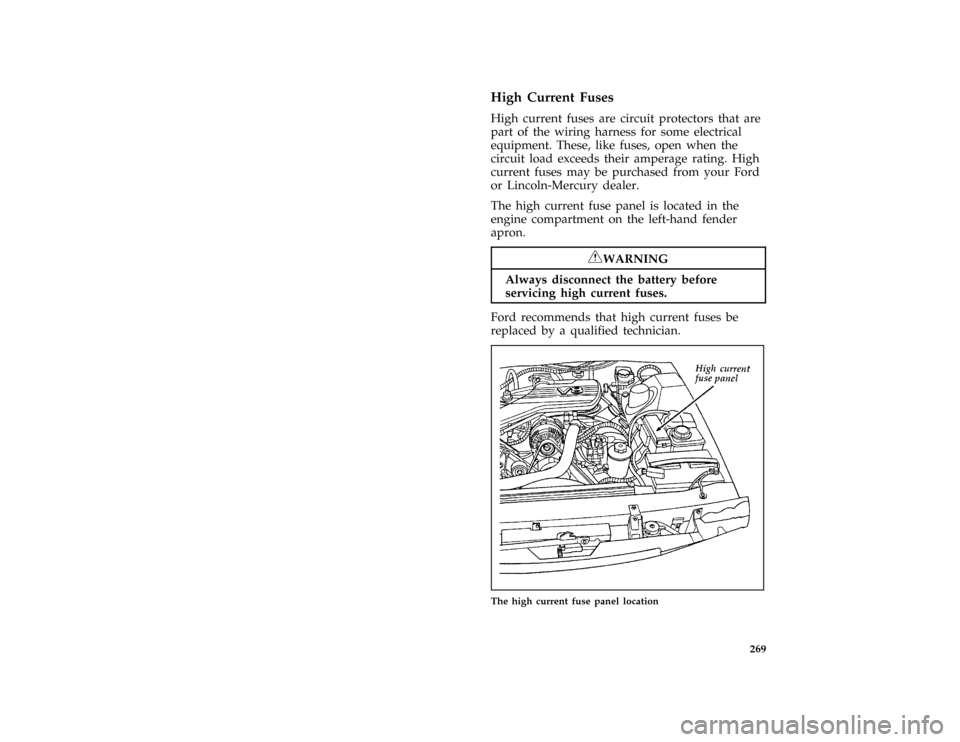

half page art:0011157-A
The high current fuse panel location
File:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

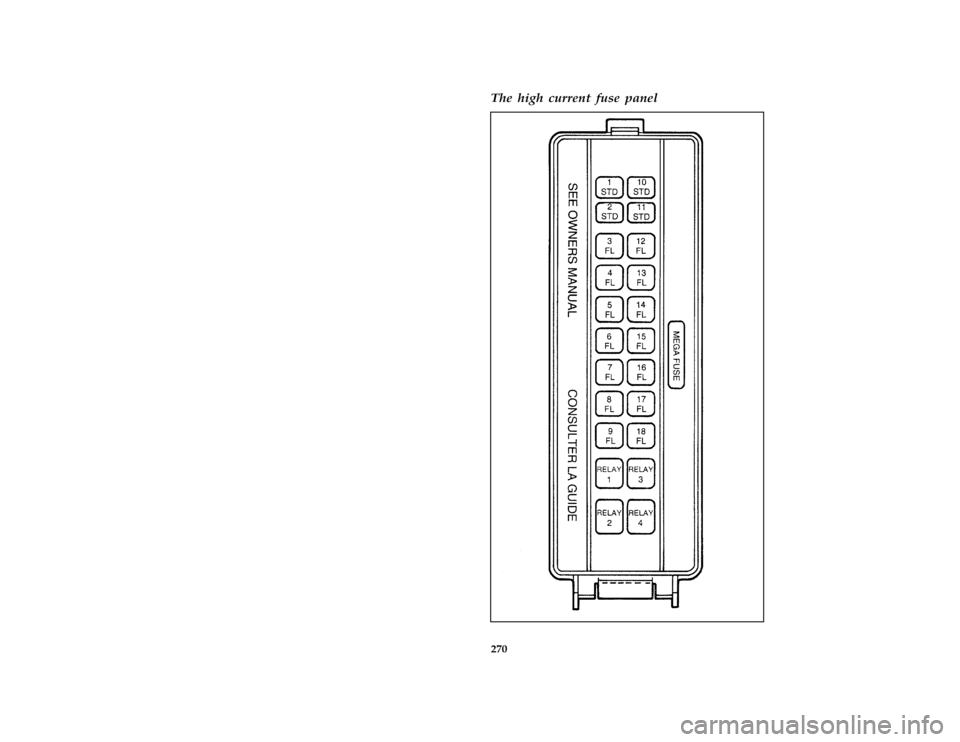

270 % [SV40100( ALL)06/93]The high current fuse panel
[SV40400( BC )07/93]
full page art:0010428-EFile:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

271 [SV40600( ALL)06/93]
The high current fuses and relays
[SV41000( BC )05/95]
twenty-eight pica chart:0010429-LFile:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

272 %
*
[SV41210( ALL)06/95]
Checking and Replacing Fuses
*
[SV41215( ALL)02/95]
If you need to check a fuse, follow these steps:
[SV41225( BC )03/93]
1. Find the fuse panel underneath the
instrument panel, to the left of the steering
column.
[SV41245( BCGV)03/93]
2. Check the fuse to see if it is blown. Look
through the clear side of the fuse to see if
the metal wire inside is separated. If it is,
the fuse should be replaced.
[SV41550( ALL)05/92]
quarter page art:0010416-A
The side view of a fuse
[SV41700( BC )04/89]
3. Replace the fuse with one that has the right
amperage rating. (See the following chart.)
To remove the fuse use the pulling tool
attached to the inside cover of the fuse
panel. There are also four spare fuses
attached to the cover.
[SV41900( ALL)07/95]

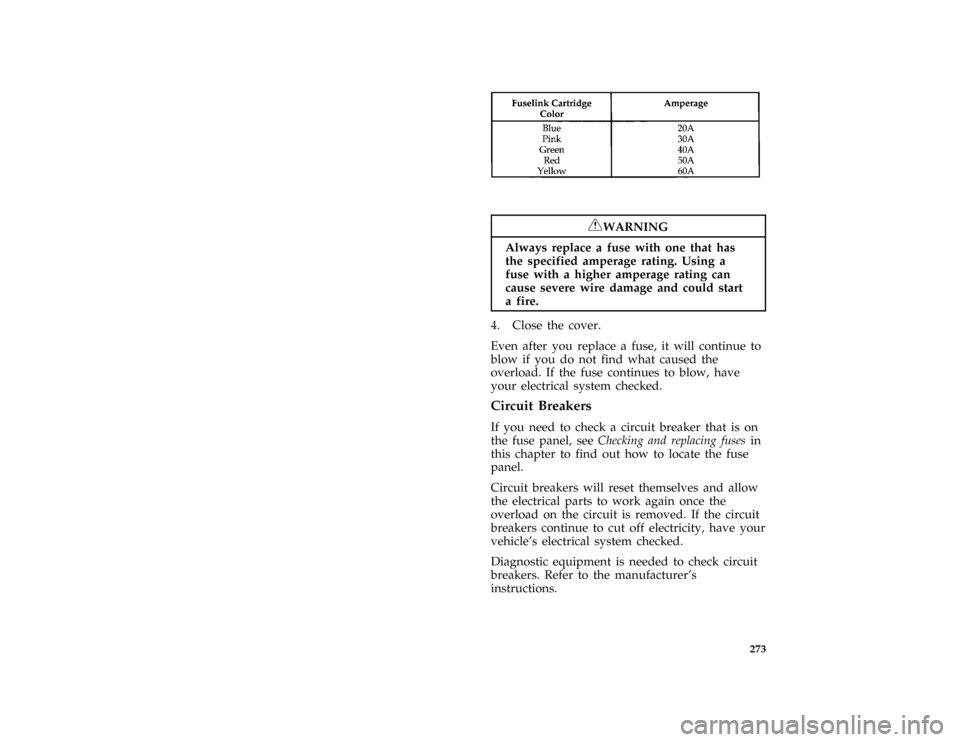

eight pica chart:0001092-BFile:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

273 [SV41920( BC )09/93]
eight pica chart:0011219-A
*
[SV42500( ALL)08/95]
RWARNING
Always replace a fuse with one that has
the specified amperage rating. Using a
fuse with a higher amperage rating can
cause severe wire damage and could start
a fire.
[SV42600( BC )11/89]
4. Close the cover.
*
[SV42800( ALL)01/95]
Even after you replace a fuse, it will continue to
blow if you do not find what caused the
overload. If the fuse continues to blow, have
your electrical system checked.
%*
[SV42900( ALL)03/95]
Circuit Breakers
*
[SV43000( ALL)01/95]
If you need to check a circuit breaker that is on
the fuse panel, seeChecking and replacing fusesin
this chapter to find out how to locate the fuse
panel.
[SV43200( ALL)12/94]
Circuit breakers will reset themselves and allow
the electrical parts to work again once the
overload on the circuit is removed. If the circuit
breakers continue to cut off electricity, have your
vehicle's electrical system checked.
*
[SV43250( ALL)02/95]
Diagnostic equipment is needed to check circuit
breakers. Refer to the manufacturer's
instructions.
File:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

274
*
[SV43300( ALL)08/95]
If you replace a circuit breaker, use one with the
same amperage rating. To remove a circuit
breaker mounted in the fuse panel, grip it with
your finger and thumb and pull it straight out
of its socket.
%
*
[SV44400( ALL)03/95]
Lights and Bulb Replacement
*
[SV44500( ALL)01/95]
It is a good idea to check the operation of the
following lights frequently:
*
[SV44600( ALL)01/95]
q
headlamps
*
[SV44700( ALL)01/95]
q
tail lamps
*
[SV44800( ALL)01/95]
q
brakelamps
*
[SV44900( ALL)01/95]
q
hazard flasher
*
[SV44950( ALL)02/95]
q
high-mount brakelamp
*
[SV45000( ALL)01/95]
q
turn signals
*
[SV45200( ALL)01/95]
q
license plate lamp
%*
[SV45600( ALL)01/95]
The alignment of your headlamps should be
checked if:
*
[SV45700( ALL)01/95]
q
oncoming motorists frequently signal you to
turn off your vehicle's high beams when you
do not have the high beams on
*
[SV45800( ALL)01/95]
q
the headlamps do not seem to give you
enough light to see clearly at night
*
[SV45900( ALL)01/95]
q
the headlamp beams are pointed substantially
away from a position slightly down and to
the right
File:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

275 %
*
[SV46000( ALL)03/95]
Headlamp Bulb
*
[SV46100( ALL)01/95]
The headlamps on your vehicle use replaceable
bulbs. When the lamp burns out, simply replace
the bulb, rather than the whole lamp.
*
[SV46200( ALL)05/95]
RWARNING
Handle a halogen headlamp bulb carefully
and keep out of children's reach. Grasp
the bulb only by its plastic base and do
not touch the glass. The oil from your
hand could cause the bulb to break the
next time the headlamps are operated.
*
[SV46300( ALL)01/95]
Do not remove the burned-out bulb unless you
can immediately replace it with a new one. If a
bulb is removed for an extended period of time,
contaminants may enter the headlamp housing
and affect its performance.
[SV46400( BC )07/93]
half page art:0010431-A
Parts of a headlamp
File:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

276
*
[SV46600( ALL)03/95]
Removing the headlamp bulb
*
[SV46700( ALL)01/95]
1. Make sure that the headlamp switch is in
the OFF position.
*
[SV46800( BC )02/95]
2. Lift the hood and find the bulb in the
headlamp socket.
*
[SV46900( BC )01/95]
3. Remove the electrical connector from the
bulb by grasping the wire with a quick pull
rearward.
*
[SV47100( BC )01/95]
4. Remove the retaining ring by turning it 1/8
of a turn to free it from the socket. Then
slide the ring off the plastic base.Keep the
ring.You must use it again to hold the new
bulb in place.
*
[SV47400( ALL)03/95]
Installing the headlamp bulb
*
[SV47600(MBC )02/95]
1. With the flat side of the bulb's plastic base
facing upward, insert the glass end of the
bulb into the socket. You may need to turn
the bulb left or right to line up the grooves
in the plastic base with the tabs in the
socket. When the grooves are aligned, push
the bulb into the socket until the plastic base
contacts the rear of the socket.
*
[SV47800(MBC )08/95]
2. Slip the bulb retaining ring over the plastic
base until it contacts the rear of the socket.
Lock the ring into the socket by rotating it
clockwise until you feel a ªstop.º
*
[SV47900( ALL)02/95]
3. Push the electrical connector into the rear of
the plastic base until it snaps, locking it into
position.
*
[SV48000(MBC )02/95]
4. Turn the headlamps on and make sure that
they work properly. If the headlamp was
correctly aligned before you changed the
bulb, you should not need to align it again.
File:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

277 %
*
[SV48370( BCGV)02/95]
High-Mount Brakelamp Bulbs
[SV48380( BCGV)06/94]
Your vehicle has a brakelamp mounted in the
rear window, called a high-mount brakelamp.
You may need to remove this lamp at times to
replace the brakelamp bulb or to clean the rear
window.
[SV48500( B )03/92]

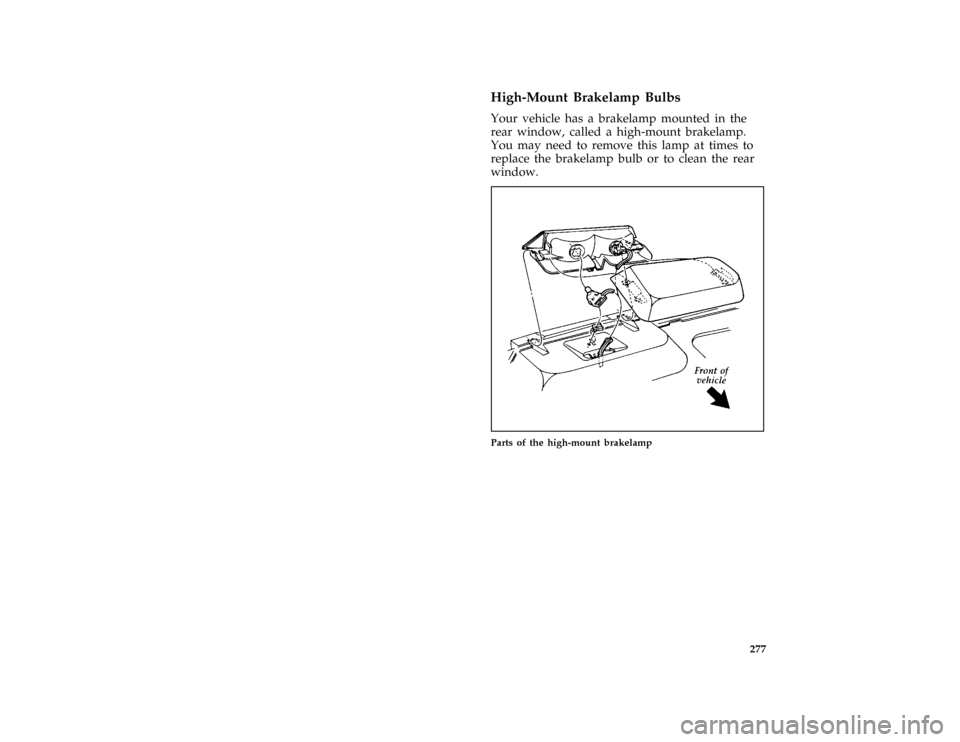

half page art:0010434-A
Parts of the high-mount brakelamp
File:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

278 % [SV48900( BCGV)06/94]Toremovethe high-mount brakelamp:
[SV49200( BC )01/89]
1. Slide the trim cover toward the front of the
vehicle to disengage the retaining clips.
[SV49500( BC )01/89]
2. Twist the socket counterclockwise and
remove from lamp.
[SV50015( BC )03/91]
3. Pull bulb out of socket.
[SV50100( BC )01/89]
4. Remove the retaining screw.
[SV50200( BC )01/89]
5. Lift the lamp above the carpet and slide
away from the rear window.
[SV50260( BC )05/94]
6. Replace the burned out bulbs.
*
[SV50300( BCGV)02/95]
Toinstallthe high-mount brakelamp:
[SV50400( BC )01/89]
1. Slide the lamp into slots, toward the rear
window.
[SV50700( BC )01/89]
2. Install the screw.
[SV51000( BC )01/89]
3. Push bulb into the socket.
[SV51300( BC )01/89]
4. Install the bulb and socket into the lamp and
twist socket clockwise until it locks.
[SV51500( BC )01/89]
5. Slide the trim cover toward rear of vehicle
to engage the retaining clips.
