If brake fluid contacts eyes, flush eyes with
running water for 15 minutes. Get medical
attention if irritation persists. If taken internally,
drink water and induce vomiting. Get medical
attention immediately.
*
[SV32400( ALL)03/95]
If the fluid is low, carefully clean and remove
the cap from the reservoir. Fill the reservoir to
the MAX line with Ford High Performance DOT
3 Brake Fluid C6AZ-19542-AA, C6AZ-19542-BA,
or equivalent DOT 3 fluid meeting Ford
specification ESA-M6C25-A.
*
[SV33100( ALL)01/95]
RWARNING
If you use a brake fluid that is not DOT
3, you will cause permanent damage to
your brakes.
*
[SV33200( ALL)01/95]
Do not fill the reservoir above the MAX line.
[SV33500( BC )03/93]
one third page art:0010387-A
The brake system fluid reservoir
*
[SV33700( ALL)01/95]
If you find that the fluid level is excessively low
Ð below the seam or ridge on the outside of the
plastic reservoir Ð have the brake system
inspected.
File:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

260
*
[SV33750( ALL)01/95]
RWARNING
Do not let the reservoir for the master
cylinder run dry. This may cause the
brakes to fail.
[SV34725( BC )12/91]
half page art:0010487-B
The anti-lock brake system fluid reservoir
File:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

261
%*
[SV34800( ALL)03/95]
Power Steering Fluid
*
[SV34900( ALL)01/95]
Check the level of the power steering fluid at
least twice a year (i.e., every Spring and Fall).
%*
[SV35000( ALL)03/95]
Checking and Adding Power Steering
Fluid
[SV35050( BC )10/95]
3.8L SFI engine
*
[SV35100( ALL)02/95]
1. Start the engine and let it run until the
power steering fluid reaches normal
operating temperature. The power steering
fluid will be at the right temperature when
the engine coolant temperature gauge in the
instrument cluster is near the center of the
NORMAL operating temperature range.
*
[SV35200( ALL)01/95]
2. While the engine idles, turn the steering
wheel back and forth several times. Make
sure that the cap assembly is installed at this
time.
*
[SV35300( ALL)05/95]
3. Turn the engine off.
%*
[SV35400(MBC )03/94]
4. Check the fluid level on the dipstick (which
is highlighted in yellow in your vehicle). The
fluid level should be between the arrows in
the FULL HOT range, which is marked on
the side of the dipstick, opposite the side
marked FULL COLD. Do not add fluid if the
level is within the FULL HOT range.
*
[SV35500(MBC )07/94]
5. If the power steering fluid is low, add fluid
in small amounts, continuously checking the
level, until you reach the FULL HOT range.
Do not overfill.
*
[SV35600(MBC )03/95]
6. When you are finished, put the dipstick back
in and make sure that it fits snugly.
File:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

262 [SV35700(MBC )12/94]

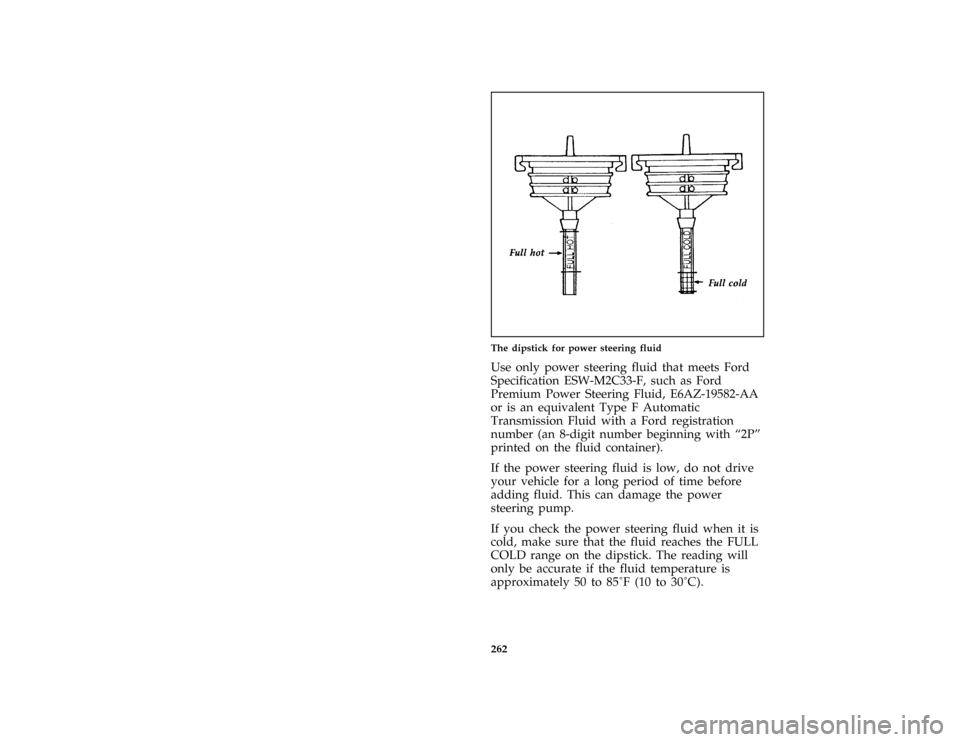

half page art:0010485-CThe dipstick for power steering fluid
[SV35850( BC )05/95]
Use only power steering fluid that meets Ford
Specification ESW-M2C33-F, such as Ford
Premium Power Steering Fluid, E6AZ-19582-AA
or is an equivalent Type F Automatic
Transmission Fluid with a Ford registration
number (an 8-digit number beginning with ª2Pº
printed on the fluid container).
*
[SV35900( ALL)01/95]
If the power steering fluid is low, do not drive
your vehicle for a long period of time before
adding fluid. This can damage the power
steering pump.
*
[SV36100(MBC )02/95]
If you check the power steering fluid when it is
cold, make sure that the fluid reaches the FULL
COLD range on the dipstick. The reading will
only be accurate if the fluid temperature is
approximately 50 to85ÊF (10 to 30ÊC).
File:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

263 [SV36155( BC )10/95]
4.6L SFI engine
[SV36170(MBC )03/95]
1. Check the fluid level when the system is
COLD (allow at least one half hour after
driving for the power steering fluid to cool).
[SV36171(MBC )10/95]
2. Locate the power steering reservoir mounted
to the front upper left-hand corner of the
engine.
[SV36178( BC )10/95]
3. Visually verify that the fluid level is above
the MIN line adjacent to the reservoir ªsight
window.º
[SV36182( BC )10/95]
4. If the power steering fluid is below the MIN
line, remove the cap and add fluid in small
amounts until the level is between the MIN
and MAX lines.
[SV36185( BC )10/95]
5. Reinstall the reservoir cap.
[SV36190( BC )10/95]

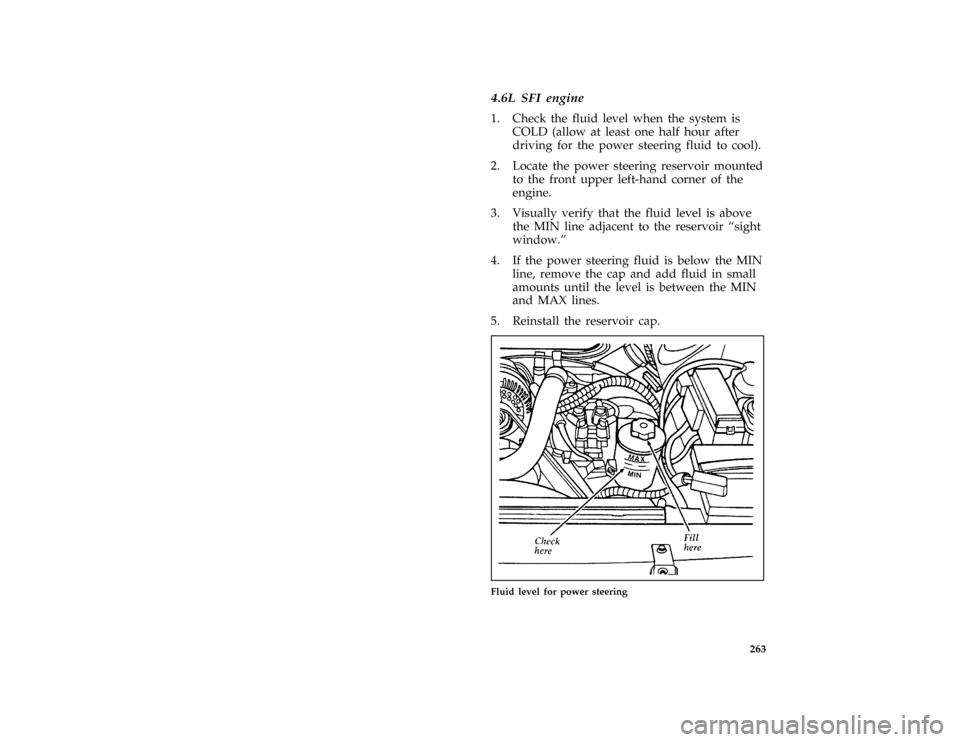

half page art:0011153-A
Fluid level for power steering
File:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

264 [SV36200( BC )06/95]Use only power steering fluid that meets Ford's
Specification ESW-M2C33-F, such as Ford
Premium Power Steering Fluid, E6AZ-19582-AA
or an equivalent Type F Automatic Transmission
Fluid with a Ford registration number (an 8-digit
number beginning with ª2Pº printed on the
fluid container).
*
[SV36250(MBC )03/95]
NOTE: If the power steering fluid is low, do
not drive your vehicle for a long
period of time before adding fluid.
This can damage the power steering
pump.
% [SV36300(MBC )12/94]Fuses, High Current Fuses and
Circuit Breakers
*
[SV36400( ALL)03/95]
Fuses (conventional and high current) and circuit
breakers protect your vehicle's wiring system
from overloading. If electrical parts in your
vehicle are not working, the system may have
been overloaded and blown a fuse or tripped a
circuit breaker. Before you replace or repair any
electrical parts, check the appropriate fuses
(conventional and high current) or circuit
breakers.
*
[SV36600( ALL)03/95]
The following charts tell you which fuses or
circuit breakers protect the wiring for each
electrical part of your vehicle. If a fuse blows or
a circuit breaker opens a circuit,allthe parts of
your vehicle that use that circuit will not work.
*
[SV36610( ALL)01/95]
Once you have determined which fuses or circuit
breakers to check, follow the procedures under
Checking and replacing fusesorChecking and
replacing circuit breakersin this chapter.
File:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

265 [SV36800( BC )07/93]
half page art:0010412-B

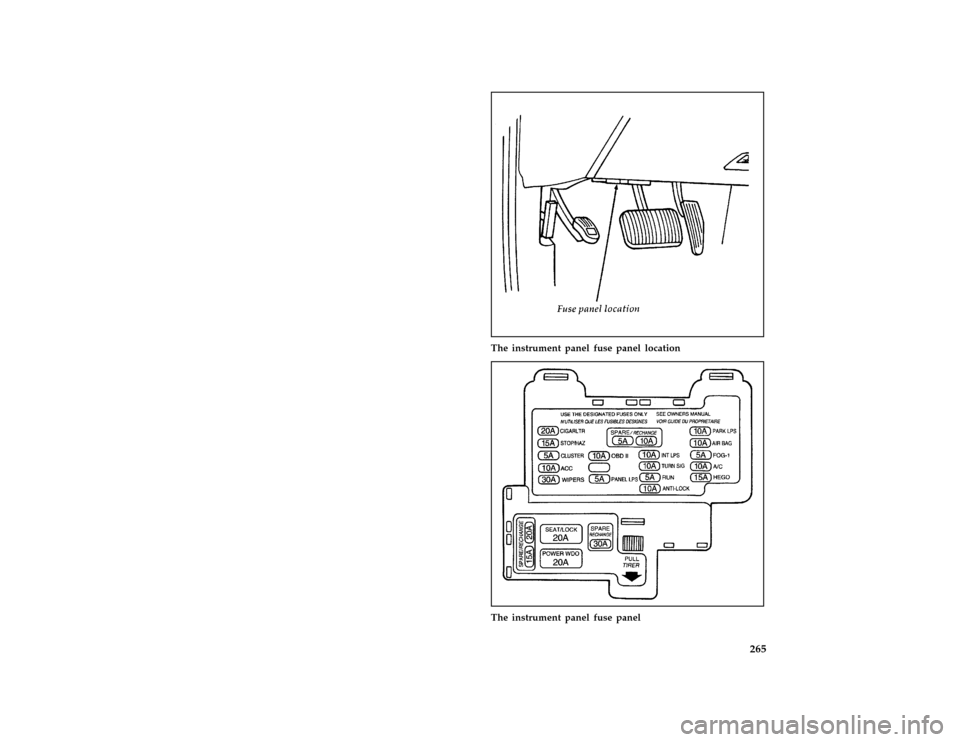

The instrument panel fuse panel location
[SV37300( BC )11/93]
half page art:0010413-C
The instrument panel fuse panel
File:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

266 %
*
[SV37500( ALL)02/95]
The Instrument Panel Fuses, Circuit
Breakers and Relays
[SV37900( BC )02/96]

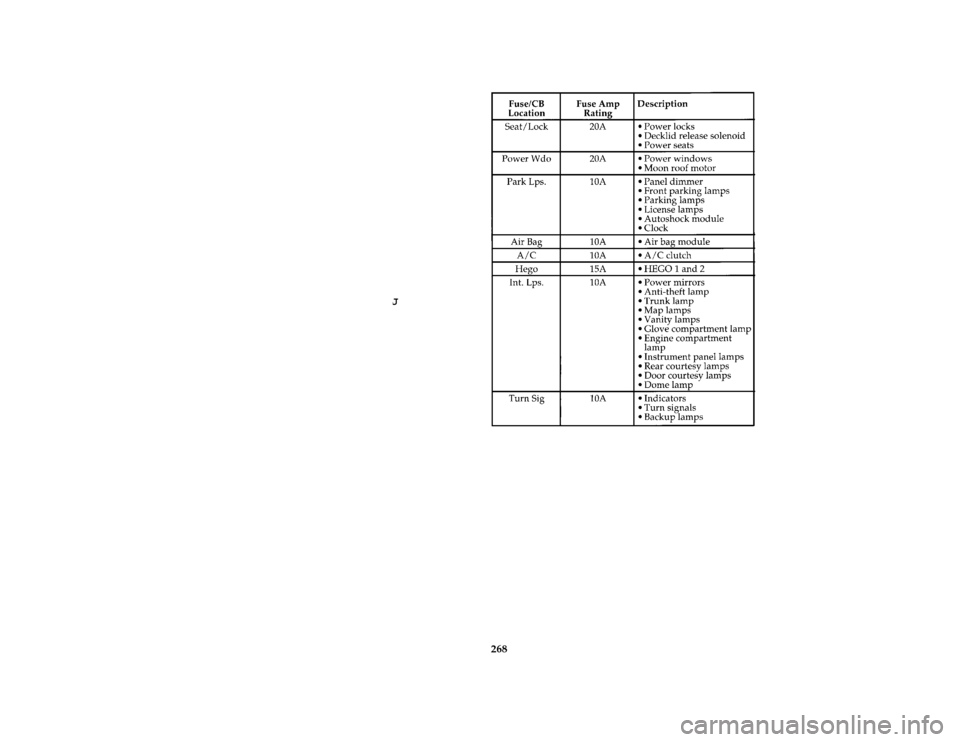

thirty-four pica chart:0010392-JFile:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

267 [SV38000( BC )02/96]

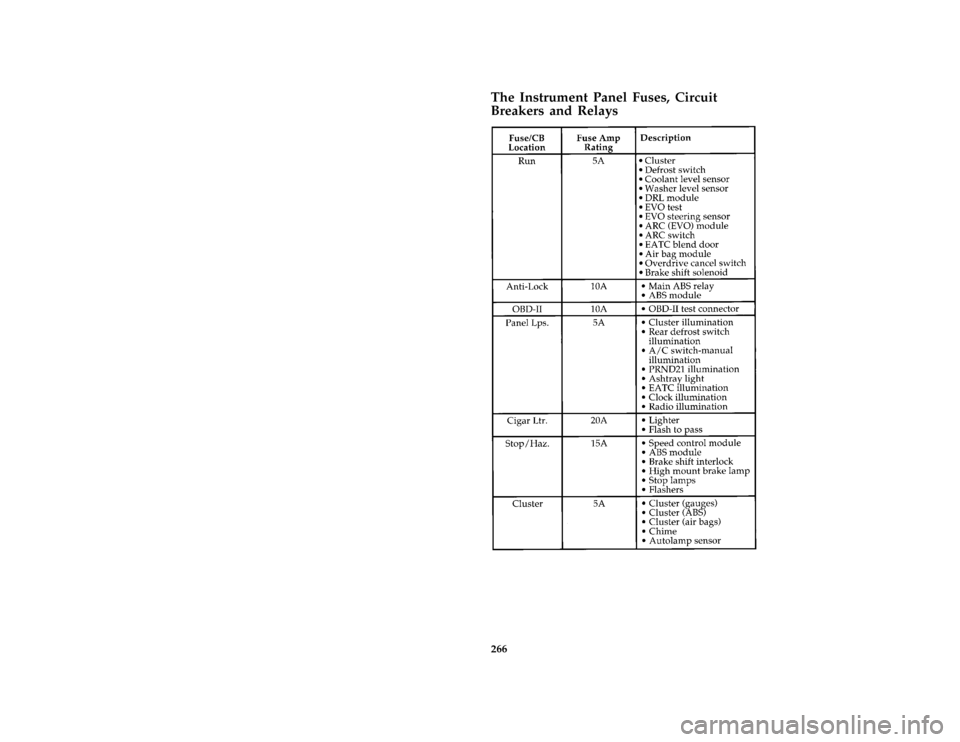

twelve pica chart:0010493-F
File:rcsvb.ex
Update:Mon Feb 19 10:46:54 1996

268 [SV38100( BC )02/96]

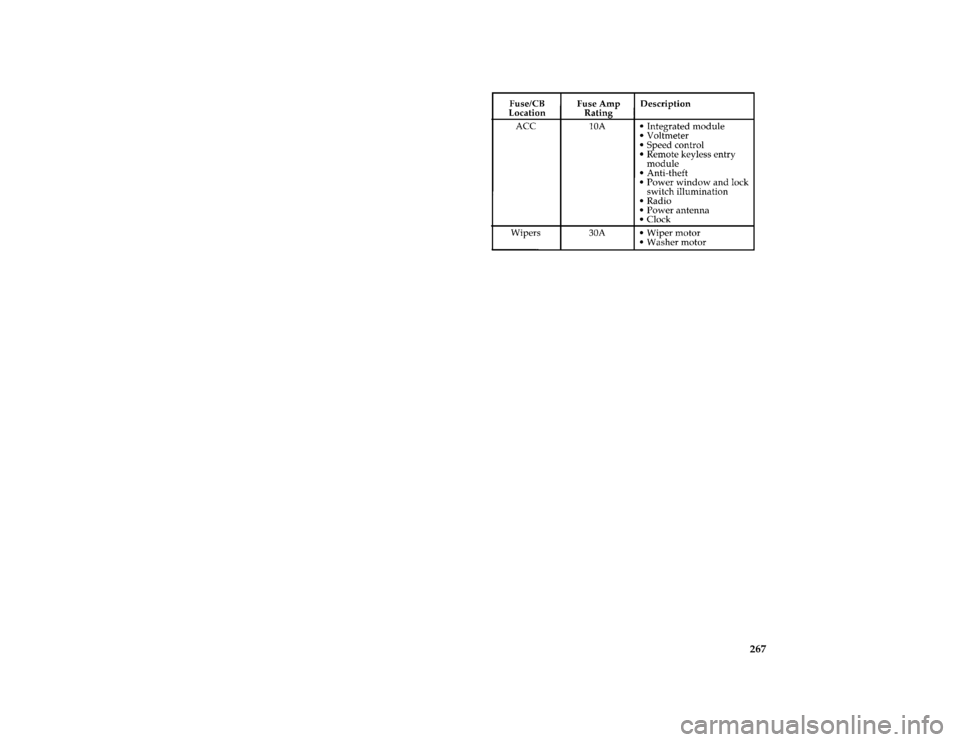

twenty-eight pica chart:0010391-J
