FORD THUNDERBIRD 1997 10.G Owners Manual

89 [CF43445( BC )05/96]

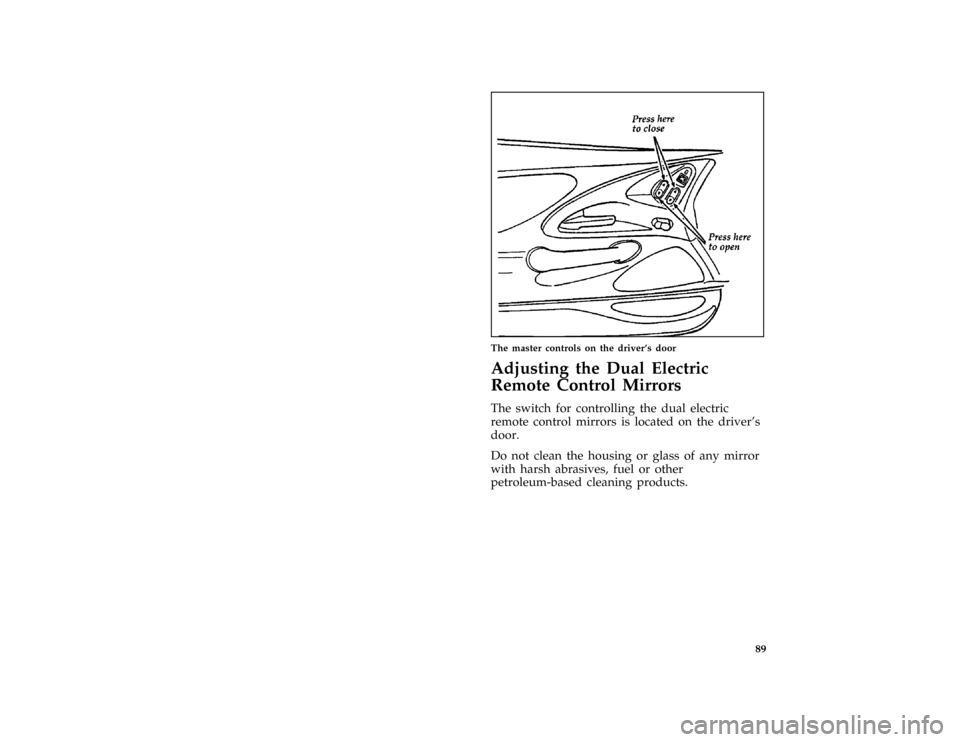

half page art:0010233-H
The master controls on the driver's door
% [CF43600( BCGV)03/96]
Adjusting the Dual Electric
Remote Control Mirrors
[CF43800( MBC )12/95]
The switch for controlling the dual electric
remote control mirrors is located on the driver's
door.
%*
[CF44000( ALL)12/95]
Do not clean the housing or glass of any mirror
with harsh abrasives, fuel or other
petroleum-based cleaning products.
File:05rccfb.ex
Update:Fri Jun 7 14:36:35 1996

90 [CF44200( BC )05/96]

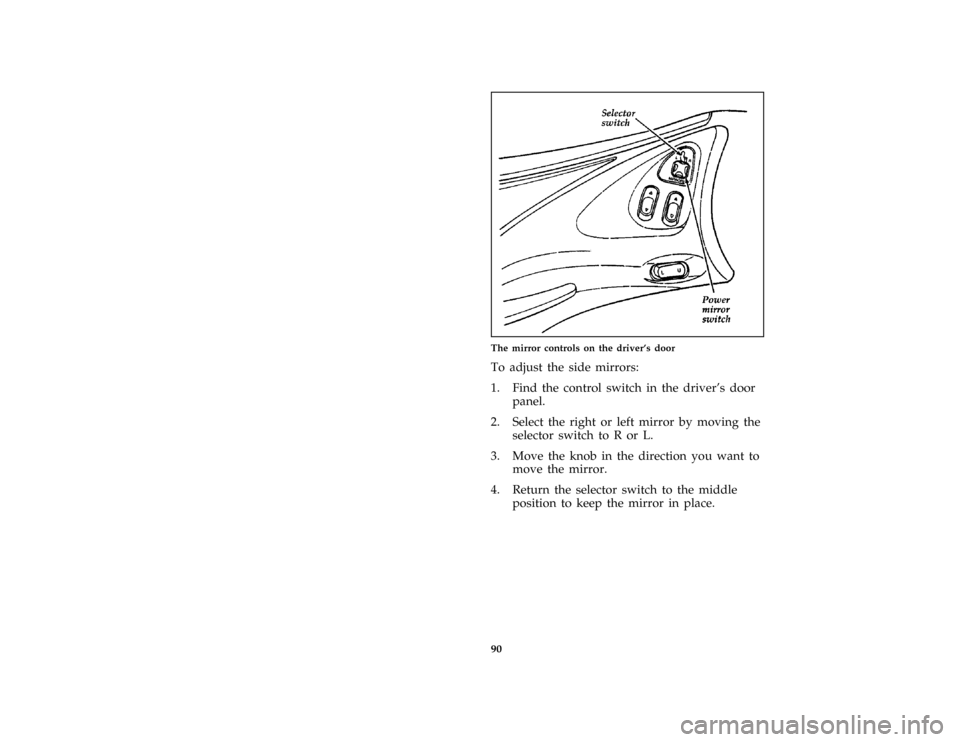

half page art:0010269-EThe mirror controls on the driver's door
*
[CF44400( ALL)01/96]
To adjust the side mirrors:
*
[CF44500( ALL)05/96]
1. Find the control switch in the driver's door
panel.
*
[CF44600( ALL)05/96]
2. Select the right or left mirror by moving the
selector switch to R or L.
[CF44750( BC )05/96]
3. Move the knob in the direction you want to
move the mirror.
*
[CF44800( ALL)05/96]
4. Return the selector switch to the middle
position to keep the mirror in place.
File:05rccfb.ex
Update:Fri Jun 7 14:36:35 1996

91 [CF44900( ALL)12/95]
The Right Side Convex Mirror
*
[CF45000( ALL)12/95]
The side view mirror on the right is a convex
mirror. This mirror gives you a wider view of
the lanes on your right and behind you.
*
[CF45100( ALL)05/96]
RWARNING
The right side view mirror makes objects
appear smaller and farther away than they
actually are.
%
*
[CF46100(MBC )01/96]
Console
[CF46200(MBC )12/95]
Your vehicle has a full console. The full console
has the features shown in the illustration below.
[CF46400( BC )05/96]

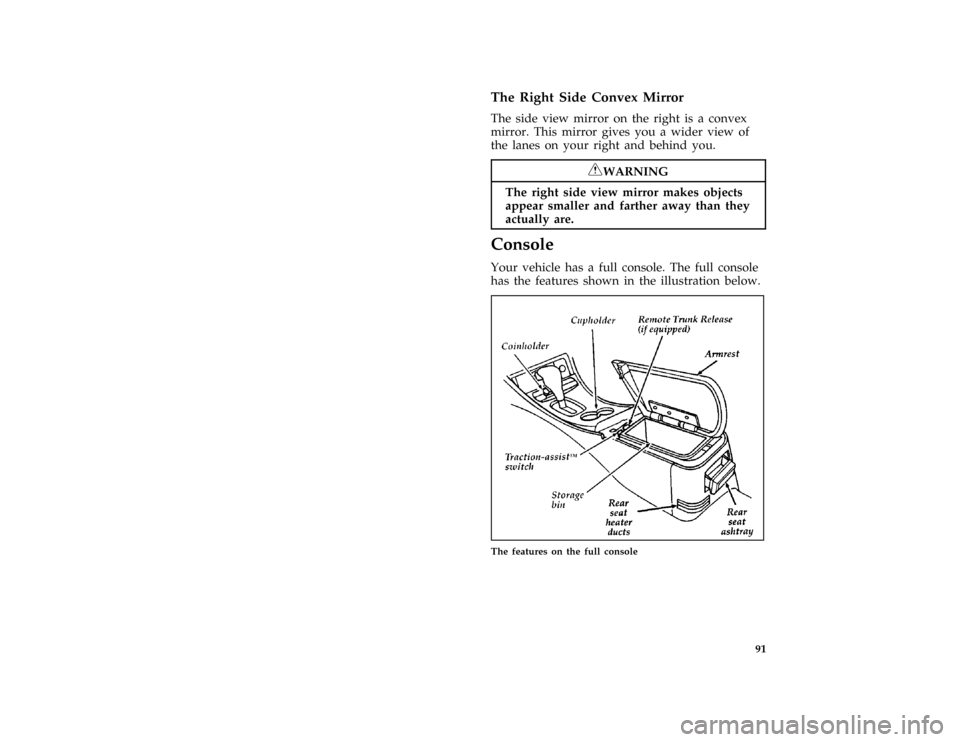

half page art:0010282-F
The features on the full console
File:05rccfb.ex
Update:Fri Jun 7 14:36:35 1996

92
% [CF51000( ALL)12/95]
Positive Location Floor Mat
[CF51100(MBC )12/95]
When installing or removing the driver's side
floor mat you must attach/detach the positive
location grommet from the hook on the floor.
The hook is just forward of the left hand track
of the driver's seat.
[CF51300(MBC )12/95]

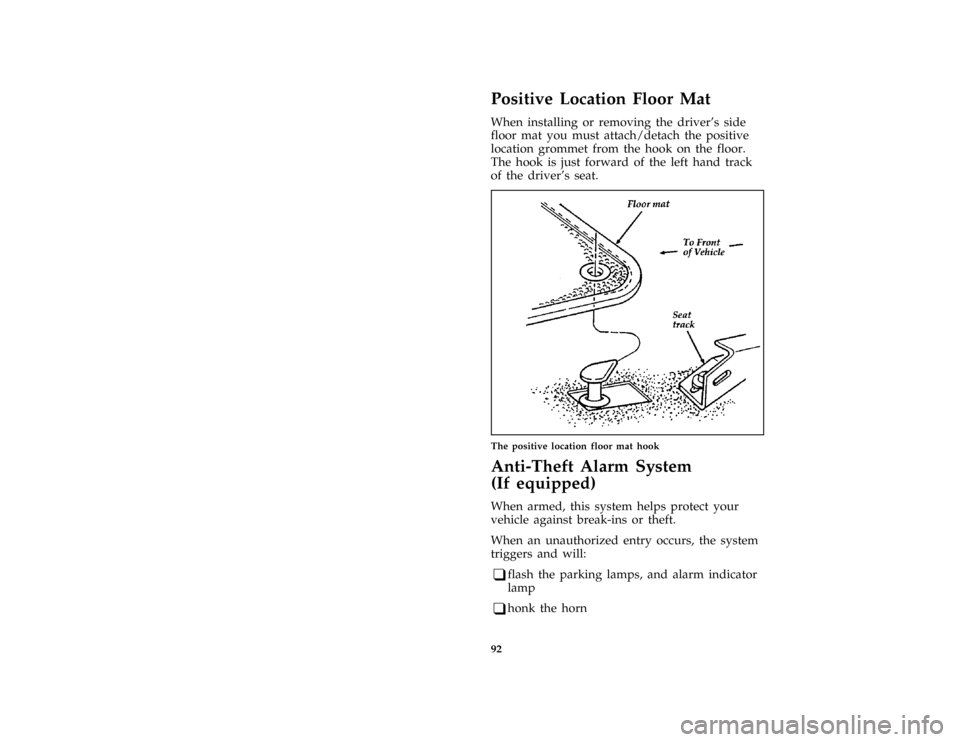

half page art:0010758-A
The positive location floor mat hook
%*
[CF53200( BC )03/96]
Anti-Theft Alarm System
(If equipped)
*
[CF53300(MBC )01/96]
When armed, this system helps protect your
vehicle against break-ins or theft.
%*
[CF53400(MBC )01/96]
When an unauthorized entry occurs, the system
triggers and will:
*
[CF53500(MBC )03/96]
q
flash the parking lamps, and alarm indicator
lamp
*
[CF53600(MBC )01/96]
q
honk the horn
File:05rccfb.ex
Update:Fri Jun 7 14:36:35 1996

93
*
[CF53700(MBC )01/96]
q
disable the starting circuit to prevent the
vehicle from being started
[CF53900(MBC )12/95]
To tell the difference between a PANIC alarm
and a triggered Anti-theft alarm:
[CF54000(MBC )12/95]
q
only the Anti-Theft alarm will cause the
alarm indicator lamp (located in the
instrument cluster) to flash on and off.
[CF54100(MBC )12/95]
q
only the Anti-Theft alarm will disable the
start circuit so that the vehicle can not be
started.
[CF54200(MBC )05/96]
q
the Anti-Theft alarm will not stop by pushing
the PANIC control on the Remote Entry
transmitter.
*
[CF54300(MBC )12/95]
For more information on the PANIC alarm, see
Remote Entry Systemin the Index.
%*
[CF54400(MBC )03/96]
Arming the system
[CF54500(MBC )12/95]
To arm the system, do the following steps in
sequence:
*
[CF54600(MBC )01/96]
1. Remove the key from the ignition. The hood
must be closed to arm the system.
[CF54700( BC )03/96]
At this point, the anti-theft system automatically
monitors the ignition keylock cylinder. If the
lock cylinder is forcibly removed, the anti-theft
alarm system will trigger. To arm the remaining
portion of the system, follow steps 2-4.
*
[CF54800(MBC )05/96]
2. Open any door. The alarm indicator light
will start flashing to remind you to arm the
system.
[CF54900(MBC )05/96]
3. Lock the doors by using the power door
lock switch or by pressing the remote entry
transmitter LOCK control.
[CF55000(MBC )12/95]
The alarm indicator will now glow steadily.
File:05rccfb.ex
Update:Fri Jun 7 14:36:35 1996

94 [CF55100(MBC )12/95]4. Close all doors. The alarm indicator light
will then remain on steadily for
approximately 30 seconds and then go out.
When the light goes out, the system is
armed.
*
[CF55200(MBC )01/96]
NOTE: Be sure to close all doors completely. If
not, the alarm indicator light will
remain on. Remember, your anti-theft
system is armed only after the alarm
indicator light remains on steadily for
approximately 30 seconds after the last
door is closed, and then goes out.
[CF55300(MBC )12/95]
You can also arm the anti-theft system by
following this sequence:
[CF55400(MBC )12/95]
1. Remove key from ignition.
*
[CF55500(MBC )01/96]
2. Close all of the doors.
[CF55600(MBC )05/96]
3. Press the remote entry transmitter LOCK
control. The alarm indicator will come on for
30 seconds to show the alarm is arming and
then turn off to show that the alarm has
armed.
*
[CF55800(MBC )01/96]
The anti-theft system is designed to work with
the factory installed remote entry system. It may
not work with other remote entry systems.
%*
[CF55900(MBC )03/96]
Disarming an Untriggered Anti-Theft
System
*
[CF56000(MBC )12/95]
You can disarm the system by:
[CF56100(MBC )12/95]
q
unlocking a door with the key (turn the key
all the way to the end of travel or the system
may not disarm.
*
[CF56200(MBC )04/96]
q
using the UNLOCK control on the remote
entry transmitter
[CF56300(MBC )12/95]
q
if remaining in the vehicle, turn the ignition
switch to ON or ACC
File:05rccfb.ex
Update:Fri Jun 7 14:36:35 1996

95
*
[CF56400(MBC )03/96]
Triggering the Alarm System
*
[CF56500(MBC )01/96]
The armed system will be triggered if:
[CF56600(MBC )12/95]
q
any door is opened without disarming the
system first (see previous paragraphs)
*
[CF56700(MBC )12/95]
q
the trunk lock cylinder is removed
*
[CF56800(MBC )12/95]
NOTE: You can open the trunk with your key
without setting off the alarm.
[CF57100( BC )12/95]
q
the ignition key lock cylinder is forcibly
removed from the steering column.
%*
[CF57200(MBC )03/96]
Disarming a Triggered System
*
[CF57300(MBC )01/96]
The alarm can be disarmed by:
*
[CF57400(MBC )12/95]
q
unlocking a front door with the key
*
[CF57500(MBC )04/96]
q
using the UNLOCK control on the remote
entry transmitter
*
[CF57600(MBC )01/96]
NOTE: The flashing lights and honking horn
will shut off automatically within 2
minutes 45 seconds after the system is
triggered. It will trigger again if
another intrusion occurs. However, the
starter circuit remains disabled until
the system is disarmed.
*
[CF65000( ALL)05/96]
Remote Entry System
(If equipped)
*
[CF65100( ALL)04/96]
If your vehicle has the remote entry system, you
can lock and unlock the vehicle doors and open
the trunk without using a key. The remote also
has a personal alarm feature. The controls for
the system are located on the hand held
transmitter(s) that came with your vehicle.
File:05rccfb.ex
Update:Fri Jun 7 14:36:35 1996

96
*
[CF65200( ALL)01/96]
The system will work with up to four
transmitters. Your vehicle came with two
transmitters. Additional transmitters can be
ordered from your dealer.
*
[CF65300(MBC )01/96]
The remote entry features only operate with the
ignition in the OFF position.
[CF65500(MBC )12/95]

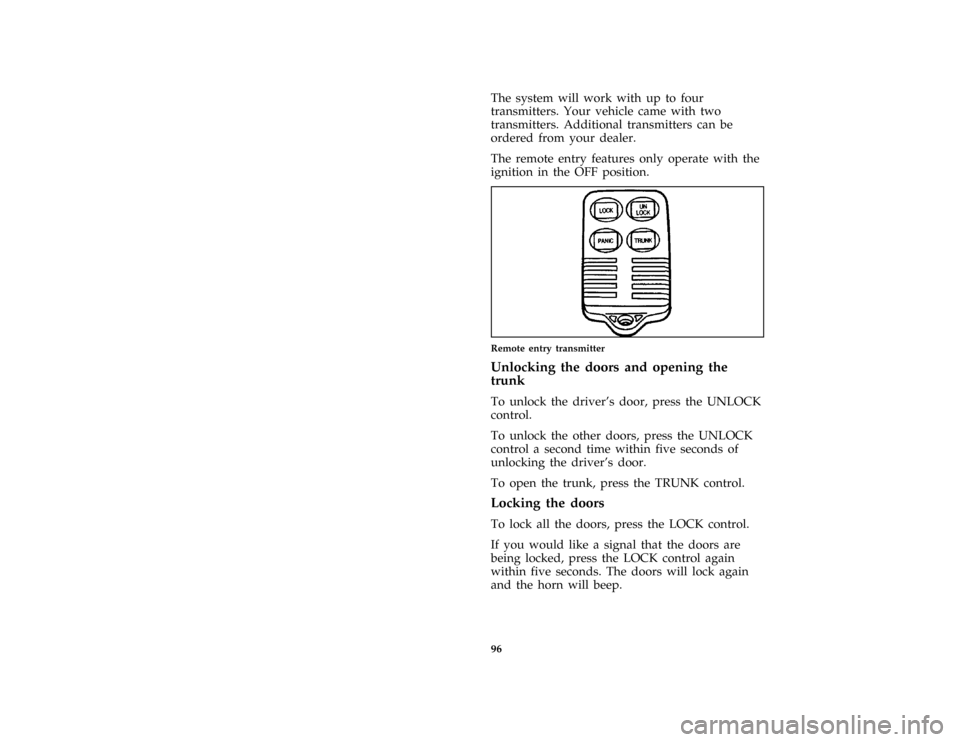

one third page art:0001000-A
Remote entry transmitter
%*
[CF65700( ALL)02/96]
Unlocking the doors and opening the
trunk
*
[CF65800( ALL)04/96]
To unlock the driver's door, press the UNLOCK
control.
*
[CF65900( ALL)04/96]
To unlock the other doors, press the UNLOCK
control a second time within five seconds of
unlocking the driver's door.
*
[CF66000( ALL)04/96]
To open the trunk, press the TRUNK control.
*
[CF66200( ALL)04/96]
Locking the doors
*
[CF66300( ALL)04/96]
To lock all the doors, press the LOCK control.
*
[CF66400(MBC )04/96]
If you would like a signal that the doors are
being locked, press the LOCK control again
within five seconds. The doors will lock again
and the horn will beep.
File:05rccfb.ex
Update:Fri Jun 7 14:36:35 1996

97 %
*
[CF67200( ALL)03/96]
Activating the remote personal alarm
*
[CF67300( ALL)04/96]
If you wish to activate the remote personal
alarm, press the PANIC control. This will honk
the horn and flash the parking lamps and tail
lamps for approximately two minutes and
forty-five seconds. You can turn it OFF by
pressing the PANIC control again or by turning
the ignition key to the RUN position.
[CF67400( ALL)05/96]
When you use the remote entry UNLOCK,
TRUNK or PANIC controls, the illuminated
entry system turns on the interior lights for 25
seconds. You can turn these lights off with the
LOCK control or by turning the ignition to the
RUN position. The interior lights will not turn
off if you have turned them on manually or if a
door is open.
%*
[CF68400( ALL)03/96]
Replacing the Batteries
*
[CF68500(MBC )01/96]
The remote entry transmitter is powered by two
coin type three-volt lithium 2016
batteries (included) that should last for several
years of normal use. If you notice a significant
decrease in operating range, the batteries should
be replaced. Replacement batteries can be
purchased at most pharmacies, watch stores or
at your Ford or Lincoln-Mercury dealer.
*
[CF68700( ALL)01/96]
NOTE: The operating range of the remote
entry system can also be affected by
weather conditions (such as very cold
temperatures) or structures around the
vehicle (buildings, other vehicles, radio
and TV towers, etc.). Typical operating
range will allow you to be up to 33
feet (10 meters) away from your
vehicle.
File:05rccfb.ex
Update:Fri Jun 7 14:36:35 1996

98
*
[CF68800(MBC )01/96]

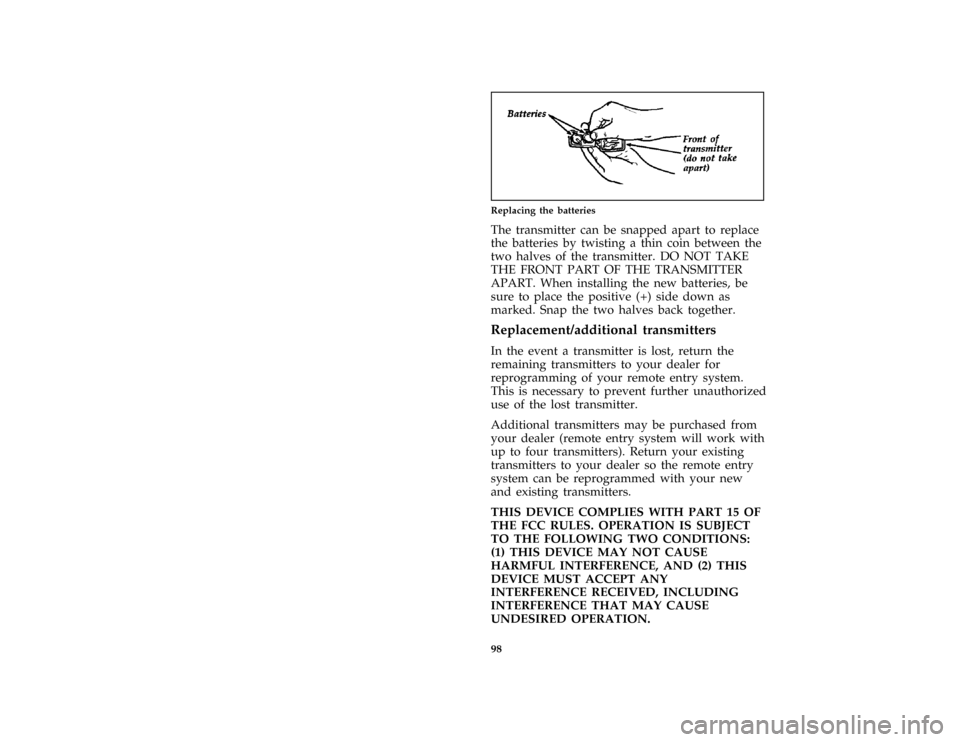

quarter page art:0020790-A
Replacing the batteries
*
[CF68900(MBC )01/96]
The transmitter can be snapped apart to replace
the batteries by twisting a thin coin between the
two halves of the transmitter. DO NOT TAKE
THE FRONT PART OF THE TRANSMITTER
APART. When installing the new batteries, be
sure to place the positive (+) side down as
marked. Snap the two halves back together.
%*
[CF69000( ALL)02/96]
Replacement/additional transmitters
*
[CF69100(MBC )01/96]
In the event a transmitter is lost, return the
remaining transmitters to your dealer for
reprogramming of your remote entry system.
This is necessary to prevent further unauthorized
use of the lost transmitter.
*
[CF69600(MBC )01/96]
Additional transmitters may be purchased from
your dealer (remote entry system will work with
up to four transmitters). Return your existing
transmitters to your dealer so the remote entry
system can be reprogrammed with your new
and existing transmitters.
*
[CF70000( ALL)01/96]
THIS DEVICE COMPLIES WITH PART 15 OF
THE FCC RULES. OPERATION IS SUBJECT
TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE
HARMFUL INTERFERENCE, AND (2) THIS
DEVICE MUST ACCEPT ANY
INTERFERENCE RECEIVED, INCLUDING
INTERFERENCE THAT MAY CAUSE
UNDESIRED OPERATION.
