69 [CF17700( BCGV)12/95]
Chime for headlamps on
*
[CF17800( ALL)12/95]
This chime sounds if the driver or any passenger
door is open when the parking lamps or
headlamps are on. The chime sounds until you
close the door, turn off the lamps or turn the
ignition to the ON position.
%*
[CF18000( BC )01/96]
Setting the Autolamp Delay System (If
equipped)
*
[CF18100( BCGV)01/96]
The autolamp sets the headlamps to turn on and
off automatically. You can use the autolamp to:
*
[CF18200( BCGV)01/96]
q
turn on the lamps automatically at night
*
[CF18300( BCGV)01/96]
q
turn off the lamps automatically during
daylight
*
[CF18400( BCGV)01/96]
q
keep the lamps on for up to three minutes
after you turn the key to OFF.
[CF18600( BC )12/95]
one third page art:0010199-D
The controls for the autolamp
*
[CF18700( BC )01/96]
To set the autolamp:
*
[CF18900( BC )03/96]
1. Make sure the headlamp knob is in the OFF
position. If the knob for the headlamps is
ON, you cancel the autolamp.
*
[CF19000( BC )03/96]
2. Turn the ignition key to ON or start your
vehicle.
File:05rccfb.ex
Update:Fri Jun 7 14:36:35 1996

70 [CF19100( BC )12/95]3. Find the autolamp thumbwheel to the right
of the panel dim thumbwheel.
[CF19200( BC )12/95]
4. Turn the thumbwheel up to the beginning of
the MAX position (within the DELAY range).
*
[CF19300( BC )03/96]
5. The autolamp automatically turns the lamps
on and off for you.
*
[CF19400( BCGV)10/95]
Do not put any articles on top of the photocell
that is located in the top right corner of the
instrument panel. This photocell controls the
autolamp. If you cover it, the photocell reacts as
if it is nighttime, and the lamps turn on.
[CF19500( BC )04/96]
To turn the autolamp off, move the thumbwheel
back to OFF.
*
[CF19700( BCGV)01/96]
You can set the autolamp so the lamps stay on
for up to three minutes after you turn your
vehicle off.
[CF19800( BC )12/95]
To keep the lamps on after you leave your
vehicle, turn the thumbwheel as far into the
MAX range as you want.
[CF19900( BC )12/95]
If you move the thumbwheel only slightly into
the DELAY area, your lamps will stay on for
only a moment after you turn your vehicle off.
The further you move the thumbwheel into the
DELAY area (toward the MAX position), the
longer the lamps will stay on after you turn
your vehicle off.
%*
[CF20000( ALL)01/96]
Lighting Up the Interior and Instrument
Panel
[CF20100( BC )12/95]
Manual operation
*
[CF20200( BC )12/95]
With the light knob in the parking lamps or the
headlamps position, you can brighten or dim the
lights in the instrument panel. To do this, use
the thumbwheel to the left of the steering wheel.
This wheel also turns on the interior lights with
the light knob on or off.
File:05rccfb.ex
Update:Fri Jun 7 14:36:35 1996

71 [CF20205( BC )05/96]
Turn the thumbwheel down to dim the
instrument panel light and up to brighten. Turn
thumbwheel fully upward to turn on interior
lights.
[CF20500( BC )05/96]
half page art:0010206-D
The thumbwheel controls the light on the instrument panel
and the interior light
%*
[CF20800( ALL)03/96]
Clock
[CF21100( BC )12/95]
quarter page art:0011164-B
The digital clock
[CF21200( ALL)12/95]
1. To set the hour, press and hold the H
button. When the desired hour appears,
release the button.
File:05rccfb.ex
Update:Fri Jun 7 14:36:35 1996

72 [CF21300( ALL)12/95]2. To set the minutes, press and hold the M
button. When the desired minute appears,
release the button.
% [CF23300( ALL)03/96]Using the Remote Control for the
Trunk (If equipped)
[CF23500( BC )12/95]
With the ignition switch in the ON or ACC
position, you can use the remote control under
your console armrest to unlock and open the
trunk.
[CF23800( BC )05/96]
quarter page art:0010359-D
The trunk release button located under the armrest
*
[CF24100( ALL)01/96]
Ignition
%*
[CF24200( ALL)01/96]
Understanding the Positions of the Ignition
[CF24300( ALL)12/95]
quarter page art:0010035-B
The positions of the key in the ignition
*
[CF24500( BCGV)04/96]
ACC allows some of your vehicle's electrical
accessories such as the radio and the windshield
wipers to operate while the engine is not
running.
File:05rccfb.ex
Update:Fri Jun 7 14:36:35 1996

73 % [CF24600( ALL)12/95]
LOCK locks the steering wheel. It also locks the
automatic transmission gearshift lever.
*
[CF24700( ALL)01/96]
LOCK is the only position that allows you to
remove the key. The LOCK feature helps to
protect your vehicle from theft.
*
[CF24800( ALL)01/96]
OFF allows you to shut off the engine and all
accessories without locking the steering wheel or
the automatic transmission gearshift lever.
*
[CF24900( ALL)01/96]
ON allows you to test your vehicle's warning
lights (except the brake system warning light) to
make sure they work before you start the
engine. The key returns to the ON position once
the engine is started and remains in this position
while the engine runs.
*
[CF25000( ALL)01/96]
START cranks the engine. Release the key once
the engine starts so that you do not damage the
starter. The key should return to ON when you
release it. The START position also allows you
to test the brake warning light.
%*
[CF25100( ALL)03/96]
Removing the Key From the Ignition
*
[CF25200( BCGV)03/96]
1. Put the gearshift in P (Park).
*
[CF25400( ALL)01/96]
2. Set the parking brake fully.
*
[CF25500( BCGV)03/96]
3. Turn the ignition key to LOCK.
*
[CF25700( BCGV)03/96]
4. Remove the key.
[CF26300( BCGV)12/95]
NOTE: The automatic transmission gearshift
must be in P (Park) to move the key to
the lock position.
%*
[CF26400( ALL)01/96]
If the key is stuck in the LOCK position, move
the steering wheel left or right until the key
turns freely.
%*
[CF26500( ALL)12/95]
If the driver's door is open while the key is still
in the ignition, a warning chime sounds.
File:05rccfb.ex
Update:Fri Jun 7 14:36:35 1996

74
*
[CF26700( BCGV)05/96]
RWARNING
Always set the parking brake fully and
make sure the gearshift is latched in P
(Park). Turn off the ignition whenever you
leave your vehicle.
*
[CF26800( ALL)03/96]
RWARNING
Do not leave children, unreliable adults,
or pets unattended in your vehicle.
%
*
[CF26900( ALL)02/96]
The Turn Signal Lever
*
[CF27000( ALL)02/96]
You can use the turn signal lever on the left side
of the steering column to:
[CF27100( ALL)04/96]
q
operate the turn signals
*
[CF27200( ALL)03/96]
q
turn the high beams on/off
*
[CF27300( ALL)03/96]
q
flash the lamps
*
[CF27400( ALL)03/96]
q
turn the windshield wipers and washer
on/off
[CF27600( ALL)12/95]
one third page art:0011292-A
The turn signal lever
File:05rccfb.ex
Update:Fri Jun 7 14:36:35 1996

75 %
*
[CF27700( ALL)01/96]
Turn Signals
*
[CF27800( ALL)01/96]
Move the lever up to signal a right turn. Move
it down to signal a left turn. The corresponding
indicator light in the instrument cluster will
flash.
*
[CF27900( ALL)01/96]
If the turn signal stays on after you turn, move
the lever back to the center (off) position.
*
[CF28000( ALL)01/96]
For lane changes, move the lever far enough to
signal but not to latch. The lever will return to
the off position when you release it.
%*
[CF28200( ALL)01/96]
High Beams
*
[CF28300( ALL)01/96]
To turn on the high beams, turn the headlamp
control knob to the headlamp ON position and
push the turn signal lever away from you until
it latches. When the high beams are ON, the
high beam indicator light on the instrument
panel comes on.
*
[CF28400( ALL)01/96]
To turn off the high beams, pull the lever
toward you until it latches. The high beam
indicator light turns off.
%*
[CF28700( ALL)01/96]
Flashing the Lights
*
[CF28800( ALL)01/96]
To flash the headlamps, pull the lever toward
you for a moment and then release it. The
headlamps will flash whether the headlamp
knob is in the on or off position.
%
*
[CF28900( ALL)01/96]
Windshield Wipers and Washer
*
[CF29000( ALL)04/96]
To turn on the windshield wipers, the ignition
key must be turned to the ON or ACC position.
[CF29100( ALL)12/95]
Rotate the end of the lever away from you to
activate the wipers. The first seven detents are
interval wipe positions, the eighth detent is the
LO position and the ninth detent is the HI
position.
File:05rccfb.ex
Update:Fri Jun 7 14:36:35 1996

76 [CF29200( ALL)04/96]To turn the wipers off, turn the knob toward
you to the OFF position.
%*
[CF29300( ALL)01/96]
Variable Interval Wipers
*
[CF29400( ALL)12/95]
In addition to two speed wipers, your vehicle
has wipers that you can set to operate at
varying intervals. For example, you can set the
interval so they wipe less often when it drizzles
or more often in heavier rain.
[CF29500( ALL)12/95]

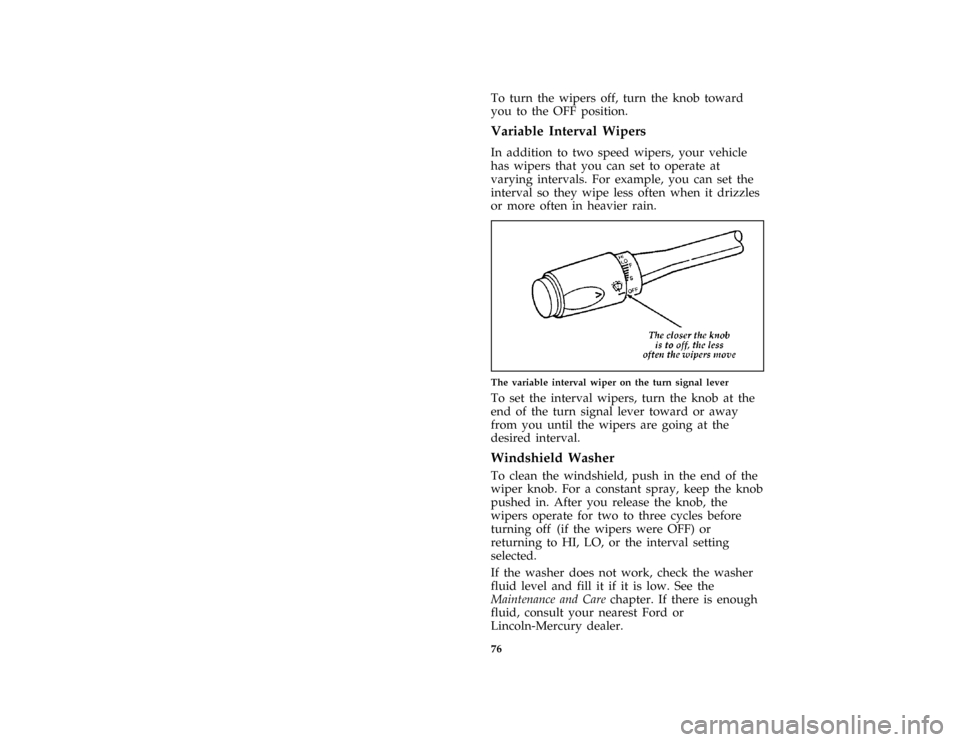

one third page art:0011293-A
The variable interval wiper on the turn signal lever
[CF29600( ALL)04/96]
To set the interval wipers, turn the knob at the
end of the turn signal lever toward or away
from you until the wipers are going at the
desired interval.
*
[CF29700( ALL)01/96]
Windshield Washer
*
[CF29800( ALL)12/95]
To clean the windshield, push in the end of the
wiper knob. For a constant spray, keep the knob
pushed in. After you release the knob, the
wipers operate for two to three cycles before
turning off (if the wipers were OFF) or
returning to HI, LO, or the interval setting
selected.
*
[CF29900( ALL)03/96]
If the washer does not work, check the washer
fluid level and fill it if it is low. See the
Maintenance and Carechapter. If there is enough
fluid, consult your nearest Ford or
Lincoln-Mercury dealer.
File:05rccfb.ex
Update:Fri Jun 7 14:36:35 1996

77
*
[CF30000( ALL)08/95]
Do not try to clean the windshield when the
washer fluid container is empty or activate the
washers at any time for more than 15 seconds
continuously. This could damage the washer
pump system.
*
[CF30100( ALL)01/96]
RWARNING
Always warm up the windshield with the
defroster before you use the washer fluid.
In freezing weather, the washer solution
may freeze on the windshield and obscure
your vision.
*
[CF30200( ALL)03/96]
For information about refilling the washer fluid
or replacing your windshield wiper blades, see
Windshield washer fluid and Wipersin the Index.
%
*
[CF30300( ALL)03/96]
Hazard Flasher
[CF30400( ALL)05/96]
The hazard flasher serves as a warning to other
drivers to be careful when approaching or
passing your vehicle.
[CF30500( BCGV)05/96]

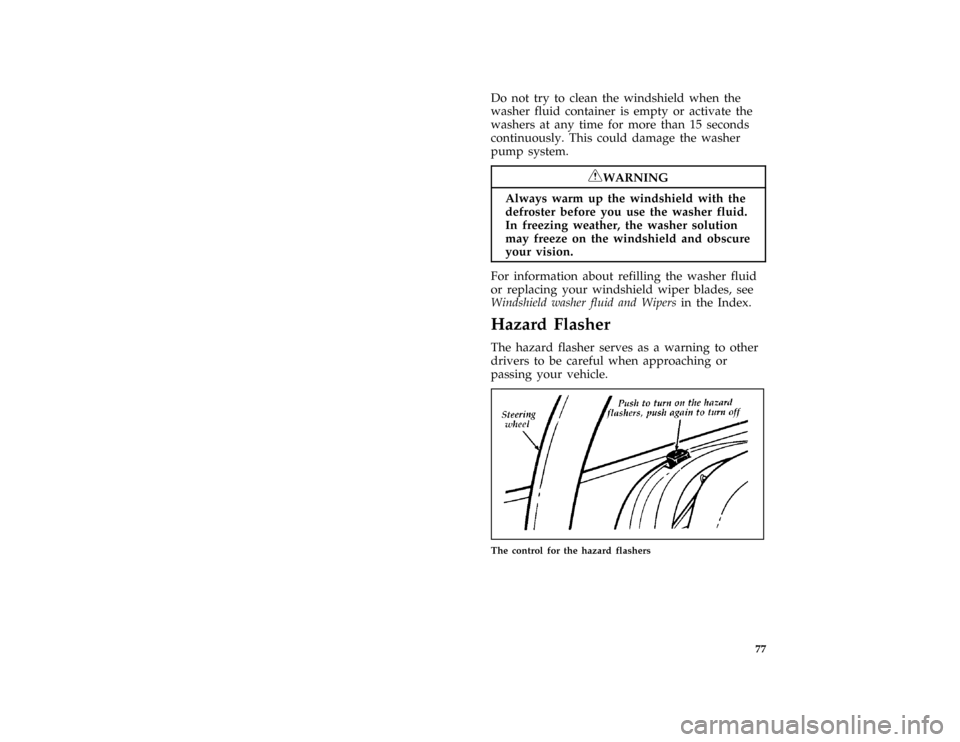

one third page art:0010216-B
The control for the hazard flashers
File:05rccfb.ex
Update:Fri Jun 7 14:36:35 1996

78
%*
[CF30700( ALL)04/96]
Horn
*
[CF30800( ALL)01/96]
To sound the horn, push the center pad area of
the steering wheel.
[CF30900( BC )12/95]

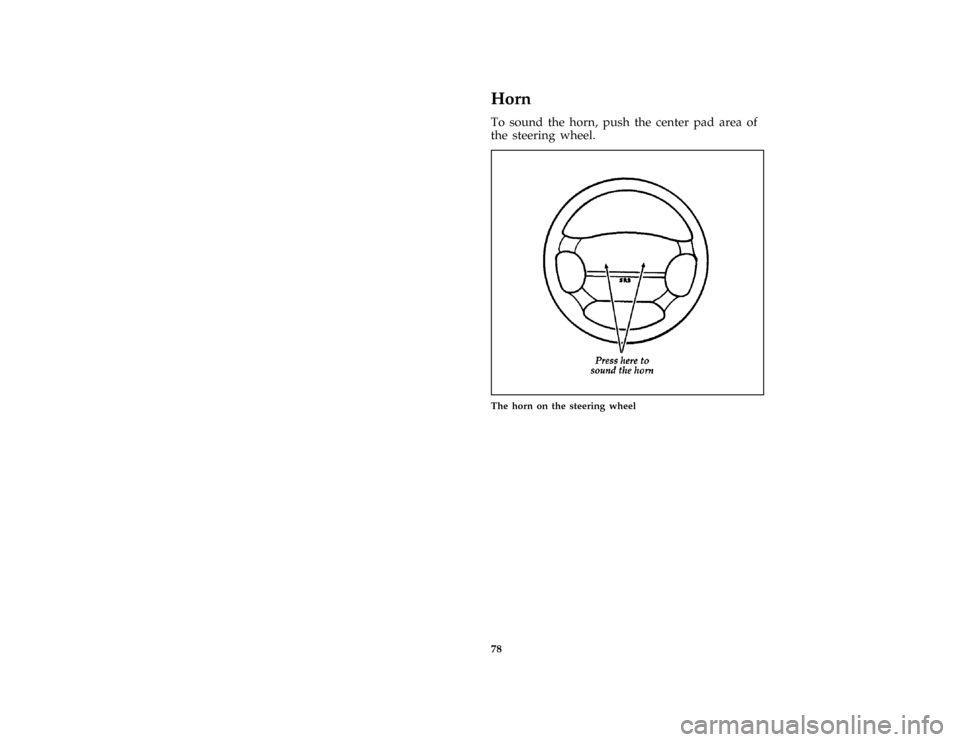

half page art:0001012-B
The horn on the steering wheel
