Installing Child Safety Seats in the Rear
Outboard Seating Positions
*
[SS32900( BC )05/96]
Your rear outboard seating positions are
equipped with a cinch tongue on the safety
belts. Use the following procedure for installing
a child safety seat in these locations.
*
[SS33000( BC )05/96]

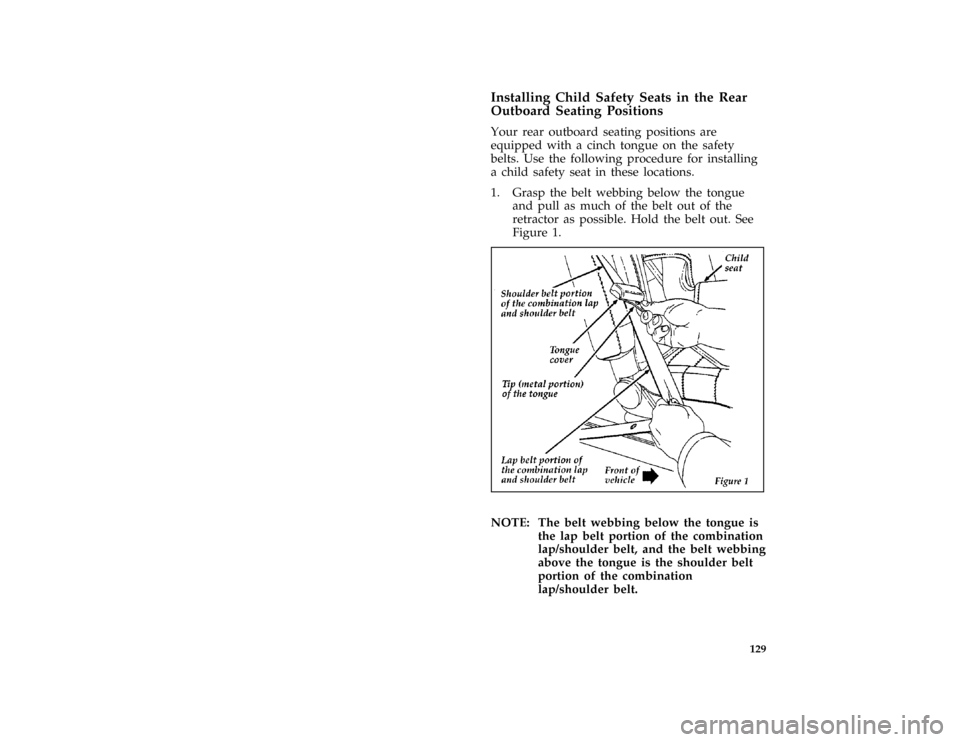

1. Grasp the belt webbing below the tongue
and pull as much of the belt out of the
retractor as possible. Hold the belt out. See
Figure 1.
[SS33100( BC )05/96]
half page art:0011363-A*
[SS33200( BC )05/96]
NOTE: The belt webbing below the tongue is
the lap belt portion of the combination
lap/shoulder belt, and the belt webbing
above the tongue is the shoulder belt
portion of the combination
lap/shoulder belt.
File:06rcssb.ex
Update:Thu May 30 10:58:44 1996

130
*
[SS33300( BC )05/96]
2. With your other hand, grasp the tip (metal
portion) of the tongue (not the cover) and
slide the tongue up the webbing as far as it
will go. See Figure 1. Release the tongue, but
do not let go of the lap portion of the belt
webbing.
*
[SS33400( BC )05/96]
3. While still holding the belt webbing below
the tongue in one hand, use your other hand
to grasp the tip (metal portion) of the tongue
and belt webbing together, and again pull
out as much of the belt as possible. Then, let
go of the lap portion of the belt webbing.
*
[SS33500( BC )05/96]

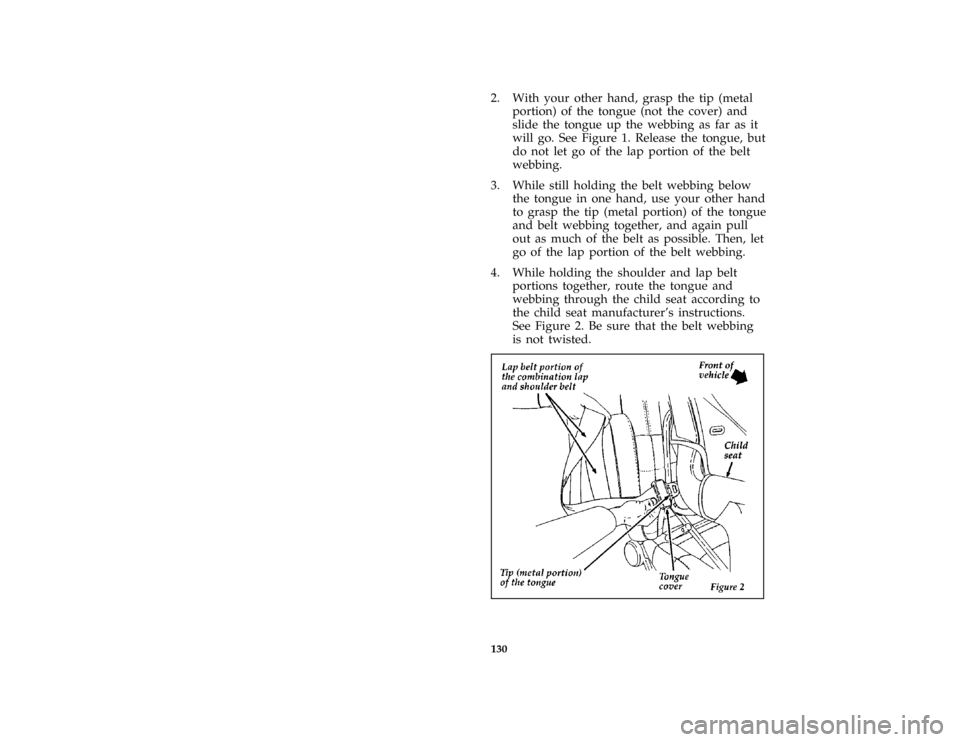

4. While holding the shoulder and lap belt
portions together, route the tongue and
webbing through the child seat according to
the child seat manufacturer's instructions.
See Figure 2. Be sure that the belt webbing
is not twisted.
[SS33600( BC )04/96]
half page art:0011364-AFile:06rcssb.ex
Update:Thu May 30 10:58:44 1996

131
*
[SS33700( BC )05/96]

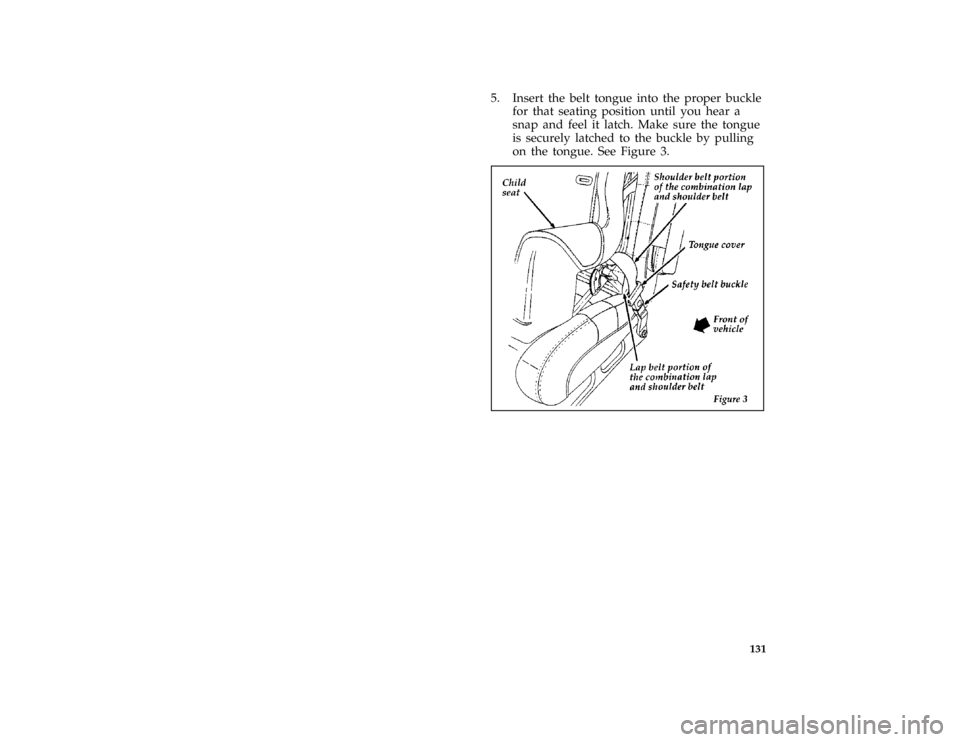

5. Insert the belt tongue into the proper buckle
for that seating position until you hear a
snap and feel it latch. Make sure the tongue
is securely latched to the buckle by pulling
on the tongue. See Figure 3.
[SS33800( BC )04/96]
half page art:0011365-AFile:06rcssb.ex
Update:Thu May 30 10:58:44 1996

132
*
[SS33900( BC )05/96]

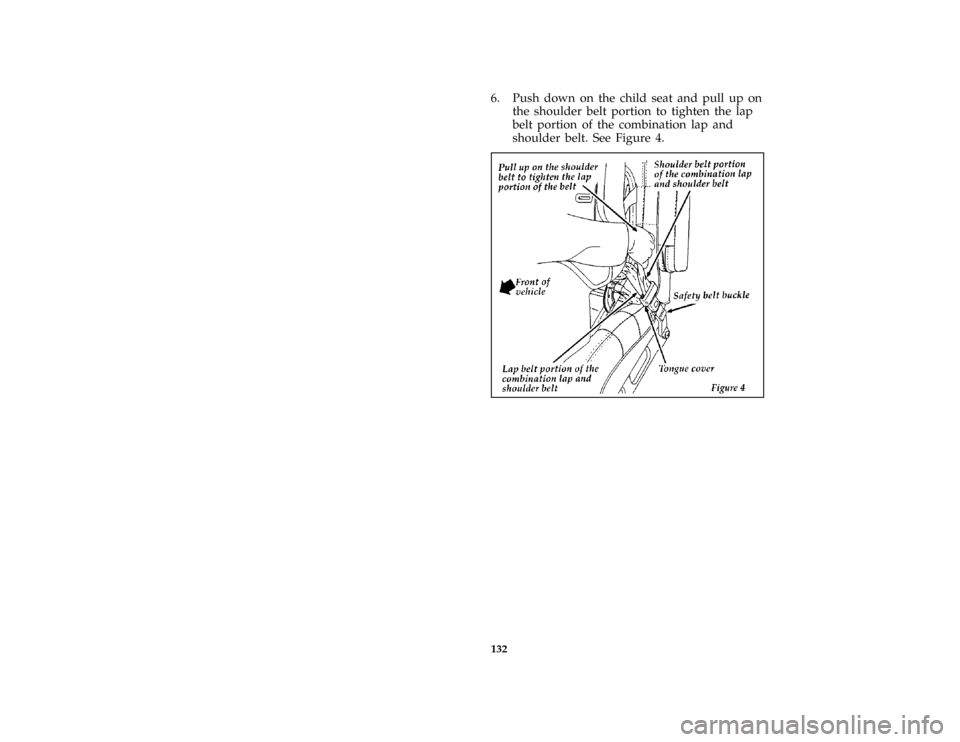

6. Push down on the child seat and pull up on
the shoulder belt portion to tighten the lap
belt portion of the combination lap and
shoulder belt. See Figure 4.
[SS34000( BC )04/96]
half page art:0011366-AFile:06rcssb.ex
Update:Thu May 30 10:58:44 1996

133
*
[SS34100( BC )05/96]

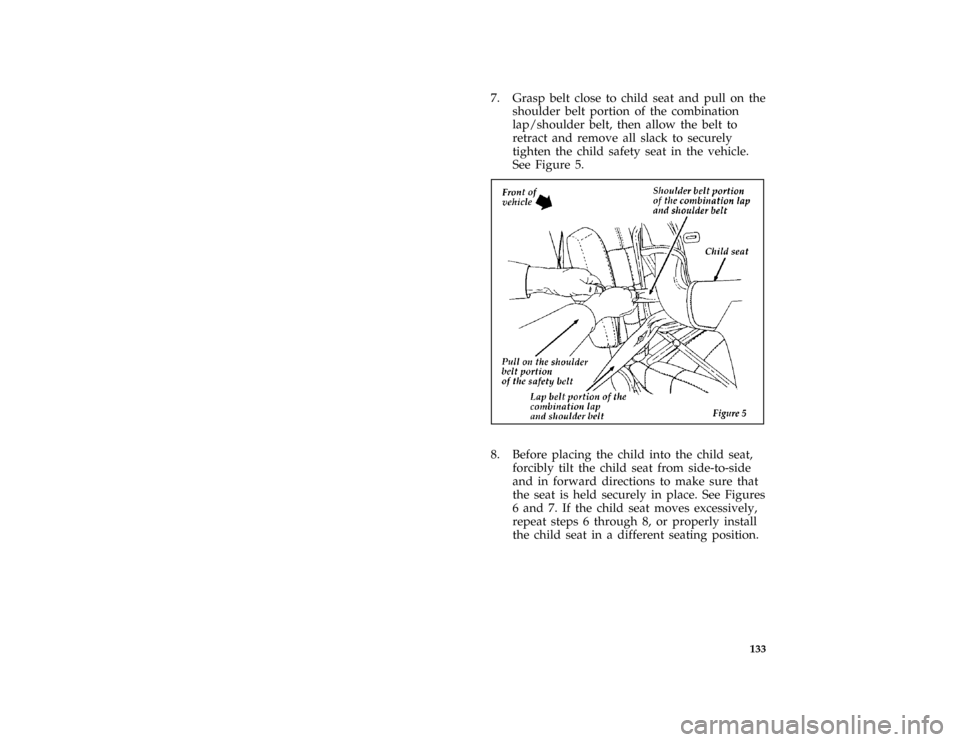

7. Grasp belt close to child seat and pull on the
shoulder belt portion of the combination
lap/shoulder belt, then allow the belt to
retract and remove all slack to securely
tighten the child safety seat in the vehicle.
See Figure 5.
[SS34200( BC )04/96]
half page art:0011367-A*
[SS34300( BC )05/96]

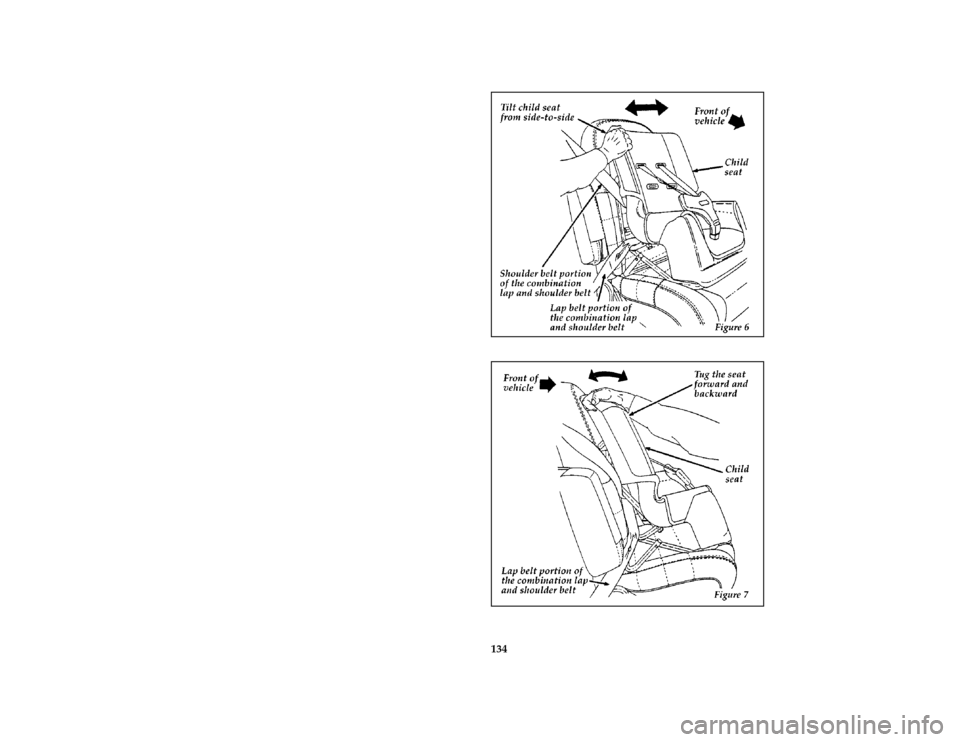

8. Before placing the child into the child seat,
forcibly tilt the child seat from side-to-side
and in forward directions to make sure that
the seat is held securely in place. See Figures
6 and 7. If the child seat moves excessively,
repeat steps 6 through 8, or properly install
the child seat in a different seating position.
File:06rcssb.ex
Update:Thu May 30 10:58:44 1996

134 [SS34400( BC )12/95]
half page art:0011368-A
[SS34500( BC )04/96]
half page art:0011369-AFile:06rcssb.ex
Update:Thu May 30 10:58:44 1996

135
*
[SS34600( BC )05/96]
9. Check from time to time to be sure that
there is no slack in the lap/shoulder belt.
The shoulder belt must be snug to keep the
lap belt tight during a collision.
% [SS34700( BC )05/96]
Installing a Child Safety Seat at the Rear
Center Seating Position with Adjustable
Lap Belt
*
[SS34800( BCGV)01/96]
1. Lengthen the lap belt. To lengthen the belt,
hold the tongue so that its bottom is
perpendicular to the direction of webbing
while sliding the tongue up the webbing.
*
[SS34900( BCGV)01/96]
2. Place the child safety seat in the center
seating position.
*
[SS35000( BCGV)01/96]
3. Route the tongue and webbing through the
child seat according to the child seat
manufacturer's instructions.
*
[SS35100( BCGV)01/96]
4. Insert the belt tongue into the proper buckle
for the center seating position until you hear
a snap and feel it latch. Make sure the
tongue is securely fastened to the buckle by
pulling on tongue.
*
[SS35200( BCGV)01/96]
5. Push down on the child seat while pulling
on the loose end of the lap belt webbing to
tighten the belt.
[SS35300( BCGV)12/95]
6. Before placing the child into child seat,
forcibly tilt the child seat from side-to-side
and in forward direction to ensure that the
seat is held securely in place. If the child
seat moves excessively, repeat steps 5
through 6, or properly install the child seat
in a different position.
File:06rcssb.ex
Update:Thu May 30 10:58:44 1996

136 [SS35320( ALL)04/96]Attaching Safety Seats with Tether Straps
*
[SS35340( ALL)04/96]
Some manufacturers make safety seats that
include a tether strap that goes over the back of
the vehicle seat and attaches to an anchoring
point. Other manufacturers offer the tether strap
as an accessory. Contact the manufacturer of
your child safety seat for information about
ordering a tether strap.
%*
[SS35360( ALL)04/96]
Tether anchorage hardware
[SS35380( ALL)05/96]
Attachment holes (at each rear seating position)
have been provided in your vehicle to attach
anchor hardware, if required. Tether anchor
hardware kits (Part number 613D74), including
instructions, may be obtained at no charge from
any Ford or Lincoln-Mercury dealer. All vehicles
built for sale in Canada include a tether anchor
hardware kit.
%*
[SS35400( ALL)01/96]
Safety Belts for Children
*
[SS35500( ALL)01/96]
Children who are too large for child safety seats
should always wear safety belts. (See instructions
with your child seat, or contact its manufacturer,
to determine maximum size of child that will
safely fit in the seat.)
*
[SS35600( ALL)01/96]
RWARNING
If safety belts are not properly worn and
adjusted as described, the risk of serious
injury to the child in a collision will be
much greater.
*
[SS35700( ALL)01/96]
If the shoulder belt portion of one of the lap and
shoulder belts can be positioned so that it does
not cross or rest in front of the child's face or
neck, the child should wear the lap and shoulder
belt. Moving the child closer to the center of the
vehicle may help provide a good shoulder belt
fit.
File:06rcssb.ex
Update:Thu May 30 10:58:44 1996

137 [SS35800( BC )12/95]
RWARNING
If the shoulder belt cannot be properly
positioned, the child should sit in the
center rear seat and use the lap belt.
*
[SS36000( ALL)01/96]
To improve the fit of lap and shoulder belts on
children who have outgrown child safety seats,
Ford recommends use of a belt-positioning
booster seat that is labelled as conforming to all
Federal motor vehicle safety standards.
Belt-positioning booster seats raise the child and
provide a shorter, firmer seating cushion that
encourages safer seating posture and better fit of
lap and shoulder belts on the child. A
belt-positioning booster should be used if the
shoulder belt rests in front of the child's face or
neck, or if the lap belt does not fit snugly on
both thighs, or if the thighs are too short to let
the child sit all the way back on the seat cushion
when the lower legs hang over the edge of the
seat cushion. You may wish to discuss the
specific needs of your child with your
pediatrician.
*
[SS36100( ALL)01/96]
RWARNING
Do not use a belt-positioning booster with
a lap-only belt.
*
[SS36200( ALL)01/96]
Lap belts and the lap belt portion of lap and
shoulder belts should always be worn snugly
and below the hips, touching the child's thighs.
*
[SS36300( ALL)02/96]
RWARNING
Children should always ride with the
seatback in the fully upright position.
File:06rcssb.ex
Update:Thu May 30 10:58:44 1996

139
Starting
%*
[TO00200( ALL)01/96]
Fuel-Injected Engines
*
[TO00300( ALL)01/96]
When starting a fuel-injected engine,the most
important thing to remember is to avoid
pressing down on the accelerator before or
during starting. Only use the accelerator when
you have problems getting your vehicle started.
SeeStarting Your Enginein this chapter for
details about when to use the accelerator while
you start your vehicle.
*
[TO00400( ALL)01/96]
Starting Your Vehicle
%*
[TO00500( ALL)01/96]
Preparing to Start Your Vehicle
*
[TO00600( ALL)02/96]
RWARNING
Do not start your vehicle in a closed
garage or in other enclosed areas. Exhaust
fumes can be toxic. Always open the
garage door before you start the engine.
*
[TO00700( ALL)01/96]
Before you start your vehicle, do the following:
*
[TO00800( ALL)01/96]
1. Make sure all occupants in the vehicle
buckle their safety belts. SeeSafety Restraints
in the Index for more details.
*
[TO00900( ALL)01/96]
2. Make sure the headlamps and other
accessories are turned off when starting.
*
[TO01200( BCGV)01/96]
3. Make sure that the gearshift is in P (Park)
and the parking brake is set before you turn
the key.
