FORD THUNDERBIRD 1997 10.G Owners Manual

160
*
[GF19300( ALL)05/96]
Always check the pressure in all your vehicle's
tires when preparing to tow (see inflation
recommendation on the tire label).
%*
[GF19400( ALL)05/96]
Using the hitch
*
[GF19500(MBC )12/95]
Your vehicle uses aload carryinghitch. Because
this type of hitch places the tongue load of a
trailer on the rear wheels of your vehicle, you
must distribute the load in your trailer so that
only 10 to 15% of the total weight of the trailer
is on the tongue.
*
[GF20000( ALL)05/96]
Tie down the load so that it does not shift and
change the weight on the hitch. This will
prevent damage to your vehicle and make your
vehicle easier to handle.
%*
[GF21000( ALL)05/96]
Connecting the safety chains
*
[GF21100( ALL)05/96]
Always attach the trailer's safety chains to your
vehicle. They help protect your trailer if the
hitch breaks.
*
[GF21200( ALL)05/96]
To connect the trailer's safety chains:
*
[GF21300( ALL)05/96]
1. Cross the chains under the trailer tongue
and attach them to your vehicle's frame or
hook retainers. Never attach the safety
chains to your vehicle's bumper. The bumper
is not designed to bear the weight of a
trailer.
*
[GF21400( ALL)05/96]
2. Make sure that you leave enough slack in
the chains to allow you to turn corners.
*
[GF21500( ALL)05/96]
If you use a rental trailer, follow the instructions
that the rental agency gives you.
File:09rcgfb.ex
Update:Thu May 30 10:59:34 1996

161 %
*
[GF21600( ALL)05/96]
Connecting the trailer's brakes
*
[GF21700( ALL)05/96]
Electric brakes and manual, automatic, or
surge-type hydraulic brakes are safe if you
install them properly and adjust them according
to the manufacturer's instructions. Be sure that
your trailer's brakes meet local and federal
regulations.
*
[GF21900( ALL)05/96]
RWARNING
Do not connect a trailer's hydraulic brake
system directly to your vehicle's brake
system. Your vehicle may not have
enough braking power and your chances
of having a collision greatly increase.
%*
[GF22000( ALL)05/96]
Connecting the trailer's lights
*
[GF22100( ALL)05/96]
Do not connect a trailer's lighting system
wiring directly to your vehicle's lighting system
wiring.To get the proper equipment for
hooking up your trailer's lights, see your local
trailer dealer and your Ford dealer. Be sure to
follow their instructions carefully.
*
[GF22300( ALL)05/96]
If you do not install trailer lights correctly, you
may cause damage to the vehicle's lighting
system.
%*
[GF22400( ALL)05/96]
Driving While You Tow
*
[GF22500( ALL)05/96]
Be especially careful when driving while you
tow a trailer. Never drive faster than 45 mph
(70 km/h) when you tow in hilly country on
hot days. Also, anticipate stops so that you can
brake gradually.
[GF22800(MBC )12/95]
If you tow in Overdrive while riding through
hilly country, your vehicle may frequently shift
between Overdrive and Third gears. To prevent
your vehicle from shifting too much, depress the
File:09rcgfb.ex
Update:Thu May 30 10:59:34 1996

162Transmission Control Switch (TCS). This will
also give the engine more power going up hills
and better engine braking going down hills.
%*
[GF23100( ALL)05/96]
If you use the speed control while you are
towing on very long, steep grades, the speed
control may shut off.
[GF23200( ALL)05/96]
Servicing Your Vehicle If You Tow
*
[GF23300( ALL)05/96]
If you tow a trailer for a long distance, your
vehicle will need to be serviced more frequently
than usual. Refer to theMaintenance Schedule
booklet for additional information.
%
*
[GF23600( ALL)01/96]
Driving Under Special Conditions
%*
[GF23700( ALL)01/96]
Tips for Safe Driving
*
[GF23800( ALL)01/96]
As with any new vehicle, yours may drive and
handle differently from your previous vehicle.
Use care until you become accustomed to its
various features and driving characteristics.
*
[GF23900( ALL)01/96]
Operate your vehicle within reasonable limits.
Sudden acceleration, deceleration, turning, or
combinations of these maneuvers can cause a
vehicle to behave differently than anticipated.
%*
[GF24000( ALL)01/96]
Driving in Bad Weather
%*
[GF24100( ALL)01/96]
Slippery roads
*
[GF24200( ALL)01/96]
Drive cautiously on wet or snowy roads:
*
[GF24300( ALL)01/96]
q
Do not quickly move the steering wheel
unless necessary.
*
[GF24400( ALL)01/96]
q
Drive slower than you normally would.
*
[GF24500( ALL)01/96]
q
Do not use speed control.
*
[GF24600( ALL)01/96]
q
Give your vehicle more distance to stop.
[GF24700( ALL)04/96]
q
Pump the brake pedal steadily and evenly to
avoid locking your wheels. (Does not apply
to vehicles with anti-lock brakes.)
File:09rcgfb.ex
Update:Thu May 30 10:59:34 1996

163
*
[GF24800( ALL)01/96]
q
Consider using one of the lower gears.
*
[GF25000( BCGV)01/96]
RWARNING
To avoid skidding and losing control on
slippery roads, do not downshift into 1
(First) when you are moving faster than
20 mph (30 km/h).
*
[GF25100( ALL)05/96]
RWARNING
Do not use the speed control in heavy
traffic or on roads that are winding,
slippery, or unpaved.
[GF25300(MBC )01/96]
If your vehicle gets stuck (for example, in mud
or snow), you may try to ªrockº it out of the
spot. Shift, in a steady rhythm, between forward
and reverse gears. At the same time, press
lightly on the accelerator.
*
[GF25400( ALL)01/96]
RWARNING
Do not spin the wheels at over 35 mph
(55 km/h). The tires may fail and injure a
passenger or bystander.
[GF25500( ALL)12/95]
By moving the vehicle backward and forward,
you may gain enough momentum to move out
of the spot. Do not rock the vehicle for more
than a few minutes. This may overheat the
engine, damage the transmission, or damage the
tires. If you are still stuck after a minute or two
of rocking, call for a tow truck.
File:09rcgfb.ex
Update:Thu May 30 10:59:34 1996

164 %
*
[GF25600( ALL)01/96]
High water
*
[GF25700( ALL)01/96]
Do not drive through flooded areas unless you
are sure that the water is below the bottom of
the wheel rims.
*
[GF25800( ALL)01/96]
If you must drive through high water, drive
slowly. You may have limited traction or wet
brakes, so allow extra stopping distance because
your vehicle will not stop as quickly as usual.
*
[GF25900( ALL)01/96]
After you drive through the standing water,
apply your brakes gently several times as your
vehicle moves slowly. This helps to dry the
brakes.
File:09rcgfb.ex
Update:Thu May 30 10:59:34 1996

165
Roadside Emergencies
[ER00175( ALL)03/96]
Hazard Flashers
*
[ER00200( ALL)01/96]
The flashers work whether your vehicle is
running or not. The flashers work for up to two
hours when the battery is fully charged and in
good condition without draining the battery
excessively. If the flashers run for longer than
two hours or if the battery is not fully charged,
the battery can be drained.
% [ER00400(MBC )12/95]Fuses, High Current Fuses and
Circuit Breakers
*
[ER00500( ALL)12/95]
Fuses (conventional and high current) and circuit
breakers protect your vehicle's wiring system
from overloading. If electrical parts in your
vehicle are not working, the system may have
been overloaded and blown a fuse or tripped a
circuit breaker. Before you replace or repair any
electrical parts, check the appropriate fuses
(conventional and high current) or circuit
breakers.
*
[ER00600( ALL)12/95]
The following charts tell you which fuses or
circuit breakers protect the wiring for each
electrical part of your vehicle. If a fuse blows or
a circuit breaker opens a circuit,allthe parts of
your vehicle that use that circuit will not work.
*
[ER00700( ALL)12/95]
Once you have determined which fuses or circuit
breakers to check, follow the procedures under
Checking and replacing fusesorChecking and
replacing circuit breakersin this chapter.
File:10rcerb.ex
Update:Thu May 30 11:01:08 1996

166 [ER00900( BC )12/95]

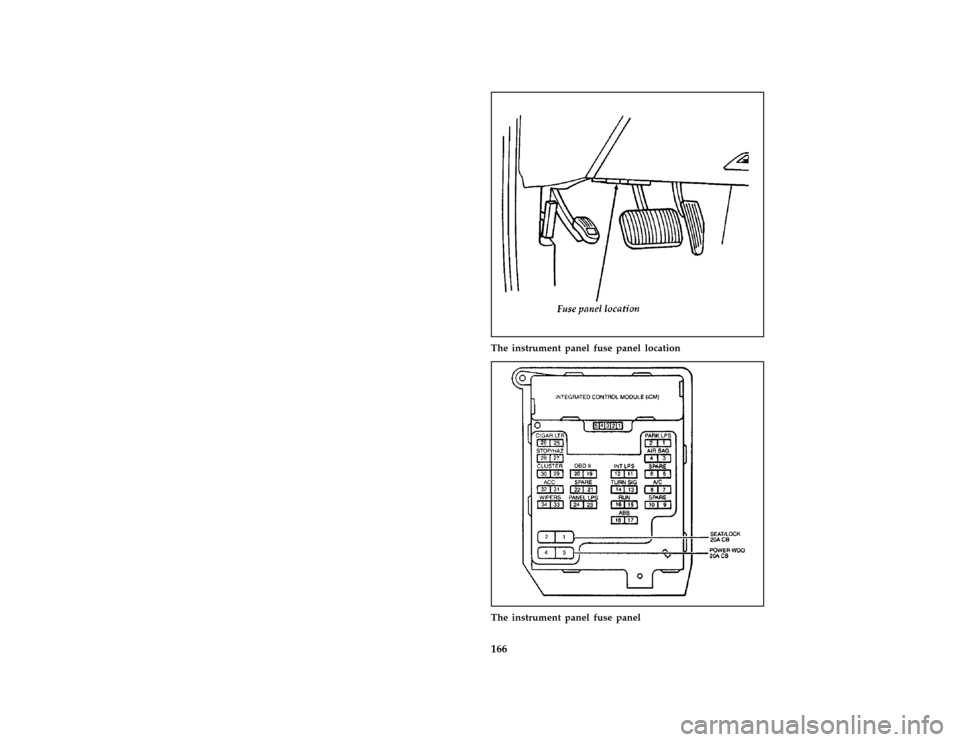

half page art:0010412-BThe instrument panel fuse panel location
[ER01100( BC )05/96]
half page art:0010413-D
The instrument panel fuse panel
File:10rcerb.ex
Update:Thu May 30 11:01:08 1996

167 %
*
[ER01300( ALL)05/96]
The Instrument Panel Fuses, Circuit
Breakers and Relays
[ER01600( BC )05/96]
thirty-four pica chart:0010392-KFile:10rcerb.ex
Update:Thu May 30 11:01:08 1996

168 %
*
[ER02300( ALL)12/95]
High Current Fuses
*
[ER02400( ALL)12/95]
High current fuses are circuit protectors that are
part of the wiring harness for some electrical
equipment. These, like fuses, open when the
circuit load exceeds their amperage rating. High
current fuses may be purchased from your Ford
or Lincoln-Mercury dealer.
*
[ER02500(MBC )12/95]
The high current fuse panel is located in the
engine compartment on the left-hand fender
apron.
*
[ER02700( ALL)01/96]
RWARNING
Always disconnect the battery before
servicing high current fuses.
*
[ER02800( ALL)01/96]
Ford recommends that high current fuses be
replaced by a qualified technician.
[ER03000( BC )12/95]

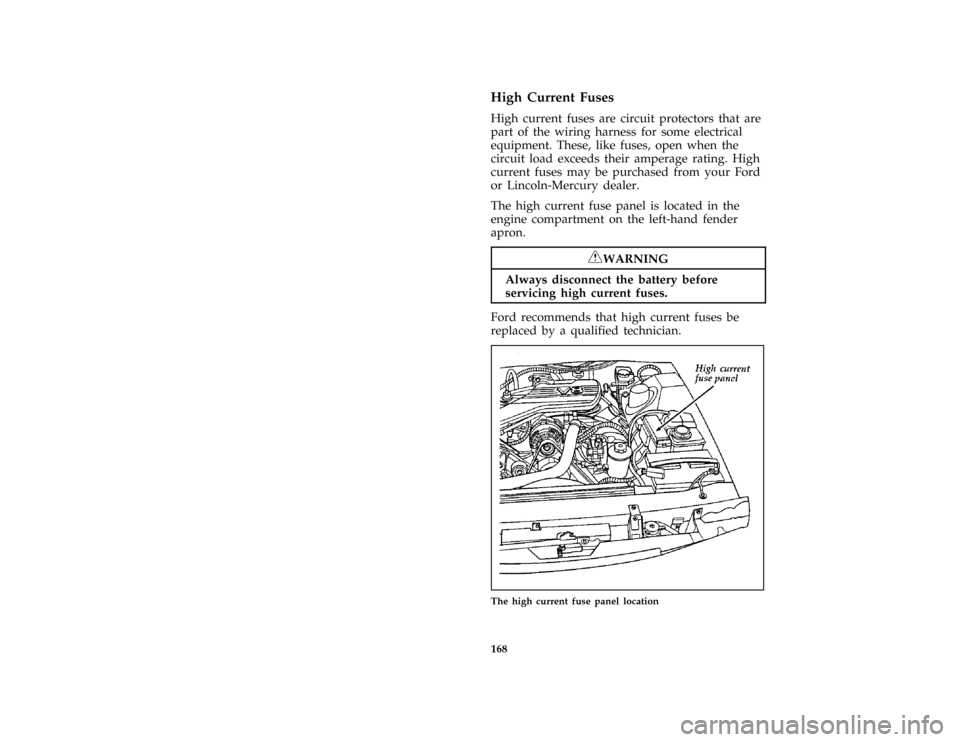

half page art:0011157-A
The high current fuse panel location
File:10rcerb.ex
Update:Thu May 30 11:01:08 1996

169 % [ER03100( ALL)12/95]

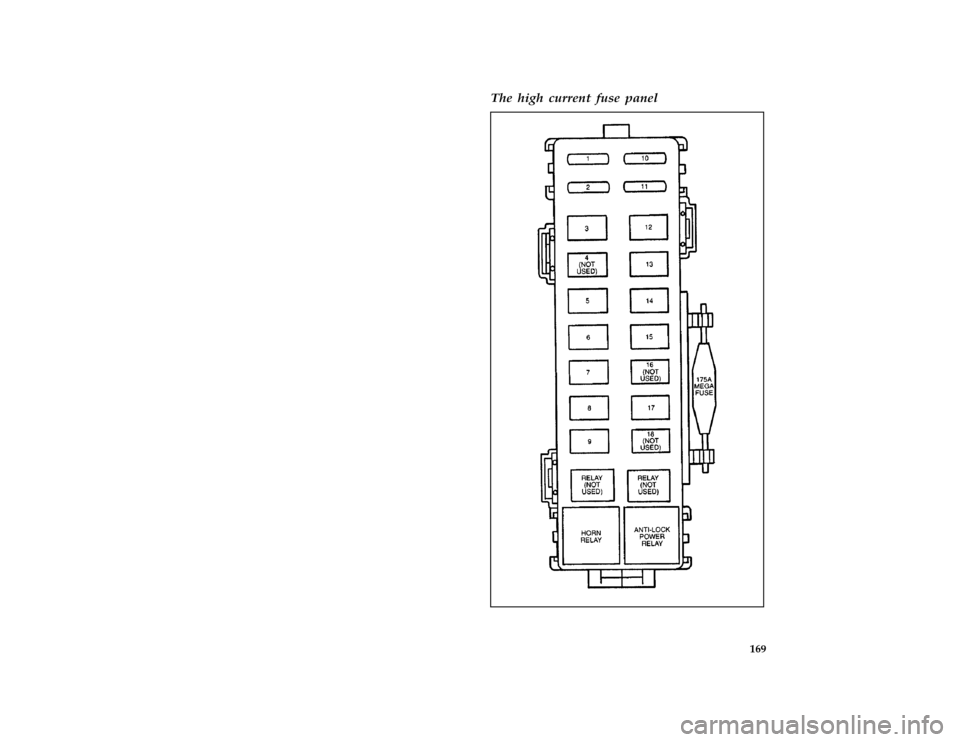

The high current fuse panel
[ER03300( BC )05/96]
full page art:0010428-FFile:10rcerb.ex
