Checking and Replacing Fuses
*
[ER04500( ALL)01/96]
If you need to check a fuse, follow these steps:
[ER04700( BC )12/95]
1. Find the fuse panel underneath the
instrument panel, to the left of the steering
column.
[ER05000( BCGV)12/95]
2. Check the fuse to see if it is blown. Look
through the clear side of the fuse to see if
the metal wire inside is separated. If it is,
the fuse should be replaced.
File:10rcerb.ex
Update:Thu May 30 11:01:08 1996

172 [ER05200( ALL)12/95]

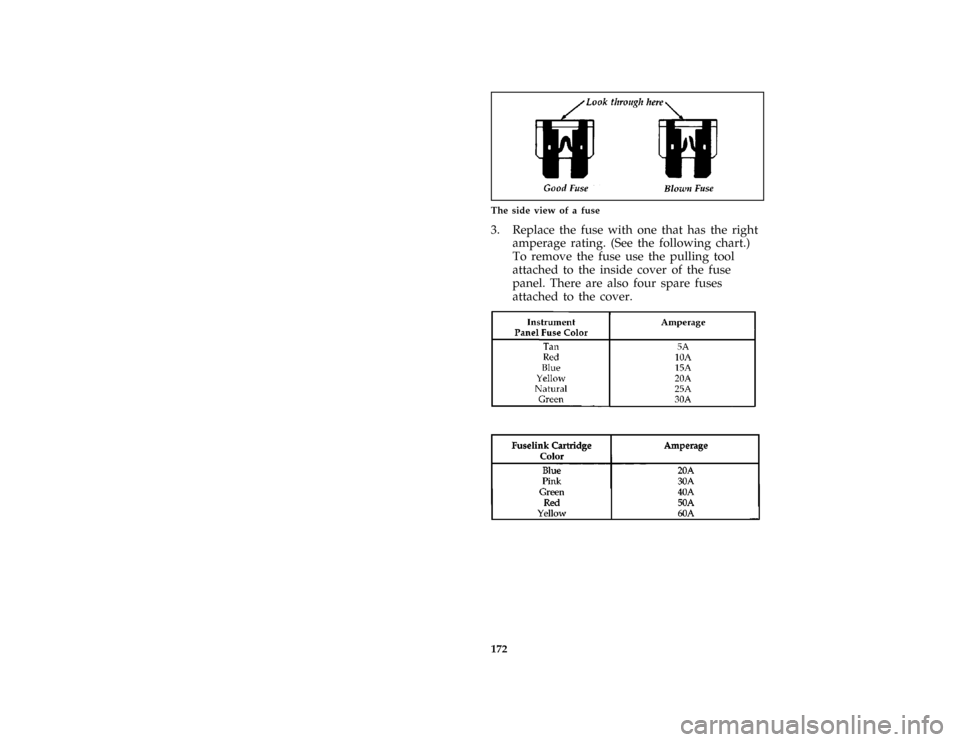

quarter page art:0010416-AThe side view of a fuse
[ER05400( BC )12/95]
3. Replace the fuse with one that has the right
amperage rating. (See the following chart.)
To remove the fuse use the pulling tool
attached to the inside cover of the fuse
panel. There are also four spare fuses
attached to the cover.
[ER05600( ALL)12/95]

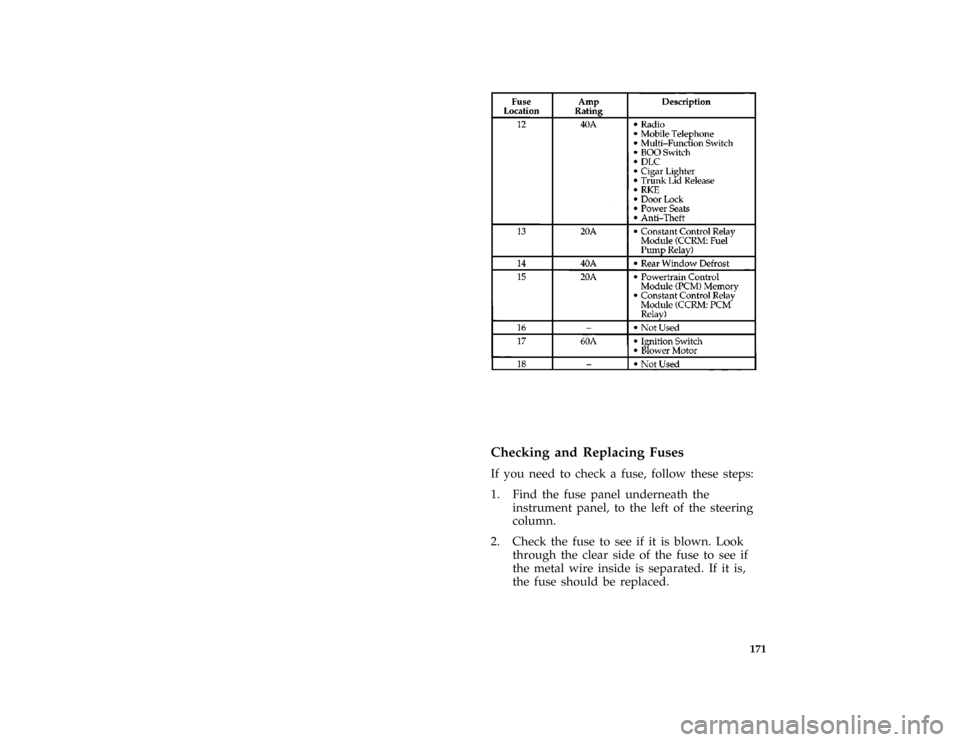

eight pica chart:0001092-B[ER05800( BC )12/95]
eight pica chart:0011219-AFile:10rcerb.ex
Update:Thu May 30 11:01:08 1996

173
*
[ER05900( ALL)01/96]
RWARNING
Always replace a fuse with one that has
the specified amperage rating. Using a
fuse with a higher amperage rating can
cause severe wire damage and could start
a fire.
[ER06000( BC )12/95]
4. Close the cover.
*
[ER06300( BCGV)04/96]
Even after you replace a fuse, it may continue to
blow if you do not find what caused the
overload. If the fuse continues to blow, have
your electrical system checked.
%*
[ER06400( ALL)01/96]
Circuit Breakers
*
[ER06500( ALL)12/95]
If you need to check a circuit breaker that is on
the fuse panel, seeChecking and replacing fusesin
this chapter to find out how to locate the fuse
panel.
[ER06600( ALL)12/95]
Circuit breakers will reset themselves and allow
the electrical parts to work again once the
overload on the circuit is removed. If the circuit
breakers continue to cut off electricity, have your
vehicle's electrical system checked.
*
[ER06700( ALL)01/96]
Diagnostic equipment is needed to check circuit
breakers. Refer to the manufacturer's
instructions.
*
[ER06800( ALL)01/96]
If you replace a circuit breaker, use one with the
same amperage rating. To remove a circuit
breaker mounted in the fuse panel, grip it with
your finger and thumb and pull it straight out
of its socket.
File:10rcerb.ex
Update:Thu May 30 11:01:08 1996

174
%*
[ER07300( ALL)01/96]
If the Engine Cranks but Does
Not Start or Does Not Start After
a Collision
% [ER07400( ALL)12/95]
Fuel System Shut-off Switch
[ER07500( ALL)05/96]
If the engine cranks but does not start or does
not start after a collision, the fuel system shut-off
switch may have been activated. The shut-off
switch is a device intended to stop the fuel
system when your vehicle has been involved in
a substantial jolt.
*
[ER07600( BCGV)04/96]
Once the shut-off switch is activated, you must
reset the switch by hand before you can start
your vehicle. The switch is on the left side of the
trunk.
[ER07900( BC )12/95]
one third page art:0010013-E
The fuel pump shut-off switch
*
[ER08100( ALL)03/96]
RWARNING
If you see or smell fuel, do not reset the
switch or try to start your vehicle. Have
all the passengers get out of the vehicle
and call the local fire department or a
towing service.
File:10rcerb.ex
Update:Thu May 30 11:01:08 1996

175
*
[ER08200( ALL)03/96]
If your engine cranks but does not start after a
collision or substantial jolt:
*
[ER08300( ALL)01/96]
1. Turn the ignition key to the OFF position.
*
[ER08400( ALL)03/96]
2. Check under the vehicle for leaking fuel.
*
[ER08500( ALL)01/96]
3. If you do not see or smell fuel, push the red
reset button down. If the button is already
set, you may have a different mechanical
problem.
*
[ER08600( ALL)01/96]
4. Turn the ignition key to the ON position for
a few seconds, then turn it to the OFF
position.
*
[ER08700( ALL)03/96]
5. Check under the vehicle again for leaking
fuel.If you see or smell fuel, do not start
your vehicle again.If you do not see or
smell fuel, you can try to start your vehicle
again.
*
[ER08800( ALL)01/96]
6. Check all vehicle warning lights before
driving the vehicle.
%
*
[ER09300( ALL)02/96]
Changing a Tire
*
[ER09400( ALL)02/96]
If you get a flat tire while you are driving, do
not apply the brake heavily. Instead, gradually
decrease the speed. Hold the steering wheel
firmly and slowly move to a safe place on the
side of the road. Park on a level spot, turn off
the ignition, set the parking brake, and turn on
the hazard flashers.
%*
[ER09500( ALL)02/96]
The Temporary Spare Tire
[ER09700(MBC )02/96]
You have a high pressure temporary spare tire.
This spare tire is smaller than a regular tire and
is designed for emergency use only. Use it only
when you get a flat tire and replace it as soon
as you can. This spare tire is marked with the
words ªTEMPORARY USE ONLYº so that you
can easily identify it.
File:10rcerb.ex
Update:Thu May 30 11:01:08 1996

176
*
[ER09800( ALL)02/96]
NOTE: Extended use of other than
conventional spare tires on a
Traction-Lok rear axle could result in a
permanent reduction in effectiveness.
This loss of effectiveness does not
affect normal driving and should not
be noticeable to the driver.
*
[ER09900( ALL)02/96]
RWARNING
If you use the temporary spare tire
continuously or do not follow these
precautions, the tire could fail, causing
you to lose control of the vehicle, possibly
injuring yourself or others.
*
[ER10000( ALL)02/96]
When you drive with the temporary spare tire,
DO NOT:
*
[ER10100( ALL)02/96]
q
exceed 50 mph (80 km/h) under any
circumstances.
*
[ER10200( ALL)02/96]
q
load your vehicle so that it is heavier than
the maximum vehicle load rating listed on
the tire decal.
*
[ER10300( ALL)02/96]
q
tow a trailer.
*
[ER10400( ALL)02/96]
q
use tire chains on this tire.
*
[ER10500( ALL)02/96]
q
try to repair the temporary spare tire or
remove it from its wheel.
*
[ER10600( ALL)02/96]
q
use the wheel for any other type of vehicle.
*
[ER10700(MBCG )02/96]
q
drive through an automatic car wash with
this tire. Because the temporary spare tire is
smaller than a conventional tire, it reduces
the ground clearance. Your vehicle may get
caught in the rails and it could be damaged.
File:10rcerb.ex
Update:Thu May 30 11:01:08 1996

177 %
*
[ER11000( ALL)02/96]
Spare Tire Location
[ER11100( ALL)02/96]
The spare is stored in the trunk.
[ER11300( BC )03/96]

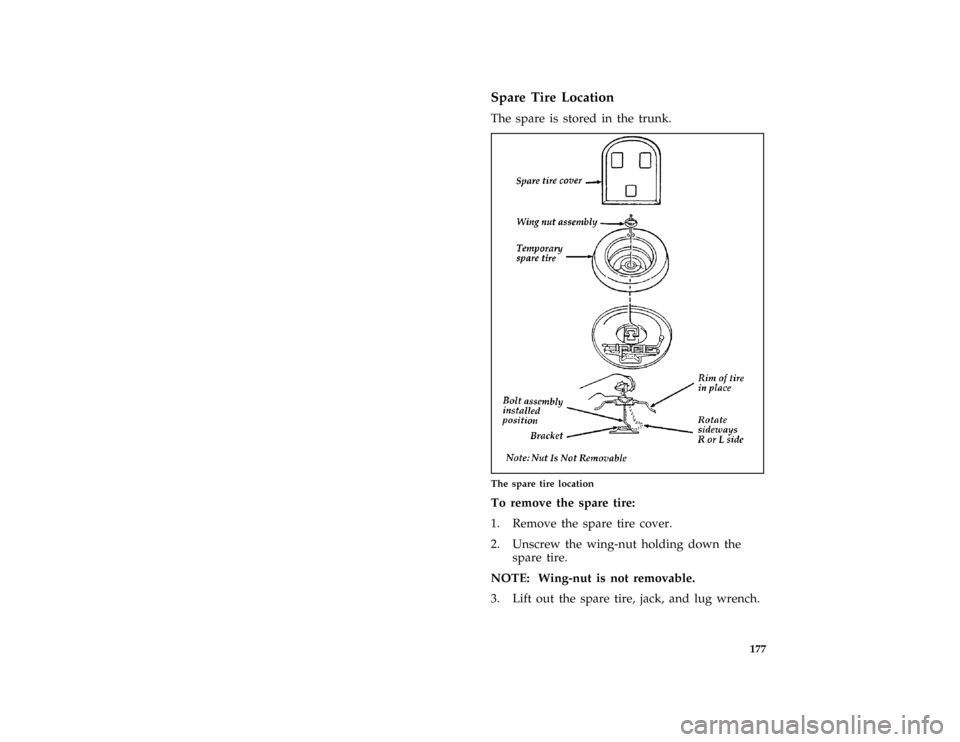

two third page art:0010339-F
The spare tire location
%*
[ER11500( ALL)03/96]
To remove the spare tire:
*
[ER12000( BC )03/96]
1. Remove the spare tire cover.
*
[ER12100( BC )03/96]
2. Unscrew the wing-nut holding down the
spare tire.
*
[ER12200( BC )03/96]
NOTE: Wing-nut is not removable.
[ER12300( BC )03/96]
3. Lift out the spare tire, jack, and lug wrench.
File:10rcerb.ex
Update:Thu May 30 11:01:08 1996

178 %
*
[ER12700( ALL)03/96]
Preparing to Change the Tire
*
[ER12900( BCGV)03/96]
1. Make sure that your vehicle will not move
or roll. Put the gearshift in P (Park). Set the
parking brake and block the wheel that is
diagonally opposite the tire that you are
changing.
*
[ER13100( BCGV)03/96]
When one of the back wheels is off the ground,
the transmission alone will not prevent the
vehicle from moving or slipping off the jack,
even if the vehicle is in P (Park). To prevent the
vehicle from moving when you change a tire, be
sure the parking brake is set, then block the
wheel (both directions) that is diagonally
opposite (other side and end of the vehicle) to
the tire being changed.
*
[ER13200( ALL)03/96]
RWARNING
If the vehicle slips off the jack, you or
someone else could be seriously injured.
*
[ER13600( ALL)05/96]
RWARNING
To avoid injury, never run the engine
with one wheel off the ground, such as
when changing a tire.
*
[ER13700( ALL)01/96]
2. Get out the spare tire and jack.
[ER13900( BC )12/95]
3. Remove any optional wheel covers or
hubcaps with the tapered end of a wheel nut
wrench. Insert the handle of the wrench and
twist it against the inner wheel cover flange.
For more about removing wheel covers, see
the information later in this chapter.
File:10rcerb.ex
Update:Thu May 30 11:01:08 1996

179
*
[ER14200(MBC )12/95]
4. Loosen each wheel lug nut one-half turn
counterclockwise, but do not remove them
until the tire is raised off the ground. You
should pull up on the handle rather than
push to develop maximum force to loosen
wheel lug nuts. SeeAnti-Theft Wheel Lug
Nutslater in this chapter for information on
removing anti-theft lug nuts.
%*
[ER14400( ALL)01/96]
Removing and Replacing the Tire
[ER14600( BC )12/95]
1. Find the underbody notches closest to the
wheel to be removed. Center the jack
between (2) underbody notches and turn the
handle of the jack clockwise until the wheel
is completely off the ground.
*
[ER14800( ALL)01/96]
RWARNING
To lessen the risk of personal injury, do
not put any part of your body under the
vehicle while changing a tire. Do not start
the engine when your vehicle is on the
jack. The jack is only meant for changing
the tire.
File:10rcerb.ex
