Page 2 of 216
Seating and Safety Restraints 73
Seating 73
Safety restraints 76
Air bags 86
Child restraints 97
Driving 109
Starting 109
Brakes 112
Traction control/AdvanceTrac 113
Transmission operation 115
Vehicle loading 121
Trailer towing 124
Roadside Emergencies 125
Getting roadside assistance 125
Hazard flasher switch 126
Fuel pump shut-off switch 127
Fuses and relays 127
Changing tires 136
Jump starting 141
Wrecker towing 147
Customer Assistance 148
Reporting safety defects (U.S. only) 156
Cleaning 157
2004 Thunderbird(tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Table of Contents
2
Page 125 of 216
GETTING ROADSIDE ASSISTANCE
To fully assist you should you have a vehicle concern, Ford Motor
Company offers a complimentary roadside assistance program. This
program is separate from the New Vehicle Limited Warranty. The service
is available:
•24–hours, seven days a week
• for the New Vehicle Limited Warranty period of three years or
60,000 km (36,000 miles), whichever occurs first on Ford and Mercury
vehicles, and four years or 80,000 km (50,000 miles) on Lincoln
vehicles.
Roadside assistance will cover:
• changing a flat tire
• jump-starts
• lock-out assistance
• limited fuel delivery
• towing of your disabled vehicle to the nearest Ford Motor Company
dealership, or your selling dealer if within 56.3 km (35 miles) of the
nearest Ford Motor Company dealership (one tow per disablement).
Even non-warranty related tows, like accidents or getting stuck in the
mud or snow, are covered (some exclusions apply, such as impound
towing or repossession).
Canadian customers refer to your Owner Information Guide for
information on:
• coverage period
• exact fuel amounts
• towing of your disabled vehicle
• emergency travel expense reimbursement
• travel planning benefits
Using roadside assistance
Complete the roadside assistance identification card and place it in your
wallet for quick reference. In the United States, this card is found in the
Owner Guide portfolio in the glove compartment in Ford vehicles and is
mailed to you if you own a Mercury or Lincoln. In Canada, the card is
found in the Owner Information Guide in the glove compartment.
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
Roadside Emergencies
125
Page 141 of 216

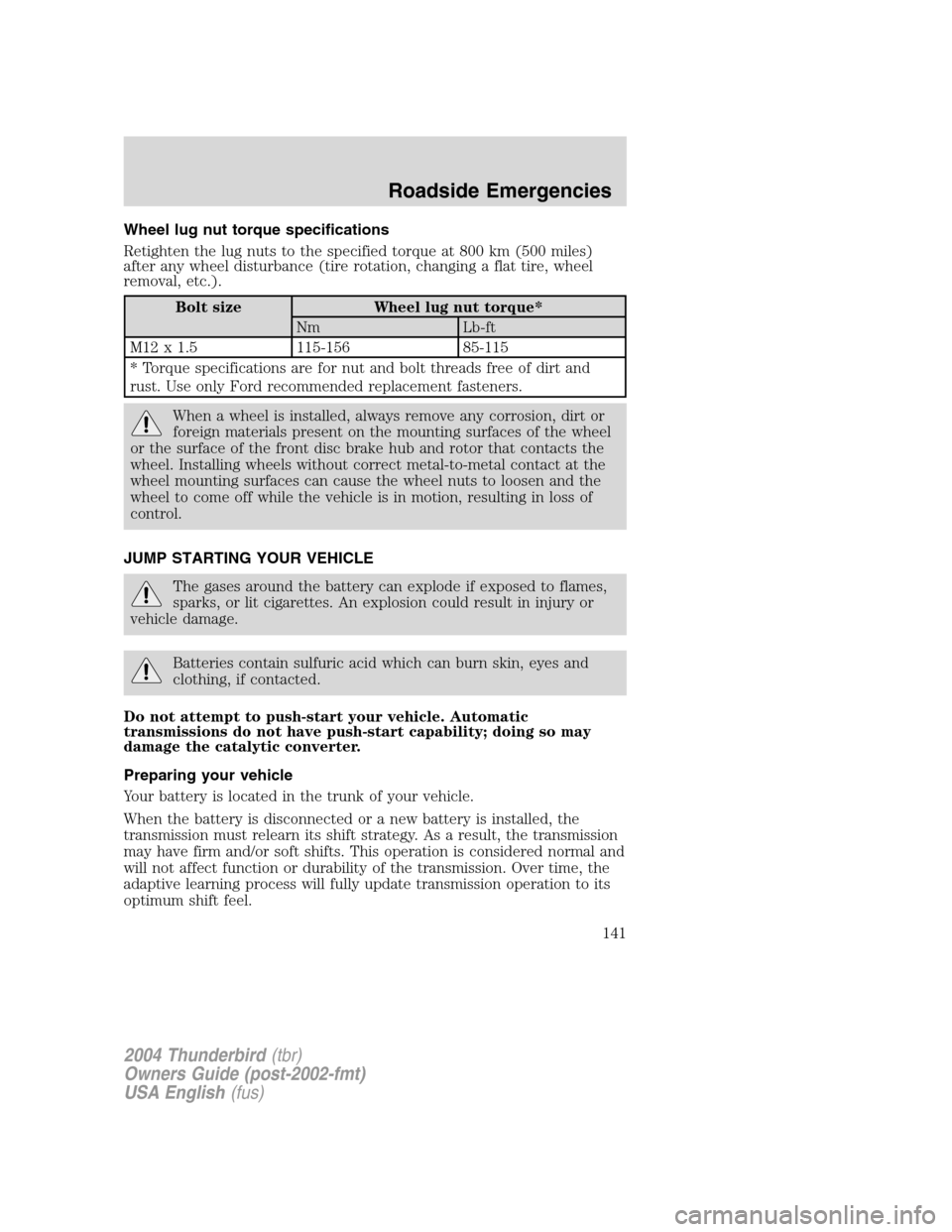

Wheel lug nut torque specifications
Retighten the lug nuts to the specified torque at 800 km (500 miles)
after any wheel disturbance (tire rotation, changing a flat tire, wheel
removal, etc.).
Bolt size Wheel lug nut torque*Nm Lb-ft
M12 x 1.5 115-156 85-115
* Torque specifications are for nut and bolt threads free of dirt and
rust. Use only Ford recommended replacement fasteners.
When a wheel is installed, always remove any corrosion, dirt or
foreign materials present on the mounting surfaces of the wheel
or the surface of the front disc brake hub and rotor that contacts the
wheel. Installing wheels without correct metal-to-metal contact at the
wheel mounting surfaces can cause the wheel nuts to loosen and the
wheel to come off while the vehicle is in motion, resulting in loss of
control.
JUMP STARTING YOUR VEHICLE
The gases around the battery can explode if exposed to flames,
sparks, or lit cigarettes. An explosion could result in injury or
vehicle damage.
Batteries contain sulfuric acid which can burn skin, eyes and
clothing, if contacted.
Do not attempt to push-start your vehicle. Automatic
transmissions do not have push-start capability; doing so may
damage the catalytic converter.
Preparing your vehicle
Your battery is located in the trunk of your vehicle.
When the battery is disconnected or a new battery is installed, the
transmission must relearn its shift strategy. As a result, the transmission
may have firm and/or soft shifts. This operation is considered normal and
will not affect function or durability of the transmission. Over time, the
adaptive learning process will fully update transmission operation to its
optimum shift feel.
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
141
Page 142 of 216

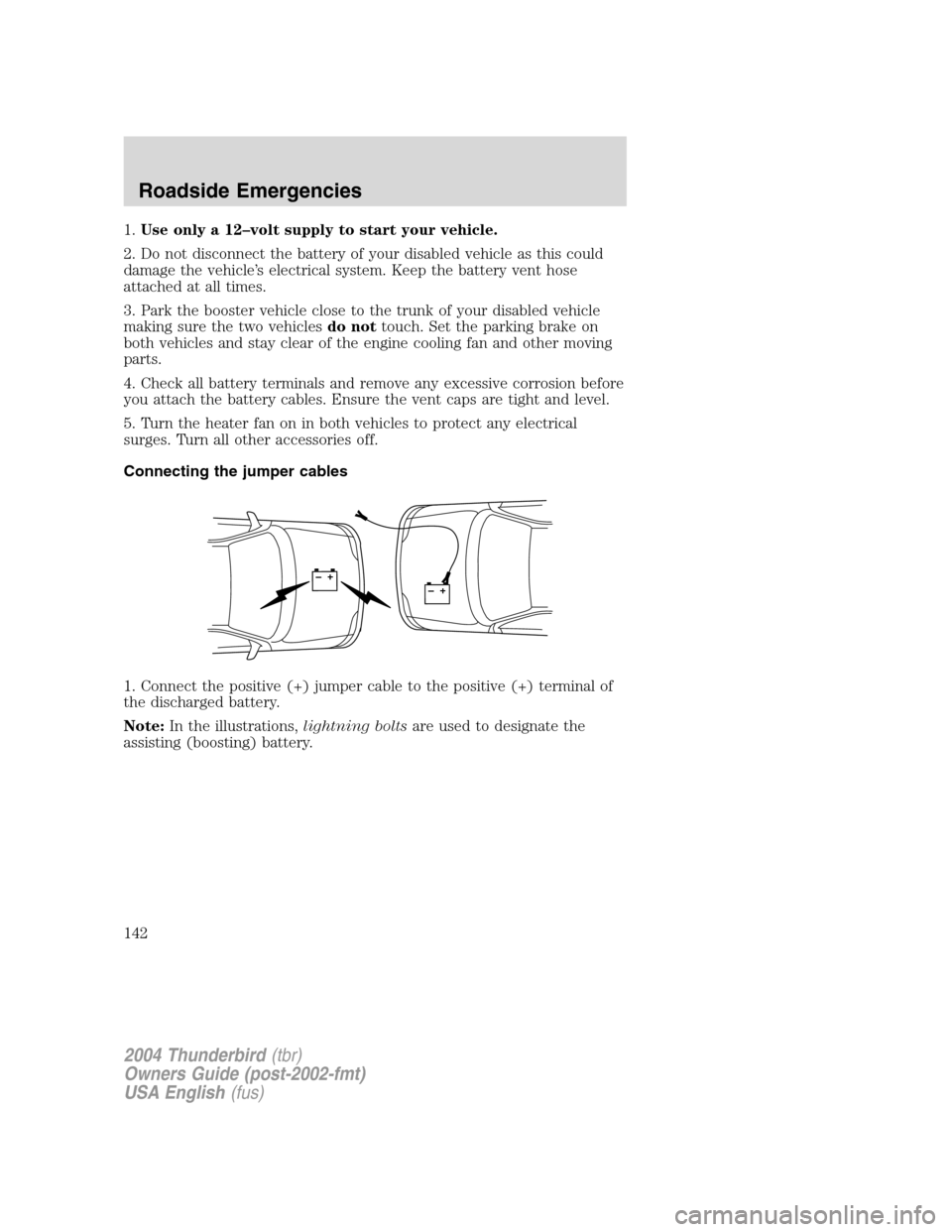

1.Use only a 12 –volt supply to start your vehicle.
2. Do not disconnect the battery of your disabled vehicle as this could
damage the vehicle ’s electrical system. Keep the battery vent hose
attached at all times.
3. Park the booster vehicle close to the trunk of your disabled vehicle
making sure the two vehicles do nottouch. Set the parking brake on
both vehicles and stay clear of the engine cooling fan and other moving
parts.
4. Check all battery terminals and remove any excessive corrosion before
you attach the battery cables. Ensure the vent caps are tight and level.
5. Turn the heater fan on in both vehicles to protect any electrical
surges. Turn all other accessories off.
Connecting the jumper cables
1. Connect the positive (+) jumper cable to the positive (+) terminal of
the discharged battery.
Note: In the illustrations, lightning boltsare used to designate the
assisting (boosting) battery.
+–+–
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
142
Page 144 of 216

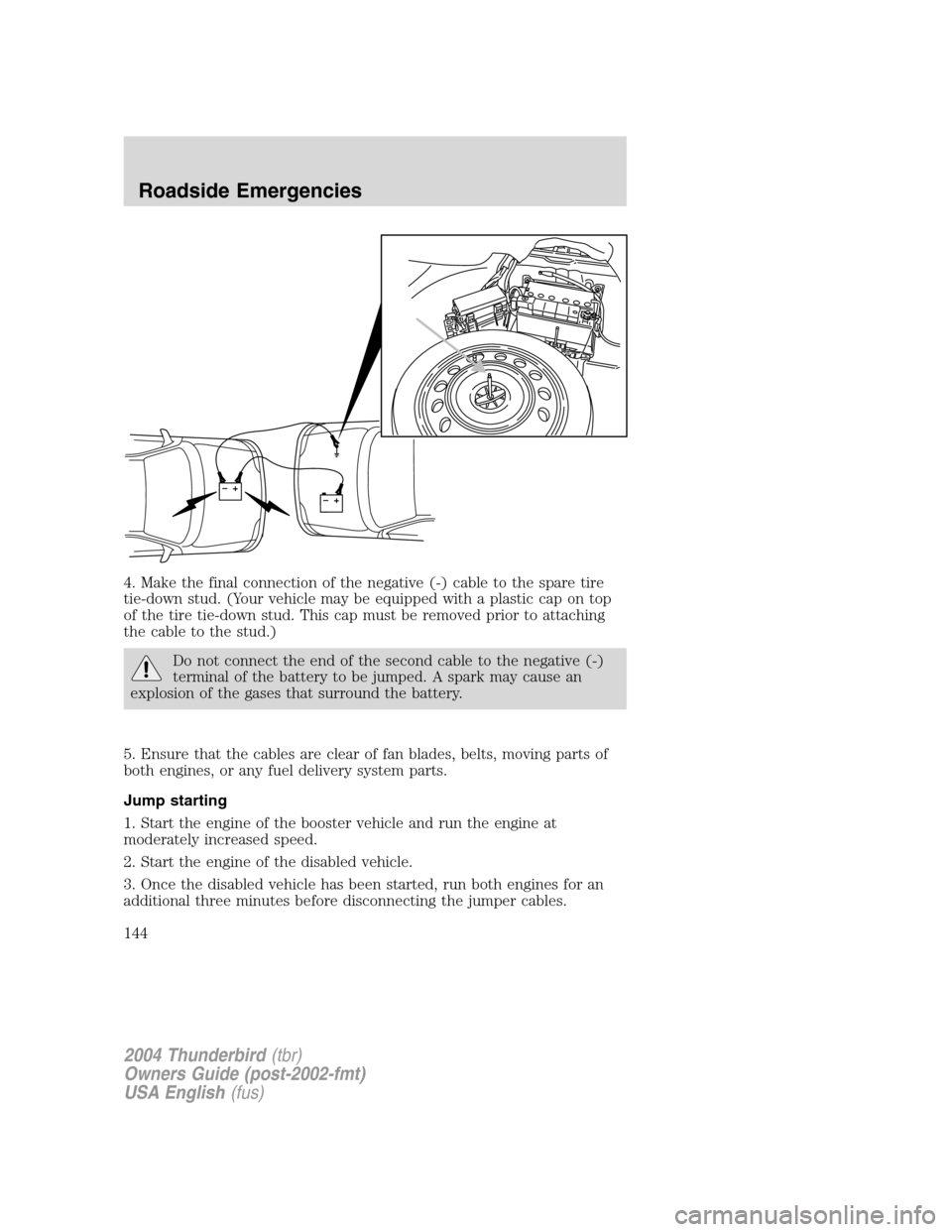

4. Make the final connection of the negative (-) cable to the spare tire
tie-down stud. (Your vehicle may be equipped with a plastic cap on top
of the tire tie-down stud. This cap must be removed prior to attaching
the cable to the stud.)
Do not connect the end of the second cable to the negative (-)
terminal of the battery to be jumped. A spark may cause an
explosion of the gases that surround the battery.
5. Ensure that the cables are clear of fan blades, belts, moving parts of
both engines, or any fuel delivery system parts.
Jump starting
1. Start the engine of the booster vehicle and run the engine at
moderately increased speed.
2. Start the engine of the disabled vehicle.
3. Once the disabled vehicle has been started, run both engines for an
additional three minutes before disconnecting the jumper cables.
+–+–
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
144
Page 146 of 216

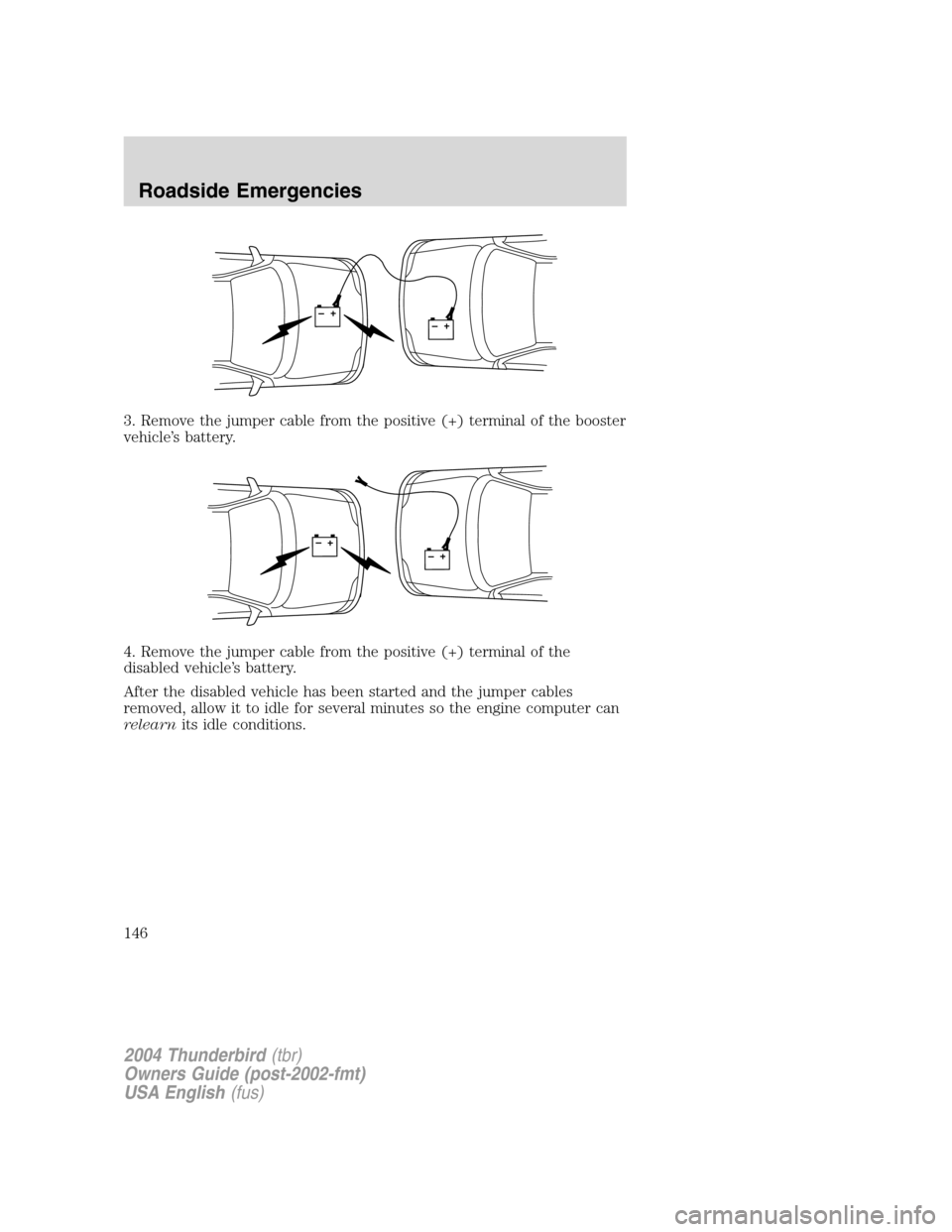

3. Remove the jumper cable from the positive (+) terminal of the booster
vehicle’s battery.
4. Remove the jumper cable from the positive (+) terminal of the
disabled vehicle ’s battery.
After the disabled vehicle has been started and the jumper cables
removed, allow it to idle for several minutes so the engine computer can
relearn its idle conditions.
+–+–
+–+–
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
146
Page 213 of 216

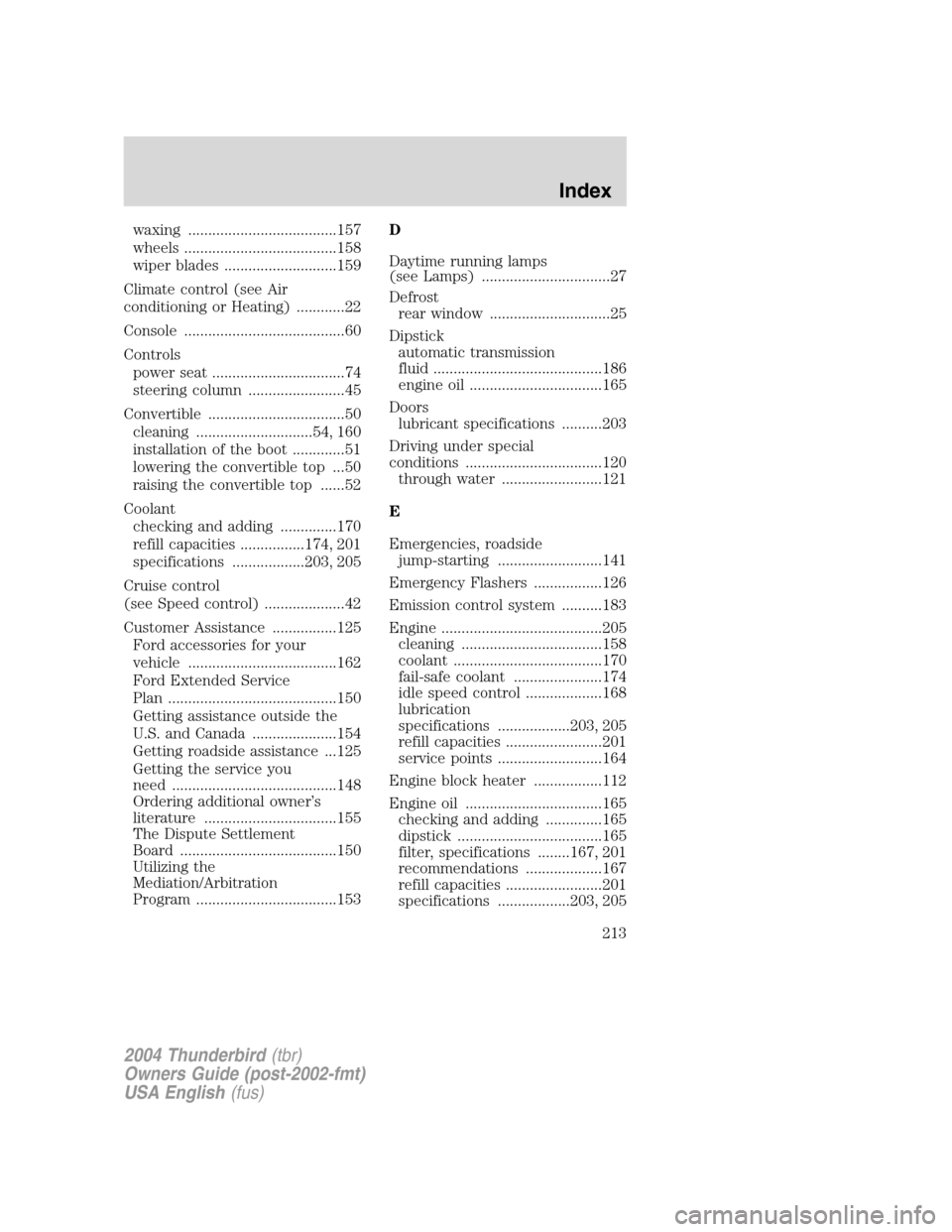

waxing .....................................157
wheels ......................................158
wiper blades ............................159
Climate control (see Air
conditioning or Heating) ............22
Console ........................................60
Controls power seat .................................74
steering column ........................45
Convertible ..................................50 cleaning .............................54, 160
installation of the boot .............51
lowering the convertible top ...50
raising the convertible top ......52
Coolant checking and adding ..............170
refill capacities ................174, 201
specifications ..................203, 205
Cruise control
(see Speed control) ....................42
Customer Assistance ................125 Ford accessories for your
vehicle .....................................162
Ford Extended Service
Plan ..........................................150
Getting assistance outside the
U.S. and Canada .....................154
Getting roadside assistance ...125
Getting the service you
need .........................................148
Ordering additional owner ’s
literature .................................155
The Dispute Settlement
Board .......................................150
Utilizing the
Mediation/Arbitration
Program ...................................153 D
Daytime running lamps
(see Lamps) ................................27
Defrost
rear window ..............................25
Dipstick automatic transmission
fluid ..........................................186
engine oil .................................165
Doors lubricant specifications ..........203
Driving under special
conditions ..................................120 through water .........................121
E
Emergencies, roadside jump-starting ..........................141
Emergency Flashers .................126
Emission control system ..........183
Engine ........................................205 cleaning ...................................158
coolant .....................................170
fail-safe coolant ......................174
idle speed control ...................168
lubrication
specifications ..................203, 205
refill capacities ........................201
service points ..........................164
Engine block heater .................112
Engine oil ..................................165 checking and adding ..............165
dipstick ....................................165
filter, specifications ........167, 201
recommendations ...................167
refill capacities ........................201
specifications ..................203, 205
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Index
213
Page 214 of 216

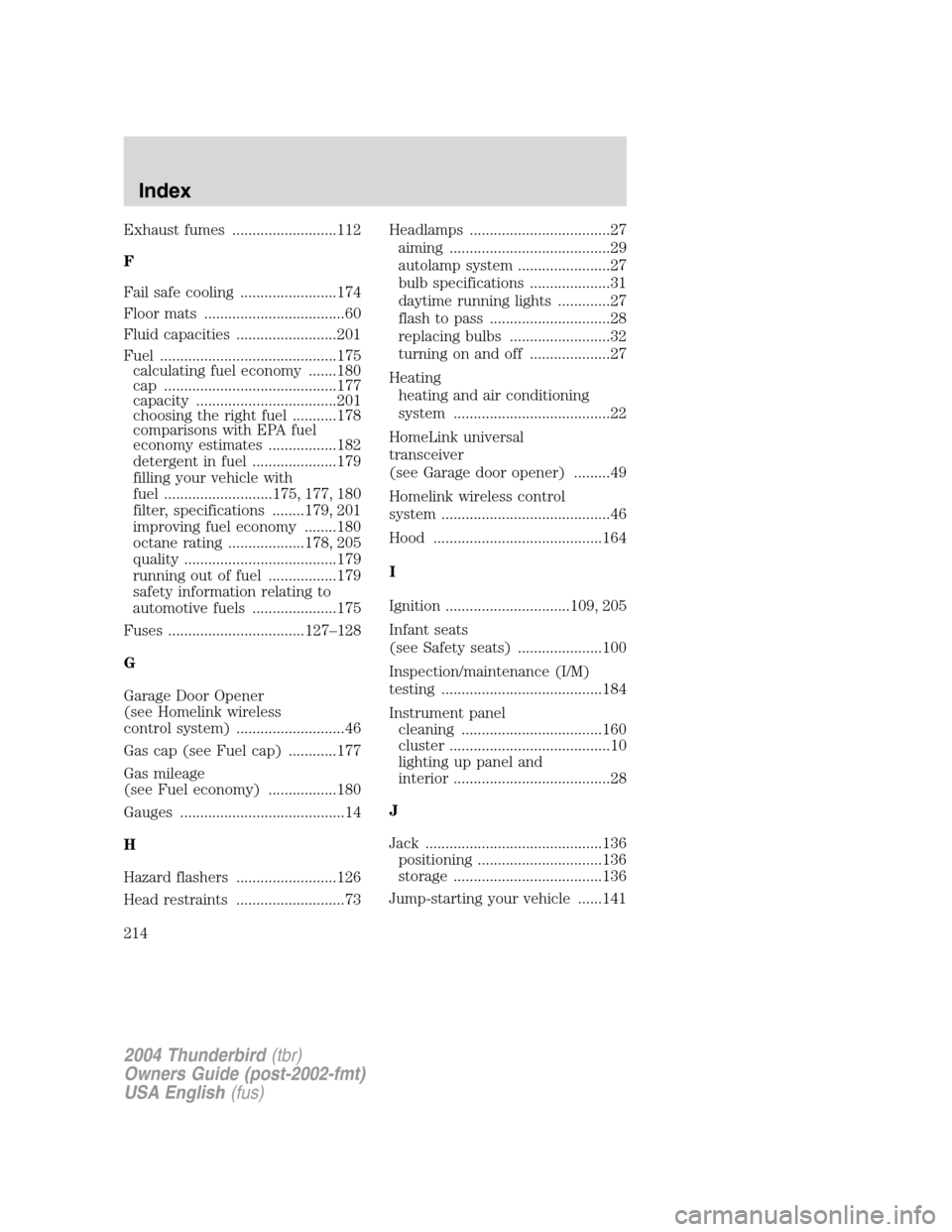

Exhaust fumes ..........................112
F
Fail safe cooling ........................174
Floor mats ...................................60
Fluid capacities .........................201
Fuel ............................................175calculating fuel economy .......180
cap ...........................................177
capacity ...................................201
choosing the right fuel ...........178
comparisons with EPA fuel
economy estimates .................182
detergent in fuel .....................179
filling your vehicle with
fuel ...........................175, 177, 180
filter, specifications ........179, 201
improving fuel economy ........180
octane rating ...................178, 205
quality ......................................179
running out of fuel .................179
safety information relating to
automotive fuels .....................175
Fuses ..................................127 –128
G
Garage Door Opener
(see Homelink wireless
control system) ...........................46
Gas cap (see Fuel cap) ............177
Gas mileage
(see Fuel economy) .................180
Gauges .........................................14
H
Hazard flashers .........................126
Head restraints ...........................73 Headlamps ...................................27
aiming ........................................29
autolamp system .......................27
bulb specifications ....................31
daytime running lights .............27
flash to pass ..............................28
replacing bulbs .........................32
turning on and off ....................27
Heating heating and air conditioning
system .......................................22
HomeLink universal
transceiver
(see Garage door opener) .........49
Homelink wireless control
system ..........................................46
Hood ..........................................164
I
Ignition ...............................109, 205
Infant seats
(see Safety seats) .....................100
Inspection/maintenance (I/M)
testing ........................................184
Instrument panel cleaning ...................................160
cluster ........................................10
lighting up panel and
interior .......................................28
J
Jack ............................................136 positioning ...............................136
storage .....................................136
Jump-starting your vehicle ......141
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Index
214
Page 216 of 216
belt minder ...............................81
extension assembly ..................85
for adults .............................77–80
for children ...............................97
safety belt maintenance ...........85
warning light and chime ..........81
Safety seats for children ..........100
Seat belts
(see Safety restraints) ...............76
Seats ............................................73 child safety seats ....................100
Select Shift Transmission
(SST) shifter .............................118
Servicing your vehicle ..............163
Spare tire
(see Changing the Tire) ...........136
Spark plugs,
specifications .....................201, 205
Specification chart,
lubricants ...........................203, 205
Speed control ..............................42
Starting your vehicle ........109 –111
jump starting ..........................141
Steering speed sensitive .......................115
Steering wheel controls ......................................45
tilting .........................................39
T
Tilt steering wheel ......................39
Tires ...........................136, 188 –189
changing ..................136 –137, 141
snow tires and chains ............200
tire grades ...............................189 treadwear ................................189
Towing .......................................124 recreational towing .................124
trailer towing ..........................124
wrecker ....................................147
Traction control ........................113
Transmission .............................115 brake-shift interlock (BSI) ....115
fluid, checking and adding
(automatic) .............................186
fluid, refill capacities ..............201
lubricant specifications ..203, 205
Trunk ...........................................62 remote release ....................41, 65
Turn signal ..................................30
V
Vehicle dimensions ...................205
Vehicle Identification Number
(VIN) ..........................................207
Vehicle loading ..........................121
Ventilating your vehicle ...........112
W
Warning lights (see Lights) .......10
Washer fluid ..............................165
Water, Driving through .............121
Windows power .........................................40
Windshield washer fluid and
wipers ..........................................38 checking and adding fluid .....165
replacing wiper blades .............38
Wrecker towing .........................147
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Index
216
