2. Clean the area around the air tube to
air filter cover connection to prevent
debris from entering the system and
then loosen the bolt on the air tube
clamp so the clamp is no longer snug
to the air tube. It is not necessary to
completely remove the clamp. Pull the
air tube off from the air filter cover.
3. Release the clamps that secure the air
filter cover to the air filter housing. 4.
Carefully lift the air filter housing cover.
Remove the air filter element from the
air filter housing.
5. Install a new air filter element.
6. Replace the air filter housing cover. Engage the clamps that secure the air
filter housing cover to the air filter
housing. Be careful not to crimp the
filter element edges between the air
filter housing and cover. Make sure
that the tabs on the edge are correctly
aligned into the slots.
7. Slip the air tube onto the air filter cover
and snugly tighten the bolt on the air
tube clamp, but do not overtighten.
8. Reconnect the intake air temperature sensor electrical connector to the
outlet tube. Make sure the locking tab
on the connector is in the locked
position. ENGINE COOLING FAN WARNING: Keep your hands and
clothing clear of the engine cooling fan.
Under certain conditions, the engine
cooling fan may continue to run for several
minutes after you switch your vehicle off.
ENGINE COOLANT CHECK WARNING:
Do not remove the
coolant reservoir cap when the engine is
on or the cooling system is hot. Wait 10
minutes for the cooling system to cool
down. Cover the coolant reservoir cap
with a thick cloth to prevent the
possibility of scalding and slowly remove
the cap. Failure to follow this instruction
could result in personal injury. WARNING:
Do not put coolant in
the windshield washer reservoir. If
sprayed on the windshield, coolant could
make it difficult to see through the
windshield. WARNING:
To reduce the risk of
personal injury, make sure the engine is
cool before unscrewing the coolant
pressure relief cap. The cooling system
is under pressure. Steam and hot liquid
can come out forcefully when you loosen
the cap slightly. WARNING:
Do not add coolant
further than the MAX mark.
When the engine is cold, check the
concentration and level of the coolant at
the intervals listed in the scheduled
maintenance information. See Scheduled
Maintenance
(page 446).
285
2021 Transit (TTH) Canada/United States of America, MK3J 19A321 AA enUSA, Edition date: 202010, Second-Printing MaintenanceE174669

Body Paintwork Preservation
Frequently remove particles such as bird
droppings, tree sap, insect deposits, tar
spots, road salt and industrial fallout to
avoid paint surface damage.
Frequently wash the underbody of your
vehicle if salt is applied on the road.
We recommend that you wax the
paintwork once or twice a year.
Note:
Do not apply polish in strong sunlight
as this dries the polish too quickly.
Note: Do not allow polish to come in
contact with unpainted plastic surfaces as
it can be difficult to remove.
Note: Do not apply polish to the windshield
or rear window. A contaminated windshield
or contaminated wiper blades may lead to
increased wiper noise, reduced wipe quality
or reduced rain sensor performance.
Sliding Door Tracks WARNING: Do not open or close
the sliding doors when your hands are
near the tracks or rollers.
To clean the sliding door tracks, wipe the
surface using a clean, cotton cloth with a
mild soap and water solution.
Do not use a commercial or high-pressure
washer.
WAXING
Regular waxing is necessary to protect your
car's paint from the elements. We
recommend that you wash and wax the
painted surface once or twice a year.
When washing and waxing, park your
vehicle in a shaded area out of direct
sunlight. Always wash your vehicle before
applying wax. •
Use a quality wax that does not contain
abrasives.
• Follow the manufacturer ’s instructions
to apply and remove the wax.
• Apply a small amount of wax in a
back-and-forth motion, not in circles.
• Do not allow wax to come in contact
with any non-body (low-gloss black)
colored trim. The wax will discolor or
stain the parts over time.
•Roof racks.
• Bumpers.
• Grained door handles.
• Side moldings.
• Mirror housings.
• Windshield cowl area.
• Do not apply wax to glass areas.
• After waxing, your car's paint should
feel smooth, and be free of streaks and
smudges.
CLEANING THE ENGINE
Engines are more efficient when they are
clean because grease and dirt buildup keep
the engine warmer than normal.
When washing:
• Take care when using a power washer
to clean the engine. The high-pressure
fluid could penetrate the sealed parts
and cause damage.
• Do not spray a hot engine with cold
water to avoid cracking the engine
block or other engine components.
• Spray Motorcraft Engine Shampoo and
Degreaser on all parts that require
cleaning and pressure rinse clean. In
Canada, use Motorcraft Engine
Shampoo.
304
2021 Transit (TTH) Canada/United States of America, MK3J 19A321 AA enUSA, Edition date: 202010, Second-Printing Vehicle Care

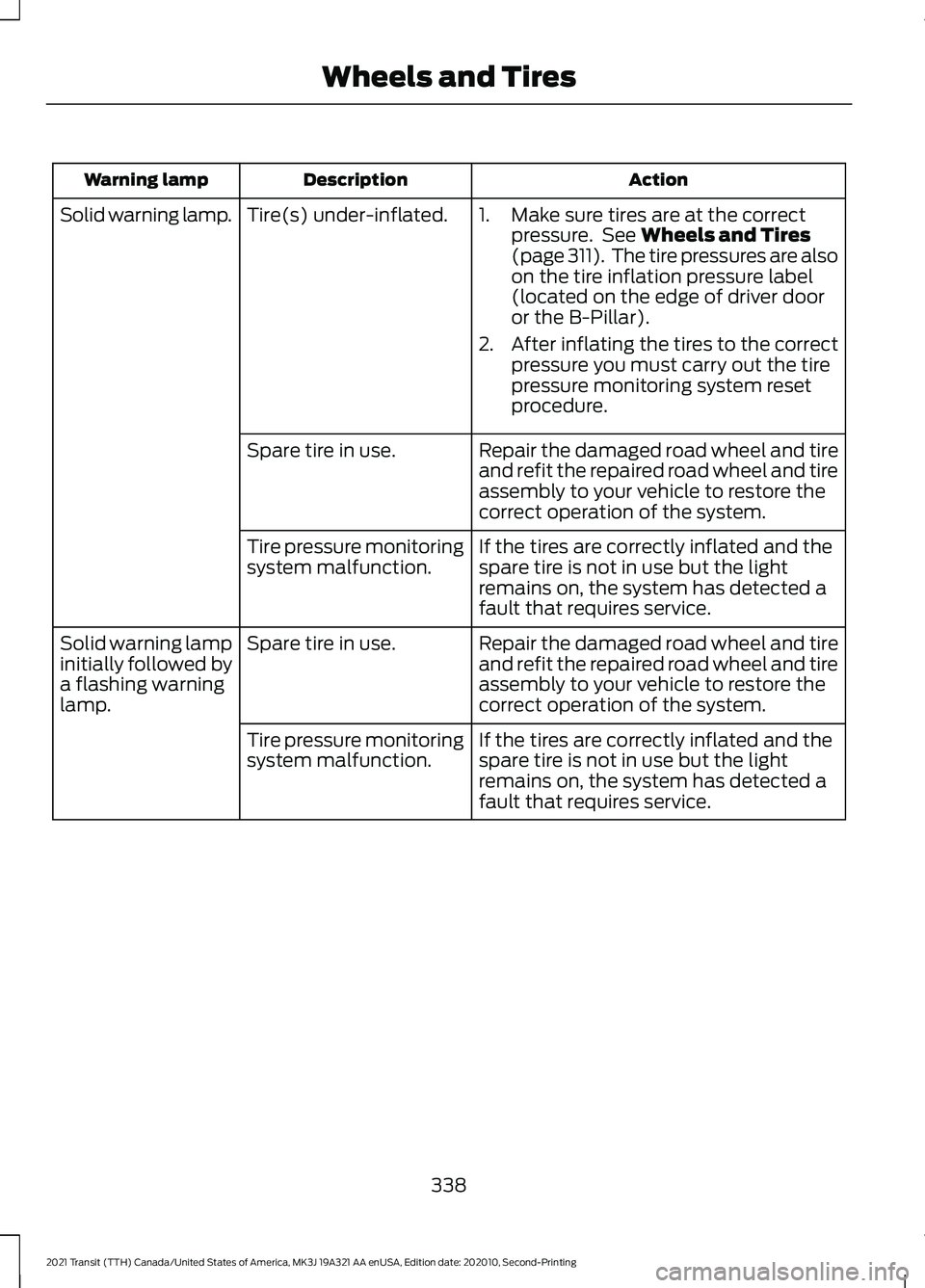

Action
Description
Warning lamp
1. Make sure tires are at the correctpressure. See Wheels and Tires
(page 311). The tire pressures are also
on the tire inflation pressure label
(located on the edge of driver door
or the B-Pillar).
2. After inflating the tires to the correct
pressure you must carry out the tire
pressure monitoring system reset
procedure.
Tire(s) under-inflated.
Solid warning lamp.
Repair the damaged road wheel and tire
and refit the repaired road wheel and tire
assembly to your vehicle to restore the
correct operation of the system.
Spare tire in use.
If the tires are correctly inflated and the
spare tire is not in use but the light
remains on, the system has detected a
fault that requires service.
Tire pressure monitoring
system malfunction.
Repair the damaged road wheel and tire
and refit the repaired road wheel and tire
assembly to your vehicle to restore the
correct operation of the system.
Spare tire in use.
Solid warning lamp
initially followed by
a flashing warning
lamp.
If the tires are correctly inflated and the
spare tire is not in use but the light
remains on, the system has detected a
fault that requires service.
Tire pressure monitoring
system malfunction.
338
2021 Transit (TTH) Canada/United States of America, MK3J 19A321 AA enUSA, Edition date: 202010, Second-Printing Wheels and Tires

Tire Pressure Monitoring System
Reset Procedure
Overview
WARNING: To determine the
required pressure(s) for your vehicle, see
the Safety Compliance Certification
Label (on the door hinge pillar,
door-latch post or the door edge that
meets the door-latch post, next to the
driver seat) or the Tire Label on the
B-Pillar or the edge of the driver door.
You must carry out the system reset
procedure after each tire replacement or
adjustment of the tire pressures. To maintain your vehicle load carrying
capability, your vehicle requires different
tire pressures in the front tires compared
to the rear tires.
The system illuminates the warning lamp
at different pressures for the front and rear
tires.
If the tires are rotated, the Tire Pressure
Monitoring System needs to be reset to
relearn the new tire pressures. It does not
know which sensor is where and assumes
you have set the pressures correctly.
Carrying Out the System Reset
Procedure
Switch the ignition on. Using the
information display control select: Action
Message
Press the
OK button.
Settings
Press the
OK button.
Driver assist
Press and hold the
OK button until a confirmation message
appears in the information display. Alternatively, if your
vehicle has a tire pressure monitoring system reset button,
press and hold the button until a confirmation message
appears in the information display.
Tire Monitor
CHANGING A ROAD WHEEL WARNING:
If the tire pressure
monitor sensor becomes damaged it
may not function.
Note: : The use of tire sealants can damage
the tire pressure monitoring system. Note:
The tire pressure monitoring system
indicator light will illuminate when the spare
tire is in use. To restore the full function of
the monitoring system, all road wheels
equipped with tire pressure monitoring
sensors must be mounted on this vehicle.
If you get a flat tire while driving, do not
apply the brake heavily. Instead, gradually
decrease your speed. Hold the steering
wheel firmly and slowly move to a safe
place on the side of the road.
339
2021 Transit (TTH) Canada/United States of America, MK3J 19A321 AA enUSA, Edition date: 202010, Second-Printing Wheels and Tires

Keys and Remote Controls.........................63
Principle of Operation........................................ 63
L
Lane Keeping System................................208 Lane Keeping System Display....................... 210
Lane Keeping System Messages................... 211
Lane Keeping System Settings.................... 209
Lane Keeping System Warning Lamps and Indicators........................................................... 211
Switching Lane Keeping System On or Off...................................................................... 209
Lighting Control............................................100 Exterior Lamps On Audible Warning............101
Flashing High Beam Headlamps................... 101
High Beam Headlamp Indicator.................... 101
Lamps On Indicator............................................ 101
Lighting Control Positions.............................. 100
Switching High Beam Headlamps On and Off........................................................................\
101
Switching the Parking Lamps On................100
Lighting............................................................100 General Information......................................... 100
Load Carriers See: Roof Racks and Load Carriers -
Bus...................................................................... 228
See: Roof Racks and Load Carriers - Van..................................................................... 228
Load Carrying................................................228
Load Limit.......................................................229 Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles............................................................. 233
Vehicle Loading - with and without a Trailer................................................................. 229
Load Retaining Fixtures
.............................228
Securing Cargo................................................... 228
Locating the Cabin Air Filter.....................125
Locating the Keyless Entry Keypad.........87
Locking and Unlocking.................................76 Autolock................................................................... 78
Autounlock.............................................................. 79
Configurable Unlocking...................................... 79
Locking..................................................................... 76
Locking and Unlocking the Doors From Inside.................................................................... 76
One-Stage Unlocking......................................... 79Opening the Double Rear Doors.....................
77
Rear Emergency Exit........................................... 78
Two-Stage Unlocking......................................... 79
Unlocking................................................................. 76
Zone Re-Locking................................................... 79
Locking and Unlocking the Doors Using Keyless Entry
................................................88
Locking the Doors................................................ 88
Unlocking the Doors........................................... 88
Locking the Steering Wheel.......................96 Unlocking the Steering Wheel........................ 96
Lug Nuts See: Changing a Road Wheel....................... 339
Lug Nuts
..........................................................350
Locking Lug Nuts................................................. 351
Lug Nut Torque................................................... 350
M
Maintenance..................................................278 General Information.......................................... 278
Manual Climate Control
.............................122
Directing Air to the Footwell Air Vents........122
Directing Air to the Instrument Panel Air
Vents................................................................... 122
Directing Air to the Windshield Air Vents................................................................... 122
Setting the Blower Motor Speed................... 122
Setting the Temperature.................................. 123
Switching Maximum Cooling On and Off........................................................................\
122
Switching Maximum Defrost On and Off........................................................................\
122
Switching the Air Conditioning On and Off........................................................................\
122
Switching the Climate Control On and Off........................................................................\
122
Switching the Recirculated Air On and Off........................................................................\
122
Manually Releasing the Electric Parking Brake...............................................................177
........................................................................\
............ 177
Manual Seats - Vehicles With: 2-Way Manual Seat.................................................127
Adjusting the Armrest....................................... 128
Adjusting the Lumbar Support...................... 128
Adjusting the Seat Backrest........................... 128
498
2021 Transit (TTH) Canada/United States of America, MK3J 19A321 AA enUSA, Edition date: 202010, Second-Printing Index

Seatbelt Warning Lamp and Indicator
Chime..............................................................46
Conditions of operation..................................... 47
Seats.................................................................126
Security..............................................................89
Service Data......................................................15
Settings Data....................................................16
Comfort and Convenience Data...................... 16
Entertainment Data............................................. 16
Settings............................................................427 ........................................................................\
........... 427
911 Assist............................................................... 428
Ambient Lighting............................................... 428
Audio....................................................................... 427
Automatic Updates.......................................... 428
Charge Settings.................................................. 428
Clock....................................................................... 427
Display................................................................... 428
Driver Assist......................................................... 428
FordPass............................................................... 428
General.................................................................. 428
Message Center................................................. 428
Mobile Apps......................................................... 428
Multi Contour Seats.......................................... 428
Navigation............................................................ 428
Personal Profiles................................................ 428
Phone..................................................................... 427
Seats...................................................................... 428
Sound..................................................................... 427
Valet Mode........................................................... 428
Vehicle................................................................... 428
Voice Control....................................................... 428
Side Airbags
......................................................57
Side Sensing System..................................189 Object Distance Indicator............................... 190
Sitting in the Correct Position..................126
Sliding Door Precautions
............................80
Sliding Door.....................................................80
Closing the Sliding Door.................................... 80
Opening the Sliding Door................................. 80
Sliding Door – Troubleshooting...................... 85
Sliding Door – Troubleshooting
...............85
Sliding Door – Frequently Asked
Questions ........................................................... 86
Sliding Door – Information Messages..........85
Snow Chains See: Using Snow Chains................................. 333Spare Wheel
See: Changing a Road Wheel....................... 339
Special Notices
.................................................11
New Vehicle Limited Warranty.......................... 11
Special Operating Conditions Scheduled Maintenance...............................................451
Exceptions............................................................ 453
Speed Control See: Cruise Control............................................ 198
Speed Limiter
...............................................206
Principle of Operation..................................... 206
Using Speed Limiter......................................... 206
Stability Control
.............................................181
Principle of Operation........................................ 181
Starter Switch See: Ignition Switch........................................... 144
Starting a Gasoline Engine.......................144 Engine Warning Lamps.................................... 146
Failure to Start..................................................... 145
Guarding Against Exhaust Fumes................145
Important Ventilating Information..............146
Starting the Engine............................................ 145
Stopping the Engine When Your Vehicle is Moving............................................................... 145
Stopping the Engine When Your Vehicle is Stationary......................................................... 145
Starting and Stopping the Engine.........144 General Information.......................................... 144
Steering...........................................................220 Adaptive Learning............................................... 221
Electric Power Steering................................... 220
Steering Information Messages..................... 221
Steering Wheel...............................................96
Stopping the Engine
....................................148
Stopping the Sliding Door Movement.....................................................84
Storage Compartments
..............................141
Storage.............................................................142 Bottle Holders...................................................... 142
Overhead Storage.............................................. 142
Rear Overhead Storage.................................... 142
Streaming Bluetooth Audio - Vehicles Without: SYNC..........................................380
Selecting a Source............................................ 380
Supplementary Restraints System.........50 Principle of Operation........................................ 50
Switching Auto-Start-Stop On and Off...................................................................148
502
2021 Transit (TTH) Canada/United States of America, MK3J 19A321 AA enUSA, Edition date: 202010, Second-Printing Index

Using Traction Control...............................180
Switching the System Off or On................... 180
System Indicator Lights and Messages......................................................... 180
Using Voice Recognition...........................382 Apps........................................................................\
407
Automatic Blower Motor Speed Reduction ........................................................ 408
Climate................................................................. 404
Entertainment.................................................... 403
General.................................................................. 402
Initiating a Voice Session................................ 384
Navigation........................................................... 406
Phone.................................................................... 405
Phone Voice Service......................................... 382
SiriusXM Traffic and Travel Link................... 407
System Interaction and Feedback..............385
Voice Settings.................................................... 408
Using Winter Tires.......................................332
Utilizing the Mediation/Arbitration Program (Canada Only)
........................259
V
Vehicle Care...................................................302
Vehicle Identification Number
................356
Vehicle Storage............................................308 Battery................................................................... 309
Body....................................................................... 309
Brakes.................................................................... 309
Cooling system.................................................. 309
Engine.................................................................... 309
Fuel system......................................................... 309
General.................................................................. 308
Miscellaneous.................................................... 309
Removing Vehicle From Storage.................309
Tires........................................................................\
309
Vehicle Wi-Fi Hotspot................................375
Ventilation See: Climate Control.......................................... 122
VIN See: Vehicle Identification Number............356
W
Warning Lamps and Indicators.................111
Washer Fluid Check....................................294 Washers
See: Cleaning the Exterior.............................. 303
See: Wipers and Washers................................. 97
Waxing............................................................304
What Is 911 Assist............................................61
What Is a Connected Vehicle...................371
What Is Auto-Start-Stop...........................148
What Is Remote Start.................................120
What Is the Cabin Air Filter.......................125
What Is the Electric Parking Brake..........177
What is the Rear Occupant Alert System...........................................................136
Wheel Nuts See: Changing a Road Wheel....................... 339
Wheels and Tires...........................................311 General Information........................................... 311
Windows and Mirrors..................................107
Windshield Washers.....................................99 Settings................................................................... 99
Windshield Wipers.........................................97 Intermittent Wipe................................................. 97
Winter Tires See: Using Winter Tires.................................... 332
Wiper Blades See: Checking the Wiper Blades.................. 294
Wipers and Washers.....................................97
505
2021 Transit (TTH) Canada/United States of America, MK3J 19A321 AA enUSA, Edition date: 202010, Second-Printing Index
