Vertical aim adjustment
1. Park the vehicle directly in front of a wall or screen on a level surface,
approximately 25 feet (7.6 meters) away.
•(1) 8 feet (2.4 meters)
•(2) Center height of lamp to
ground
•(3) 25 feet (7.6 meters)
•(4) Horizontal reference line
2. Measure the height from the
center of your headlamp to the
ground and mark an 8 foot
(2.4 meter) horizontal reference line
on the vertical wall or screen at this
height (a piece of masking tape works well).
3. Turn on the low beam headlamps to illuminate the wall or screen and
open the hood.
4. On the wall or screen you will
observe an area of high intensity
light. The top of the high intensity
area should touch the horizontal
reference line. If not, the beam will
need to be adjusted.
5. Locate the vertical adjuster on
each headlamp, then use a Phillips
#2 screwdriver or 10 mm
wrench/socket to adjust the
headlamp up or down.
6. Close the hood and turn off the
lamps.
HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS
NON-ADJUSTABLE.
Lights
41
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

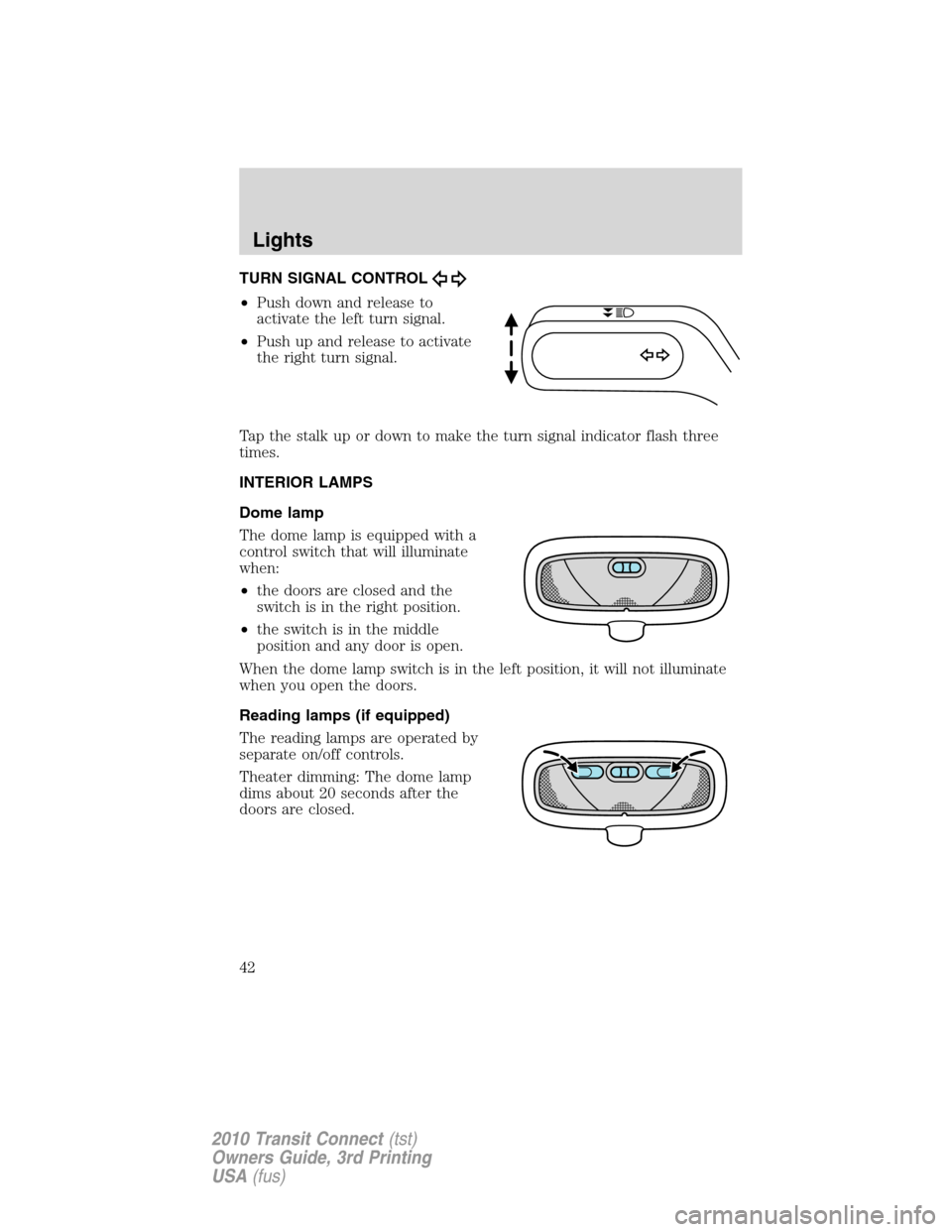

TURN SIGNAL CONTROL
•Push down and release to
activate the left turn signal.
•Push up and release to activate
the right turn signal.
Tap the stalk up or down to make the turn signal indicator flash three
times.
INTERIOR LAMPS
Dome lamp
The dome lamp is equipped with a
control switch that will illuminate
when:
•the doors are closed and the
switch is in the right position.
•the switch is in the middle
position and any door is open.
When the dome lamp switch is in the left position, it will not illuminate
when you open the doors.
Reading lamps (if equipped)
The reading lamps are operated by
separate on/off controls.
Theater dimming: The dome lamp
dims about 20 seconds after the
doors are closed.
Lights
42
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

Approach lamps (if equipped)
The approach lamps will turn on and off automatically when you open
and close the doors. If you unlock the doors with the remote control,
they will come on. They will go off automatically after a short time.
BULB REPLACEMENT
Lamp assembly condensation
Exterior lamps are vented to accommodate normal changes in pressure.
Condensation can be a natural by-product of this design. When moist air
enters the lamp assembly through the vents, there is a possibility that
condensation can occur when the temperature is cold. When normal
condensation occurs, a thin film of mist can form on the interior of the
lens. The thin mist eventually clears and exits through the vents during
normal operation. Clearing time may take as long as 48 hours under dry
weather conditions.
Examples of acceptable condensation are:
•Presence of thin mist (no streaks, drip marks or droplets)
•Fine mist covers less than 50% of the lens
Examples of unacceptable moisture (usually caused by a lamp water
leak) are:
•Water puddle inside the lamp
•Large water droplets, drip marks or streaks present on the interior of
the lens
Take your vehicle to dealer for service if any of the above conditions of
unacceptable moisture are present.
Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America to ensure
lamp performance, light brightness and pattern and safe visibility. The
correct bulbs will not damage the lamp assembly or void the lamp
assembly warranty and will provide quality bulb burn time.
Lights
43
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

Function Trade number
Headlamps H13
Turn lamp indicator (front) 3457NAK
Turn lamp indicator (rear) WY21W
Side marker lamp W5W LL
Side repeater lamp 194NA
Brake and tail lamps W21/5W
Backup lamp W21W
License plate lamp W5W LL
High-mount brake lamp LED
To replace all instrument panel lights - see your authorized dealer
Replacing interior bulbs
Check the operation of all bulbs frequently.
Replacing front dome lamps
1. Make sure the headlamp switch is
in the off position.
2. Switch off the interior lamps.
3. Pry out the light assembly with a
flat screwdriver.
Install in reverse order.
Lights
44
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

Replacing rear dome lamps
1. Make sure the headlamp switch is
in the off position.
2. Switch off the interior lamps.
3. Pry out the light assembly with a
flat screwdriver.
Install in reverse order.
Replacing reading bulbs
1. Open the reading lamp assembly.
2. Pull the bulb straight out and
replace it.
3. After the bulb has been replaced,
close the lamp assembly.
Install in reverse order.
Replacing exterior bulbs
Check the operation of all bulbs frequently.
Replacing headlamp bulbs
1. Make sure the headlamp control
is in the off position and open the
hood.
2. Pull off the bulb cap.
Lights
45
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

3. Disconnect electrical connector
from the bulb.
4. Twist off the bulb retainer ring by
turning it counterclockwise.
Install in reverse order.
WARNING:Handle a halogen headlamp bulb carefully and keep
out of children’s reach. Grasp the bulb by only its plastic base
and do not touch the glass. The oil from your hand could cause the
bulb to break the next time the headlamps are operated.
Note:If the bulb is accidentally touched, it should be cleaned with
rubbing alcohol before being used.
Replacing front parking lamp bulbs
1. Make sure the headlamp control
is in the off position.
2. Turn the cover counterclockwise
and remove it.
Lights
46
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

3. Remove the bulb and the bulb
socket.
4. Pull the bulb straight out.
Install in reverse order.
Replacing front turn signal bulbs
1. Make sure the headlamp control
is in the off position and open the
hood.
2. Remove the bulb socket from the
lamp assembly by turning it
counterclockwise.
3. Pull the bulb straight out of the
socket.
Install in reverse order.
Lights
47
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

Replacing tail/brake/backup lamps and turn signal bulbs
1. Make sure the headlamp control
is in the off position and then open
the cargo door.
2. Remove the two wing nuts and
gently pull the lamp assembly away
from the vehicle.
3. Remove the bulb socket from the
lamp assembly by turning it
counterclockwise.
Lights
48
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

4. Pull the bulb straight out of the
socket.
Install in reverse order.
Replacing front and rear side marker bulbs
1. Make sure the headlamp control
is in the off position and then open
the cargo door.
2. Remove the side marker by gently
prying the lamp assembly away from
the vehicle.
3. Remove the bulb socket from the
lamp assembly by turning it
counterclockwise.
4. Pull the bulb straight out of the
socket.
Install in reverse order.
Lights
49
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

Replacing side repeater bulbs
1. Make sure the headlamp control
is in the off position.
2. Remove the side repeater by
prying it out from the bottom.
3. Hold the bulb holder and turn it
counterclockwise to remove it.
4. Pull the bulb straight out.
Install in reverse order.
Replacing high-mount brake lamp bulbs
See your authorized dealer for replacement.
Replacing license plate lamp bulbs
1. Make sure the headlamp control
is in the off position.
2. Remove the lens assembly.
3. Pull the bulb straight out.
Install in reverse order.
