MULTI-FUNCTION LEVER
Windshield wiper
Move the lever down for a single
wipe.
For intermittent operation,
move control up one position and
adjust the rotary control to the
desired speed.
For normal operation, move
control up two positions and up
three positions for high-speed
wiping.
Windshield washer
To activate the windshield washer, press the windshield washer
control in. Release control to stop washer fluid spray. The wipers will
operate for a short time after the wash is turned off.
Note:Do not operate the washer when the washer reservoir is empty.
This may cause the washer pump to overheat. Check the washer fluid
level frequently. Do not operate the wipers when the windshield is dry.
This may scratch the glass, damage the wiper blades and cause the wiper
motor to burn out. Before operating the wiper on a dry windshield,
always use the windshield washer. In freezing weather, be sure the wiper
blades are not frozen to the windshield before operating the wipers.
Rear window wiper/washer (if equipped)
Wiper
Pull the lever towards you for intermittent wiping.
Washer
Pull the lever farther to operate the washer. The wiper will operate
for a short time and will activate once more after pausing to clear the
windshield.
Reverse gear wipe
The rear wiper will be activated automatically when shifting into R
(Reverse) if the front wiper is activated.
Driver Controls
51
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

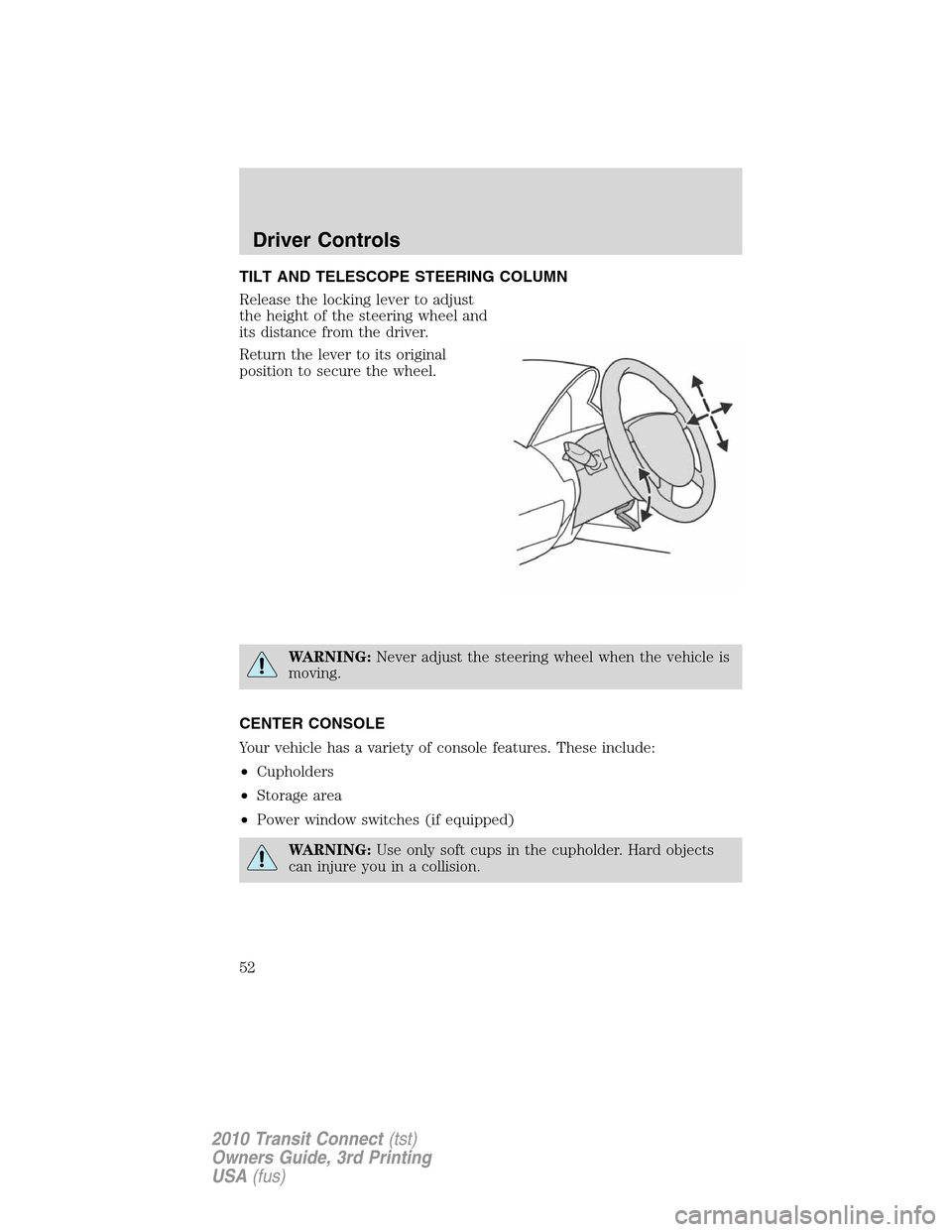

TILT AND TELESCOPE STEERING COLUMN
Release the locking lever to adjust
the height of the steering wheel and
its distance from the driver.
Return the lever to its original
position to secure the wheel.
WARNING:Never adjust the steering wheel when the vehicle is
moving.
CENTER CONSOLE
Your vehicle has a variety of console features. These include:
•Cupholders
•Storage area
•Power window switches (if equipped)
WARNING:Use only soft cups in the cupholder. Hard objects
can injure you in a collision.
Driver Controls
52
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

OVERHEAD STORAGE SHELF
The storage shelf above the
windshield can be used for storing
light objects such as safety jackets,
coats, etc.
WARNING:Do not place heavy or hard objects in the overhead
storage, which may fall while driving, and could cause serious
injury.
AUXILIARY POWER POINTS (12VDC)
Power outlets are designed for accessory plugs only. Do not insert
any other object in the power outlet as this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.
The auxiliary power point(s) is
located near the transmission shift
lever.
Your vehicle may also include an auxiliary power point located in the
rear cargo area.
Do not use the power point for operating a cigarette lighter element.
To prevent the fuse from being blown, do not use the power point(s)
over the vehicle capacity of 12 VDC/180W. If the power point or cigar
lighter socket is not working, a fuse may have blown. Refer toFuses and
relaysin theRoadside Emergencieschapter for information on
checking and replacing fuses.
Driver Controls
53
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

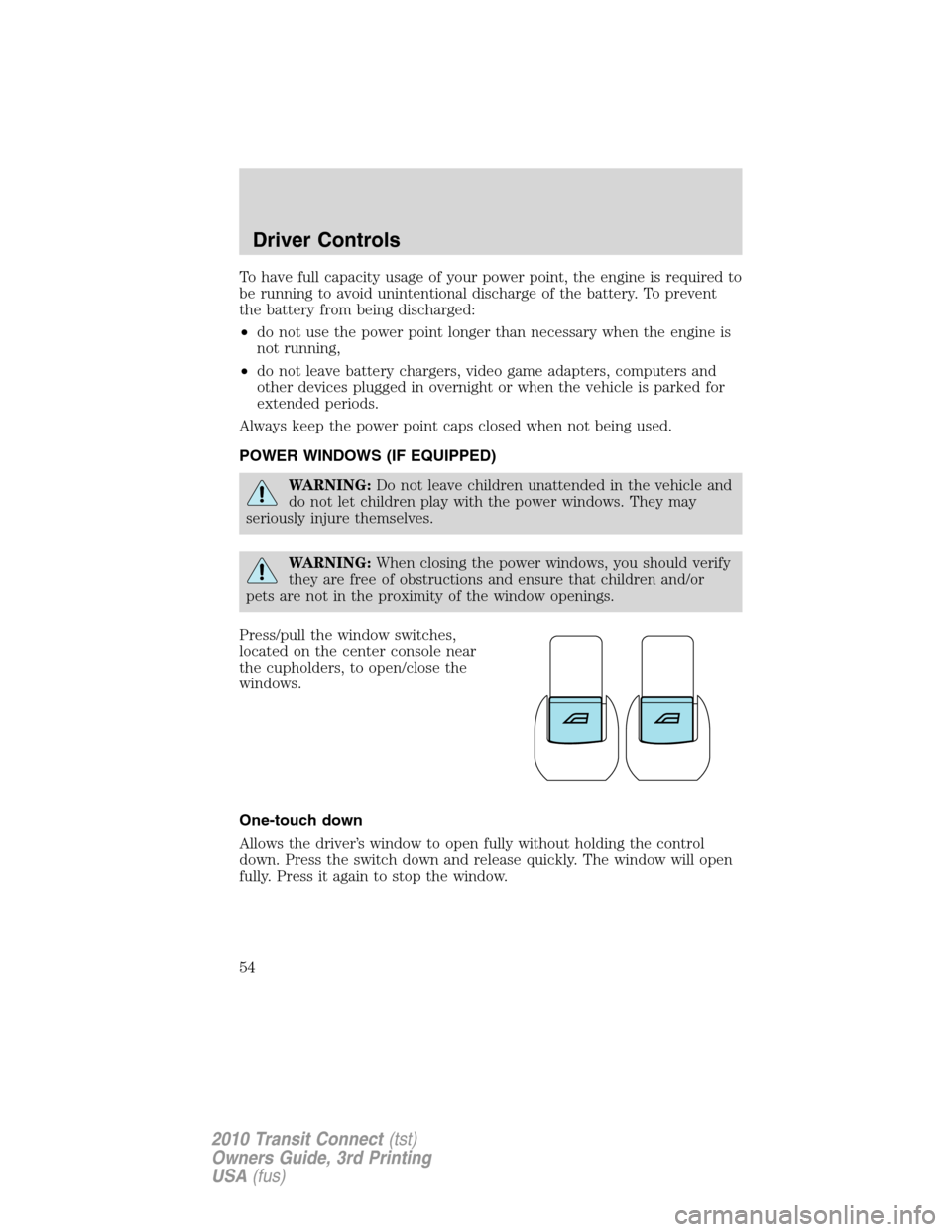

To have full capacity usage of your power point, the engine is required to
be running to avoid unintentional discharge of the battery. To prevent
the battery from being discharged:
•do not use the power point longer than necessary when the engine is
not running,
•do not leave battery chargers, video game adapters, computers and
other devices plugged in overnight or when the vehicle is parked for
extended periods.
Always keep the power point caps closed when not being used.
POWER WINDOWS (IF EQUIPPED)
WARNING:Do not leave children unattended in the vehicle and
do not let children play with the power windows. They may
seriously injure themselves.
WARNING:When closing the power windows, you should verify
they are free of obstructions and ensure that children and/or
pets are not in the proximity of the window openings.
Press/pull the window switches,
located on the center console near
the cupholders, to open/close the
windows.
One-touch down
Allows the driver’s window to open fully without holding the control
down. Press the switch down and release quickly. The window will open
fully. Press it again to stop the window.
Driver Controls
54
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

INTERIOR MIRROR
The interior rear view mirror has two pivot points on the support arm
which lets you adjust the mirror.
Press the tab to help reduce glare at
night.
WARNING:Do not adjust the mirror while the vehicle is in
motion.
EXTERIOR MIRRORS
Power side view mirrors (if equipped)
To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror or
counterclockwise to adjust the left
mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return the control to the center position to lock mirrors in place.
Heated side view mirrors (if equipped)
Both mirrors are heated automatically to remove ice, mist and fog when
the rear window defrost is activated.
Do not remove ice from the mirrors with a scraper or attempt to
readjust the mirror glass if it is frozen in place. These actions
could cause damage to the glass and mirrors.
Fold-away mirrors
Pull/push the mirrors in to fold/unfold them.
Driver Controls
55
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

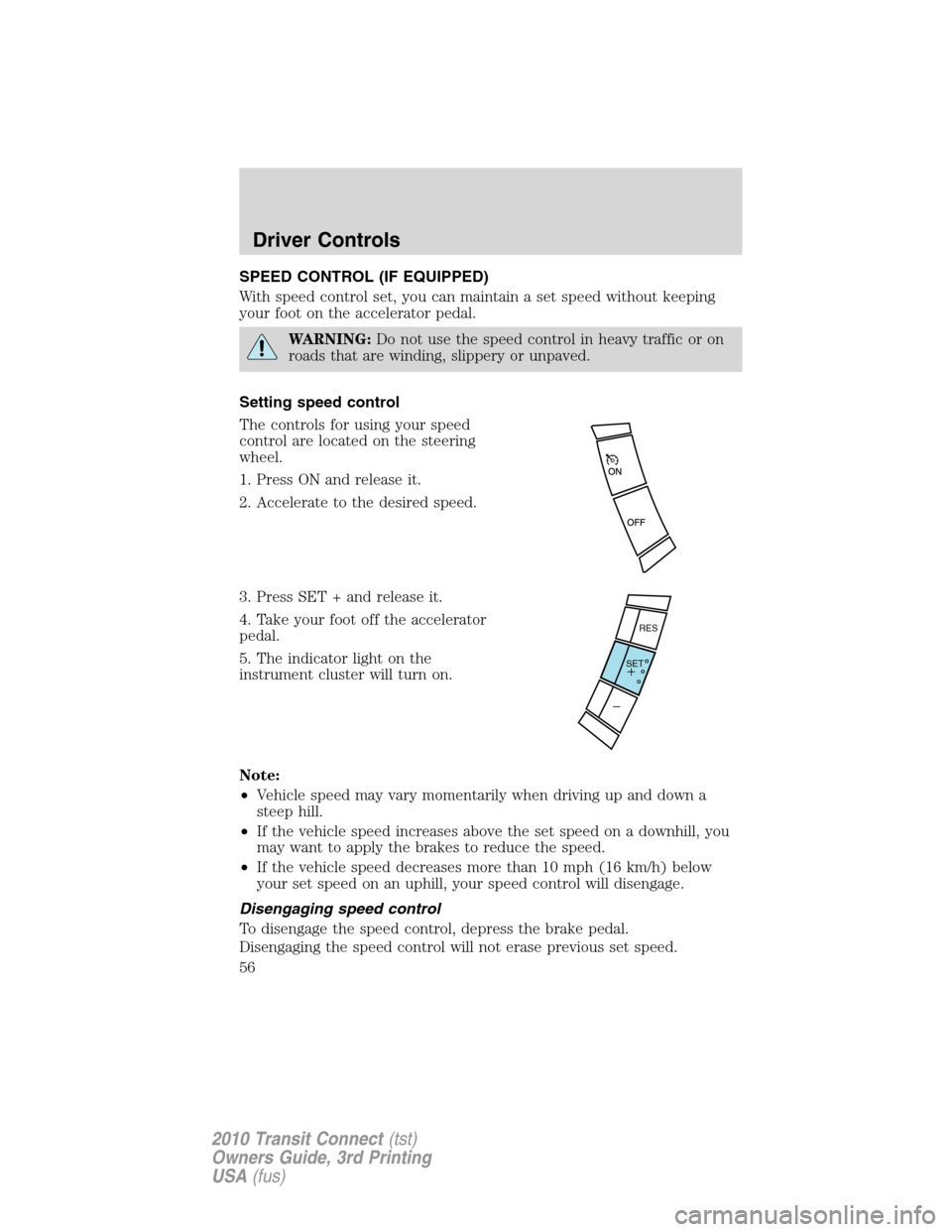

SPEED CONTROL (IF EQUIPPED)
With speed control set, you can maintain a set speed without keeping
your foot on the accelerator pedal.
WARNING:Do not use the speed control in heavy traffic or on
roads that are winding, slippery or unpaved.
Setting speed control
The controls for using your speed
control are located on the steering
wheel.
1. Press ON and release it.
2. Accelerate to the desired speed.
3. Press SET + and release it.
4. Take your foot off the accelerator
pedal.
5. The indicator light on the
instrument cluster will turn on.
Note:
•Vehicle speed may vary momentarily when driving up and down a
steep hill.
•If the vehicle speed increases above the set speed on a downhill, you
may want to apply the brakes to reduce the speed.
•If the vehicle speed decreases more than 10 mph (16 km/h) below
your set speed on an uphill, your speed control will disengage.
Disengaging speed control
To disengage the speed control, depress the brake pedal.
Disengaging the speed control will not erase previous set speed.
SETRES
Driver Controls
56
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

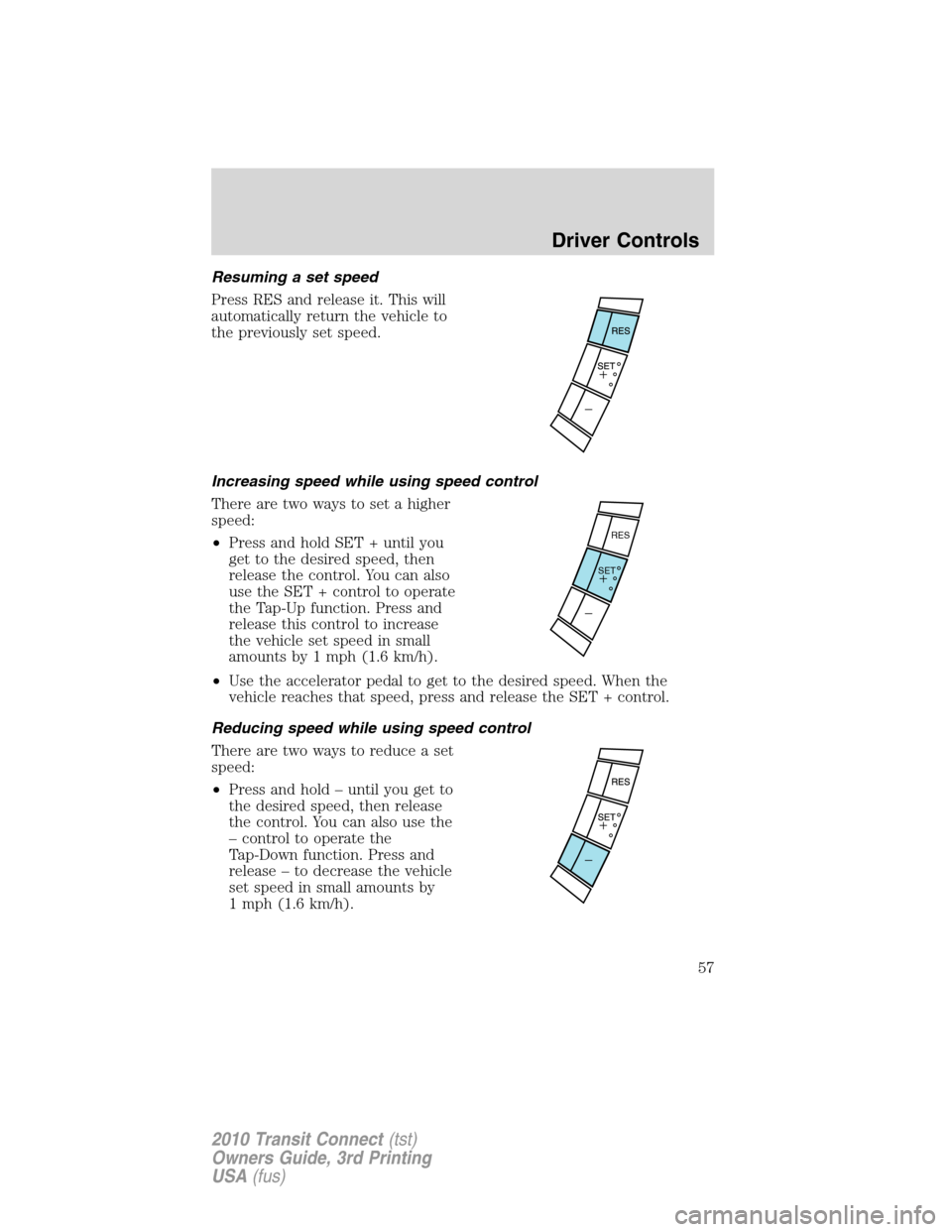

Resuming a set speed
Press RES and release it. This will
automatically return the vehicle to
the previously set speed.
Increasing speed while using speed control
There are two ways to set a higher
speed:
•Press and hold SET + until you
get to the desired speed, then
release the control. You can also
use the SET + control to operate
the Tap-Up function. Press and
release this control to increase
the vehicle set speed in small
amounts by 1 mph (1.6 km/h).
•Use the accelerator pedal to get to the desired speed. When the
vehicle reaches that speed, press and release the SET + control.
Reducing speed while using speed control
There are two ways to reduce a set
speed:
•Press and hold – until you get to
the desired speed, then release
the control. You can also use the
– control to operate the
Tap-Down function. Press and
release – to decrease the vehicle
set speed in small amounts by
1 mph (1.6 km/h).
SETRES
Driver Controls
57
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

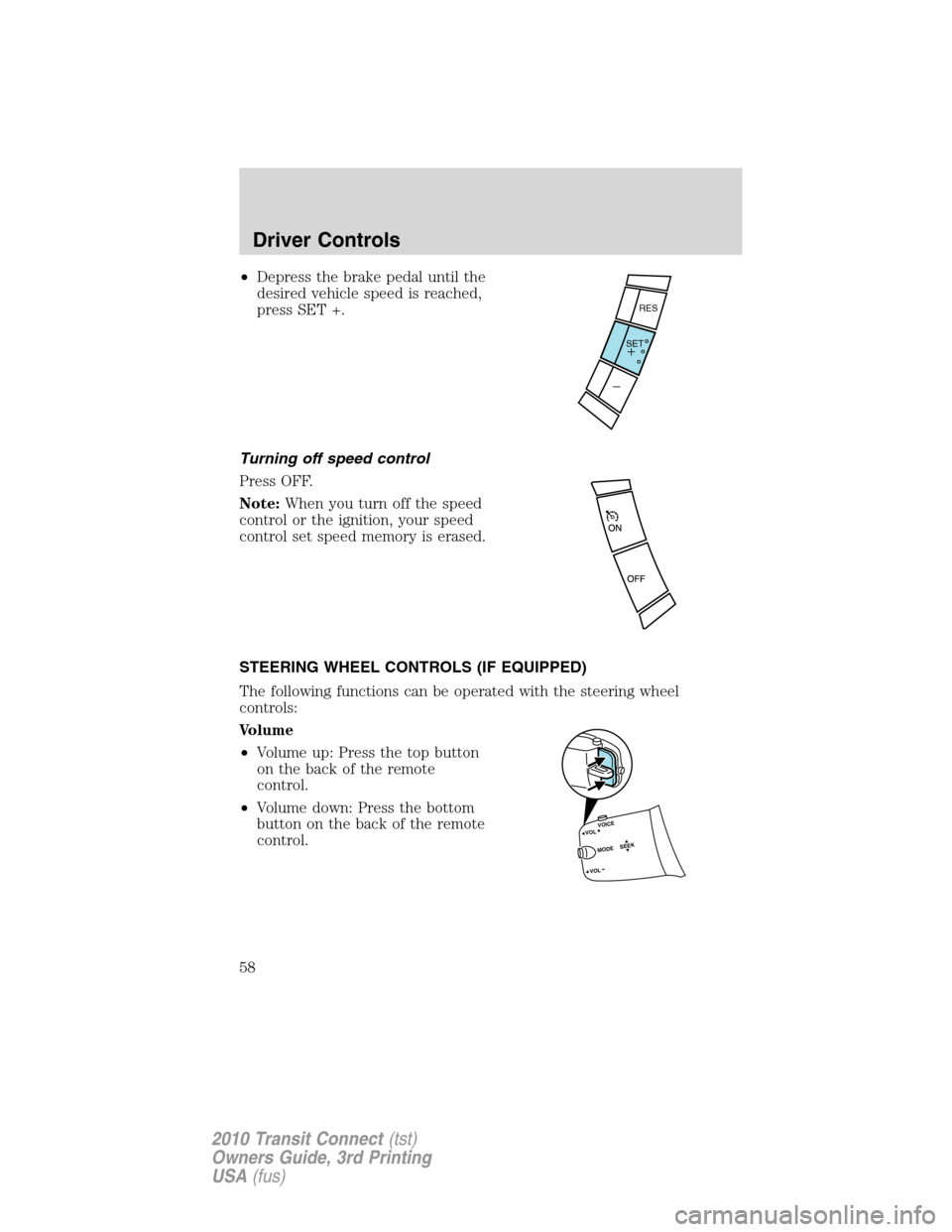

•Depress the brake pedal until the
desired vehicle speed is reached,
press SET +.
Turning off speed control
Press OFF.
Note:When you turn off the speed
control or the ignition, your speed
control set speed memory is erased.
STEERING WHEEL CONTROLS (IF EQUIPPED)
The following functions can be operated with the steering wheel
controls:
Volume
•Volume up: Press the top button
on the back of the remote
control.
•Volume down: Press the bottom
button on the back of the remote
control.
SETRES
VOICE
S
E
E
KVOL
VOL
MODE
Driver Controls
58
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

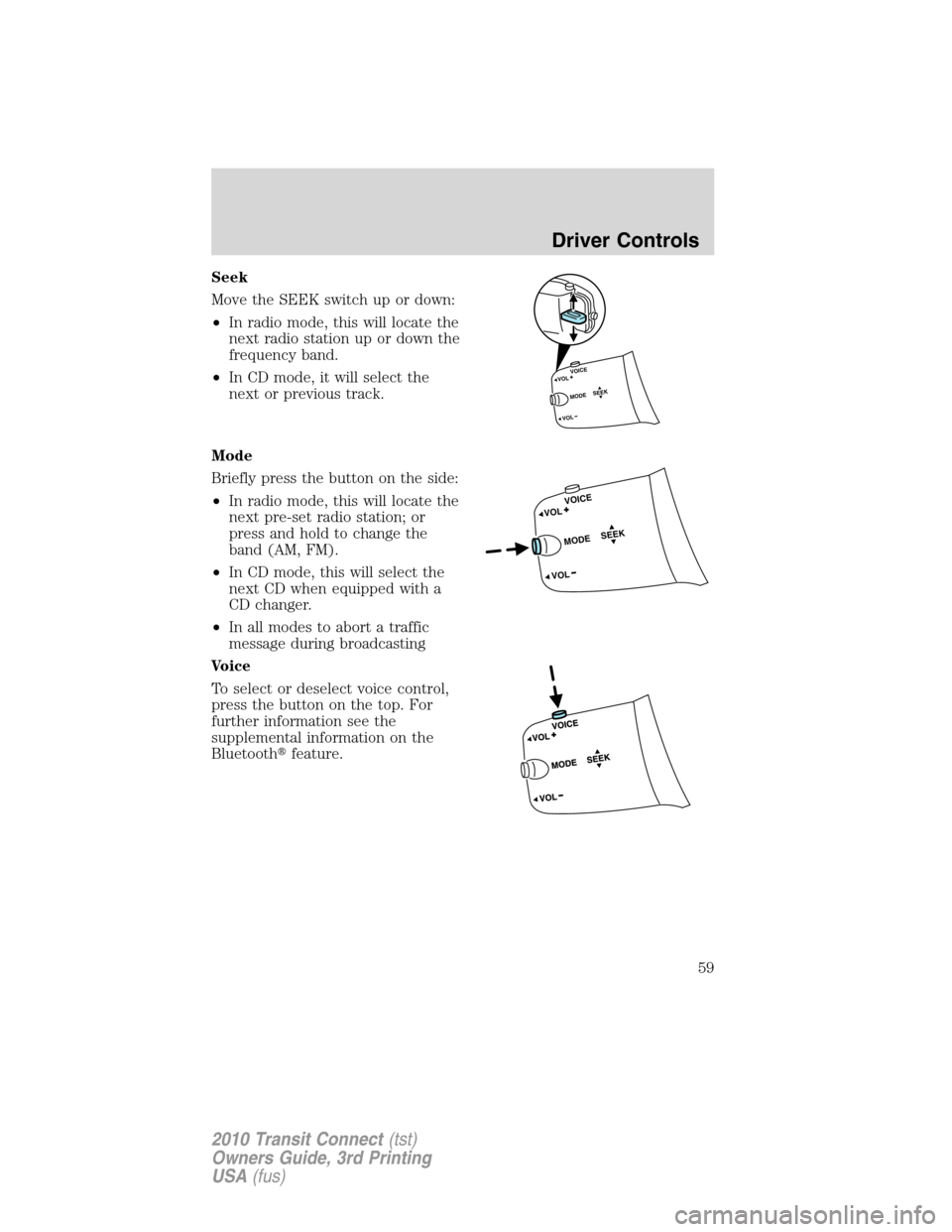

Seek
Move the SEEK switch up or down:
•In radio mode, this will locate the
next radio station up or down the
frequency band.
•In CD mode, it will select the
next or previous track.
Mode
Briefly press the button on the side:
•In radio mode, this will locate the
next pre-set radio station; or
press and hold to change the
band (AM, FM).
•In CD mode, this will select the
next CD when equipped with a
CD changer.
•In all modes to abort a traffic
message during broadcasting
Voice
To select or deselect voice control,
press the button on the top. For
further information see the
supplemental information on the
Bluetoothfeature.
VOICE
S
E
E
KVOL
VOL
MODE
VOICE
S
E
E
K
VOL
VOL
MODE
Driver Controls
59
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

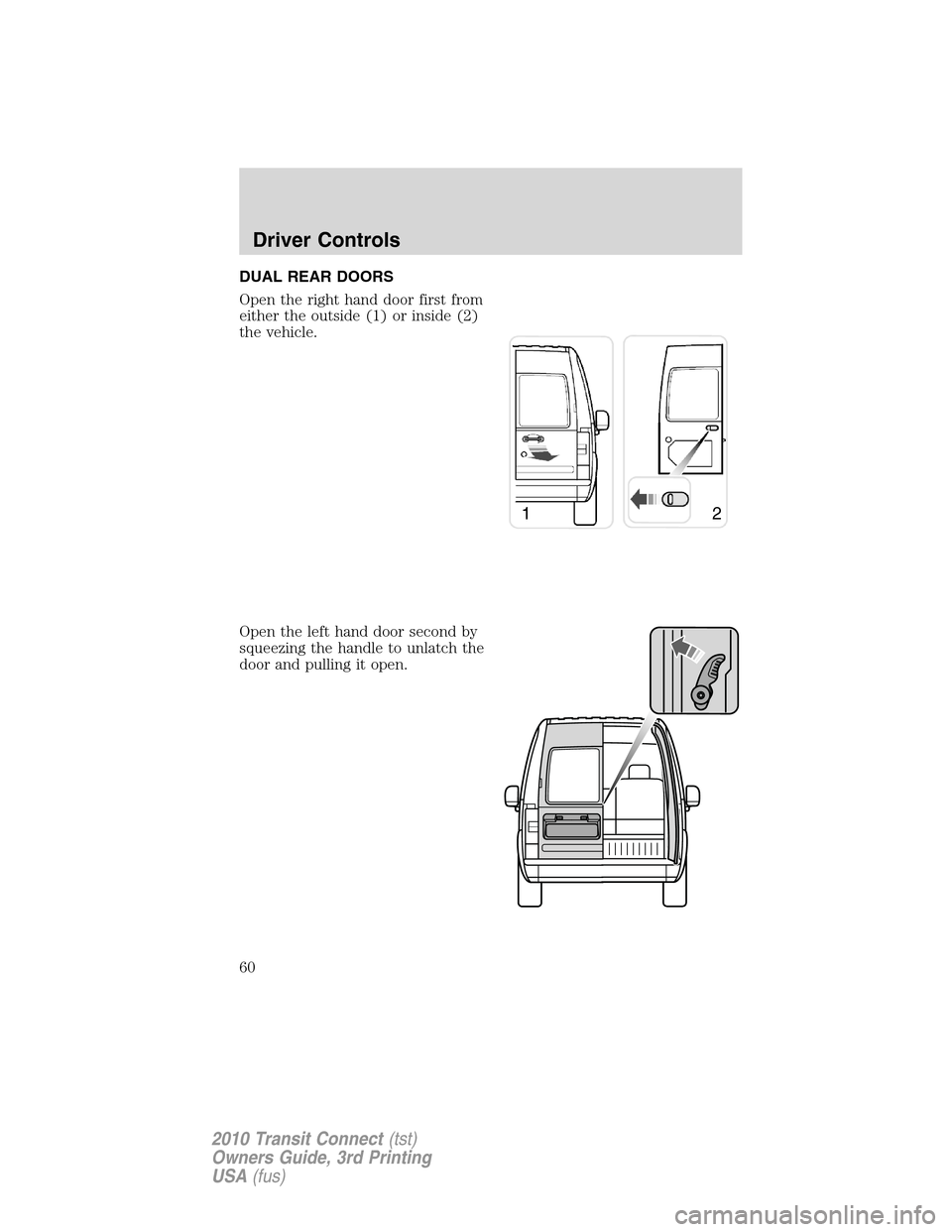

DUAL REAR DOORS
Open the right hand door first from
either the outside (1) or inside (2)
the vehicle.
Open the left hand door second by
squeezing the handle to unlatch the
door and pulling it open.
12
