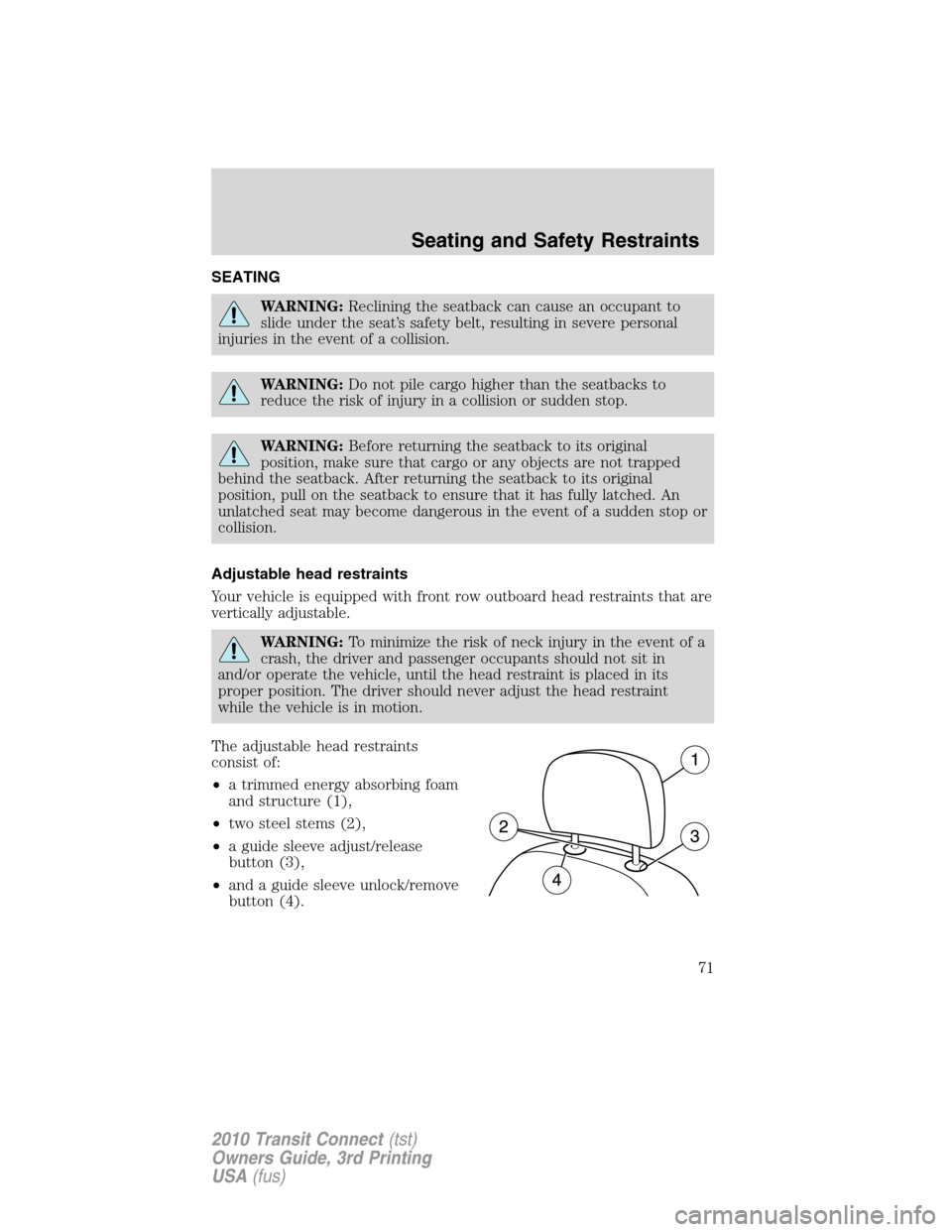

SEATING
WARNING:Reclining the seatback can cause an occupant to
slide under the seat’s safety belt, resulting in severe personal
injuries in the event of a collision.
WARNING:Do not pile cargo higher than the seatbacks to
reduce the risk of injury in a collision or sudden stop.
WARNING:Before returning the seatback to its original
position, make sure that cargo or any objects are not trapped
behind the seatback. After returning the seatback to its original
position, pull on the seatback to ensure that it has fully latched. An
unlatched seat may become dangerous in the event of a sudden stop or
collision.
Adjustable head restraints
Your vehicle is equipped with front row outboard head restraints that are
vertically adjustable.
WARNING:To minimize the risk of neck injury in the event of a
crash, the driver and passenger occupants should not sit in
and/or operate the vehicle, until the head restraint is placed in its
proper position. The driver should never adjust the head restraint
while the vehicle is in motion.
The adjustable head restraints
consist of:
•a trimmed energy absorbing foam
and structure (1),
•two steel stems (2),
•a guide sleeve adjust/release
button (3),
•and a guide sleeve unlock/remove
button (4).
Seating and Safety Restraints
71
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

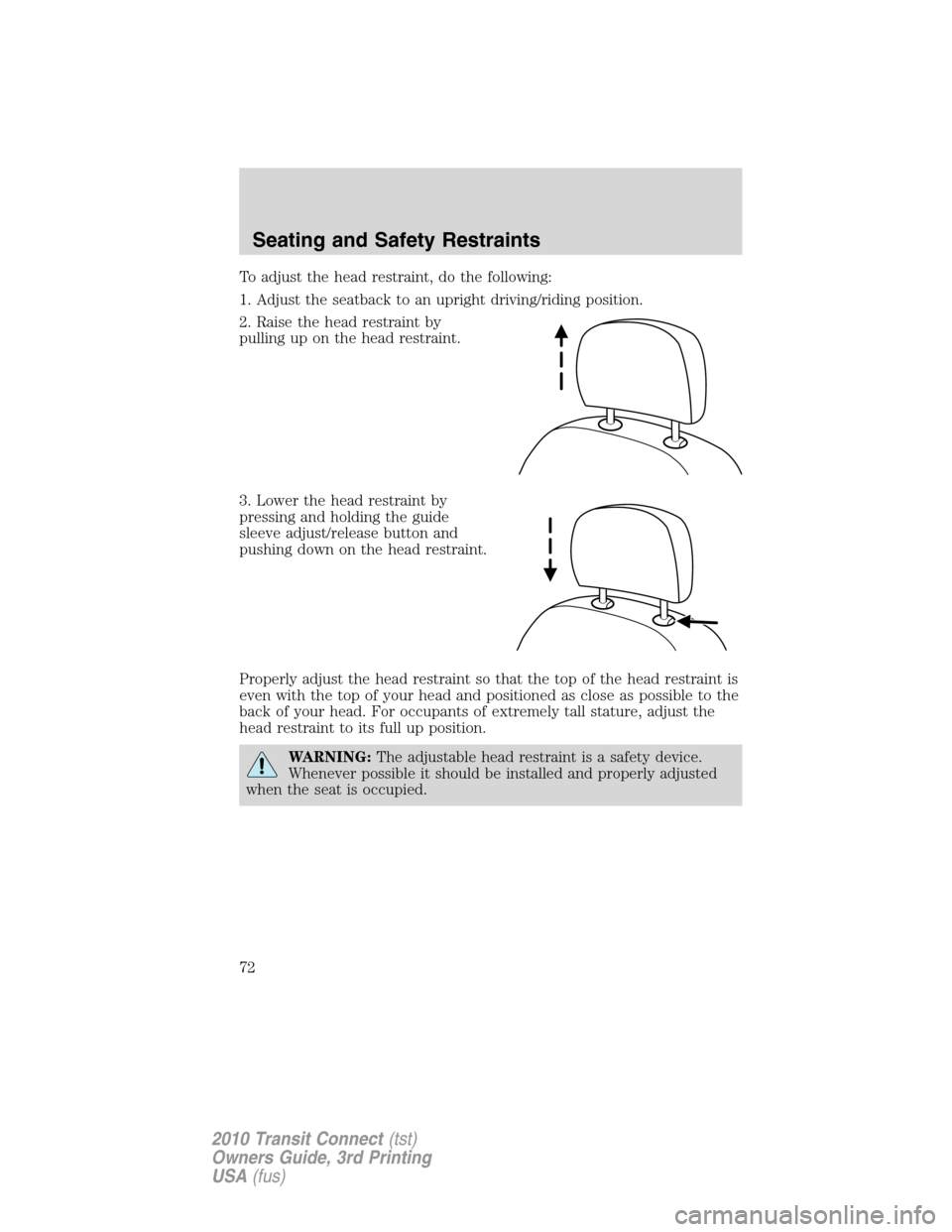

To adjust the head restraint, do the following:
1. Adjust the seatback to an upright driving/riding position.
2. Raise the head restraint by
pulling up on the head restraint.
3. Lower the head restraint by
pressing and holding the guide
sleeve adjust/release button and
pushing down on the head restraint.
Properly adjust the head restraint so that the top of the head restraint is
even with the top of your head and positioned as close as possible to the
back of your head. For occupants of extremely tall stature, adjust the
head restraint to its full up position.
WARNING:The adjustable head restraint is a safety device.
Whenever possible it should be installed and properly adjusted
when the seat is occupied.
Seating and Safety Restraints
72
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

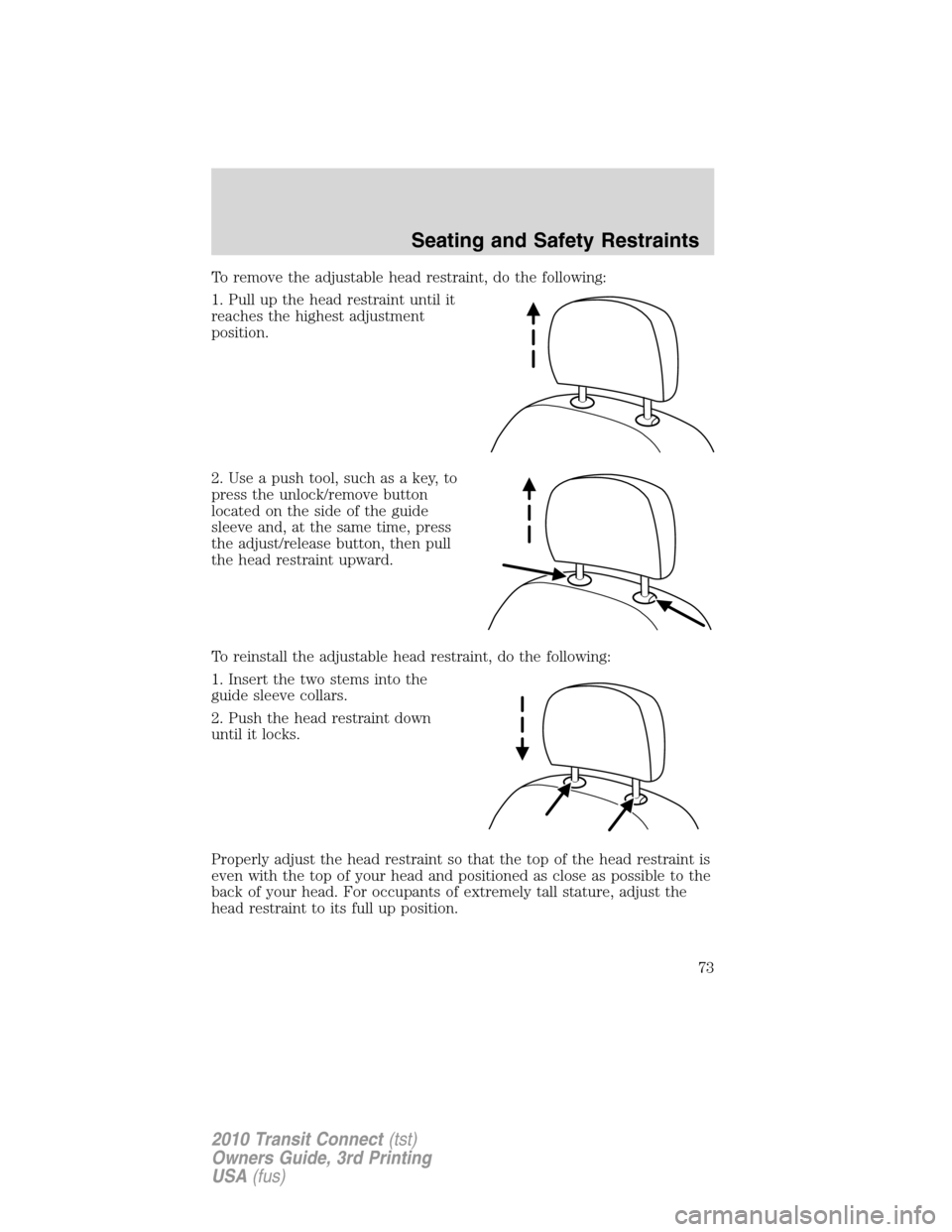

To remove the adjustable head restraint, do the following:
1. Pull up the head restraint until it
reaches the highest adjustment
position.
2. Use a push tool, such as a key, to
press the unlock/remove button
located on the side of the guide
sleeve and, at the same time, press
the adjust/release button, then pull
the head restraint upward.
To reinstall the adjustable head restraint, do the following:
1. Insert the two stems into the
guide sleeve collars.
2. Push the head restraint down
until it locks.
Properly adjust the head restraint so that the top of the head restraint is
even with the top of your head and positioned as close as possible to the
back of your head. For occupants of extremely tall stature, adjust the
head restraint to its full up position.
Seating and Safety Restraints
73
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

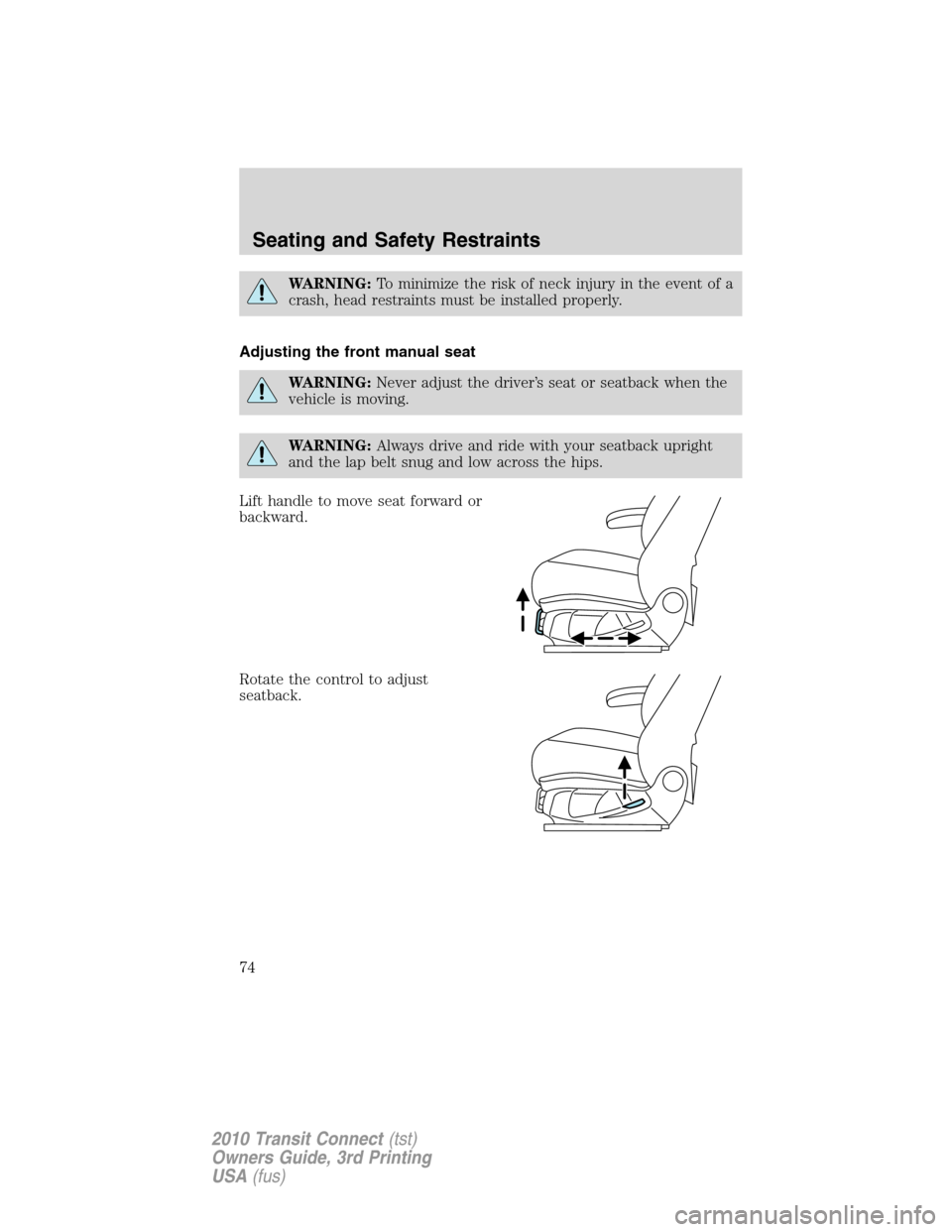

WARNING:To minimize the risk of neck injury in the event of a
crash, head restraints must be installed properly.
Adjusting the front manual seat
WARNING:Never adjust the driver’s seat or seatback when the
vehicle is moving.
WARNING:Always drive and ride with your seatback upright
and the lap belt snug and low across the hips.
Lift handle to move seat forward or
backward.
Rotate the control to adjust
seatback.
Seating and Safety Restraints
74
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

Move the front control to raise or
lower the seat cushion.
Using the manual lumbar support
The lumbar support control is
located on the in-board side of the
seatback.
Turn the lumbar support control
clockwise for more support.
Turn the lumbar support
counter-clockwise for less support.
Using the armrest (if equipped)
Move the armrest up or down. You
can also move it all the way up to
stow it on the side of the seatback.
Seating and Safety Restraints
75
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

REAR SEATS
Second row adjustable head restraints
Your vehicle is equipped with second row outboard head restraints that
are vertically adjustable.
WARNING:To minimize the risk of neck injury in the event of a
crash, the driver and passenger occupants should not sit in
and/or operate the vehicle, until the head restraint is placed in its
proper position. The driver should never adjust the head restraint
while the vehicle is in motion.
The adjustable head restraints
consist of :
•a trimmed energy absorbing foam
and structure (1),
•two steel stems (2),
•a guide sleeve adjust/release
button (3),
•and a red guide sleeve
unlock/remove button (4).
To adjust the head restraint, do the following:
1. Adjust the seatback to an upright driving/riding position.
2. Raise the head restraint by
pulling up on the head restraint.
Seating and Safety Restraints
76
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

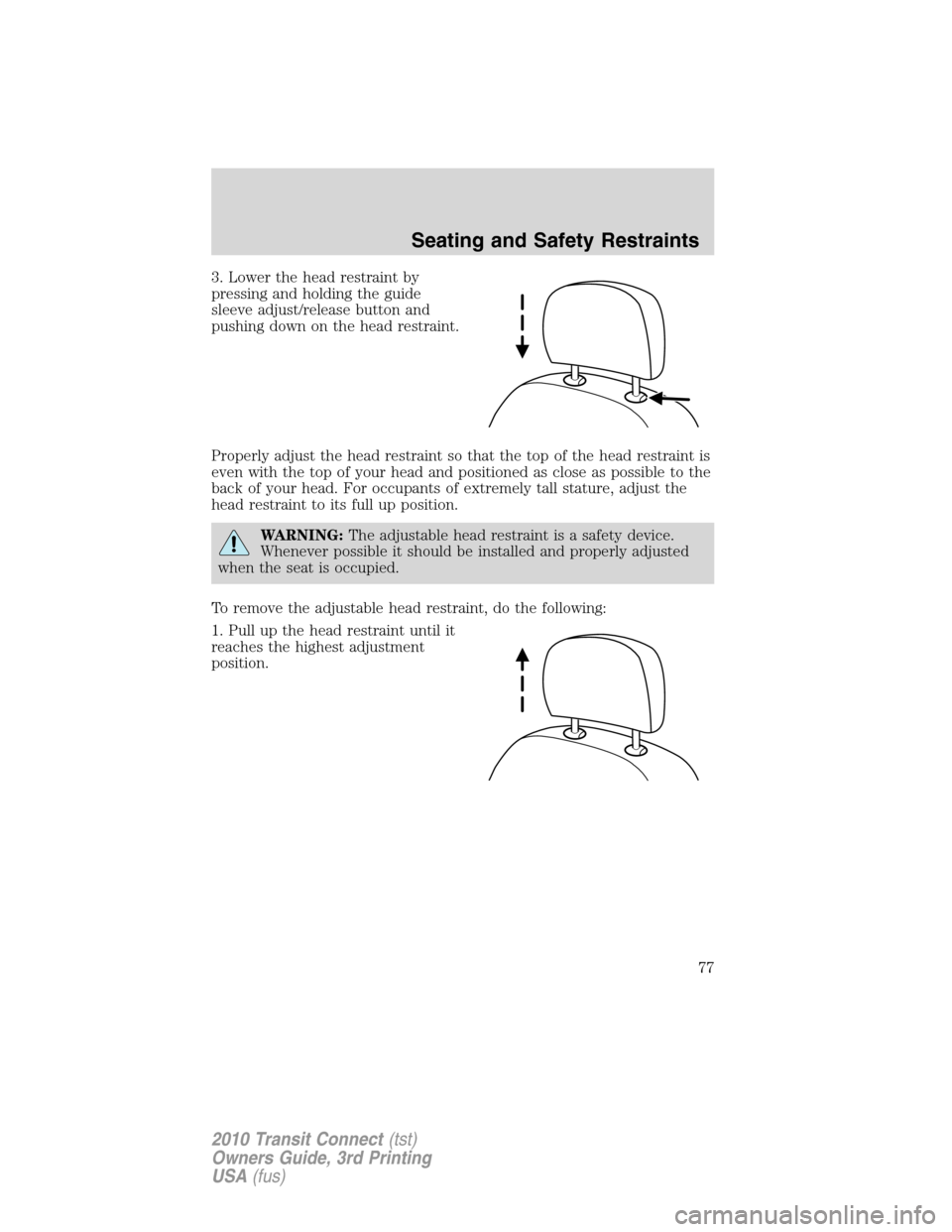

3. Lower the head restraint by
pressing and holding the guide
sleeve adjust/release button and
pushing down on the head restraint.
Properly adjust the head restraint so that the top of the head restraint is
even with the top of your head and positioned as close as possible to the
back of your head. For occupants of extremely tall stature, adjust the
head restraint to its full up position.
WARNING:The adjustable head restraint is a safety device.
Whenever possible it should be installed and properly adjusted
when the seat is occupied.
To remove the adjustable head restraint, do the following:
1. Pull up the head restraint until it
reaches the highest adjustment
position.
Seating and Safety Restraints
77
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

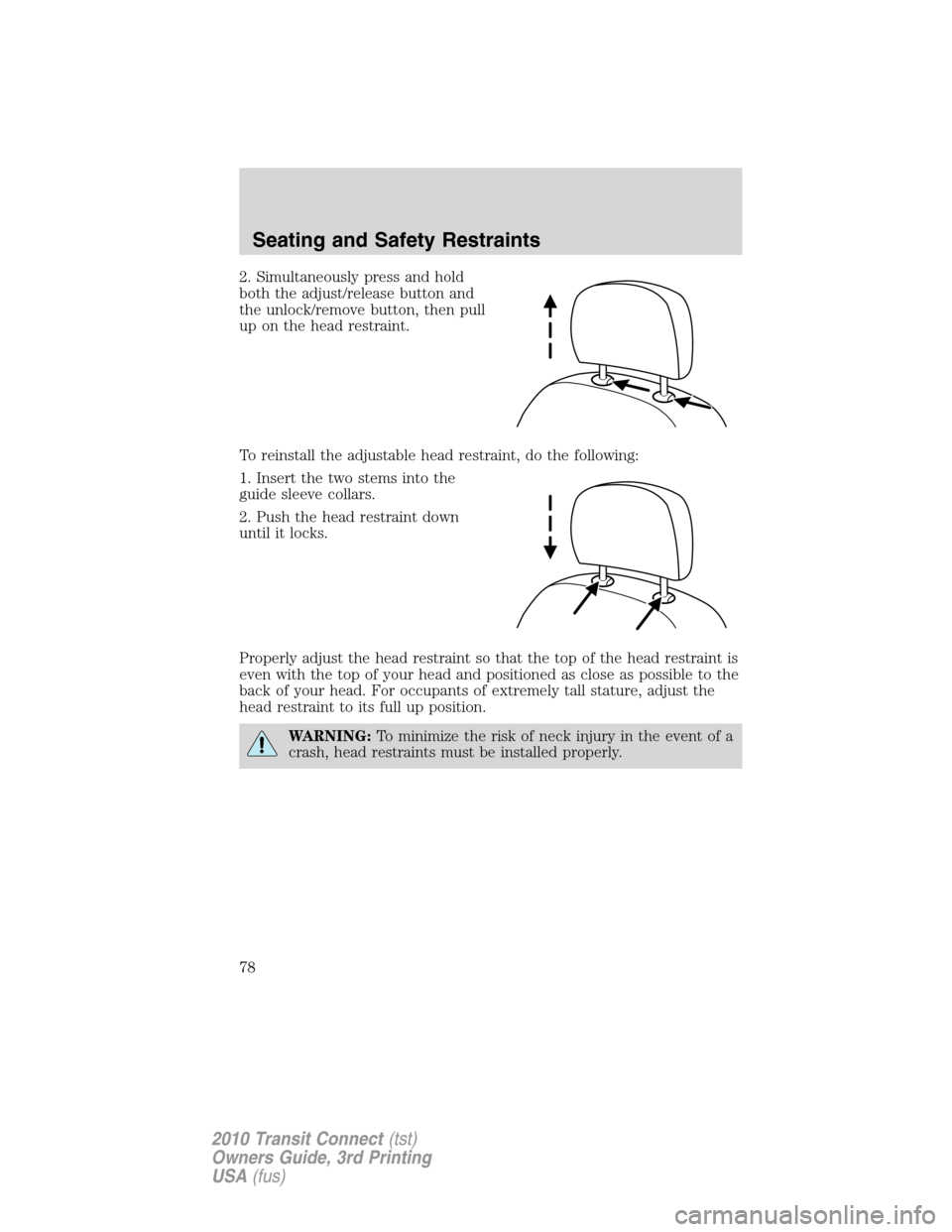

2. Simultaneously press and hold
both the adjust/release button and
the unlock/remove button, then pull
up on the head restraint.
To reinstall the adjustable head restraint, do the following:
1. Insert the two stems into the
guide sleeve collars.
2. Push the head restraint down
until it locks.
Properly adjust the head restraint so that the top of the head restraint is
even with the top of your head and positioned as close as possible to the
back of your head. For occupants of extremely tall stature, adjust the
head restraint to its full up position.
WARNING:To minimize the risk of neck injury in the event of a
crash, head restraints must be installed properly.
Seating and Safety Restraints
78
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

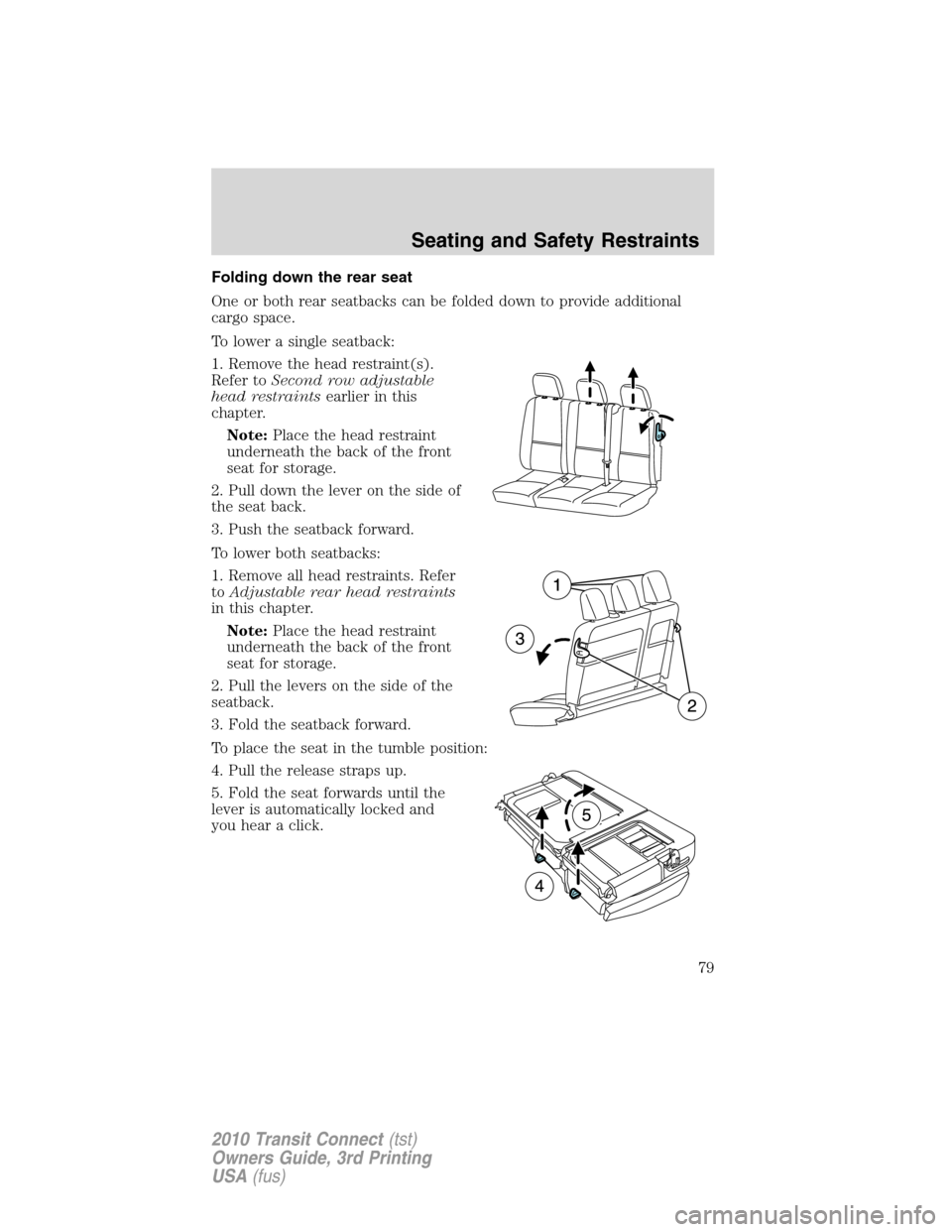

Folding down the rear seat
One or both rear seatbacks can be folded down to provide additional
cargo space.
To lower a single seatback:
1. Remove the head restraint(s).
Refer toSecond row adjustable
head restraintsearlier in this
chapter.
Note:Place the head restraint
underneath the back of the front
seat for storage.
2. Pull down the lever on the side of
the seat back.
3. Push the seatback forward.
To lower both seatbacks:
1. Remove all head restraints. Refer
toAdjustable rear head restraints
in this chapter.
Note:Place the head restraint
underneath the back of the front
seat for storage.
2. Pull the levers on the side of the
seatback.
3. Fold the seatback forward.
To place the seat in the tumble position:
4. Pull the release straps up.
5. Fold the seat forwards until the
lever is automatically locked and
you hear a click.
Seating and Safety Restraints
79
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

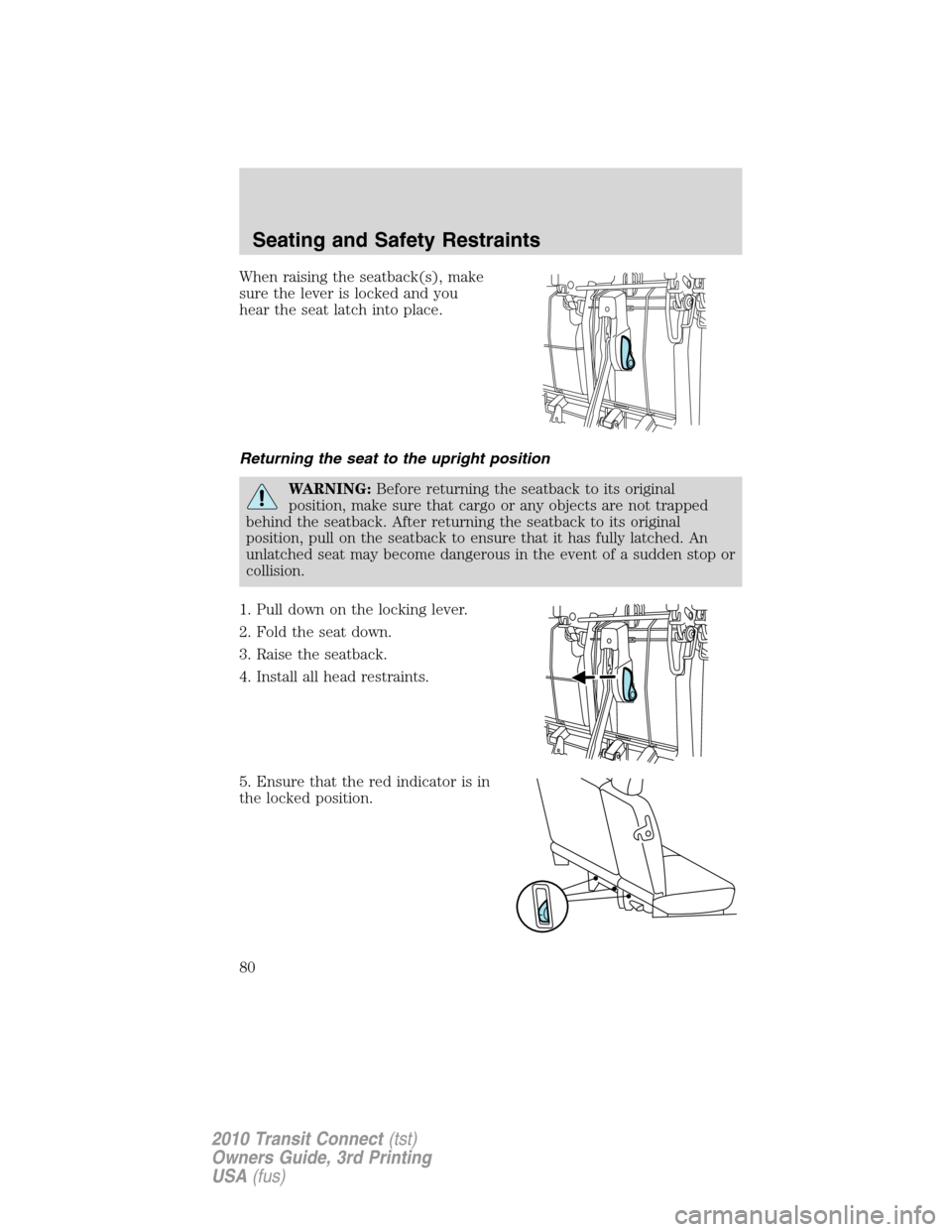

When raising the seatback(s), make
sure the lever is locked and you
hear the seat latch into place.
Returning the seat to the upright position
WARNING:Before returning the seatback to its original
position, make sure that cargo or any objects are not trapped
behind the seatback. After returning the seatback to its original
position, pull on the seatback to ensure that it has fully latched. An
unlatched seat may become dangerous in the event of a sudden stop or
collision.
1. Pull down on the locking lever.
2. Fold the seat down.
3. Raise the seatback.
4. Install all head restraints.
5. Ensure that the red indicator is in
the locked position.
Seating and Safety Restraints
