Page 171 of 411

Circuits protected
Fuse Rating
Fuse
Blower motor
40A **
F10
Rear floor console auxiliary power point
20A **
F11
Cargo area auxiliary power point (van only, vehicles
with Start/Stop)
Powertrain control module
30A **
F12
Starter relay
30A **
F13
Heated windshield (right-hand)
40A **
F14
Cargo area auxiliary power point (van only, vehicles
without Start/Stop)
20A
**
F15
Luggage compartment auxiliary power point
(Tourneo, vehicles without Start/Stop)
Heated windshield (left-hand)
40A **
F16
Floor console auxiliary power point
20A **
F17
Not used
-
F18
Anti-lock brake system
5A *
F19
Stability Control
Horn
15A *
F20
Stop lamp switch
5A *
F21
Battery monitor system (1.6 GTDI engine only)
15A *
F22
Power supply voltage (powertrain control module
2.5 L engine only)
10A
Relay coils
5A *
F23
Not used
-
F24
Power mirrors (without door control unit)
10A
F25
Engine control relay coil feed (2.5 L engine only)
5A *
F26
Air conditioning clutch
15A *
F27
Rear power window (without door control unit)
25A *
F28
168
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, Edition date: 07/2013 Fuses
Page 172 of 411

Circuits protected
Fuse Rating
Fuse
Front power window (without door control unit)
25A *
F29
Ignition switch position II output (van only)
5A
F30
Not used
-
F31
Engine control module
15A *
F32
Engine control module
10A *
F33
Fuel injectors
10A *
F34
Filter Heater
15A
F35
Engine control module (DV6 and Fox engine only)
10A *
F36
Active grill shutter (1.6 GTDI and 2.5L engine only)
5A
Parking assist control module (van only)
5A *
F37
Engine control module
15A *
F38
Transmission control module
Not used
-
F39
Electronic power assist steering
5A *
F40
Body control module
20A *
F41
Rear window wiper
15A *
F42
Heated front seat (wagon only)
15A *
F43
Headlamp control module
15A *
F44
Heated washer nozzle
10A *
F45
Windshield wiper
40A **
F46
Heated exterior mirror (without door control unit)
7.5A
F47
Body control module
25A *
F48
* Mini fuses **
Cartridge fuses
169
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, Edition date: 07/2013 Fuses

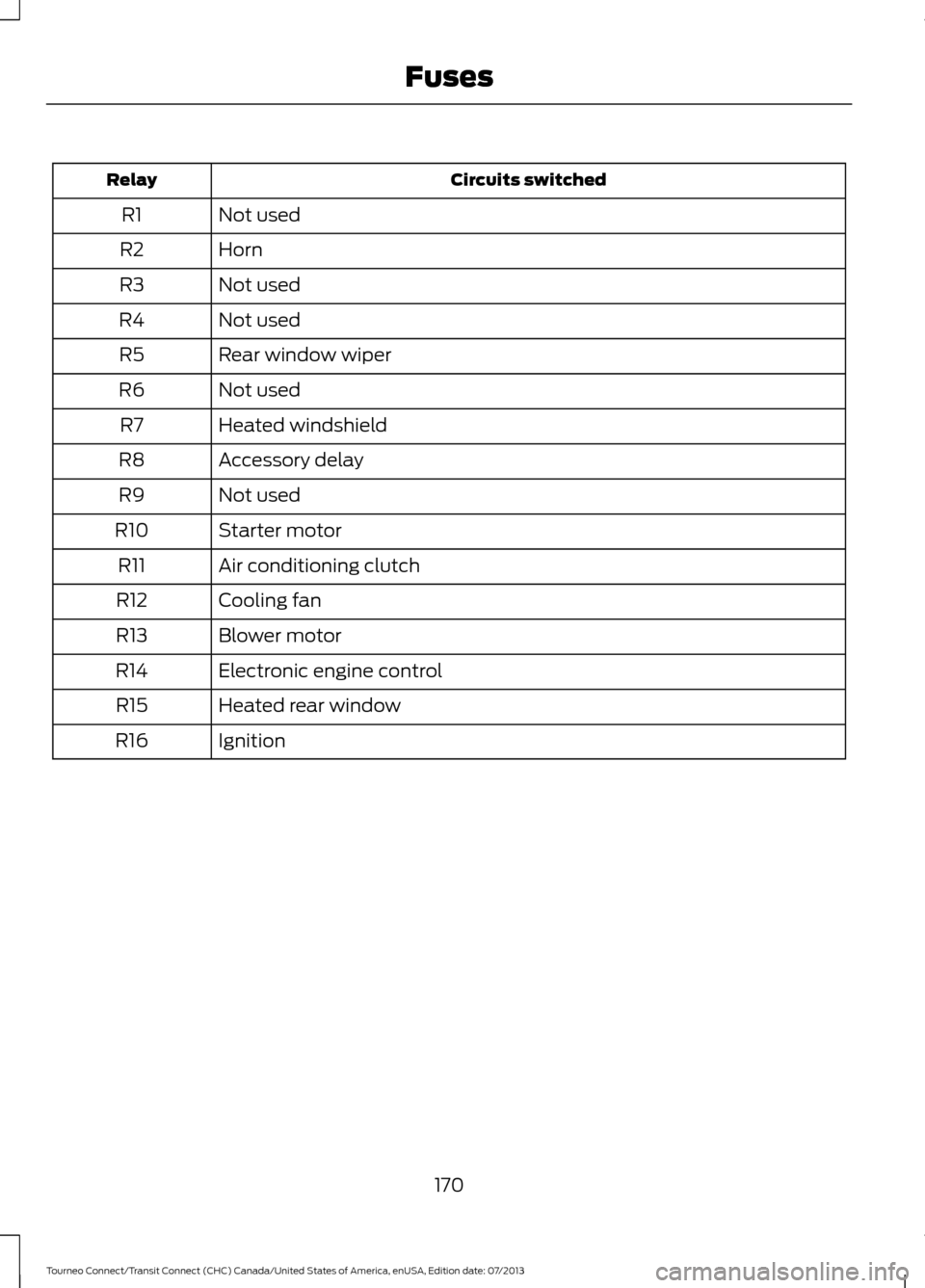

Page 173 of 411

Circuits switched
Relay
Not used
R1
Horn
R2
Not used
R3
Not used
R4
Rear window wiper
R5
Not used
R6
Heated windshield
R7
Accessory delay
R8
Not used
R9
Starter motor
R10
Air conditioning clutch
R11
Cooling fan
R12
Blower motor
R13
Electronic engine control
R14
Heated rear window
R15
Ignition
R16
170
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, Edition date: 07/2013 Fuses
Page 174 of 411

Passenger Compartment Fuse Box
Circuits protected
Fuse Rating
Fuse
Fuel pump
20A
F56
Not used
-
F57
Not used
-
F58
Passive anti-theft system transceiver
5A
F59
Interior lamp
10A
F60
Driver door switch pack
Glove compartment lamp
171
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, Edition date: 07/2013 FusesE129926
Page 175 of 411

Circuits protected
Fuse Rating
Fuse
Overhead console switch bank
Not used
-
F61
Autowipers
5A
F62
Auto-dimming interior mirror
Not used
-
F63
Not used
-
F64
Liftgate release
10A
F65
Front door double locking and unlock relay
20A
F66
SYNC
7.5A
F67
Front display interface module
Global positioning system module
Not used
-
F68
Instrument panel cluster
5A
F69
Central locking relay
20A
F70
Heating control head (manual air conditioning)
10A
F71
Dual automatic temperature control
Steering wheel module
7.5A
F72
Data link connector
7.5A
F73
Battery backup sounder
High beam headlamp
15A
F74
Front fog lamp
15A
F75
Reversing lamp
10A
F76
Washer pump
20A
F77
Not used
5A
F78
Audio unit
15A
F79
DVD navigation system
Touchscreen
Hazard flasher switch
Door lock switch
Not used
-
F80
Power sunroof
5A
F81
172
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, Edition date: 07/2013 Fuses
Page 176 of 411

Circuits protected
Fuse Rating
Fuse
interior motion sensor
Washer pump (ground fuse)
20A
F82
Central locking (ground fuse)
20A
F83
Double locking (ground fuse)
20A
F84
Ignition switch
7.5A
F85
Airbag module
10A
F86
Occupant classification system
Passenger airbag deactivation indicator
Not used
-
F87
Body control module KL30 supply
25A
F88
Not used
-
F89
Load Compartment Fuse Box Circuits protected
Fuse Rating
Fuse
Rear heating, ventilation and air conditioning
10A
F1
Driver seat adjuster
25A
F2
Driver door module
25A
F3
Passenger door module
25A
F4
Not used
-
F5
173
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, Edition date: 07/2013 FusesE129927

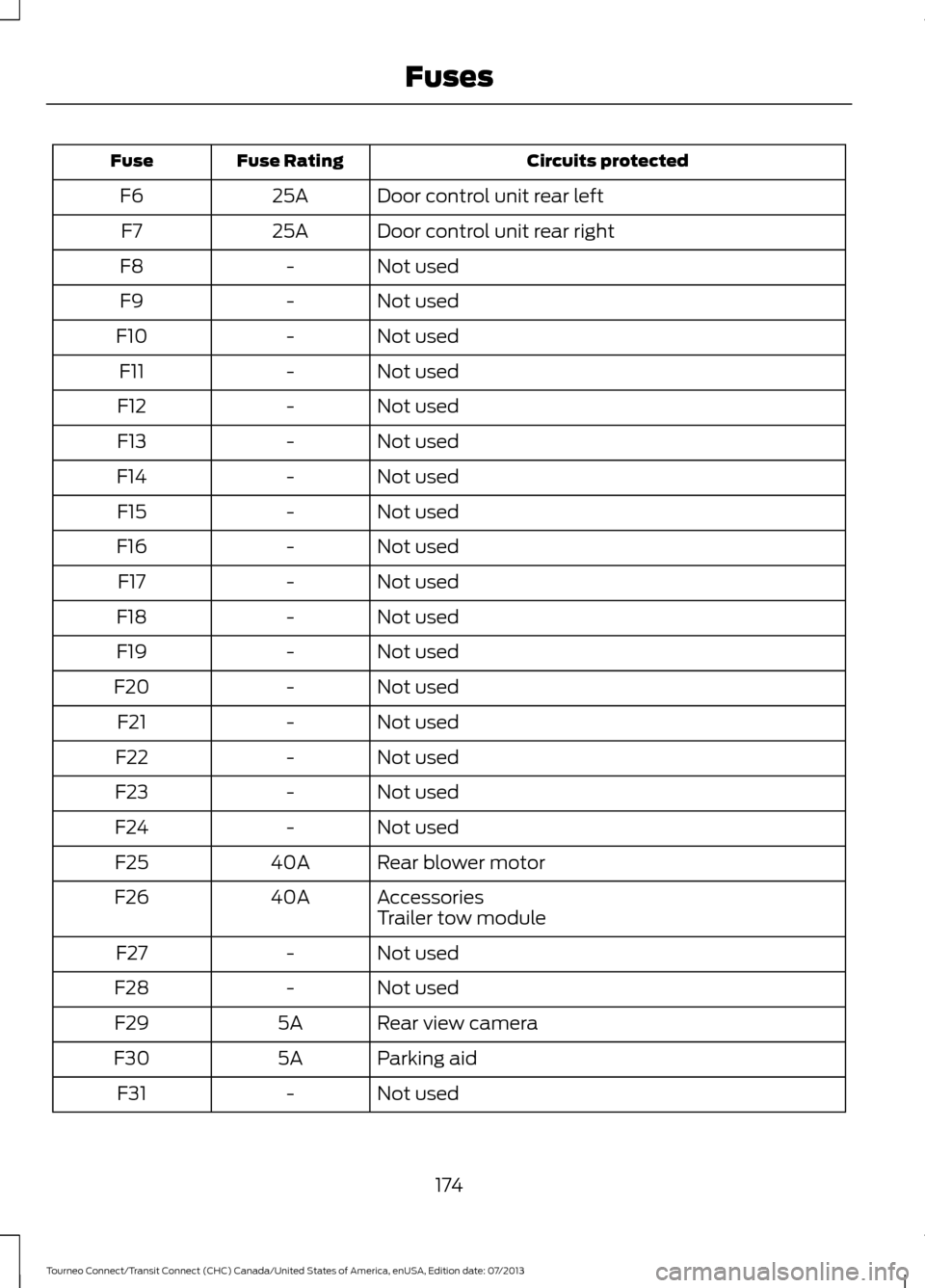

Page 177 of 411

Circuits protected
Fuse Rating
Fuse
Door control unit rear left
25A
F6
Door control unit rear right
25A
F7
Not used
-
F8
Not used
-
F9
Not used
-
F10
Not used
-
F11
Not used
-
F12
Not used
-
F13
Not used
-
F14
Not used
-
F15
Not used
-
F16
Not used
-
F17
Not used
-
F18
Not used
-
F19
Not used
-
F20
Not used
-
F21
Not used
-
F22
Not used
-
F23
Not used
-
F24
Rear blower motor
40A
F25
Accessories
40A
F26
Trailer tow module
Not used
-
F27
Not used
-
F28
Rear view camera
5A
F29
Parking aid
5A
F30
Not used
-
F31
174
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, Edition date: 07/2013 Fuses

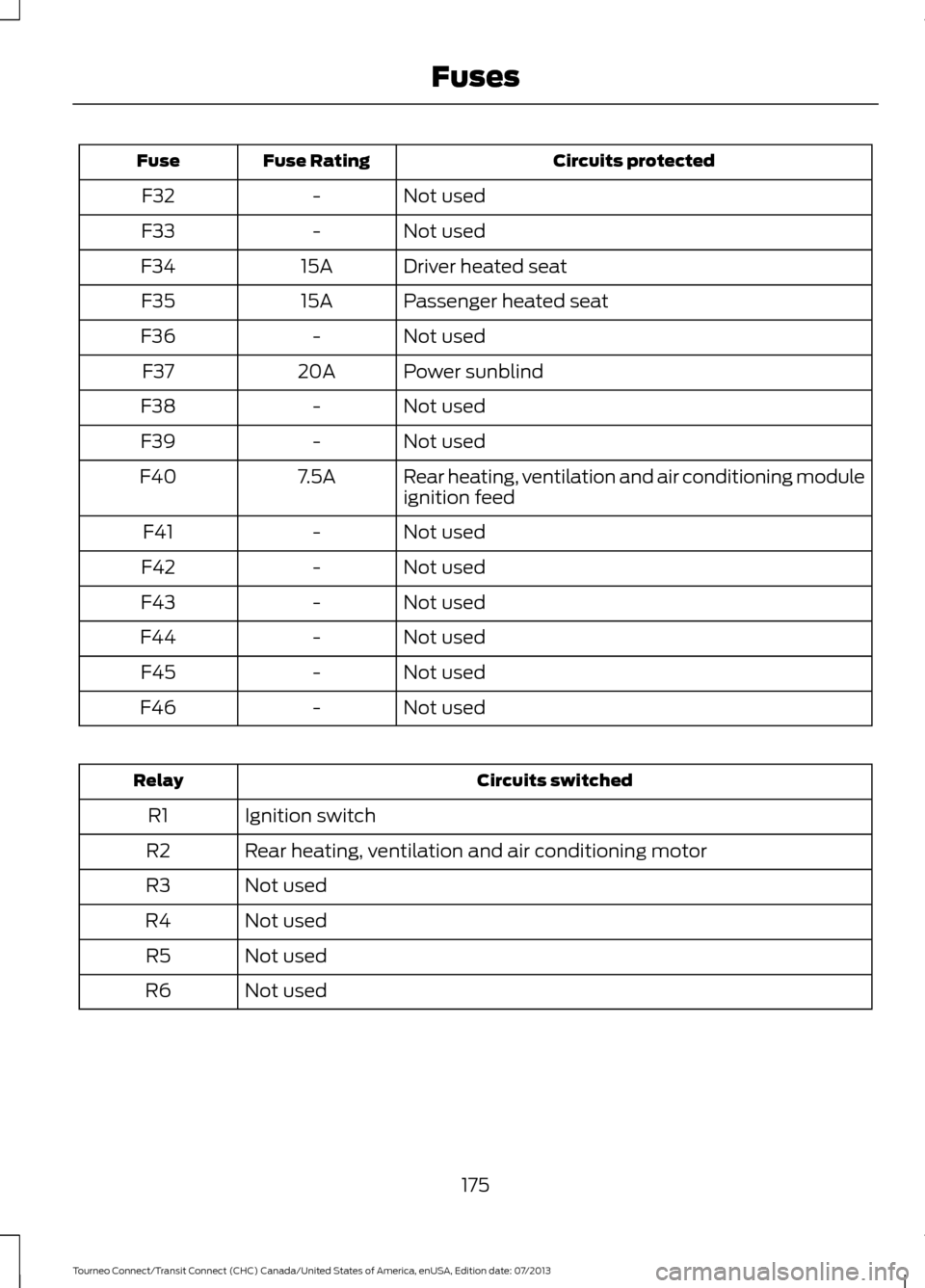

Page 178 of 411

Circuits protected
Fuse Rating
Fuse
Not used
-
F32
Not used
-
F33
Driver heated seat
15A
F34
Passenger heated seat
15A
F35
Not used
-
F36
Power sunblind
20A
F37
Not used
-
F38
Not used
-
F39
Rear heating, ventilation and air conditioning module
ignition feed
7.5A
F40
Not used
-
F41
Not used
-
F42
Not used
-
F43
Not used
-
F44
Not used
-
F45
Not used
-
F46 Circuits switched
Relay
Ignition switch
R1
Rear heating, ventilation and air conditioning motor
R2
Not used
R3
Not used
R4
Not used
R5
Not used
R6
175
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, Edition date: 07/2013 Fuses
Page 179 of 411

CHANGING A FUSE
Fuses
WARNING
Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage
rating can cause severe wire damage and
could start a fire. If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.
Standard Fuse Amperage Rating and Color Color
J-type fuses
M-type fuses
Dual micro fuses
Micro fuses
Fuse rating
-
-
Tan
Tan
5A
-
-
Brown
Brown
7.5A
-
-
Red
Red
10A
-
Grey
Blue
Blue
15A
Blue
Light Blue
-
Yellow
20A
White
White
-
White
25A
Pink
Pink
-
Green
30A
Green
Green
-
-
40A
Red
-
-
-
50A
Yellow
-
-
-
60A
176
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, Edition date: 07/2013 FusesE142430

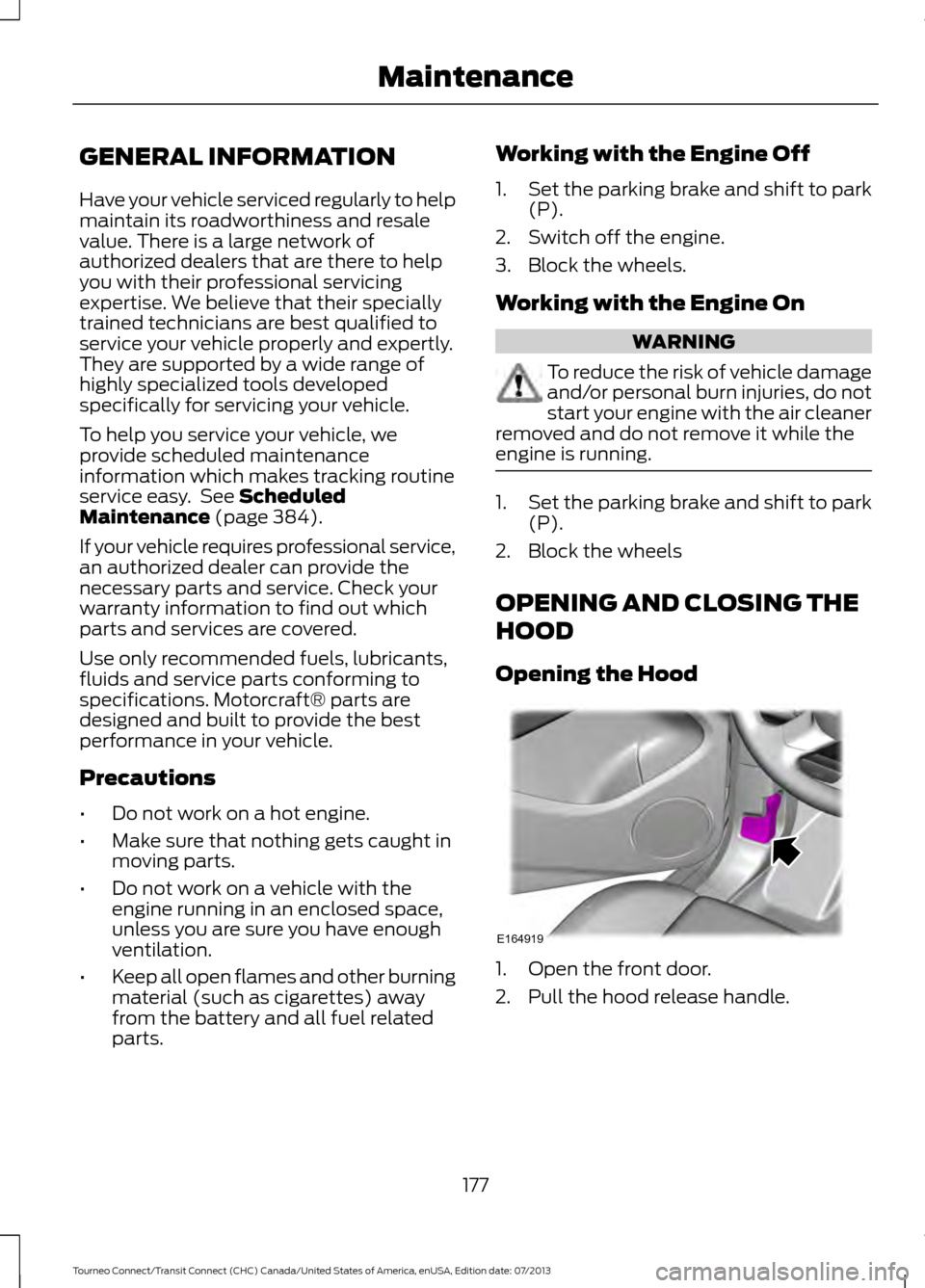

Page 180 of 411

GENERAL INFORMATION
Have your vehicle serviced regularly to help
maintain its roadworthiness and resale
value. There is a large network of
authorized dealers that are there to help
you with their professional servicing
expertise. We believe that their specially
trained technicians are best qualified to
service your vehicle properly and expertly.
They are supported by a wide range of
highly specialized tools developed
specifically for servicing your vehicle.
To help you service your vehicle, we
provide scheduled maintenance
information which makes tracking routine
service easy. See Scheduled
Maintenance (page 384).
If your vehicle requires professional service,
an authorized dealer can provide the
necessary parts and service. Check your
warranty information to find out which
parts and services are covered.
Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications. Motorcraft® parts are
designed and built to provide the best
performance in your vehicle.
Precautions
• Do not work on a hot engine.
• Make sure that nothing gets caught in
moving parts.
• Do not work on a vehicle with the
engine running in an enclosed space,
unless you are sure you have enough
ventilation.
• Keep all open flames and other burning
material (such as cigarettes) away
from the battery and all fuel related
parts. Working with the Engine Off
1.
Set the parking brake and shift to park
(P).
2. Switch off the engine.
3. Block the wheels.
Working with the Engine On WARNING
To reduce the risk of vehicle damage
and/or personal burn injuries, do not
start your engine with the air cleaner
removed and do not remove it while the
engine is running. 1.
Set the parking brake and shift to park
(P).
2. Block the wheels
OPENING AND CLOSING THE
HOOD
Opening the Hood 1. Open the front door.
2. Pull the hood release handle.
177
