FORD WINDSTAR 1996 1.G User Guide

8
*
[SR01700(ALL)05/95]
RWARNING
Passengers should not be allowed to ride in the cargo
area. Persons not riding in a seat with a fastened seat
belt are much more likely to suffer serious injury in a
collision. Cargo should always be secured to prevent it
from shifting and causing damage to the vehicle or harm
to passengers.
*
[SR01800(ALL)05/95]
RWARNING
Failure to follow these precautions could increase the risk
and/or severity of injury in a collision. 1) Use the
shoulder belt on the outside shoulder only. Never wear
the shoulder belt under the arm. 2) Never swing it
around your neck over the inside shoulder. 3) Never use
a single belt for more than one person.
*
[SR01900(ALL)05/95]
RWARNING
To reduce the risk of serious injury in a collision, always
drive and ride with your seatback upright and the lap
belt snug and low across the hips.
*
[SR02000(ALL)05/95]
RWARNING
To reduce the risk of serious injury in a collision,
children should always ride with the seatback upright.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

Safety Restraints
9
*
[SR02100(ALL)05/95]
RWARNING
Never let a passenger hold a child on his or her lap
while the vehicle is moving. The passenger cannot
protect the child from injury in a collision.
*
[SR02200(ALL)03/95]
RWARNING
Never use a single belt for more than one person or
across more than one seating position. This greatly
increases the risk that one or both of the people will be
injured in a collision. Each seating position in your
vehicle has a specific safety belt assembly which is made
up of one buckle and one tongue that are designed to be
used as a pair.
*
[SR02300(ALL)05/95]
Lock the doors of your vehicle before driving to lessen the risk
of the door coming open in a collision.
*
[SR02700(ALL)05/95]
Combination Lap and Shoulder Belts
*
[SR02800(ALL)06/95]
While your vehicle is in motion, the combination lap and
shoulder belt adjusts to your movement. However, if you brake
hard, turn hard, or if your vehicle receives an impact of 5 mph
(8 km/h) or more, the lap/shoulder belt locks and helps reduce
your forward movement.
*
[SR02900(ALL)05/95]
After you get into your vehicle, close the door and lock it. Then
adjust the seat to the position that suits you best.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

10
[SR03100(ALL)10/93]
7-1/2 pica art:0050084-A
Fastening the front seat lap and shoulder belt
*
[SR03500(ALL)01/95]
Adjust the lap part of the belt by pulling up on the shoulder
belt until the lap belt fits snugly and as low as possible around
your hips.
[SR03700(ALL)02/95]
Push the release button on the buckle. This allows the tongue to
unlatch from the buckle.
[SR03810(ALL)03/94]
10-1/2 pica
art:0050074-B
Unfastening the combination lap and shoulder belts
*
[SR03820(ALL)05/95]
While the belt retracts, guide the tongue to its original position
to prevent it from striking you or part of the vehicle.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

Safety Restraints
11
[SR03830(ALL)05/95]
Shoulder Belt Adjustment (Driver and Right Front
Passenger)
[SR03840(ALL)05/95]
You can adjust the shoulder belt height to one of five (5)
positions. To adjust, pinch the release button and slide it up or
down until the belt rests on your shoulder near your neck.
Release the button and make sure the adjuster is firmly seated
in one of the five (5) positions.
[SR03850(ALL)05/95]
10-1/2 pica
art:0050166-A
The shoulder belt height adjuster
[SR03860(ALL)11/93]
Combination Lap and Shoulder Belt Ð Second Row
Bench Seat
[SR03901(ALL)11/93]
There is a unique safety restraint system for the outside seating
position of the second row bench seat. It is very important that
you read and understand this section before anyone rides in the
outside seating position (near the sliding door) of the
two-passenger bench seat.
[SR03910(ALL)05/95]
In addition to safety belt anchorages in the floor and roof
structures, the second row bench seat has a detachable safety
belt anchor mounted to the right window side of the seat. The
safety belt should always remain attached to this anchor except
when removing this seat.
[SR03915(ALL)12/93]
The second row passenger side outboard seating position uses a
hook above the sliding door to stow the shoulder safety belt when
entering or exiting the vehicle or when it is not being used.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

12
[SR03920(ALL)12/93]
NOTE: When the belt is stowed using the hook, DO NOT use
the hanging belt as an assist when entering the vehicle.
[SR03925(ALL)05/95]
27-1/2 pica
art:0050212-D

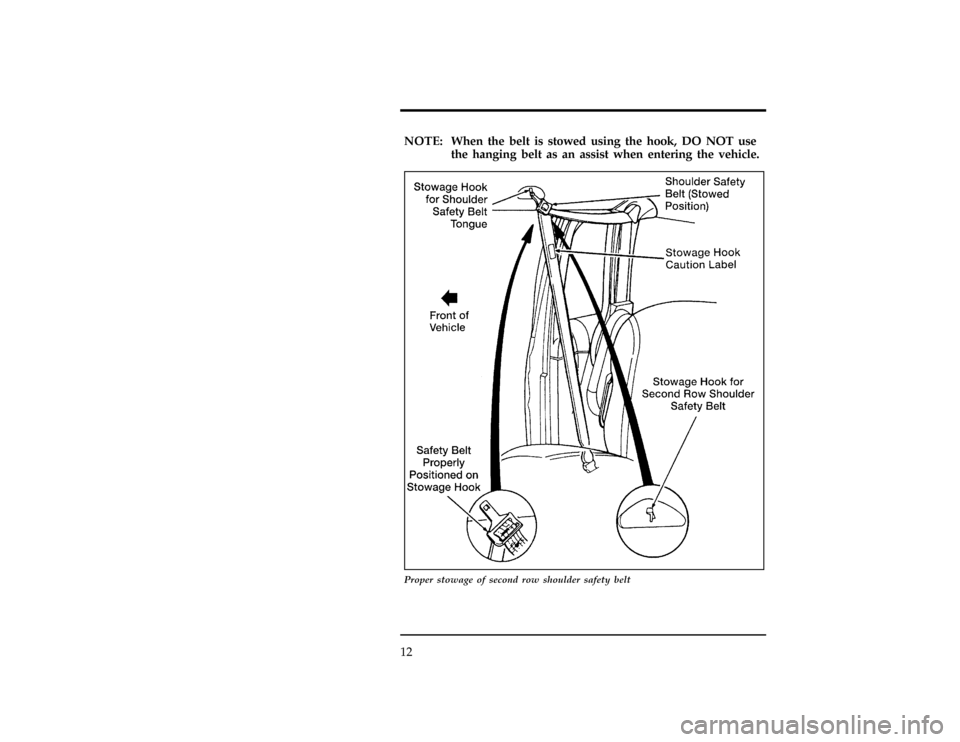

Proper stowage of second row shoulder safety belt
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

Safety Restraints
13
[SR03935(ALL)11/93]
When removing the second row bench seat:
[SR03940(ALL)08/94]1.
Disengage the safety belt from the seat by inserting a key or
small screwdriver into the slot provided on the detachable
anchor (see Figure 1). When this shoulder belt assembly is free
of the seat, allow the retractor to wind up the slack in the belt.
[SR03950(ALL)11/93]2.
Using the clip attached to the end of the shoulder belt, clip
the end of the belt to the stationary portion of the shoulder
belt (see Figure 2). The end of the shoulder beltmustbe
clipped in order to keep it from striking anything during
vehicle operation.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

14
[SR03955(ALL)05/95]
27-1/2 pica art:0050169-F

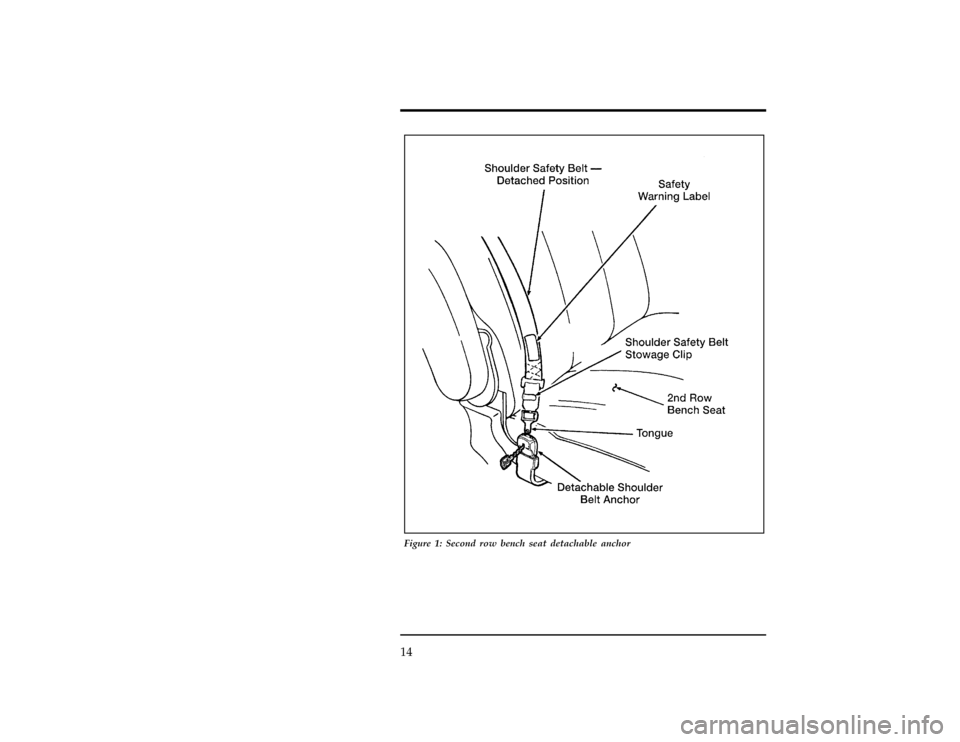

Figure 1: Second row bench seat detachable anchor
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

Safety Restraints
15
[SR03960(ALL)06/94]
24 pica art:0050170-D

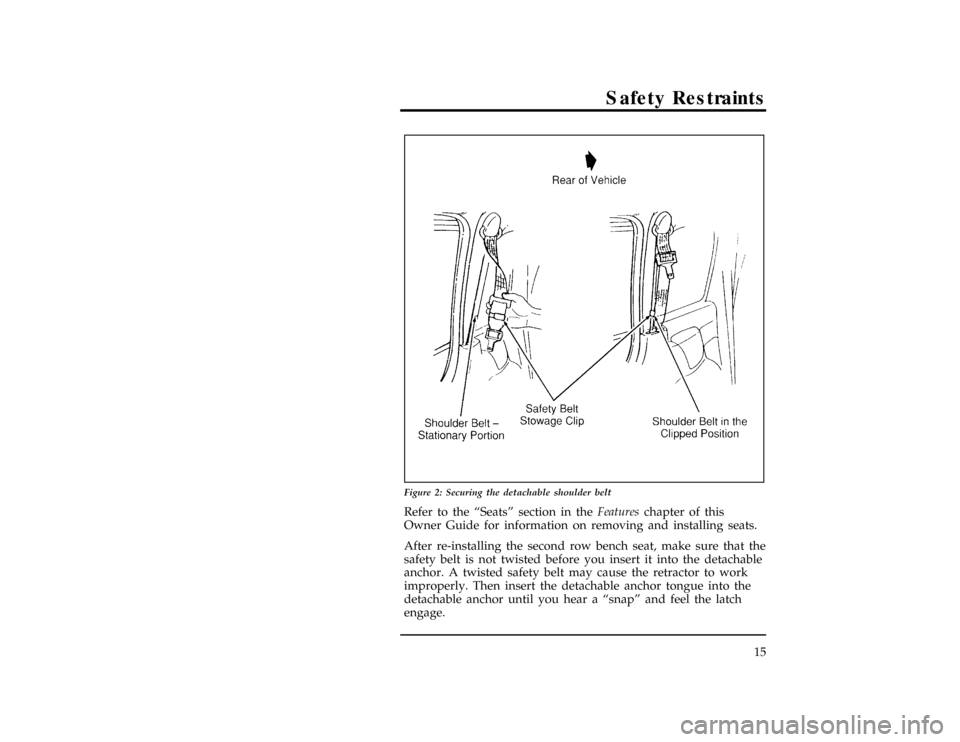

Figure 2: Securing the detachable shoulder belt
[SR03970(ALL)02/94]
Refer to the ªSeatsº section in theFeatureschapter of this
Owner Guide for information on removing and installing seats.
[SR03980(ALL)12/93]
After re-installing the second row bench seat, make sure that the
safety belt is not twisted before you insert it into the detachable
anchor. A twisted safety belt may cause the retractor to work
improperly. Then insert the detachable anchor tongue into the
detachable anchor until you hear a ªsnapº and feel the latch
engage.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

16
*
[SR03990(ALL)06/95]
RWARNING
When reinstalling a rear seat in your vehicle it must be
placed in its original position. Improper installation of
the seat will prevent correct use of the safety belts and
could increase the risk of injury. Refer to the warning
label on the seat belt.
[SR04001(ALL)05/95]
Your vehicle is equipped with a dual locking mode retractor on
the shoulder belt portion of the combination lap/shoulder safety
belt for front passenger and rear seat window passengers.
[SR04100(ALL)05/95]
Dual locking mode retractors operate in two ways:
[SR04200(ALL)05/95]
Vehicle Sensitive (Emergency) Locking Mode
[SR04300(ALL)05/95]
In this operating mode, the shoulder belt retractor will allow the
occupant freedom of movement, locking tight only on hard
braking, hard cornering or impacts of approximately five mph
(8 km/h) or more.
[SR04400(ALL)05/95]
Automatic Locking Mode
[SR04500(ALL)05/95]
In this operating mode, the shoulder belt retractor will be
automatically locked and remain locked when the combination
lap/shoulder safety belt is buckled, and does not allow the
occupant freedom of movement. This mode provides the
following:
[SR04600(ALL)05/95]
n
A tight lap/shoulder belt fit on occupant
[SR04700(ALL)05/95]
n
Child seat or infant carrier restraint
[SR04800(ALL)05/95]
Rear-facing infant seats should never be placed in the front seat.
[SR04900(ALL)05/95]
This modemust be usedwhen installing a child seat on the
front passenger seat and rear window seats where dual locking
retractors are provided.
[SR05000(ALL)05/95]
To switch the retractor from the emergency locking mode to the
automatic locking mode, perform the following steps:
[SR05100(ALL)05/95]1.
Buckle the lap/shoulder combination belt.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

Safety Restraints
17
[SR05200(ALL)05/95]2.
Grasp the shoulder portion of the belt and pull downward
until all of the belt is extracted, and when allowed to retract,
a clicking sound will be heard. At this time, the belt retractor
is in the automatic locking mode (child restraint mode).
[SR05300(ALL)05/95]3.
A clicking sound will be heard as the belt is allowed to
retract. This indicates that the retractor is in the automatic
locking mode.
[SR05401(ALL)05/95]
NOTE: When the combination lap/shoulder belt is unbuckled
and allowed to retract completely, the retractor will
switch back to the vehicle sensitive (emergency)
locking mode. See detailed instructions under Safety
Seats for Children later in this chapter.
*
[SR05501(ALL)05/95]
Lap Belts
[SR05601(ALL)05/95]
The lap belt in the center of the rear seat does not adjust
automatically. You must adjust it to fit snugly and as low as
possible around your hips. Do not wear it around your waist.
[SR05701(ALL)05/95]
If you need to lengthen the belt, unfasten it and tip the belt
tongue at a right angle to the belt. Pull the belt tongue over
your lap until it reaches the buckle.
*
[SR05801(ALL)06/95]
If you need to shorten the belt, pull on the loose end of the
webbing until the belt fits snugly.
[SR05900(ALL)05/95]
To unfasten the belt, push the release button on the buckle.
[SR06000(ALL)05/95]
10-1/2 pica
art:0050085-A

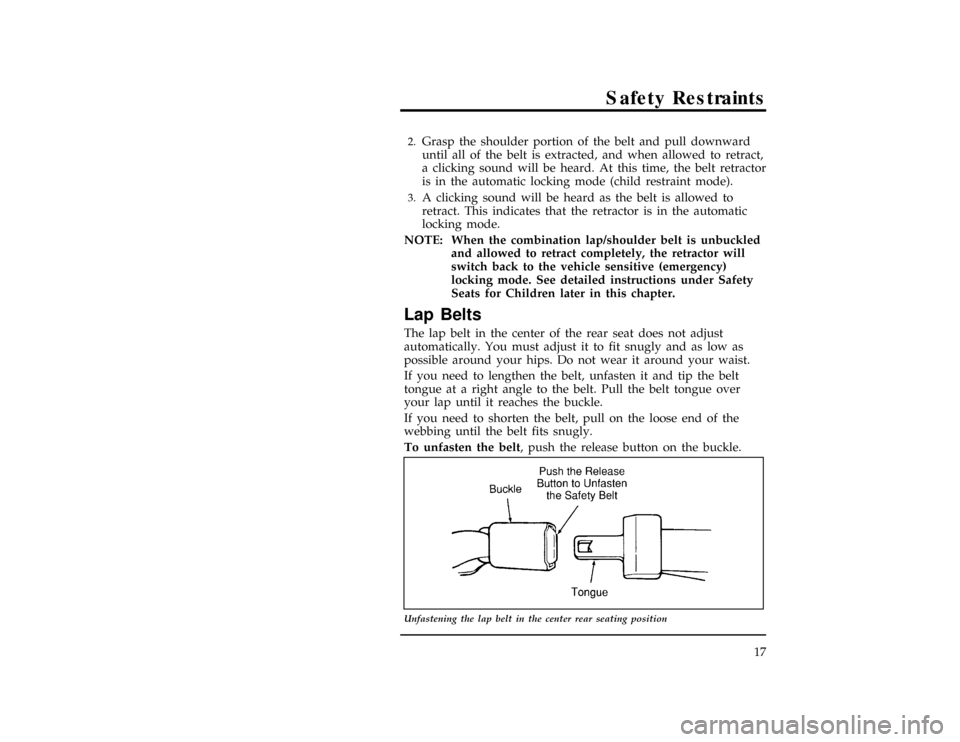

Unfastening the lap belt in the center rear seating position
