FORD WINDSTAR 1996 1.G Owner's Manual

18
*
[SR06100(ALL)05/95]
Safety Belt Maintenance
*
[SR06200(ALL)05/95]
Check the safety belt systems periodically to make sure that
they work properly and are not damaged.
*
[SR06300(ALL)05/95]
All safety belt assemblies, including retractors, buckles, front
seat belt buckle support assemblies (slide bar) (if so equipped),
child safety seat tether bracket assemblies (if so equipped), and
attaching hardware, should be inspected after any collision. Ford
recommends that all safety belt assemblies used in vehicles
involved in a collision be replaced. However, if the collision was
minor and a qualified technician finds that the belts do not
show damage and continue to operate properly, they do not
need to be replaced. Safety belt assemblies not in use during a
collision should also be inspected and replaced if either damage
or improper operation is noted.
%*
[SR06400(ALL)05/95]
Cleaning the Safety Belts
*
[SR06500(ALL)05/95]
Clean the safety belts with any mild soap solution that is
recommended for cleaning upholstery or carpets. Do not bleach
or dye the belt webbing because this may weaken it.
%*
[SR06600(ALL)05/95]
Safety Belt Extension Assembly
*
[SR06700(ALL)05/95]
For some people, the safety belt may be too short even when it
is fully extended. You can add about eight inches (20 cm) to the
belt length with a safety belt extension assembly (part number
611C22). Safety belt extensions are available at no cost from
your dealer.
*
[SR06800(ALL)05/95]
RWARNING
Failure to follow these instructions will affect the
performance of the safety belts and increase the risk of
personal injury.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

Safety Restraints
19
*
[SR08200(ALL)04/95]
Air Bag Supplemental Restraint System
(SRS)
*
[SR08450(ALL)05/95]
The driver and right front passenger air bags are Supplemental
Restraint Systems (SRS), provided at these seating positions in
addition to the lap/shoulder belt, and are designed to
supplement the protection provided to properly belted
occupants in moderate to severe frontal collisions. The
supplemental air bag system does not provide restraint to the
lower body.
*
[SR08600(ALL)05/95]
The Importance of Wearing Safety Belts
*
[SR08700(ALL)05/95]
RWARNING
Safety belts must be worn by all vehicle occupants to be
properly restrained and help reduce the risk of injury in
a collision.
[SR08750(ALL)11/93]
RWARNING
All occupants of the vehicle, including the driver, should
always wear their safety belts, whether or not an airbag
Supplemental Restraint System is also provided at their
seating position. Failure to do so may increase the risk of
severe injury or death in the event of a collision.
*
[SR08800(ALL)01/95]
There are four very important reasons to use safety belts even
with an air bag system. Use your safety belts to:
*
[SR08900(ALL)01/95]
n
help keep you in the proper position (away from the air bag)
when it inflates
*
[SR09000(ALL)01/95]
n
reduce the risk of harm in rollover, side or rear impact
collisions, because an air bag is not designed to inflate in
such situations
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

20
*
[SR09100(ALL)01/95]
n
reduce the risk of harm in frontal collisions that are not
severe enough to activate the supplemental air bag
*
[SR09200(ALL)01/95]
n
reduce the risk of being thrown from your vehicle
%*
[SR09300(ALL)01/95]
The Importance of Being Properly Seated
*
[SR09400(ALL)05/95]
In a collision, the air bag must inflate extremely fast to help
provide additional protection for you. In order to do this, the
air bag must inflate with considerable force. If you are not
seated in a normal riding position with your back against the
seatback, the air bag may not protect you properly and could
possibly hurt you as it inflates.
*
[SR09800(ALL)05/95]
RWARNING
If a passenger is not properly seated and restrained, an
inflating air bag could cause serious injury.
*
[SR09890(ALL)05/95]
Your vehicle is equipped with a right front passenger air bag.
Air bags deploy with great force, faster than the blink of an eye.
Front passengers, especially children and small adults, must
never sit on the front edge of the seat, stand near the glove
compartment of the instrument panel, or lean over near the air
bag cover when the vehicle is moving. All occupants should sit
with their backs against the seatback, move the seat to the most
rearward position if possible and use the safety belts. Children
weighing less than 40 lbs. (18 kg) always should use child or
infant seats.
*
[SR09900(ALL)05/95]
RWARNING
When using forward-facing child seats move the
passenger seat as far back from the instrument panel as
possible. NEVER SECURE REAR-FACING INFANT
SEATS IN THE FRONT SEAT.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

Safety Restraints
21
*
[SR09920(ALL)05/95]
THE FORCE OF THE RAPIDLY INFLATING PASSENGER AIR
BAG COULD PUSH THE TOP OF THE REAR-FACING SEAT
AGAINST THE VEHICLE SEATBACK, ARMRESTS OR
CONSOLE. REAR-FACING INFANT SEATS MUST ALWAYS
BE SECURED IN THE REAR SEAT.
*
[SR10100(ALL)05/95]
RWARNING
Do not place objects or mount equipment on or near the
air bag cover on the steering wheel or in front seat areas
that may come in contact with a deploying air bag.
Failure to follow this instruction may increase the risk of
personal injury in the event of a collision.
*
[SR10200(ALL)06/95]
For further information about the proper mounting of
equipment in the front seat of this vehicle, please refer to Ford's
brochure entitledSome Important Information About Air Bag
Supplemental Restraint Systemwhich can be obtained by calling
Helm Inc. at 1-800-782-4356. Ask for brochure FPS-8602.
*
[SR10300(ALL)06/95]
For additional important safety information on the proper use of
seat belts, child seats, and infant seats, please read the other
sections of this part of the Owner Guide, especially sections
entitledSafety Belts for ChildrenandSafety Seats for Children.
*
[SR10400(ALL)01/95]
How the Air Bag Supplemental Restraint System
Operates
*
[SR10500(ALL)06/95]
The Air Bag Supplemental Restraint System consists of the
driver and passenger air bags, impact sensors, a system
diagnostic module, a readiness light and tone, and the electrical
wiring which connects the components.
*
[SR10600(ALL)05/95]
The driver air bag is in the center of the steering wheel and is
indicated by the letters ªSRS.º The right front passenger seat air
bag is in the upper right-hand section of the instrument panel
ledge above the glove compartment. The letters ªSRSº appear
there. Both air bags are designed to stay out of sight until they
are activated.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

22
*
[SR11500(ALL)05/95]
RWARNING
Do not attempt to service, repair, or modify the Air Bag
Supplemental Restraint System or its fuses. See your
Ford or Lincoln-Mercury dealer.
*
[SR11600(ALL)05/95]
If a collision occurs, the sensors sense the severity of the impact
and activates the air bags if necessary. The air bag system is
designed to deploy in frontal and front-angled collisions more
severe than hitting a parked vehicle (of similar size and weight)
head-on at about 28 mph (45 km/h). Because the system senses
the crash severity rather than vehicle speed, some frontal
collisions at speeds above 28 mph (45 km/h) will not inflate the
air bag.
*
[SR11650(ALL)05/95]
When the sensors activate the system, the air bags inflate
rapidly, filling with non-toxic nitrogen gas in a fraction of a
second. Immediately after inflation, the air bags deflate by
releasing the nitrogen gas through vent holes. The whole
process takes place in a matter of seconds.
*
[SR12500(ALL)05/95]
RWARNING
Air bag system components get hot after inflation. Do
not touch them after inflation.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

Safety Restraints
23
*
[SR12700(ALL)05/95]
17-1/2 pica
art:0050087-A

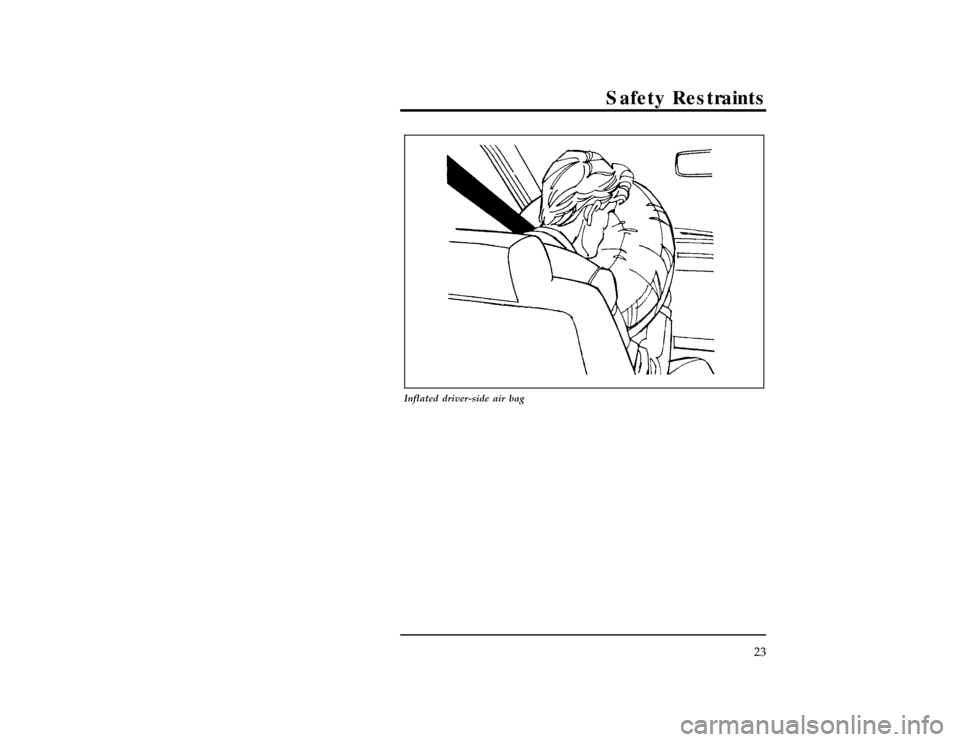

Inflated driver-side air bag
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

24
*
[SR12800(ALL)05/95]
17-1/2 pica
art:0050088-A

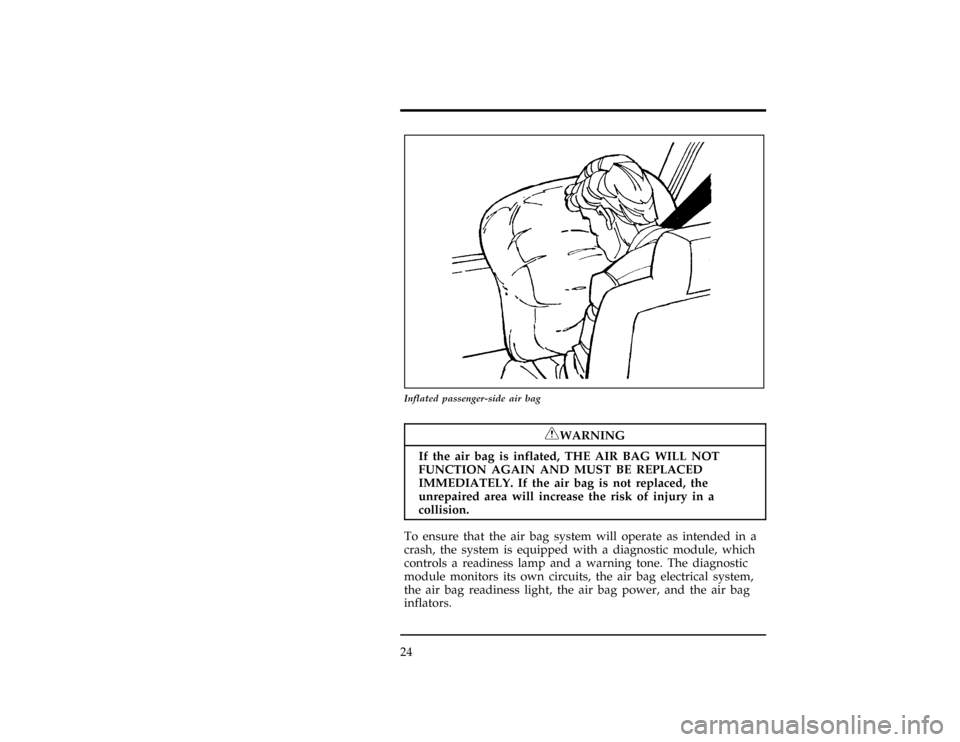

Inflated passenger-side air bag
*
[SR12900(ALL)05/95]
RWARNING
If the air bag is inflated, THE AIR BAG WILL NOT
FUNCTION AGAIN AND MUST BE REPLACED
IMMEDIATELY. If the air bag is not replaced, the
unrepaired area will increase the risk of injury in a
collision.
*
[SR12910(ALL)05/95]
To ensure that the air bag system will operate as intended in a
crash, the system is equipped with a diagnostic module, which
controls a readiness lamp and a warning tone. The diagnostic
module monitors its own circuits, the air bag electrical system,
the air bag readiness light, the air bag power, and the air bag
inflators.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

Safety Restraints
25
*
[SR12920(ALL)05/95]
The air bag system uses a readiness light and a tone to indicate
the condition of the system. The readiness light is in the
instrument cluster. When you turn the ignition to the ON
position, this light will illuminate for approximately six (6)
seconds and then turn off. This indicates that the system is
operating normally.NOTE:Maintenance of the air bag system is
not required.
%*
[SR12930(ALL)05/95]
A problem with the system is indicated by one or more of the
following:
*
[SR12940(ALL)05/95]
n
the readiness light will either flash or stay lit,
*
[SR12950(ALL)05/95]
n
or it will not light immediately after ignition is turned on,
% [SR12960(ALL)05/95]
n
a group of five beeps will be heard. The tone pattern will
repeat periodically until the problem and light are repaired.
[SR12970(ALL)05/95]
If any of these things happen, even intermittently, have the air
bag system serviced at your Ford or Lincoln-Mercury dealer
immediately.
%*
[SR13000(ALL)03/95]
Disposal of supplemental air bag equipped vehicles
[SR13150(ALL)02/95]
For disposal of air bags or air bag equipped vehicles, see your
local Ford or Lincoln-Mercury dealer. Air bags MUST be
disposed of by qualified personnel.
*
[SR13700(ALL)05/95]
Safety Restraints for Children
*
[SR13800(ALL)02/95]
In the U.S. and Canada, you are required by law to use safety
restraints for children. If small children ride in your vehicle Ð
this generally includes children who are four years old or
younger and who weigh 40 pounds (18 kg) or less Ð you must
put them in safety seats that are made specially for children.
Safety belts alone do not provide maximum protection for these
children. Check your local and state laws for specific
requirements.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

26
*
[SR13900(ALL)05/95]
RWARNING
Never let a passenger hold a child on his or her lap
while the vehicle is moving. The passenger cannot
protect the child from injury in a collision.
*
[SR14000(ALL)05/95]
RWARNING
Passengers should not be allowed to ride in the cargo
area. Persons not riding in a seat with a fastened seat
belt are much more likely to suffer serious injury in a
collision. Cargo should always be secured to prevent it
from shifting and causing damage to the vehicle or harm
to passengers.
*
[SR14100(ALL)05/95]
RWARNING
Carefully follow all of the manufacturer's instructions
included with the safety seat you put in your vehicle. If
you do not install and use the safety seat properly, the
child may be injured in a sudden stop or collision.
*
[SR14200(ALL)05/95]
RWARNING
Never leave a child unattended in your vehicle.
*
[SR14300(ALL)05/95]
RWARNING
Safety belts and seats can become hot in a vehicle that
has been closed up in sunny weather; they could burn a
small child. Check seat covers and buckles before you
place a child anywhere near them.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

Safety Restraints
27
*
[SR14400(ALL)05/95]
When possible, put children in the rear seat of your vehicle. Accident
statistics suggest that children are safer when properly restrained in the
rear seating positions than in the front seating positions.
*
[SR14500(ALL)05/95]
Built-In Child Seat (If equipped)
[SR14600(ALL)04/95]
The second row bench seat may include two optional built-in
child safety seats (one on the driver side and one on the
passenger side). This child restraint is to be usedonlyby
children who are at least one year old, weigh between 9 and
27 kilograms (20 and 60 pounds) and whose shoulders (top) are
below the bottom of the headrest in thefull upposition.
*
[SR14625(ALL)05/95]
If your child is less than one year old or weighs less than
9 kilograms (20 pounds),alwaysuse a rear facing infant or
convertible seat because a child of that size is not sufficiently
developed to withstand crash forces in a front facing position.
Follow the specific manufacturer's instructions for weight and
height restrictions.
*
[SR14700(ALL)05/95]
RWARNING
Always latch the vehicle seat to the floor, whether the
seat is occupied or empty. If not latched, the seat may
cause injury during a sudden stop.
*
[SR15200(ALL)05/95]
Children must be properly buckled before riding in the vehicle.
It is the law in every state and province. This child seat
conforms to all Federal/Canadian motor vehicle safety
standards.
*
[SR15301(ALL)05/95]
Built-in child seat belt retractors
*
[SR15320(ALL)06/95]
The belts on the built-in child seat are equipped with a retractor
that locks when both belt tongues are latched into the crotch
safety belt and buckle.
*
[SR15340(ALL)04/95]
The retractor will switch from the emergency locking mode to
the automatic locking mode when the shoulder belts are pulled
all the way out. The retractor will switch back to emergency
locking mode when the belts are unbuckled and the shoulder
belts retract completely.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996
