display GENESIS G80 2018 Owner's Guide

3-66
Convenient features of your vehicle
Turn By Turn (TBT) Mode
(if equipped)
This mode displays the state of the
navigation.
Assist Mode (if equipped)
ASCC/LKAS
This mode displays the state of the
Advanced Smart Cruise Control
(ASCC) and Lane Keeping Assist
System (LKAS).
For more details, refer to "Advanced
Smart Cruise Control (ASCC)" and
"Lane Keeping Assist System
(LKAS)" in chapter 5.
Driver Attention Alert (DAA)
This mode displays information relat-
ed to Driver Attention Alert.
For more information, refer to "Driver
Attention Alert (DAA)" in chapter 5.ODH047273N
ODH047576N
ODH047512L

3-67
Convenient features of your vehicle
3
Tire pressure
This mode informs of tire pressure
information.
Warning Message
If one of followings occurs, warning
messages will be displayed on the
information mode for several sec-
onds.
Pre-Active Seat Belt (PSB) mal-
function
Blind Spot Detection (BSD) mal-
function
Autonomous Emergency Braking
(AEB) malfunction
Smart cruise control malfunction
Smart high beam malfunction
Electronic Controlled Suspension
(ECS) malfunction
Adaptive Front Lighting System
(AFLS) malfunction
Haptic steering malfunction
ODH067029L

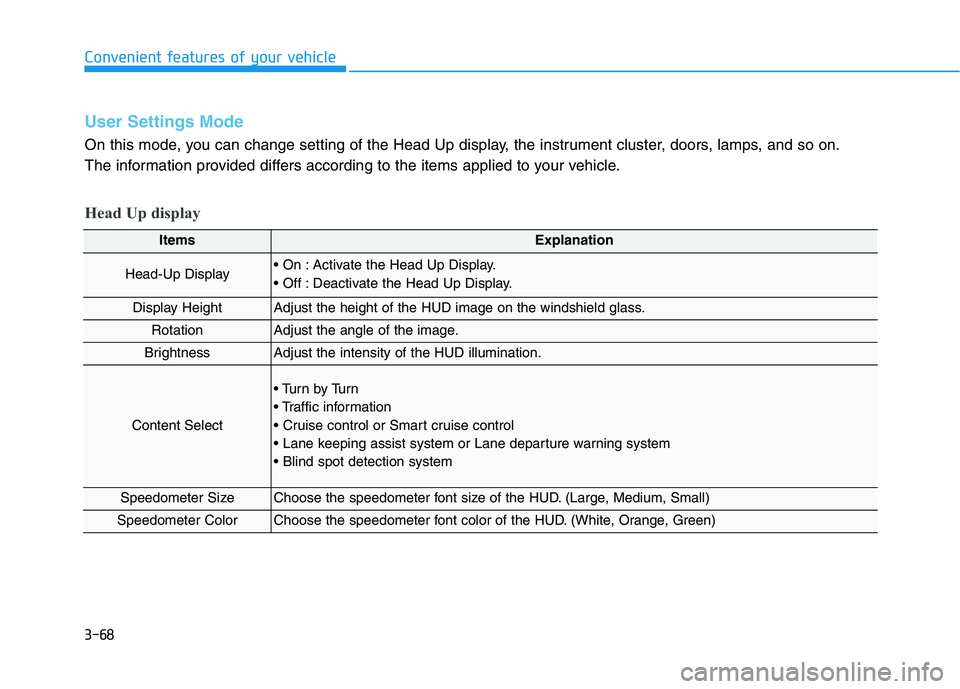

3-68
Convenient features of your vehicle
ItemsExplanation
Head-Up Display Activate the Head Up Display.
Deactivate the Head Up Display.
Display HeightAdjust the height of the HUD image on the windshield glass.
RotationAdjust the angle of the image.
BrightnessAdjust the intensity of the HUD illumination.
Content Select
Tu r n b y Tu r n




Speedometer SizeChoose the speedometer font size of the HUD. (Large, Medium, Small)
Speedometer ColorChoose the speedometer font color of the HUD. (White, Orange, Green)
User Settings Mode
On this mode, you can change setting of the Head Up display, the instrument cluster, doors, lamps, and so on.
The information provided differs according to the items applied to your vehicle.
Head Up display

3-72
Convenient features of your vehicle
ItemsExplanation
Seat Easy Access
The seat easy access function will be deactivated.

- When you turn off the engine, the driver's seat will automatically move rearward short (Normal)
or long (Extended) for you to enter or exit the vehicle more comfortably.
- If you change the Engine Start/Stop button from OFF position to the ACC, ON, or START posi-
tion, the driver's seat will return to the original position.
For more details, refer to "Driver Position Memory System" in this chapter.
Steering Easy Access
The steering wheel will automatically move forward or rearward for the driver to enter or exit
the vehicle comfortably.
The steering easy access function will be deactivated.
For more details, refer to "Driver Position Memory System" in this chapter.
Wireless Charging System
For more information, refer to "Wireless Charging System" in this chapter.
Traffic Information The traffic information will not be displayed on the LCD display.
The LCD display will show traffic information.
Wiper/Lights Display

When activated, the LCD display shows the selected Wiper/Light mode whenever you changed the
mode.
Convenience

3-73
Convenient features of your vehicle
3
ItemsExplanation
Gear Position Pop-up
When activated, the gear position will be displayed on the LCD display.
Icy road warning
When activated, the Icy road warning will be displayed on the LCD display.

3-80
Convenient features of your vehicle
Turn on FUSE SWITCH
This warning message illuminates
if the fuse switch located on the
fuse box under the steering wheel
is OFF.
It means that you should turn the
fuse switch on.
For more details, refer to "Fuses"
in chapter 7.
Low Tire Pressure
This warning message illuminates
if the tire pressure is low with the
Engine Start/Stop button in ON posi-
tion.
For more details, refer to "Tire
Pressure Monitoring System
(TPMS)" in chapter 6.
Illumination
The brightness of the instrument
panel illumination is displayed
when it is adjusted.
For more information, refer to
"Instrument Panel Illumination" in
this chapter.
ODH047234LODH047346LODH047228L

3-81
Convenient features of your vehicle
3
Parking assist system malfunc-
tion (if equipped)
This warning is displayed if there is a
problem with the Parking Assist
System. We recommend you to have
the vehicle inspected by an author-
ized retailer of Genesis Branded
products.
For more information, refer to
"Parking Assist System" in chap-
ter 3.
Lights
This indicator displays which exterior
light is selected using the lighting
control.
Front Wiper
This indicator displays which wiper
speed is selected using the wiper
control.ODH047591L
ODH047262LODH047264L

3-82
Convenient features of your vehicle
Low Washer Fluid
This warning message illuminates
on the service reminder mode if
the washer fluid level in the reser-
voir is nearly empty.
It means that you should refill the
washer fluid.
Check headlamp LED
This warning message is displayed if
there is a problem with the LED
headlamp. We recommend you to
have the vehicle inspected by an
authorized retailer of Genesis
Branded products.
Check turn signal (if equipped)
This warning message is displayed if
there is a problem the turn signal. We
recommend you to have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
ODH047246LODH057182LODH057184L

3-83
Convenient features of your vehicle
3
Check Smart High Beam
System
This warning message is displayed if
there is a problem with the Smart
High Beam System. We recommend
you to have the vehicle inspected by
an authorized retailer of Genesis
Branded products.
For more information, refer to
"Smart High Beam System" in
chapter 3.
Check BSD System
This warning message illuminates
if there is a malfunction with the
Blind Spot Detection (BSD) sys-
tem. And the BSD system will be
automatically deactivated. We rec-
ommend that the vehicle be
inspected by an authorized retailer
of Genesis Branded products.
For more details, refer to "Blind
Spot Detection (BSD) System" in
chapter 5.
Check PSB
This warning message illuminates
if there is a malfunction with the
Pre-active Seat Belt (PSB) system.
We recommend that the vehicle be
inspected by an authorized retailer
of Genesis Branded products.
For more details, refer to "Seat
Belt" in chapter 2.ODH057178L
ODH057172LODH037115L

3-85
Convenient features of your vehicle
3
Driver Attention Alert Check
System (if equipped)
This warning message is displayed if
there is a problem with the Driver
Attention Alert System. We recom-
mend you to have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
For more information, refer to
"Driver Attention Alert (DAA)" in
chapter 5.
Check Smart Cruise Control
System
This warning message illuminates
if there is a malfunction with the
advanced smart cruise control sys-
tem. We recommend that the vehi-
cle be inspected by an authorized
retailer of Genesis Branded prod-
ucts.
For more details, refer to
"Advanced Smart Cruise Control
System" in chapter 5.
Check AEB system
This warning message illuminates
if there is a malfunction with the
Autonomous Emergency Braking
(AEB) system. We recommend that
the vehicle be inspected by an
authorized retailer of Genesis
Branded products.
For more details, refer to
"Autonomous Emergency Braking
(AEB) system" in chapter 5.ODH057176LODH047250L
ODH047477L
