Purge Control Solenoid Valve(PCSV)
The purge control solenoid valve is
controlled by the Engine Control
Module (ECM); when the engine
coolant temperature is low during
idling, the PCSV closes so that evap-
orated fuel is not taken into the
engine. After the engine warms-up
during ordinary driving, the PCSV
opens to introduce evaporated fuel to
the engine.
3. Exhaust Emission Control System
The Exhaust Emission Control
System is a highly effective system
which controls exhaust emissions
while maintaining good vehicle per-
formance.
When the engine starts or fails to
start, excessive attempts to restart
the engine may cause damage to the
emission system.
Engine exhaust (carbon monox-
ide) precautions
Carbon monoxide can be present
with other exhaust fumes. If you
smell exhaust fumes of any kind in
your vehicle, drive with all the win-
dows fully open. Have your vehicle
checked and repaired immediately. Do not operate the engine in con-
fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in or
out of the area.
When the vehicle is stopped in an open area for more than a short
time with the engine running,
adjust the ventilation system (as
needed) to draw outside air into the
vehicle.
Never sit in a parked or stopped vehicle for any extended time with
the engine running.
When the engine stalls or fails to start, excessive attempts to restart
the engine may cause damage to
the emission control system.
Engine exhaust gases contain
carbon monoxide (CO). Though
colorless and odorless, it is
dangerous and could be lethal if
inhaled. Follow the instructions
on this page to avoid CO poi-
soning.
WARNING
CALIFORNIA PROPOSITION 65
WARNING
Engine exhaust and a wide vari-
ety of automobile components
and parts, including compo-
nents found in the interior fur-
nishings in a vehicle, contain or
emit chemicals known to the
State of California to cause can-
cer and birth defects and repro-
ductive harm. In addition, cer-
tain fluids contained in vehicles
and certain products of compo-
nent wear contain or emit chem-
icals known to the State of
California to cause cancer and
birth defects or other reproduc-
tive harm.
WARNING
Page 492 of 524

7-90
Maintenance
Operating precautions for cat-alytic converters (if equipped)
Your vehicle is equipped with a cat-
alytic converter emission control
device.
To prevent damage to the catalytic
converter and to your vehicle, take
the following precautions: Use only UNLEADED FUEL for
gasoline engines.
Do not operate the vehicle when there are signs of engine mal-
function, such as misfire or a
noticeable loss of performance.
Do not misuse or abuse the engine. Examples of misuse are
coasting with the engine off and
descending steep grades in gear
with the engine off.
Do not operate the engine at high idle speed for extended
periods (5 minutes or more).
Do not modify or tamper with any part of the engine or emis-
sion control system. All inspec-
tions and adjustments must be
made by an authorized Dealer of
Genesis Brand Products.
Avoid driving with extremely low fuel level. If you run out of gaso-
line, it could cause the engine to
misfire and result in excessive
loading of the catalytic converter.
NOTICE
The exhaust system and cat-
alytic converter are very hot
during and immediately after
the engine has been running. To
avoid SERIOUS INJURY or
DEATH:
Do not park, idle, or drive thevehicle over or near flamma-
ble objects, such as grass,
vegetation, paper, leaves, etc.
A hot exhaust system can
ignite flammable items under
your vehicle.
Keep away from the exhaust system and catalytic convert-
er or you may get burned.
Also, Do not remove the heat
sink around the exhaust sys-
tem, do not seal the bottom of
the vehicle, and do not coat
the vehicle for corrosion con-
trol. It may present a fire risk
under certain conditions.
WARNING
Page 493 of 524

7-91
07
Perchlorate Material-special handling may apply, See: www.dtsc.ca.gov/haz-
ardouswaste/perchlorate.
Notice to California Vehicle Dismantlers:
Perchlorate containing materials, such as air bag inflators, seatbelt preten-
sioners and keyless remote entry batteries, must be disposed of according to
Title 22 California Code of Regulations Section 67384.10 (a).
C CA
A L
LI
IF
F O
O R
RN
N I
IA
A
P
P E
ER
R C
CH
H L
LO
O R
RA
A T
TE
E
N
N O
O T
TI
IC
C E
E
Page 494 of 524

Dimensions ........................................................................\
............8-2
Engine ........................................................................\
....................8-2
Bulb Wattage ........................................................................\
........8-3
Tires and Wheels........................................................................\
..8-4
Luggage Volume ........................................................................\
...8-5
Gross Vehicle Weight...................................................................8-5
Air Conditioning System..............................................................8-5
Recommended Lubricants and Capacities ................................8-6
Recommended SAE Viscosity Number....................................................8-7
Vehicle Certification Label..........................................................8-8
Vehicle Identification Number (VIN) .........................................8-8
Tire Specification and Pressure Label......................................8-8
Refrigerant Label ........................................................................\
.8-9
Engine Number ........................................................................\
.....8-9
Consumer Information ...............................................................8-10
Reporting Safety Defects .........................................................8-11
8
S Sp
pe
ec
ci
if
f i
ic
c a
a t
ti
io
o n
ns
s
&
&
C
C o
on
ns
su
u m
m e
er
r
i
in
n f
fo
o r
rm
m a
at
ti
io
o n
n
Page 495 of 524

D
DI
IM
M E
EN
N S
SI
IO
O N
NS
S
8-2
Specifications & Consumer information
Itemsin (mm)
Overall length204.9 (5,205)
Overall width75.4 (1,915)
Overall height58.9 (1,495)
Front tread245/45 R1964.6 (1,640)
Rear tread 275/40 R1964.5 (1,639)
Wheelbase124.4 (3,160)
Items Lambda 3.3 T-GDITau 5.0 GDI
Displacement
cu. in (cc)203.94 (3,342)307.43 (5,038)
Bore x Stroke in. (mm)3.62x3.29 (92x84)3.77x3.42 (96x87)
Firing order1-2-3-4-5-61-2-7-8-4-5-6-3
No. of cylinders6, V-type8, V-type
E
EN
N G
GI
IN
N E
E
Page 496 of 524

B
BU
U L
LB
B
W
W A
AT
TT
TA
A G
G E
E
8-3
08
Light bulb Wattage Bulb type
Front Headlamp
Low
Type A 35 D1S
Type B LED LED
High Type A 35 D1S
Type B LED LED
Turn signal lamp
LED LED
Parking lamp
Side maker
Daytime running light (DRL)
Side repeater lamp (Outside mirror)
Rear Rear combination lamp Stop/Tail
LED LED
Turn signal
Backup
Side marker
High mounted stop lamp
License plate lamp
Interior Map lamp
LED LED
Room lamp
Front/Rear vanity mirror lamp
Globe box lamp
Trunk room lamp
Personal lamp
Page 497 of 524

8-4
Specifications & Consumer information
* Normal load : Up to 3 persons
Information
• It is permissible to add 3 psi to the standard tire pressure specification if cold-er temperatures are expected soon. Tires typically loose 1 psi (7 kPa) for every
12°F temperature drop. If extreme temperature variations are expected,
recheck your tire pressure as necessary to keep them properly inflated.
• An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you plan to drive a high-altitude area, check the tire
pressures in advance. If necessary, inflate them to a proper level. (Air inflation
per altitude: +2.4psi/1mile )
When replacing tires, use the same size originally supplied with the
vehicle. Using tires of a different size can damage the related parts or
not work properly.
NOTICE
i
T T I
IR
R E
ES
S
A
A N
N D
D
W
W H
HE
EE
EL
LS
S
Item Tire size Wheel
size Inflation pressure kPa (psi)
Wheel lug
nut torque kgf·m
(lbf·ft, N·m)
Normal load * Maximum load
Front Rear Front Rear
Full size tire 245/45
R19 8.5Jx19 240
(35) -240
(35) -
11~13
(79~94,
107~127)
275/40
R19 9.5Jx19 - 240
(35) -240
(35)
Compact
spare tireT155/70 R194.0Tx19420
(60)420
(60)420
(60)420
(60)
Page 498 of 524

A
AI
IR
R
C
C O
O N
ND
DI
IT
T I
IO
O N
NI
IN
N G
G
S
S Y
Y S
ST
T E
EM
M
8-5
08

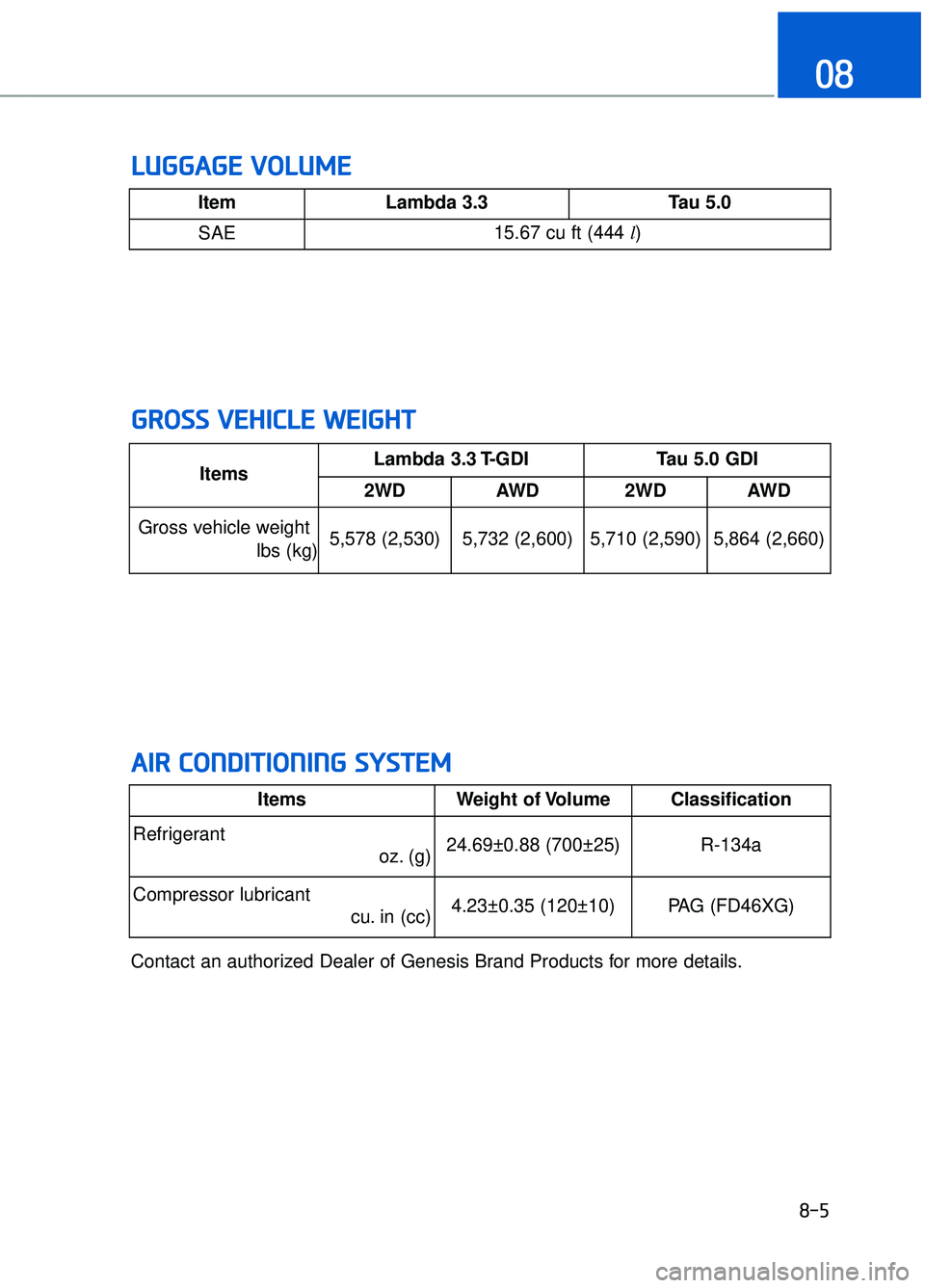

Items Lambda 3.3 T-GDI Tau 5.0 GDI

2WD AWD 2WD AWD
Gross vehicle weight lbs (kg)5,578 (2,530) 5,732 (2,600) 5,710 (2,590) 5,864 (2,660)
Contact an authorized Dealer of Genesis Brand Products for more details. Items
Weight of Volume Classification
Refrigerant oz. (g)24.69±0.88 (700±25) R-134a
Compressor lubricant
cu. in (cc)4.23±0.35 (120±10)PAG (FD46XG)
G
GR
RO
O S
SS
S
V
V E
EH
H I
IC
C L
LE
E
W
W E
EI
IG
G H
H T
T
ltem Lambda 3.3 Tau 5.0
SAE 15.67 cu ft (444 l)
L
L
U
U G
GG
GA
AG
G E
E
V
V O
O L
LU
U M
M E
E
Page 499 of 524

To help achieve proper engine and powertrain performance and durability, use
only lubricants of the proper quality. The correct lubricants also help promote
engine efficiency that results in improved fuel economy.
R RE
EC
CO
O M
M M
ME
EN
N D
DE
ED
D
L
L U
U B
BR
RI
IC
C A
A N
N T
TS
S
A
A N
N D
D
C
C A
A P
PA
A C
CI
IT
T I
IE
E S
S
8-6
Specifications & Consumer information
Lubricant VolumeClassification
Engine oil *
1*2
(drain and refill) 3.3 T-GDI7.29 US qt. (6.9
l)ACEA A5/B5
API SN & ILSAC GF-5
5.0
GDI2WD8.45 US qt. (8.0
l)API SM & ILSAC GF-4*3
(or above)AWD9.72 US qt. (9.2
l)
Automatic
transmission fluid 9.72 US qt. (9.2
l)GS ATF SP-IV-RR, Genesis
Brand genuine ATF SP-IV-
RR or other brands meeting
the above specification
approved by Genesis Motors
USA
Engine coolant 3.3 T-GDI
10.36 US qt. (9.8
l)
Mixture of antifreeze and
water (phosphate based eth-
ylene glycol coolant for alu-
minum radiator)
5.0
GDI2WD12.68 US qt. (12.0 l)
AWD12.05 US qt. (11.4l)
Brake fluid 0.74~0.85 US qt.
(0.7~0.8 l)FMVSS116 DOT-3 or DOT-4
Front differential oil (AWD) *
40.74 US qt. (0.7 l)Hypoid gear oil MS517-
15GT 75W/85 (GL-5)
(SK HK SYN GEAR OIL
75W/85 equivalent)
Rear differential oil *
41.48 US qt. (1.4
l)
Transfer case oil (AWD)0.66 US qt. (0.62 l)SHELL TF0870B
Fuel21.9 US gal. (83 l)Refer to “Fuel Requirements”
in the Introduction chapter.
*1: Refer to the recommended SAE viscosity numbers on the next page.
*2: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing the amount of fuel
necessary to overcome engine friction. Often, these improvements are difficult to
measure in everyday driving, but in a year’s time, they can offer significant cost and
energy savings.
*
3: If the API SM & ILSAC GF-4 engine oil is not available in your country, you are able to use API SL & ILSAC GF-3
*
4: If the front/rear differential is submerged, we recommend that you visit an author- ized Dealer of Genesis Brand Products to replace differential oil.
Page 500 of 524

8-7
08
Recommended SAE Viscosity Number
Always be sure to clean the area around any filler plug, drain plug, or
dipstick before checking or draining any lubricant. This is especially
important in dusty or sandy areas and when the vehicle is used on
unpaved roads. Cleaning the plug and dipstick areas will prevent dirt
and grit from entering the engine and other mechanisms that could be
damaged.
Engine oil viscosity (thickness) has an effect on fuel economy and cold weath-
er operating (engine start and engine oil flowability). Lower viscosity engine
oils can provide better fuel economy and cold weather performance, howev-
er, higher viscosity engine oils are required for satisfactory lubrication in hot
weather. Using oils of any viscosity other than those recommended could
result in engine damage. When choosing an oil, consider the range of temper-
ature your vehicle will be operated in before the next oil change. Proceed to
select the recommended oil viscosity from the chart.
NOTICE
*1: For better fuel economy, it is recommended to use the engine oilof a viscosity grade SAE 5W-20 (API SM / ILSAC GF-4
(or above)). However, if the engine oil is not available in your
country, select the proper engine oil using the engine oil viscos-
ity chart.
Temperature Range for SAE Viscosity Numbers
Temperature -30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Engine Oil *110W-30
5W-30
°C
(°F)
Temperature Range for SAE Viscosity Numbers
Temperature -30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Engine Oil *110W-30
5W-20, 5W-30
°C
(°F)
■ Lambda 3.3 T-GDI
■ Tau 5.0 GDI
*1: For better fuel economy, it is recommended to use the engine oil of a viscosity
grade SAE 5W-30 (ACEA A5/B5). However, if the engine oil is not available in your
country, select the proper engine oil using the engine oil viscosity chart.
