GENESIS G90 2023 User Guide

1-6
Introduction
Using Fuel Additives (except Detergent Fuel Additives)
Using fuel additives such as:
-Silicone fuel additive
-Ferrocene (iron-based) fuel additive
-Other metallic-based fuel additives
may result in cylinder misfire, poor acceleration, engine stalling, damage to the
catalyst, or abnormal corrosion, and may cause damage to the engine resulting in a
reduction in the overall life of the powertrain.
-The Malfunction Indicator Lamp (MIL) may illuminate.
NOTICE
Damage to the fuel system or performance problem caused by the use of these fuels
or fuel additives may not be covered by your New Vehicle Limited Warranty.
Gasoline containing MMT
Some gasoline contains harmful manganese-based fuel additives such as MMT
(Methylcyclopentadienyl Manganese Tricarbonyl).
Genesis Branded Vehicle does not recommend the use of gasoline containing MMT.
This type of fuel can reduce vehicle performance and affect your emission control
system.
The malfunction indicator lamp on the cluster may come on.
Detergent Fuel Additives
Genesis Branded Vehicle recommends that you use good quality gasolines treated
with detergent additives such as TOP TIER Detergent Gasoline, which help prevent
deposit formation in the engine. These gasolines will help the engine run cleaner and
enhance performance of the Emission Control System. For more information on TOP
TIER Detergent Gasoline, please go to the website (www.toptiergas.com).
For customers who do not use TOP Tier Detergent Gasoline regularly, and have
problems starting or the engine does not run smoothly, detergent-based fuel additives
that you can purchase separately may be added to the gasoline. If TOP TIER Detergent
Gasoline is not available, one bottle of additive added to the fuel tank at every 8,000
miles or 12 months is recommended.
Additives are available from your authorized retailer of Genesis Branded products
along with information on how to use them. Do not mix other additives.
Operation in foreign countries
If you are going to drive your vehicle in another country, be sure to:

[Observe all regulations regarding registration and insurance.

[Determine that acceptable fuel is available.

1-7
01
VEHICLE MODIFICATIONS

[This vehicle should not be modified. Modification of your vehicle could affect its
performance, safety or durability and may even violate governmental safety and
emissions regulations.

[In addition, damage or performance problems resulting from any modification may
not be covered under warranty.

[If you use unauthorized electronic devices, it may cause the vehicle to operate
abnormally, wire damage, battery discharge and fire. For your safety, do not use
unauthorized electronic devices.
NOTICE
Some warning sounds (for example, welcome/good-bye sound) are generated from
the interior amplifiers. If necessary, we recommend you to purchase Genesis Part to
replace an interior amplifier. Any unauthorized product may cause a malfunction of
the interior amplifiers.
9(+,&/(%5($.

1-8
Introduction
VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS
This vehicle is equipped with an event data recorder (EDR). The main purpose of
an EDR is to record, in certain crash or near crash-like situations, such as an air bag
deployment or hitting a road obstacle, data that will assist in understanding how a
vehicle’s systems performed. The EDR is designed to record data related to vehicle
dynamics and safety systems for a short period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record such data as:

[How various systems in your vehicle were operating;

[Whether or not the driver and passenger safety belts were buckled/fastened;

[How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,

[How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in which
crashes and injuries occur. NOTE: EDR data are recorded by your vehicle only if a
non-trivial crash situation occurs; no data are recorded by the EDR under normal
driving conditions and no personal data (e.g., name, gender, age, and crash location)
are recorded. However, other parties, such as law enforcement, could combine the
EDR data with the type of personally identifying data routinely acquired during a crash
investigation.
To read data recorded by an EDR, special equipment is required, and access to the
vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties,
such as law enforcement, that have the special equipment, can read the information if
they have access to the vehicle or the EDR.

2
2. Vehicle Information,
Consumer Information and
Reporting Safety Defects
Exterior Overview (I) ..........................................................................................2-2
Exterior Overview (II) .........................................................................................2-3
Interior overview ............................................................................................... 2-4
Instrument Panel Overview (I) ......................................................................... 2-6
Instrument Panel Overview (II) ......................................................................... 2-7
Engine Compartment ....................................................................................... 2-8
Dimensions ........................................................................................................ 2-9
Engine ................................................................................................................ 2-9
Bulb Wattage .................................................................................................... 2-10
Tires and Wheels ............................................................................................... 2-11
Air Conditioning System .................................................................................. 2-12
Vehicle Weight and Luggage Volume ............................................................ 2-12
Recommended Lubricants and Capacities .................................................... 2-13
Recommended SAE Viscosity Number .....................................................................2-14
Vehicle Identification Number (VIN) .............................................................. 2-15
Vehicle Certification Label .............................................................................. 2-15
Tire Specification and Pressure Label ............................................................ 2-15
Engine Number ................................................................................................ 2-16
Air Conditioner Compressor Label ................................................................. 2-16
Open Source Software Notice ........................................................................ 2-17
Consumer Information .................................................................................... 2-17
Reporting Safety Defects ................................................................................ 2-18

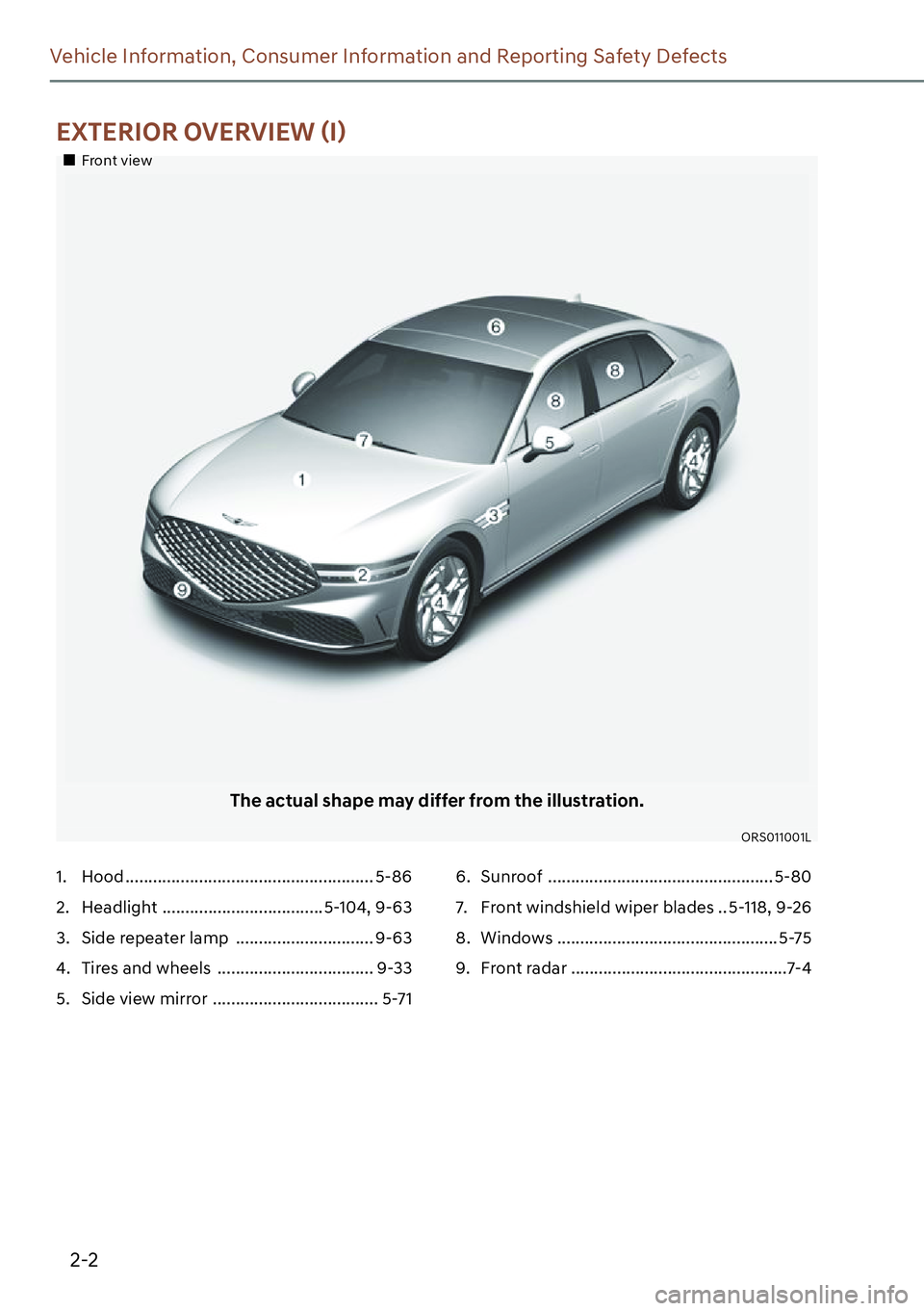

2-2
Vehicle Information, Consumer Information and Reporting Safety Defects
(;7(5,2529(59,(:

2-3
02

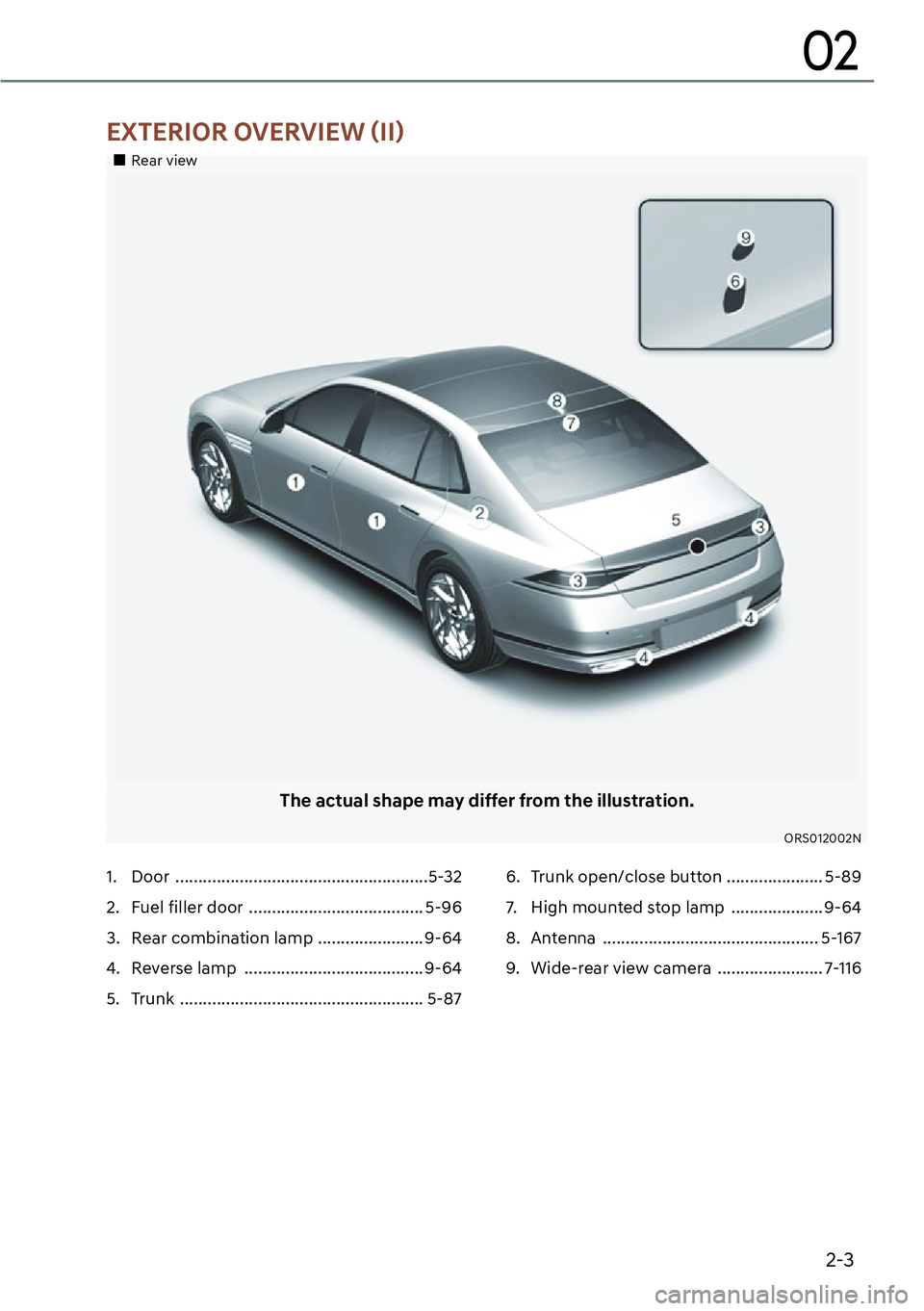

„Rear view
The actual shape may differ from the illustration.
ORS012002N
(;7(5,2529(59,(:

2-4
Vehicle Information, Consumer Information and Reporting Safety Defects

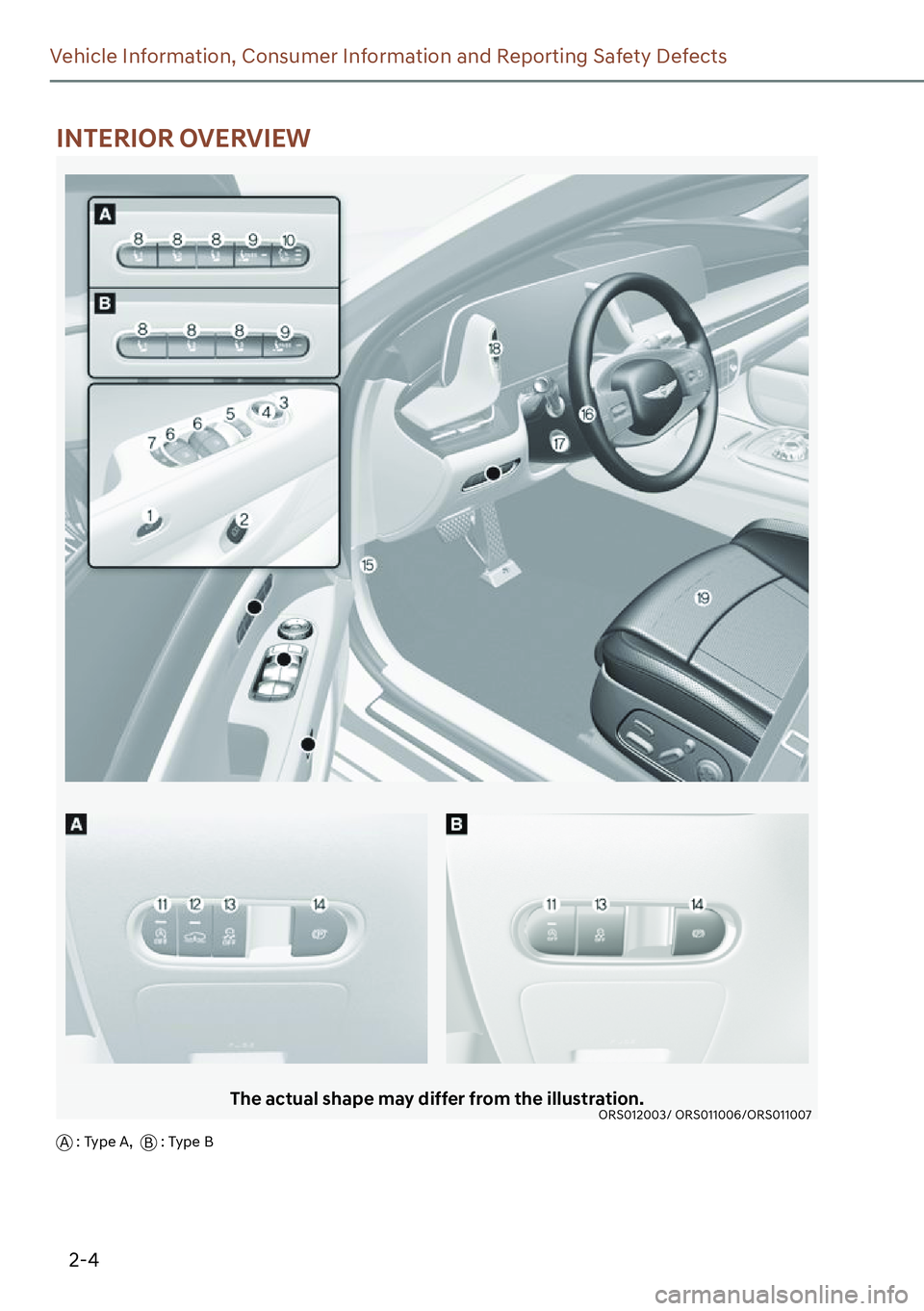

The actual shape may differ from the illustration.ORS012003/ ORS011006/ORS011007
A : Type A,
B : Type B
INTERIOR OVERVIEW

2-5
02
1. Inside door open button ...................... 5-38
2. Inside door open lever ......................... 5-38
3. Side rear view mirror control
switch ..................................................... 5-72
4. Side rear view mirror folding
button .....................................................5-73
5. Central door lock switch ...................... 5-39
6. Power window switches .......................5-76
7. Rear window sunshade folding
button ................................................... 5-164
Electronic child safety lock button ...... 5-44
8. Integrated memory system ................. 5-50
9. Passenger seat adjustment switch....... 3-1210. Seat massage switch ............................. 3-13
11. ISG (Idle Stop & Go) OFF button ........... 6-51
12. Multi-chamber air suspension button ...6-45
13. ESC (Electronic Stability Control) OFF
button .................................................... 6-33
14. EPB (Electronic Parking Brake)
switch .................................................... 6-24
15. Hood release lever ................................ 5-86
16. Steering wheel ...................................... 5-55
17. Steering wheel tilt/telescopic switch.. 5-56
18. Power trunk open/close button .......... 5-89
19. Seat .......................................................... 3-3

2-6
Vehicle Information, Consumer Information and Reporting Safety Defects
1. Instrument cluster .................................. 4-4
2. Horn ........................................................5-57
3. Driver’s front air bag ............................. 3-59
4. Engine Start/Stop button ....................... 6-5
5. Infotainment system ...........................5-168
6. Hazard warning flasher button .............. 8-2
7. Automatic climate control system ...... 5-121
8. Passenger’s front air bag ..................... 3-59
9. Glove box ............................................. 5-152
10. Rotary shifter (Rotary gear shift dial) ....6-11
11. Infotainment system controller ..........5-16812. Wireless charging system pad ............ 5-158
13. Wireless charging system indicator ... 5-158
14. Seat Warmer/ ........................................ 3-33
Air ventilation seat ................................ 3-36
15. Parking/View button ............................ 7-118
16. Drive mode button ................................6-61
17. Parking Safety button .......................... 7-134
18. Door close button .................................. 5-41
19. USB port ...............................................5-166
20. USB charger ......................................... 5-157
21. Power outlet ......................................... 5-156
The actual shape may differ from the illustration.
ORS011004
,167580(173$1(/29(59,(:

2-7
02

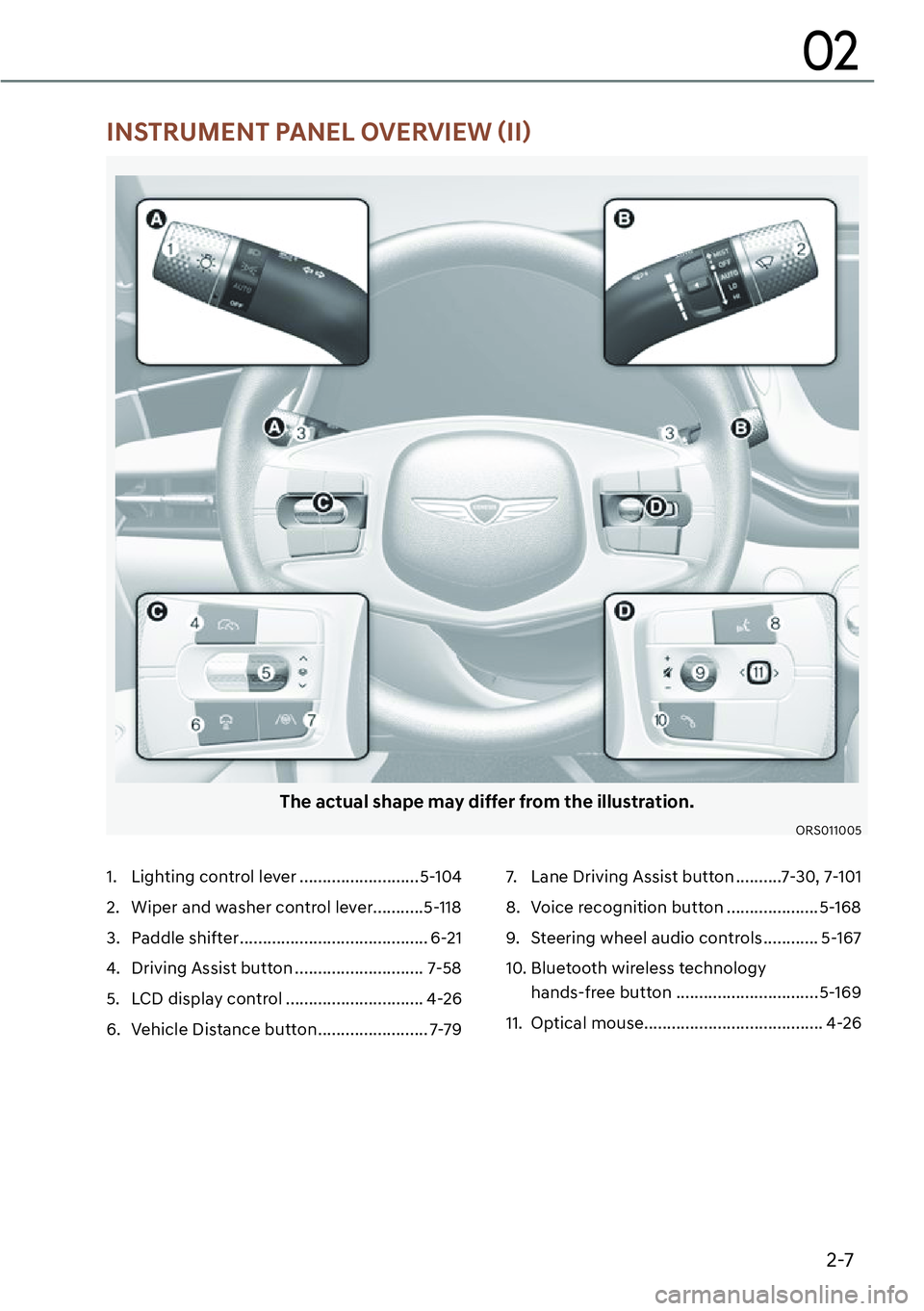

,167580(173$1(/29(59,(:
