GENESIS G90 2023 Service Manual

3-10
Safety System
Seat cushion extension adjustment
(for driver's seat) (if equipped)
ORS031005
To move the front part of the cushion
forward or rearward:
1. Push the control switch forward or
rearward.
2. Release the switch once the seat
cushion reaches the desired length.
Seat cushion support adjustment
(for driver's seat) (if equipped)
ORS031100L
6HOHFW
S6HWXS

3-11
03
Seat bolster adjustment (if
equipped)
ORS031009
To adjust seat bolster:
1. Push the adjustment lever clockwise,
the seatback bolster will be
adjusted inward. Push the switch
counterclockwise, the seatback
bolster will be adjusted outward.
2. Release the lever once the bolster
reaches the desired position.
Ergo-motion seat (if equipped)
ORS031098L
6HOHFW
S6HDW

3-12
Safety System
Smart Posture Assist
After driving for an hour, Posture Assist
automatically adjusts the pelvis and back
portion of the seat to assist the posture.
You can activate or deactivate Posture
Assist function from the Settings menu in
the infotainment system screen. Select:
-6HDW

3-13
03
Seat massage function (for driver’s
seat) (if equipped)
ORS031016
Use the massage function to relax after
a long drive, or when resting inside the
vehicle.
1. While the Engine Start/Stop button is
in ‘ON’ position, press the massage
button on the driver’s seat door to
start the function.

[The light indicating massage
intensity level illuminates.
2. Press the button again to set the
intensity level.

[Each time you press the button, the
intensity setting of the Massage it is
changed as follows:
+LJK

3-14
Safety System
Seatback pocket
ORS031015
The seatback pocket is provided on the
back of the front seatbacks.
CAUTION
Do not put heavy or sharp objects in the
seatback pockets. In an accident they
could come loose from the pocket and
injure occupants.
Rear Seats
WARNING
NEVER adjust the rear power seats
when a Child Restraint System is
installed in that seat.
WARNING
To prevent injury:

[Do not adjust your seat while
wearing your seat belt. Moving the
seat cushion forward may cause
strong pressure on your abdomen.

[Do not allow your hands or fingers to
get caught in the seat mechanisms
while the seat is moving.
NOTICE
To prevent damage to the seats:

[Always stop adjusting the seats when
the seat has been adjusted as far
forward or rearward as possible.

[Do not adjust the seats longer than
necessary when the engine is turned
off. This may result in unnecessary
drain of the battery.

[Do not operate two or more seats at
the same time. This may result in an
electrical malfunction.

3-15
03
Seat sliding, seatback angle and seat
cushion tilt adjustment (if equipped)
ORS031094
ORS032150N
Adjusting seat position and vertical height

[Control switch (Type A)
- Seat position adjustment: Slide the
switch M forward or backward to
adjust seat position.
- Seat height adjustment: Push down
or pull up the switch M to adjust
seat height.

[Armrest touchscreen (Type B)
1. Press
on the left side of
the menu from the armrest
touchscreen.
- Seat adjustment screen is
displayed.
2. Touch the lower part adjustment
button and adjust the seat position
and cushion angle.
Seatback angle

[Control Switch (Type A)
Slide the switch N forward or
backward to adjust seatback angle.

[Armrest touchscreen (Type B)
1. Press
on the left side of
the menu from the armrest
touchscreen.
- Seat adjustment screen is
displayed.
2. Touch the center part adjustment
button and adjust the seatback
angle.
Lumbar support adjustment (if
equipped)
ORS032021N
1. Press on the left side of the menu
from the armrest touchscreen.

[Seat adjustment screen is displayed.
2. Press the adjustment button on the
center of the rear seat to adjust, then
select lumbar support function from
the menu.
3. Touch the arrows to adjust the
position of the lumbar support.

3-16
Safety System
Adjusting seat bolster (if equipped)
ORS032022N
1. Press on the left side of the menu
from the armrest touchscreen.

[Seat adjustment screen is displayed.
2. Press the adjustment button on the
center of the rear seat to adjust, then
select seat bolster function from the
menu.
3. Touch the arrows to adjust the
position of the seat bolster.
Walk-in switch (if equipped)
ORS031104
Seating position, seatback angle and
cushion angle of the front passenger seat
can be adjusted by operating the rear
seat control switches.
1. Press the walk-in device switch on the
center armrest of rear seat.

[Indicator light on the walk-in device
switch illuminates.
2. Operate the rear seat control switch to
adjust the front passenger seat.

[ For more information refer to the
“Front Seats” section in this chapter.

[Press the switch again to turn off
the walk-in device.

[If you do not adjust the front
passenger seat within 15 seconds
after pressing the walk-in
switch, the front passenger seat
adjustment function automatically
turns off.
WARNING
Do not adjust the passenger seat when
a passenger is seated.

3-17
03
Easy access switch (for passenger’s
Seat) (if equipped)
ORS032109N
ORS032023N
9HKLFOHVHTXLSSHGZLWK,QWHJUDWHG
Memory System
The seats can automatically move
backward by opening the rear door with
the rear seats moved forward.
1. Press
on the left side of the menu
from the armrest touchscreen.

[Seat adjustment screen is displayed.
2. Touch either the right, or left seat
adjustment button M on the rear seat.
3. Press the DOOR button.

[The indicator light on the button
illuminates and easy access
function for entrance/exit is
enabled.
VIP seat (if equipped)
ORS032024N
The rear seat occupant can adjust the
VIP seat and front passenger seats for
VIP convenience. The front and rear
passenger seats are also adjustable
through the armrest touchscreen.
Information

[Convenience features of the rear left
seat is not available under the following
circumstances when:
-The driver’s seat is positioned back
too far.
-The driver’s seatback is reclined
back too much.

[Operating range of the convenience
features of the rear left seat may
vary depending on the position of the
driver’s seat.

3-18
Safety System
VIP seat mode switches (if
equipped)
ORS031025
ORS032154N
A : Control switch,
B : Armrest touchscreen,
L : Rear seat (Left),
R : Rear seat (Right)
You can automatically adjust the seat for
comfort or various in-vehicle activities.
1. Press
on the left side of the menu
from the armrest touchscreen.

[Seat adjustment screen is displayed.
2. Press and hold the appropriate mode
for your activity.

[Relax (REST) mode, Reading mode,
Return mode.
Relax (REST) Mode
The front and rear passenger seats are
automatically adjusted for comfort. Press
and hold button M on the rear door or
on the armrest touchscreen. Each seat is
adjusted automatically as below.

[Rear left seat
-6HDWEDFNWLOWVEDFNZDUG

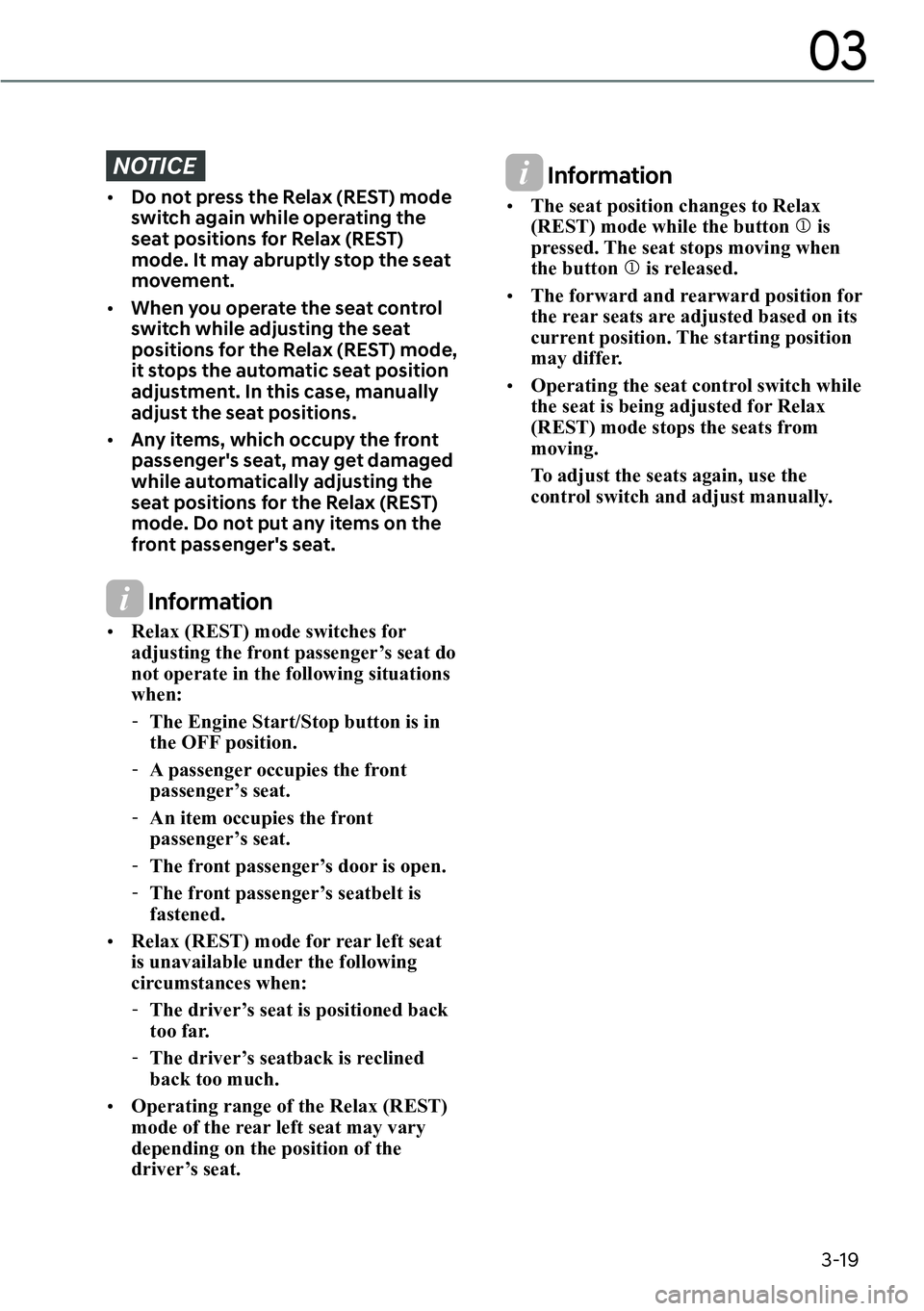

3-19
03
NOTICE

[Do not press the Relax (REST) mode
switch again while operating the
seat positions for Relax (REST)
mode. It may abruptly stop the seat
movement.

[When you operate the seat control
switch while adjusting the seat
positions for the Relax (REST) mode,
it stops the automatic seat position
adjustment. In this case, manually
adjust the seat positions.

[Any items, which occupy the front
passenger's seat, may get damaged
while automatically adjusting the
seat positions for the Relax (REST)
mode. Do not put any items on the
front passenger's seat.
Information

[Relax (REST) mode switches for
adjusting the front passenger’s seat do
not operate in the following situations
when:
-The Engine Start/Stop button is in
the OFF position.
-A passenger occupies the front
passenger’s seat.
-An item occupies the front
passenger’s seat.
-The front passenger’s door is open.
-The front passenger’s seatbelt is
fastened.

[Relax (REST) mode for rear left seat
is unavailable under the following
circumstances when:
-The driver’s seat is positioned back
too far.
-The driver’s seatback is reclined
back too much.

[Operating range of the Relax (REST)
mode of the rear left seat may vary
depending on the position of the
driver’s seat.
Information

[The seat position changes to Relax
(REST) mode while the button M is
pressed. The seat stops moving when
the button M is released.

[The forward and rearward position for
the rear seats are adjusted based on its
current position. The starting position
may differ.

[Operating the seat control switch while
the seat is being adjusted for Relax
(REST) mode stops the seats from
moving.
To adjust the seats again, use the
control switch and adjust manually.
