Page 241 of 676
5-100
Convenience Features
Precautions While Using the
Head-up Display
[ It may sometimes be difficult to read
information on the head-up display in
the following situations.
- The driver is improperly positioned
in the driver’s seat.
- The driver wears polarizing-filter
sunglasses.
- An object is located above the
head-up display cover
- The vehicle is driven on a wet road.
- Any improper lighting accessory is
installed inside the vehicle, or there
is incoming light from outside of the
vehicle.
- The driver wears glasses.
- The driver wears contact lenses.
When it is difficult to read the head up
display information, adjust the image
height or brightness level from the
Settings menu in the infotainment
system screen.[ For your safety, make sure to stop the
vehicle before adjusting the settings.
[ Do not tint the front windshield glass
or add other types of metallic coating.
Otherwise, the head-up display image
may be invisible.
[ Do not place any accessories on the
crash pad or attach any objects on the
windshield glass.
[ When replacing the front windshield
glass, replace it with a windshield
glass designed for head-up display
operation. Otherwise, duplicated
images may be displayed on the
windshield glass.
WARNING
The warning information of Blind-Spot
Safety on the head-up display are
supplemental. Do not solely depend on
them to change lanes. Always take a
look around before changing lanes.
Information
Head-up Display includes GPL, LGPL,
MPL and other open source license
softwares. All license notices including
related source code are provided at http://
www.mobis.co.kr/opensource/list.do.
If the driver requests on-board
V R I W Z D U H R S H Q V R X U F H F R G H Y L D 0 2 % , 6 B
2 6 6 U H T X H V W # P R E L V F R N U Z L W K L Q \ H D U V
D I W H U E X \ L Q J W K L V S U R G X F W D & ' 5 2 0 R U
other storage device will be sent with the
minimum cost covering storage device cost
and delivery cost.
Page 242 of 676
5-101
05
The Over-The-Air software update
feature allows you to wirelessly update
software to the latest version. Using
this feature, you can keep your vehicle
system up to date with the latest
software without visiting an authorized
retailer of Genesis Branded products.
[ Over-The-Air software update is an
option, visiting your selected dealer
will continue to be an option.
Downloading Software
Vehicles with Active and Enrolled
Genesis Connected Services can
automatically download software while
driving. After the latest software has
been successfully downloaded, you will
receive a notification on your phone or
on the vehicle screen that the software
update is available and ready to install.
Approving Software Update
ORS052313N
After the vehicle ignition is turned off,
the vehicle system will provide the
option to start the update.
[ To start the update, press ‘Start’ M.
[ To postpone the update, press ‘Later’
N.
Preparing Software Update
If you press the ‘Start’ button on the
screen, the vehicle will begin installing
the update automatically. The following
conditions must be satisfied:
[ The vehicle must be off.
[ The gear must be in P (Park).
[ The Electronic Parking Brake (EPB)
must be applied.
[ The exterior lights must be turned off.
[ The hood must be closed.
[ The battery must be sufficient.
[ The systems to be updated must not
be running.
ORS051239L
[ To update immediately, press ‘Update
Now’.
[ To cancel the update, press ‘Cancel
Update’.
2 9 ( 5
Page 243 of 676
5-102
Convenience Features
Updating Software
ORS052314N
You can see the progress of the update
on the screen.
After the update is complete, you will
receive a notification on your phone
or the vehicle screen that the software
update is complete.
Information
The screen turns off automatically after 3
minutes to save the battery. If the screen
turns off automatically, you can check the
update progress by pressing the Engine
Start/Stop button.
Information
[ After the update starts, you can exit the
vehicle.
[ 7 K H 2 Y H U 7 K H $ L U V R I W Z D U H X S G D W H
feature is only available for Active and
( Q U R O O H G * H Q H V L V & R Q Q H F W H G 6 H U Y L F H V
users.
[ The update details may vary, for details
you can visit the What’s New link.
[ & K H F N W K H Q R W L F H I R U W K H 2 Y H U 7 K H $ L U
software update on mygenesis.com
[ , I W K H X S G D W H I D L O V W K H ( & 8 Z L O O
attempt to recovery itself automatically
(rollback). If you want to retry the
software update, even after a successful
U H F R Y H U \ F R Q W D F W * H Q H V L V & X V W R P H U
& D U H
[ If the update or recovery fails, contact
* H Q H V L V & X V W R P H U & D U H
[ After the update is complete, it
may provide new functions or
improvements. For more information,
V H H W K H
Page 244 of 676
5-103
05
NOTICE
[ Observe the following restrictions
during the update.
-You cannot use the vehicle during
the update. Be sure to have
enough time for the update, and
safely park the vehicle before
starting the update process.
-You cannot use remote features,
including remote start.
-The Rear Occupant Alert feature
may not work. Check if there are
any occupants in the rear seat.
-If there is an update for the Genesis
Digital Key feature, the doors
cannot be locked or unlocked
using the digital key, or fingerprint
recognition. If the Genesis Digital
Key feature is being updated, use
the smart key to lock or unlock the
doors. [ The update will be automatically
canceled if any vehicle conditions
required for the update are changed
before starting the update.
[ Once the update has started, you
cannot cancel the update.
[ You cannot use the Over-The-Air
software update feature if you
modify or replace any vehicle
software.
[ Do not open the hood or replace
the battery in the vehicle during the
update. The update may fail.
[ If a diagnostic tool of any kind is
connected to the vehicle OBD (On-
board Diagnostic) terminal, the
vehicle cannot be updated. The
vehicle can be updated by removing
the diagnostic tool connected to the
OBD terminal and then restarting the
vehicle.
[ If the update is not completed
successfully, contact Genesis
Customer Care.
[ Vehicle reception must be identified
as Verizon to safely install any
downloaded software.
[ Vehicle signal strength, must be
strong (above -82 dbm) to safely
install any downloaded software.
Page 245 of 676
5-104
Convenience Features
EXTERIOR LIGHTS
Lighting Control
To operate the lights, turn the knob at
the end of the control lever to one of the
following positions:
OJX1059057
M OFF
N AUTO headlight
O Parking lamp
P Headlight
Daytime Running Light (DRL)
The Daytime Running Lights (DRL) can
make it easier for others to see the front
of your vehicle during the day, especially
after dawn and before sunset.
The DRL system will turn the dedicated
lamp OFF when:
[ The headlights are ON.
[ The parking brake is applied.
[ The vehicle is turned off.
$ 8 7 2 K H D G O L J K W
ORS051076
The parking lamp and headlight will
be turned ON or OFF automatically
depending on the amount of daylight as
measured by the ambient light sensor M
at the upper end of the windshield glass.
Even with the AUTO headlight feature
in operation, it is recommended to
manually turn ON the headlights when
driving at night or in a fog, driving in the
rain, or when you enter dark areas, such
as tunnels and parking facilities.
NOTICE
[ Do not cover or spill anything on the
sensor M located at the upper end of
the windshield glass.
[ Do not clean the sensor using
a window cleaner, the cleanser
may leave a light film which could
interfere with sensor operation.
[ If your vehicle window is tinted or
other types of metallic coating are
on the front windshield, the AUTO
headlight system may not work
properly.
Page 246 of 676
5-105
05

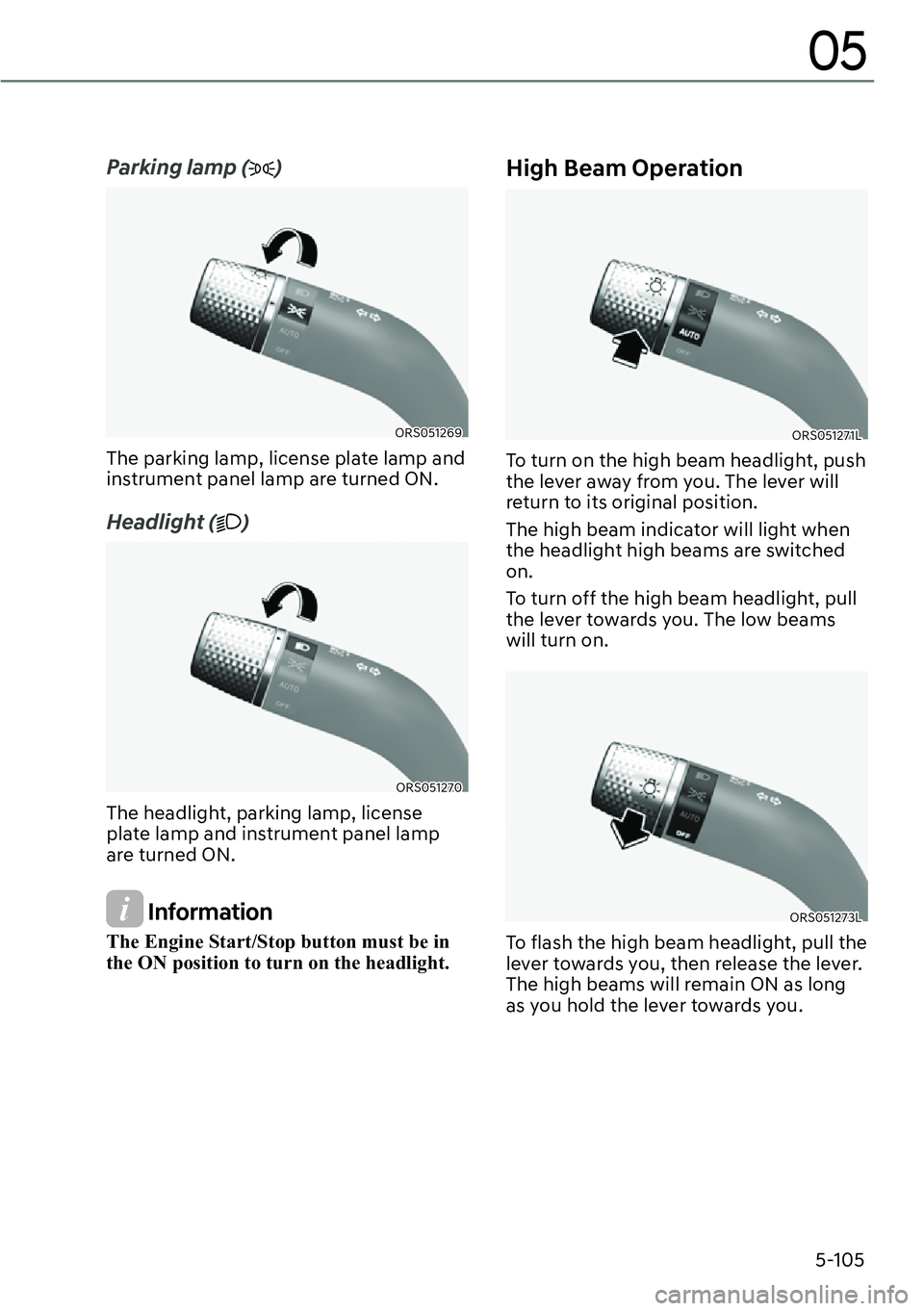

Parking lamp (()
ORS051269
The parking lamp, license plate lamp and
instrument panel lamp are turned ON.
Headlight (()
ORS051270
The headlight, parking lamp, license
plate lamp and instrument panel lamp
are turned ON.
Information
The Engine Start/Stop button must be in
W K H 2 1 S R V L W L R Q W R W X U Q R Q W K H K H D G O L J K W
High Beam Operation
ORS051271L
To turn on the high beam headlight, push
the lever away from you. The lever will
return to its original position.
The high beam indicator will light when
the headlight high beams are switched
on.
To turn off the high beam headlight, pull
the lever towards you. The low beams
will turn on.
ORS051273L
To flash the high beam headlight, pull the
lever towards you, then release the lever.
The high beams will remain ON as long
as you hold the lever towards you.
Page 247 of 676
5-106
Convenience Features
Turn Signals and Lane Change
Signals
ORG3EV051074
To signal a turn, push down on the lever
for a left turn or up for a right turn in
position
A .
If an indicator stays on and does not flash
or if it flashes abnormally, one of the turn
signal bulbs may be burned out and will
require replacement.
2 Q H W R X F K W X U Q V L J Q D O
To use One Touch Turn Signal push the
turn signal lever up or down to position
B and then release it.
The lane change signals will blink 3, 5 or
7 times.
You can enable the One Touch Turn
Signal function or choose the number
R I E O L Q N L Q J E \ V H O H F W L Q J S 6 H W X S
Page 248 of 676
5-107
05
+ H D G O L J K W ' H O D \ ) X Q F W L R Q
If the Engine Start/Stop button is in the
ACC position or the OFF position with
the headlights ON, the headlights (and/
or parking lamps) remain on for about
5 minutes. However, if the driver’s door
is opened and closed, the headlights
are turned off after 15 seconds. Also,
with the vehicle off if the driver’s door is
opened and closed, the headlights (and/
or parking lamps) are turned off after 15
seconds.
The headlights (and/or parking lamps)
can be turned off by pressing the lock
button on the smart key twice or turning
the headlight switch to the OFF or AUTO
position.
You can enable the headlight delay
I X Q F W L R Q E \ V H O H F W L Q J S 6 H W X S
Page 249 of 676
5-108
Convenience Features
INTERIOR LIGHTS
WARNING
Do not use the interior lights when
driving in the dark. The interior lights
may obscure your view and cause an
accident.
NOTICE
Do not use the interior lights for
extended periods when the vehicle is
turned off or the battery will discharge.
Interior Lamp AUTO Cut
The interior lamps will automatically go
off approximately 20 minutes after the
vehicle is turned off and the doors are
closed. If a door is opened, the lamp
will go off 25 minutes after the vehicle
is turned off. If the doors are locked by
the smart key and the vehicle enters the
armed stage of the theft alarm system,
the lamps will go off five seconds later.
) U R Q W / D P S V
ORS052078N
ORS051250L
A : Front overhead console
B : Rear seat armrest touchscreen
[ Front map lamp ():
Touch either icons to turn the map
lamp on or off. This light produces a
spot beam for convenient use as a
map lamp at night or as a personal
lamp for the driver and the front
passenger.
Page 250 of 676

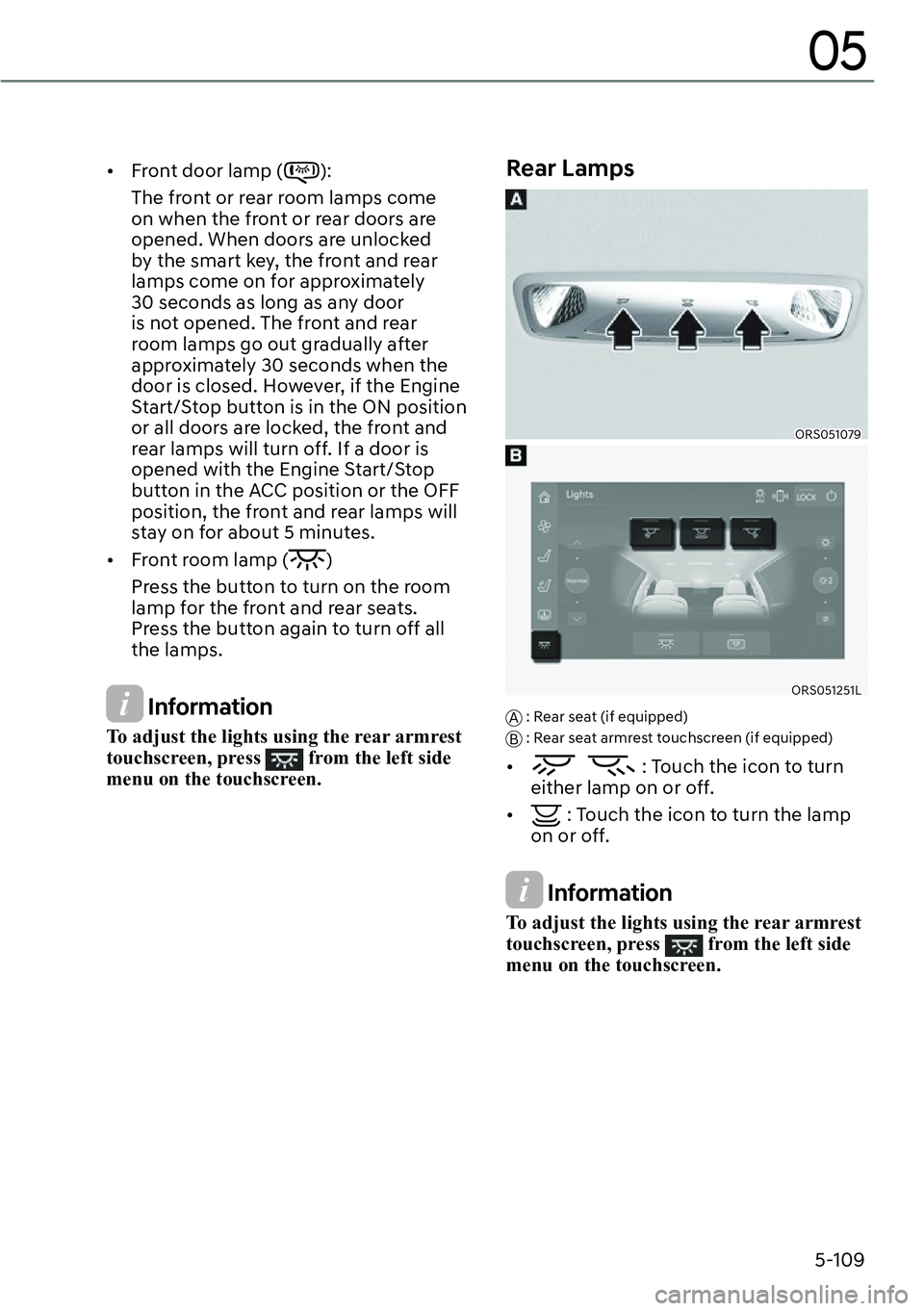

5-109
05
[ Front door lamp ():
The front or rear room lamps come
on when the front or rear doors are
opened. When doors are unlocked
by the smart key, the front and rear
lamps come on for approximately
30 seconds as long as any door
is not opened. The front and rear
room lamps go out gradually after
approximately 30 seconds when the
door is closed. However, if the Engine
Start/Stop button is in the ON position
or all doors are locked, the front and
rear lamps will turn off. If a door is
opened with the Engine Start/Stop
button in the ACC position or the OFF
position, the front and rear lamps will
stay on for about 5 minutes.
[ Front room lamp (
)
Press the button to turn on the room
lamp for the front and rear seats.
Press the button again to turn off all
the lamps.
Information
7 R D G M X V W W K H O L J K W V X V L Q J W K H U H D U D U P U H V W
touchscreen, press from the left side
menu on the touchscreen.
Rear Lamps
ORS051079
ORS051251L
A : Rear seat (if equipped)
B : Rear seat armrest touchscreen (if equipped)
[ : Touch the icon to turn
either lamp on or off.
[
: Touch the icon to turn the lamp
on or off.
Information
7 R D G M X V W W K H O L J K W V X V L Q J W K H U H D U D U P U H V W
touchscreen, press from the left side
menu on the touchscreen.
