Foreword / Starting your Electric vehicle
Information
Some connectors installed in public
charging stations stop charging by
pressing the charge release button while
charging is locked, and the connector can
be disconnected and some DC chargers
have to be stopped through the charger
display.
3. Make sure to completely close the
charging door.
4. Close the protection caps of the
charging connector and the charging
plug to protect them from foreign
substances.
5. If the personal charging connector is
used, store the connector in the cable
compartment.

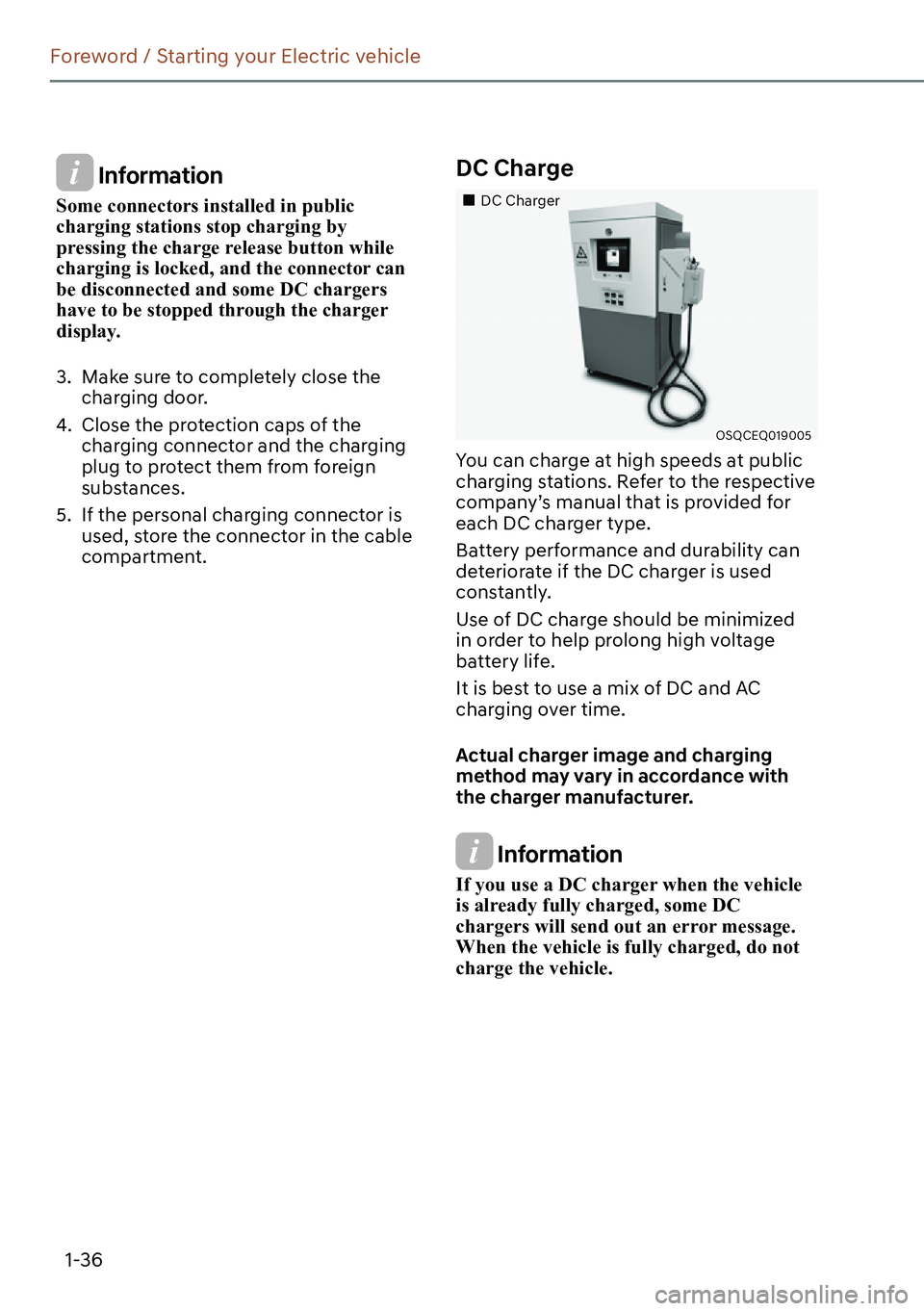

DC Charge
„DC Charger
OSQCEQ019005
You can charge at high speeds at public
charging stations. Refer to the respective
company’s manual that is provided for
each DC charger type.
Battery performance and durability can
deteriorate if the DC charger is used
constantly.
Use of DC charge should be minimized
in order to help prolong high voltage
battery life.
It is best to use a mix of DC and AC
charging over time.
Actual charger image and charging
method may vary in accordance with
the charger manufacturer.
Information
If you use a DC charger when the vehicle
is already fully charged, some DC
chargers will send out an error message.
When the vehicle is fully charged, do not
charge the vehicle.

1-37
01
How to Connect DC Charger
1. Depress the brake pedal and apply the
parking brake.
2. Turn OFF all switches, shift to P (Park),
and turn OFF the vehicle.
OJWEVQ011014L
3. Push the charging door where the
triangle symbol (1) is located or press
the button on smart key FOB as well
to open charging door. The charging
door opens only when the vehicle is
unlocked.
4. Open the inlet cover (2).
Information
If you cannot open the charging door due
to freezing weather, tap lightly or remove
any ice near the charging door. Do not try
to forcibly open the charging door. 5. Check whether there is dust or foreign
substances inside the charging
connector and charging inlet.
6. Hold the charging connector handle
and connect it to the vehicle charging
inlet. Push the connector all the way
in. If the charging connector and
charging terminal are not connected
properly, This may cause a fire and
charging may not start.
Refer to the charger display
instructions or manual for each type
of DC charger for how to charge and
remove the charger.
OJWEVQ011033
7. Check if the charging indicator light
() of the high voltage battery in
the instrument cluster is turned ON.
Charging is not active when the
charging indicator light (
) is OFF.
When charging cable is not connected
properly to inlet, press release button,
remove charging cable and reconnect
again.
During cold weather, DC charging
may not be available to prevent high
voltage battery degradation.

1-38
Foreword / Starting your Electric vehicle
Information
To control the temperature of the high
voltage battery while charging or when
the battery temperature is high, the air
conditioner is used to cool down the
battery. It may generate noise or vibration
from operation of the air conditioner
compressor and cooling fan, but it is a
normal condition when charging the high
voltage battery. Also, the air conditioner’s
performance may be reduced due to
operation of the cooling system to charge
the high voltage battery. This is a normal
condition.
Information

[Even though charging is possible with
the Start/Stop button in the ON/START
position, for your safety, start charging
when the Start/Stop button is in the
OFF position and the vehicle shifted to
P (Park). After charging has started,
you can use electrical components such
as the radio by pressing the Start/Stop
button to the ACC or ON position.

[During charging, the gear cannot be
shifted from P (Park) to any other gear.
OJWEVQ011118N
8. After charging has started, the
estimated charging time is displayed
on the instrument cluster for about 1
minute.
If you open the driver seat door while
charging, the estimated charging time
is also displayed on the instrument
cluster for about 1 minute.
Information

[Depending on the condition and
durability of the high voltage battery,
charger specifications, and ambient
temperature, the time required for
charging the battery may vary.

[In rare cases, you might hear high
frequency noise (very little beep sound)
outside the car when charging with
400V DC charger that is deteriorated
or has long communication delay. The
high frequency noise can be generated
only when the car tries to reduce its
own electromagnetic waves to keep DC
charging as possible.
So, there is no need to worry about this
little noise, because it is the intentional
operation of the car that does not
affect any charging performance or the
vehicle itself at all.

1-39
01
Checking Charging Status
When charging the high voltage battery,
the charge level can be checked from
outside the vehicle.
For more details, refer to ‘Charge
Indicator Lamp for Electric Vehicle’ in
this chapter.
How to Disconnect DC Charger
1. Press release button and then
remove charging connector when DC
charging is completed, or after you
stop charging using the DC charger.
Refer to each respective DC charger
display instructions or manual for
details about how to disconnect the
charging connector.
2. Make sure to completely close the
charging door.
Portable Charge
„Portable Charger
ORG3EVQ011073
(1) Code and Plug (Code set)
(2) Control Box
(3) Charging Cable and Charging
Connector
Portable Charge can be used when AC
Charge or DC Charge is not available by
using household electricity.

1-40
Foreword / Starting your Electric vehicle
How to Set the Charge Level of the
Portable Charger
ONE1041060N
1. Check the rated current of the electric
outlet prior to connecting the plug to
the outlet.
2. Connect the plug to a household
electric outlet.
3. Check the display window on the
control box.
NOTICE
Outlet needs to be a minimum of 15 A
circuit. Avoid connecting to electrical
circuits that also share with power
appliances or electronics. Reduce the
charger current per steps 4-5 if a power
electronics shares same electrical
circuit and cannot be disconnected.
Begin with the lowest 6 A setting. If you
must use a extension cord to be able
to fit keep it as short as possible and
it must be medium or heavy duty 15 A
minimum rating.
ORG3EVQ011075
4. Press the button (1) on the front of
the control box for 2 to 8 seconds
to adjust the charge level. (Refer to
charging cable type and example for
setting the charge level.)
5. The charge level on the display
window of the control box changes
every time you press the button (1).
6. When setting the charge level is
complete, start charging according to
the portable charge procedure.

1-41
01
ÃExample for setting the ICCB charge level
The example is only for reference and may vary according to the surrounding
environment.
Outlet current ICCB charge level Control box display window
14-16A 12A
ORG3EVQ011076
13-12A 10A
11-10A 8A
9-8A 6A
CAUTION
Please make sure that charge level selection matches the capacity of your circuit
breaker to avoid blown fuse.

1-42
Foreword / Starting your Electric vehicle
How to Connect Portable Charger
(ICCB: In-Cable Control Box)
ONE1041060N
1. Connect the plug to a household
electric outlet.
ORG3EVQ011077
2. Check if the power lamp (green)
illuminates on the control box. 3. Depress the brake pedal and apply the
parking brake.
4. Turn OFF all switches, shift to P (Park),
and turn OFF the vehicle.
If charging is initiated without the
gear in P (Park), the charging will start,
only after gear is shifted to P (Park).
OJWEVQ011111L
5. Push the charging door where the
triangle symbol (1) is located or press
the button on smart key FOB as well
to open charging door. The charging
door opens only when the vehicle is
unlocked.
Information
If you cannot open the charging door due
to freezing weather, tap lightly or remove
any ice near the charging door. Do not try
to forcibly open the charging door.

1-43
01
6. Open the protection caps of the
charging connector and the charging
plug. Check if there are any foreign
substances or dust.
7. Hold the charging connector handle
and connect it to the vehicle charging
inlet. Push the connector all the way
in. If the charging connector and
charging terminal are not connected
properly, This may cause a fire and
charging may not start.
Information
Locking Charging Cable
6HOHFW

1-44
Foreword / Starting your Electric vehicle
Information
Even though charging is possible with
the Start/Stop button in the ON/START
position, for you safety, start charging
when the Start/Stop button is in the
OFF position and the vehicle shifted to P
(Park). After charging has started, you
can use electrical components such as the
radio by pressing the Start/Stop button to
the START or ON position.
During charging, the gear cannot be
shifted from P (Park) to any other gear.
OJWEVQ011117N
10. After charging has started, the
estimated charging time is displayed
on the instrument cluster for about 1
minute.
If you open the drivers door while
charging, the estimated charging time
is also displayed on the instrument
cluster for about 1 minute. When
scheduled charging or scheduled
air conditioner/heater is set, the
estimated charging time is displayed
as “--” .
Information
Depending on the condition and durability
of the high voltage battery, charger
specifications, and ambient temperature,
the time required for charging the battery
may vary.
Checking Charging Status
When charging the high voltage battery,
the charge level can be checked from
outside the vehicle.
For more details, refer to ‘Charge
Indicator Lamp for Electric Vehicle’ in
this chapter.

1-45
01
Charging Status Indicator Lamp for Portable Charger
„Control Box
ORG3EVQ011079
Indicator Details
POWEROn : Power on
CHARGE
On : Charge
Blink : Current limit due to high plug temperature or high
internal temperature
FAULT
Blink : Charging interrupted
