Foreword / Starting your Electric vehicle

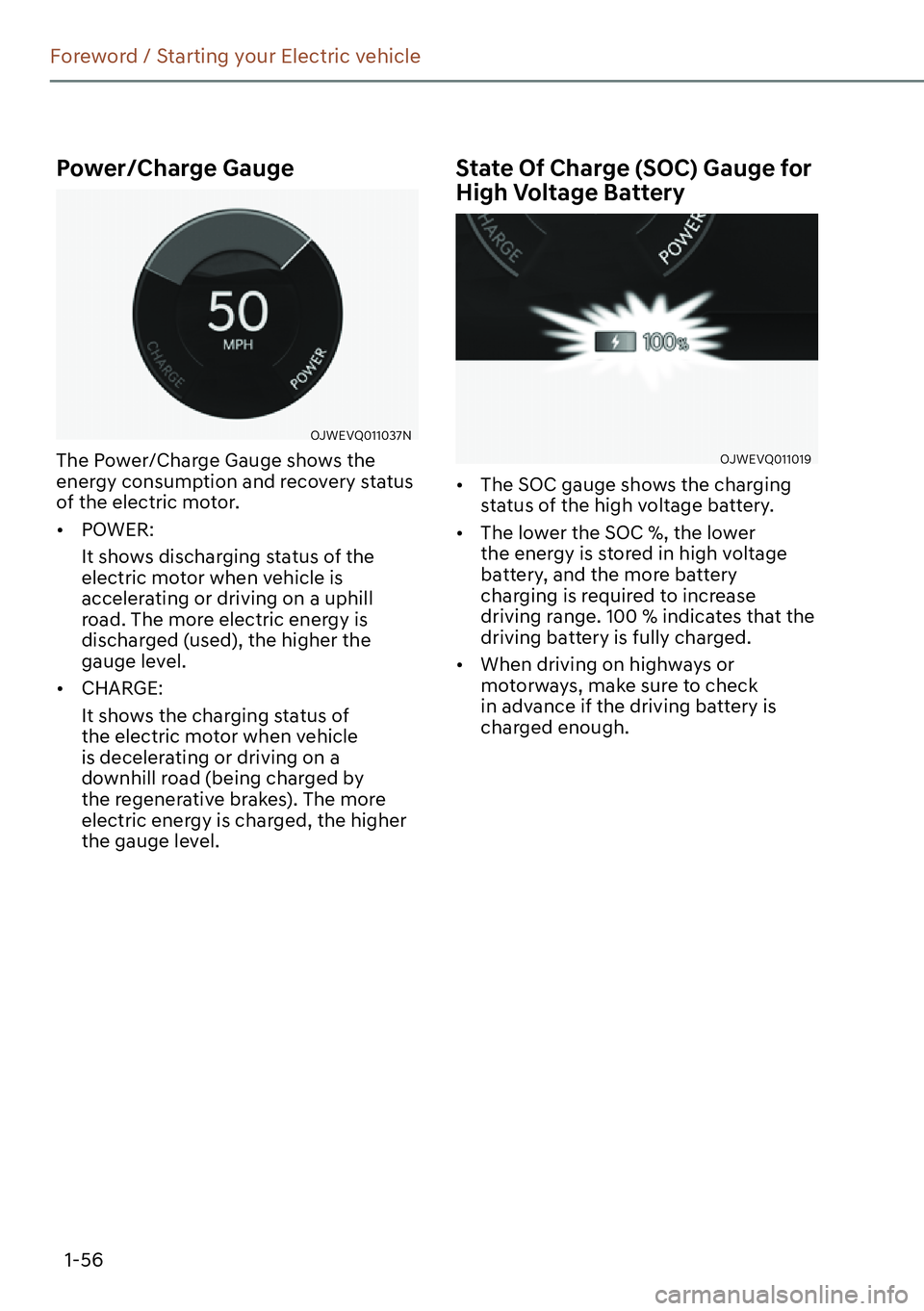

Power/Charge Gauge
OJWEVQ011037N
The Power/Charge Gauge shows the
energy consumption and recovery status
of the electric motor.

[POWER:
It shows discharging status of the
electric motor when vehicle is
accelerating or driving on a uphill
road. The more electric energy is
discharged (used), the higher the
gauge level.

[CHARGE:
It shows the charging status of
the electric motor when vehicle
is decelerating or driving on a
downhill road (being charged by
the regenerative brakes). The more
electric energy is charged, the higher
the gauge level.
State Of Charge (SOC) Gauge for
High Voltage Battery
OJWEVQ011019

[The SOC gauge shows the charging
status of the high voltage battery.

[The lower the SOC %, the lower
the energy is stored in high voltage
battery, and the more battery
charging is required to increase
driving range. 100 % indicates that the
driving battery is fully charged.

[When driving on highways or
motorways, make sure to check
in advance if the driving battery is
charged enough.

1-57
01
OJWEVQ011039
1. When the remaining battery is lower
than 10 % on the SOC gauge, the
warning light (
) turns ON to alert
you of the battery level.
2. When the warning light (
)
turns ON, the vehicle can drive an
additional 18~30 miles (30~50 km)
depending on the driving speed,
heater/air conditioner, weather,
driving style, and other factors.
Charging is required.
NOTICE
When the high voltage battery level is
low, the power down indicator light
illuminates and the vehicle power is
limited. Charge the battery immediately
since your vehicle may not be driven,
or may roll back on a slope with the
indicator light ON.
Warning and Indicator Lights
(related to electric vehicle)
Ready indicator
This indicator illuminates:
When the vehicle is ready to be driven.
- ON : Normal driving is possible.
- OFF : Normal driving is not possible,
or a problem has occurred.
- Blinking : Emergency driving.
When the ready indicator goes OFF
or blinks, there is a problem with the
system. In this case, have your vehicle
inspected by an authorized retailer of
Genesis Branded products.
Service Warning Light
This warning light illuminates:

[When the Start/Stop button is in the
ON position.
- It illuminates for approximately 3
seconds and then goes off.

[When there is a problem with related
parts of the electric vehicle control
system, such as sensors, etc.
When the warning light illuminates while
driving, or does not go OFF after starting
the vehicle, have your vehicle inspected
by an authorized retailer of Genesis
Branded products.

1-58
Foreword / Starting your Electric vehicle
Power Down Indicator Light
This indicator light illuminates:

[For the safety of high-powered
components of electric vehicles, the
power is limited due to the following
reasons. (Unless both Service Warning
Light and Power Down Indicator Light
illuminate at the same time, it is not a
failure.)
- The high voltage battery level is too
low or voltage is decreasing
- The temperature of the high voltage
battery is too high or too low
- The temperature of the motor is
high
NOTICE

[Do not accelerate or start the vehicle
suddenly when the power down
indicator light is ON.

[Your vehicle may not be driven,
or may roll back on a slope with
the indicator light ON due to the
limitation of the vehicle power.
Charging Indicator Light
This warning light illuminates:

[When the charging cable is
connected.
High Voltage Battery Level
Warning Light
This warning light illuminates:

[When the high voltage battery level
is low.

[When the warning light turns ON,
charge the battery immediately.
Regenerative Brake Warning
Light
This warning light illuminates:
When the regenerative brake does not
operate and the brake does not perform
well. This causes the Brake Warning
light (red) and Regenerative Brake
Warning Light (yellow) to illuminate
simultaneously.
In this case, drive safely and have your
vehicle inspected by an authorized
retailer of Genesis Branded products.
The operation of the brake pedal may
be more difficult than normal and the
braking distance can increase.

1-59
01

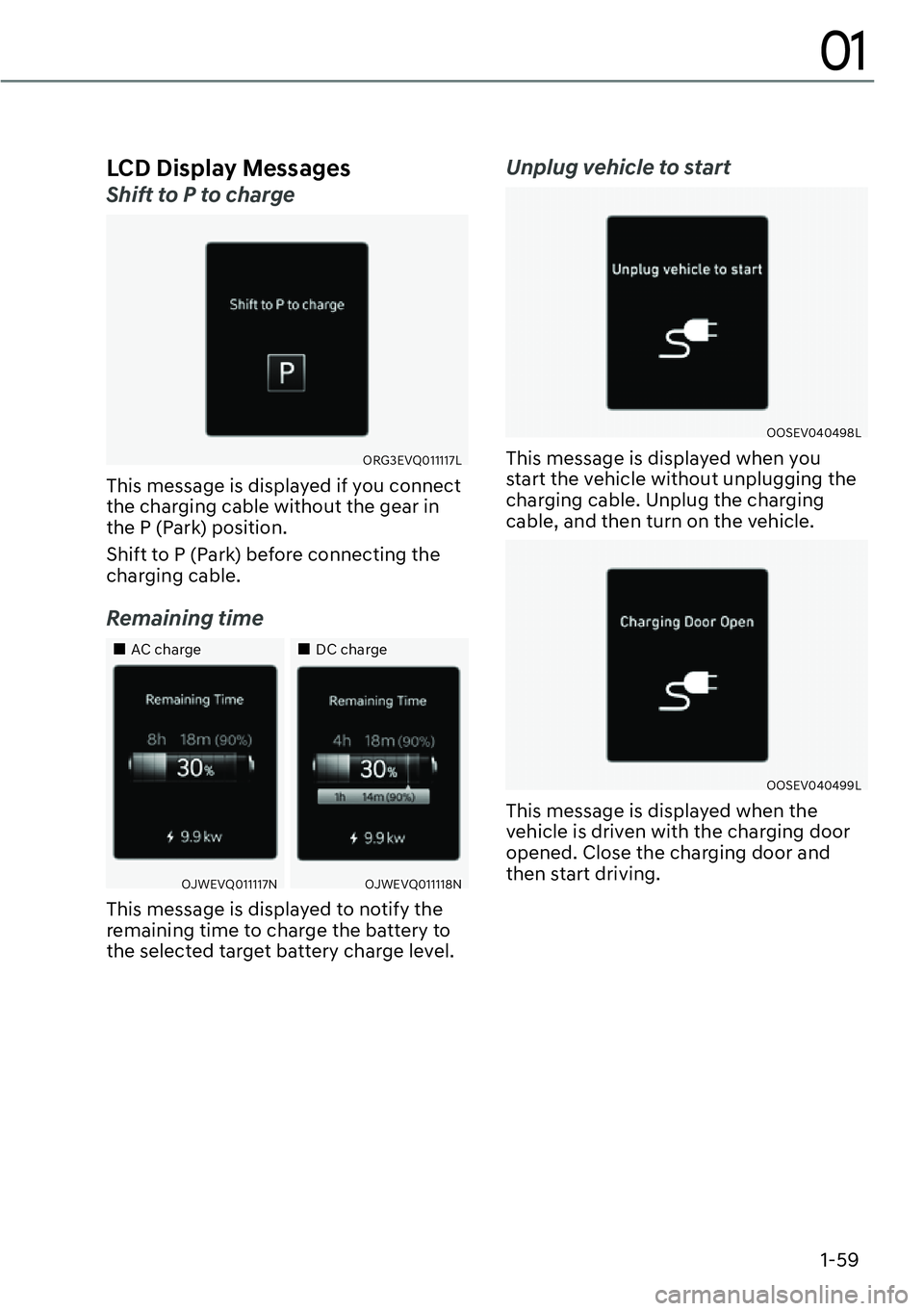

LCD Display Messages
Shift to P to charge
ORG3EVQ011117L
This message is displayed if you connect
the charging cable without the gear in
the P (Park) position.
Shift to P (Park) before connecting the
charging cable.
Remaining time
„AC charge„DC charge
OJWEVQ011117NOJWEVQ011118N
This message is displayed to notify the
remaining time to charge the battery to
the selected target battery charge level.
Unplug vehicle to start
OOSEV040498L
This message is displayed when you
start the vehicle without unplugging the
charging cable. Unplug the charging
cable, and then turn on the vehicle.
OOSEV040499L
This message is displayed when the
vehicle is driven with the charging door
opened. Close the charging door and
then start driving.

1-60
Foreword / Starting your Electric vehicle

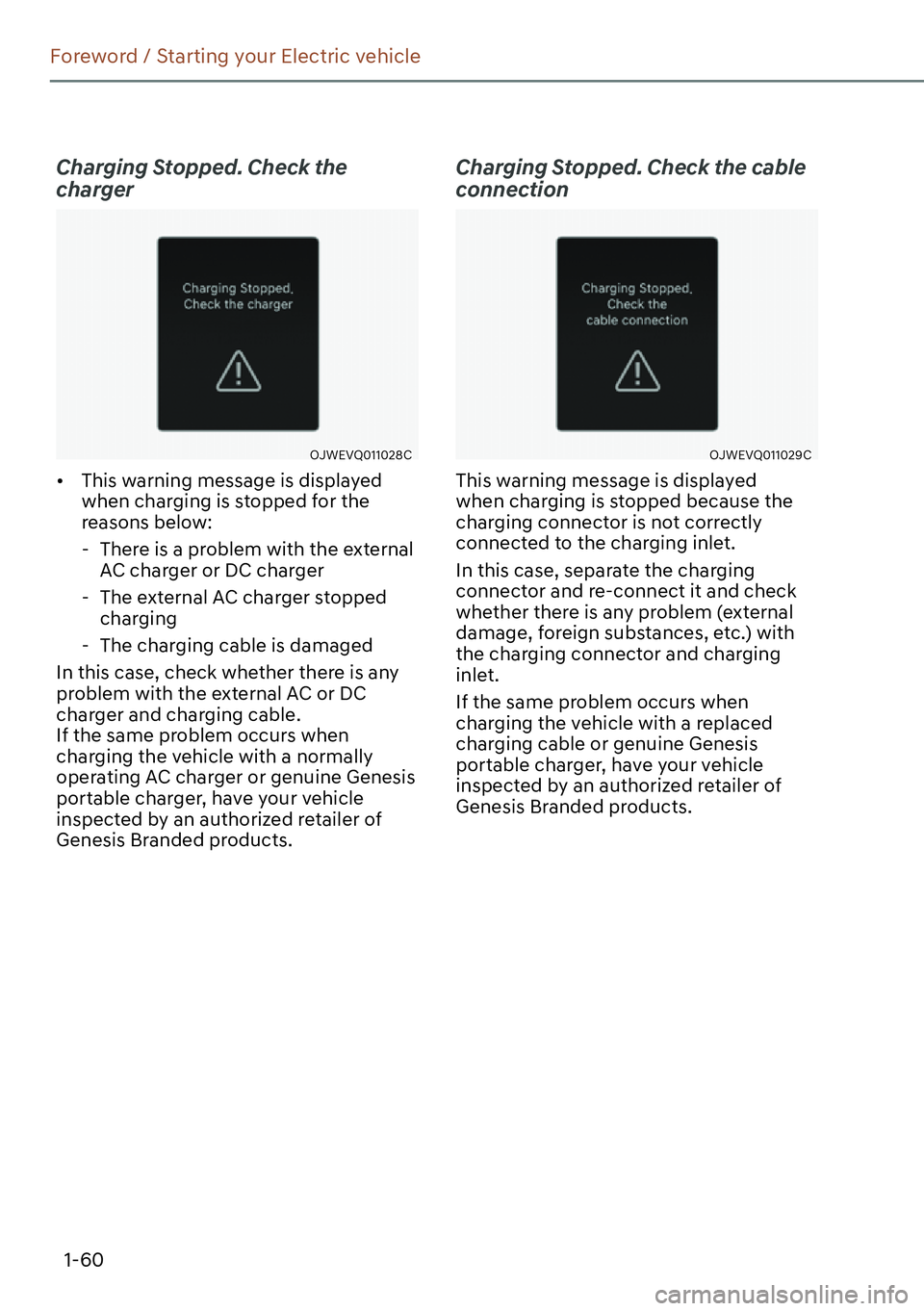

Charging Stopped. Check the
charger
OJWEVQ011028C

[This warning message is displayed
when charging is stopped for the
reasons below:
- There is a problem with the external
AC charger or DC charger
- The external AC charger stopped
charging
- The charging cable is damaged
In this case, check whether there is any
problem with the external AC or DC
charger and charging cable.
If the same problem occurs when
charging the vehicle with a normally
operating AC charger or genuine Genesis
portable charger, have your vehicle
inspected by an authorized retailer of
Genesis Branded products.
Charging Stopped. Check the cable
connection
OJWEVQ011029C
This warning message is displayed
when charging is stopped because the
charging connector is not correctly
connected to the charging inlet.
In this case, separate the charging
connector and re-connect it and check
whether there is any problem (external
damage, foreign substances, etc.) with
the charging connector and charging
inlet.
If the same problem occurs when
charging the vehicle with a replaced
charging cable or genuine Genesis
portable charger, have your vehicle
inspected by an authorized retailer of
Genesis Branded products.

1-61
01
Check regenerative brakes
OOSEV040503E
This warning message is displayed when
the regenerative brake system does not
work properly.
In this case, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
Low EV battery
ORG3EVQ011001L
When the high voltage battery level
reaches below approximately 12%, this
warning message is displayed.
The warning light on the instrument
cluster (
) will turn ON simultaneously.
Charge the high voltage battery
immediately.
Charge immediately. Power limited
ORG3EVQ011122L
When the high voltage battery level
reaches below approximately 6%, this
warning message is displayed.
The warning light on the instrument
cluster (
) will turn on simultaneously.
The vehicle’s power will be reduced to
minimize the energy consumption of the
high voltage battery. Charge the battery
immediately.

1-62
Foreword / Starting your Electric vehicle

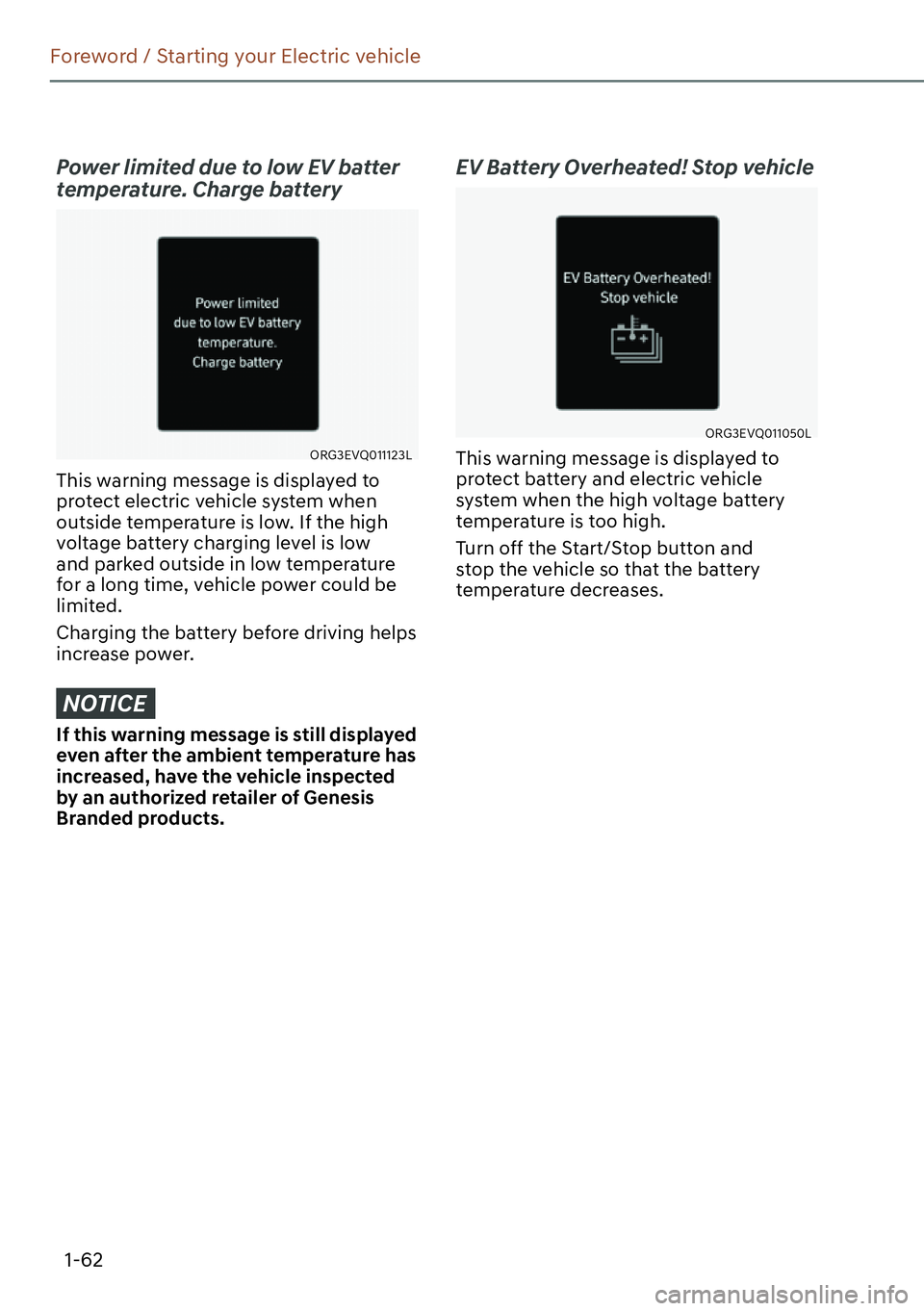

Power limited due to low EV batter
temperature. Charge battery
ORG3EVQ011123L
This warning message is displayed to
protect electric vehicle system when
outside temperature is low. If the high
voltage battery charging level is low
and parked outside in low temperature
for a long time, vehicle power could be
limited.
Charging the battery before driving helps
increase power.
NOTICE
If this warning message is still displayed
even after the ambient temperature has
increased, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
EV Battery Overheated! Stop vehicle
ORG3EVQ011050L
This warning message is displayed to
protect battery and electric vehicle
system when the high voltage battery
temperature is too high.
Turn off the Start/Stop button and
stop the vehicle so that the battery
temperature decreases.

1-63
01
Power limited
ORG3EVQ011003L
This Indicator light illuminates:

[For the safety of high-powered
components of electric vehicles, the
power is limited due to the following
reasons. (Unless both Service Warning
Light and Power Down Indicator Light
illuminate at the same time, it is not a
failure.)
- The high voltage battery level is too
low or voltage is decreasing
- The temperature of the high voltage
battery is too high or too low
- The temperature of the motor is
high
NOTICE

[Do not accelerate or start the vehicle
suddenly when the power down
indicator light is ON.

[Your vehicle may not be driven,
or may roll back on a slope with
the indicator light ON due to the
limitation of the vehicle power.
Stop vehicle and check power
supply
ORG3EVQ011051L
This warning message is displayed when
a failure occurs in the power supply
system.
In this case, park the vehicle in a safe
location and tow your vehicle to the
nearest authorized retailer of Genesis
Branded products and have the vehicle
inspected.
Check electric vehicle system
ORG3EVQ011048L
This warning message is displayed when
there is a problem with the electric
vehicle control system.
Refrain from driving when the warning
message is displayed.
In this case, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.

1-64
Foreword / Starting your Electric vehicle
If an Accident Occurs
WARNING
OJWEVQ011021

[When a vehicle accident occurs,
move the vehicle to a safe place,
turn OFF the vehicle and disconnect
the high voltage cut-off switch from
the auxiliary battery (12V) to prevent
high voltage electricity from flowing.

[If electric wires are exposed from
inside or outside the vehicle, do not
touch the wires.
Also, do not touch the high voltage
electric wire (orange), connector,
and all electric components and
devices. This may cause electric
shock and lead to injuries.
WARNING

[When a vehicle accident occurs and
the high voltage battery is damaged,
harmful gas and electrolytes may
leak. Be careful not to touch the
leaked liquid.

[When you suspect leakage of
inflammable gas and other harmful
gases, open the windows and
evacuate to a safe place. If any
leaked fluid comes in contact with
your eyes or skin, immediately clean
the affected area thoroughly with
tap water or saline solution and
have doctors inspect it as soon as
possible.
WARNING

[If a small scale fire occurs, use a fire
extinguisher (ABC, BC) that is meant
for electrical fires. If it is impossible
to extinguish the fire in the early
stage, maintain a safe distance from
the vehicle and immediately call your
local fire emergency responders.
Also, advise them that an electric
vehicle is involved.

[If the fire spreads to the high
voltage battery, large amount of
water is needed to put out the fire.
Using small amount of water or
fire extinguishers not meant for
electrical fires could cause serious
injury or death from electrical
shocks.
WARNING
If you cannot put out the fire
immediately, the high voltage battery
may explode. Evacuate to a safe place
and do not let other people approach
the site.
Contact the fire department and notify
them of an electric vehicle fire.

[If the vehicle is flooded with water,
immediately turn off the vehicle and
evacuate to a safe place. Contact
the fire deprtment or an authorized
retailer of Genesis Branded products.
SAFETY PRECAUTIONS FOR ELECTRIC VEHICLE

1-65
01
WARNING
OJWEVQ011030
[A] : Dollies

[For AWD vehicles, it must be towed
with a wheel lift and dollies or
flatbed equipment with all the
wheels off the ground.
WARNING
OJWEVQ011031

[If you tow the vehicle while the 2WD:
rear, AWD: front/rear wheels are
touching the ground, the vehicle
motor may generate electricity
and the motor components may be
damaged or a fire may occur.

[When a vehicle fire occurs due to the
battery, there is a risk of a second
fire. Contact the fire department
when towing the vehicle.
Other Precautions for Electric
Vehicle

[When you paint or apply heat
treatment to the vehicle as a result of
an accident, the performance of the
high voltage battery can be reduced.

[If heat treatment is required, contact
an authorized retailer of Genesis
Branded products.

[When you clean the motor
compartment, do not use high
pressure water to wash. This may
cause an electric shock due to a
discharge in high voltage electricity,
or damage the vehicle’s electric
system.

[Use, remodel, or install genuine
Genesis part or the equivalent (of
the genuine part) specified for your
vehicle.
