GENESIS GV70 2023 Owners Manual

04
4-23

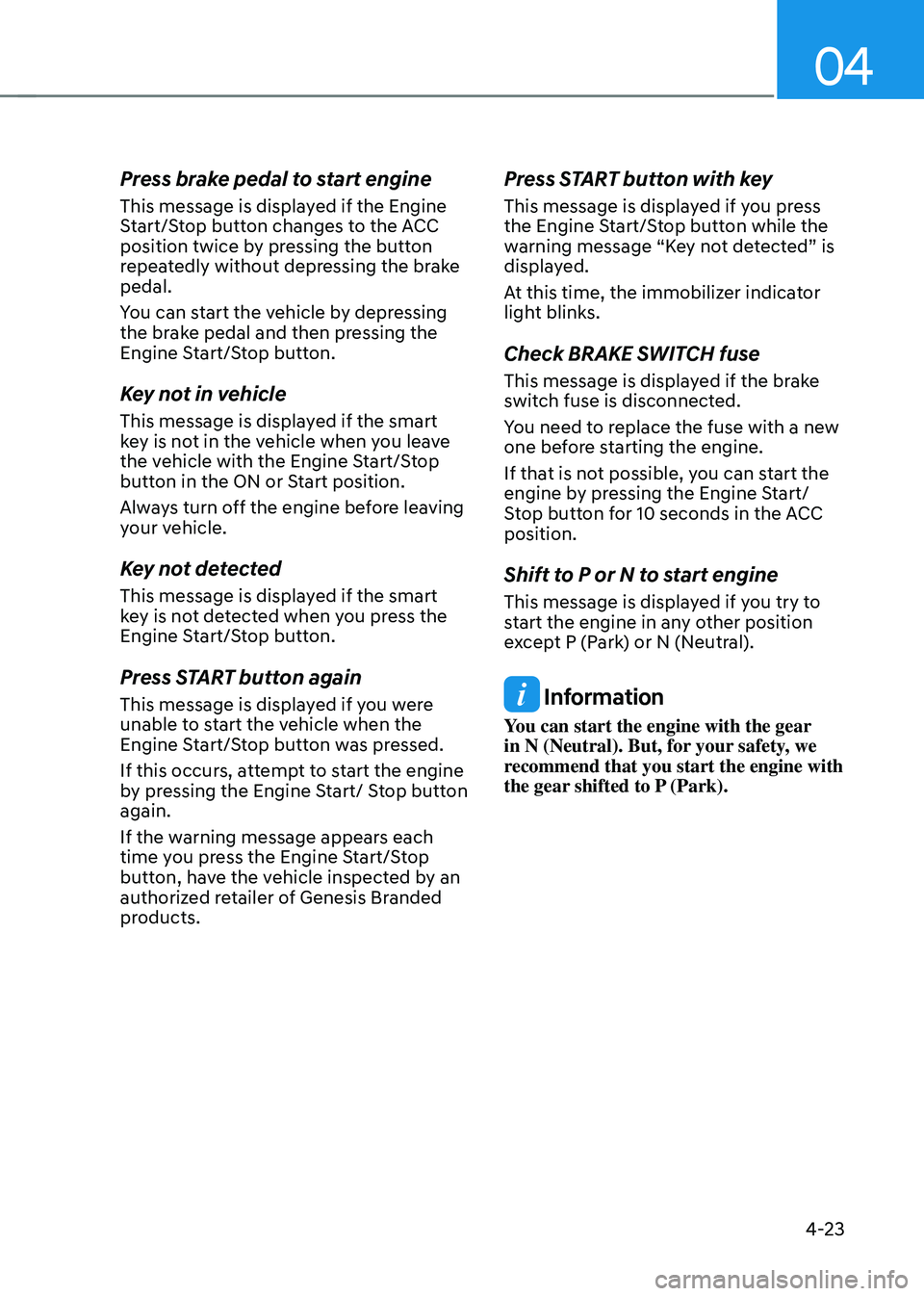

Press brake pedal to start engine
This message is displayed if the Engine
Start/Stop button changes to the ACC
position twice by pressing the button
repeatedly without depressing the brake
pedal.
You can start the vehicle by depressing
the brake pedal and then pressing the
Engine Start/Stop button.
Key not in vehicle
This message is displayed if the smart
key is not in the vehicle when you leave
the vehicle with the Engine Start/Stop
button in the ON or Start position.
Always turn off the engine before leaving
your vehicle.
Key not detected
This message is displayed if the smart
key is not detected when you press the
Engine Start/Stop button.
Press START button again
This message is displayed if you were
unable to start the vehicle when the
Engine Start/Stop button was pressed.
If this occurs, attempt to start the engine
by pressing the Engine Start/ Stop button
again.
If the warning message appears each
time you press the Engine Start/Stop
button, have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Press START button with key
This message is displayed if you press
the Engine Start/Stop button while the
warning message “Key not detected” is
displayed.
At this time, the immobilizer indicator
light blinks.
Check BRAKE SWITCH fuse
This message is displayed if the brake
switch fuse is disconnected.
You need to replace the fuse with a new
one before starting the engine.
If that is not possible, you can start the
engine by pressing the Engine Start/
Stop button for 10 seconds in the ACC
position.
Shift to P or N to start engine
This message is displayed if you try to
start the engine in any other position
except P (Park) or N (Neutral).
Information
You can start the engine with the gear
in N (Neutral). But, for your safety, we
recommend that you start the engine with
the gear shifted to P (Park).

Instrument Cluster
4-24

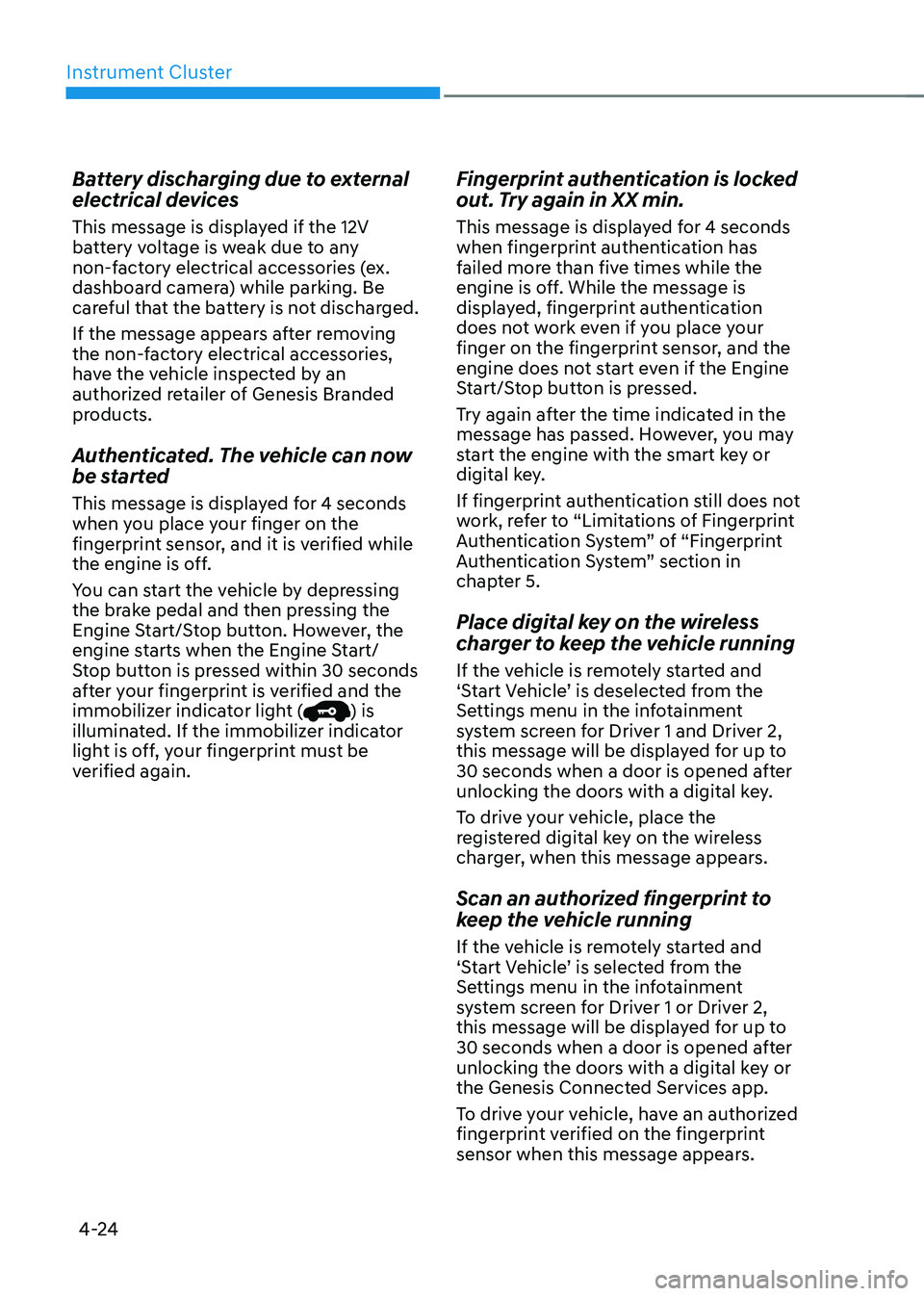

Battery discharging due to external
electrical devices
This message is displayed if the 12V
battery voltage is weak due to any
non-factory electrical accessories (ex.
dashboard camera) while parking. Be
careful that the battery is not discharged.
If the message appears after removing
the non-factory electrical accessories,
have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Authenticated. The vehicle can now
be started
This message is displayed for 4 seconds
when you place your finger on the
fingerprint sensor, and it is verified while
the engine is off.
You can start the vehicle by depressing
the brake pedal and then pressing the
Engine Start/Stop button. However, the
engine starts when the Engine Start/
Stop button is pressed within 30 seconds
after your fingerprint is verified and the
immobilizer indicator light (
) is
illuminated. If the immobilizer indicator
light is off, your fingerprint must be
verified again.
Fingerprint authentication is locked
out. Try again in XX min.
This message is displayed for 4 seconds
when fingerprint authentication has
failed more than five times while the
engine is off. While the message is
displayed, fingerprint authentication
does not work even if you place your
finger on the fingerprint sensor, and the
engine does not start even if the Engine
Start/Stop button is pressed.
Try again after the time indicated in the
message has passed. However, you may
start the engine with the smart key or
digital key.
If fingerprint authentication still does not
work, refer to “Limitations of Fingerprint
Authentication System” of “Fingerprint
Authentication System” section in
chapter 5.
Place digital key on the wireless
charger to keep the vehicle running
If the vehicle is remotely started and
‘Start Vehicle’ is deselected from the
Settings menu in the infotainment
system screen for Driver 1 and Driver 2,
this message will be displayed for up to
30 seconds when a door is opened after
unlocking the doors with a digital key.
To drive your vehicle, place the
registered digital key on the wireless
charger, when this message appears.
Scan an authorized fingerprint to
keep the vehicle running
If the vehicle is remotely started and
‘Start Vehicle’ is selected from the
Settings menu in the infotainment
system screen for Driver 1 or Driver 2,
this message will be displayed for up to
30 seconds when a door is opened after
unlocking the doors with a digital key or
the Genesis Connected Services app.
To drive your vehicle, have an authorized
fingerprint verified on the fingerprint
sensor when this message appears.

04
4-25

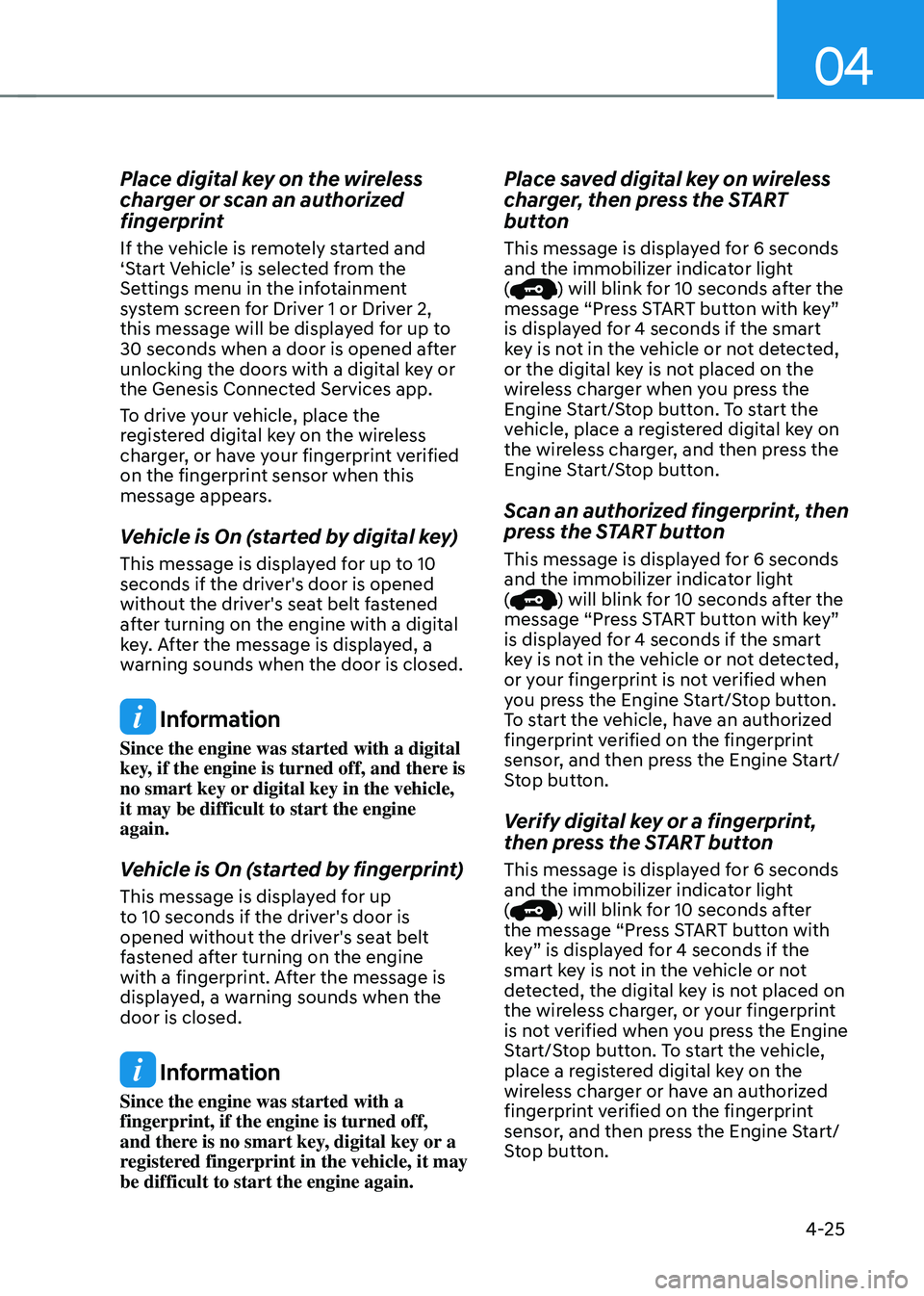

Place digital key on the wireless
charger or scan an authorized
fingerprint
If the vehicle is remotely started and
‘Start Vehicle’ is selected from the
Settings menu in the infotainment
system screen for Driver 1 or Driver 2,
this message will be displayed for up to
30 seconds when a door is opened after
unlocking the doors with a digital key or
the Genesis Connected Services app.
To drive your vehicle, place the
registered digital key on the wireless
charger, or have your fingerprint verified
on the fingerprint sensor when this
message appears.
Vehicle is On (started by digital key)
This message is displayed for up to 10
seconds if the driver's door is opened
without the driver's seat belt fastened
after turning on the engine with a digital
key. After the message is displayed, a
warning sounds when the door is closed.
Information
Since the engine was started with a digital
key, if the engine is turned off, and there is
no smart key or digital key in the vehicle,
it may be difficult to start the engine
again.
Vehicle is On (started by fingerprint)
This message is displayed for up
to 10 seconds if the driver's door is
opened without the driver's seat belt
fastened after turning on the engine
with a fingerprint. After the message is
displayed, a warning sounds when the
door is closed.
Information
Since the engine was started with a
fingerprint, if the engine is turned off,
and there is no smart key, digital key or a
registered fingerprint in the vehicle, it may
be difficult to start the engine again.
Place saved digital key on wireless
charger, then press the START
button
This message is displayed for 6 seconds
and the immobilizer indicator light
(
) will blink for 10 seconds after the
message “Press START button with key”
is displayed for 4 seconds if the smart
key is not in the vehicle or not detected,
or the digital key is not placed on the
wireless charger when you press the
Engine Start/Stop button. To start the
vehicle, place a registered digital key on
the wireless charger, and then press the
Engine Start/Stop button.
Scan an authorized fingerprint, then
press the START button
This message is displayed for 6 seconds
and the immobilizer indicator light
(
) will blink for 10 seconds after the
message “Press START button with key”
is displayed for 4 seconds if the smart
key is not in the vehicle or not detected,
or your fingerprint is not verified when
you press the Engine Start/Stop button.
To start the vehicle, have an authorized
fingerprint verified on the fingerprint
sensor, and then press the Engine Start/
Stop button.
Verify digital key or a fingerprint,
then press the START button
This message is displayed for 6 seconds
and the immobilizer indicator light
(
) will blink for 10 seconds after
the message “Press START button with
key” is displayed for 4 seconds if the
smart key is not in the vehicle or not
detected, the digital key is not placed on
the wireless charger, or your fingerprint
is not verified when you press the Engine
Start/Stop button. To start the vehicle,
place a registered digital key on the
wireless charger or have an authorized
fingerprint verified on the fingerprint
sensor, and then press the Engine Start/
Stop button.

Instrument Cluster
4-26

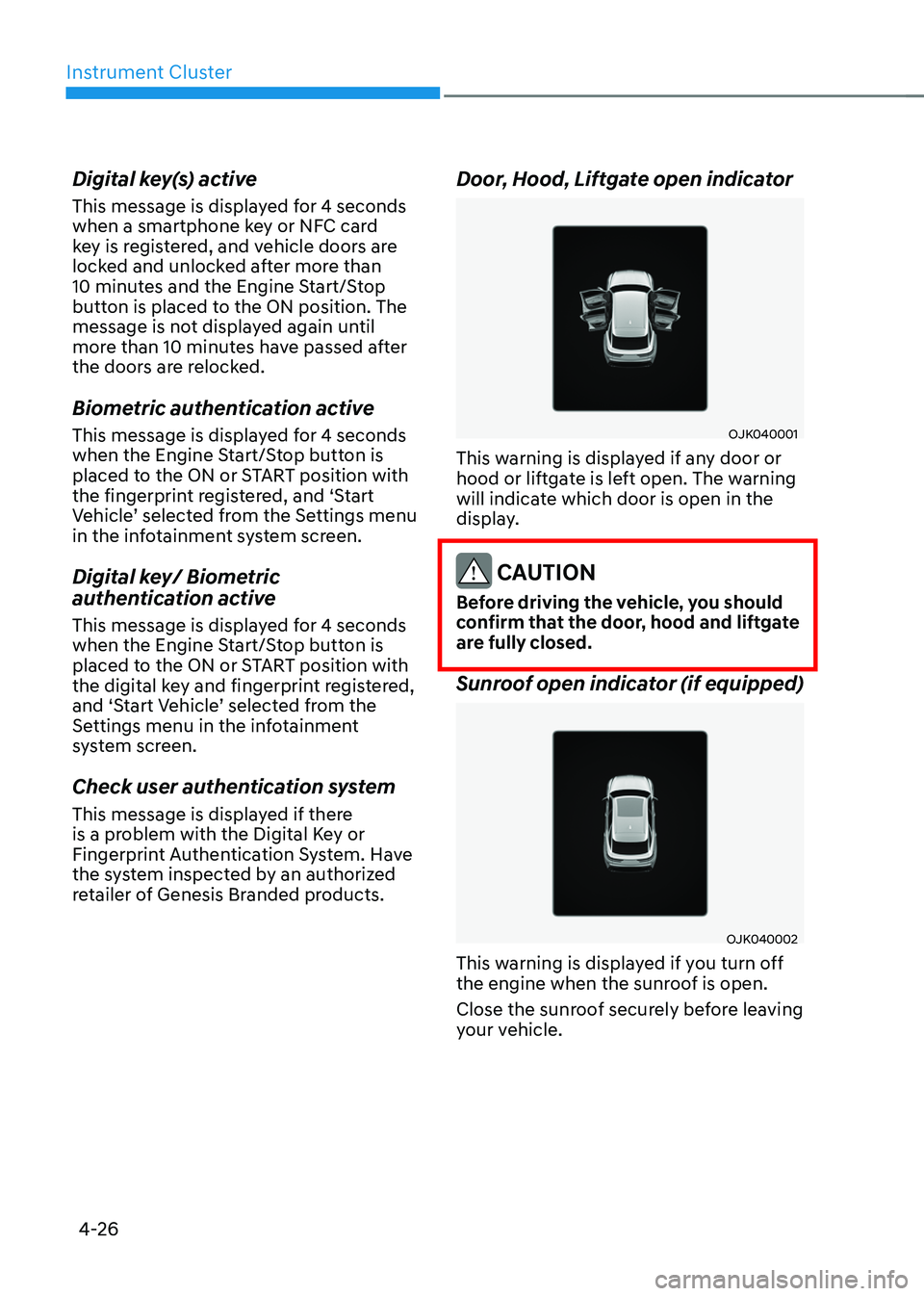

Digital key(s) active
This message is displayed for 4 seconds
when a smartphone key or NFC card
key is registered, and vehicle doors are
locked and unlocked after more than
10 minutes and the Engine Start/Stop
button is placed to the ON position. The
message is not displayed again until
more than 10 minutes have passed after
the doors are relocked.
Biometric authentication active
This message is displayed for 4 seconds
when the Engine Start/Stop button is
placed to the ON or START position with
the fingerprint registered, and ‘Start
Vehicle’ selected from the Settings menu
in the infotainment system screen.
Digital key/ Biometric
authentication active
This message is displayed for 4 seconds
when the Engine Start/Stop button is
placed to the ON or START position with
the digital key and fingerprint registered,
and ‘Start Vehicle’ selected from the
Settings menu in the infotainment
system screen.
Check user authentication system
This message is displayed if there
is a problem with the Digital Key or
Fingerprint Authentication System. Have
the system inspected by an authorized
retailer of Genesis Branded products.
Door, Hood, Liftgate open indicator
OJK040001OJK040001
This warning is displayed if any door or
hood or liftgate is left open. The warning
will indicate which door is open in the
display.
CAUTION
Before driving the vehicle, you should
confirm that the door, hood and liftgate
are fully closed.
Sunroof open indicator (if equipped)
OJK040002OJK040002
This warning is displayed if you turn off
the engine when the sunroof is open.
Close the sunroof securely before leaving
your vehicle.

04
4-27

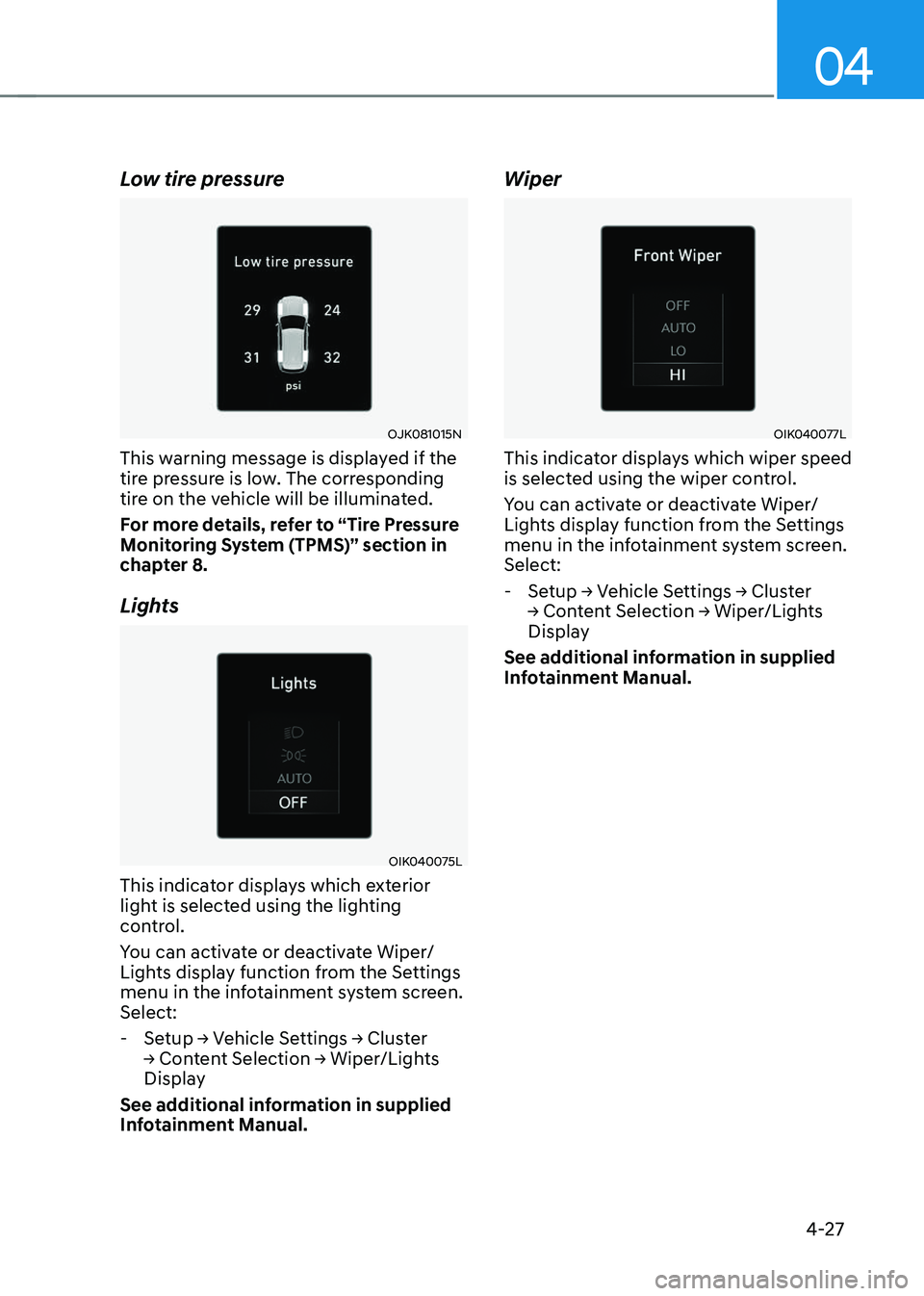

Low tire pressure
OJK081015NOJK081015N
This warning message is displayed if the
tire pressure is low. The corresponding
tire on the vehicle will be illuminated.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
Lights
OIK040075LOIK040075L
This indicator displays which exterior
light is selected using the lighting
control.
You can activate or deactivate Wiper/
Lights display function from the Settings
menu in the infotainment system screen.
Select:
-Setup → Vehicle Settings → Cluster
→ Content Selection → Wiper/Lights
Display
See additional information in supplied
Infotainment Manual.
Wiper
OIK040077LOIK040077L
This indicator displays which wiper speed
is selected using the wiper control.
You can activate or deactivate Wiper/
Lights display function from the Settings
menu in the infotainment system screen.
Select:
- Setup → Vehicle Settings → Cluster
→ Content Selection → Wiper/Lights
Display
See additional information in supplied
Infotainment Manual.

Instrument Cluster
4-28

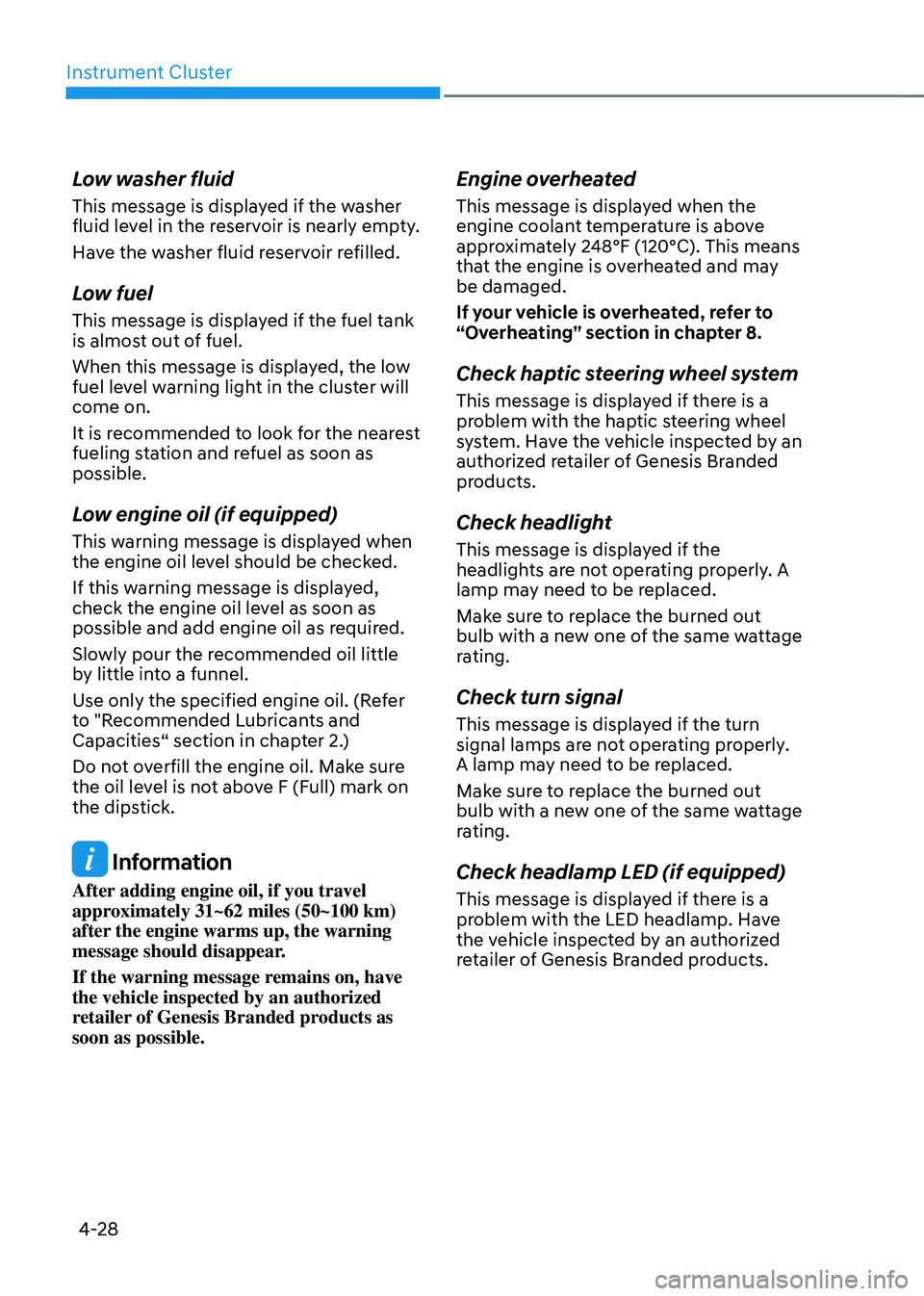

Low washer fluid
This message is displayed if the washer
fluid level in the reservoir is nearly empty.
Have the washer fluid reservoir refilled.
Low fuel
This message is displayed if the fuel tank
is almost out of fuel.
When this message is displayed, the low
fuel level warning light in the cluster will
come on.
It is recommended to look for the nearest
fueling station and refuel as soon as
possible.
Low engine oil (if equipped)
This warning message is displayed when
the engine oil level should be checked.
If this warning message is displayed,
check the engine oil level as soon as
possible and add engine oil as required.
Slowly pour the recommended oil little
by little into a funnel.
Use only the specified engine oil. (Refer
to "Recommended Lubricants and
Capacities“ section in chapter 2.)
Do not overfill the engine oil. Make sure
the oil level is not above F (Full) mark on
the dipstick.
Information
After adding engine oil, if you travel
approximately 31~62 miles (50~100 km)
after the engine warms up, the warning
message should disappear.
If the warning message remains on, have
the vehicle inspected by an authorized
retailer of Genesis Branded products as
soon as possible.
Engine overheated
This message is displayed when the
engine coolant temperature is above
approximately 248°F (120°C). This means
that the engine is overheated and may
be damaged.
If your vehicle is overheated, refer to
“Overheating” section in chapter 8.
Check haptic steering wheel system
This message is displayed if there is a
problem with the haptic steering wheel
system. Have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Check headlight
This message is displayed if the
headlights are not operating properly. A
lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check turn signal
This message is displayed if the turn
signal lamps are not operating properly.
A lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check headlamp LED (if equipped)
This message is displayed if there is a
problem with the LED headlamp. Have
the vehicle inspected by an authorized
retailer of Genesis Branded products.

04

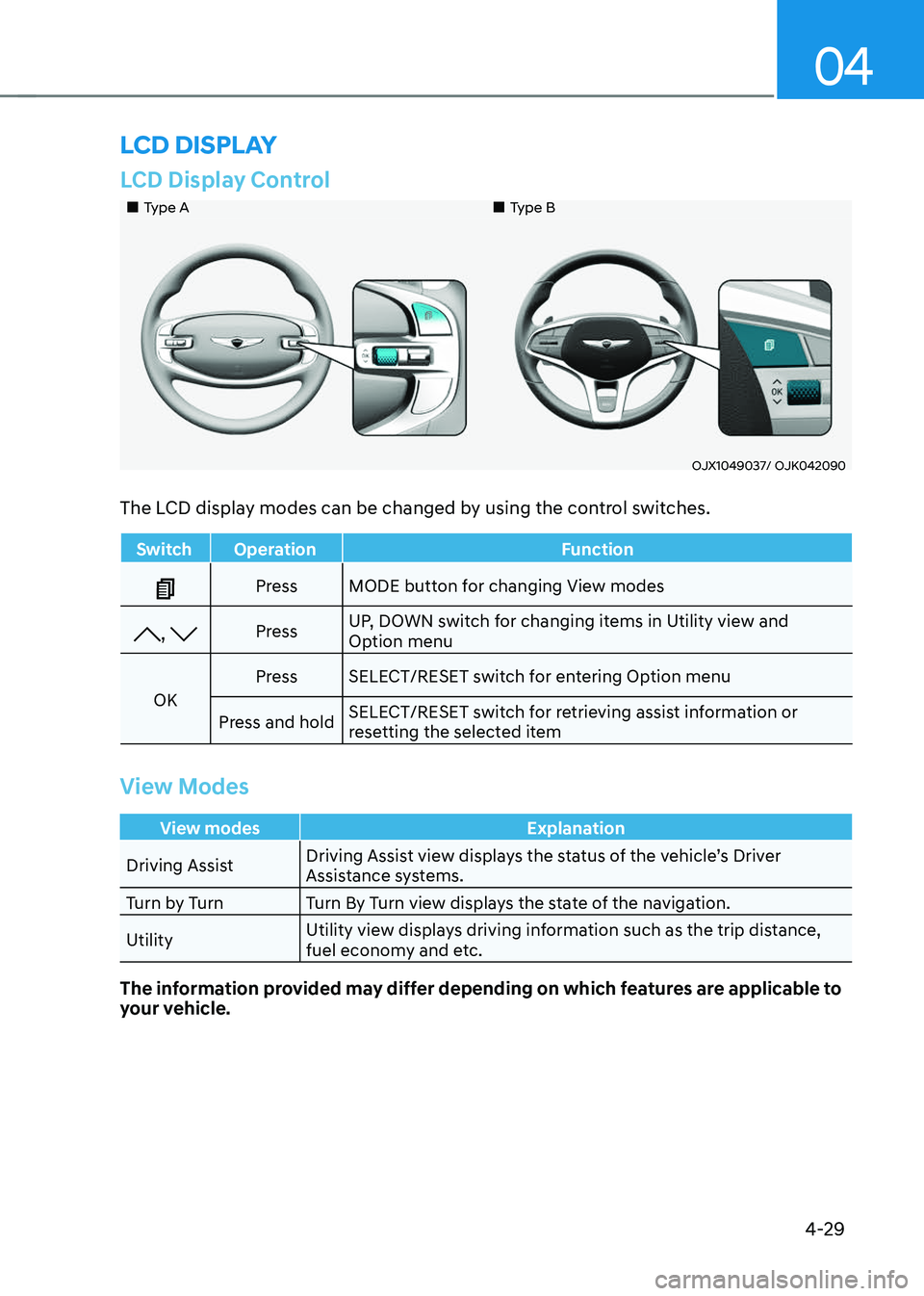

4-29
LCD Display Control

Instrument Cluster

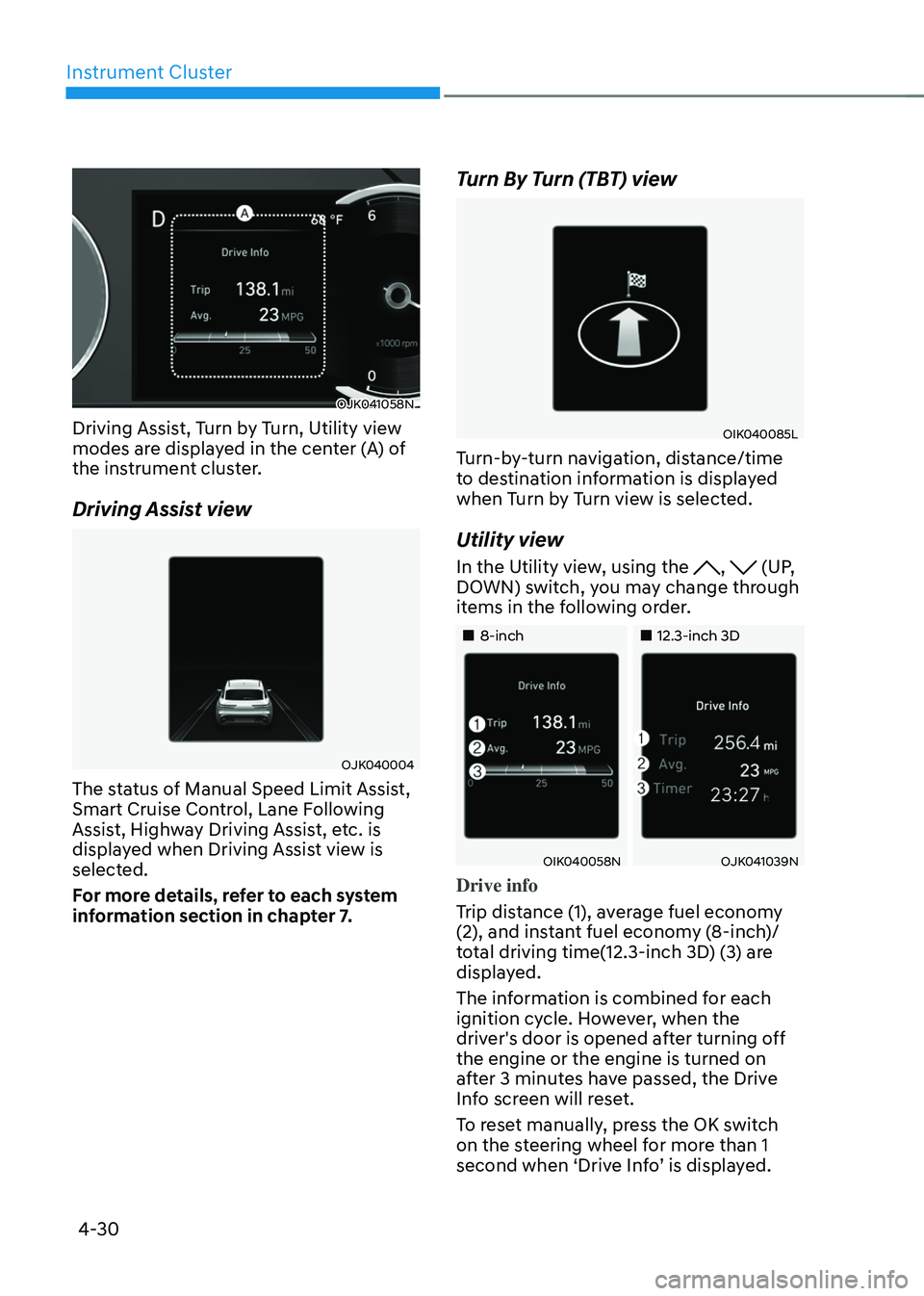

4-30
OJK041058NOJK041058N
Driving Assist, Turn by Turn, Utility view
modes are displayed in the center (A) of
the instrument cluster.
Driving Assist view
OJK040004OJK040004
The status of Manual Speed Limit Assist,
Smart Cruise Control, Lane Following
Assist, Highway Driving Assist, etc. is
displayed when Driving Assist view is
selected.
For more details, refer to each system
information section in chapter 7.
Turn By Turn (TBT) view
OIK040085LOIK040085L
Turn-by-turn navigation, distance/time
to destination information is displayed
when Turn by Turn view is selected.
Utility view
In the Utility view, using the , (UP,
DOWN) switch, you may change through
items in the following order.

04
4-31

Instrument Cluster

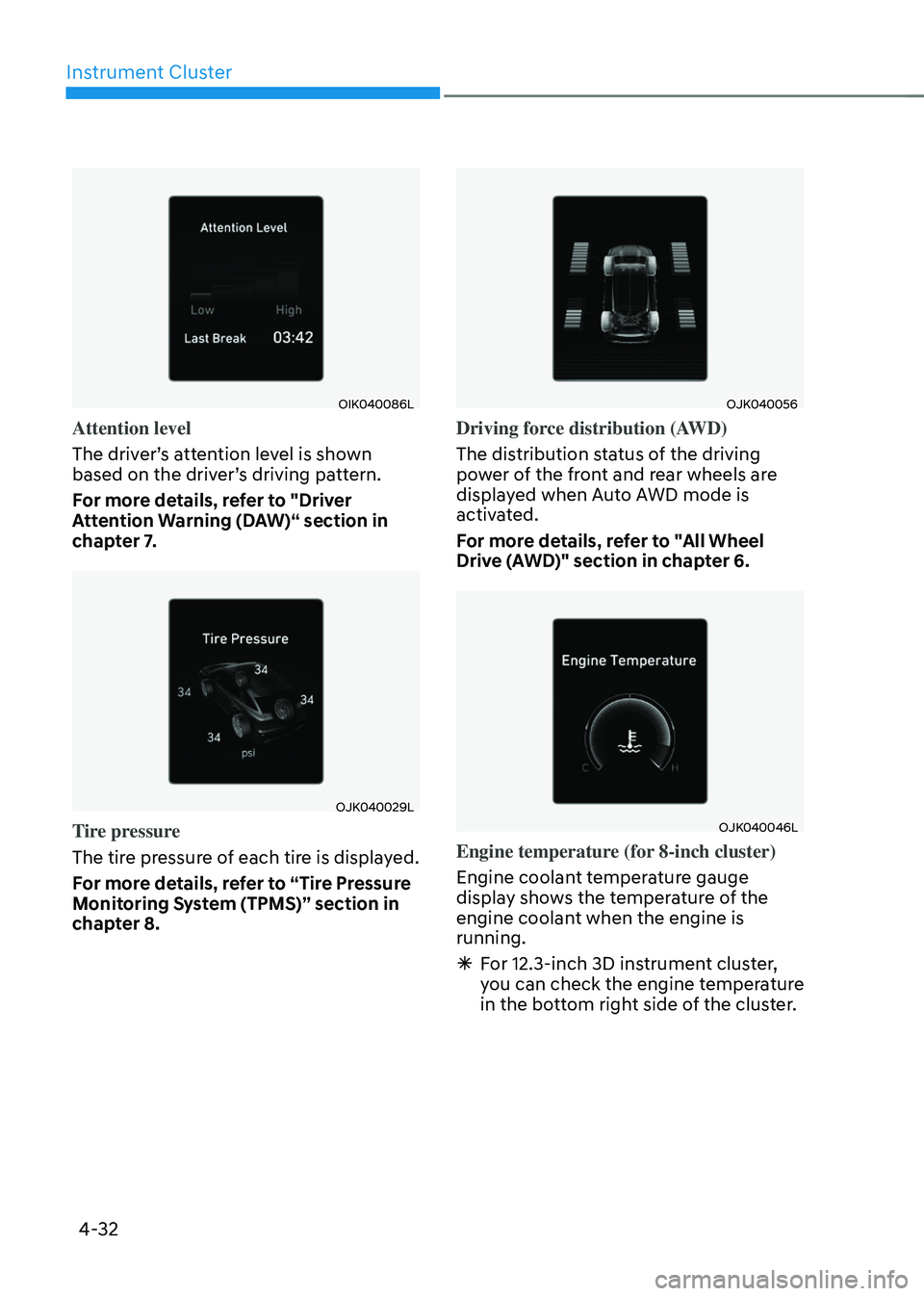

4-32
OIK040086LOIK040086L
Attention level
The driver’s attention level is shown
based on the driver’s driving pattern.
For more details, refer to "Driver
Attention Warning (DAW)“ section in
chapter 7.
OJK040029LOJK040029L
Tire pressure
The tire pressure of each tire is displayed.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
OJK040056OJK040056
Driving force distribution (AWD)
The distribution status of the driving
power of the front and rear wheels are
displayed when Auto AWD mode is
activated.
For more details, refer to "All Wheel
Drive (AWD)" section in chapter 6.
OJK040046LOJK040046L
Engine temperature (for 8-inch cluster)
Engine coolant temperature gauge
display shows the temperature of the
engine coolant when the engine is
running.
ÃFor 12.3-inch 3D instrument cluster,
you can check the engine temperature
in the bottom right side of the cluster.
