GENESIS GV70 2023 Owners Manual

04
4-33

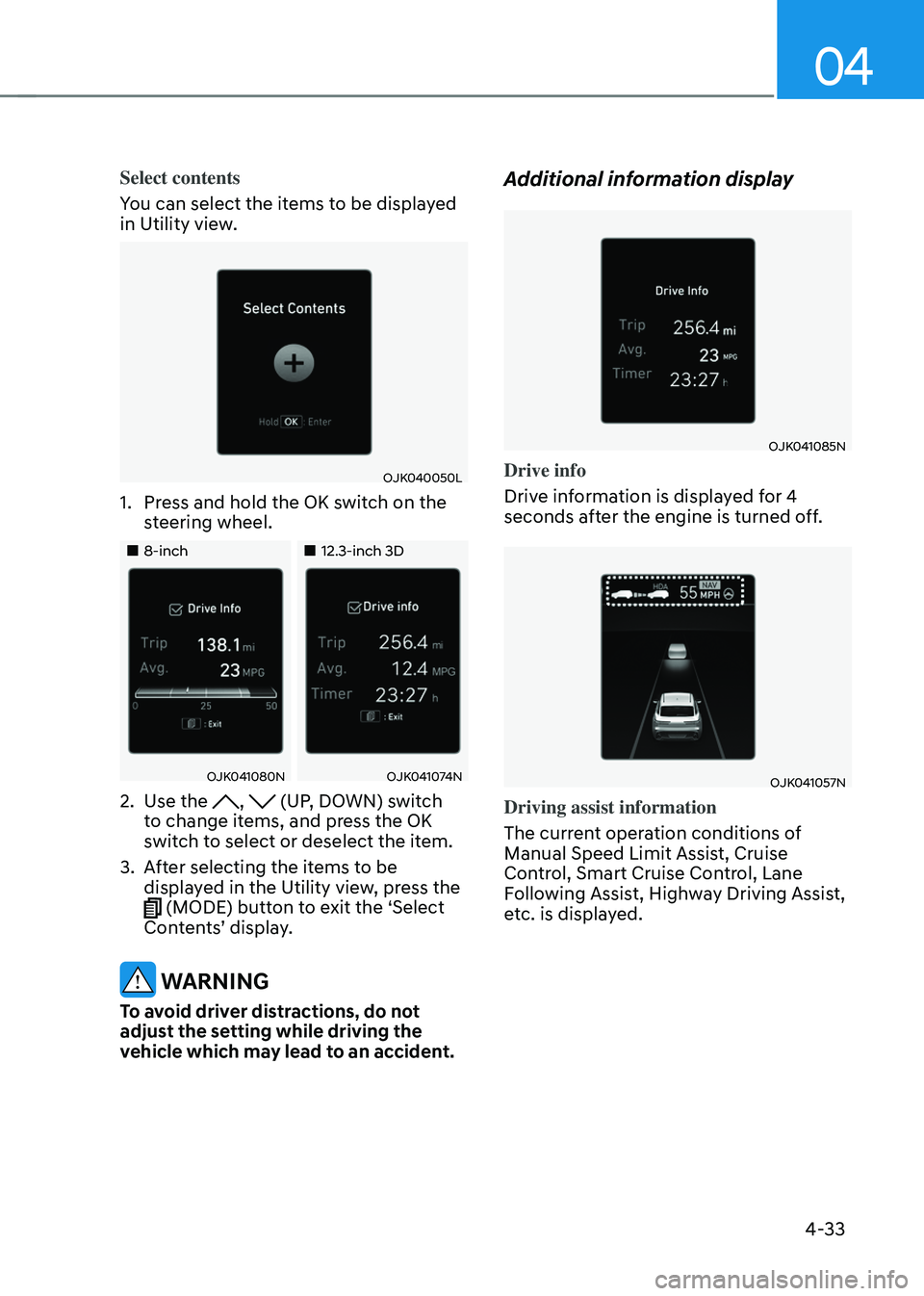

Select contents
You can select the items to be displayed
in Utility view.
OJK040050LOJK040050L
1. Press and hold the OK switch on the
steering wheel.

Instrument Cluster
4-34

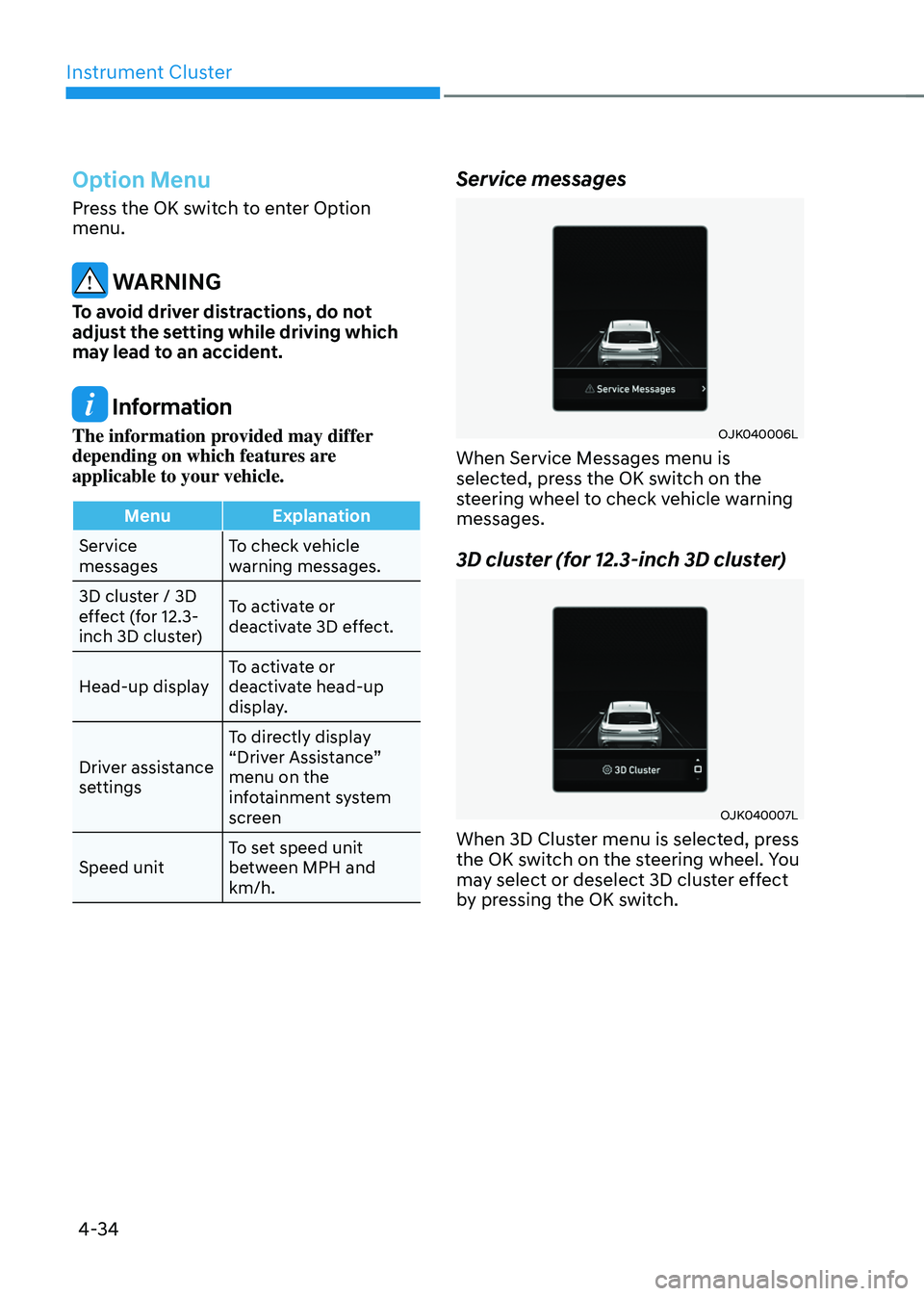

Option Menu
Press the OK switch to enter Option
menu.
WARNING
To avoid driver distractions, do not
adjust the setting while driving which
may lead to an accident.
Information
The information provided may differ
depending on which features are
applicable to your vehicle.
MenuExplanation
Service
messages To check vehicle
warning messages.
3D cluster / 3D
effect (for 12.3-
inch 3D cluster) To activate or
deactivate 3D effect.
Head-up display To activate or
deactivate head-up
display.
Driver assistance
settings To directly display
“Driver Assistance”
menu on the
infotainment system
screen
Speed unit To set speed unit
between MPH and
km/h.
Service messages
OJK040006LOJK040006L
When Service Messages menu is
selected, press the OK switch on the
steering wheel to check vehicle warning
messages.
3D cluster (for 12.3-inch 3D cluster)
OJK040007LOJK040007L
When 3D Cluster menu is selected, press
the OK switch on the steering wheel. You
may select or deselect 3D cluster effect
by pressing the OK switch.

04
4-35

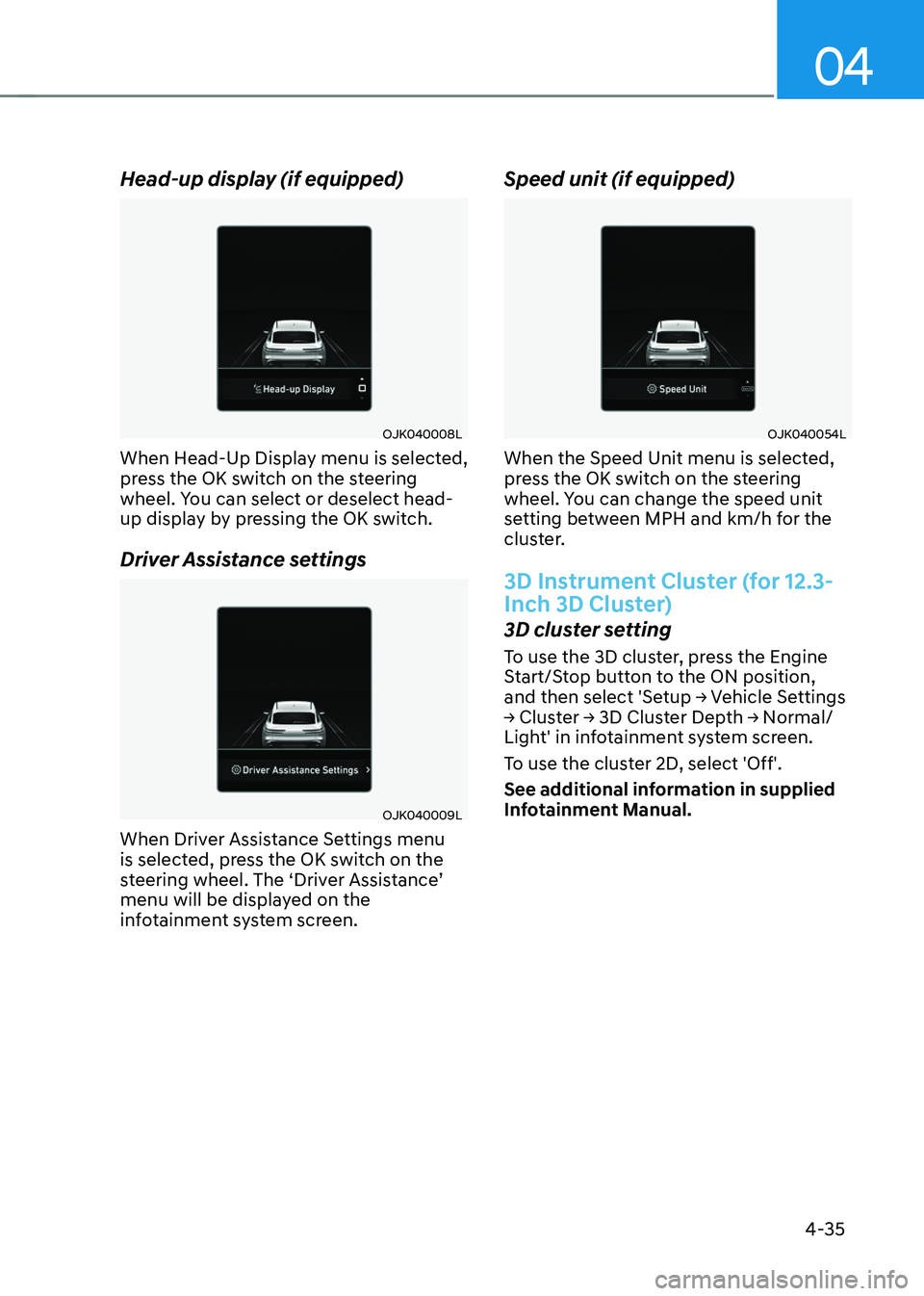

Head-up display (if equipped)
OJK040008LOJK040008L
When Head-Up Display menu is selected,
press the OK switch on the steering
wheel. You can select or deselect head-
up display by pressing the OK switch.
Driver Assistance settings
OJK040009LOJK040009L
When Driver Assistance Settings menu
is selected, press the OK switch on the
steering wheel. The ‘Driver Assistance’
menu will be displayed on the
infotainment system screen.
Speed unit (if equipped)
OJK040054LOJK040054L
When the Speed Unit menu is selected,
press the OK switch on the steering
wheel. You can change the speed unit
setting between MPH and km/h for the
cluster.
3D Instrument Cluster (for 12.3-
Inch 3D Cluster)
3D cluster setting
To use the 3D cluster, press the Engine
Start/Stop button to the ON position,
and then select 'Setup → Vehicle Settings
→ Cluster → 3D Cluster Depth → Normal/
Light' in infotainment system screen.
To use the cluster 2D, select 'Off'.
See additional information in supplied
Infotainment Manual.

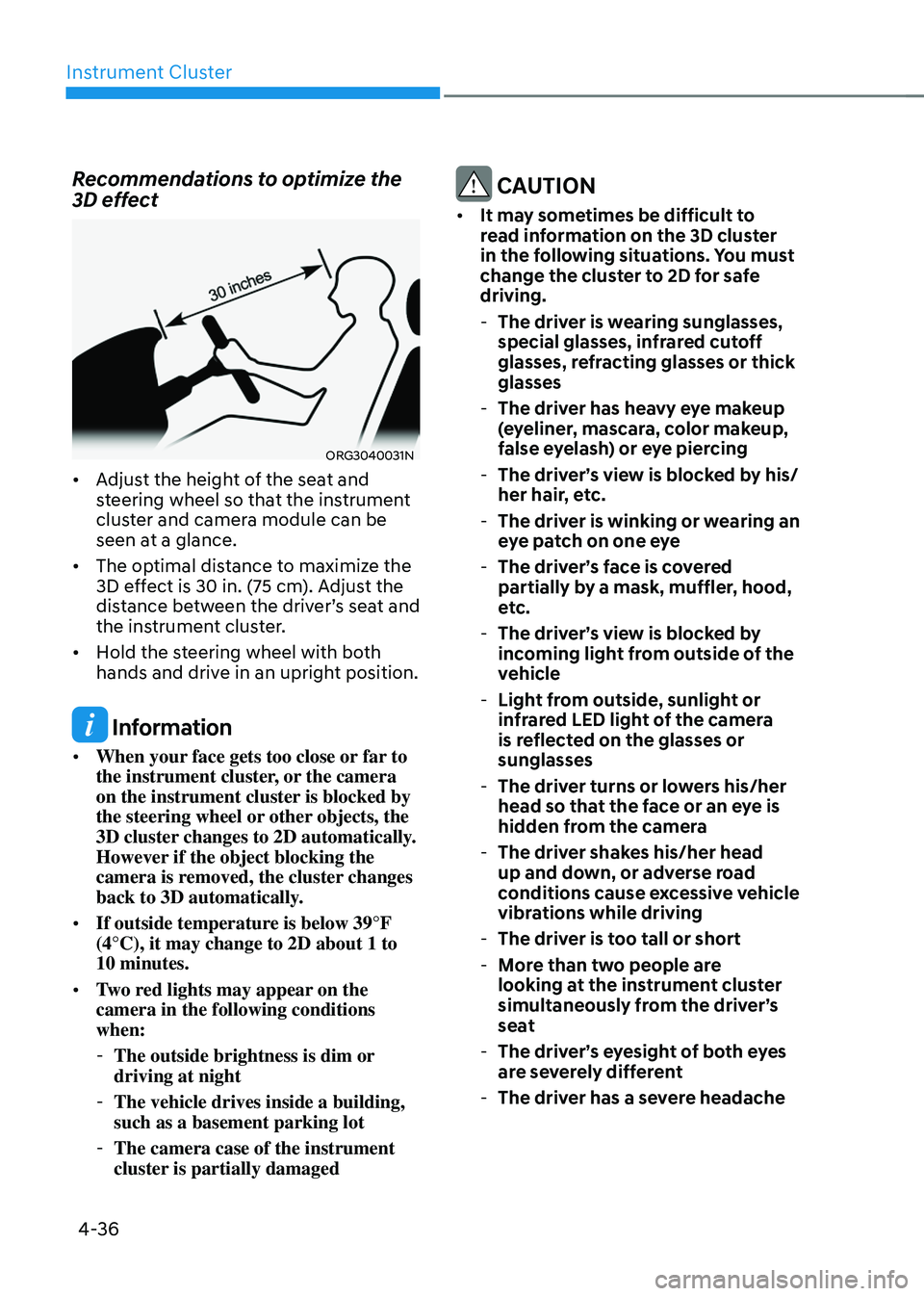

Instrument Cluster
4-36
Recommendations to optimize the
3D effect
ORG3040031NORG3040031N
• Adjust the height of the seat and
steering wheel so that the instrument
cluster and camera module can be
seen at a glance.
• The optimal distance to maximize the
3D effect is 30 in. (75 cm). Adjust the
distance between the driver’s seat and
the instrument cluster.
• Hold the steering wheel with both
hands and drive in an upright position.
Information
• When your face gets too close or far to
the instrument cluster, or the camera
on the instrument cluster is blocked by
the steering wheel or other objects, the
3D cluster changes to 2D automatically.
However if the object blocking the
camera is removed, the cluster changes
back to 3D automatically.
• If outside temperature is below 39°F
(4°C), it may change to 2D about 1 to
10 minutes.
• Two red lights may appear on the
camera in the following conditions
when:
-The outside brightness is dim or
driving at night
-The vehicle drives inside a building,
such as a basement parking lot
-The camera case of the instrument
cluster is partially damaged
CAUTION
• It may sometimes be difficult to
read information on the 3D cluster
in the following situations. You must
change the cluster to 2D for safe
driving.
-The driver is wearing sunglasses,
special glasses, infrared cutoff
glasses, refracting glasses or thick
glasses
-The driver has heavy eye makeup
(eyeliner, mascara, color makeup,
false eyelash) or eye piercing
-The driver’s view is blocked by his/
her hair, etc.
-The driver is winking or wearing an
eye patch on one eye
-The driver’s face is covered
partially by a mask, muffler, hood,
etc.
-The driver’s view is blocked by
incoming light from outside of the
vehicle
-Light from outside, sunlight or
infrared LED light of the camera
is reflected on the glasses or
sunglasses
-The driver turns or lowers his/her
head so that the face or an eye is
hidden from the camera
-The driver shakes his/her head
up and down, or adverse road
conditions cause excessive vehicle
vibrations while driving
-The driver is too tall or short
-More than two people are
looking at the instrument cluster
simultaneously from the driver’s
seat
-The driver’s eyesight of both eyes
are severely different
-The driver has a severe headache

04
4-37

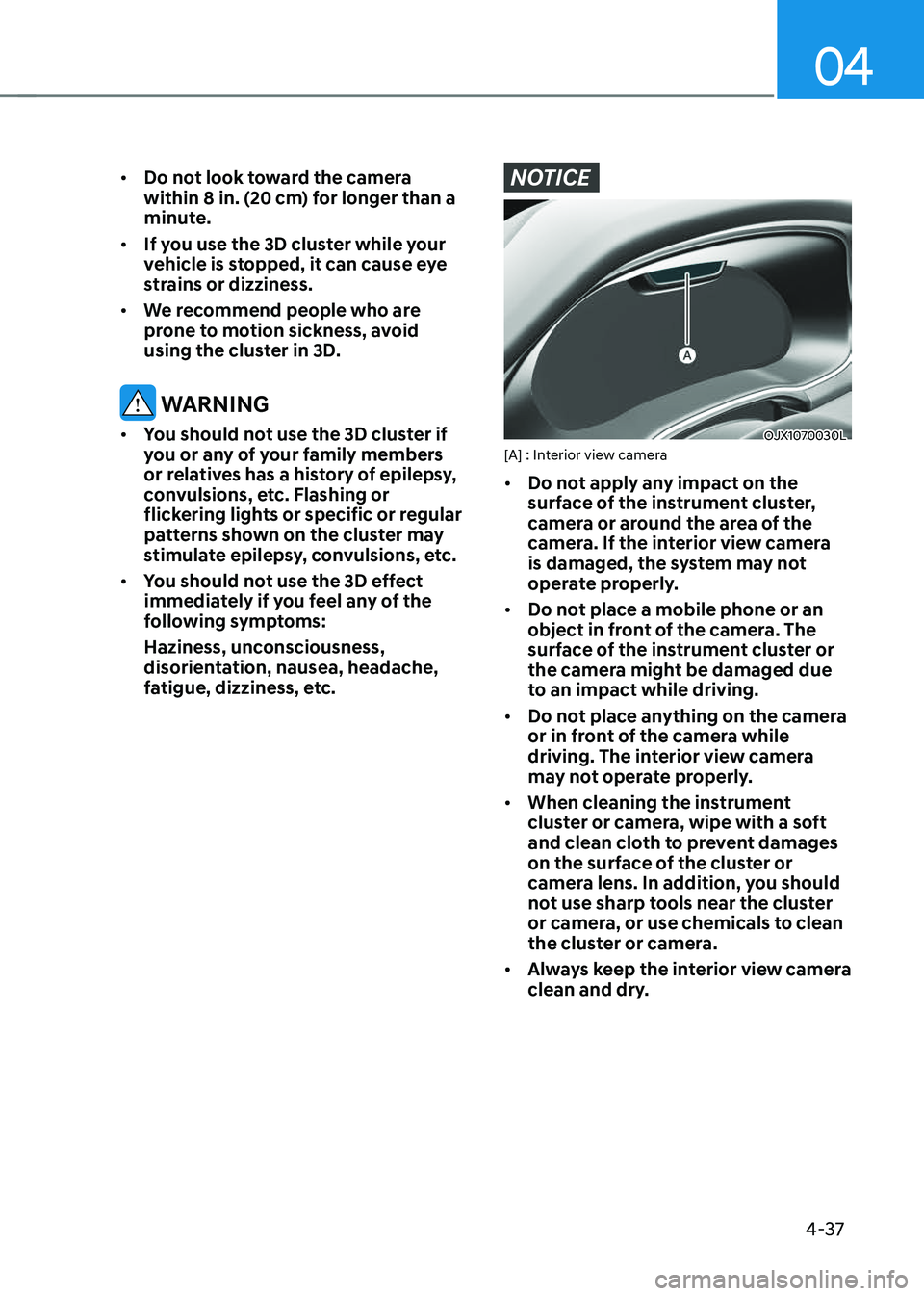

• Do not look toward the camera
within 8 in. (20 cm) for longer than a
minute.
• If you use the 3D cluster while your
vehicle is stopped, it can cause eye
strains or dizziness.
• We recommend people who are
prone to motion sickness, avoid
using the cluster in 3D.
WARNING
• You should not use the 3D cluster if
you or any of your family members
or relatives has a history of epilepsy,
convulsions, etc. Flashing or
flickering lights or specific or regular
patterns shown on the cluster may
stimulate epilepsy, convulsions, etc.
• You should not use the 3D effect
immediately if you feel any of the
following symptoms:
Haziness, unconsciousness,
disorientation, nausea, headache,
fatigue, dizziness, etc.
NOTICE
OJX1070030LOJX1070030L[A] : Interior view camera
• Do not apply any impact on the
surface of the instrument cluster,
camera or around the area of the
camera. If the interior view camera
is damaged, the system may not
operate properly.
• Do not place a mobile phone or an
object in front of the camera. The
surface of the instrument cluster or
the camera might be damaged due
to an impact while driving.
• Do not place anything on the camera
or in front of the camera while
driving. The interior view camera
may not operate properly.
• When cleaning the instrument
cluster or camera, wipe with a soft
and clean cloth to prevent damages
on the surface of the cluster or
camera lens. In addition, you should
not use sharp tools near the cluster
or camera, or use chemicals to clean
the cluster or camera.
• Always keep the interior view camera
clean and dry.

Instrument Cluster4-38

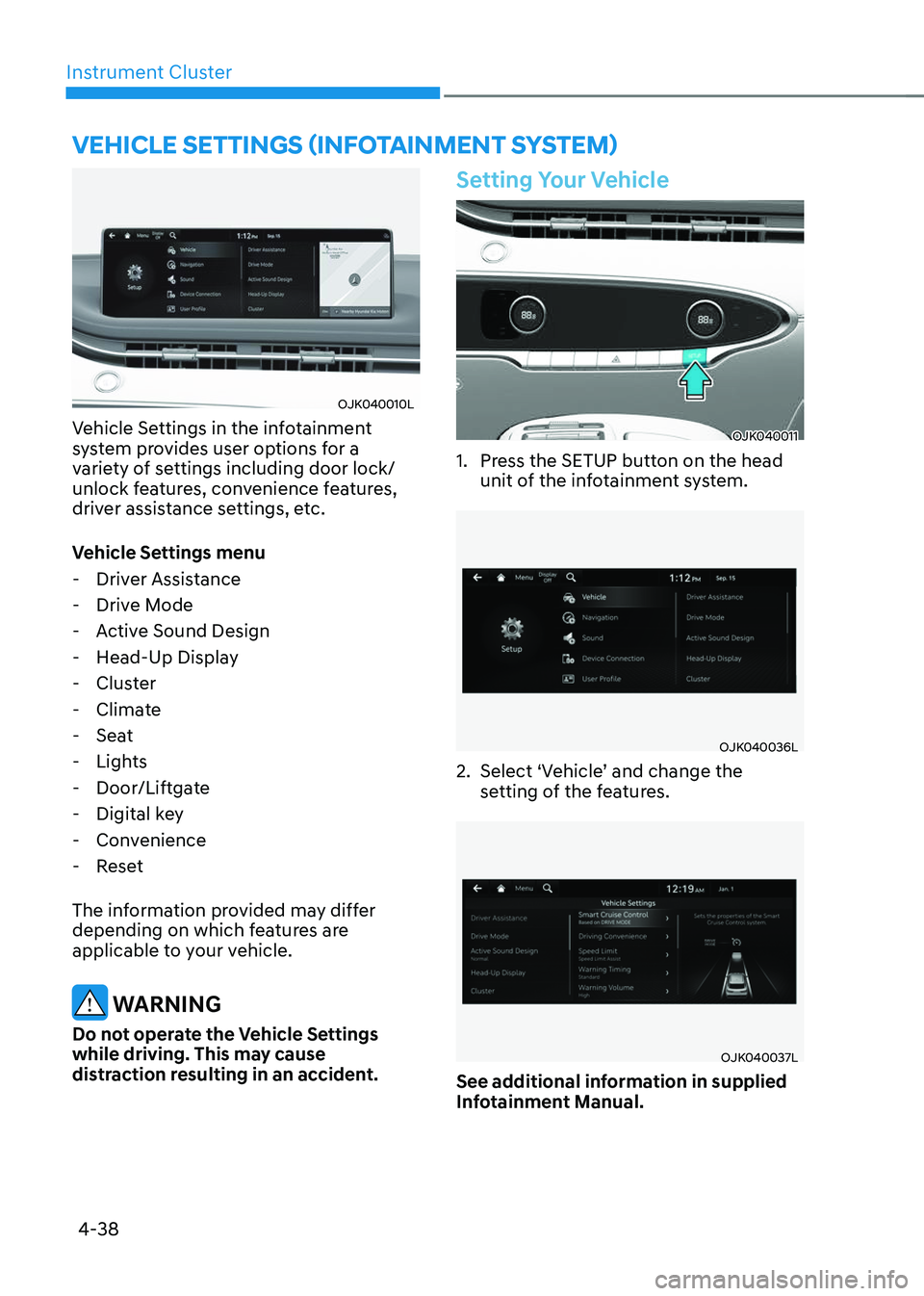

VEHICLE SETTINGS (INFOTAINMENT SYSTEM)
OJK040010LOJK040010L
Vehicle Settings in the infotainment
system provides user options for a
variety of settings including door lock/
unlock features, convenience features,
driver assistance settings, etc.
Vehicle Settings menu
- Driver Assistance
-Drive Mode
-Active Sound Design
-Head-Up Display
-Cluster
-Climate
-Seat
-Lights
-Door/Liftgate
-Digital key
-Convenience
-Reset
The information provided may differ
depending on which features are
applicable to your vehicle.
WARNING
Do not operate the Vehicle Settings
while driving. This may cause
distraction resulting in an accident.
Setting Your Vehicle
OJK040011OJK040011
1. Press the SETUP button on the head
unit of the infotainment system.
OJK040036LOJK040036L
2. Select ‘Vehicle’ and change the
setting of the features.
OJK040037LOJK040037L
See additional information in supplied
Infotainment Manual.

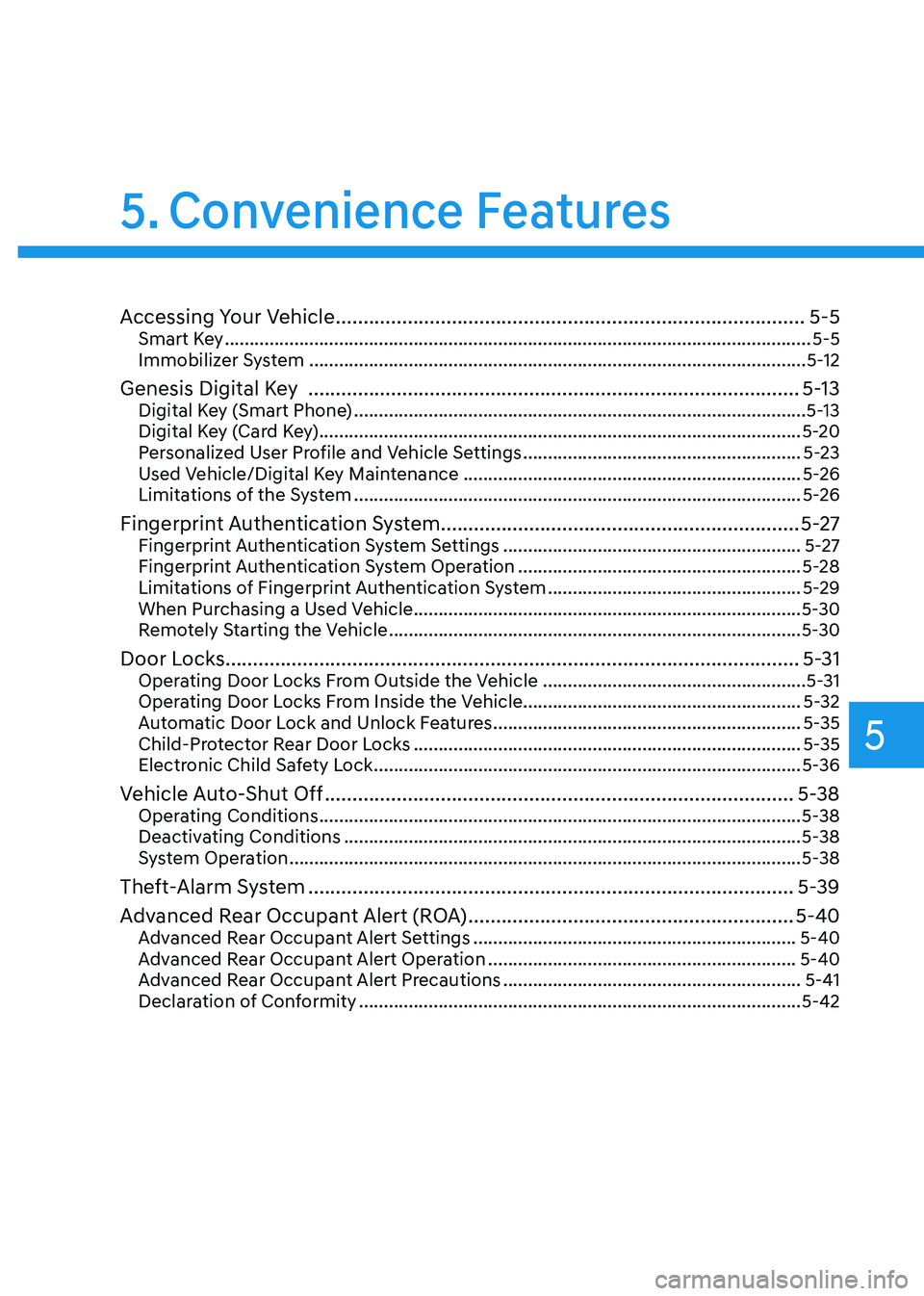

Convenience Features
Accessing Your Vehicle ........................................................................\
.............5-5Smart Key ........................................................................\
..............................................5-5
Immobilizer System ........................................................................\
............................5-12
Genesis Digital Key ........................................................................\
.................5-13Digital Key (Smart Phone) ........................................................................\
...................5-13
Digital Key (Card Key) ........................................................................\
.........................5-20
Personalized User Profile and Vehicle Settings ........................................................5-23
Used Vehicle/Digital Key Maintenance ....................................................................5-26
Limitations of the System ........................................................................\
..................5-26
Fingerprint Authentication System .................................................................5-27Fingerprint Authentication System Settings ............................................................5-27
Fingerprint Authentication System Operation .........................................................5-28
Limitations of Fingerprint Authentication System ...................................................5-29
When Purchasing a Used Vehicle ........................................................................\
......5-30
Remotely Starting the Vehicle ........................................................................\
...........5-30
Door Locks ........................................................................\
................................5-31Operating Door Locks From Outside the Vehicle .....................................................5-31
Operating Door Locks From Inside the Vehicle ........................................................5-32
Automatic Door Lock and Unlock Features
..............................................................5-35
Child-Protector Rear Door Locks ........................................................................\
......5-35
Electronic Child Safety Lock ........................................................................\
..............5-36
Vehicle Auto-Shut Off ........................................................................\
.............5-38Operating Conditions ........................................................................\
.........................5-38
Deactivating Conditions ........................................................................\
....................5-38
System Operation ........................................................................\
...............................5-38
Theft-Alarm System ........................................................................\
................5-39
Advanced Rear Occupant Alert (ROA)
...........................................................5-40Advanced Rear Occupant Alert Settings .................................................................5-40
Advanced Rear Occupant Alert Operation ..............................................................5-40
Advanced Rear Occupant Alert Precautions ............................................................5-41
Declaration of Conformity ........................................................................\
.................5-42
5. Convenience Features
5

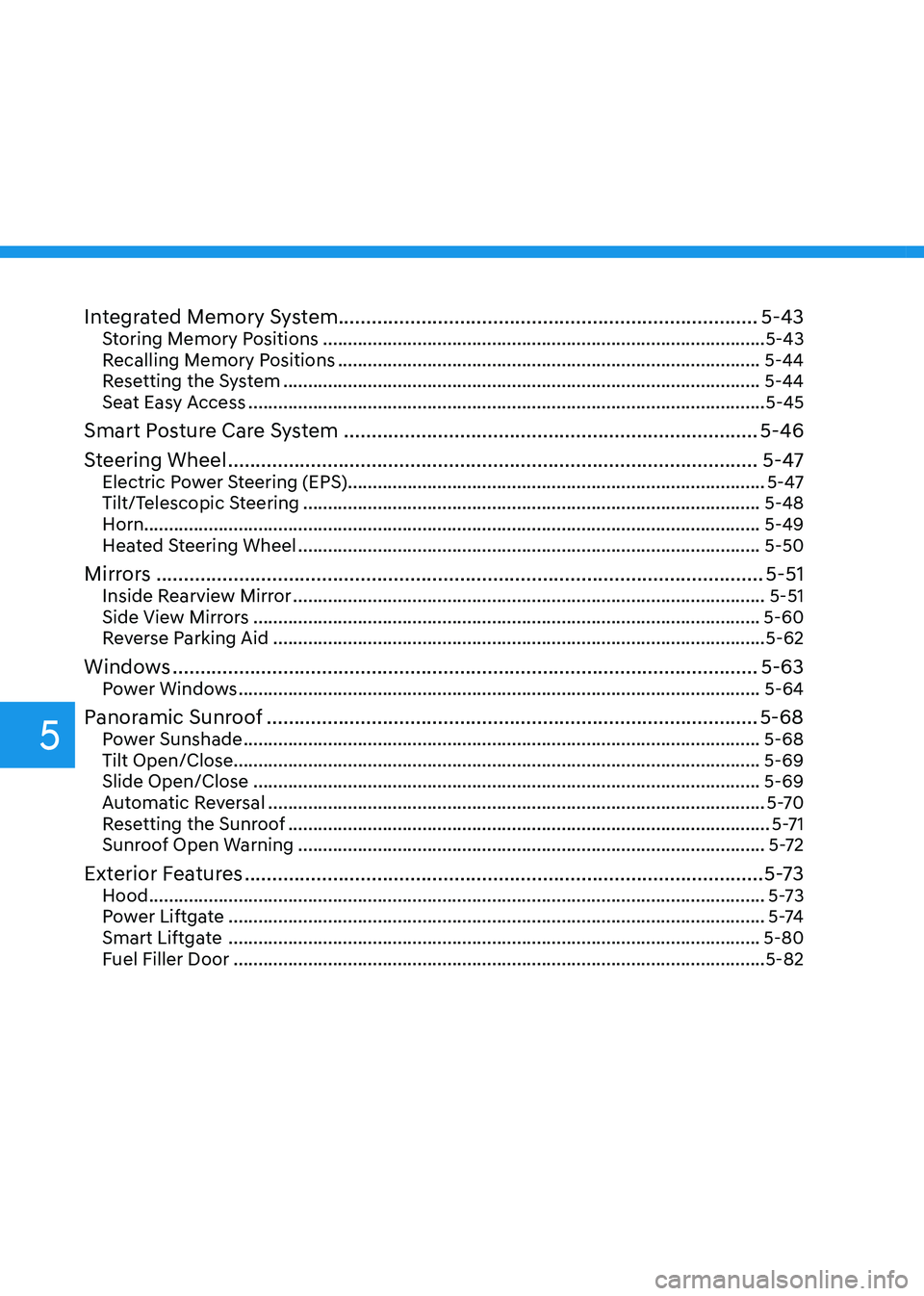

Integrated Memory System........................................................................\
.... 5-43Storing Memory Positions ........................................................................\
.................5-43
Recalling Memory Positions ........................................................................\
.............5-44
Resetting the System ........................................................................\
........................5-44
Seat Easy Access ........................................................................\
................................5-45
Smart Posture Care System ........................................................................\
...5-46
Steering Wheel
........................................................................\
........................5-47Electric Power Steering (EPS) ........................................................................\
............5-47
Tilt/Telescopic Steering ........................................................................\
....................5-48
Horn ........................................................................\
.................................................... 5-49
Heated Steering Wheel
........................................................................\
.....................5-50
Mirrors ........................................................................\
......................................5-51Inside Rearview Mirror ........................................................................\
.......................5-51
Side View Mirrors ........................................................................\
..............................5-60
Reverse Parking Aid ........................................................................\
...........................5-62
Windows ........................................................................\
..................................5-63Power Windows ........................................................................\
.................................5-64
Panoramic Sunroof ........................................................................\
.................5-68Power Sunshade ........................................................................\
................................5-68
Tilt Open/Close ........................................................................\
.................................. 5-69
Slide Open/Close
........................................................................\
..............................5-69
Automatic Reversal ........................................................................\
............................5-70
Resetting the Sunroof ........................................................................\
.........................5-71
Sunroof Open Warning ........................................................................\
......................5-72
Exterior Features ........................................................................\
......................5-73Hood ........................................................................\
....................................................5-73
Power Liftgate ........................................................................\
....................................5 -74
Smart Liftgate ........................................................................\
...................................5-80
Fuel Filler Door ........................................................................\
...................................5-82
5

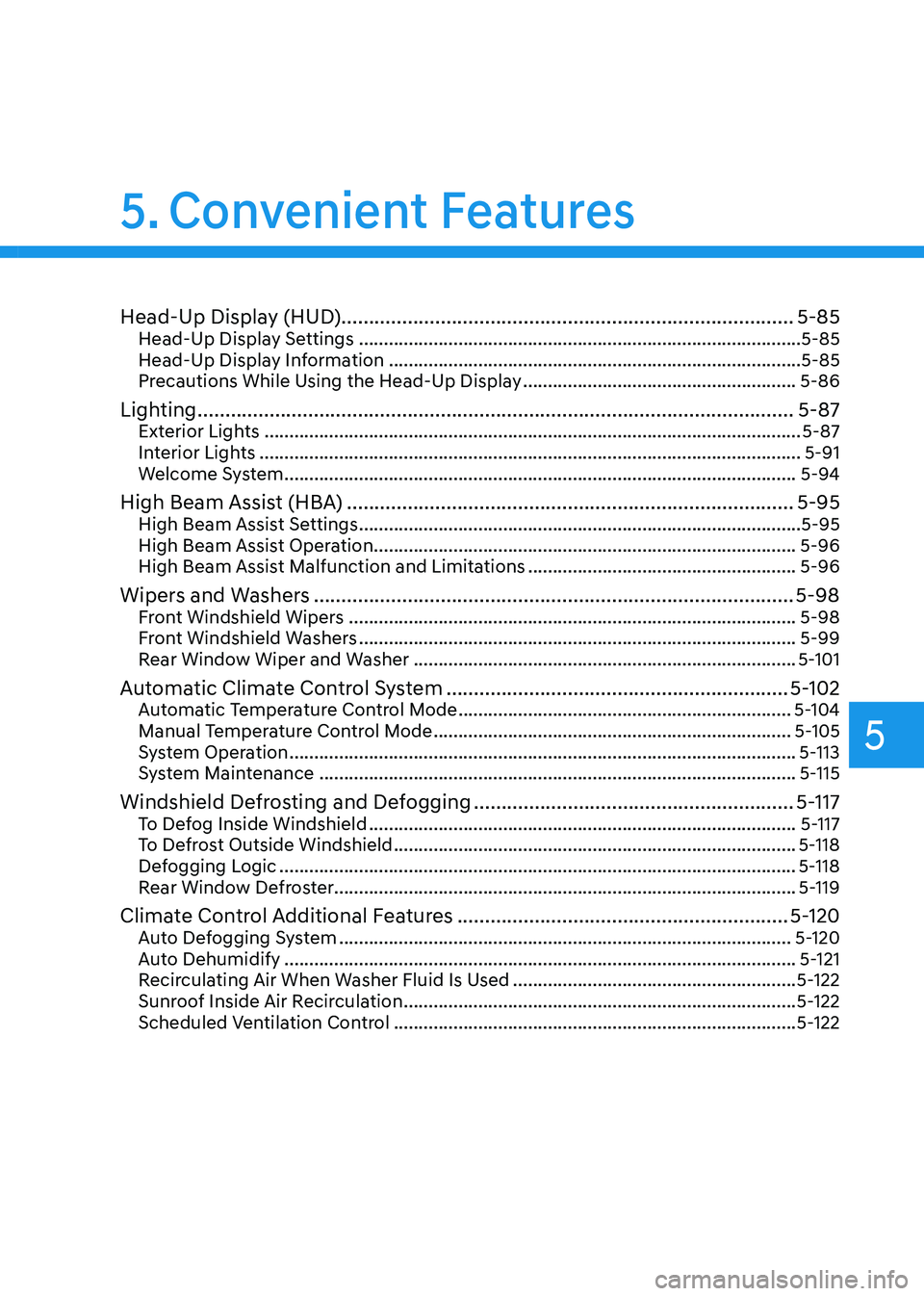

Head-Up Display (HUD)........................................................................\
.......... 5-85Head-Up Display Settings ........................................................................\
.................5-85
Head-Up Display Information ........................................................................\
...........5-85
Precautions While Using the Head-Up Display .......................................................5-86
Lighting ........................................................................\
....................................5-87Exterior Lights ........................................................................\
....................................5-87
Interior Lights ........................................................................\
.....................................5-91
Welcome System ........................................................................\
...............................5-94
High Beam Assist (HBA) ........................................................................\
.........5-95High Beam Assist Settings ........................................................................\
.................5-95
High Beam Assist Operation ........................................................................\
.............5-96
High Beam Assist Malfunction and Limitations ......................................................5-96
Wipers and Washers ........................................................................\
...............5-98Front Windshield Wipers ........................................................................\
..................5-98
Front Windshield Washers ........................................................................\
................5-99
Rear Window Wiper and Washer ........................................................................\
.....5-101
Automatic Climate Control System ..............................................................5-102Automatic Temperature Control Mode ...................................................................5-104
Manual Temperature Control Mode ........................................................................\
5-105
System Operation ........................................................................\
..............................5-113
System Maintenance ........................................................................\
........................5-115
Windshield Defrosting and Defogging ..........................................................5-117To Defog Inside Windshield ........................................................................\
..............5-117
To Defrost Outside Windshield ........................................................................\
.........5-118
Defogging Logic ........................................................................\
................................5-118
Rear Window Defroster ........................................................................\
..................... 5-119
Climate Control Additional Features ............................................................5-120Auto Defogging System ........................................................................\
...................5-120
Auto Dehumidify ........................................................................\
...............................5-121
Recirculating Air When Washer Fluid Is Used .........................................................5-122
Sunroof Inside Air Recirculation ........................................................................\
.......5-122
Scheduled Ventilation Control ........................................................................\
.........5-122
5. Convenient Features
5

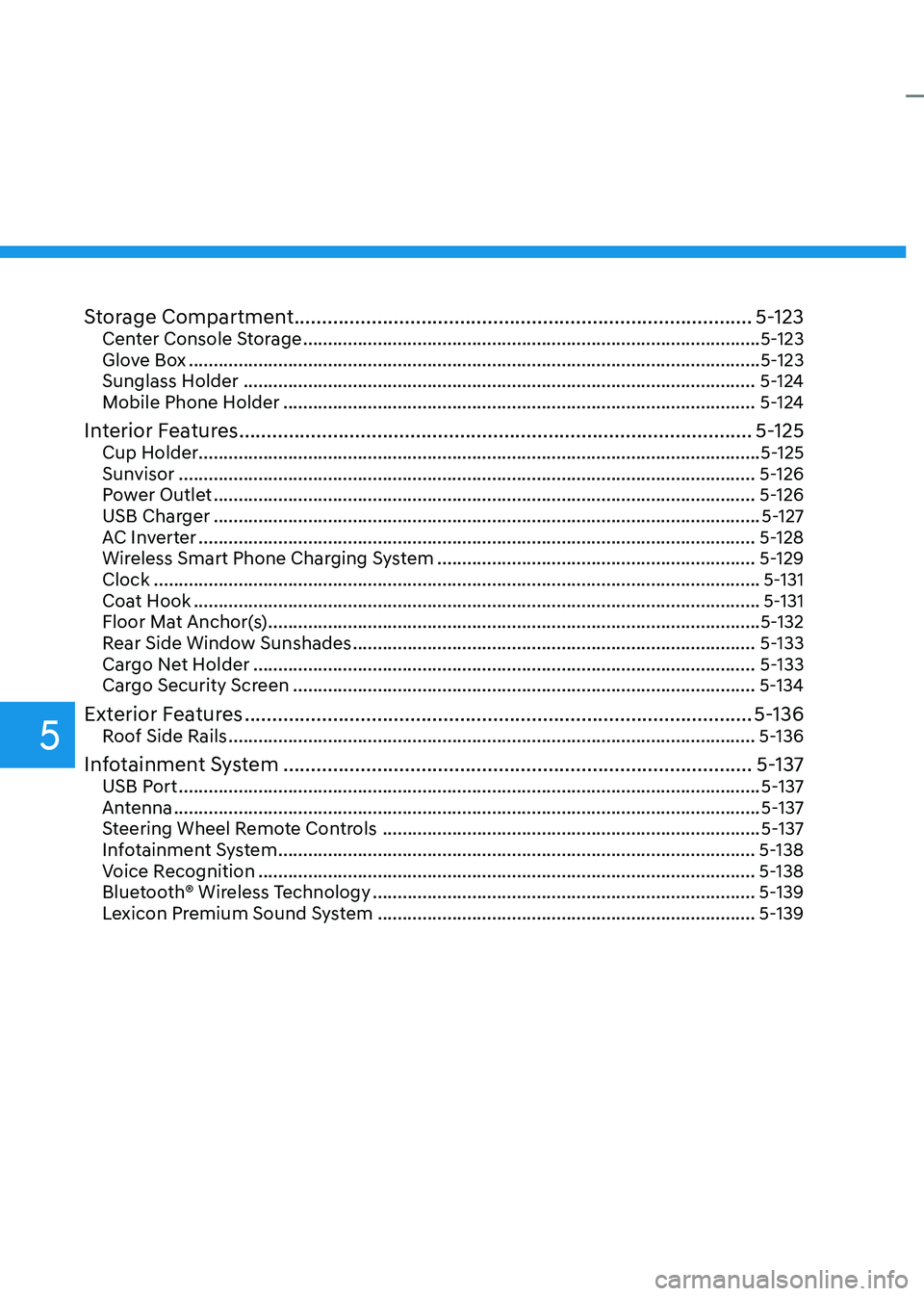

Storage Compartment ........................................................................\
...........5-123Center Console Storage ........................................................................\
....................5-123
Glove Box ........................................................................\
...........................................5-123
Sunglass Holder ........................................................................\
...............................5-124
Mobile Phone Holder ........................................................................\
.......................5-124
Interior Features ........................................................................\
.....................5-125Cup Holder ........................................................................\
.........................................5-125
Sunvisor ........................................................................\
............................................5-126
Power Outlet ........................................................................\
.....................................5-126
USB Charger ........................................................................\
......................................5-127
AC Inverter ........................................................................\
........................................5-128
Wireless Smart Phone Charging System ................................................................5-129
Clock ........................................................................\
..................................................5-131
Coat Hook ........................................................................\
..........................................5-131
Floor Mat Anchor(s) ........................................................................\
...........................5-132
Rear Side Window Sunshades ........................................................................\
.........5-133
Cargo Net Holder ........................................................................\
.............................5-133
Cargo Security Screen ........................................................................\
.....................5-134
Exterior Features ........................................................................\
....................5-136Roof Side Rails ........................................................................\
..................................5-136
Infotainment System ........................................................................\
.............5-137USB Port ........................................................................\
.............................................5-137
Antenna ........................................................................\
..............................................5-137
Steering Wheel Remote Controls ........................................................................\
....5-137
Infotainment System ........................................................................\
........................5-138
Voice Recognition ........................................................................\
............................5-138
Bluetooth® Wireless Technology ........................................................................\
.....5-139
Lexicon Premium Sound System ........................................................................\
....5-139
5
