TROUbLEShOOTING
Problem: The power does not turn on.
↟Possible Cause: The fuse is disconnected. ↟Countermeasure: -Replace with a suitable fuse. -If the fuse is disconnected again, please contact your dealer.
↟Possible Cause: Device is not properly connected. ↟Countermeasure: Check to see that the device has been properly connected.
Problem: The system does not play.
↟Possible Cause: The vehicle battery is low. ↟Countermeasure: Charge the battery if the problem persists, contact your point of purchase or service center.
Problem: The image colour/tone quality is low.
↟Possible Cause: The brightness, saturation, and contrast levels are not set properly. ↟Countermeasure: Properly adjust the brightness, saturation, and contrast levels through Display Setup.
Problem: Sound does not work.
↟Possible Cause: The volume level is set to the lowest level. ↟Countermeasure: Adjust the volume level.
↟Possible Cause: The connection is not proper. ↟Countermeasure: Check to see that the device has been properly connected.
↟Possible Cause: The device is currently fast-forwarding, rewinding, scanning, or playing in slow mode. ↟Countermeasure: The sound will not work when the device is fast-forwarding, rewinding, scanning, or playing in slow mode.
Problem: The sound or image quality is low.
↟Possible Cause: Vibration is occurring from where the conversion switch has been installed. ↟Countermeasure: The sound may be short circuited and the image distorted if the device vibrates.
Problem: The USB does not work
↟Possible Cause: USB memory is damaged. ↟Countermeasure: Please use after formatting the USB into FAT 16/32, exFAT, NTFS format.
↟Possible Cause: USB memory has been contaminated. ↟Countermeasure: Remove any foreign substances on the contact surface of the USB memory and infotainment system.
↟Possible Cause: A separately purchased USB HUB is being used. ↟Countermeasure: Directly connect the USB memory with the infotainment system on the vehicle.
↟Possible Cause: A USB extension cable is being used. ↟Countermeasure: Directly connect the USB memory with the infotainment system on the vehicle.
↟Possible Cause: A USB which is not a Metal Cover Type USB Memory is being used. ↟Countermeasure: Use standard USB Memory.
↟Possible Cause: An HDD type, CF, SD Memory is being used. ↟Countermeasure: Use standard USB Memory.
↟Possible Cause: There are no music files which can be played. ↟Countermeasure: Only MP3, WMA file formats are supported. Please use only the supported music file formats.
TROUbLEShOOTING
1 JX1_AVNT_USA_QRG_ENG_MFL71279723.indd 112020-10-27 11:33:28
ENG

12
Specification
Specification
Common
Power SupplyDC 14.4 V
Operation PowerDC 9 ~ 16V
Current ConsumptionMax. 6A
Dark Current
(average) Max. 1mA
Operating
Temperature-20 ~ 70 °C
Storage Temperature-40 ~ 85 °C
Dimensions
(Headunit)
232 (W) X 85.2 (H) X 164.5 (D)
mm
Weight (Head unit)1.4kg
Front
Monitor
Screen Size
(Outline Dimension)
361.82 (H) X 112.4 (V) X 12.8
(D) mm (Typ.), (W/PemNut,
W/Cover Glass 1.1T)
Resolution2560 X 720 (14.5”)
Operating MethodTFT, In Plane Switching (IPS),
Active Matrix
Viewing Angle80/80/80/80 (L/R/U/D)
Internal LightingLED
Radio
AM
Tuning Range530 ~ 1710 Khz
Usable Sensitivity35 dBuV
SNR Ratio45 dB
FM
Tuning Range87.5 ~ 107.9 Mhz
Usable Sensitivity10 dBuV
SNR Ratio50 dB
SiriusXM™
Tuning Range2333.465 ~ 2344.045 Mhz
Min. Sensitivity-80dBm
T.H.DMax. 0.2 %
Bluetooth
Supported profile
HFP 1.7/ A2DP 1.3/ AVRCP
1.6 / PBAP 1.2 / MAP 1.2/ SPP
1.2 / BIP 1.2
Supported Bluetooth
Specification4.2
Frequency Range
/Output Power
2402 ~ 2480 Mhz
Max. 4.0 dBm
Number of Channels79
1 JX1_AVNT_USA_QRG_ENG_MFL71279723.indd 122020-10-27 11:33:29
ENG

13
Specification

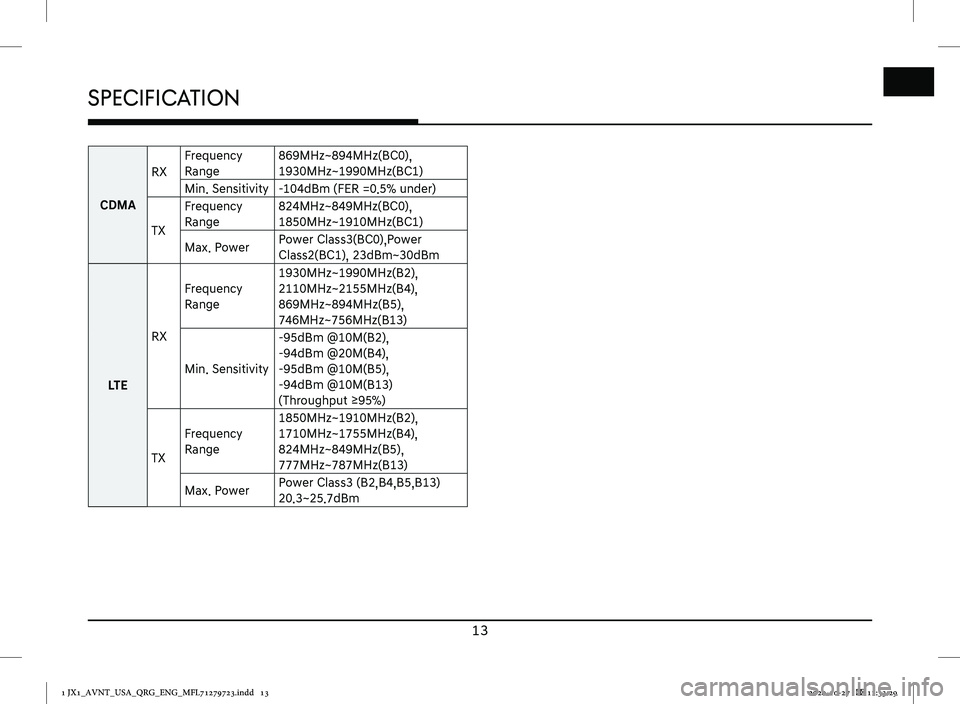

CDMA
RX
Frequency
Range
869MHz~894MHz(BC0),
1930MHz~1990MHz(BC1)
Min. Sensitivity-104dBm (FER =0.5% under)
TX
Frequency
Range
824MHz~849MHz(BC0),
1850MHz~1910MHz(BC1)
Max. PowerPower Class3(BC0),Power
Class2(BC1), 23dBm~30dBm
LT E
RX
Frequency
Range
1930MHz~1990MHz(B2),
2110MHz~2155MHz(B4),
869MHz~894MHz(B5),
746MHz~756MHz(B13)
Min. Sensitivity
-95dBm @10M(B2),
-94dBm @20M(B4),
-95dBm @10M(B5),
-94dBm @10M(B13)
(Throughput ≥95%)
TX
Frequency
Range
1850MHz~1910MHz(B2),
1710MHz~1755MHz(B4),
824MHz~849MHz(B5),
777MHz~787MHz(B13)
Max. PowerPower Class3 (B2,B4,B5,B13)
20.3~25.7dBm
1 JX1_AVNT_USA_QRG_ENG_MFL71279723.indd 132020-10-27 11:33:29
ENG

*MFL71279723*
