Page 411 of 472

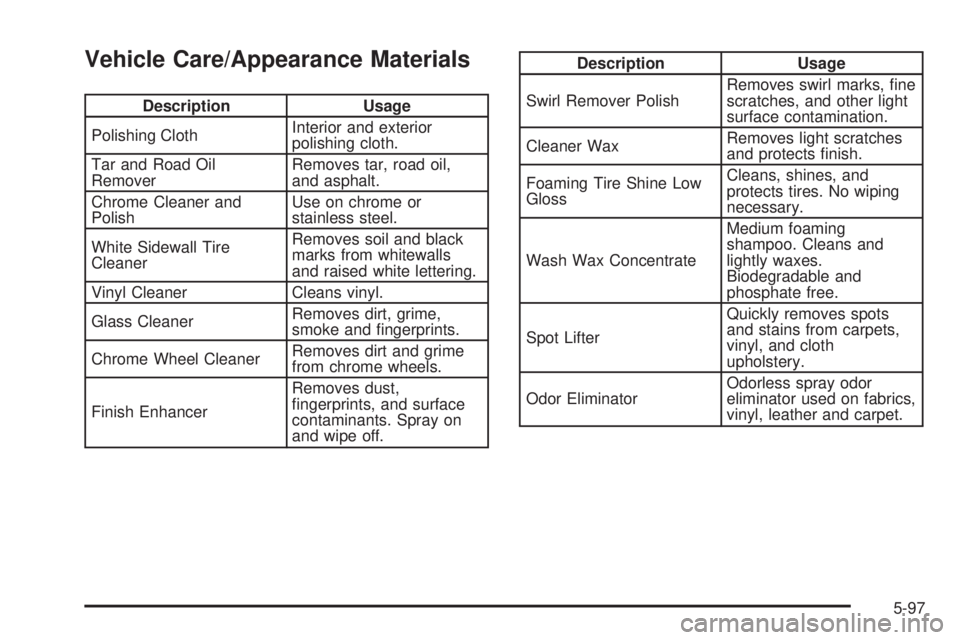

GMC ACADIA 2008  Owners Manual Vehicle Care/Appearance Materials
Description Usage
Polishing ClothInterior and exterior
polishing cloth.
Tar and Road Oil
RemoverRemoves tar, road oil,
and asphalt.
Chrome Cleaner and
PolishUse on ch

Page 412 of 472

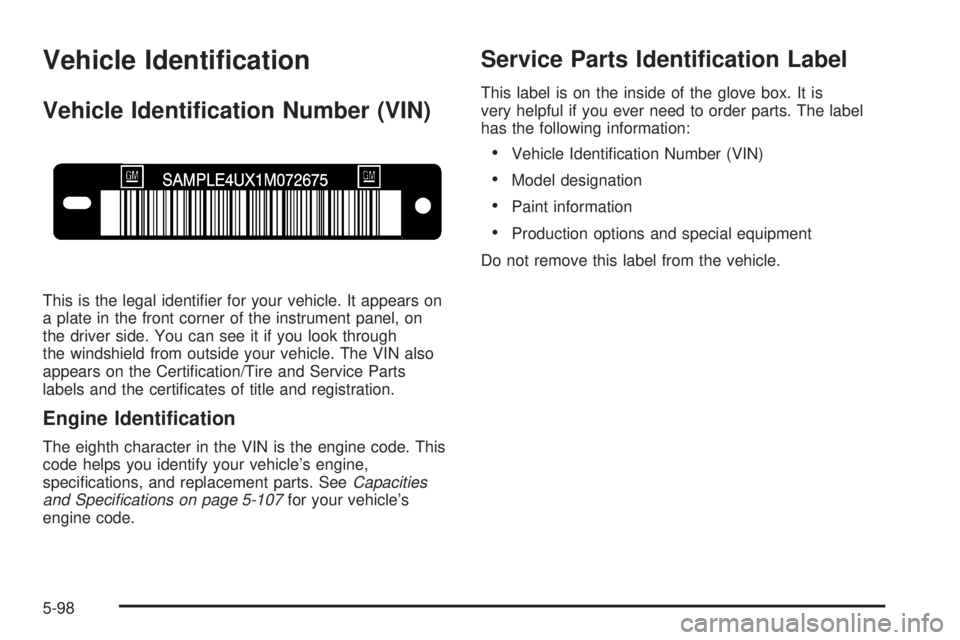

GMC ACADIA 2008  Owners Manual Vehicle Identi�cation
Vehicle Identi�cation Number (VIN)
This is the legal identi�er for your vehicle. It appears on
a plate in the front corner of the instrument panel, on
the driver side. You can se

Page 413 of 472

GMC ACADIA 2008  Owners Manual Electrical System
High Voltage Devices and Wiring
{CAUTION:
Exposure to high voltage can cause shock,
burns, and even death. The high voltage
systems in your vehicle can only be serviced
by technician

Page 414 of 472

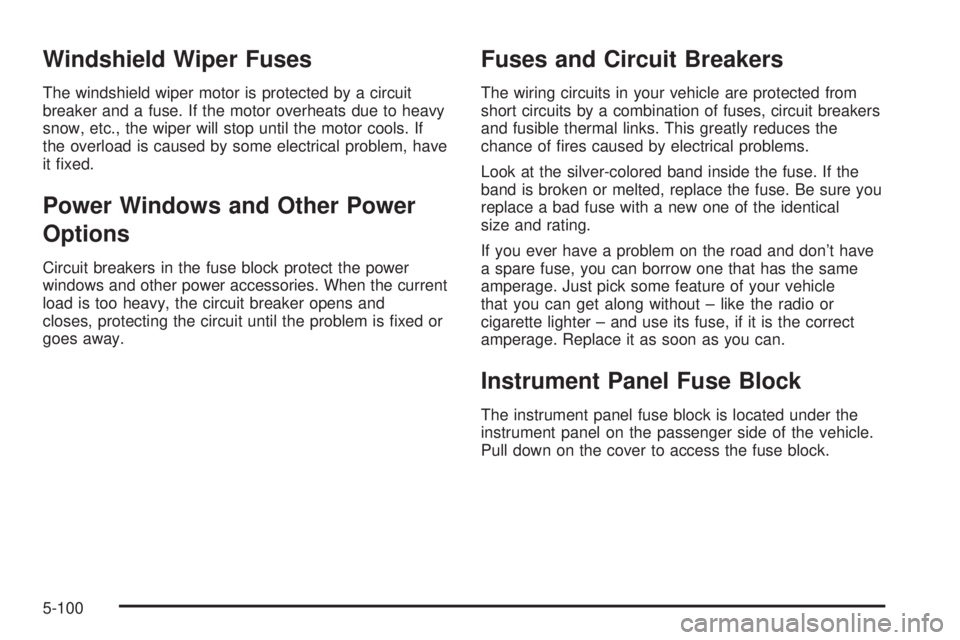

GMC ACADIA 2008  Owners Manual Windshield Wiper Fuses
The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools. If
the overlo

Page 415 of 472

GMC ACADIA 2008  Owners Manual Fuses Usage
FRT/WSW Front Windshield Wiper
SPARE Spare
HTD/SEAT Front Heated Seats
STR/WHL/
ILLUMSteering Wheel Illumination
MSM Memory Seat Module
PWR/MIRRORS Power Mirrors
DR/LCK Door Locks
AIRBAG A

Page 416 of 472

GMC ACADIA 2008  Owners Manual Fuses Usage
PDM Power Mirrors, Liftgate Release
DRL 2** Daytime Running Lamps 2
INFOTAINMENT Infotainment System
BCM Body Control Module
SPARE Spare
CTSY Dome Lamps
INADV/PWR/LEDInterior Lamps
ONSTR/V

Page 417 of 472

GMC ACADIA 2008  Owners Manual Relays Usage
LT/PWR/SEAT Driver’s Side Power Seat Relay
RT/PWR/SEAT Passenger’s Side Power Seat Relay
PWR/WNDW Power Windows Relay
PWR/COLUMN Power Steering Column Relay
L/GATE Liftgate Relay
LCK

Page 418 of 472

GMC ACADIA 2008  Owners Manual To remove fuses, hold the end of the fuse between your thumb and index �nger and pull straight out.
5-104

Page 419 of 472

GMC ACADIA 2008  Owners Manual Fuses Usage
LT PRK Left Parking Lamp
RT PRK Right Parking Lamp
TRLR PRK
LAMPTrailer Parking Lamps
AIRBAG Airbag System
PCM IGN Powertrain Control Module Ignition
AFS Adaptive Forward Lighting System
T

Page 420 of 472

GMC ACADIA 2008  Owners Manual Fuses Usage
FOG LAMP Fog Lamps
HORN Horn
A/C CLTCH Air Conditioning Clutch
FUEL PUMP Fuel Pump
SPARE Spare
J-Case Fuses Usage
FAN 2 Cooling Fan 2
PWR L/GATE Power Liftgate
FAN 1 Cooling Fan 1
HVAC BLW
