GMC ACADIA 2009 Owner's Manual

The combined weight of the
driver, passengers, and cargo
should never exceed your
vehicle’s capacity weight.

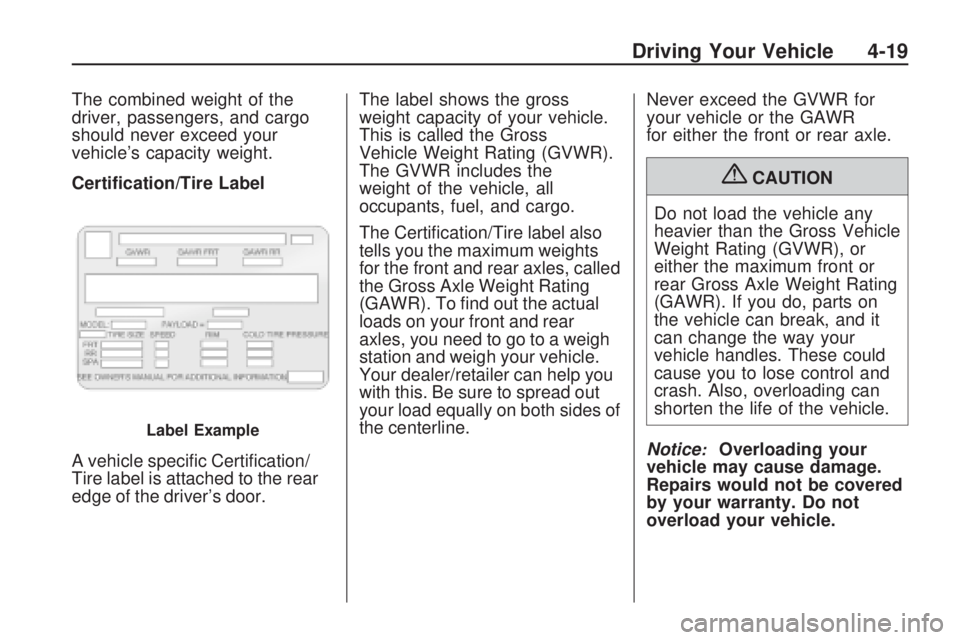

Certication/Tire Label
A vehicle specic Certication/
Tire label is attached to the rear
edge of the driver’s door.The label shows the gross
weight capacity of your vehicle.
This is called the Gross
Vehicle Weight Rating (GVWR).
The GVWR includes the
weight of the vehicle, all
occupants, fuel, and cargo.
The Certication/Tire label also
tells you the maximum weights
for the front and rear axles, called
the Gross Axle Weight Rating
(GAWR). To nd out the actual
loads on your front and rear
axles, you need to go to a weigh
station and weigh your vehicle.
Your dealer/retailer can help you
with this. Be sure to spread out
your load equally on both sides of
the centerline.Never exceed the GVWR for
your vehicle or the GAWR
for either the front or rear axle.
{CAUTION
Do not load the vehicle any
heavier than the Gross Vehicle
Weight Rating (GVWR), or
either the maximum front or
rear Gross Axle Weight Rating
(GAWR). If you do, parts on
the vehicle can break, and it
can change the way your
vehicle handles. These could
cause you to lose control and
crash. Also, overloading can
shorten the life of the vehicle.
Notice
:Overloading your
vehicle may cause damage.
Repairs would not be covered
by your warranty. Do not
overload your vehicle.
Label Example
Driving Your Vehicle 4-19

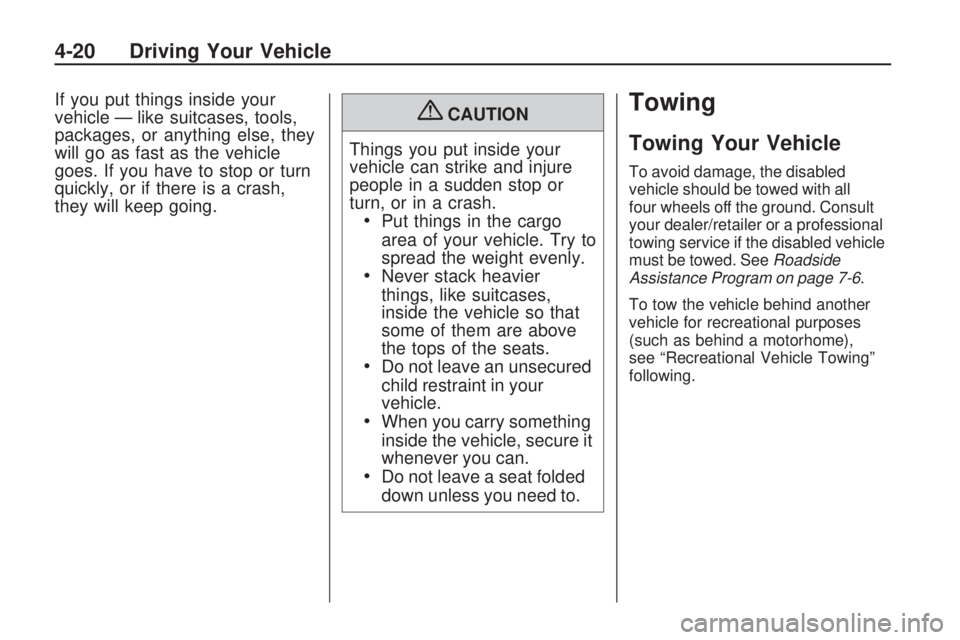

If you put things inside your
vehicle — like suitcases, tools,
packages, or anything else, they
will go as fast as the vehicle
goes. If you have to stop or turn
quickly, or if there is a crash,
they will keep going.{CAUTION
Things you put inside your
vehicle can strike and injure
people in a sudden stop or
turn, or in a crash.
Put things in the cargo
area of your vehicle. Try to
spread the weight evenly.
Never stack heavier
things, like suitcases,
inside the vehicle so that
some of them are above
the tops of the seats.
Do not leave an unsecured
child restraint in your
vehicle.
When you carry something
inside the vehicle, secure it
whenever you can.
Do not leave a seat folded
down unless you need to.
Towing
Towing Your Vehicle
To avoid damage, the disabled
vehicle should be towed with all
four wheels off the ground. Consult
your dealer/retailer or a professional
towing service if the disabled vehicle
must be towed. SeeRoadside
Assistance Program on page 7-6.
To tow the vehicle behind another
vehicle for recreational purposes
(such as behind a motorhome),
see “Recreational Vehicle Towing”
following.
4-20 Driving Your Vehicle

Recreational Vehicle
Towing
Recreational vehicle towing means
towing the vehicle behind another
vehicle – such as behind a
motorhome. The two most common
types of recreational vehicle towing
are known as “dinghy towing” (towing
the vehicle with all four wheels on the
ground) and “dolly towing” (towing
the vehicle with two wheels on the
ground and two wheels up on a
device known as a “dolly”).
Here are some important things to
consider before recreational
vehicle towing:
What is the towing capacity of the
towing vehicle? Be sure to read
the tow vehicle manufacturer’s
recommendations.
What is the distance that will be
travelled? Some vehicles have
restrictions on how far and how
long they can tow.
Is the proper towing equipment
going to be used? See your
dealer/retailer or trailering
professional for additional advice
and equipment recommendations.
Is the vehicle ready to be towed?
Just as preparing the vehicle for a
long trip, make sure the vehicle is
prepared to be towed. SeeBefore
Leaving on a Long Trip on
page 4-12.
Dinghy Towing
If the vehicle is front-wheel-drive, it
can be dinghy towed from the front.These vehicles may also be towed
by putting the front wheels on a dolly.
See “Dolly Towing” later in this
section.
If the vehicle is all-wheel-drive, it can
be dinghy towed from the front.
These vehicles can also be towed by
placing them on a platform trailer
with all four wheels off of the ground.
These vehicles cannot be towed
using a dolly.
For vehicles being dinghy towed, the
vehicle should be run at the
beginning of each day and at each
RV fuel stop for about ve minutes.
This will ensure proper lubrication of
transmission components. Re-install
the fuse to start the vehicle.
To tow the vehicle from the front
with all four wheels on the ground:
1. Position the vehicle to tow
and then secure it to the towing
vehicle.
2. Shift the transmission to P (Park)
and turn the ignition to
LOCK/OFF.
Driving Your Vehicle 4-21

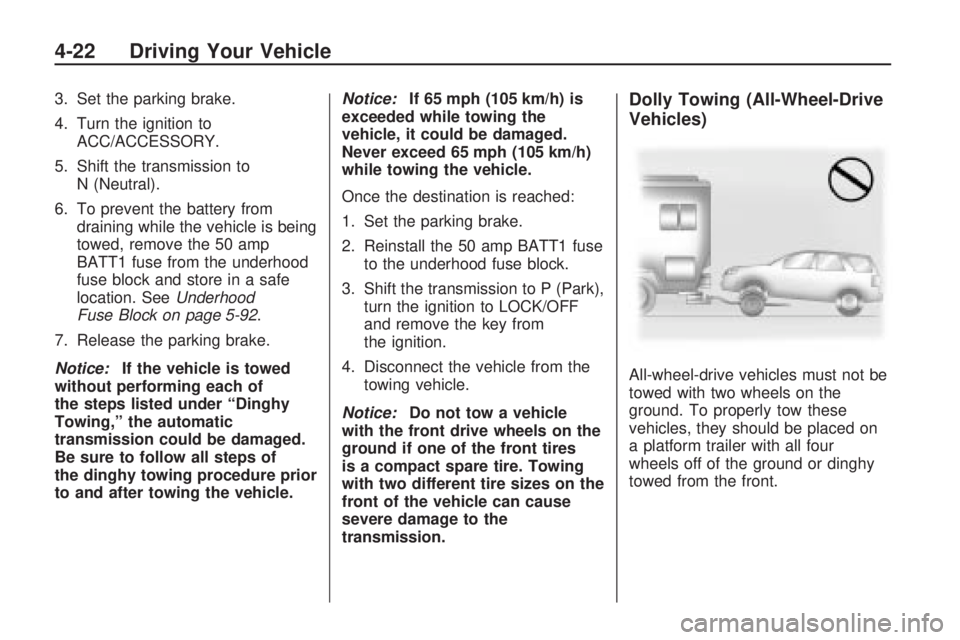

3. Set the parking brake.
4. Turn the ignition to
ACC/ACCESSORY.
5. Shift the transmission to
N (Neutral).
6. To prevent the battery from
draining while the vehicle is being
towed, remove the 50 amp
BATT1 fuse from the underhood
fuse block and store in a safe
location. SeeUnderhood
Fuse Block on page 5-92.
7. Release the parking brake.
Notice:If the vehicle is towed
without performing each of
the steps listed under “Dinghy
Towing,” the automatic
transmission could be damaged.
Be sure to follow all steps of
the dinghy towing procedure prior
to and after towing the vehicle.Notice:If 65 mph (105 km/h) is
exceeded while towing the
vehicle, it could be damaged.
Never exceed 65 mph (105 km/h)
while towing the vehicle.
Once the destination is reached:
1. Set the parking brake.
2. Reinstall the 50 amp BATT1 fuse
to the underhood fuse block.
3. Shift the transmission to P (Park),
turn the ignition to LOCK/OFF
and remove the key from
the ignition.
4. Disconnect the vehicle from the
towing vehicle.
Notice:Do not tow a vehicle
with the front drive wheels on the
ground if one of the front tires
is a compact spare tire. Towing
with two different tire sizes on the
front of the vehicle can cause
severe damage to the
transmission.Dolly Towing (All-Wheel-Drive
Vehicles)
All-wheel-drive vehicles must not be
towed with two wheels on the
ground. To properly tow these
vehicles, they should be placed on
a platform trailer with all four
wheels off of the ground or dinghy
towed from the front.
4-22 Driving Your Vehicle

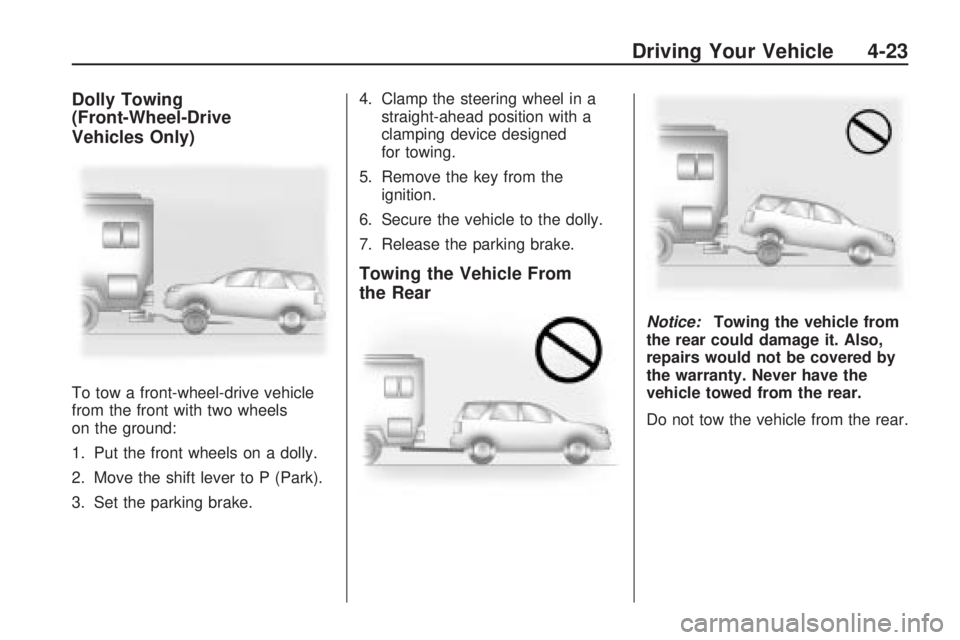

Dolly Towing
(Front-Wheel-Drive
Vehicles Only)
To tow a front-wheel-drive vehicle
from the front with two wheels
on the ground:
1. Put the front wheels on a dolly.
2. Move the shift lever to P (Park).
3. Set the parking brake.4. Clamp the steering wheel in a
straight-ahead position with a
clamping device designed
for towing.
5. Remove the key from the
ignition.
6. Secure the vehicle to the dolly.
7. Release the parking brake.
Towing the Vehicle From
the Rear
Notice:Towing the vehicle from
the rear could damage it. Also,
repairs would not be covered by
the warranty. Never have the
vehicle towed from the rear.
Do not tow the vehicle from the rear.
Driving Your Vehicle 4-23

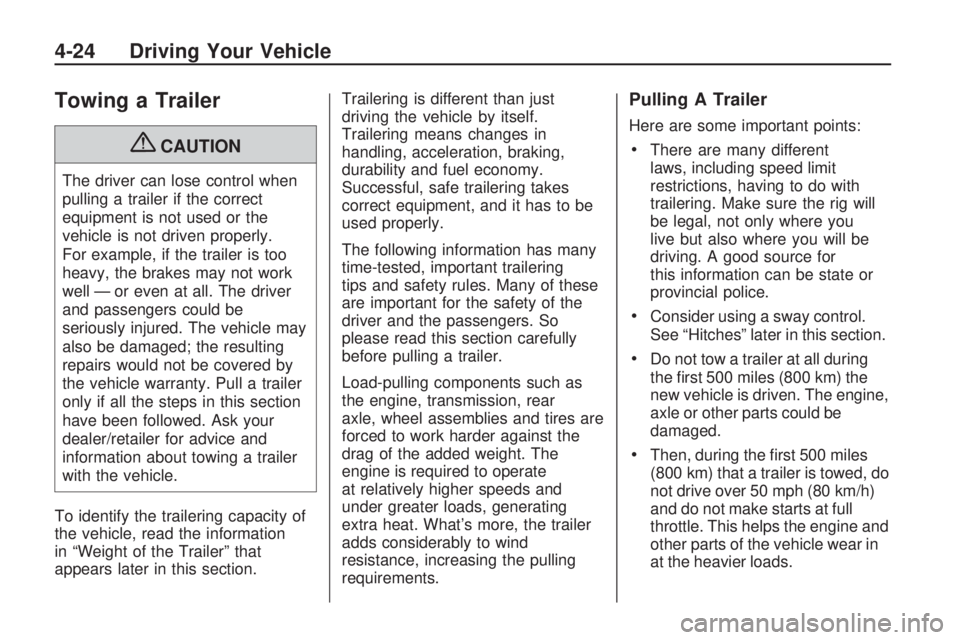

Towing a Trailer
{CAUTION
The driver can lose control when
pulling a trailer if the correct
equipment is not used or the
vehicle is not driven properly.
For example, if the trailer is too
heavy, the brakes may not work
well — or even at all. The driver
and passengers could be
seriously injured. The vehicle may
also be damaged; the resulting
repairs would not be covered by
the vehicle warranty. Pull a trailer
only if all the steps in this section
have been followed. Ask your
dealer/retailer for advice and
information about towing a trailer
with the vehicle.
To identify the trailering capacity of
the vehicle, read the information
in “Weight of the Trailer” that
appears later in this section.Trailering is different than just
driving the vehicle by itself.
Trailering means changes in
handling, acceleration, braking,
durability and fuel economy.
Successful, safe trailering takes
correct equipment, and it has to be
used properly.
The following information has many
time-tested, important trailering
tips and safety rules. Many of these
are important for the safety of the
driver and the passengers. So
please read this section carefully
before pulling a trailer.
Load-pulling components such as
the engine, transmission, rear
axle, wheel assemblies and tires are
forced to work harder against the
drag of the added weight. The
engine is required to operate
at relatively higher speeds and
under greater loads, generating
extra heat. What’s more, the trailer
adds considerably to wind
resistance, increasing the pulling
requirements.
Pulling A Trailer
Here are some important points:
There are many different
laws, including speed limit
restrictions, having to do with
trailering. Make sure the rig will
be legal, not only where you
live but also where you will be
driving. A good source for
this information can be state or
provincial police.
Consider using a sway control.
See “Hitches” later in this section.
Do not tow a trailer at all during
the rst 500 miles (800 km) the
new vehicle is driven. The engine,
axle or other parts could be
damaged.
Then, during the rst 500 miles
(800 km) that a trailer is towed, do
not drive over 50 mph (80 km/h)
and do not make starts at full
throttle. This helps the engine and
other parts of the vehicle wear in
at the heavier loads.
4-24 Driving Your Vehicle

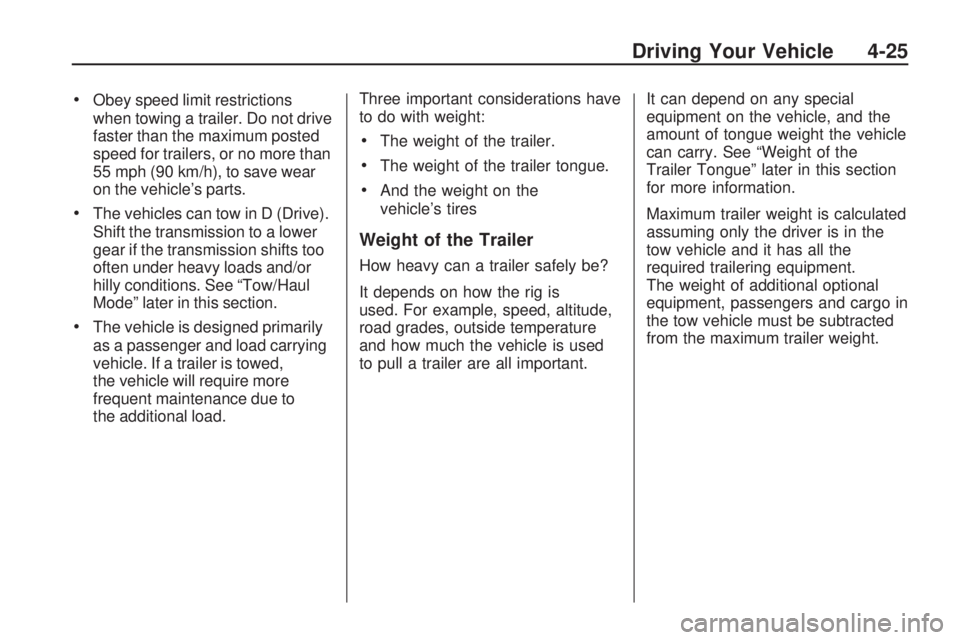

Obey speed limit restrictions
when towing a trailer. Do not drive
faster than the maximum posted
speed for trailers, or no more than
55 mph (90 km/h), to save wear
on the vehicle’s parts.
The vehicles can tow in D (Drive).
Shift the transmission to a lower
gear if the transmission shifts too
often under heavy loads and/or
hilly conditions. See “Tow/Haul
Mode” later in this section.
The vehicle is designed primarily
as a passenger and load carrying
vehicle. If a trailer is towed,
the vehicle will require more
frequent maintenance due to
the additional load.Three important considerations have
to do with weight:
The weight of the trailer.
The weight of the trailer tongue.
And the weight on the
vehicle’s tires
Weight of the Trailer
How heavy can a trailer safely be?
It depends on how the rig is
used. For example, speed, altitude,
road grades, outside temperature
and how much the vehicle is used
to pull a trailer are all important.It can depend on any special
equipment on the vehicle, and the
amount of tongue weight the vehicle
can carry. See “Weight of the
Trailer Tongue” later in this section
for more information.
Maximum trailer weight is calculated
assuming only the driver is in the
tow vehicle and it has all the
required trailering equipment.
The weight of additional optional
equipment, passengers and cargo in
the tow vehicle must be subtracted
from the maximum trailer weight.
Driving Your Vehicle 4-25

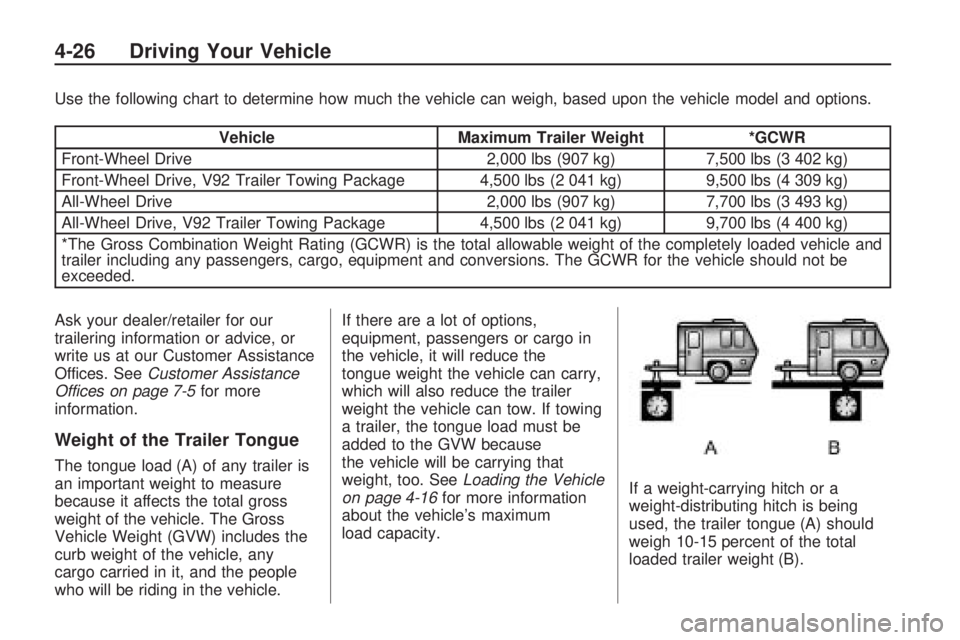

Use the following chart to determine how much the vehicle can weigh, based upon the vehicle model and options.
VehicleMaximum Trailer Weight *GCWR
Front-Wheel Drive 2,000 lbs (907 kg)7,500 lbs (3 402 kg)
Front-Wheel Drive, V92 Trailer Towing Package 4,500 lbs (2 041 kg) 9,500 lbs (4 309 kg)
All-Wheel Drive 2,000 lbs (907 kg)7,700 lbs (3 493 kg)
All-Wheel Drive, V92 Trailer Towing Package 4,500 lbs (2 041 kg)9,700 lbs (4 400 kg)
*The Gross Combination Weight Rating (GCWR) is the total allowable weight of the completely loaded vehicle and
trailer including any passengers, cargo, equipment and conversions. The GCWR for the vehicle should not be
exceeded.
Ask your dealer/retailer for our
trailering information or advice, or
write us at our Customer Assistance
Offices. See Customer Assistance
Offices on page 7-5 for more
information.
Weight of the Trailer Tongue
The tongue load (A) of any trailer is
an important weight to measure
because it affects the total gross
weight of the vehicle. The Gross
Vehicle Weight (GVW) includes the
curb weight of the vehicle, any
cargo carried in it, and the people
who will be riding in the vehicle. If there are a lot of options,
equipment, passengers or cargo in
the vehicle, it will reduce the
tongue weight the vehicle can carry,
which will also reduce the trailer
weight the vehicle can tow. If towing
a trailer, the tongue load must be
added to the GVW because
the vehicle will be carrying that
weight, too. See
Loading the Vehicle
on page 4-16 for more information
about the vehicle’s maximum
load capacity. If a weight-carrying hitch or a
weight-distributing hitch is being
used, the trailer tongue (A) should
weigh 10-15 percent of the total
loaded trailer weight (B).
4-26 Driving Your Vehicle

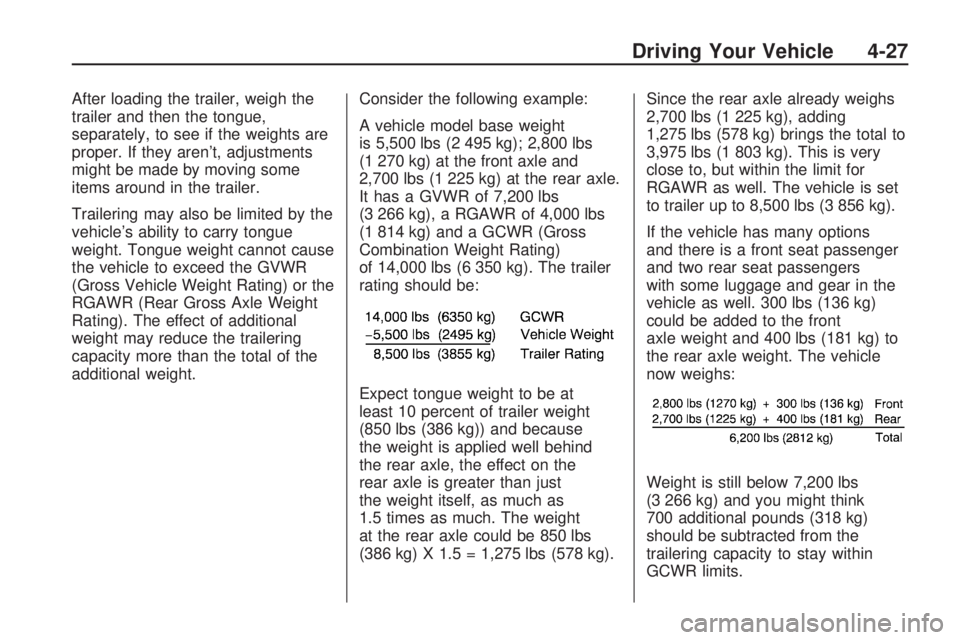

After loading the trailer, weigh the
trailer and then the tongue,
separately, to see if the weights are
proper. If they aren’t, adjustments
might be made by moving some
items around in the trailer.
Trailering may also be limited by the
vehicle’s ability to carry tongue
weight. Tongue weight cannot cause
the vehicle to exceed the GVWR
(Gross Vehicle Weight Rating) or the
RGAWR (Rear Gross Axle Weight
Rating). The effect of additional
weight may reduce the trailering
capacity more than the total of the
additional weight.Consider the following example:
A vehicle model base weight
is 5,500 lbs (2 495 kg); 2,800 lbs
(1 270 kg) at the front axle and
2,700 lbs (1 225 kg) at the rear axle.
It has a GVWR of 7,200 lbs
(3 266 kg), a RGAWR of 4,000 lbs
(1 814 kg) and a GCWR (Gross
Combination Weight Rating)
of 14,000 lbs (6 350 kg). The trailer
rating should be:
Expect tongue weight to be at
least 10 percent of trailer weight
(850 lbs (386 kg)) and because
the weight is applied well behind
the rear axle, the effect on the
rear axle is greater than just
the weight itself, as much as
1.5 times as much. The weight
at the rear axle could be 850 lbs
(386 kg) X 1.5 = 1,275 lbs (578 kg).Since the rear axle already weighs
2,700 lbs (1 225 kg), adding
1,275 lbs (578 kg) brings the total to
3,975 lbs (1 803 kg). This is very
close to, but within the limit for
RGAWR as well. The vehicle is set
to trailer up to 8,500 lbs (3 856 kg).
If the vehicle has many options
and there is a front seat passenger
and two rear seat passengers
with some luggage and gear in the
vehicle as well. 300 lbs (136 kg)
could be added to the front
axle weight and 400 lbs (181 kg) to
the rear axle weight. The vehicle
now weighs:
Weight is still below 7,200 lbs
(3 266 kg) and you might think
700 additional pounds (318 kg)
should be subtracted from the
trailering capacity to stay within
GCWR limits.
Driving Your Vehicle 4-27

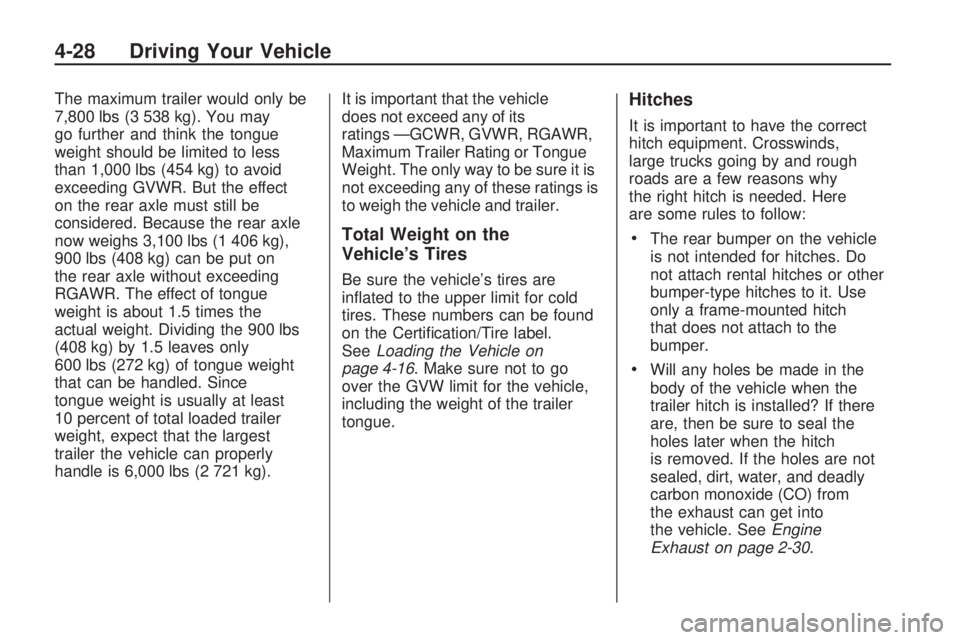

The maximum trailer would only be
7,800 lbs (3 538 kg). You may
go further and think the tongue
weight should be limited to less
than 1,000 lbs (454 kg) to avoid
exceeding GVWR. But the effect
on the rear axle must still be
considered. Because the rear axle
now weighs 3,100 lbs (1 406 kg),
900 lbs (408 kg) can be put on
the rear axle without exceeding
RGAWR. The effect of tongue
weight is about 1.5 times the
actual weight. Dividing the 900 lbs
(408 kg) by 1.5 leaves only
600 lbs (272 kg) of tongue weight
that can be handled. Since
tongue weight is usually at least
10 percent of total loaded trailer
weight, expect that the largest
trailer the vehicle can properly
handle is 6,000 lbs (2 721 kg).It is important that the vehicle
does not exceed any of its
ratings —GCWR, GVWR, RGAWR,
Maximum Trailer Rating or Tongue
Weight. The only way to be sure it is
not exceeding any of these ratings is
to weigh the vehicle and trailer.
Total Weight on the
Vehicle’s Tires
Be sure the vehicle’s tires are
inated to the upper limit for cold
tires. These numbers can be found
on the Certication/Tire label.
SeeLoading the Vehicle on
page 4-16. Make sure not to go
over the GVW limit for the vehicle,
including the weight of the trailer
tongue.
Hitches
It is important to have the correct
hitch equipment. Crosswinds,
large trucks going by and rough
roads are a few reasons why
the right hitch is needed. Here
are some rules to follow:
The rear bumper on the vehicle
is not intended for hitches. Do
not attach rental hitches or other
bumper-type hitches to it. Use
only a frame-mounted hitch
that does not attach to the
bumper.
Will any holes be made in the
body of the vehicle when the
trailer hitch is installed? If there
are, then be sure to seal the
holes later when the hitch
is removed. If the holes are not
sealed, dirt, water, and deadly
carbon monoxide (CO) from
the exhaust can get into
the vehicle. SeeEngine
Exhaust on page 2-30.
4-28 Driving Your Vehicle
