Page 301 of 420

GMC CANYON 2004  Owners Manual Windshield Washer Fluid
What to Use
When you need windshield washer �uid, be sure to read
the manufacturer’s instructions before use. If you will be
operating your vehicle in an area where the tempe

Page 302 of 420

GMC CANYON 2004  Owners Manual Brakes
Brake Fluid
Your brake master cylinder reservoir is �lled with DOT-3
brake �uid. SeeEngine Compartment Overview on
page 5-12for the location of the reservoir.
There are only two reasons why the

Page 303 of 420

GMC CANYON 2004  Owners Manual Checking Brake Fluid
You can check the brake �uid without taking off the cap.
Just look at the brake �uid
reservoir. The �uid level
should be above MIN.
If it is not have your brake
system checked to

Page 304 of 420

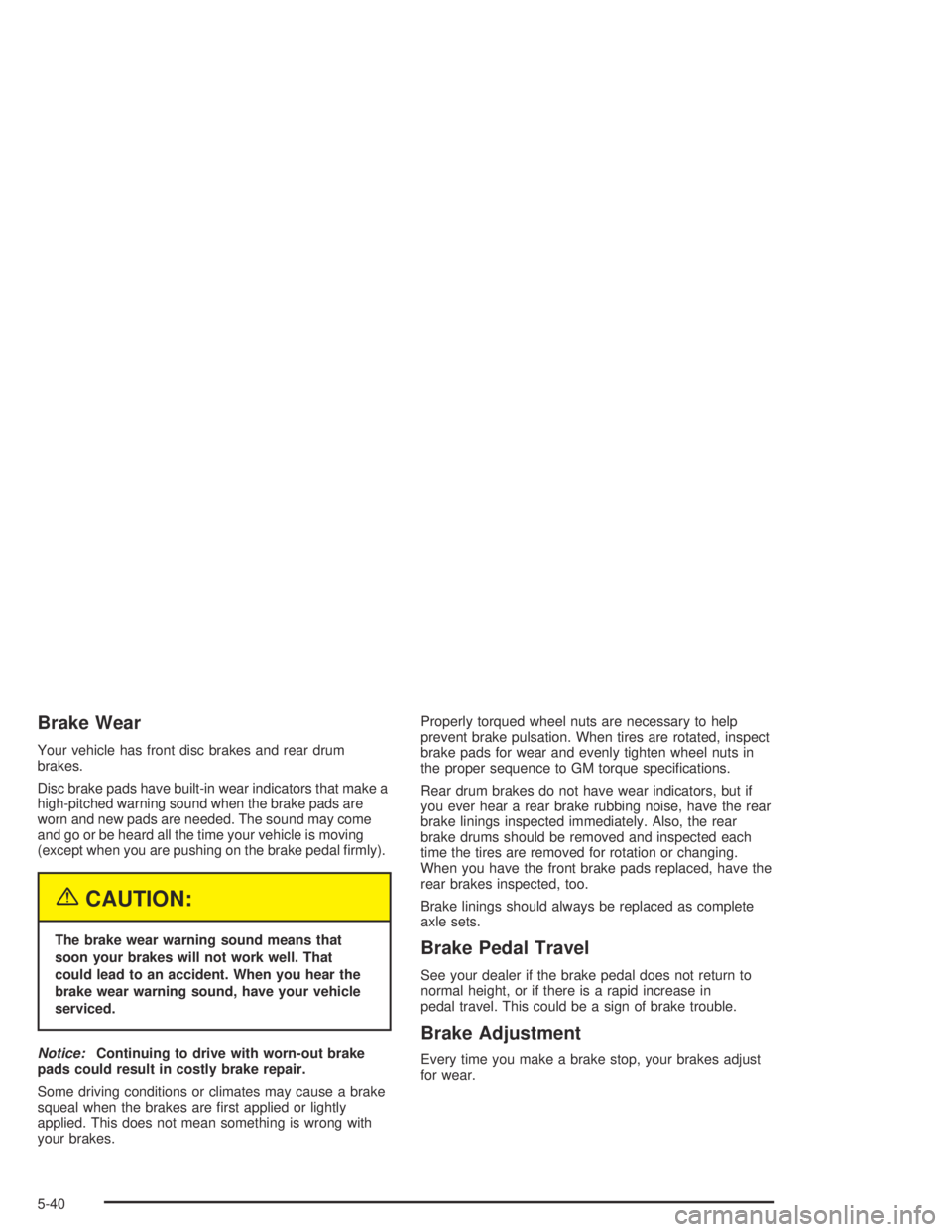

GMC CANYON 2004  Owners Manual Brake Wear
Your vehicle has front disc brakes and rear drum
brakes.
Disc brake pads have built-in wear indicators that make a
high-pitched warning sound when the brake pads are
worn and new pads are n

Page 305 of 420

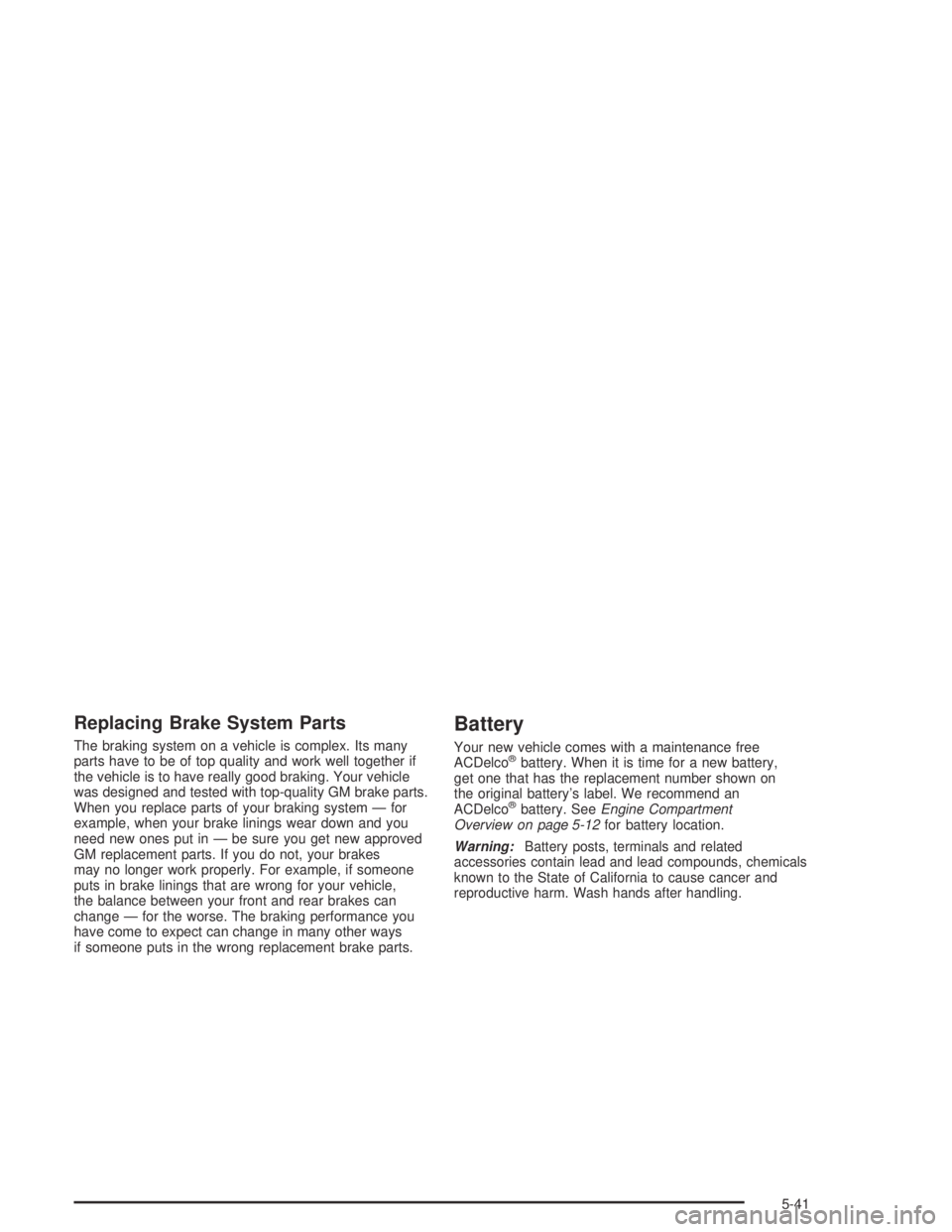

GMC CANYON 2004  Owners Manual Replacing Brake System Parts
The braking system on a vehicle is complex. Its many
parts have to be of top quality and work well together if
the vehicle is to have really good braking. Your vehicle
was

Page 306 of 420

GMC CANYON 2004  Owners Manual Vehicle Storage
If you are not going to drive your vehicle for 25 days
or more, remove the black, negative (−) cable from
the battery. This will help keep your battery from
running down.
{CAUTION:
B

Page 307 of 420

GMC CANYON 2004  Owners Manual 1. Check the other vehicle. It must have a 12-volt
battery with a negative ground system.
Notice:If the other vehicle’s system is not a 12-volt
system with a negative ground, both vehicles can
be da

Page 308 of 420

GMC CANYON 2004  Owners Manual {CAUTION:
Using a match near a battery can cause battery
gas to explode. People have been hurt doing
this, and some have been blinded. Use a
�ashlight if you need more light.
Be sure the batteries hav

Page 309 of 420

GMC CANYON 2004  Owners Manual 6. Connect the red positive (+) cable to the positive (+)
terminal of the dead battery. Use a remote
positive (+) terminal if the vehicle has one.7. Don’t let the other end
touch metal. Connect it
t

Page 310 of 420

GMC CANYON 2004  Owners Manual Don’t let the other end touch anything until the
next step. The other end of the negative (-) cable
doesn’tgo to the dead battery. It goes to a
heavy, unpainted metal engine part, or to a remote
n
