GMC CANYON 2007 Owner's Manual

Oil Pressure Light
{CAUTION:
Do not keep driving if the oil pressure is
low. If you do, your engine can become so
hot that it catches re. You or others could
be burned. Check your oil as soon as
possible and have your vehicle serviced.
Notice:Lack of proper engine oil maintenance
may damage the engine. The repairs would
not be covered by your warranty. Always follow
the maintenance schedule in this manual for
changing engine oil.The light will come on
when you turn your key
to ON or START.
It goes off once you start your engine. That is a
check to be sure the light works. If it does
not come on, be sure to have it xed so it will be
there to warn you if something goes wrong.
When the light comes on and stays on, it means
that oil is not owing through the engine properly.
The vehicle could be low on oil and it might
have some other system problem. SeeEngine Oil
on page 325and “OIL” underDIC Warnings
and Messages on page 198for more information.
191

Security Light
This light will come on
briey when you turn
the key to START. The
light will stay on until
the engine starts.
If the ignition is turned on, and the light ashes,
the Passlock
®system has entered a tamper
mode. If the vehicle fails to start, seePasslock®
on page 114.
If the light comes on continuously while driving
and stays on, there may be a problem with
the Passlock
®system. Your vehicle will not be
protected by Passlock®, and you should see
your dealer.
Also, seeContent Theft-Deterrent on page 112
for additional information regarding the security
light.
Cruise Control Light
This light comes on
whenever you set the
cruise control.
The light goes out when the cruise control is
turned off. SeeCruise Control on page 163for
more information.
Highbeam On Light
This light comes on
whenever the
high-beam headlamps
are on.
SeeHeadlamp High/Low-Beam Changer on
page 161for more information.
192

Daytime Running Lamps (DRL)
Indicator Light
This light turns on
whenever the Daytime
Running Lamps are on.
SeeDaytime Running Lamps (DRL) on page 167
for more information.
Fuel Gage
When the ignition is on,
the fuel gage tells you
about how much
fuel you have remaining
in the fuel tank.Here are four things that some owners ask about.
None of these indicate a problem with your
fuel gage:
At the gas station, the gas pump shuts off
before the gage reads full.
It takes a little more or less fuel to ll up than
the gage indicated. For example, the gage
may have indicated the tank was half full,
but it actually took a little more or less than
half the tank’s capacity to ll the tank.
The gage moves a little when you turn a
corner or speed up.
The gage does not go back to empty when
you turn off the ignition.
When the fuel in the fuel tank is low, you will see
a LOW FUEL message on the Driver Information
Center (DIC) display. SeeDIC Warnings and
Messages on page 198for more information.
193

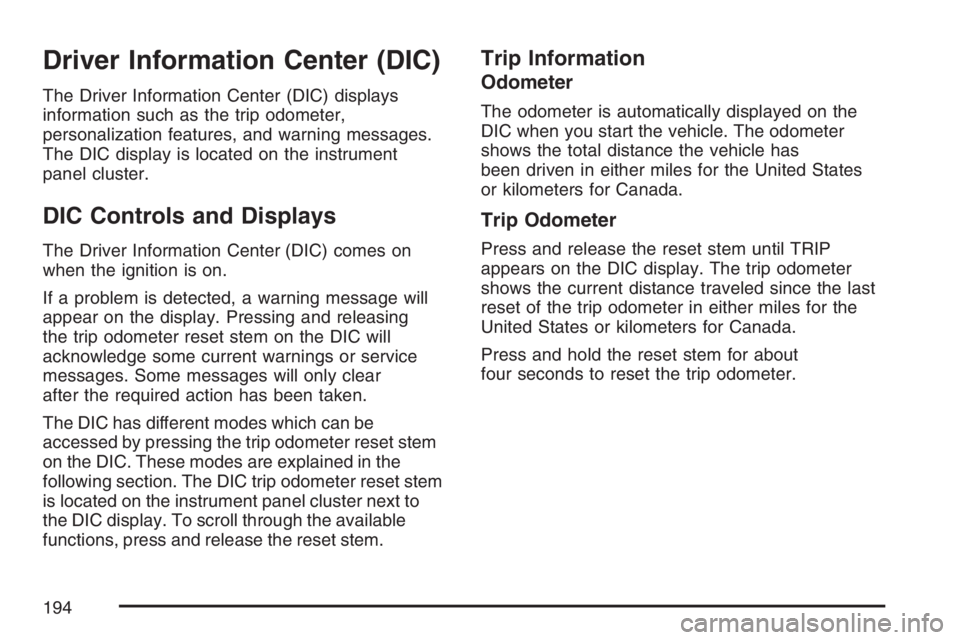

Driver Information Center (DIC)
The Driver Information Center (DIC) displays
information such as the trip odometer,
personalization features, and warning messages.
The DIC display is located on the instrument
panel cluster.
DIC Controls and Displays
The Driver Information Center (DIC) comes on
when the ignition is on.
If a problem is detected, a warning message will
appear on the display. Pressing and releasing
the trip odometer reset stem on the DIC will
acknowledge some current warnings or service
messages. Some messages will only clear
after the required action has been taken.
The DIC has different modes which can be
accessed by pressing the trip odometer reset stem
on the DIC. These modes are explained in the
following section. The DIC trip odometer reset stem
is located on the instrument panel cluster next to
the DIC display. To scroll through the available
functions, press and release the reset stem.
Trip Information
Odometer
The odometer is automatically displayed on the
DIC when you start the vehicle. The odometer
shows the total distance the vehicle has
been driven in either miles for the United States
or kilometers for Canada.
Trip Odometer
Press and release the reset stem until TRIP
appears on the DIC display. The trip odometer
shows the current distance traveled since the last
reset of the trip odometer in either miles for the
United States or kilometers for Canada.
Press and hold the reset stem for about
four seconds to reset the trip odometer.
194

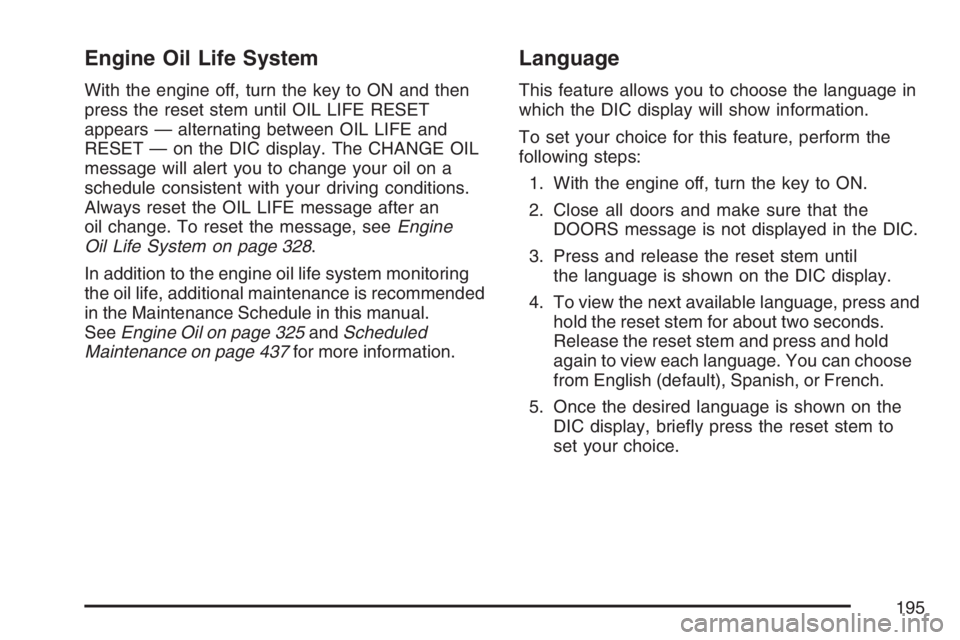

Engine Oil Life System
With the engine off, turn the key to ON and then
press the reset stem until OIL LIFE RESET
appears — alternating between OIL LIFE and
RESET — on the DIC display. The CHANGE OIL
message will alert you to change your oil on a
schedule consistent with your driving conditions.
Always reset the OIL LIFE message after an
oil change. To reset the message, seeEngine
Oil Life System on page 328.
In addition to the engine oil life system monitoring
the oil life, additional maintenance is recommended
in the Maintenance Schedule in this manual.
SeeEngine Oil on page 325andScheduled
Maintenance on page 437for more information.
Language
This feature allows you to choose the language in
which the DIC display will show information.
To set your choice for this feature, perform the
following steps:
1. With the engine off, turn the key to ON.
2. Close all doors and make sure that the
DOORS message is not displayed in the DIC.
3. Press and release the reset stem until
the language is shown on the DIC display.
4. To view the next available language, press and
hold the reset stem for about two seconds.
Release the reset stem and press and hold
again to view each language. You can choose
from English (default), Spanish, or French.
5. Once the desired language is shown on the
DIC display, briey press the reset stem to
set your choice.
195

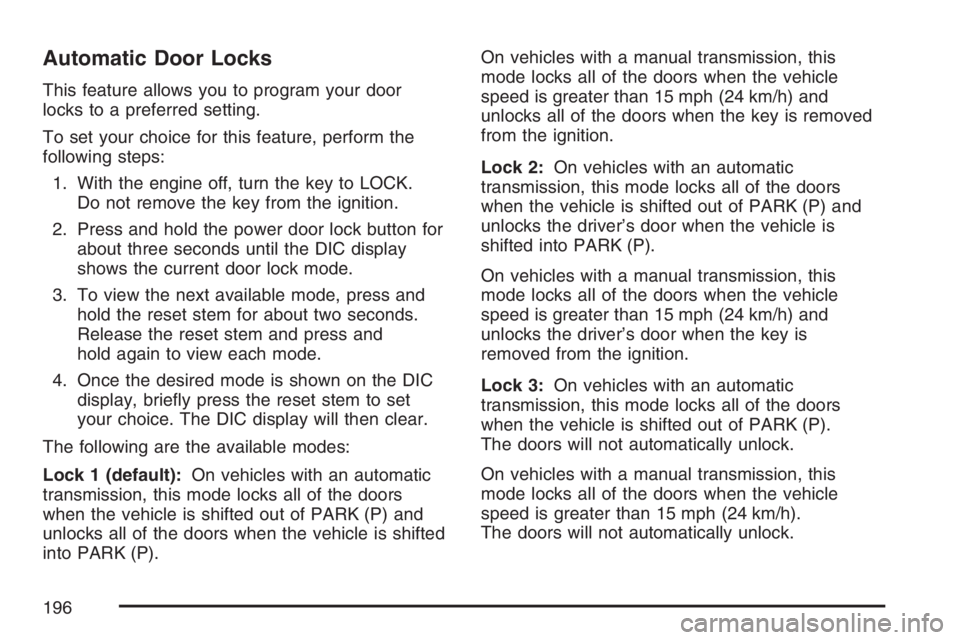

Automatic Door Locks
This feature allows you to program your door
locks to a preferred setting.
To set your choice for this feature, perform the
following steps:
1. With the engine off, turn the key to LOCK.
Do not remove the key from the ignition.
2. Press and hold the power door lock button for
about three seconds until the DIC display
shows the current door lock mode.
3. To view the next available mode, press and
hold the reset stem for about two seconds.
Release the reset stem and press and
hold again to view each mode.
4. Once the desired mode is shown on the DIC
display, briey press the reset stem to set
your choice. The DIC display will then clear.
The following are the available modes:
Lock 1 (default):On vehicles with an automatic
transmission, this mode locks all of the doors
when the vehicle is shifted out of PARK (P) and
unlocks all of the doors when the vehicle is shifted
into PARK (P).On vehicles with a manual transmission, this
mode locks all of the doors when the vehicle
speed is greater than 15 mph (24 km/h) and
unlocks all of the doors when the key is removed
from the ignition.
Lock 2:On vehicles with an automatic
transmission, this mode locks all of the doors
when the vehicle is shifted out of PARK (P) and
unlocks the driver’s door when the vehicle is
shifted into PARK (P).
On vehicles with a manual transmission, this
mode locks all of the doors when the vehicle
speed is greater than 15 mph (24 km/h) and
unlocks the driver’s door when the key is
removed from the ignition.
Lock 3:On vehicles with an automatic
transmission, this mode locks all of the doors
when the vehicle is shifted out of PARK (P).
The doors will not automatically unlock.
On vehicles with a manual transmission, this
mode locks all of the doors when the vehicle
speed is greater than 15 mph (24 km/h).
The doors will not automatically unlock.
196

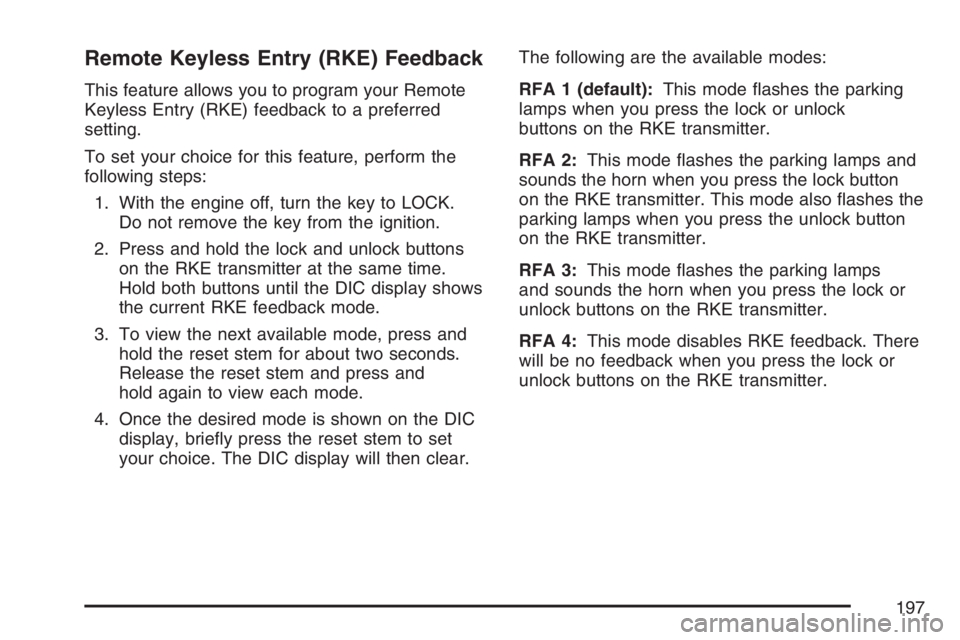

Remote Keyless Entry (RKE) Feedback
This feature allows you to program your Remote
Keyless Entry (RKE) feedback to a preferred
setting.
To set your choice for this feature, perform the
following steps:
1. With the engine off, turn the key to LOCK.
Do not remove the key from the ignition.
2. Press and hold the lock and unlock buttons
on the RKE transmitter at the same time.
Hold both buttons until the DIC display shows
the current RKE feedback mode.
3. To view the next available mode, press and
hold the reset stem for about two seconds.
Release the reset stem and press and
hold again to view each mode.
4. Once the desired mode is shown on the DIC
display, briey press the reset stem to set
your choice. The DIC display will then clear.The following are the available modes:
RFA 1 (default):This mode ashes the parking
lamps when you press the lock or unlock
buttons on the RKE transmitter.
RFA 2:This mode ashes the parking lamps and
sounds the horn when you press the lock button
on the RKE transmitter. This mode also ashes the
parking lamps when you press the unlock button
on the RKE transmitter.
RFA 3:This mode ashes the parking lamps
and sounds the horn when you press the lock or
unlock buttons on the RKE transmitter.
RFA 4:This mode disables RKE feedback. There
will be no feedback when you press the lock or
unlock buttons on the RKE transmitter.
197

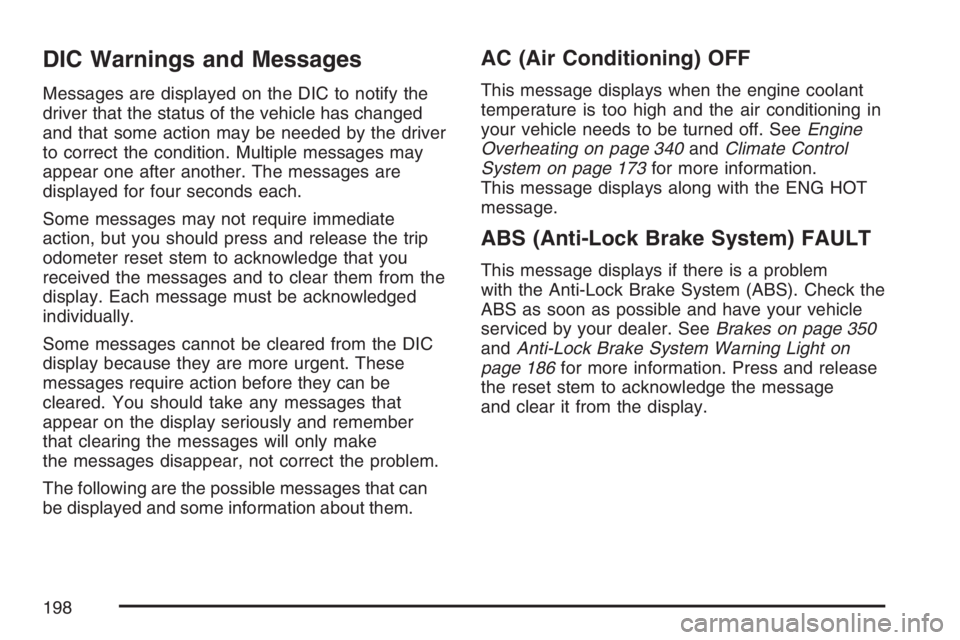

DIC Warnings and Messages
Messages are displayed on the DIC to notify the
driver that the status of the vehicle has changed
and that some action may be needed by the driver
to correct the condition. Multiple messages may
appear one after another. The messages are
displayed for four seconds each.
Some messages may not require immediate
action, but you should press and release the trip
odometer reset stem to acknowledge that you
received the messages and to clear them from the
display. Each message must be acknowledged
individually.
Some messages cannot be cleared from the DIC
display because they are more urgent. These
messages require action before they can be
cleared. You should take any messages that
appear on the display seriously and remember
that clearing the messages will only make
the messages disappear, not correct the problem.
The following are the possible messages that can
be displayed and some information about them.
AC (Air Conditioning) OFF
This message displays when the engine coolant
temperature is too high and the air conditioning in
your vehicle needs to be turned off. SeeEngine
Overheating on page 340andClimate Control
System on page 173for more information.
This message displays along with the ENG HOT
message.
ABS (Anti-Lock Brake System) FAULT
This message displays if there is a problem
with the Anti-Lock Brake System (ABS). Check the
ABS as soon as possible and have your vehicle
serviced by your dealer. SeeBrakes on page 350
andAnti-Lock Brake System Warning Light on
page 186for more information. Press and release
the reset stem to acknowledge the message
and clear it from the display.
198

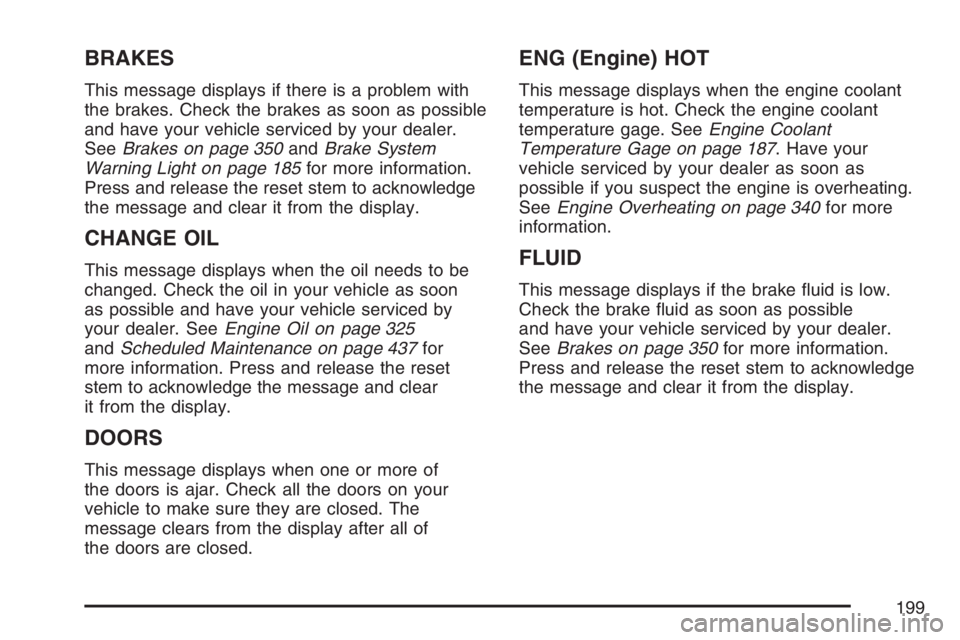

BRAKES
This message displays if there is a problem with
the brakes. Check the brakes as soon as possible
and have your vehicle serviced by your dealer.
SeeBrakes on page 350andBrake System
Warning Light on page 185for more information.
Press and release the reset stem to acknowledge
the message and clear it from the display.
CHANGE OIL
This message displays when the oil needs to be
changed. Check the oil in your vehicle as soon
as possible and have your vehicle serviced by
your dealer. SeeEngine Oil on page 325
andScheduled Maintenance on page 437for
more information. Press and release the reset
stem to acknowledge the message and clear
it from the display.
DOORS
This message displays when one or more of
the doors is ajar. Check all the doors on your
vehicle to make sure they are closed. The
message clears from the display after all of
the doors are closed.
ENG (Engine) HOT
This message displays when the engine coolant
temperature is hot. Check the engine coolant
temperature gage. SeeEngine Coolant
Temperature Gage on page 187. Have your
vehicle serviced by your dealer as soon as
possible if you suspect the engine is overheating.
SeeEngine Overheating on page 340for more
information.
FLUID
This message displays if the brake uid is low.
Check the brake uid as soon as possible
and have your vehicle serviced by your dealer.
SeeBrakes on page 350for more information.
Press and release the reset stem to acknowledge
the message and clear it from the display.
199

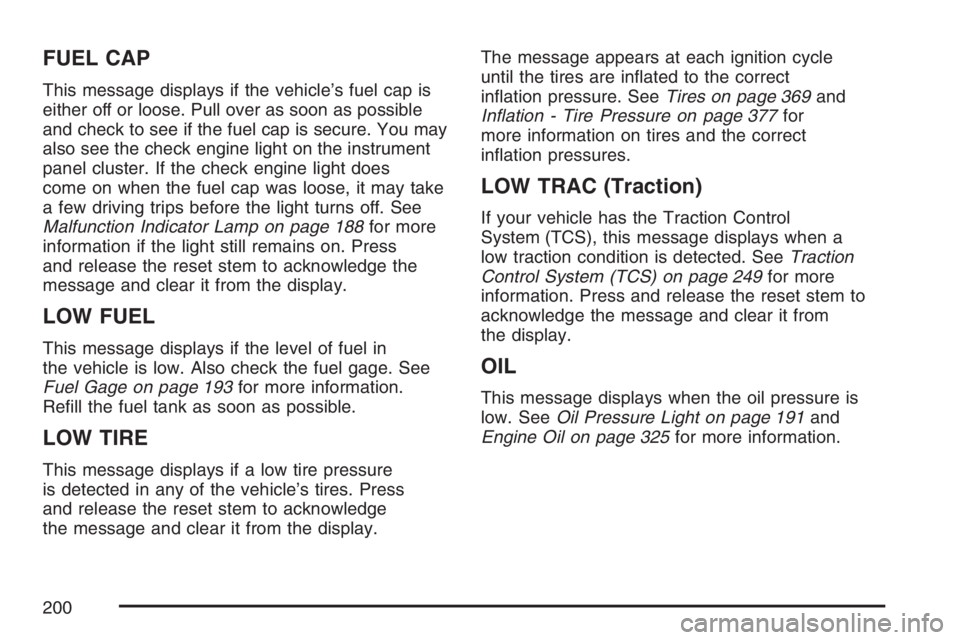

FUEL CAP
This message displays if the vehicle’s fuel cap is
either off or loose. Pull over as soon as possible
and check to see if the fuel cap is secure. You may
also see the check engine light on the instrument
panel cluster. If the check engine light does
come on when the fuel cap was loose, it may take
a few driving trips before the light turns off. See
Malfunction Indicator Lamp on page 188for more
information if the light still remains on. Press
and release the reset stem to acknowledge the
message and clear it from the display.
LOW FUEL
This message displays if the level of fuel in
the vehicle is low. Also check the fuel gage. See
Fuel Gage on page 193for more information.
Rell the fuel tank as soon as possible.
LOW TIRE
This message displays if a low tire pressure
is detected in any of the vehicle’s tires. Press
and release the reset stem to acknowledge
the message and clear it from the display.The message appears at each ignition cycle
until the tires are inated to the correct
ination pressure. SeeTires on page 369and
Ination - Tire Pressure on page 377for
more information on tires and the correct
ination pressures.
LOW TRAC (Traction)
If your vehicle has the Traction Control
System (TCS), this message displays when a
low traction condition is detected. SeeTraction
Control System (TCS) on page 249for more
information. Press and release the reset stem to
acknowledge the message and clear it from
the display.
OIL
This message displays when the oil pressure is
low. SeeOil Pressure Light on page 191and
Engine Oil on page 325for more information.
200
