GMC CANYON 2012 Owner's Guide

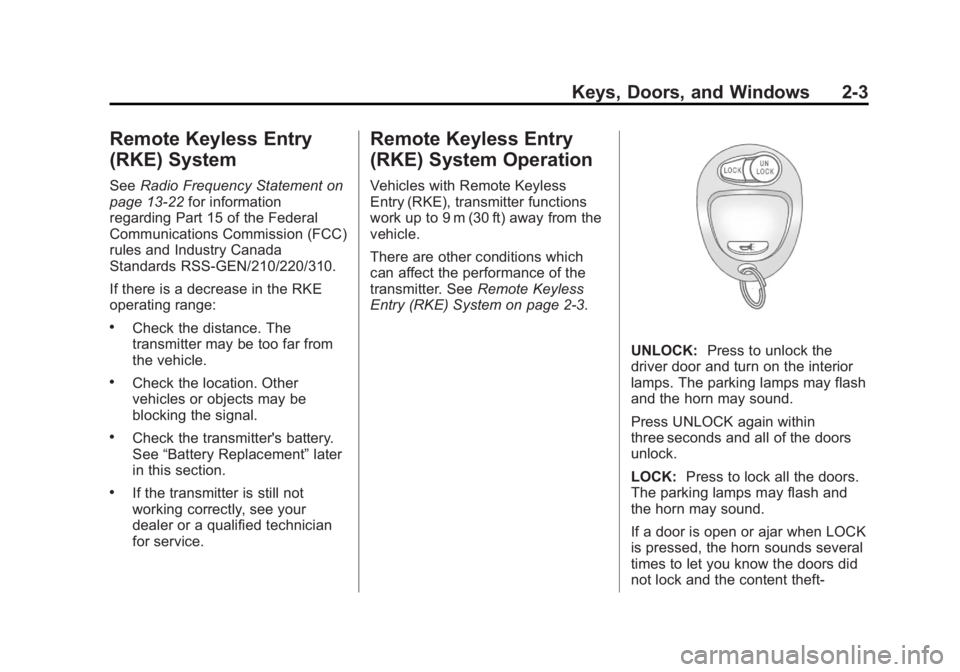

Black plate (3,1)GMC Canyon Owner Manual - 2012
Keys, Doors, and Windows 2-3
Remote Keyless Entry
(RKE) System
SeeRadio Frequency Statement on
page 13‑22 for information
regarding Part 15 of the Federal
Communications Commission (FCC)
rules and Industry Canada
Standards RSS-GEN/210/220/310.
If there is a decrease in the RKE
operating range:
.Check the distance. The
transmitter may be too far from
the vehicle.
.Check the location. Other
vehicles or objects may be
blocking the signal.
.Check the transmitter's battery.
See “Battery Replacement” later
in this section.
.If the transmitter is still not
working correctly, see your
dealer or a qualified technician
for service.
Remote Keyless Entry
(RKE) System Operation
Vehicles with Remote Keyless
Entry (RKE), transmitter functions
work up to 9 m (30 ft) away from the
vehicle.
There are other conditions which
can affect the performance of the
transmitter. See Remote Keyless
Entry (RKE) System on page 2‑3.
UNLOCK: Press to unlock the
driver door and turn on the interior
lamps. The parking lamps may flash
and the horn may sound.
Press UNLOCK again within
three seconds and all of the doors
unlock.
LOCK: Press to lock all the doors.
The parking lamps may flash and
the horn may sound.
If a door is open or ajar when LOCK
is pressed, the horn sounds several
times to let you know the doors did
not lock and the content theft‐

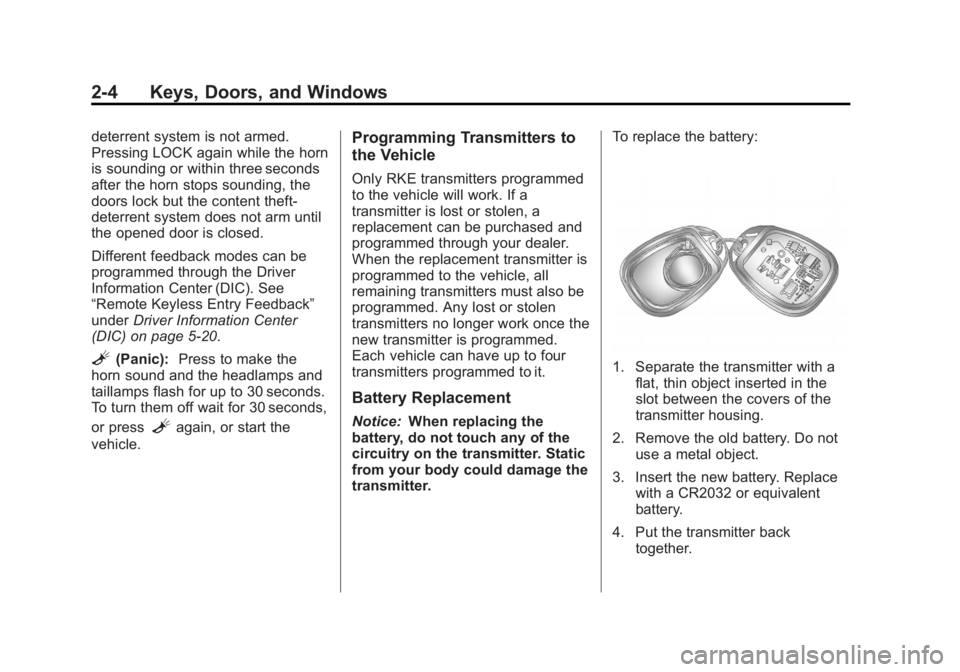

Black plate (4,1)GMC Canyon Owner Manual - 2012
2-4 Keys, Doors, and Windows
deterrent system is not armed.
Pressing LOCK again while the horn
is sounding or within three seconds
after the horn stops sounding, the
doors lock but the content theft‐
deterrent system does not arm until
the opened door is closed.
Different feedback modes can be
programmed through the Driver
Information Center (DIC). See
“Remote Keyless Entry Feedback”
underDriver Information Center
(DIC) on page 5‑20.
L(Panic): Press to make the
horn sound and the headlamps and
taillamps flash for up to 30 seconds.
To turn them off wait for 30 seconds,
or press
Lagain, or start the
vehicle.
Programming Transmitters to
the Vehicle
Only RKE transmitters programmed
to the vehicle will work. If a
transmitter is lost or stolen, a
replacement can be purchased and
programmed through your dealer.
When the replacement transmitter is
programmed to the vehicle, all
remaining transmitters must also be
programmed. Any lost or stolen
transmitters no longer work once the
new transmitter is programmed.
Each vehicle can have up to four
transmitters programmed to it.
Battery Replacement
Notice: When replacing the
battery, do not touch any of the
circuitry on the transmitter. Static
from your body could damage the
transmitter. To replace the battery:
1. Separate the transmitter with a
flat, thin object inserted in the
slot between the covers of the
transmitter housing.
2. Remove the old battery. Do not use a metal object.
3. Insert the new battery. Replace with a CR2032 or equivalent
battery.
4. Put the transmitter back together.

Black plate (5,1)GMC Canyon Owner Manual - 2012
Keys, Doors, and Windows 2-5
Door Locks
{WARNING
Unlocked doors can be
dangerous.
.Passengers, especially
children, can easily open the
doors and fall out of a moving
vehicle. When a door is
locked, the handle will not
open it. The chance of being
thrown out of the vehicle in a
crash is increased if the
doors are not locked. So, all
passengers should wear
safety belts properly and the
doors should be locked
whenever the vehicle is
driven.(Continued)
WARNING (Continued)
.Young children who get into
unlocked vehicles may be
unable to get out. A child can
be overcome by extreme heat
and can suffer permanent
injuries or even death from
heat stroke. Always lock the
vehicle whenever leaving it.
.Outsiders can easily enter
through an unlocked door
when you slow down or stop
the vehicle. Locking the doors
can help prevent this from
happening. To lock or unlock the door from the
outside, use the key in the driver or
front passenger door or press the
LOCK or UNLOCK button on the
Remote Keyless Entry (RKE)
transmitter.
To lock a door from the inside,
move the manual lever on the door
forward. To unlock a door from the
inside, move the lever on the door
rearward.
You will see a colored area on the
lever when the door is unlocked.

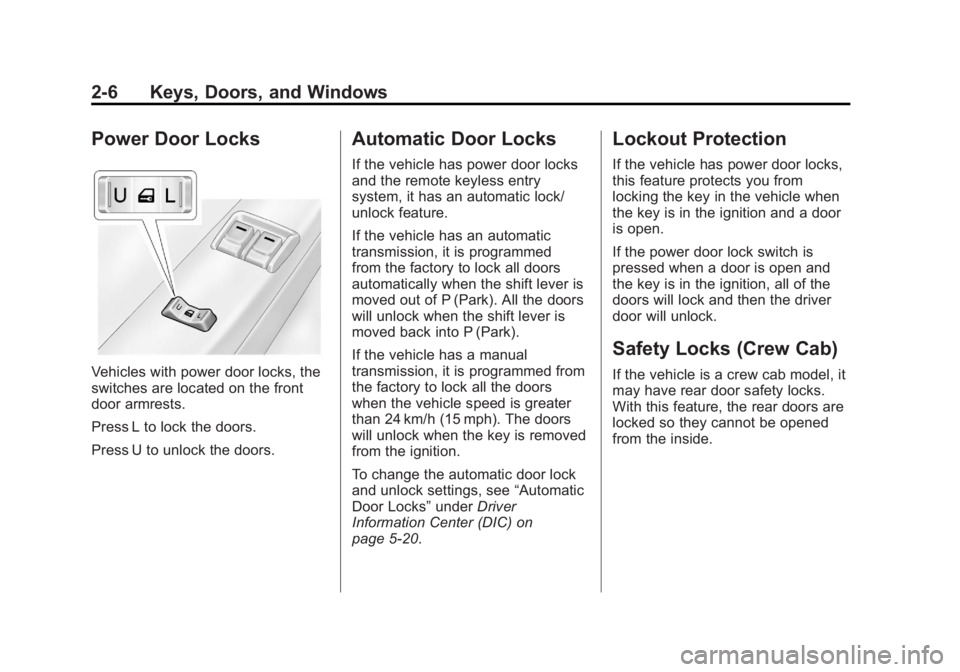

Black plate (6,1)GMC Canyon Owner Manual - 2012
2-6 Keys, Doors, and Windows
Power Door Locks
Vehicles with power door locks, the
switches are located on the front
door armrests.
Press L to lock the doors.
Press U to unlock the doors.
Automatic Door Locks
If the vehicle has power door locks
and the remote keyless entry
system, it has an automatic lock/
unlock feature.
If the vehicle has an automatic
transmission, it is programmed
from the factory to lock all doors
automatically when the shift lever is
moved out of P (Park). All the doors
will unlock when the shift lever is
moved back into P (Park).
If the vehicle has a manual
transmission, it is programmed from
the factory to lock all the doors
when the vehicle speed is greater
than 24 km/h (15 mph). The doors
will unlock when the key is removed
from the ignition.
To change the automatic door lock
and unlock settings, see“Automatic
Door Locks” underDriver
Information Center (DIC) on
page 5‑20.
Lockout Protection
If the vehicle has power door locks,
this feature protects you from
locking the key in the vehicle when
the key is in the ignition and a door
is open.
If the power door lock switch is
pressed when a door is open and
the key is in the ignition, all of the
doors will lock and then the driver
door will unlock.
Safety Locks (Crew Cab)
If the vehicle is a crew cab model, it
may have rear door safety locks.
With this feature, the rear doors are
locked so they cannot be opened
from the inside.

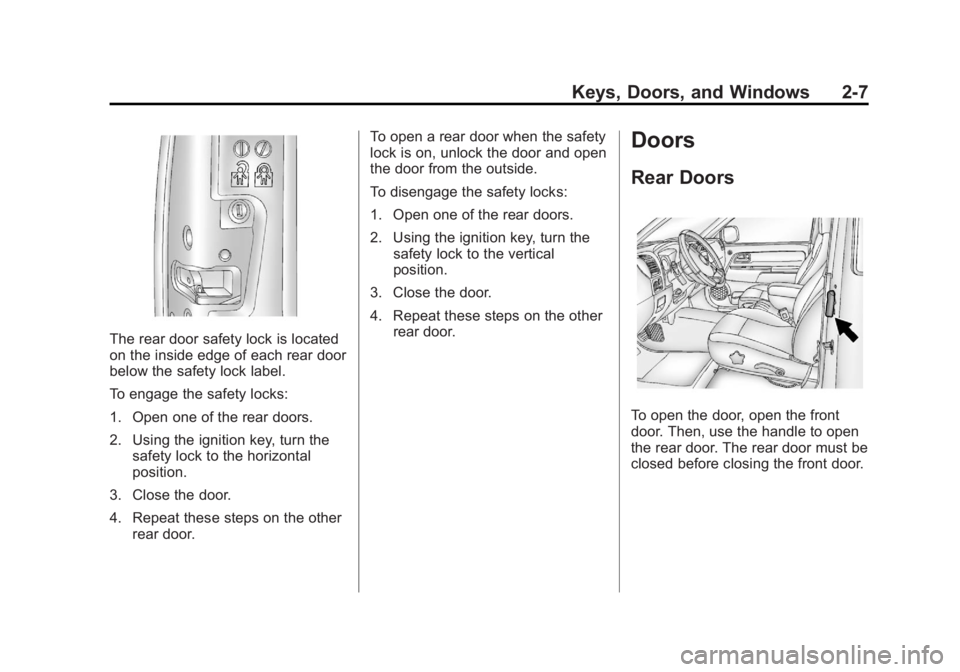

Black plate (7,1)GMC Canyon Owner Manual - 2012
Keys, Doors, and Windows 2-7
The rear door safety lock is located
on the inside edge of each rear door
below the safety lock label.
To engage the safety locks:
1. Open one of the rear doors.
2. Using the ignition key, turn thesafety lock to the horizontal
position.
3. Close the door.
4. Repeat these steps on the other rear door. To open a rear door when the safety
lock is on, unlock the door and open
the door from the outside.
To disengage the safety locks:
1. Open one of the rear doors.
2. Using the ignition key, turn the
safety lock to the vertical
position.
3. Close the door.
4. Repeat these steps on the other rear door.
Doors
Rear Doors
To open the door, open the front
door. Then, use the handle to open
the rear door. The rear door must be
closed before closing the front door.

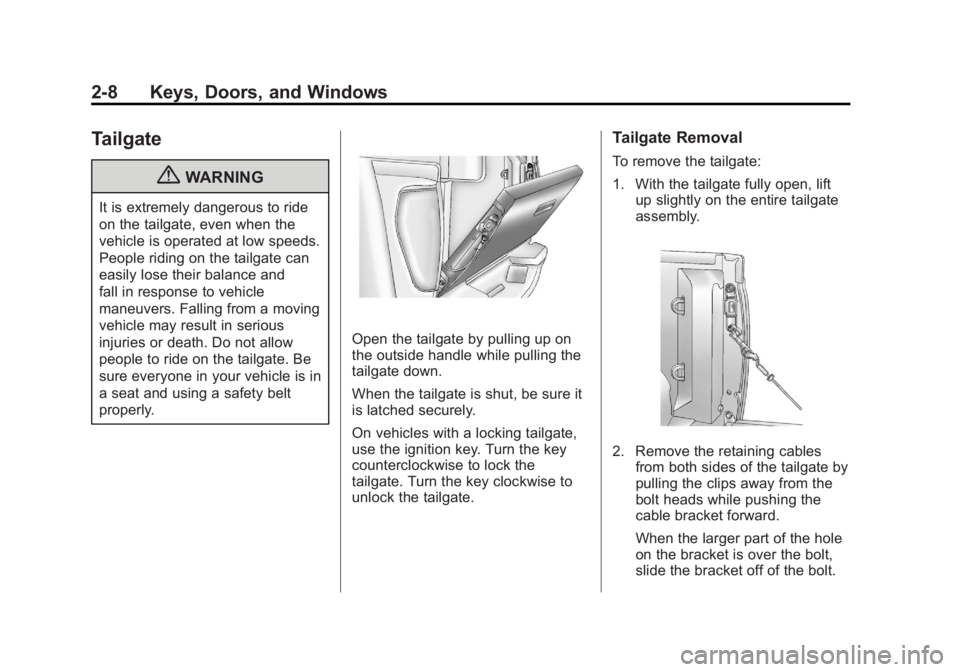

Black plate (8,1)GMC Canyon Owner Manual - 2012
2-8 Keys, Doors, and Windows
Tailgate
{WARNING
It is extremely dangerous to ride
on the tailgate, even when the
vehicle is operated at low speeds.
People riding on the tailgate can
easily lose their balance and
fall in response to vehicle
maneuvers. Falling from a moving
vehicle may result in serious
injuries or death. Do not allow
people to ride on the tailgate. Be
sure everyone in your vehicle is in
a seat and using a safety belt
properly.
Open the tailgate by pulling up on
the outside handle while pulling the
tailgate down.
When the tailgate is shut, be sure it
is latched securely.
On vehicles with a locking tailgate,
use the ignition key. Turn the key
counterclockwise to lock the
tailgate. Turn the key clockwise to
unlock the tailgate.
Tailgate Removal
To remove the tailgate:
1. With the tailgate fully open, liftup slightly on the entire tailgate
assembly.
2. Remove the retaining cables
from both sides of the tailgate by
pulling the clips away from the
bolt heads while pushing the
cable bracket forward.
When the larger part of the hole
on the bracket is over the bolt,
slide the bracket off of the bolt.

Black plate (9,1)GMC Canyon Owner Manual - 2012
Keys, Doors, and Windows 2-9
3. With the tailgate partially down,lift up on the passenger side and
pull the tailgate toward you, then
move the tailgate to the right to
release the driver side. You can
then remove the entire tailgate
assembly.
Reverse the procedure to reinstall
the tailgate. Make sure it is secure.
To partially lower the tailgate:
1. With the tailgate fully open, lift up slightly on the entire tailgate
assembly.
Tailgate Partially Down
2. Remove the retaining cable from the passenger side of the
tailgate by pulling the clip away
from the bolt head while pushing
the cable bracket forward.
When the larger part of the hole
on the bracket is over the bolt,
slide the bracket off the bolt. 3. Slide the lower end fitting onto
the top bolt. The tailgate will now
stay in the partially opened
position.
4. Repeat Steps 2 and 3 for the driver side.
If you would like to close the
tailgate, the bracket cannot be in the
partially opened position. Use the
top position on the bracket to
anchor it on the bottom bolt.

Black plate (10,1)GMC Canyon Owner Manual - 2012
2-10 Keys, Doors, and Windows

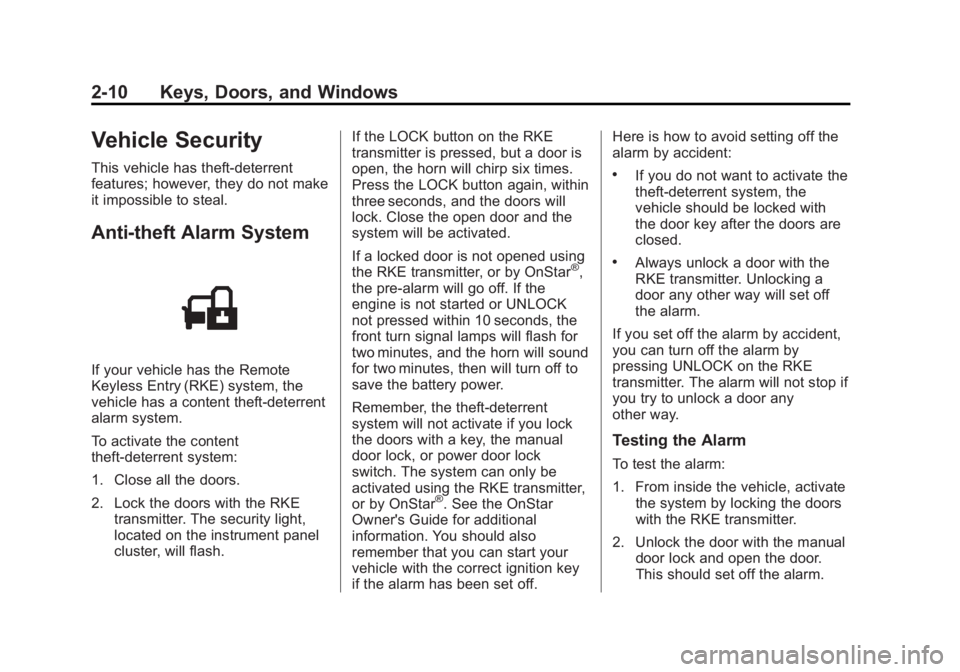

Vehicle Security
This vehicle has theft-deterrent
features; however, they do not make
it impossible to steal.
Anti-theft Alarm System
If your vehicle has the Remote
Keyless Entry (RKE) system, the
vehicle has a content theft-deterrent
alarm system.
To activate the content
theft-deterrent system:
1. Close all the doors.
2. Lock the doors with the RKEtransmitter. The security light,
located on the instrument panel
cluster, will flash. If the LOCK button on the RKE
transmitter is pressed, but a door is
open, the horn will chirp six times.
Press the LOCK button again, within
three seconds, and the doors will
lock. Close the open door and the
system will be activated.
If a locked door is not opened using
the RKE transmitter, or by OnStar
®,
the pre-alarm will go off. If the
engine is not started or UNLOCK
not pressed within 10 seconds, the
front turn signal lamps will flash for
two minutes, and the horn will sound
for two minutes, then will turn off to
save the battery power.
Remember, the theft-deterrent
system will not activate if you lock
the doors with a key, the manual
door lock, or power door lock
switch. The system can only be
activated using the RKE transmitter,
or by OnStar
®. See the OnStar
Owner's Guide for additional
information. You should also
remember that you can start your
vehicle with the correct ignition key
if the alarm has been set off. Here is how to avoid setting off the
alarm by accident:
.If you do not want to activate the
theft-deterrent system, the
vehicle should be locked with
the door key after the doors are
closed.
.Always unlock a door with the
RKE transmitter. Unlocking a
door any other way will set off
the alarm.
If you set off the alarm by accident,
you can turn off the alarm by
pressing UNLOCK on the RKE
transmitter. The alarm will not stop if
you try to unlock a door any
other way.
Testing the Alarm
To test the alarm:
1. From inside the vehicle, activate the system by locking the doors
with the RKE transmitter.
2. Unlock the door with the manual door lock and open the door.
This should set off the alarm.

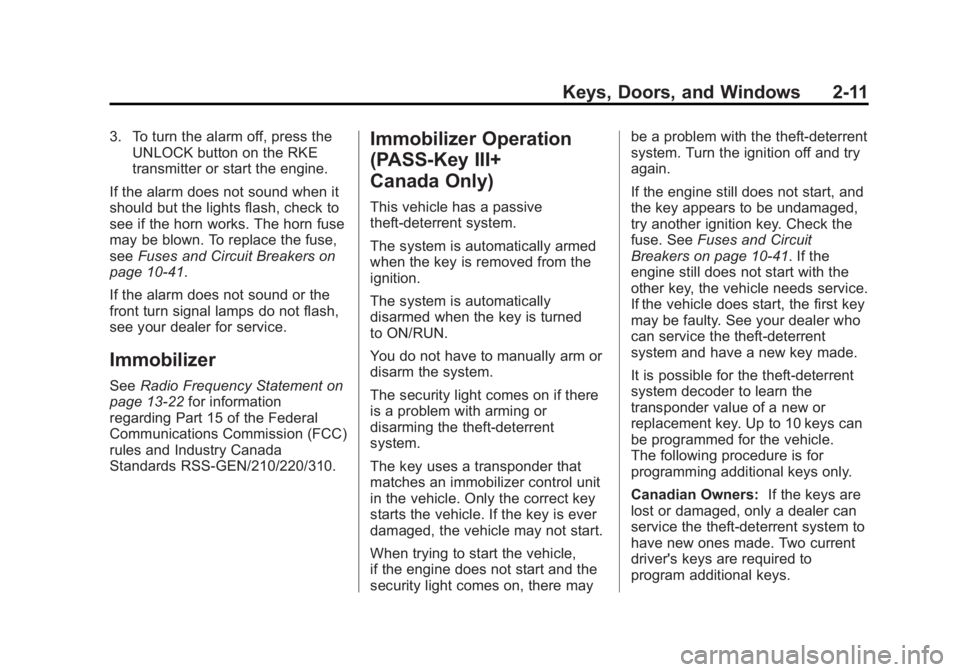

Black plate (11,1)GMC Canyon Owner Manual - 2012
Keys, Doors, and Windows 2-11
3. To turn the alarm off, press theUNLOCK button on the RKE
transmitter or start the engine.
If the alarm does not sound when it
should but the lights flash, check to
see if the horn works. The horn fuse
may be blown. To replace the fuse,
see Fuses and Circuit Breakers on
page 10‑41.
If the alarm does not sound or the
front turn signal lamps do not flash,
see your dealer for service.
Immobilizer
See Radio Frequency Statement on
page 13‑22 for information
regarding Part 15 of the Federal
Communications Commission (FCC)
rules and Industry Canada
Standards RSS-GEN/210/220/310.
Immobilizer Operation
(PASS-Key III+
Canada Only)
This vehicle has a passive
theft-deterrent system.
The system is automatically armed
when the key is removed from the
ignition.
The system is automatically
disarmed when the key is turned
to ON/RUN.
You do not have to manually arm or
disarm the system.
The security light comes on if there
is a problem with arming or
disarming the theft-deterrent
system.
The key uses a transponder that
matches an immobilizer control unit
in the vehicle. Only the correct key
starts the vehicle. If the key is ever
damaged, the vehicle may not start.
When trying to start the vehicle,
if the engine does not start and the
security light comes on, there may be a problem with the theft-deterrent
system. Turn the ignition off and try
again.
If the engine still does not start, and
the key appears to be undamaged,
try another ignition key. Check the
fuse. See
Fuses and Circuit
Breakers on page 10‑41. If the
engine still does not start with the
other key, the vehicle needs service.
If the vehicle does start, the first key
may be faulty. See your dealer who
can service the theft-deterrent
system and have a new key made.
It is possible for the theft-deterrent
system decoder to learn the
transponder value of a new or
replacement key. Up to 10 keys can
be programmed for the vehicle.
The following procedure is for
programming additional keys only.
Canadian Owners: If the keys are
lost or damaged, only a dealer can
service the theft-deterrent system to
have new ones made. Two current
driver's keys are required to
program additional keys.

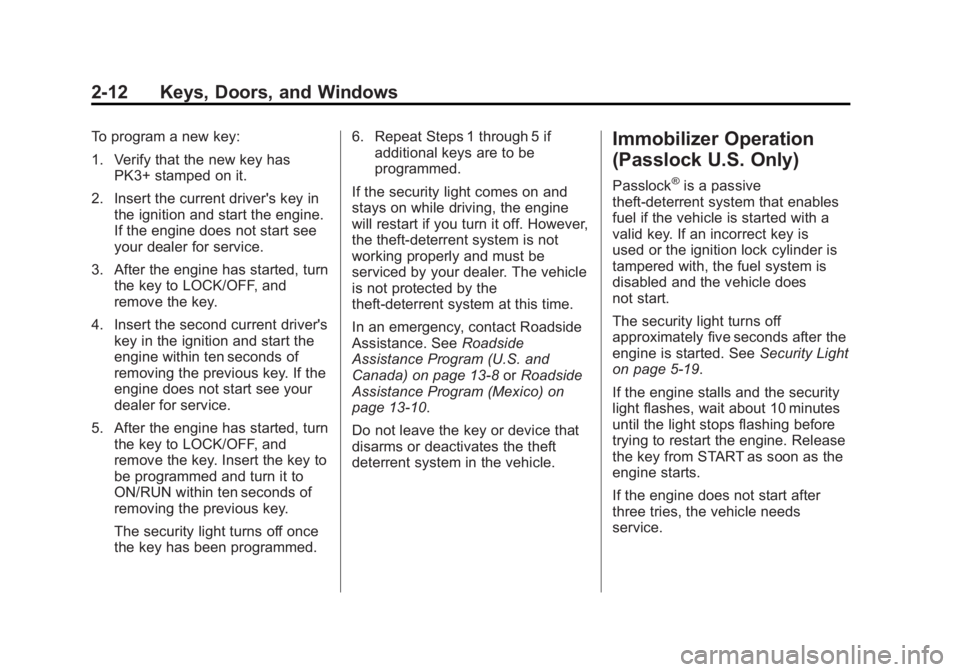

Black plate (12,1)GMC Canyon Owner Manual - 2012
2-12 Keys, Doors, and Windows
To program a new key:
1. Verify that the new key hasPK3+ stamped on it.
2. Insert the current driver's key in the ignition and start the engine.
If the engine does not start see
your dealer for service.
3. After the engine has started, turn the key to LOCK/OFF, and
remove the key.
4. Insert the second current driver's key in the ignition and start the
engine within ten seconds of
removing the previous key. If the
engine does not start see your
dealer for service.
5. After the engine has started, turn the key to LOCK/OFF, and
remove the key. Insert the key to
be programmed and turn it to
ON/RUN within ten seconds of
removing the previous key.
The security light turns off once
the key has been programmed. 6. Repeat Steps 1 through 5 if
additional keys are to be
programmed.
If the security light comes on and
stays on while driving, the engine
will restart if you turn it off. However,
the theft-deterrent system is not
working properly and must be
serviced by your dealer. The vehicle
is not protected by the
theft-deterrent system at this time.
In an emergency, contact Roadside
Assistance. See Roadside
Assistance Program (U.S. and
Canada) on page 13‑8 orRoadside
Assistance Program (Mexico) on
page 13‑10.
Do not leave the key or device that
disarms or deactivates the theft
deterrent system in the vehicle.Immobilizer Operation
(Passlock U.S. Only)
Passlock®is a passive
theft-deterrent system that enables
fuel if the vehicle is started with a
valid key. If an incorrect key is
used or the ignition lock cylinder is
tampered with, the fuel system is
disabled and the vehicle does
not start.
The security light turns off
approximately five seconds after the
engine is started. See Security Light
on page 5‑19.
If the engine stalls and the security
light flashes, wait about 10 minutes
until the light stops flashing before
trying to restart the engine. Release
the key from START as soon as the
engine starts.
If the engine does not start after
three tries, the vehicle needs
service.
