GMC ENVOY 2009 Owner's Manual

A. Selector Switch
(Sealant/Air or
Air Only)
B. On/Off Button
C. Pressure Gage
D. Pressure Deation
Button (If equipped)E. Tire Sealant Canister
F. Sealant/Air Hose
(Clear)
G. Air Only Hose
(Black)
H. Power Plug
Tire Sealant
Read and follow the safe handling instructions on the
label adhered to the sealant canister.
Check the tire sealant expiration date on the sealant
canister. The sealant canister should be replaced before
its expiration date. Replacement sealant canisters are
available at your local dealer/retailer. See “Removal and
Installation of the Sealant Canister” following.
There is only enough sealant to seal one tire. After
usage, the sealant canister and sealant/air hose
assembly must be replaced. See “Removal and
Installation of the Sealant Canister” following.
5-79

Using the Tire Sealant and Compressor
Kit to Temporarily Seal and Inate a
Punctured Tire
Follow the directions closely for correct sealant usage.
When using the tire sealant and compressor kit during
cold temperatures, warm the kit in a heated environment
for 5 minutes. This will help to inate the tire faster.
Always do a safety check rst. SeeIf a Tire Goes Flat
on page 5-76. Do not remove any objects that have
penetrated the tire.
1. Remove the tire sealant and compressor kit from its
storage location. SeeTire Sealant and Compressor
Kit Storage on page 5-87.
2. Unwrap the sealant/air hose (F) and the power
plug (H).
5-80

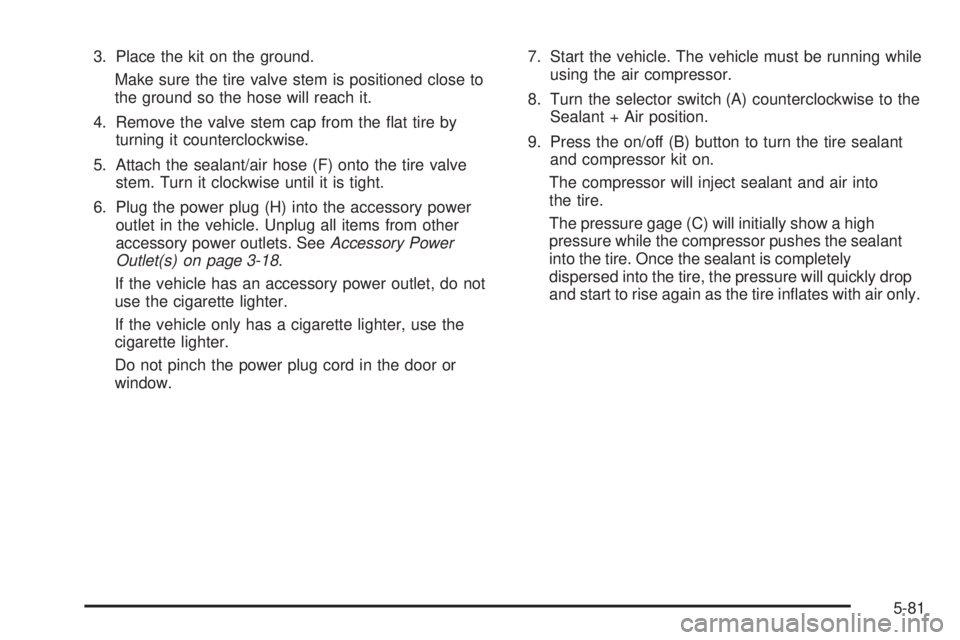

3. Place the kit on the ground.
Make sure the tire valve stem is positioned close to
the ground so the hose will reach it.
4. Remove the valve stem cap from the at tire by
turning it counterclockwise.
5. Attach the sealant/air hose (F) onto the tire valve
stem. Turn it clockwise until it is tight.
6. Plug the power plug (H) into the accessory power
outlet in the vehicle. Unplug all items from other
accessory power outlets. SeeAccessory Power
Outlet(s) on page 3-18.
If the vehicle has an accessory power outlet, do not
use the cigarette lighter.
If the vehicle only has a cigarette lighter, use the
cigarette lighter.
Do not pinch the power plug cord in the door or
window.7. Start the vehicle. The vehicle must be running while
using the air compressor.
8. Turn the selector switch (A) counterclockwise to the
Sealant + Air position.
9. Press the on/off (B) button to turn the tire sealant
and compressor kit on.
The compressor will inject sealant and air into
the tire.
The pressure gage (C) will initially show a high
pressure while the compressor pushes the sealant
into the tire. Once the sealant is completely
dispersed into the tire, the pressure will quickly drop
and start to rise again as the tire inates with air only.
5-81

10. Inate the tire to the recommended ination pressure
using the pressure gage (C). The recommended
ination pressure can be found on the Tire and
Loading Information label. SeeInflation - Tire
Pressure on page 5-60.
The pressure gage (C) may read higher than the
actual tire pressure while the compressor is on.
Turn the compressor off to get an accurate pressure
reading. The compressor may be turned on/off
until the correct pressure is reached.
Notice:If the recommended pressure cannot be
reached after approximately 25 minutes, the vehicle
should not be driven farther. The tire is too severely
damaged and the tire sealant and compressor kit
cannot inate the tire. Remove the power plug from
the accessory power outlet and unscrew the inating
hose from the tire valve. SeeRoadside Assistance
Program on page 7-7.
11. Press the on/off button (B) to turn the tire sealant
and compressor kit off.
The tire is not sealed and will continue to leak air
until the vehicle is driven and the sealant is
distributed in the tire, therefore, Steps 12 through
18 must be done immediately after Step 11.
Be careful while handling the tire sealant and
compressor kit as it could be warm after usage.12. Unplug the power plug (H) from the accessory
power outlet in the vehicle.
13. Turn the sealant/air hose (F) counterclockwise to
remove it from the tire valve stem.
14. Replace the tire valve stem cap.
15. Replace the sealant/air hose (F), and the power
plug (H) back in their original location.
16. If the at tire was
able to inate to the
recommended ination
pressure, remove the
maximum speed label
from the sealant
canister (E) and place
it in a highly visible
location.
The label is a reminder not to exceed 55 mph
(90 km/h) until the damaged tire is repaired
or replaced.
17. Return the equipment to its original storage location
in the vehicle.
18. Immediately drive the vehicle 5 miles (8 km) to
distribute the sealant in the tire.
5-82

19. Stop at a safe location and check the tire pressure.
Refer to Steps 1 through 11 under “Using the Tire
Sealant and Compressor Kit without Sealant to
Inate a Tire (Not Punctured).”
If the tire pressure has fallen more than 10 psi
(68 kPa) below the recommended ination pressure,
stop driving the vehicle. The tire is too severely
damaged and the tire sealant cannot seal the tire.
SeeRoadside Assistance Program on page 7-7.
If the tire pressure has not dropped more than
10 psi (68 kPa) from the recommended ination
pressure, inate the tire to the recommended
ination pressure.
20. Wipe off any sealant from the wheel, tire, and
vehicle.
21. Dispose of the used sealant canister (E) and sealant/
air hose (F) assembly at a local dealer/retailer or in
accordance with local state codes and practices.
22. Replace it with a new canister available from your
dealer/retailer.
23. After temporarily sealing a tire using the tire sealant
and compressor kit, take the vehicle to an authorized
dealer/retailer within a 100 miles (161 km) of driving
to have the tire repaired or replaced.Using the Tire Sealant and Compressor
Kit without Sealant to Inate a Tire
(Not Punctured)
To use the air compressor to inate a tire with air only
and not sealant:
5-83

Always do a safety check rst. SeeIf a Tire Goes Flat
on page 5-76.
1. Remove the tire sealant and compressor kit from its
storage location. SeeTire Sealant and Compressor
Kit Storage on page 5-87.
2. Unwrap the air only hose (G) and the power
plug (H).3. Place the kit on the ground.
Make sure the tire valve stem is positioned close to
the ground so the hose will reach it.
4. Remove the tire valve stem cap from the at tire by
turning it counterclockwise.
5. Attach the air only hose (G) onto the tire valve stem
by turning it clockwise until it is tight.
6. Plug the power plug (H) into the accessory power
outlet in the vehicle. Unplug all items from other
accessory power outlets. SeeAccessory Power
Outlet(s) on page 3-18.
If the vehicle has an accessory power outlet, do not
use the cigarette lighter.
If the vehicle only has a cigarette lighter, use the
cigarette lighter.
Do not pinch the power plug cord in the door or
window.
5-84

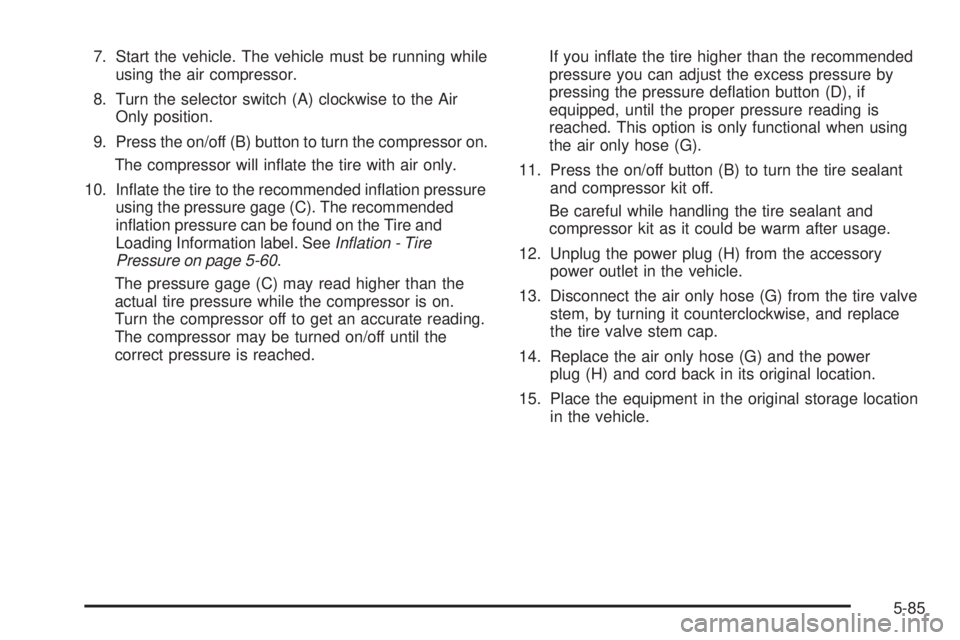

7. Start the vehicle. The vehicle must be running while
using the air compressor.
8. Turn the selector switch (A) clockwise to the Air
Only position.
9. Press the on/off (B) button to turn the compressor on.
The compressor will inate the tire with air only.
10. Inate the tire to the recommended ination pressure
using the pressure gage (C). The recommended
ination pressure can be found on the Tire and
Loading Information label. SeeInflation - Tire
Pressure on page 5-60.
The pressure gage (C) may read higher than the
actual tire pressure while the compressor is on.
Turn the compressor off to get an accurate reading.
The compressor may be turned on/off until the
correct pressure is reached.If you inate the tire higher than the recommended
pressure you can adjust the excess pressure by
pressing the pressure deation button (D), if
equipped, until the proper pressure reading is
reached. This option is only functional when using
the air only hose (G).
11. Press the on/off button (B) to turn the tire sealant
and compressor kit off.
Be careful while handling the tire sealant and
compressor kit as it could be warm after usage.
12. Unplug the power plug (H) from the accessory
power outlet in the vehicle.
13. Disconnect the air only hose (G) from the tire valve
stem, by turning it counterclockwise, and replace
the tire valve stem cap.
14. Replace the air only hose (G) and the power
plug (H) and cord back in its original location.
15. Place the equipment in the original storage location
in the vehicle.
5-85

The tire sealant and compressor kit has an accessory
adapter located in a compartment on the bottom of
its housing that may be used to inate air mattresses,
balls, etc.
Removal and Installation of the Sealant
Canister
To remove the sealant canister:
1. Unwrap the sealant hose.
2. Press the canister release button.
3. Pull up and remove the canister.
4. Replace with a new canister which is available from
your dealer/retailer.
5. Push the new canister into place.
Without Pressure
Deation ButtonWith Pressure Deation
Button
5-86

Tire Sealant and Compressor Kit
Storage
The tire sealant and compressor kit is located in the
oor storage compartment at the rear of the vehicle.
1. Open the liftgate. SeeLiftgate/Liftglass on
page 2-12.
2. Open the rear oor storage lid. SeeRear Floor
Storage Cover on page 2-53.
The tire sealant and compressor kit is attached to
the oor with two straps.3. Remove the straps.
4. Remove the tire sealant and compressor kit from
the storage compartment.
5. Remove tire sealant and compressor kit from the
storage bag.
5-87

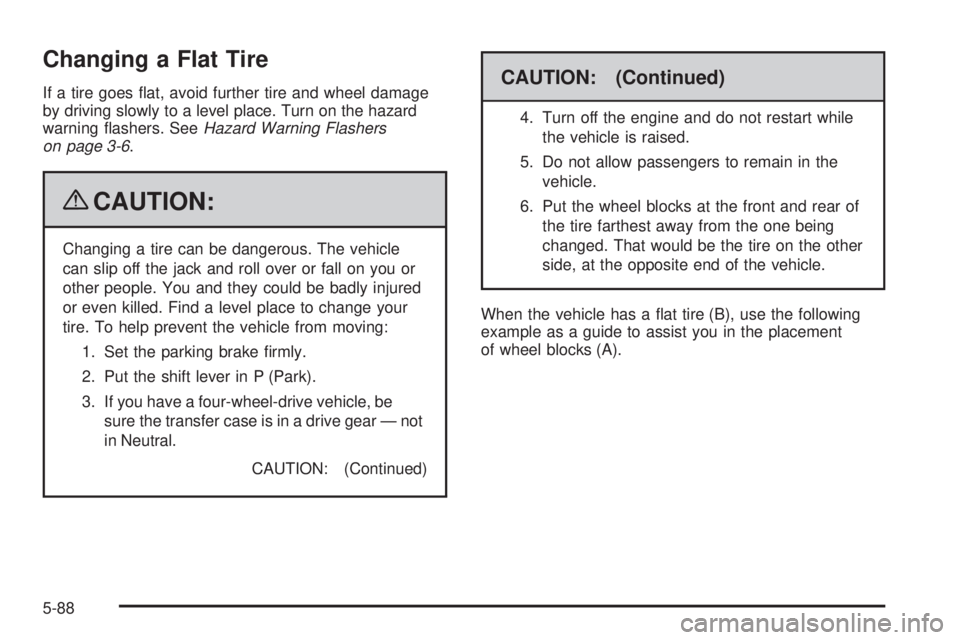

Changing a Flat Tire
If a tire goes at, avoid further tire and wheel damage
by driving slowly to a level place. Turn on the hazard
warning ashers. SeeHazard Warning Flashers
on page 3-6.
{CAUTION:
Changing a tire can be dangerous. The vehicle
can slip off the jack and roll over or fall on you or
other people. You and they could be badly injured
or even killed. Find a level place to change your
tire. To help prevent the vehicle from moving:
1. Set the parking brake rmly.
2. Put the shift lever in P (Park).
3. If you have a four-wheel-drive vehicle, be
sure the transfer case is in a drive gear — not
in Neutral.
CAUTION: (Continued)
CAUTION: (Continued)
4. Turn off the engine and do not restart while
the vehicle is raised.
5. Do not allow passengers to remain in the
vehicle.
6. Put the wheel blocks at the front and rear of
the tire farthest away from the one being
changed. That would be the tire on the other
side, at the opposite end of the vehicle.
When the vehicle has a at tire (B), use the following
example as a guide to assist you in the placement
of wheel blocks (A).
5-88
