rear window GMC ENVOY XUV 2004 Owner's Guide

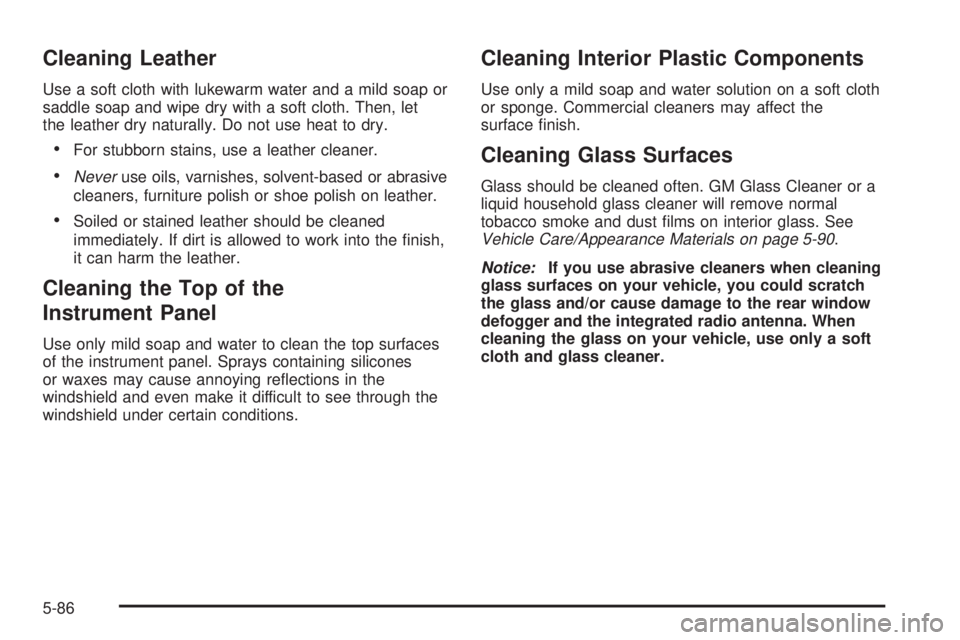

Cleaning Leather
Use a soft cloth with lukewarm water and a mild soap or
saddle soap and wipe dry with a soft cloth. Then, let
the leather dry naturally. Do not use heat to dry.
·For stubborn stains, use a leather cleaner.
·Neveruse oils, varnishes, solvent-based or abrasive
cleaners, furniture polish or shoe polish on leather.
·Soiled or stained leather should be cleaned
immediately. If dirt is allowed to work into the ®nish,
it can harm the leather.
Cleaning the Top of the
Instrument Panel
Use only mild soap and water to clean the top surfaces
of the instrument panel. Sprays containing silicones
or waxes may cause annoying re¯ections in the
windshield and even make it difficult to see through the
windshield under certain conditions.
Cleaning Interior Plastic Components
Use only a mild soap and water solution on a soft cloth
or sponge. Commercial cleaners may affect the
surface ®nish.
Cleaning Glass Surfaces
Glass should be cleaned often. GM Glass Cleaner or a
liquid household glass cleaner will remove normal
tobacco smoke and dust ®lms on interior glass. See
Vehicle Care/Appearance Materials on page 5-90.
Notice:If you use abrasive cleaners when cleaning
glass surfaces on your vehicle, you could scratch
the glass and/or cause damage to the rear window
defogger and the integrated radio antenna. When
cleaning the glass on your vehicle, use only a soft
cloth and glass cleaner.
5-86

Fuses Usage
8 Automatic Transfer Case
9 Windshield Wipers
10 Powertrain Control Module B
11 Fog Lamps
12 Stop Lamp
13 Cigarette Lighter
14 Ignition Coils
15 Blank
16 TBD-Ignition 1
17 Crank
18 Air Bag
19 Electric Brake
20 Cooling Fan
21 Horn
22 Ignition E
23 Electronic Throttle Control
24Instrument Panel Cluster, Driver
Information Center
25 Automatic Shift Lock Control System
26 Engine 1
27 Back-Up
28 Powertrain Control Module 1
29 Oxygen Sensor
30 Air Conditioning
31 Truck Body Controller
32 Trailer
33 Anti-Lock Brakes (ABS)Fuses Usage
34 Ignition A
35 Blower Motor
36 Ignition B
50 Passenger's Side Trailer Turn
51 Driver's Side Trailer Turn
52 Hazard Flashers
53 Electric Adjustable Pedal
54 A.I.R. Solenoid
56 A.I.R. Pump
Relays Usage
37 Blank
38 Rear Window Washer
39 Fog Lamps
40 Horn
41 Fuel Pump
42 Windshield Wipers/Washer
43 High-Beam Headlamp
44 Air Conditioning
45 Cooling Fan
46 Headlamp Driver Module
47 Starter
49 Electric Adjustable Pedal
55 A.I.R. Solenoid
Miscellaneous Usage
48 Instrument Panel Battery
49 Blank
5-95

Fuses Usage
57 Electric Adjustable Pedal
Relays Usage
37 Headlamp Washer
38 Rear Window Washer
39 Fog Lamps
40 Horn
41 Fuel Pump
42 Windshield Wipers/Washer
43 High-Beam Headlamp
44 Air Conditioning
45 Cooling Fan
46 Headlamp Driver Module
47 Starter
49 Electric Adjustable Pedal
58 Ignition 1
Miscellaneous Usage
48 Instrument Panel BatteryRear Underseat Fuse Block
5-98

Driving (cont.)
Freeway.....................................................4-34
Hill and Mountain Roads..............................4-37
In Rain and on Wet Roads...........................4-30
Winter........................................................4-39
Driving Across an Incline..................................4-24
Driving Downhill..............................................4-23
Driving in Mud, Sand, Snow or Ice....................4-26
Driving in Water..............................................4-27
Driving On Grades..........................................4-64
Driving on Off-Road Hills.................................4-19
Driving on Snow or Ice....................................4-40
Driving Through Deep Standing Water...............4-32
Driving Through Flowing Water.........................4-32
Driving Uphill..................................................4-20
Driving with a Trailer.......................................4-62
Dual Automatic Climate Control System.............3-23
Dual Climate Control System............................3-20
DVD
Cleaning the Video Screen..........................3-121
Distortion..................................................3-118
Rear Seat Entertainment System..................3-104
DVD Player..................................................3-104
E
Electrical System
Add-On Equipment......................................5-92
Fuses and Circuit Breakers...........................5-93
Headlamps.................................................5-92Electrical System (cont.)
Power Windows and Other Power Options......5-92
Windshield Wiper Fuses...............................5-92
Electronically Controlled Air Suspension System....4-55
Emissions Inspection and Maintenance
Programs...................................................3-40
Engine
Air Cleaner/Filter.........................................5-20
Battery.......................................................5-40
Change Engine Oil Light...............................3-42
Check and Service Engine Soon Light............3-38
Coolant......................................................5-23
Coolant Heater............................................2-28
Coolant Temperature Gage...........................3-37
Drive Belt Routing.......................................6-16
Engine Compartment Overview......................5-12
Exhaust.....................................................2-39
Fan Noise..................................................5-34
Oil .............................................................5-15
Overheating................................................5-26
Reduced Power Light...................................3-43
Starting......................................................2-26
Engine Compartment Fuse Block......................5-93
ENGINE COOLANT HOT/ ENGINE
OVERHEATED............................................3-56
Engine Oil Additives........................................5-18
Entertainment System
Cleaning the Video Screen..........................3-121
DVD Distortion..........................................3-118
Entry Lighting.................................................3-17
5

Power (cont.)
Roof..........................................................2-17
Seat............................................................ 1-3
Steering Fluid.............................................5-35
Windows....................................................2-20
Power Steering...............................................4-10
Programmable Automatic Door Locks.................. 2-9
Programmable Locking Feature.......................... 2-9
Programmable Unlocking Feature......................2-10
Programming the HomeLink
žTransmitter...........2-47
Q
Questions and Answers About Safety Belts.........1-12
R
Radiator Pressure Cap....................................5-26
Radio Data System (RDS)...............3-62, 3-74, 3-89
Radio Messages.....................................3-68, 3-80
Radios..........................................................3-61
Care of Your Cassette Tape Player...............3-119
Care of Your CD and DVD Player................3-121
Care of Your CDs and DVDs.......................3-120
Navigation/Radio System.............................3-104
Radio Personalization.................................3-117
Radio with Cassette and CD.........................3-74
Radio with CD............................................3-62
Radio with Six-Disc CD................................3-89Radios (cont.)
Rear Seat Audio........................................3-116
Setting the Time..........................................3-61
Theft-Deterrent..........................................3-117
Understanding Reception............................3-119
RainsenseŸ Wipers.......................................... 3-9
RDS Messages..............................3-67, 3-79, 3-95
Reading Lamps..............................................3-18
Rear Axle......................................................5-46
Locking......................................................4-10
Rear Cargo Mat.............................................2-53
Rear Climate Control System............................3-28
Rear Door Security Locks................................2-11
Rear Safety Belt Comfort Guides......................1-24
Rear Seat Audio (RSA)..................................3-116
Rear Seat Entertainment System.....................3-104
Rear Seat Operation......................................... 1-7
Rear Seat Passenger Positions.........................1-21
Rear Seat Passengers, Safety Belts..................1-21
Rear Underseat Fuse Block..............................5-98
Rear Window Defogger............................3-22, 3-26
REAR WIPER OBSTRUCTION.........................3-60
Rearview Mirror, Automatic Dimming with
OnStar
žand Compass.................................2-41
Reclining Seatbacks.......................................... 1-5
Recommended Fluids and Lubricants.................6-13
Recreational Vehicle Towing.............................4-45
Reduced Engine Power Light............................3-43
Remote Control.............................................3-108
Remote Keyless Entry System............................ 2-4
11
